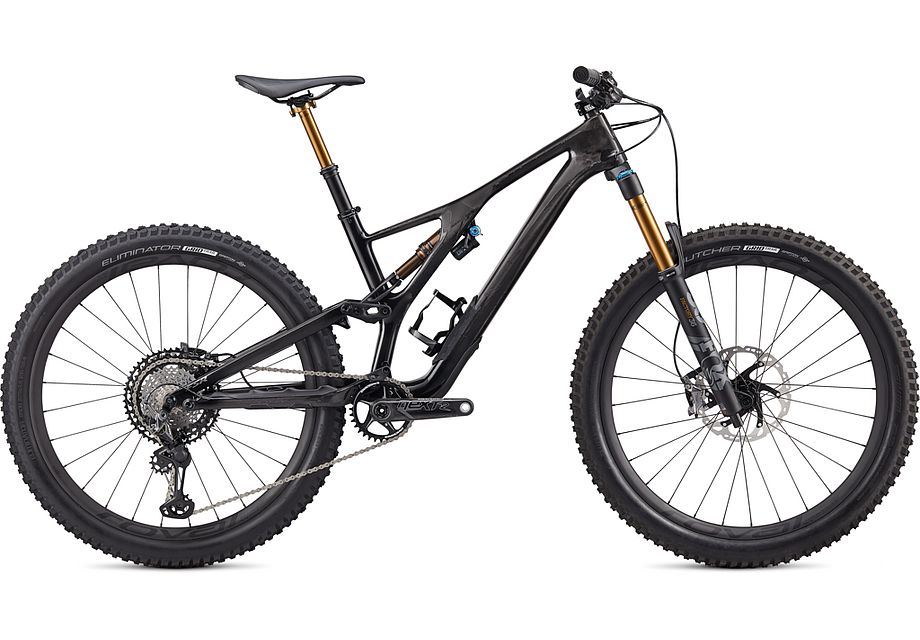

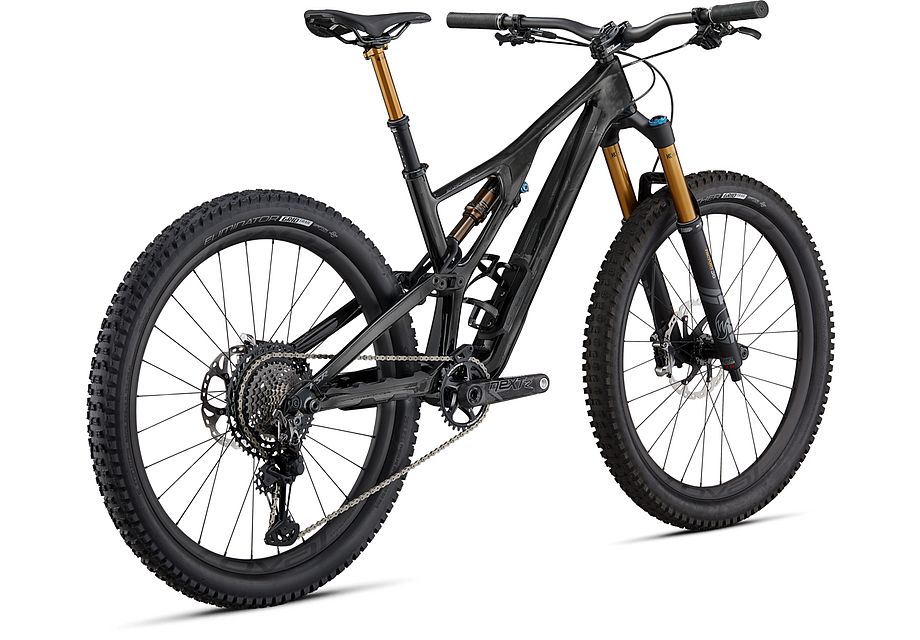

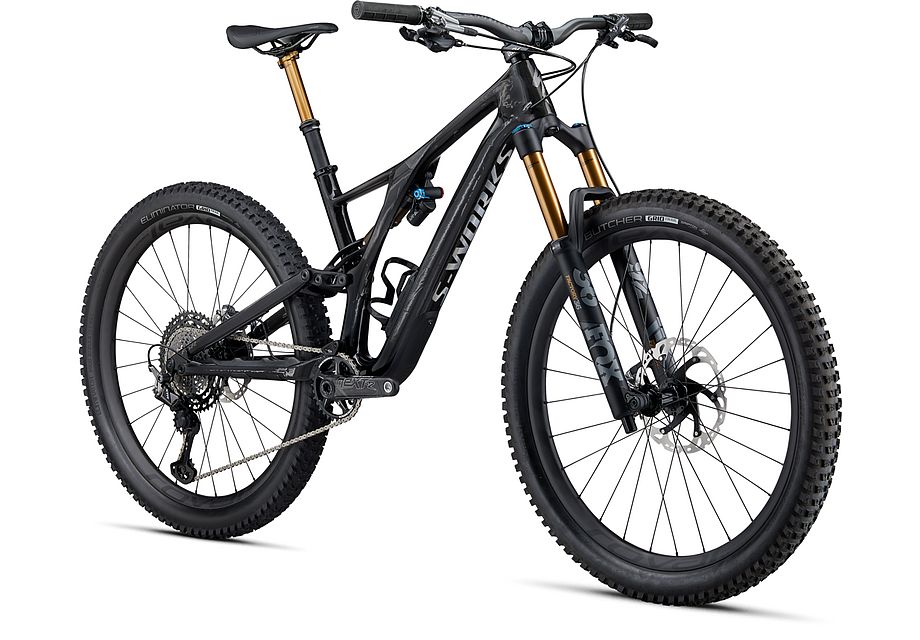

Stumpjumper S-Works Carbon 27.5 Features
It’s earned glowing reviews the world over… Our light-yet-strong carbon frame delivers bump-devouring suspension and effortless control. Equipped with the best suspension, drivetrain and wheels available, the S-Works edition dishes out peerless performance.
THE ULTIMATE TRAIL BIKE
The innovative sidearm design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we’ve increased both stiffness and performance over bumps. End result? Total control.
LIGHTWEIGHT, CAPABLE…AND STUNNING
Our carbon chassis melds 150mm of smooth and deep suspension with smart features, including our integrated SWAT™ box downtube storage and painless cable routing. No proprietary bullshit and a threaded bottom bracket also mean that this frame is 100% hassle free.
• One of the lightest—and most capable—trailbikes on the market.
• S-Works delivers 150mm of smooth suspension and unrivaled handling.
• Top-tier suspension courtesy of FOX FLOAT DPX2 Factory rear shock.
Product Specifications
Product Specifications
Bottom Bracket |
Threaded, 30mm spindle |
Cassette |
Shimano XTR M9100, 12-speed, 10-51t |
Chain |
Shimano XTR M9100, 12-speed w/ quick link |
Chainrings |
32T |
Crankset |
Race Face Next R Carbon, 170mm |
Fork |
FOX FLOAT Factory, 36, GRIP2 damper, 44mm offset, 15x110mm, tapered alloy steerer, Kashima, 150mm of travel |
Frame |
FACT 11m carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel |
Front Brake |
Shimano XTR M9120, 4-piston caliper, hydraulic disc |
Front Hub |
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h |
Front Tire |
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6" |
Grips |
Deity, Knuckleduster, Black |
Handlebars |
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm |
Inner Tubes |
Presta, 40mm valve |
Pedals |
Specialized Dirt |
Rear Brake |
Shimano XTR M9120, 4-piston caliper, hydraulic disc |
Rear Derailleur |
Shimano XTR M9100, 12-speed, Shadow Plus |
Rear Hub |
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, Shimano Micro Spline driver body, 12mm thru-axle, 148mm spacing, 28h |
Rear Shock |
FOX FLOAT DPX2 Factory, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment w/ Open Mode adjustment, 210x52.5mm |
Rear Tire |
Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6" |
Rims |
Roval Traverse SL Carbon 27.5, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready |
Saddle |
Body Geometry Myth 155 XS/S, Body Geometry Henge 143 M/L/XL, hollow ti rails |
Seat Binder |
Specialized bolt-type, alloy, 38.6mm |
Seatpost |
FOX Factory Transfer, Kashima, 30.9, Shimano Ispec-EV lever (XS/S: 125mm, M/L: 150mm, XL:175mm) |
Shift Levers |
Shimano XTR M9100, 12-speed |
Spokes |
DT Competition Race |
Stem |
Deity Copperhead, 31.8mm |
-
