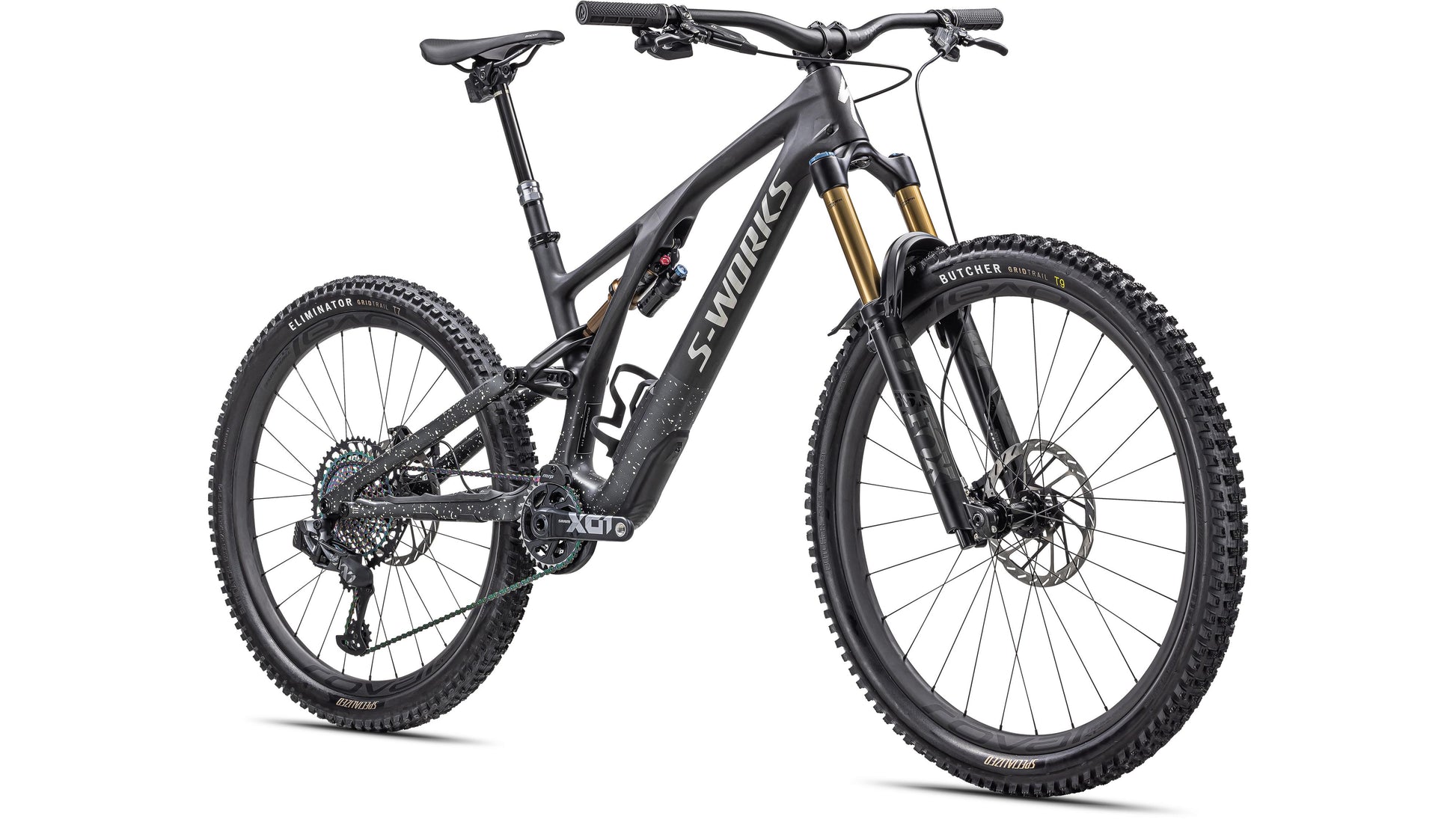

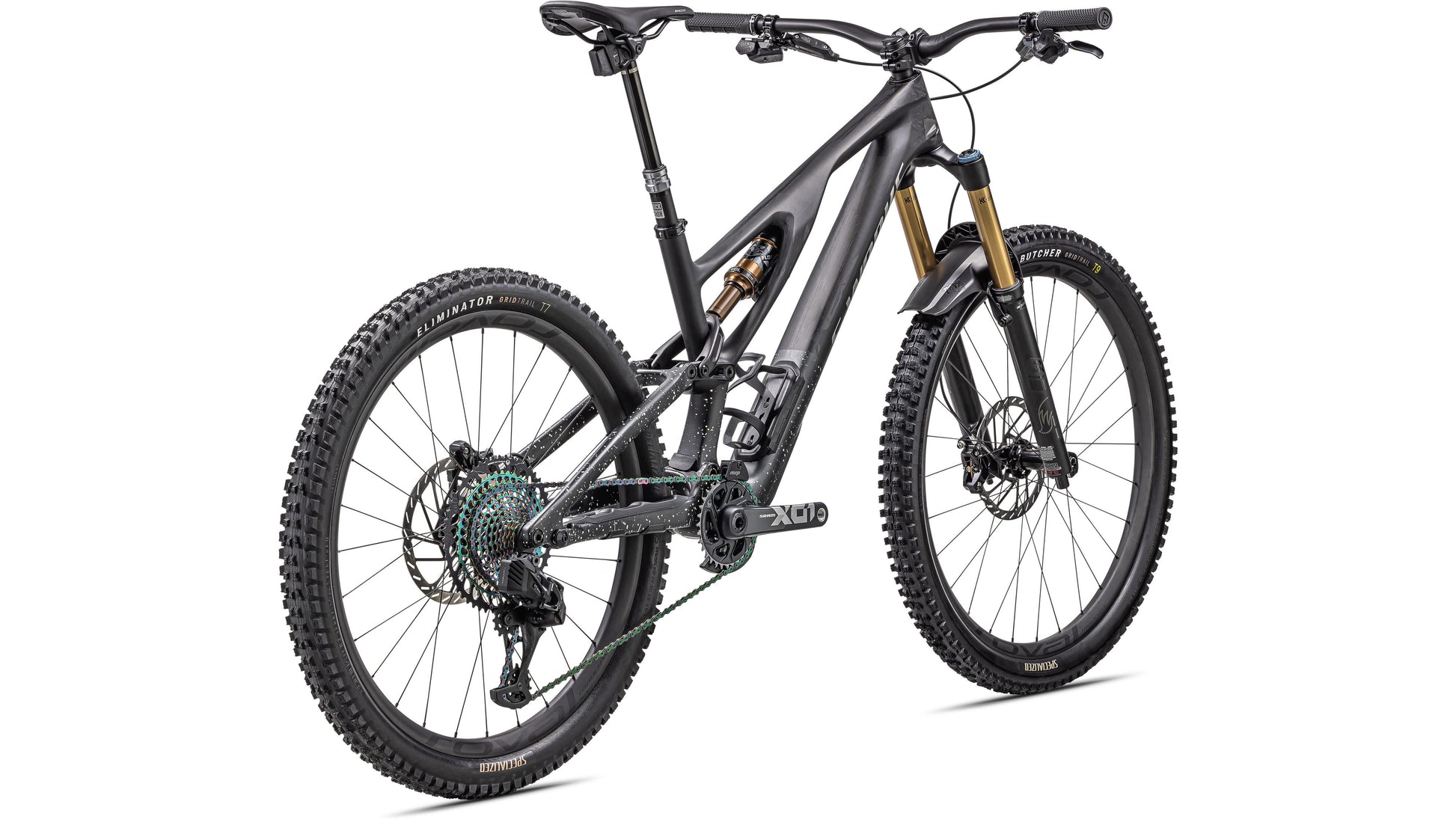

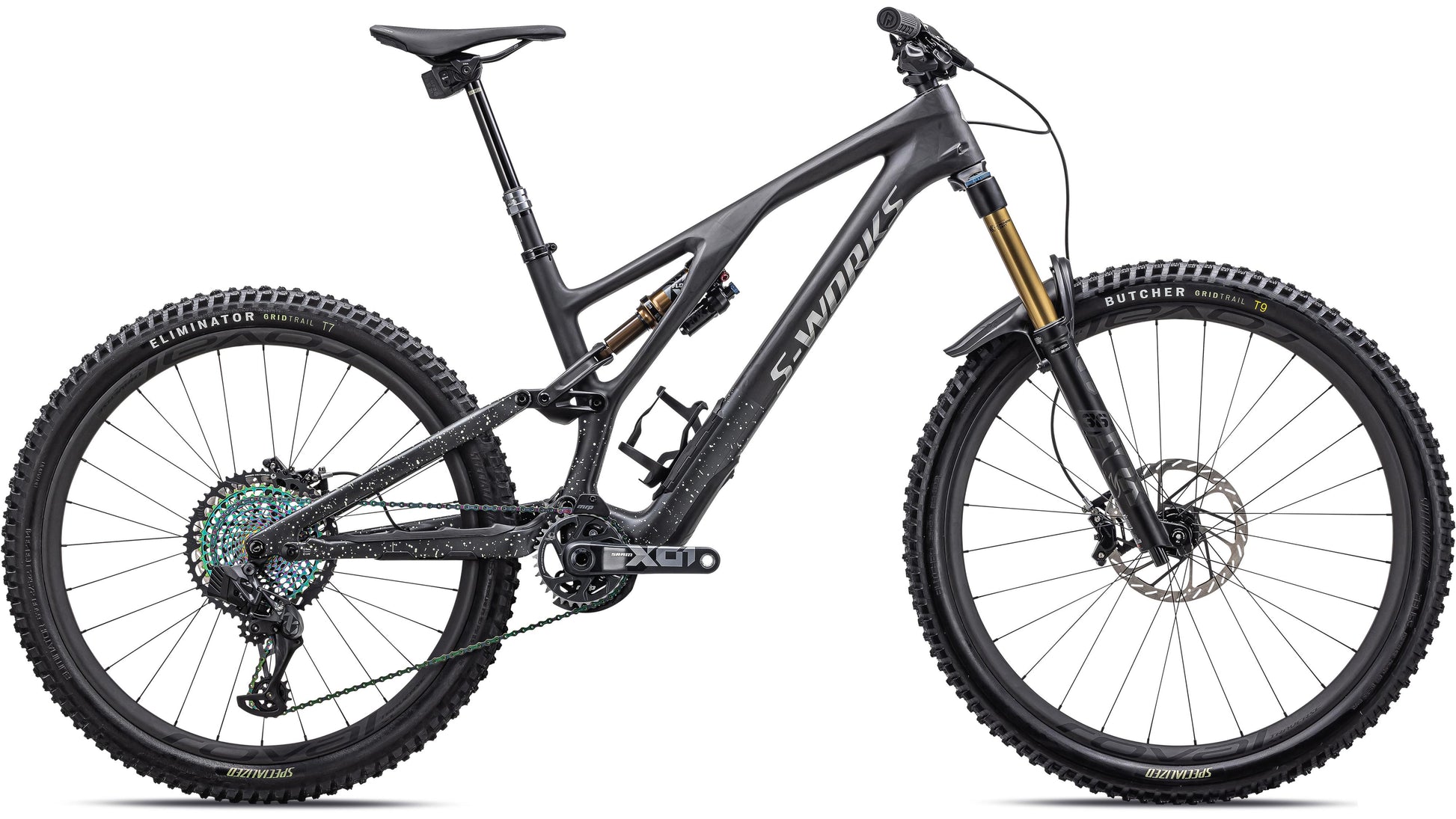

Stumpjumper Evo S-Works Features
The S-Works Stumpjumper EVO is much more than just a trail bike; it’s a shred-sled built to full-send down the gnarliest trails. Featuring an all-new design, with an adjustable head tube angle, 150mm of performance tuned travel, and the adaptability of S-Sizing, this thing is an absolute ripper. The S-Works Stumpjumper EVO—get rowdy.
In true S-Works fashion, the S-Works Stumpjumper EVO is built to the hilt. A Fox Factory fork and rear shock handle suspension duties, while SRAM Code RSC four-piston brakes scrub speed, and a full SRAM AXS wireless groupset completes this lust-worthy build.
At a Glance
- What do you get when you pair a 29-inch front wheel with a 27.5-inch rear wheel? The Stumpjumper EVO S-Works, that’s what. With all of the traction and handling benefits of a 29er, but with a smaller, more maneuverable rear wheel, this mullet setup suits a more jibby, playful style. It’s right at home at the bike park, and is a total blast to cut loose with on the trail.
- All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
- The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
- Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.

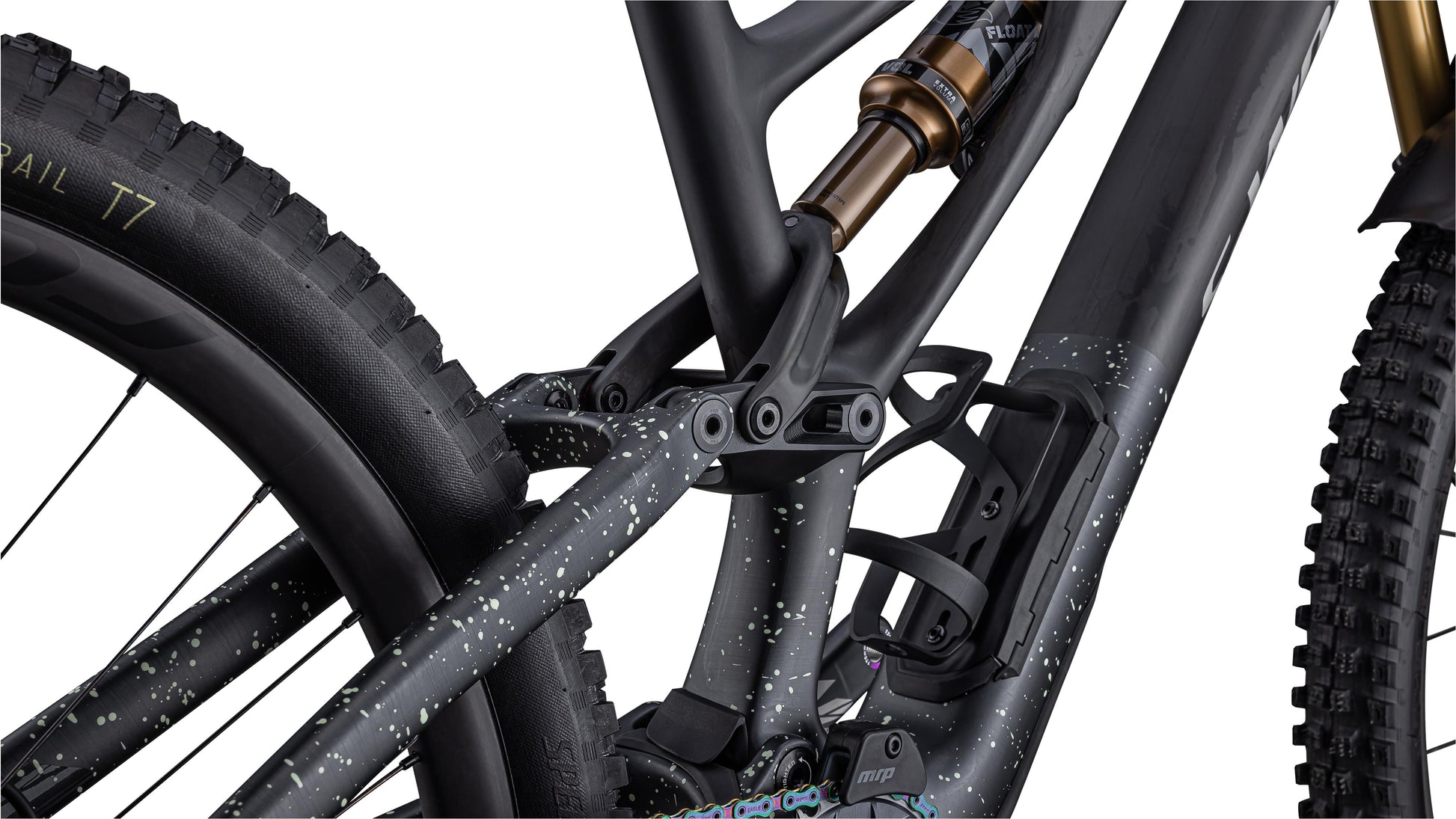

- We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.
Component Specifications
| Frame | FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel |

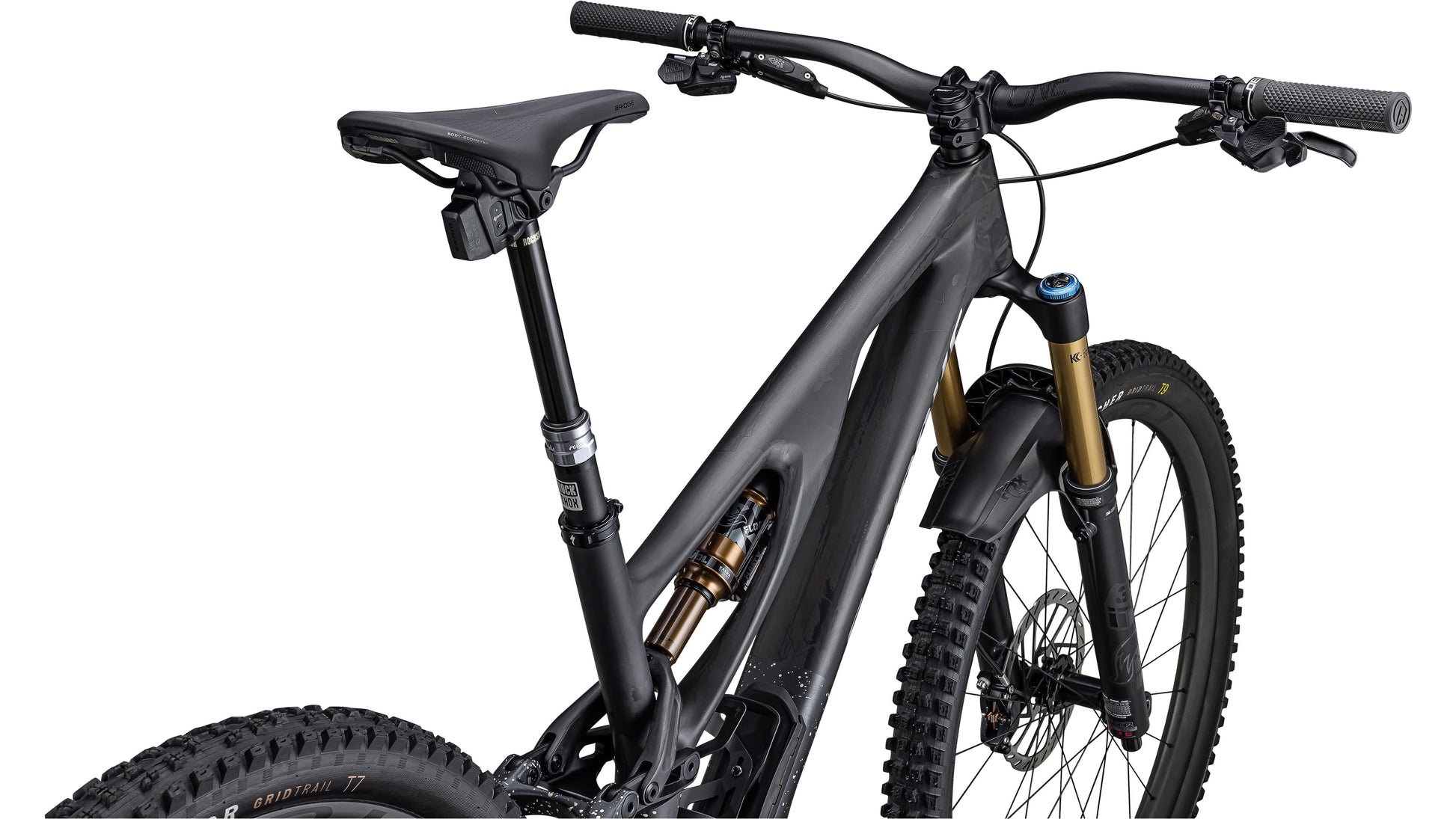

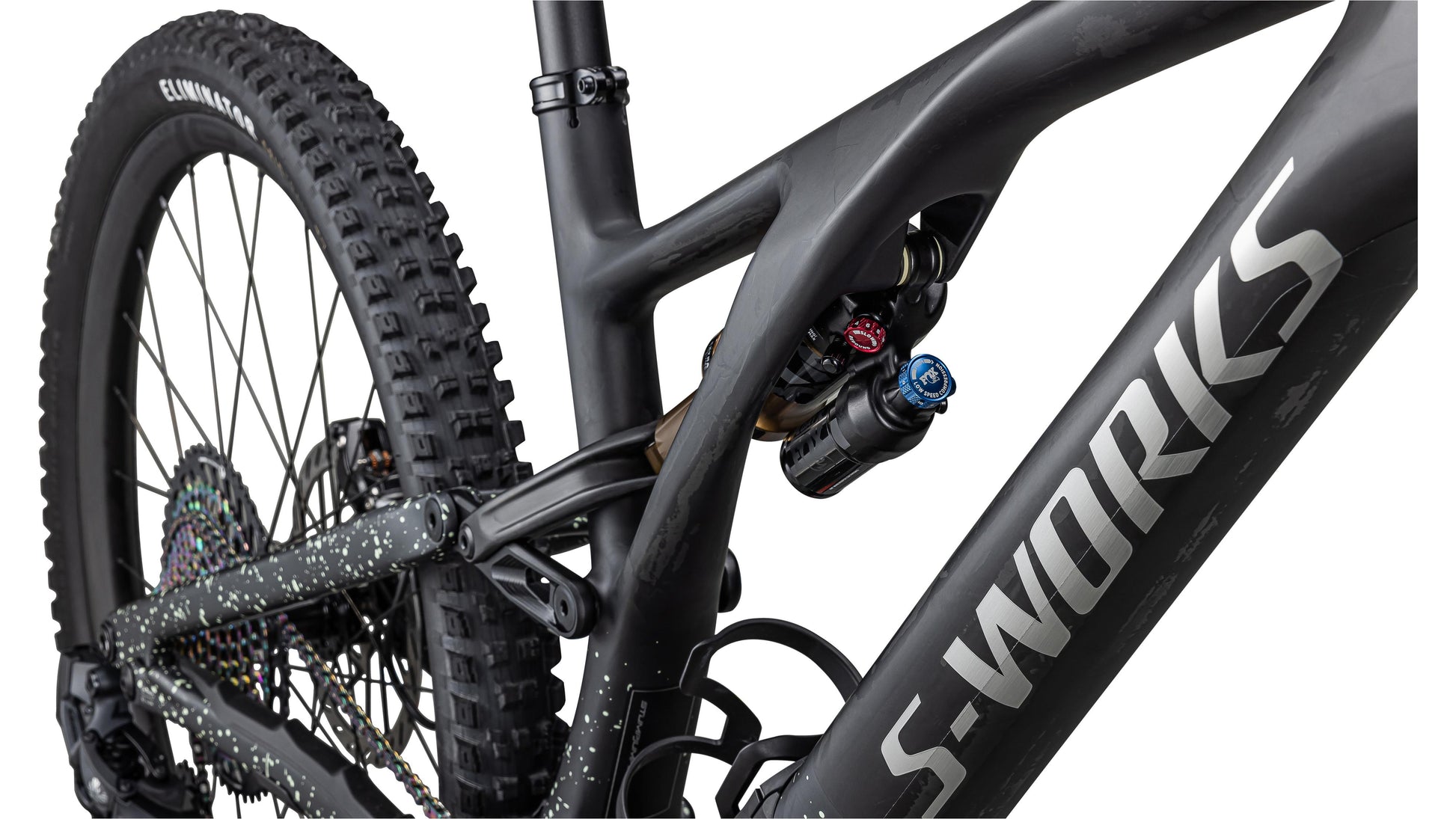

| Rear Shock | FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm |
| Shift Levers | SRAM Eagle AXS Rocker Paddle |
| Rear Derailleur | SRAM XX1 Eagle AXS |
| Cassette | Sram XG-1299, 12-Speed, 10-52t |
| Chain | SRAM XX1 Eagle |
| Crankset | SRAM X01 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm |
| Chain Rings | 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Roval Traverse SL 29F/27.5R, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h |
| Front Hub | Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing |
| Rear Hub | Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing |
| Spokes | DT Competition Race |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2 |
| Rear Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2 |
| Stem | OneUp, 35.0 |

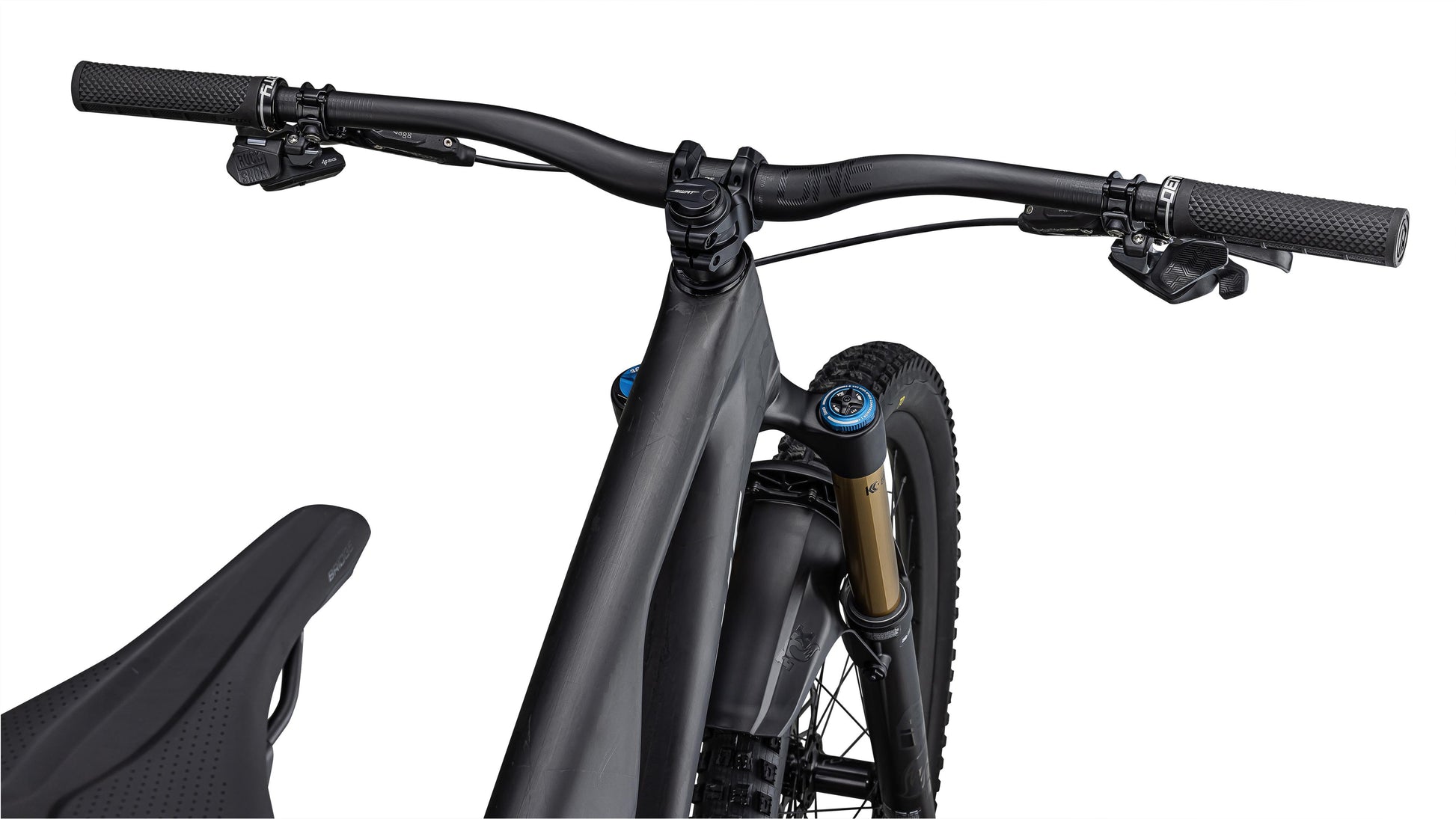

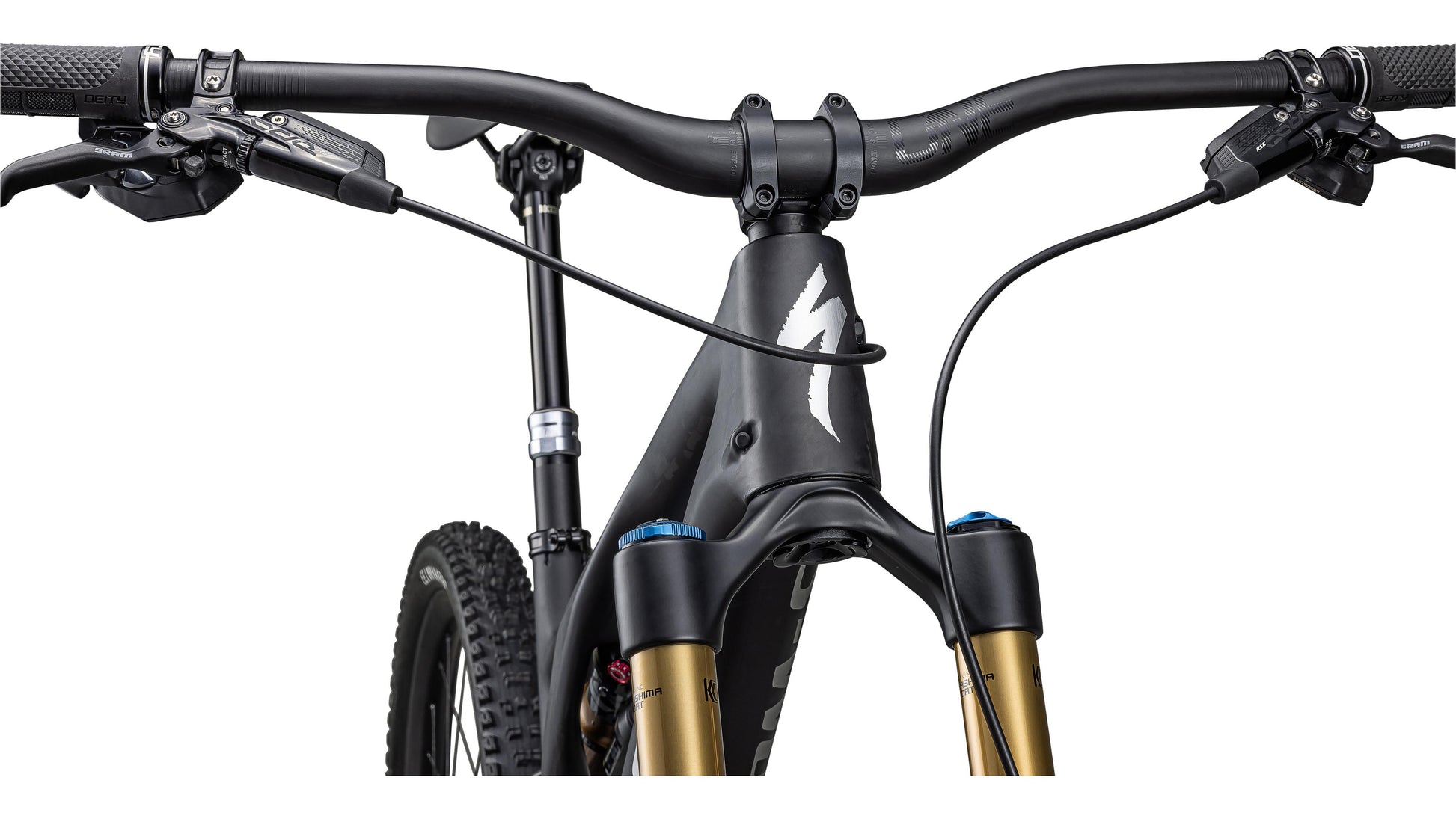

| Handlebars | OneUp Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, 35mm rise, 800mm, 35.0mm |
| Grips | Deity Lockjaw |
| Saddle | Bridge, 155/143mm, Hollow Ti-rails |
| Seatpost | RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm) |
Stumpjumper Evo S-Works
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 613 mm | 617 mm | 626 mm | 635 mm | 644 mm | 654 mm |
| Reach | 408 mm | 428 mm | 448 mm | 475 mm | 498 mm | 528 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 446 mm | 446 mm |
| Wheelbase | 1165 mm | 1189 mm | 1214 mm | 1245 mm | 1283 mm | 1317 mm |
| Top-tube Length (horizontal) | 538 mm | 564 mm | 590 mm | 623 mm | 647 mm | 679 mm |
| Bike Standover Height | 733 mm | 764 mm | 763 mm | 762 mm | 767 mm | 770 mm |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 78° | 77.6° | 77.2° | 76.9° | 77° | 77° |
| Max Seatpost Insertion | 180 mm | 180 mm | 200 mm | 220 mm | 240 mm | 260 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 335 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| BB Drop | 40 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm |
| Fork Length (full) | 561 mm | 571 mm | 571 mm | 571 mm | 571 mm | 571 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 732 mm | 756 mm | 780 mm | 809 mm | 838 mm | 873 mm |
Size Guide: Stumpjumper Evo S-Works
