WAHOO FITNESS

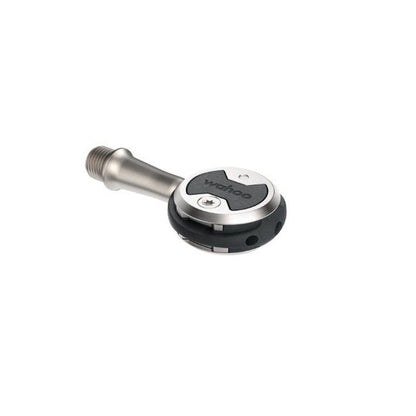

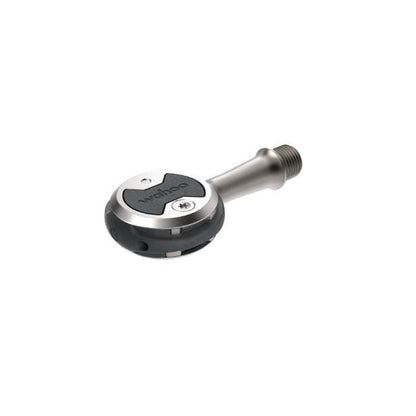

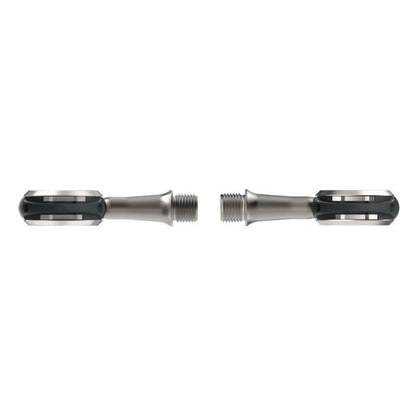

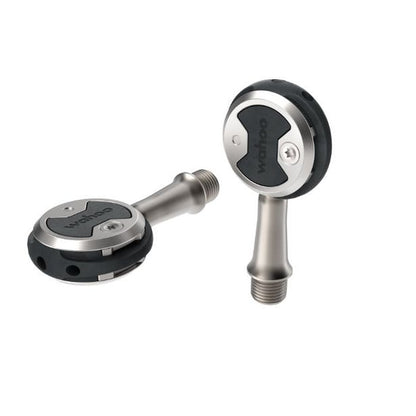

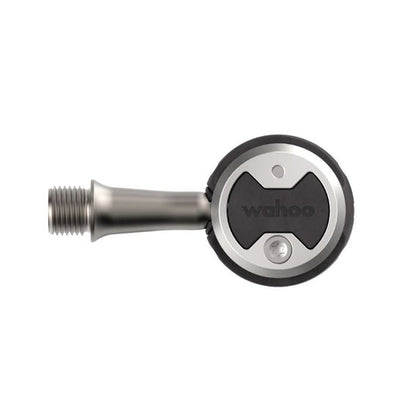

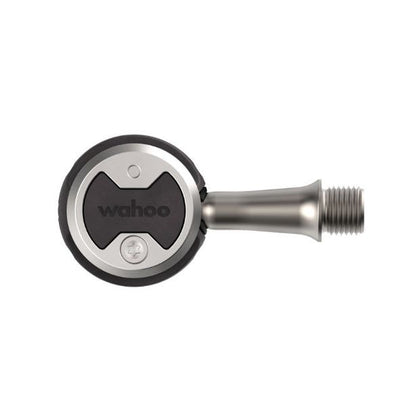

Wahoo Speedplay Nano Pedal System

WFPRN1S53

Regular price $449.99 USD
Regular price $449.99 USD Sale price $449.99 USD Sale Sold out
Shipping calculated at checkout.

Select your preferred delivery method during checkout: Shipping, Home Delivery, or In-Store Pickup. For orders with a value exceeding $500, an adult signature is required upon delivery.

This item is a special order. Shipping times may vary, with some items shipping within 3 days and others within 15 days. For more detailed information, please feel free to live chat with our dedicated Rider Care Team.

Store Availability

Use Current Location

Wahoo Speedplay Nano Pedal System Features

Dynamic Breakaway Speed.

The SPEEDPLAY NANO is a featherweight, dual-sided road pedal that lives up to the demands of sprint finishes, categorized climbs, and tough training sessions. The mix of premium titanuim and carbon fiber materials create a lightweight but strong pedal that will hold up and deliver speed on the breakaway. The integrated cleat system with 3-axis adjustability allows you to precisely dial in your fit for optimized biometrics and increased power transfer.

FEATURES:


DUAL-SIDED ENTRY
SPEEDPLAY NANO pedals' symmetrical form factor allows for dual-sided entry when clipping in. No more fumbling, fussing or kicking your pedal over; take off when the light turns green and clip in with ease.
ENHANCED WALKABILITY
The slim profile cleat and rubber texture create enhanced stability when walking in your road shoes off the bike.
INTEGRATED PROFILE

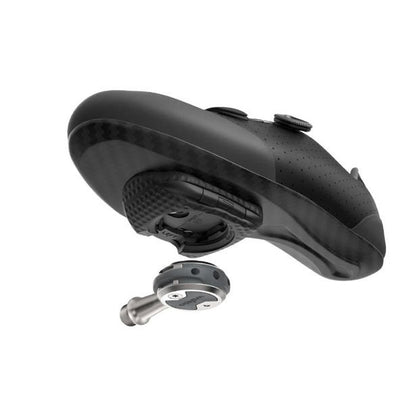

SPEEDPLAY NANO and Standard Tension Cleat create a seamless integration for a streamlined profile. The secure connection can contribute to an increase in the transfer of power, which can make it easier to attain those hard fought watts.
UNBEATABLE STACK HEIGHT
Best-in-class stack height of the SPEEDPLAY pedal decreases the amount of material between your shoe and spindle. This provides a solid connection for a more fluid transfer of power with every pedal stroke.
3-AXIS CLEAT ADJUSTABILITY
The Standard Tension Cleat can be positioned on the bottom of the shoe and adjusted fore-aft, left-right and rotationally, allowing between 0-15 degrees of float.
OPTIMIZED BIOMECHANICS
The 3-axis adjustability and slim stack height of the SPEEDPLAY Advanced Pedal System allows the rider to customize their fit on the bike with the largest range of optionality. The lower stack height can allow for increased power transfer and a decreased saddle height, which results in reduced drag.
ROTATIONAL FREE FLOAT
SPEEDPLAY pedals allow up to 15 degrees of float, allowing the heel to pivot around the center of the pedal. This range of motion in the foot, lower leg and knee increases comfort and enhances pedal efficiency.
SUPERIOR CORNERING CLEARANCE
The slim profile of the SPEEDPLAY Advanced Pedal System allows for the greatest degree of lean on the bike when riding tight corners. Pedal with confidence knowing your pedal won't strike the ground, and leave the competition in the dust.
STANDARD TENSION CLEAT INCLUDED

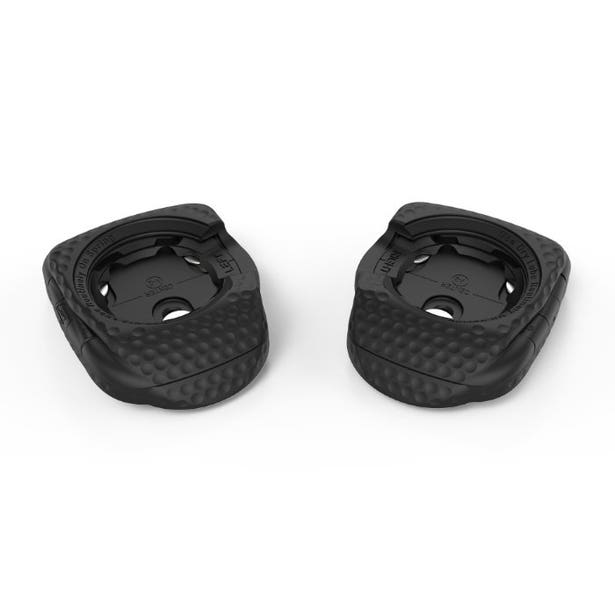

SPEEDPLAY NANO pedals include a set of Standard Tension Cleats and cleat surrounds for the most aerodynamic profile and walkable system.
EASY TENSION CLEAT COMPATIBLE
SPEEDPLAY Advanced Pedal System has cross cleat compatibility. Purchase the Easy Tension Cleat, sold separately, for less resistance when unclipping.

TECH SPECS:

Part Number: WFPRN1S53
Physical Dimensions: 3.9" x 2" x 2"
Shipping Weight: 1.1lb
Box Dimensions: 5.9" x 2" x 3.9"
Country of Origin: Vietnam
Weight: 168g per pair
Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
Q Factor: 53mm
Body Material: Carbon Composite
Spindle Material: Titanium
Bearing Type: Triple Sealed Cartridge & Needle Bearings
Cornering Clearance: 39°
Max Rider Weight: 180lb / 82kg
Cleats: Standard Tension Included
Release Angle: Micro Adjustable from 0° to 7.5°
Pedal Float: Adjustable from 0° to 15°
Cleat Fore - Aft Adjustability: Up to 13mm
Cleat Left - Right Adjustability: Up to 8mm
Walkable Cleat: Yes (adaptor included)

IN THE BOX:

Left and Right Pedals
Cleat Assembly
Screw Packet
Quick Start Guide
Important Product Information Guide
Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench
