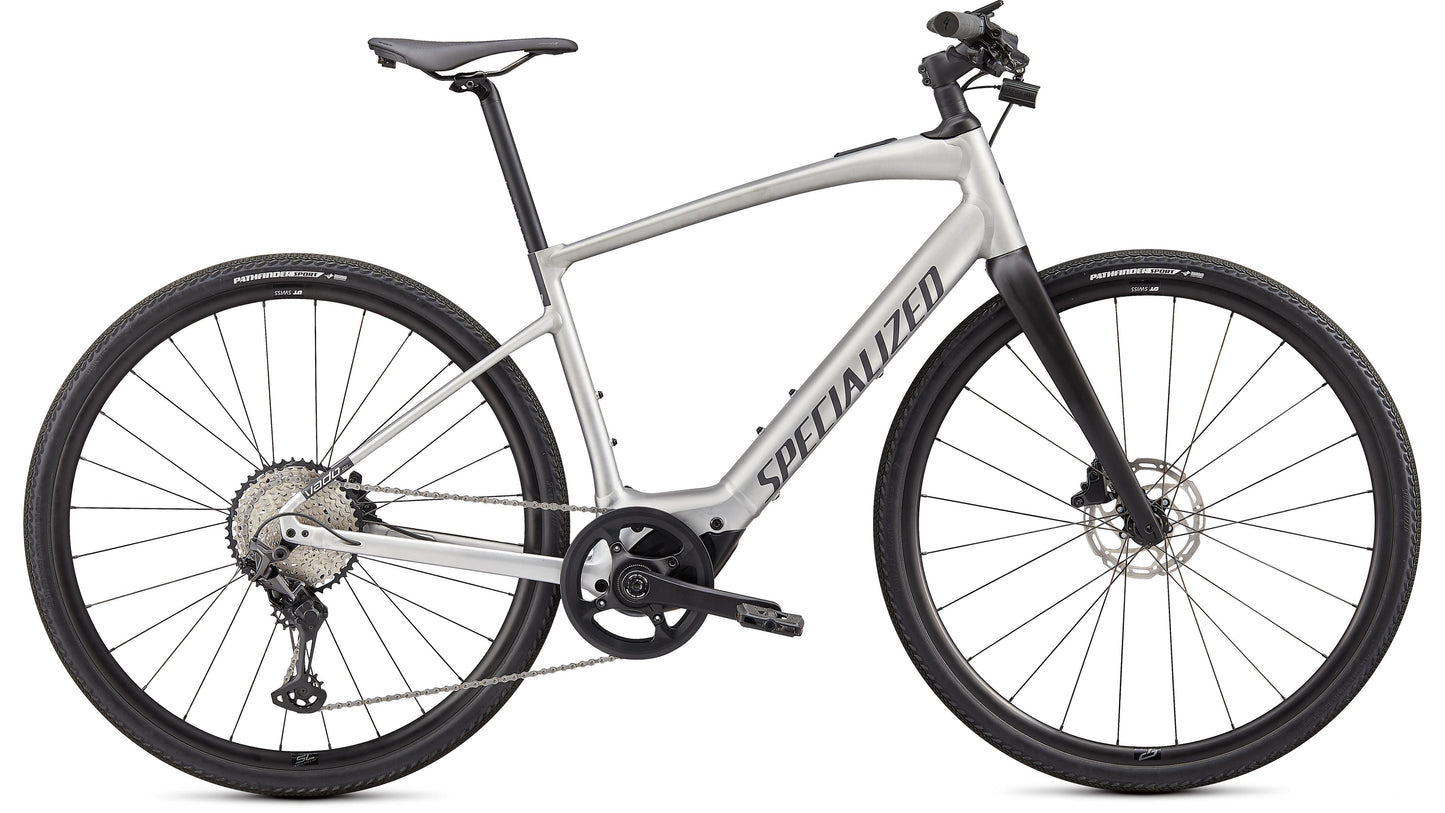

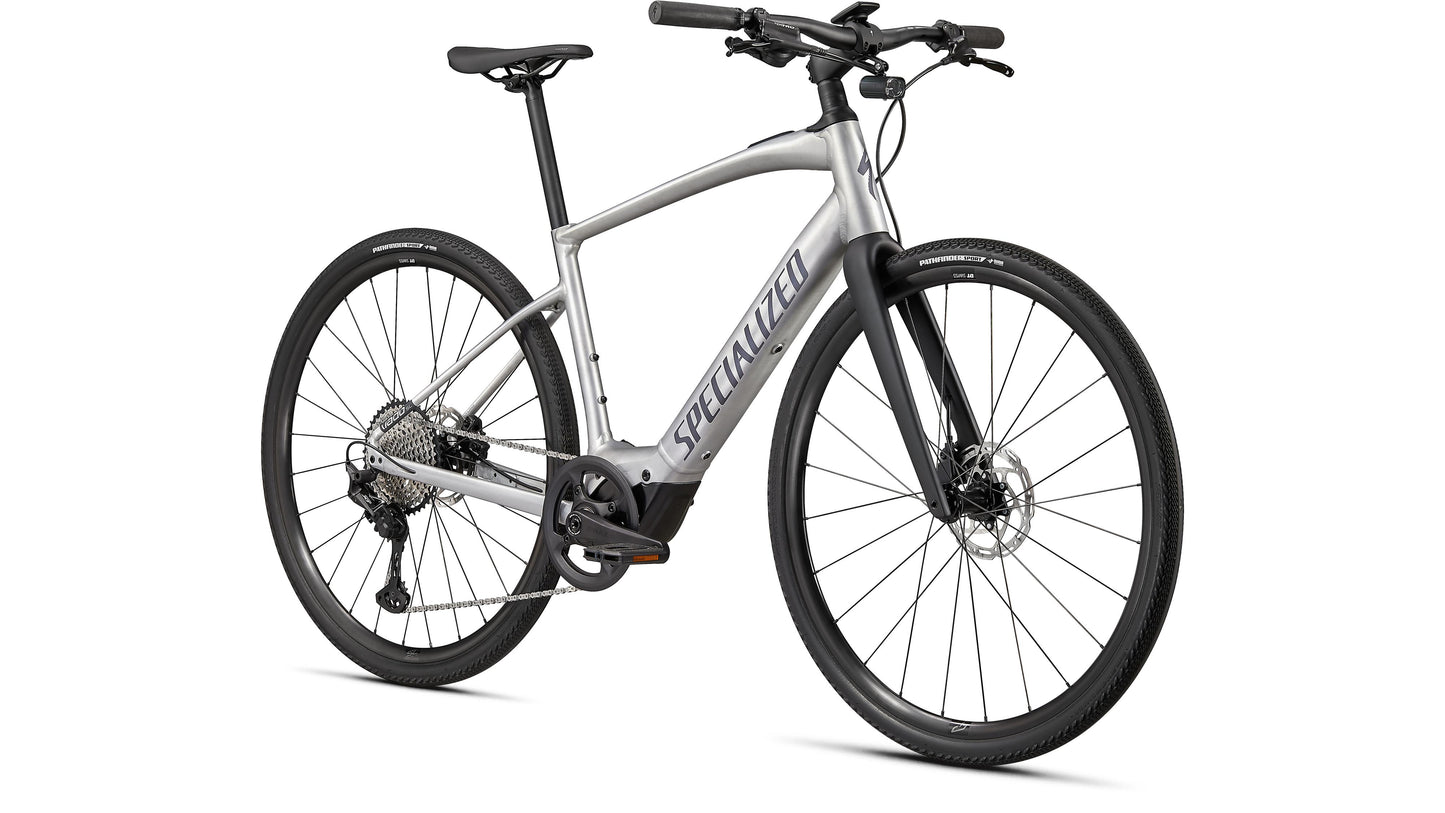

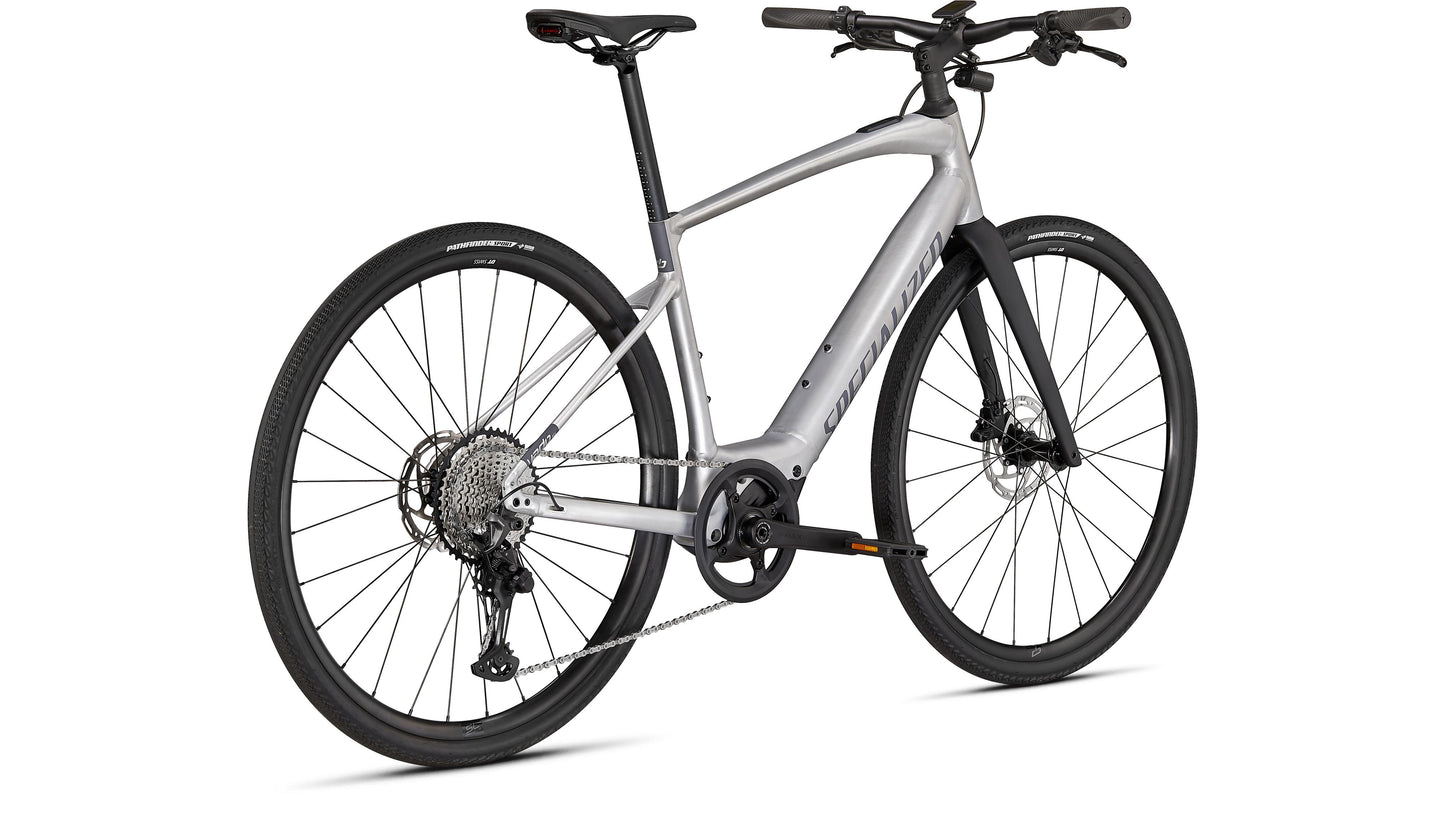

Specialized Vado Sl 5.0 Features
There's no other e-bike out there with ride quality, range, and power like this, at a weight that's light enough to carry. The Turbo Vado SL 5.0 is best for workouts, riding beyond the beaten path and last-minute adventures. All you need to do is get on and go. Extra-bright, built-in lights in front and back mean you'll see and be seen. A Turbo Connect display makes it easy to view ride info. Plus, Pathfinder tires roll fast on or off the pavement with plenty of grip.
At a Glance

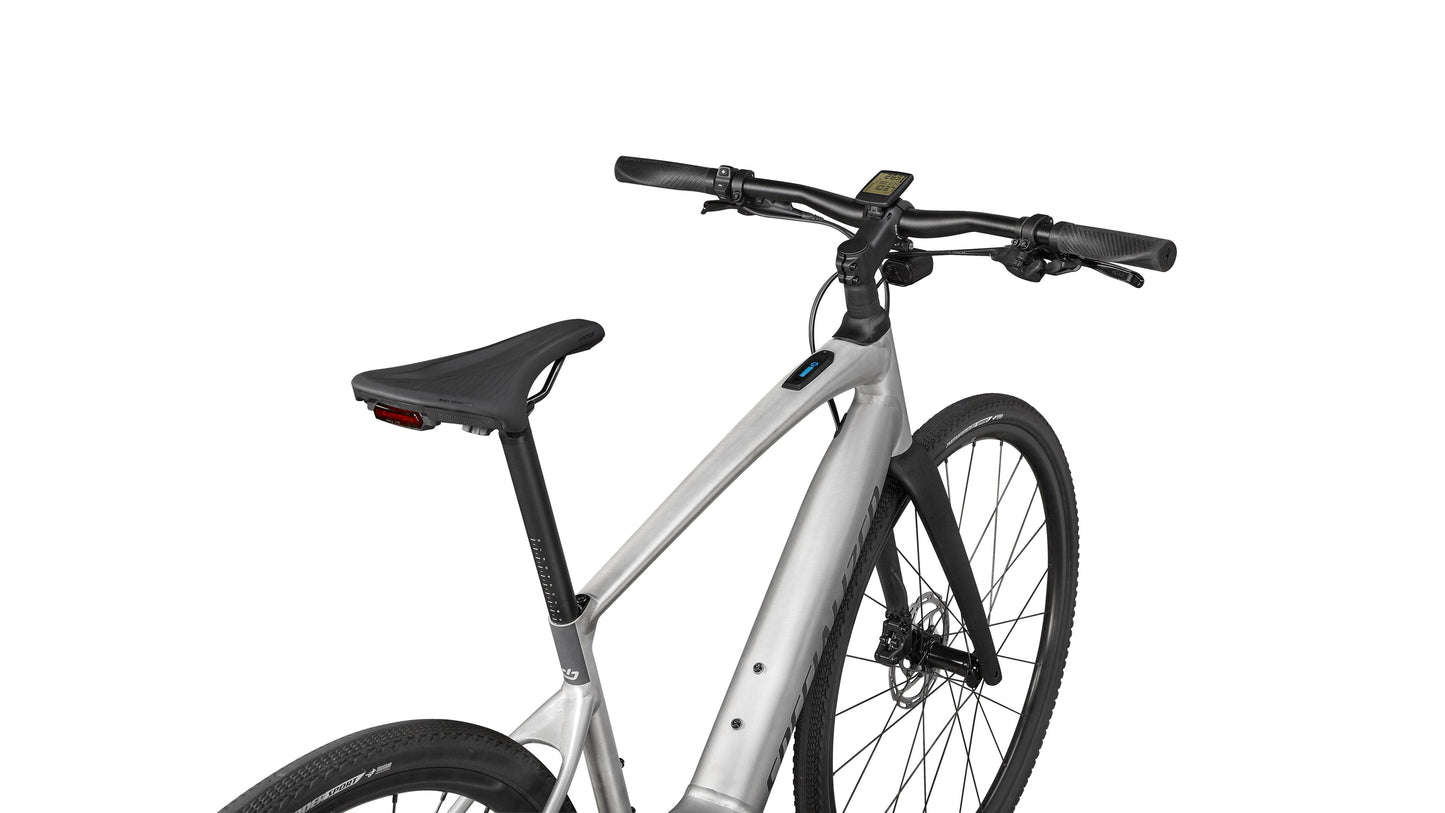

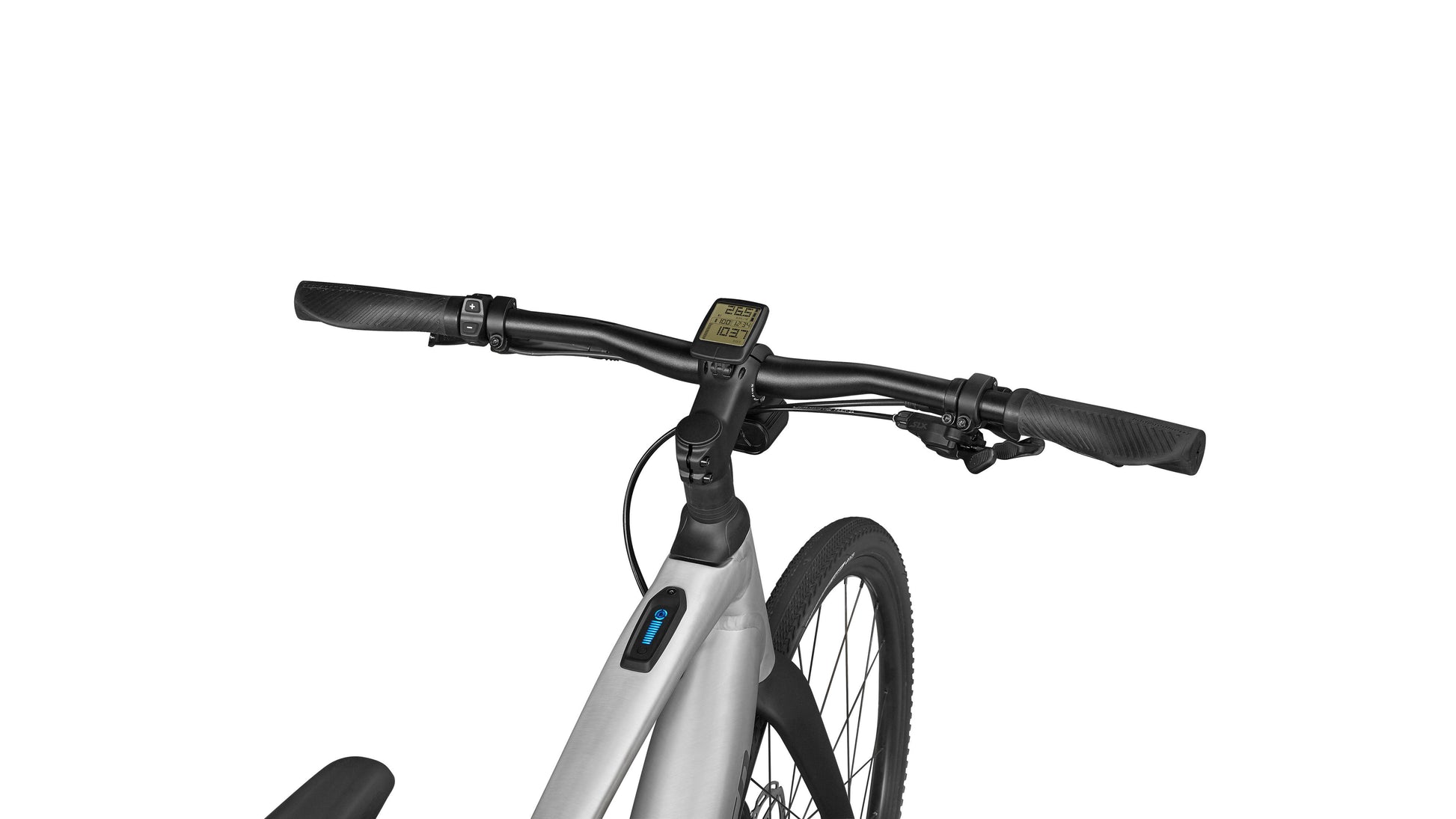

- Integrated Turbo Connect Display to view key ride data quickly and safely.
- Fully integrated and secure Specialized 320Wh downtube battery w/optional Range Extender compatibility for up to 120 miles of range.

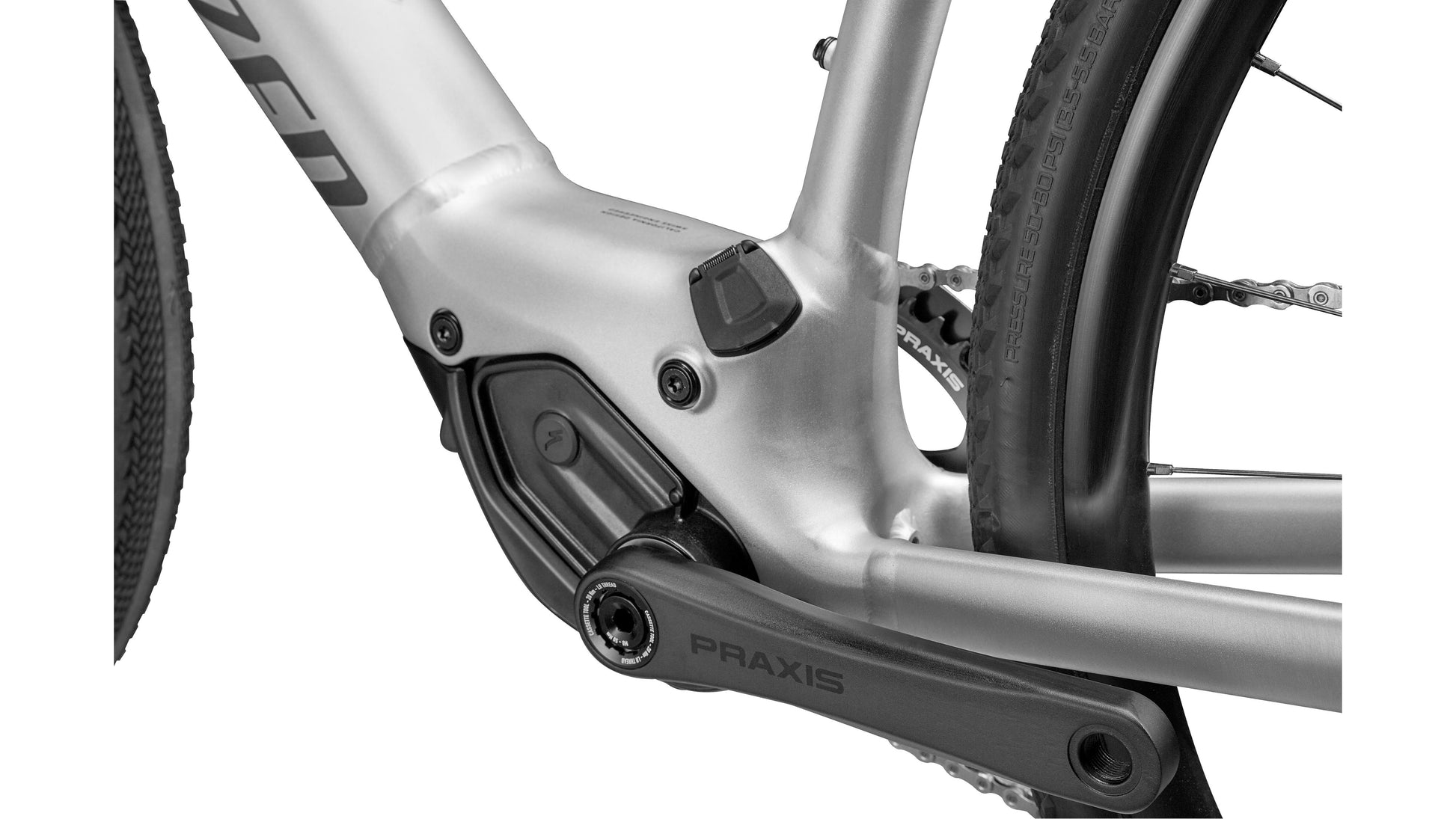

- Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm, 2x you rider amplification (180% assistance), assist up to 28mph.
- Lightweight and high-strength premium carbon fork with Boost™ 12x110mm thru-axle.
- Future Shock 1.5 reduces impacts from rough roads and terrain, potholes be gone!
- Premium hydraulic disc brakes for maximum stopping power.

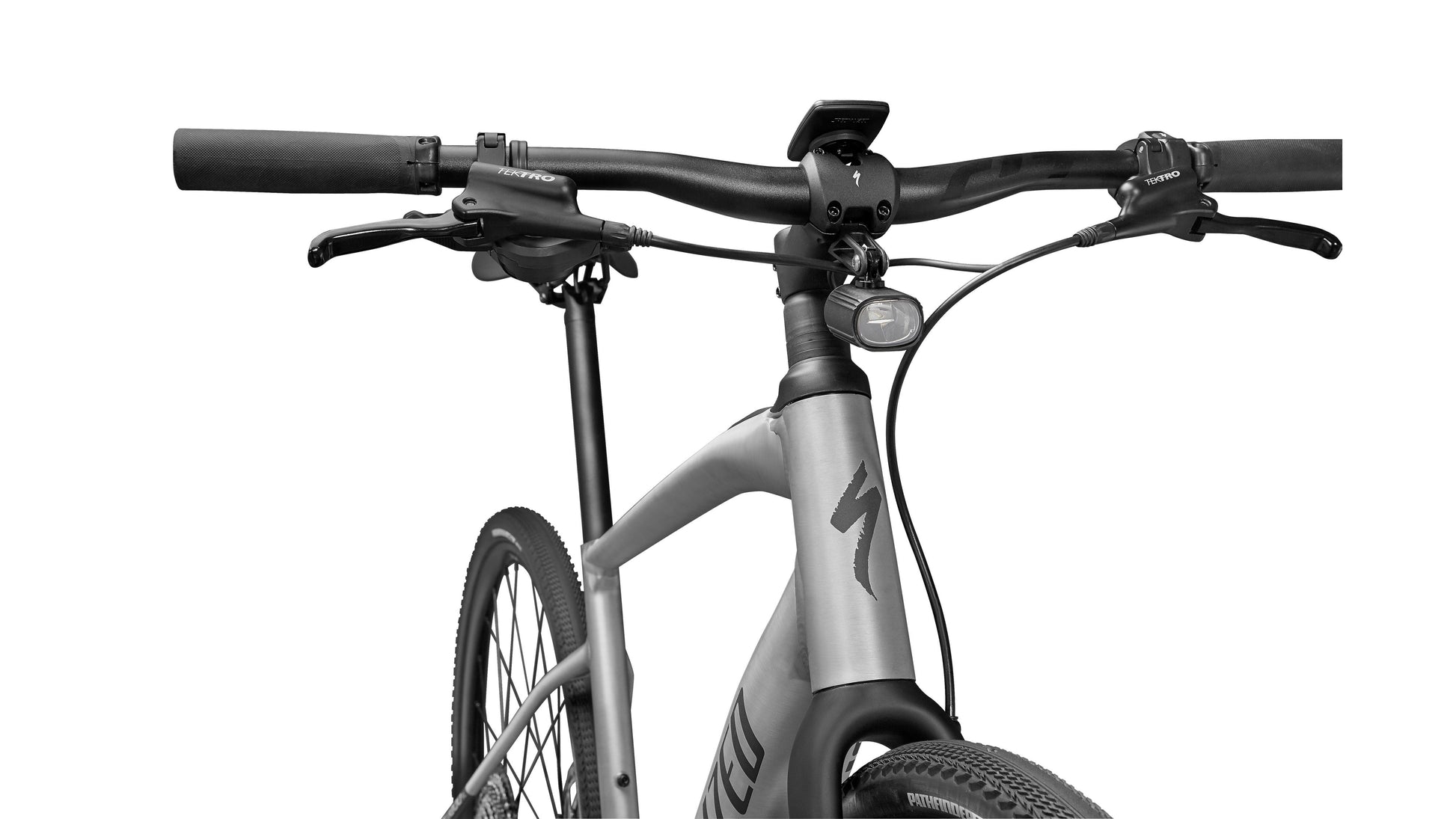

- Extra-bright front and rear lighting to see and be seen.
- 12-speed Shimano SLX shifter and XT derailleur for lightweight precise performance for the long haul.
- Float over the rough stuff with DT Swiss R500 disc wheels paired with fast-rolling, high-grip, Specialized Pathfinder 38c tires, featuring proprietary Gripton rubber compound.
Component Specifications
| Motor | Specialized SL 1.1, custom lightweight motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |

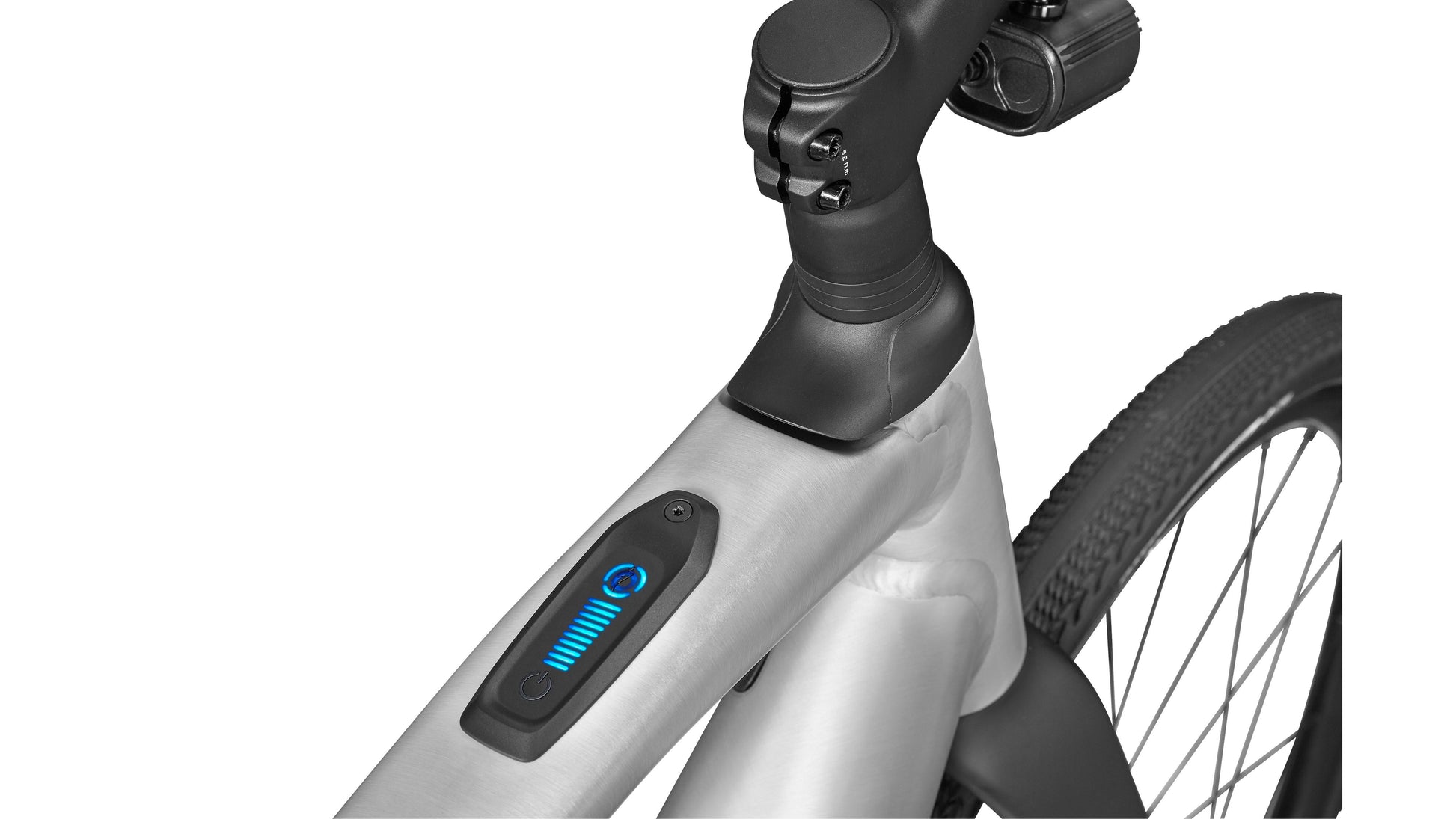

| UI Remote | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote |
| Charger | Custom charger, 48V System w/ SL system charger plug |
| Seat Binder | Integrated w/ frame |
| Fork | Rigid carbon fork, Boost™ 12x110mm thru-axle, flat mount disc |
| Shift Levers | Shimano SLX, Rapidfire Plus, 12-speed, w/o OGD |
| Rear Derailleur | Shimano XT, Shadow Plus, SGS Cage, 12-speed |
| Cassette | Shimano SLX, Hyperglide+, 12-speed, 10-45t |
| Chain | Shimano SLX, 12-speed, w/Quick Link |
| Crankset | Praxis, Forged alloy M30, custom offset |
| Chain Rings | Praxis, 44T, 104BCD |
| Rims | DT Swiss R500 disc, 22mm internal width, 23mm internal depth |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h |
| Rear Hub | Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Specialized Pathfinder Sport, 700x38c |
| Rear Tire | Specialized Pathfinder Sport, 700x38c |
| Inner Tubes | Standard 40mm PV 700x32-50 |
| Front Brake | Tektro HD-R510, hydraulic disc, 160mm |
| Rear Brake | Tektro HD-R510, hydraulic disc, 160mm |
| Stem | Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount |
| Handlebars | Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm |
| Saddle | Bridge Sport, hollow cr-mo rails, 155mm |
| Seatpost | Specialized, alloy, single bolt, 21mm offset, 27.2mm |
Specialized Vado Sl 5.0
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 595 mm | 626 mm | 660 mm | 696 mm |
| Reach | 378 mm | 401 mm | 415 mm | 424 mm |
| Chain-Stay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1062 mm | 1091 mm | 1110 mm | 1126 mm |
| Top-Tube Length (horizontal) | 554 mm | 587 mm | 610 mm | 630 mm |
| Bike Stand-Over Height | 770 mm | 790 mm | 815 mm | 840 mm |
| Seat-Tube Length | 415 mm | 446.5 mm | 494.5 mm | 535 mm |
| Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Head-Tube Length | 185 mm | 217 mm | 250 mm | 285 mm |
| Head-Tube Angle | 70° | 70.5° | 71° | 71.5° |
| B-B Height | 270 mm | 270 mm | 270 mm | 270 mm |
| B-B Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Trail | 71 mm | 67 mm | 64 mm | 61 mm |
| Fork Length (full) | 390 mm | 390 mm | 390 mm | 390 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 50 mm |
| Front-Center | 626 mm | 655 mm | 675 mm | 690 mm |
Size Guide: Specialized Vado Sl 5.0
