Specialized

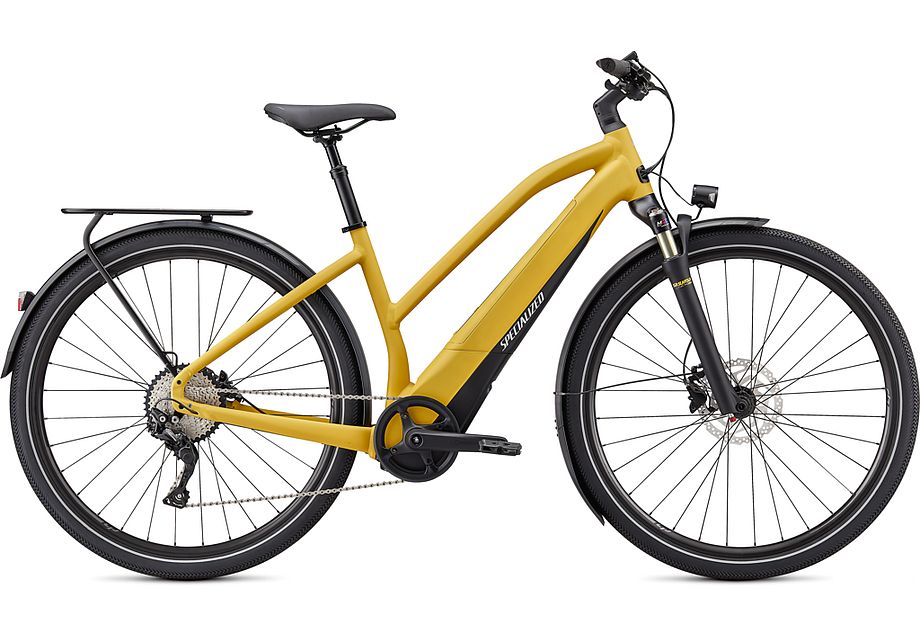

Specialized Vado 4.0 St Ltd

95020-6202

Regular price $3,750.00 USD
Regular price $3,750.00 USD Sale price $3,750.00 USD Sale Sold out
Shipping calculated at checkout.

Select your preferred delivery method during checkout: Shipping, Home Delivery, or In-Store Pickup. For orders with a value exceeding $500, an adult signature is required upon delivery.

This item is a special order. Shipping times may vary, with some items shipping within 3 days and others within 15 days. For more detailed information, please feel free to live chat with our dedicated Rider Care Team.

Store Availability

Use Current Location

Specialized Vado 4.0 St Ltd Features

How did we manage to take one of our most versatile and fun Turbo e-bikes and make it even better? Well, we started with the smile-inducing speed and agility of the Turbo Vado 4.0 and added gravel-taming, all-terrain tires and a plush, bump-smoothing suspension seatpost—giving you the freedom and confidence to take on any road, even the one less traveled.

Beginning with the integrated Specialized 1.2 motor, the Turbo Vado proves itself as the ultimate city bike. The 1.2 motor features a silent operating design with our Custom Rx Street Tune that takes the output and makes it the most usable for an urban environment. Think of it this way: The more power you put out, the more power the motor puts out, and this makes accelerations from a standstill both quick and efficient. The belt driven motor is also smooth, silent, and free of annoying vibrations.

For the Vado 4.0, we developed a custom Specialized U1-500 battery that seamlessly integrates into the frame, is lockable, and easily removable for simplified charging. In other words, there's plenty of juice to take you to and from work, a trip to the grocery store, or even to that new café on the other side of the city.

The new wired Turbo Connect Display (TCD-w) is the best way to view data on your Turbo. It not only displays important ride metrics (speed, cadence, rider power, distance, battery level, time, etc.), it also allows you to connect the latest version of the Mission Control App for an enhanced Turbo experience. With our free app for iOS and Android phones, you easily customize motor parameters, control your range, record/upload rides, and perform basic system diagnosis.

To top off all of the innovative features, we chose a worry-free spec that features Shimano 10-speed components, all-terrain tires, suspension seatpost, hydraulic disc brakes, front/rear lights, and fender & rack mounts.

  • The Turbo Vado frame features an alloy step-through frame that's pretty light and super easy to get on or off of.
  • The Turbo Vado’s Specialized 1.2 motor has been fully integrated with the frame, and it's been custom-tuned for city riding. We designed it to intuitively react to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.
  • We made the custom 500 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range.
  • Product Specifications

    Battery

    Specialized U1-500, On/Off button, state of charge display, 500Wh

    Cassette

    Shimano HG500, 10-speed, 11-42t

    Chain

    KMC X10eT, 10-speed w/ Missing Link™

    Chainrings

    40T, custom alloy

    Charger

    Custom charger, 42V4A w/ Rosenberger plug

    Crankset

    Custom alloy forged crankarms

    Fork

    SR Suntour NCX E25, steel steerer, 15mm thru-axle, 44mm offset, 50mm of travel

    Frame

    E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds

    Front Brake

    Shimano BR-MT200, hydraulic disc, 180mm

    Front Hub

    Specialized front hub disc, sealed bearings, 15x100mm thru-axle, 32h

    Front Tire

    Sawtooth Sport, 700x50c

    Grips

    Body Geometry Women's Contour

    Handlebars

    Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm

    Inner Tubes

    Presta, 40mm valve

    Motor

    Specialized 1.2, custom Rx Street-tuned motor, 250W nominal

    Pedals

    Specialized Commuter w/ grip tape & reflectors

    Rear Brake

    Shimano BR-MT200, hydraulic disc, 160mm

    Rear Derailleur

    Shimano Deore, Shadow Plus, GS cage, 10-speed

    Rear Hub

    Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h

    Rear Tire

    Sawtooth Sport, 700x50c

    Rims

    700C disc, double-wall alloy, pinned, 32h

    Saddle

    Specialized Aldia Sport, steel rails, 155mm

    Seat Binder

    Alloy, bolt-type, 34.9mm

    Seatpost

    Spring suspension, alloy, 30.9mm, 2-bolt

    Shift Levers

    Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display

    Spokes

    DT Swiss Industry

    Stem

    Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp

    Ui/Remote

    Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages

    Wiring Harness

    Custom Specialized harness
