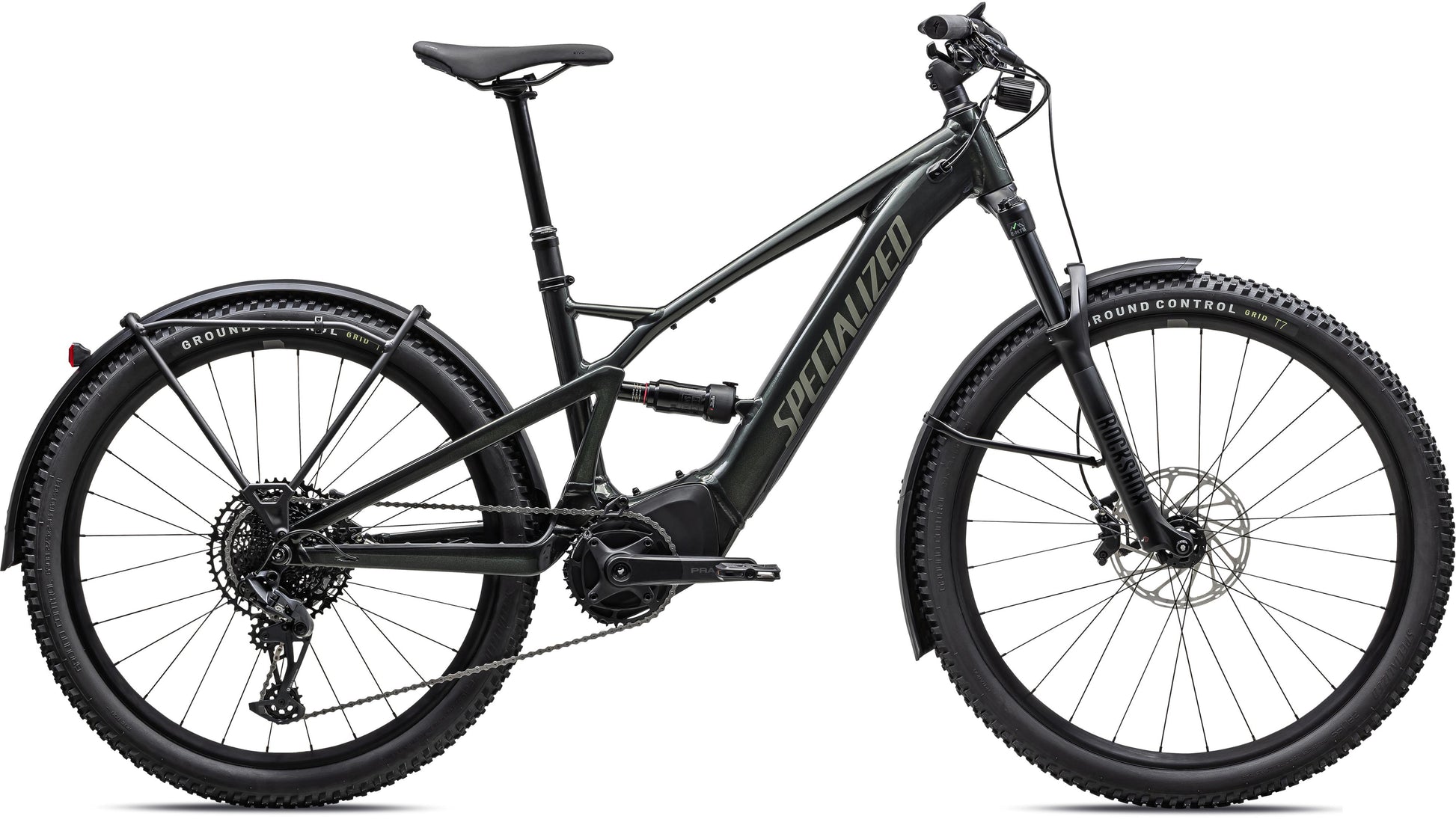

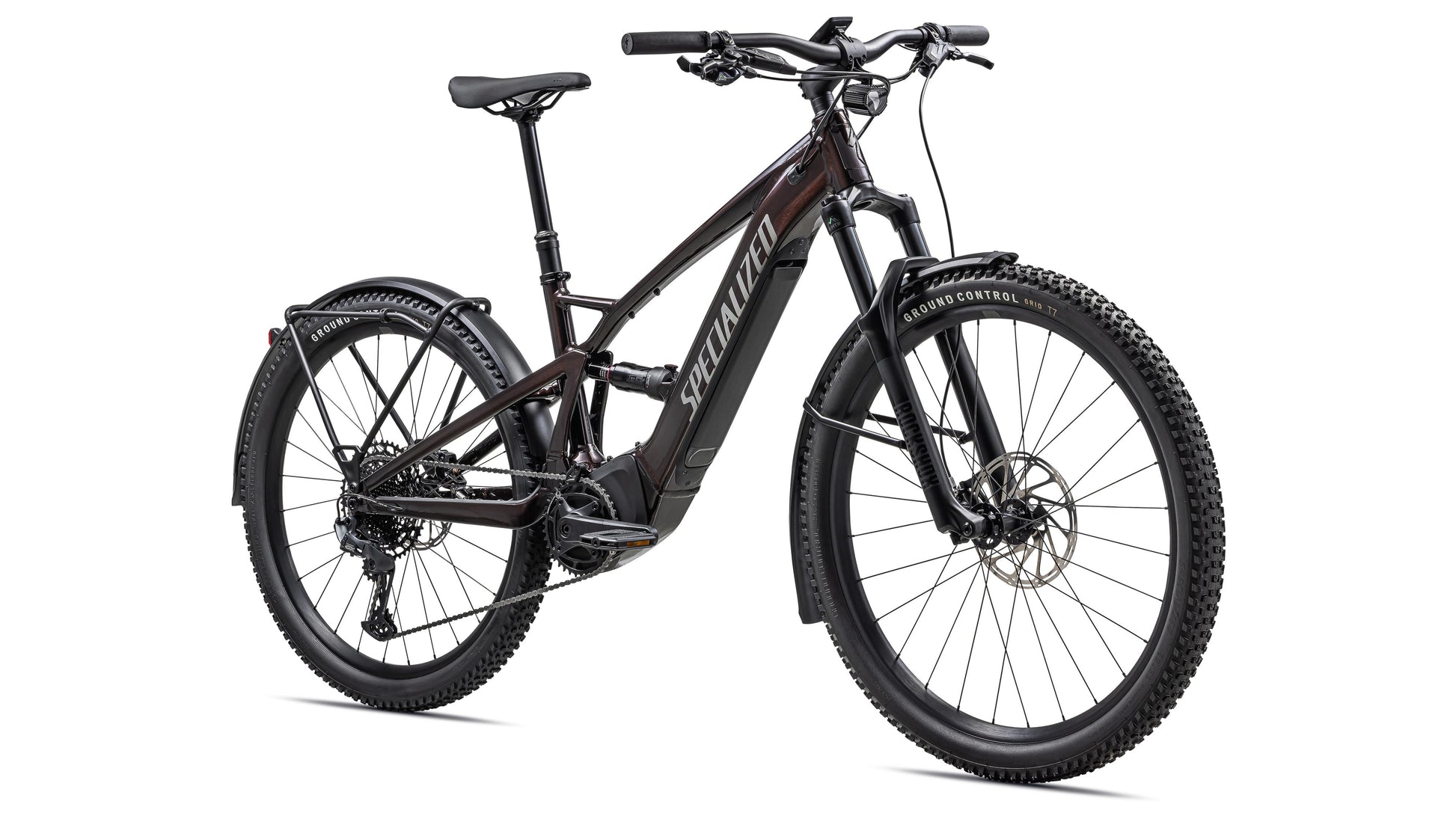

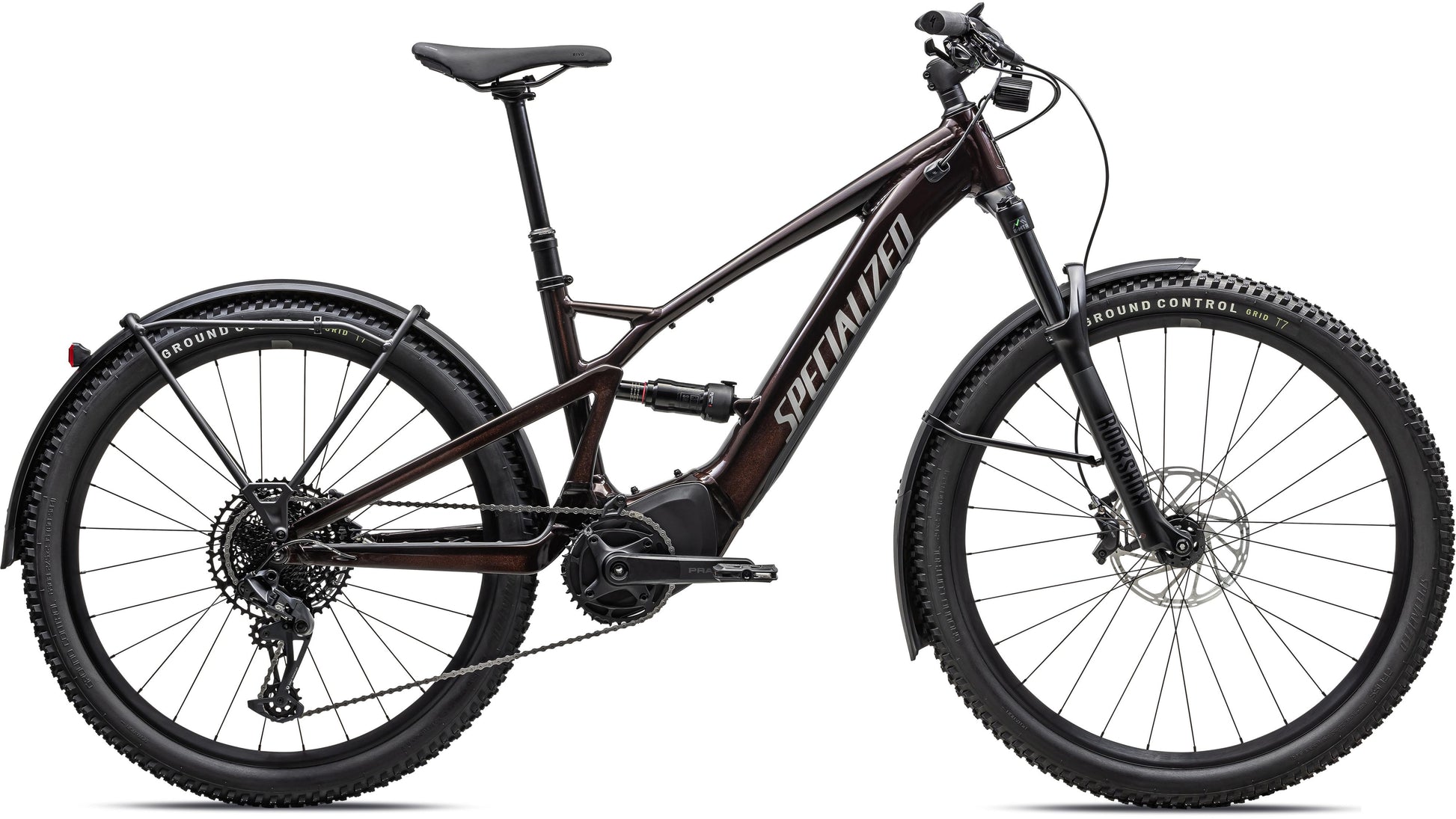

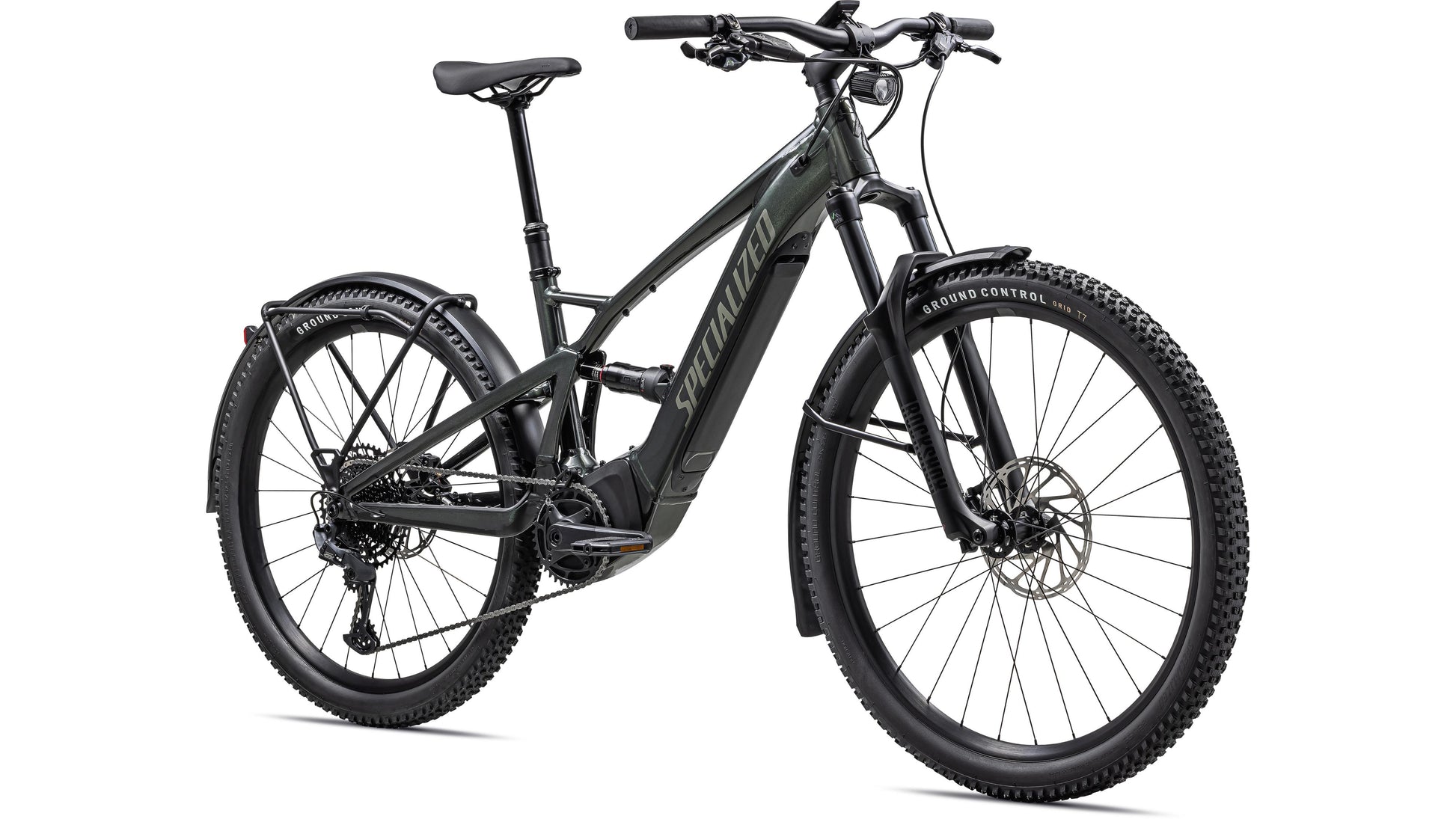

2023 Specialized Turbo Tero X 5.0 Features
The Turbo Tero X means one thing: you're going to need a bigger map. With ride anywhere range, this full-suspension electric bike is our go-anywhere, over anything, with everything vehicle. Plus, with enough storage space to pack in a few backcountry comforts, you'll discover new adventures easier than ever. The only question left to ask is where to?
POWERFUL: Pedal beyond the map with the seamless performance of the Specialized Full Power 2.0 motor and the Turbo Operating System. The Specialized Full Power 2.0 motor has been tested against the most rugged terrain, in the harshest conditions, to ensure the highest quality experience. An intelligent e-bike operating system that seamlessly integrates our fully custom, purpose-built software and hardware so you can ride farther and explore more than ever before. What’s more, the MasterMind display provides instant tunability right at your fingertips while keeping an eye on the built-in range estimator to ensure you’re hitting maximal range and ride time. Plus, the MasterMind display seamlessly integrates with the Specialized app to enable integrated range optimization tools, advanced tuning, on-ride diagnostics, and more.
SMOOTH: The pothole-eating, bump-smoothing, rock-flattening confidence, comfort, and control built into the Tero X tame the most rugged terrain. Thanks to ample front and rear suspension, a performance-minded upright riding position, our world-renowned Ground Control tires, and the confidence of a dropper seatpost, we’ve made it easier than ever to explore rough routes with confidence.
VERSATILE: Ride beyond the horizon with everything you need. The Tero X is equipped with up to 1,000 lumens of headlight power, up to 22 lumens of rear light illumination, and an integrated rear rack that safely carries up to 20kg of adventure gear. Oh, and did we forget to mention the extra front rack for 10kg of additional on-bike storage? Sounds like any ride is a bright idea
The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.
At a Glance
- Specialized Full Power 2.0 Motor with 70Nm of torque and a 710Wh Battery deliver incredible, seamless pedal assistance and long lasting-battery life. With a ride-anywhere range, go up to 86 miles (140 km) or 6.5 hours on a single charge (eco mode).
- Specialized app and MasterMind display allow you to tailor Tero X’s power output levels to your desired riding preference.
- Specialized app gives you added security by allowing you to disable the motor and activate the motion sensor alarm with Turbo System lock.

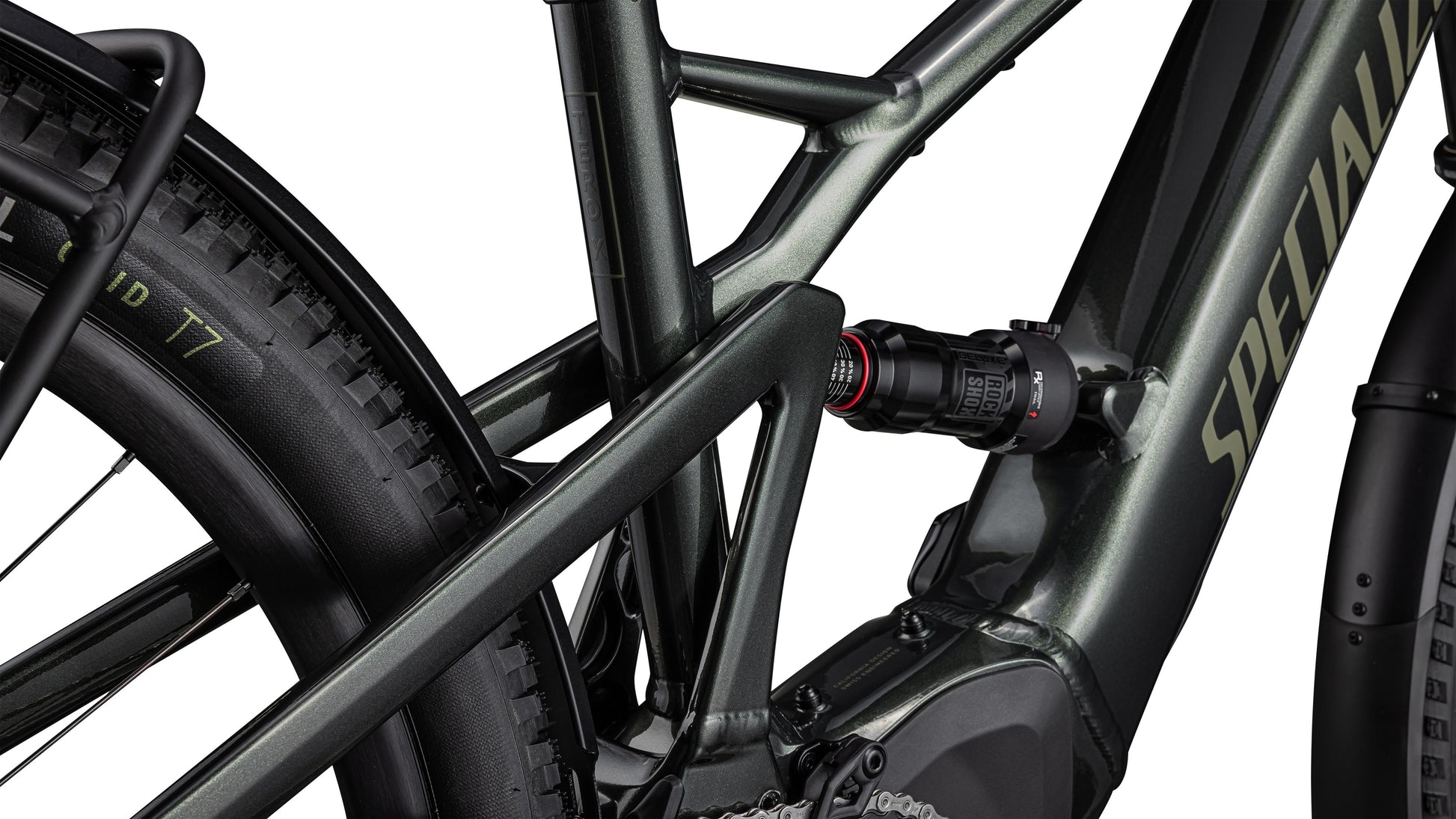

- 130/120mm of full suspension. Lock-out equipped RockShox 35 Silver fork and a RockShox Deluxe Select R shock provide confidence, comfort, and control.

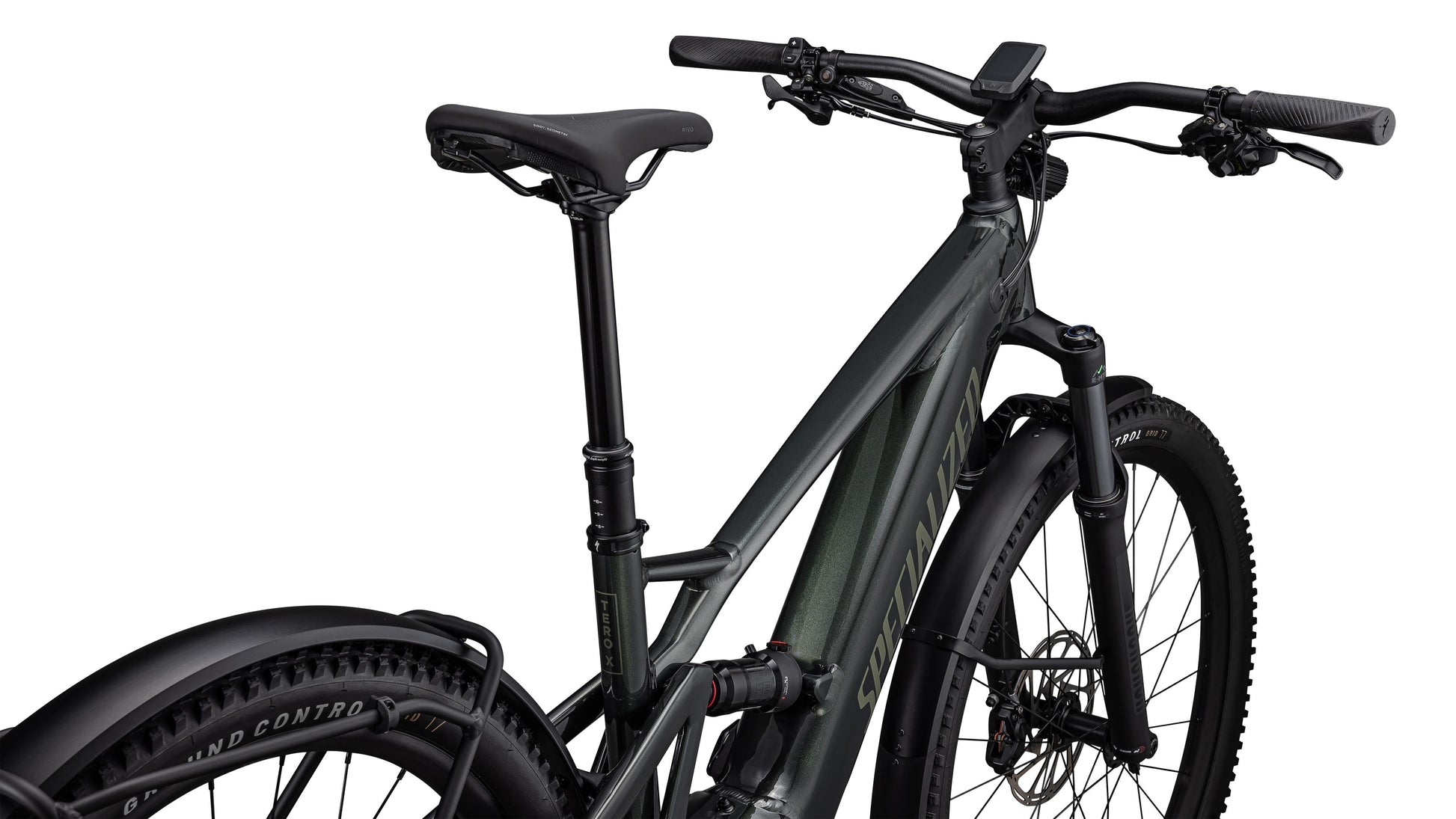

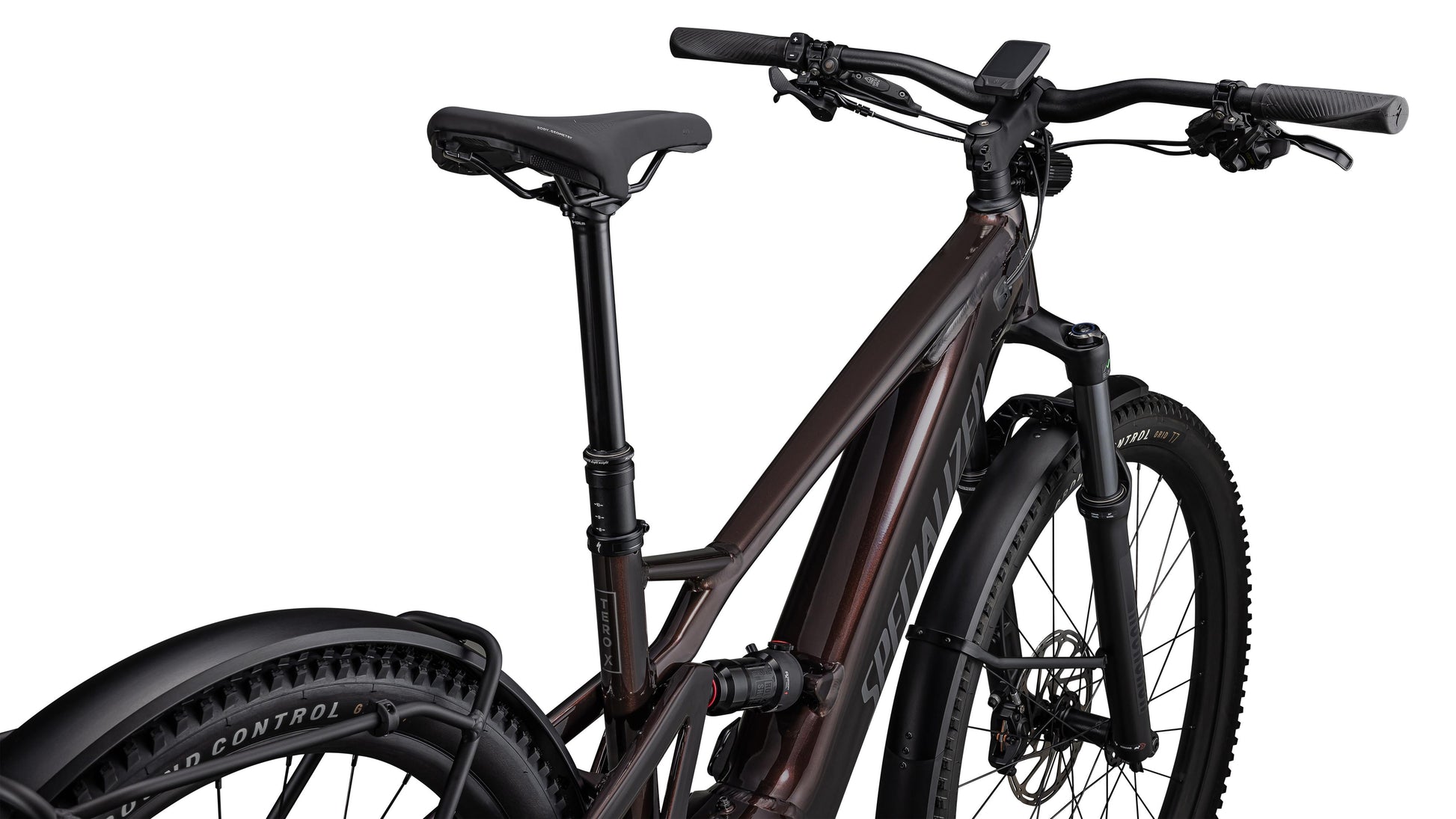

- Dropper seat post helps you stay in control during the rocky parts while making it easier to get your foot down when coming to a stop.
- DRYTECH stainless steel fenders ensure that no matter the adventure, you always arrive fresh.
- World-renowned Ground Control Grid T7 tires for unsurpassed traction.

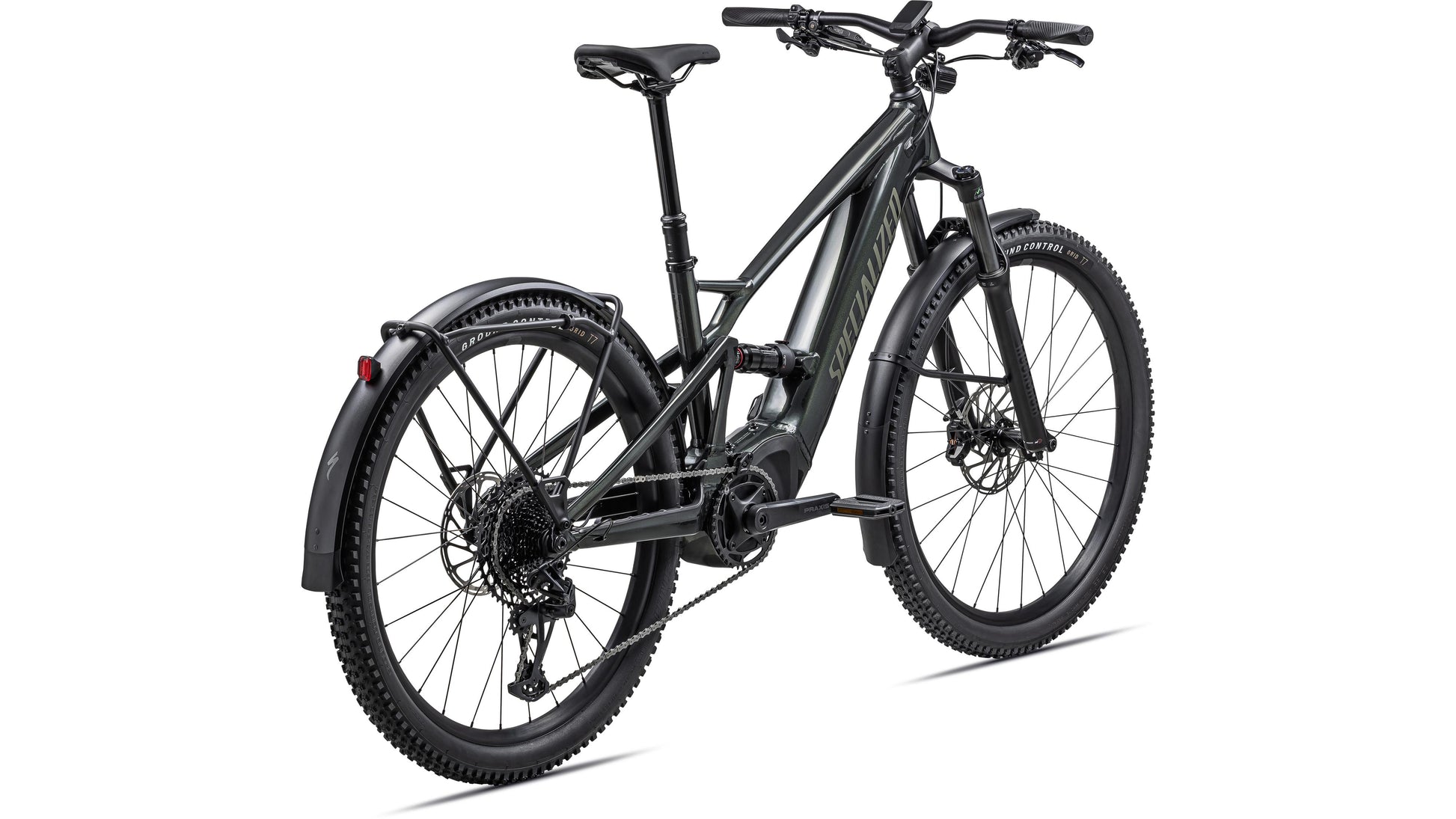

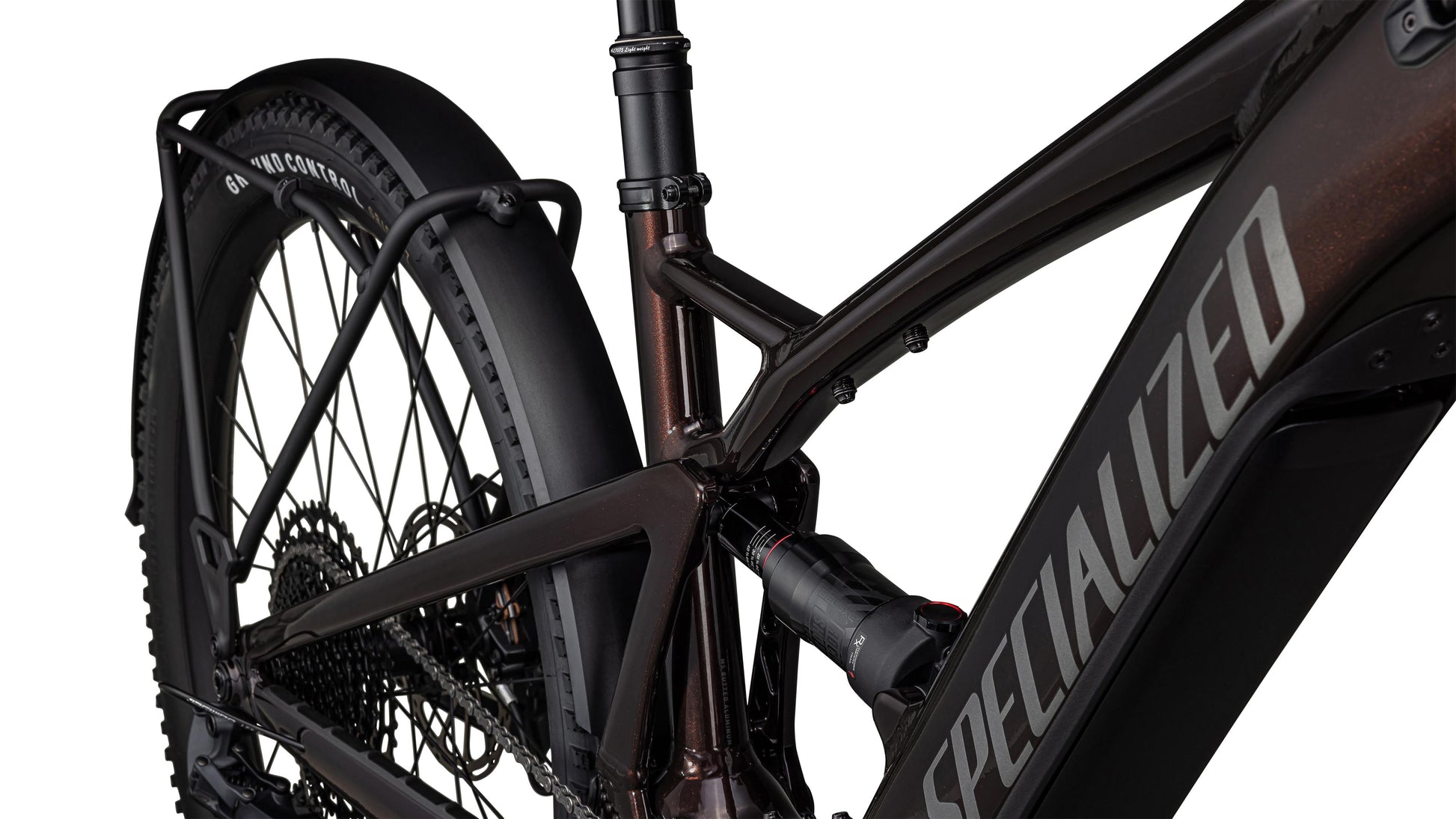

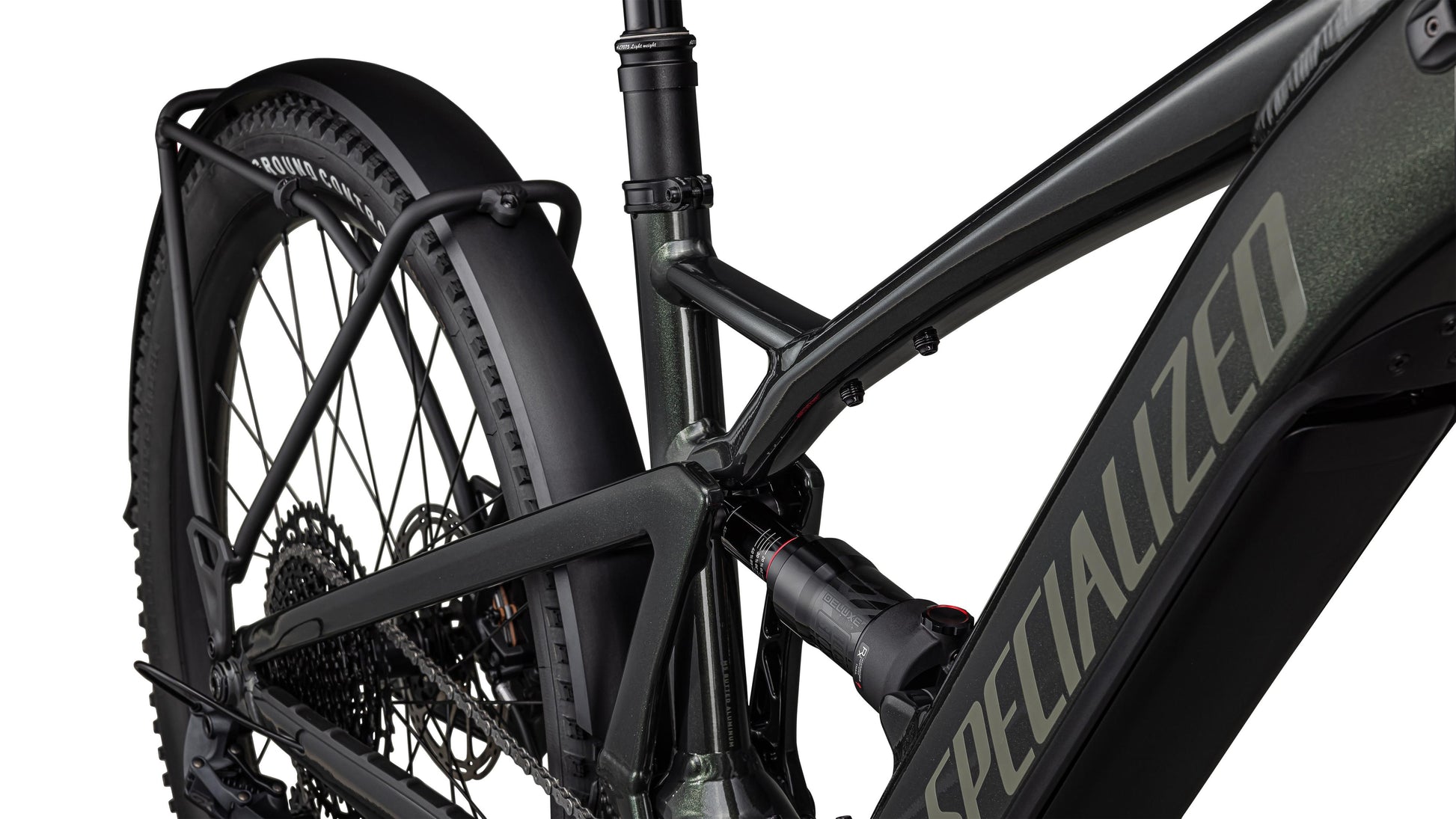

- Rear rack with side pannier rails provide 20kg carrying capacity. Also compatible with the Front Rack and Adventure Plate for an additional 10kg of capacity.

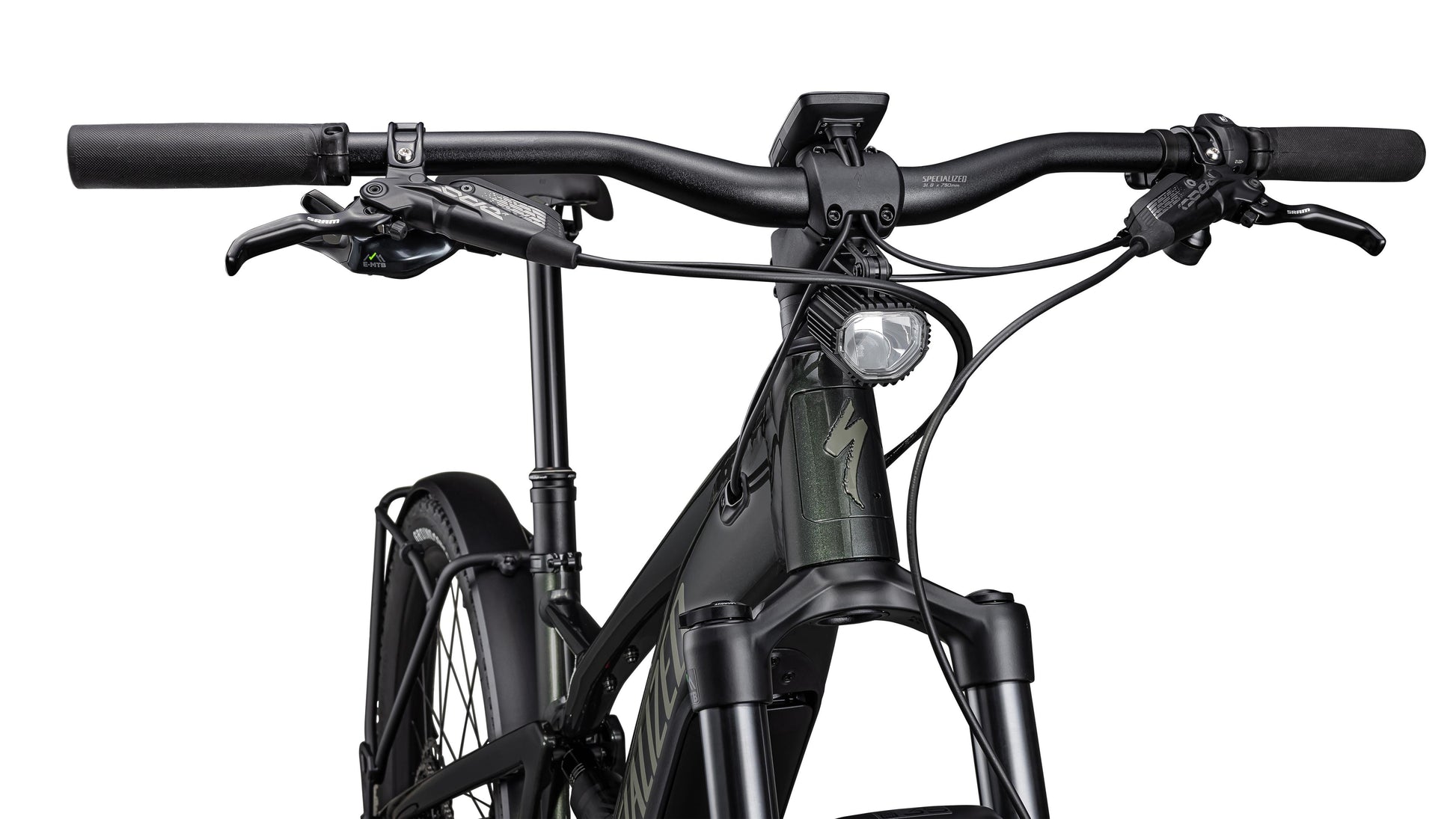

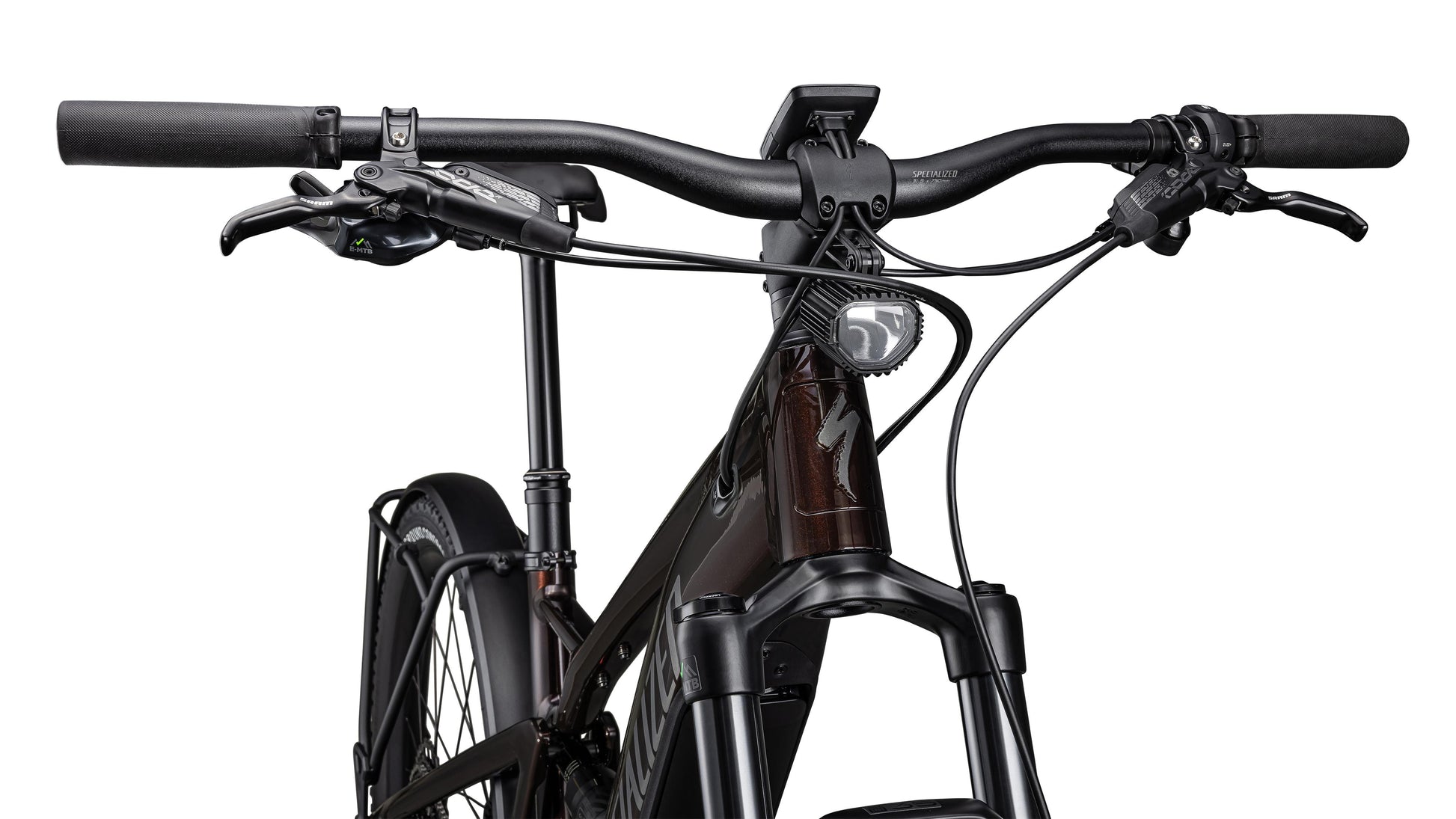

- Integrated Lezyne Super E600 front light with 600 lumens and Lezyne Fender rear light.
- For optimal ride control, the Tero X features a front and rear wheel combination of 29”/27.5”; also known as a mullet setup, in all sizes except the S. The S features 27.5”/27.5” front and rear wheel combinations.
Component Specifications

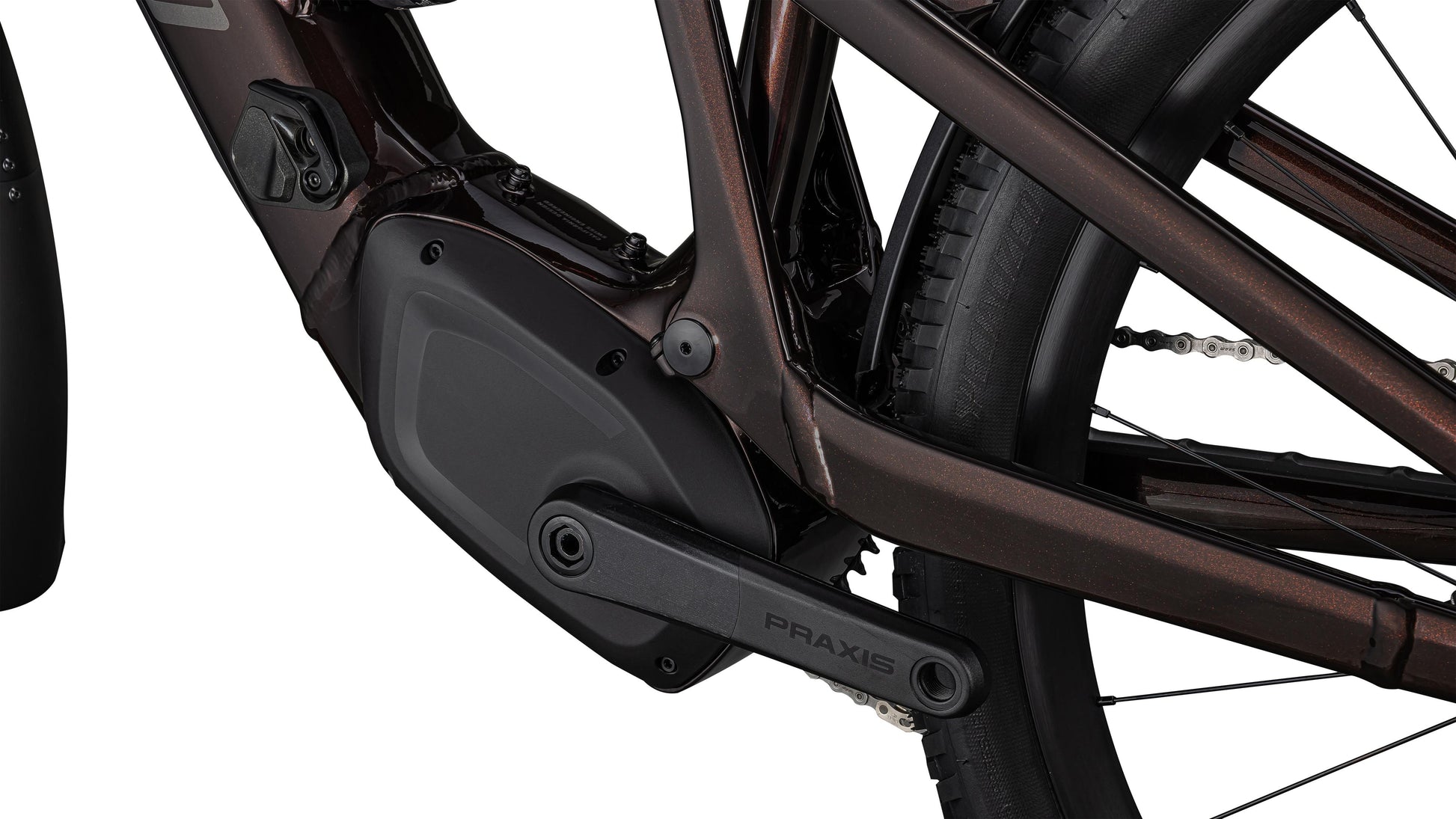

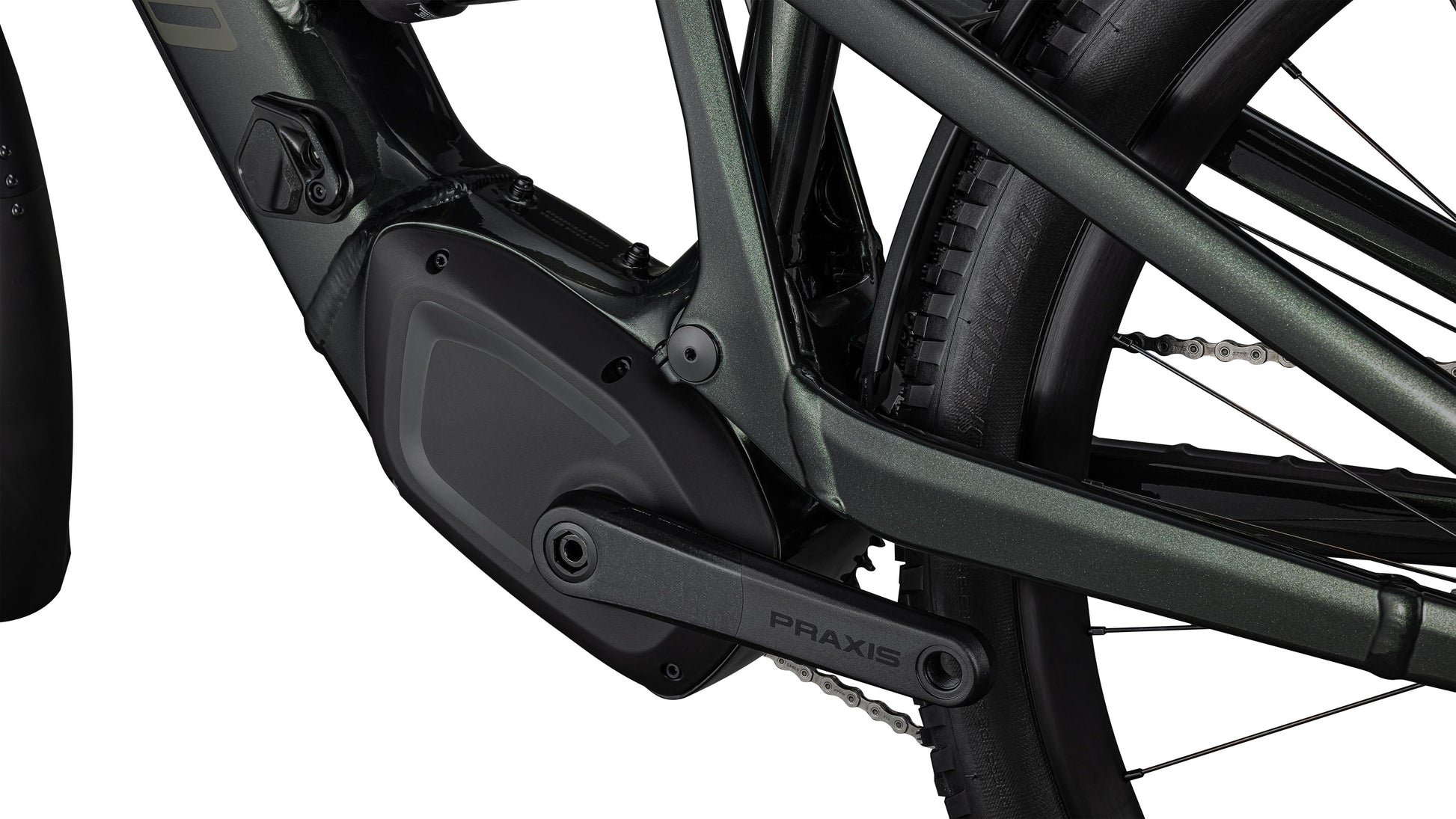

| Motor | Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-710, alloy casing, state of charge display, 710Wh |

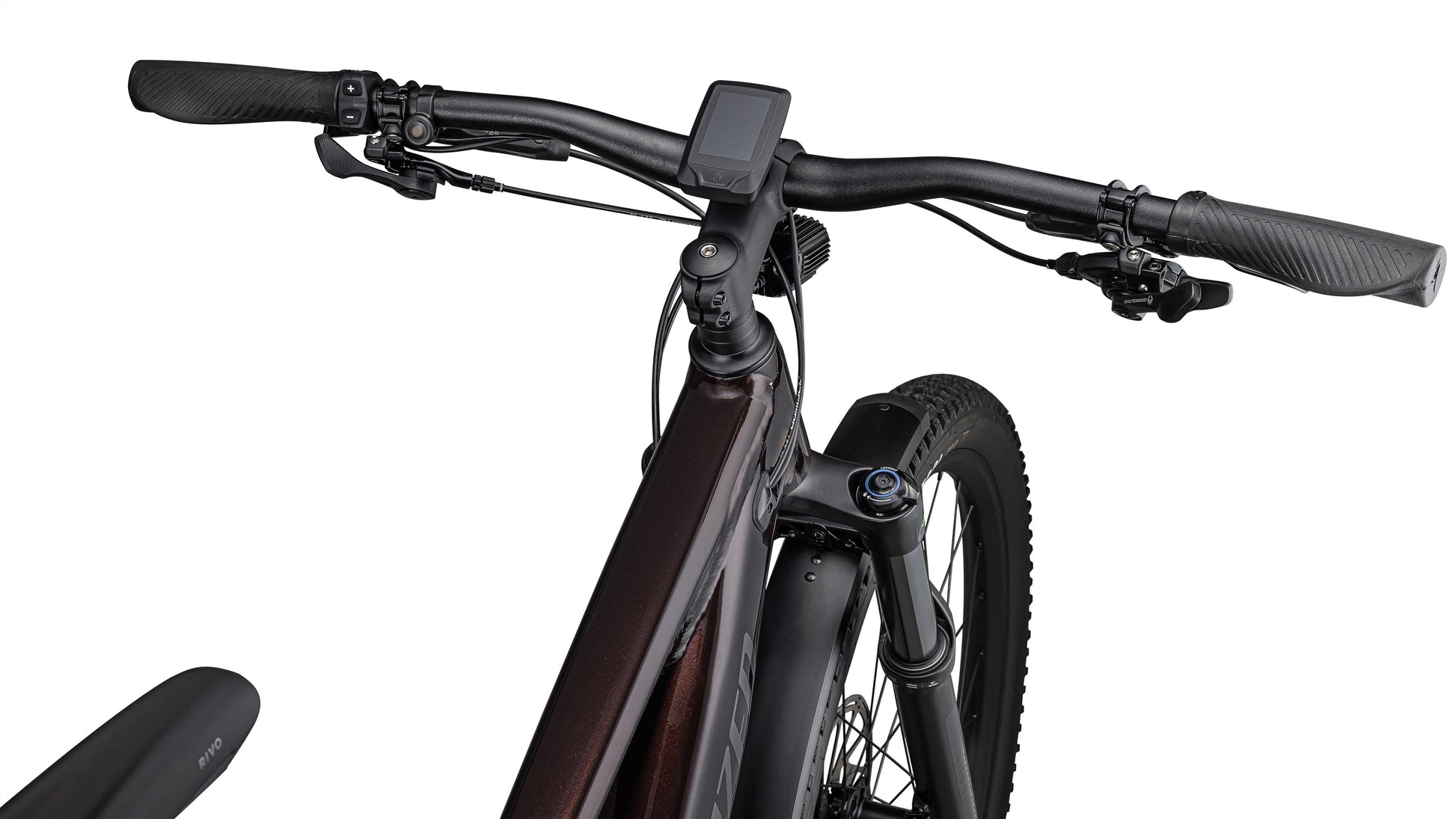

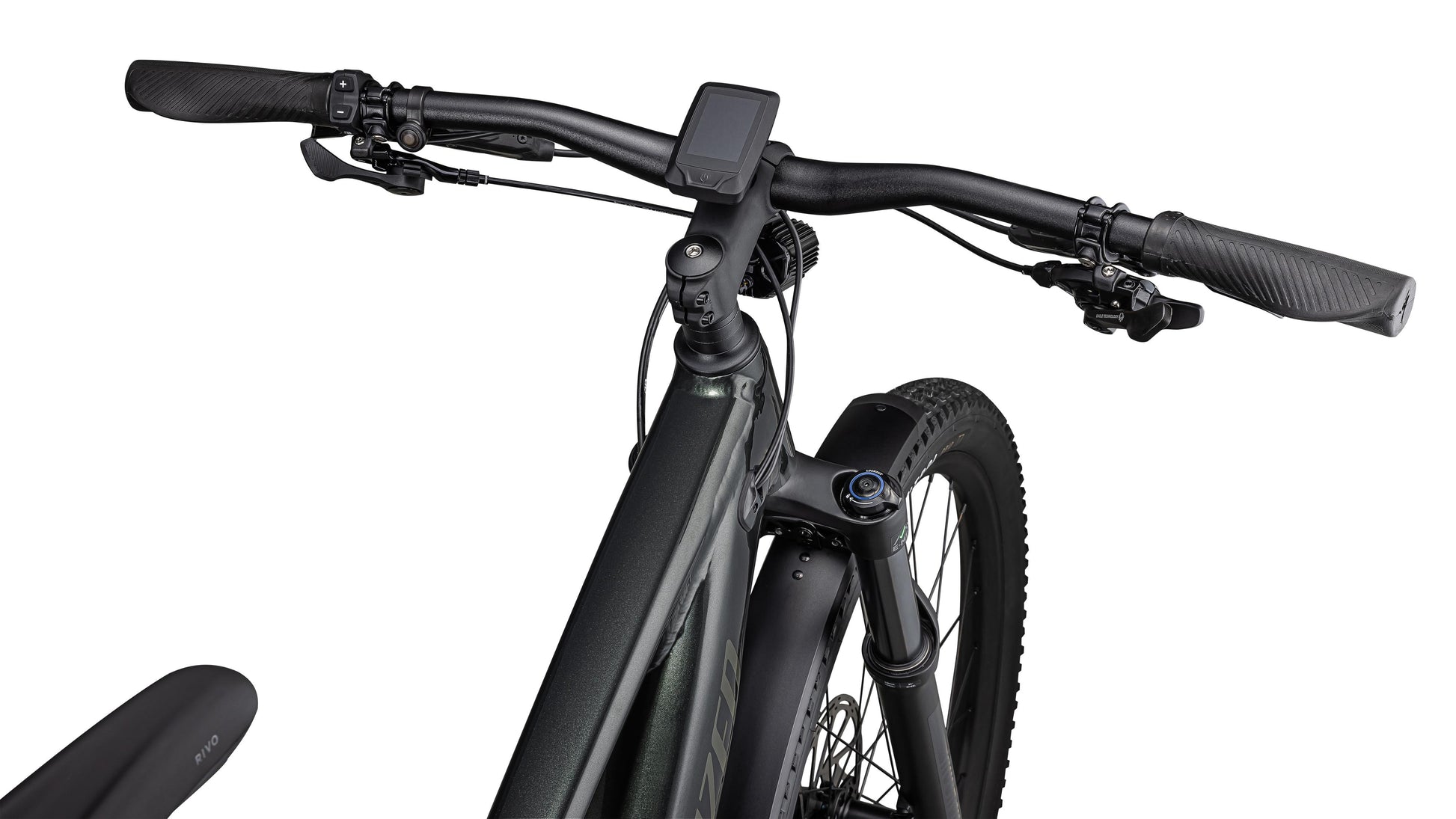

| UI Remote | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
| Frame | E5 Aluminum, full suspension, mullet style for M-XL, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
| Seat Binder | Alloy, 38.6mm |
| Fork | RockShox 35 Silver TK, lockout, 130mm, fender mounts |

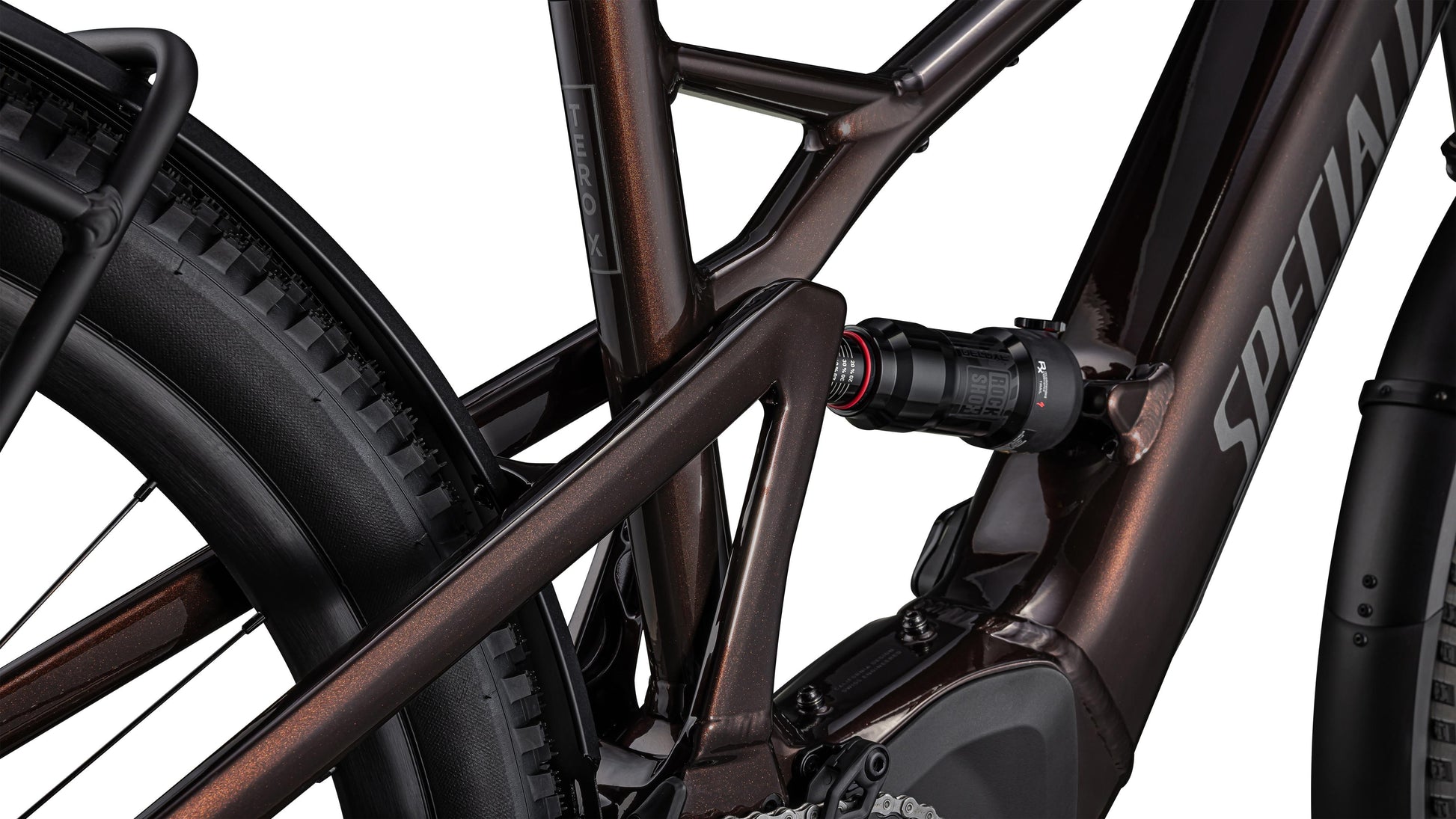

| Rear Shock | RockShox Deluxe Select R, rebound adjust, 45x190mm |
| Shift Levers | SRAM GX Eagle, trigger, 12-speed, single click |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| Cassette | SRAM NX Eagle PG-1230, 12-speed, 11-50t |
| Chain | SRAM NX Eagle, 12-speed |
| Crankset | Praxis forged M30, custom offset |
| Chain Rings | Sram X-Sync Eagle, 104BCD, 38T, EMTB specific, steel |
| Rims | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized alloy, disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h |
| Rear Hub | Specialized alloy, disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 28h, HG Freehub |
| Spokes | DT Swiss Industry |
| Front Tire | Ground Control Grid T7, 2Bliss ready, S: 27.5x2.35, M-XL: 29x2.35 |
| Rear Tire | Specialized Ground Control Grid T7, 2Bliss Ready, S: 27.5x2.35, M-XL: 29x2.35 |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | Sram Code R, 4-piston caliper, hydraulic, 200mm rotor |
| Rear Brake | Sram Code R, 4-piston caliper, hydraulic, 180mm rotor |
| Stem | Specialized Stealth Stem, alloy, 14 deg, 31.8mm, 75mm length, integrated TCD mount |
| Handlebars | Specialized Trail, Alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S: 720mm, M-XL: 750mm |
| Grips | Specialized Body Geometry |
| Saddle | Bridge Sport, Steel rails, 155mm |
| Seatpost | TranzX dropper, infinite adjustable, two-bolt head, bottom mount cable routing, Handlebar remote, 34.9mm, S: 150mm, M: 170mm, L/XL: 200mm |

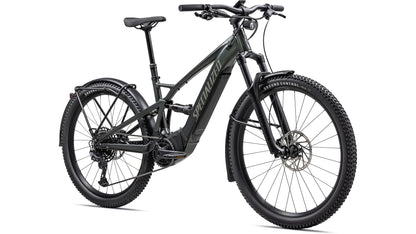

2023 Specialized Turbo Tero X 5.0
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 607 mm | 626 mm | 644 mm | 658 mm |
| Reach | 440 mm | 468 mm | 490 mm | 509 mm |
| Chain-Stay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1204 mm | 1228 mm | 1258 mm | 1282 mm |
| Top-Tube Length (horizontal) | 570 mm | 602 mm | 637 mm | 666 mm |
| Bike Stand-Over Height | 726 mm | 726 mm | 740 mm | 740 mm |
| Seat-Tube Length | 380 mm | 400 mm | 420 mm | 440 mm |
| Seat-Tube Angle | 78° | 78° | 77° | 77° |
| Head-Tube Length | 135 mm | 115 mm | 135 mm | 150 mm |
| Head-Tube Angle | 67° | 67° | 67° | 67° |
| B-B Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 105 mm | 118 mm | 118 mm | 118 mm |
| Fork Length (full) | 521 mm | 540 mm | 540 mm | 540 mm |
| Fork Rake/Offset | 46 mm | 42 mm | 42 mm | 42 mm |
| Front-Center | 745 mm | 770 mm | 799 mm | 824 mm |
