Specialized Stumpjumper Ltd Carbon Evo 27.5 Frame Features
It's hard to top the history and beauty behind a Troy Lee Designs paintjob, and what's on display on this limited-edition, EVO Stumpjumper chassis pairs slack, long and low geometry with 150mm of deep and progressive suspension. It's a featherweight brawler.
ONE FRAME, ANY TRAIL
The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we've increased both stiffness and performance over bumps.
EVO IS FOR SHREDDERS
Stumpy EVOs aren't "normal" trail bikes—they're built to get gnarly, simple as that. With their slacked-out front-end and longer top tube, EVO models possess exceptional front-end traction that begs you to boost every feature on the trail. It's rowdy time.
THE PERFECT FOUNDATION
• Limited-edition, EVO carbon chassis is stiff, precise, and rowdy.
• Built to shred with 27.5 Trail EVO geometry and bottomless-feeling rear suspension.
• FOX FLOAT DHX2 Performance Elite rear shock boasts stellar big-hit performance.
Product Specifications
Product Specifications
Frame |
|
Rear Shock |
|
Seat Binder |

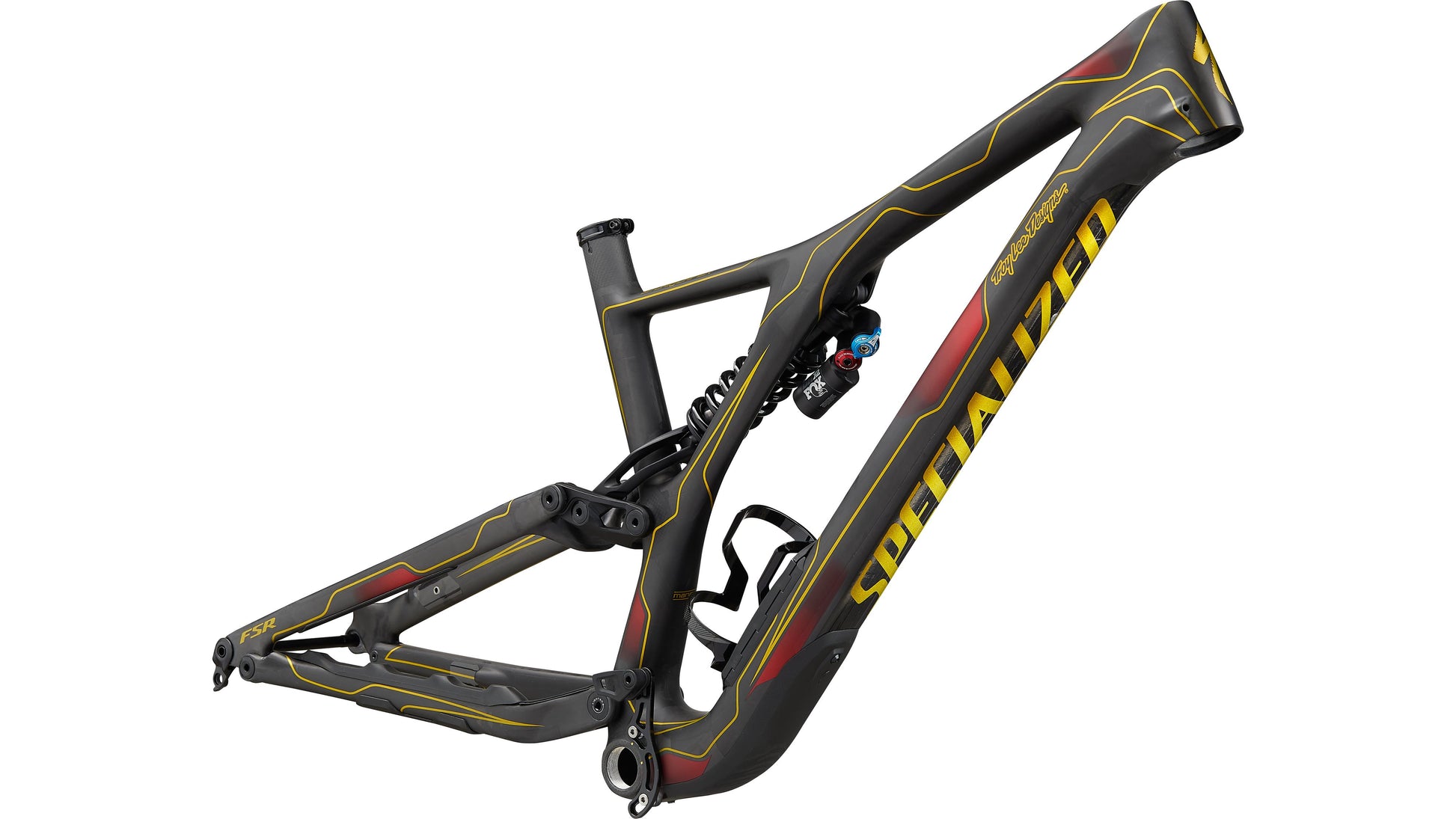

Specialized Stumpjumper Ltd Carbon Evo 27.5 Frame
| Bike/Frame Size | S2 | S3 |
|---|---|---|
| Stack | 601 mm | 610 mm |
| Reach | 465 mm | 490 mm |
| Chainstay Length | 440 mm | 440 mm |
| Wheelbase | 1228 mm | 1258 mm |
| Top Tube Length, Horizontal | 615 mm | 647 mm |
| Bike Standover Height | 744 mm | 756 mm |
| Seat Tube Length | 400 mm | 450 mm |
| Seat Tube Angle | 76° | 75.6° |
| Head Tube Length | 110 mm | 120 mm |
| Head Tube Angle | 63.5° | 63.5° |
| BB Height | 324 mm | 324 mm |
| BB Drop | 33 mm | 33 mm |
| Trail | 137 mm | 137 mm |
| Fork Length, Full | 542 mm | 542 mm |
| Fork Rake/Offset | 37 mm | 37 mm |
| Front Center | 790 mm | 820 mm |
Size Guide: Specialized Stumpjumper Ltd Carbon Evo 27.5 Frame
