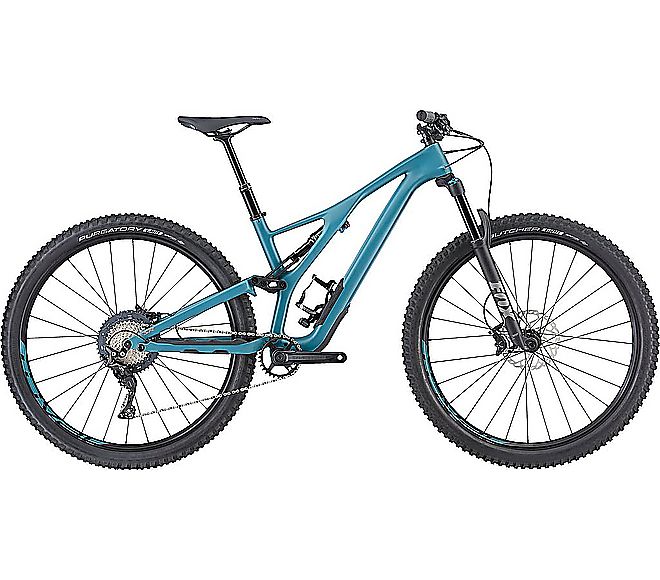

With the same 11m carbon construction as the S-Works, the Women's Stumpjumper ST Comp Carbon 29 brings you transcendent handling, custom-tuned suspension, and an elimination of proprietary headaches—all while keeping the speed you look for with 29-inch wheels. And don't forget that with its "ST" distinction, this Stumpjumper gets slightly steeper angles and less suspension (130mm front/120mm rear), so you get more nimble and responsive climbing ability and sublime descending prowess.
Our design goal for the new Stumpjumper was simple—build the ultimate trail bike, one that feels telepathic. And it turns out that this feeling all comes down to stiffness. Think of it this way: when the frame's telling your hands one thing and your feet another, your brain gets confused with the imbalance and the bike feels unstable. In order to fix this, we had to get to work on dialing-in the materials, shapes, and the layout.
We started by creating our own mountain-specific stiffness test, and then we looked at the layout with Finite Element Analysis (FEA) to see where we could get the biggest stiffness improvements. This led to a big discovery: The Large and X-Large frames needed more front-end stiffness while the Smalls and Mediums were just fine. We were able to create a frame design that was 20% more efficient. And in the end, this proved to be one of the lightest trail frames on the market, today.
When designing the frame with the stiffness targets being a main goal, we developed a radical new sidearm design. The front-end and rear-end are connected at three points, and the sidearm helps keep all these points super stiff and connected, all while taking about 100 grams out of the frame. More explicitly, this minimizes frame flex when the rear suspension is active.
We continued down the suspension path with a Women's Rx Tune that gives both the fork and rear shock a custom tune specifically for female riders. Suspension performance is highly dependent on frame, wheel, and rider size, so we use our Women's Rx Tune to get each bike to land in the middle of the adjustment spectrum, and this gives you the biggest possible range to fine-tune your ride. Another focal point of the tune was matching the suspension characteristics between wheel sizes—we developed a specific Rx Tune for each platform and rider size. So, no matter what, you'll get perfectly linear suspension.
Steps were also taken to make this bike easy to live with. Threaded bottom brackets make a triumphant return, and we made room for up to a 2.6" tire. You're also free to run whatever aftermarket rear shock you want, since we're using standard metric shocks. We revamped the SWAT™ box, too, making it sleeker, lighter, and with more volume. And customization is furthered with a Flip Chip that lets you to dial-in your Stumpy to your riding style. Switch it from High to Low and it drops your bottom bracket 6mm and slackens the head tube by half-a-degree. Little details also jump out to surprise you, like a newly designed ribbed chainstay protector that makes chain slap a thing of the past and nearly silences the drivetrain. Lastly, we seriously couldn't make cable routing any easier on carbon models. Full tubes can be found throughout the carbon frame, so all you have to do is push the cable and it'll come out the other end. No more lazy loop, hidden stashes of magnets, pokey spokes, or pillows to cry in.
The build on this Women's Comp model comes with a list of components that deliver undeniable quality, like a Shimano XT/SLX drivetrain with RaceFace cranks, Shimano SLX disc brakes, FOX front and rear suspension (130/120mm of travel respectively), and Roval Traverse 29 wheels.
•Bottom Bracket: Threaded BB, 24mm spindle
•Cassette: Shimano SLX, 11-speed, 11-46t
•Chain: KMC X11, 11-speed w/ Missing Link™
•Crankset: RaceFace Aeffect, 24mm spindle, 170mm crankarm
•Fork: FOX FLOAT Rhythm 34, GRIP Damper, 51mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 130mm of travel
•Frame: FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
•Front Brake: Shimano SLX, hydraulic disc, resin pads, 200mm
•Front Hub: Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
•Front Tire: Butcher, GRID Casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
•Grips: Specialized Sip Grip
•Inner Tubes: Standard, Presta valve
•Rear Brake: Shimano SLX, hydraulic disc, resin pads, 180mm
•Rear Derailleur: Shimano XT, Shadow Plus, GS cage, 11-speed
•Rear Hub: Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
•Rear Shock: FOX FLOAT DPS Performance, Women's Rx Tune, rebound and three-position compression adjust, 190x42.5mm
•Rear Tire: Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
•Rims: Roval Traverse 29, hookless alloy, 29mm inner width, tubeless ready, 28h
•Saddle: Body Geometry Myth Comp, Hollow Cr-Mo rails, 155mm
•Seat Binder: Specialized bolt-type, alloy, 38.6mm
•Seatpost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L/XL: 150mm of travel
•Shift Levers: Shimano SLX, 11-speed
•Spokes: DT Swiss Industry
•Stem: Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
•Pedals: Specialized Dirt
