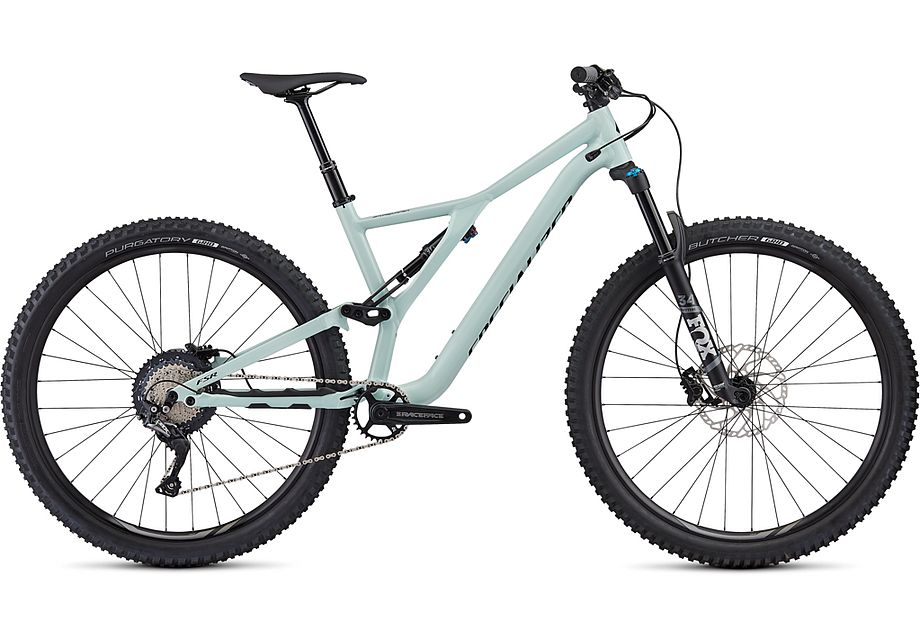

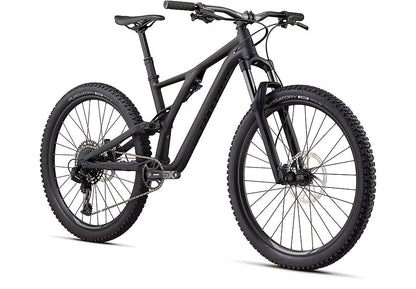

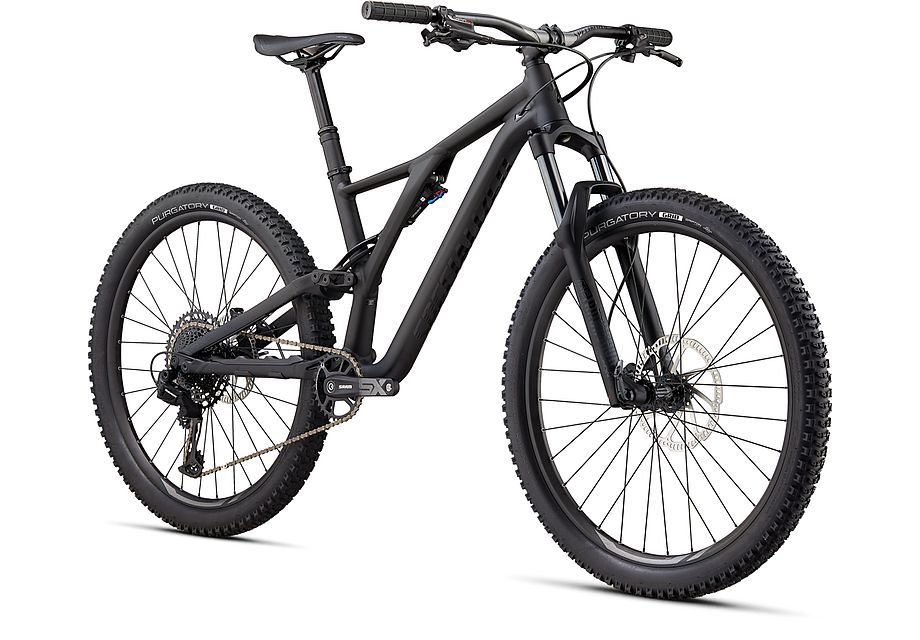

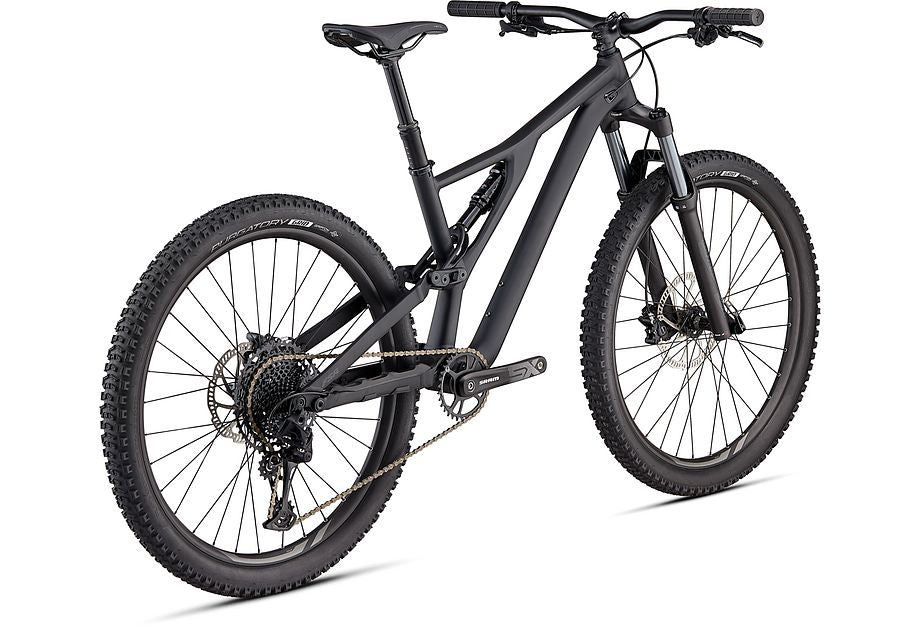

Specialized Stumpjumper Fsr St Men Comp 29 Features
Die-hard aluminum fans rejoice. Our snappy and nimble Stumpjumper ST is available in M5 alloy. It’s perfect for riders seeking a quick and capable all-rounder. The Stumpjumper ST Comp Alloy 29 ups the ante with full Fox suspension and reliable Shimano drivetrain.
THE ULTIMATE TRAIL BIKE
The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we’ve increased both stiffness and performance over bumps. End result? Total control.
PERFECTLY-BALANCED SUSPENSION
Our in-house suspension-tuning team develops custom shock tunes, perfectly paired to each bike’s kinematics. We call this Rx Tune and while it’s not the easy way to build a suspension bike, it’s worth it. You feel Rx Tune as perfectly-balanced suspension.
A NO-NONSENSE BUILD
• Sidearm frame design offers balanced stiffness and precise handling.
• The FOX DPS Performance rear shock equals perfectly dialed rear-suspension.
• FOX FLOAT Rhythm 34 fork with 130mm of travel offers great adjustabiity.
Component Specifications
| Frame | M5 alloy chassis and rear end, asymmetrical design, 29 Trail Geometry, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | FOX FLOAT RHYTHM, 34, GRIP damper, 51mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 130mm of travel |
| Rear Shock | FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 190x42.5MM |
| Shift Levers | Shimano SLX, 11-speed |
| Rear Derailleur | Shimano SLX, Shadow Plus, 11-speed |
| Cassette | Shimano SLX, 11-speed, 11-46t |
| Chain | KMC X11, 11-speed w/ Missing Link™ |
| Crankset | Race Face Ride, 170mm |
| Bottom Bracket | Threaded BB, 24mm spindle |
| Rims | Double-wall alloy, 27mm internal width |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm thru-axle, 32h |
| Rear Hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Purgatory, GRID Casing, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Shimano MT-501, hydraulic disc, resin pad |
| Rear Brake | Shimano MT-501, hydraulic disc, resin pad |
| Stem | Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise |
| Handlebars | Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp |
| Grips | Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness |
| Saddle | Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm |
