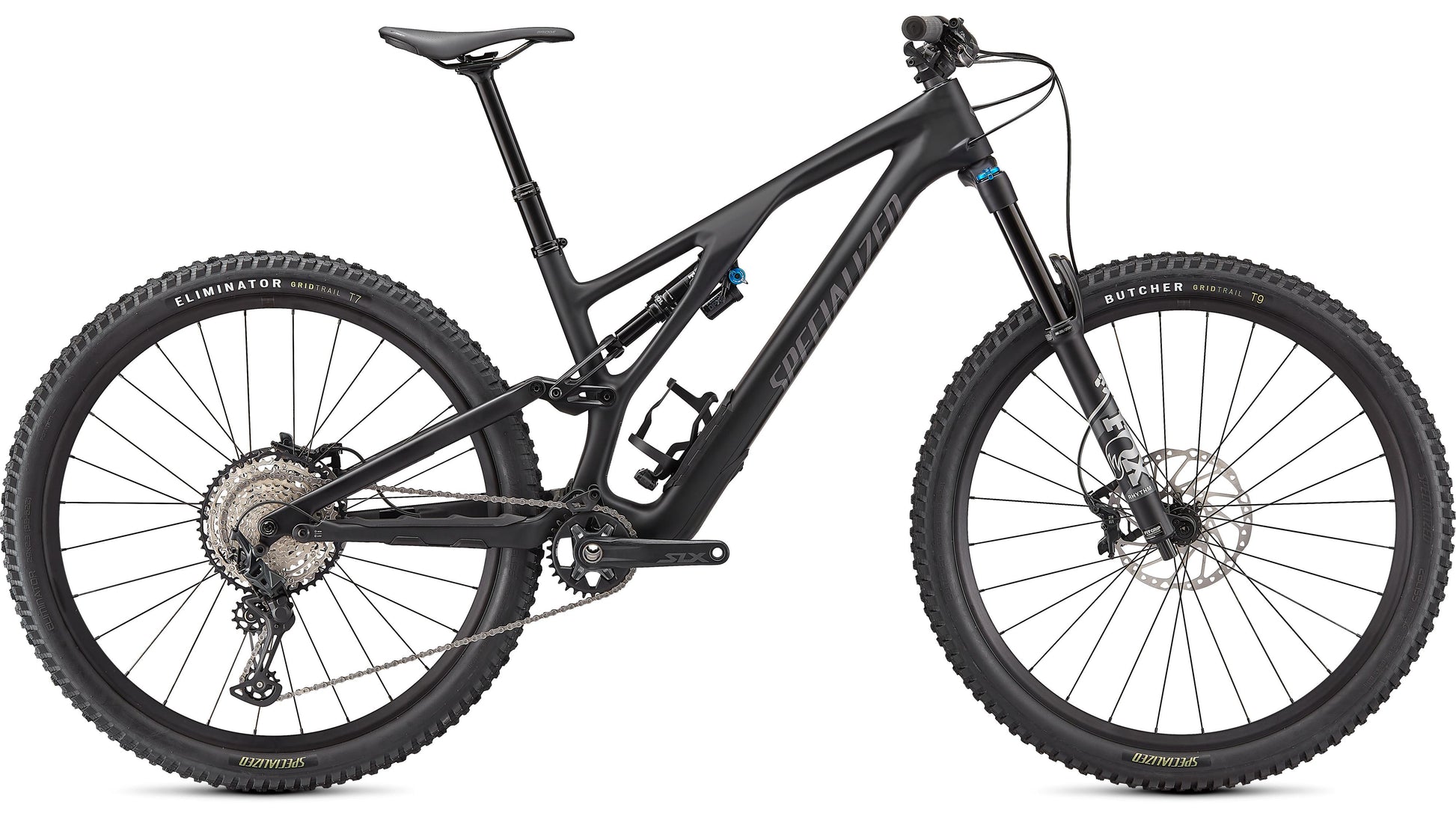

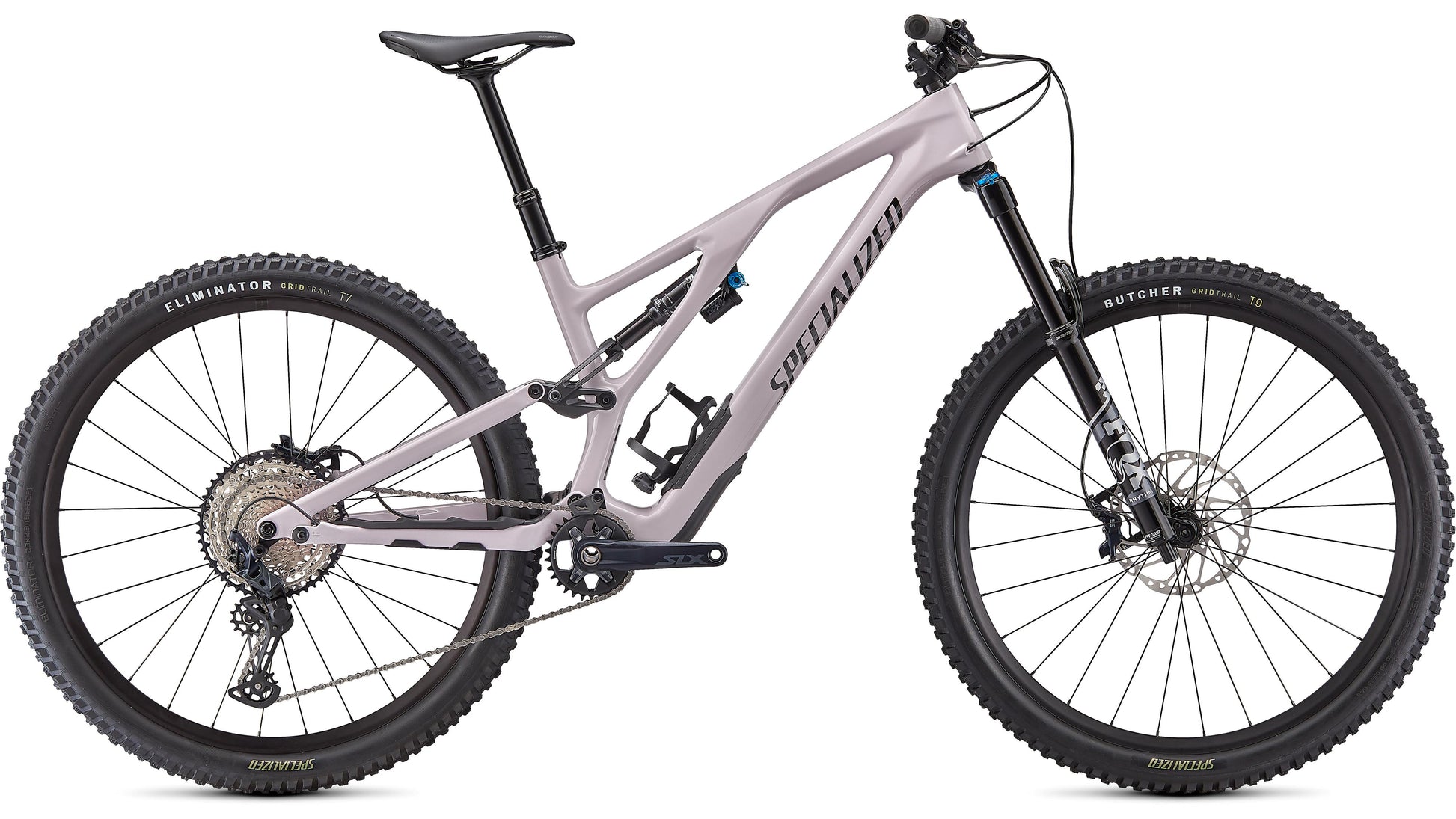

In order to bring EVO fun to the masses, we took our FACT 11m carbon frame (yes, the same one as the S-Works), dressed it with a bullet-proof Shimano SLX 12-speed drivetrain and a tough as nails set of alloy wheels, and set it loose to shred unsuspecting trails everywhere.
chain |
Shimano SLX, M7100, 12-speed |
chainrings |
30T |
crankset |
Shimano SLX, S1:165mm, S2-S5: 170mm, S6: 175mm |
fork |
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel |
frame |
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel |
front brake |
Shimano SLX M7120, 4-piston caliper, hydraulic disc, 200mm |
front hub |
Shimano MT400-B, Centerlock 28h, 15x110 Boost |
front tire |
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |

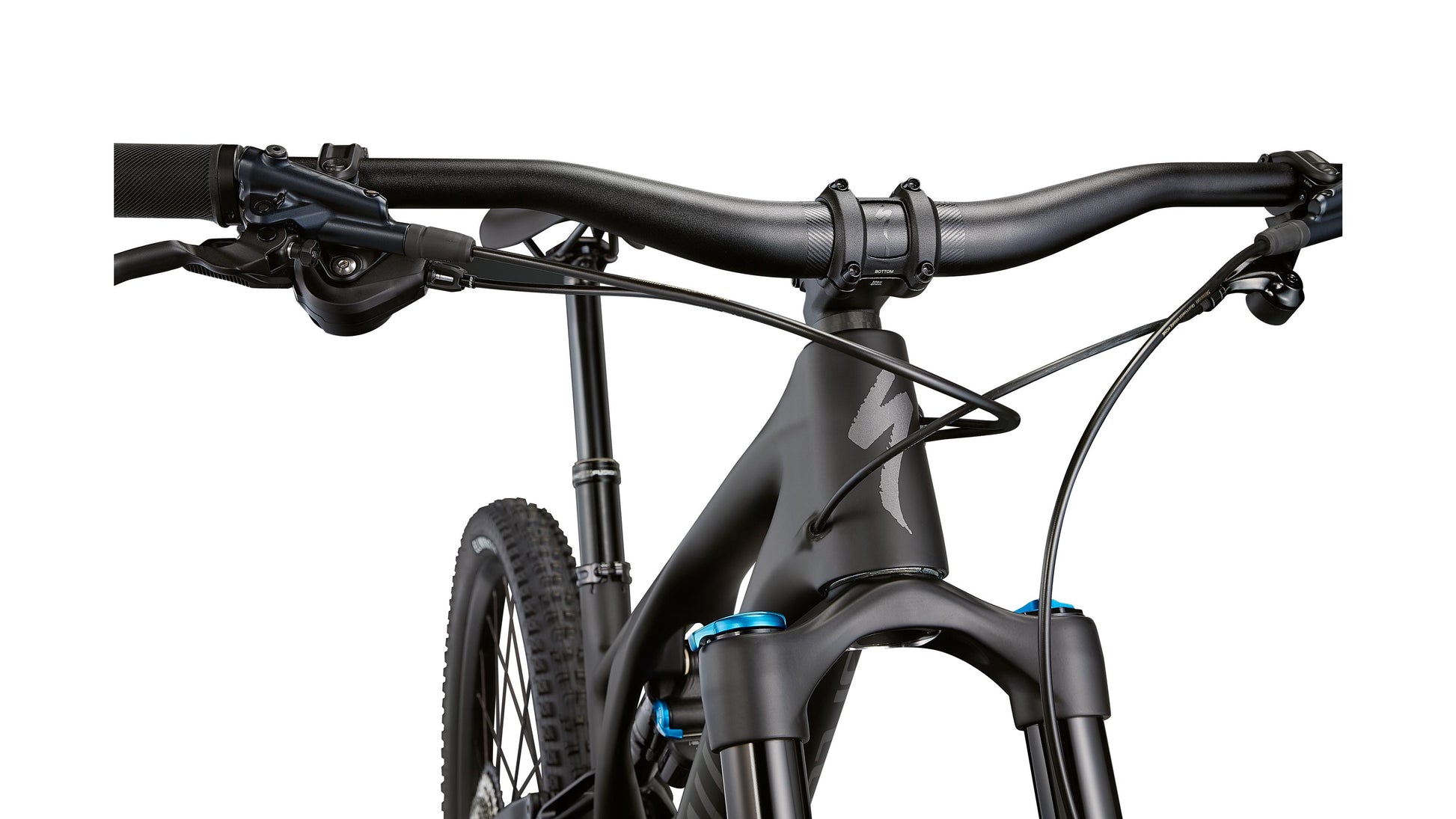

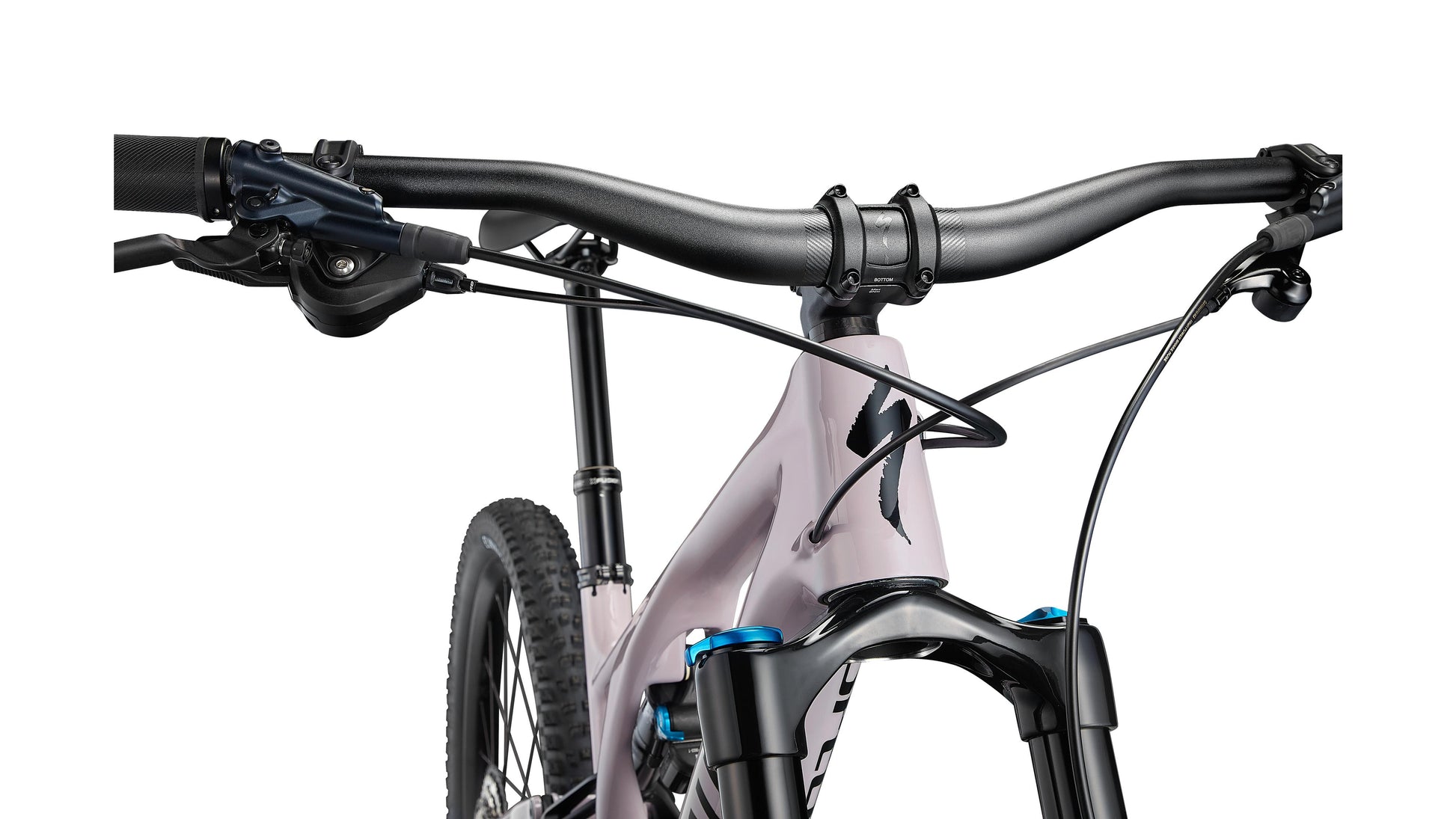

handlebars |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width |
inner tubes |
Standard, Presta valve |
rear brake |
Shimano SLX M7120, 4-piston caliper, hydraulic disc, 180mm |
rear derailleur |
Shimano SLX M7100, SGS, 12-speed |
rear hub |
Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline |
rear shock |
FOX FLOAT DPX2 Performance, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment, S1:210x50mm, S2-S6:210x55mm |
rear tire |
Eliminator, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |
rims |
Roval 29, hookless alloy, 30mm inner width, tubeless ready |
saddle |
Bridge Comp, Hollow Cr-mo rails, 155/143mm |
seat binder |
Alloy, 38.6 |
seatpost |
X-Fusion Manic, infinite adjustable, remote SRL LE lever, 34.9 (S1:100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm) |
shift levers |
Shimano SLX, M7100, 12spd |
spokes |
DT Swiss Industry |
stem |
Alloy Trail Stem, 35mm bar bore |
swat |
strike, no bladder on SJ chassis |
