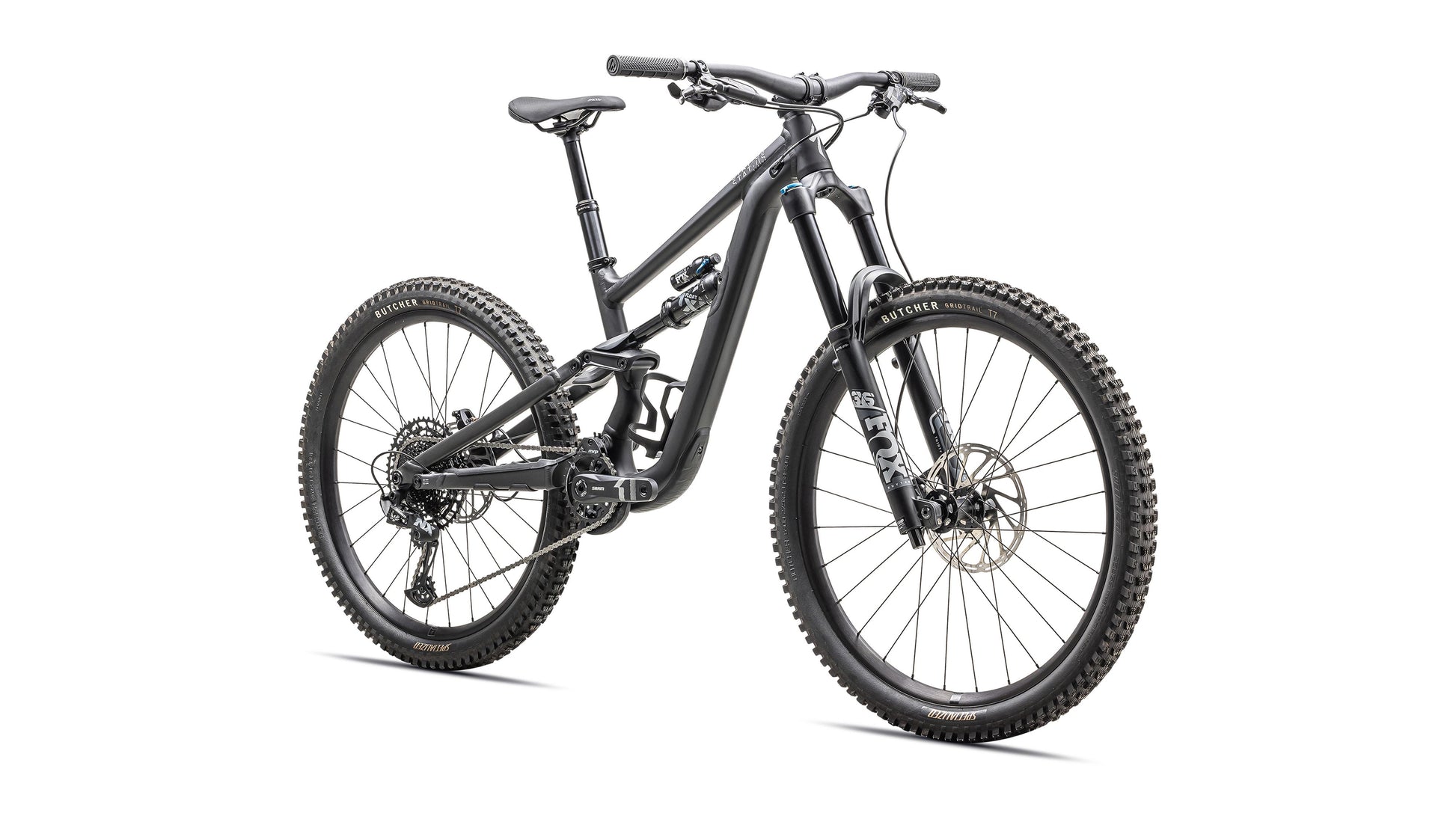

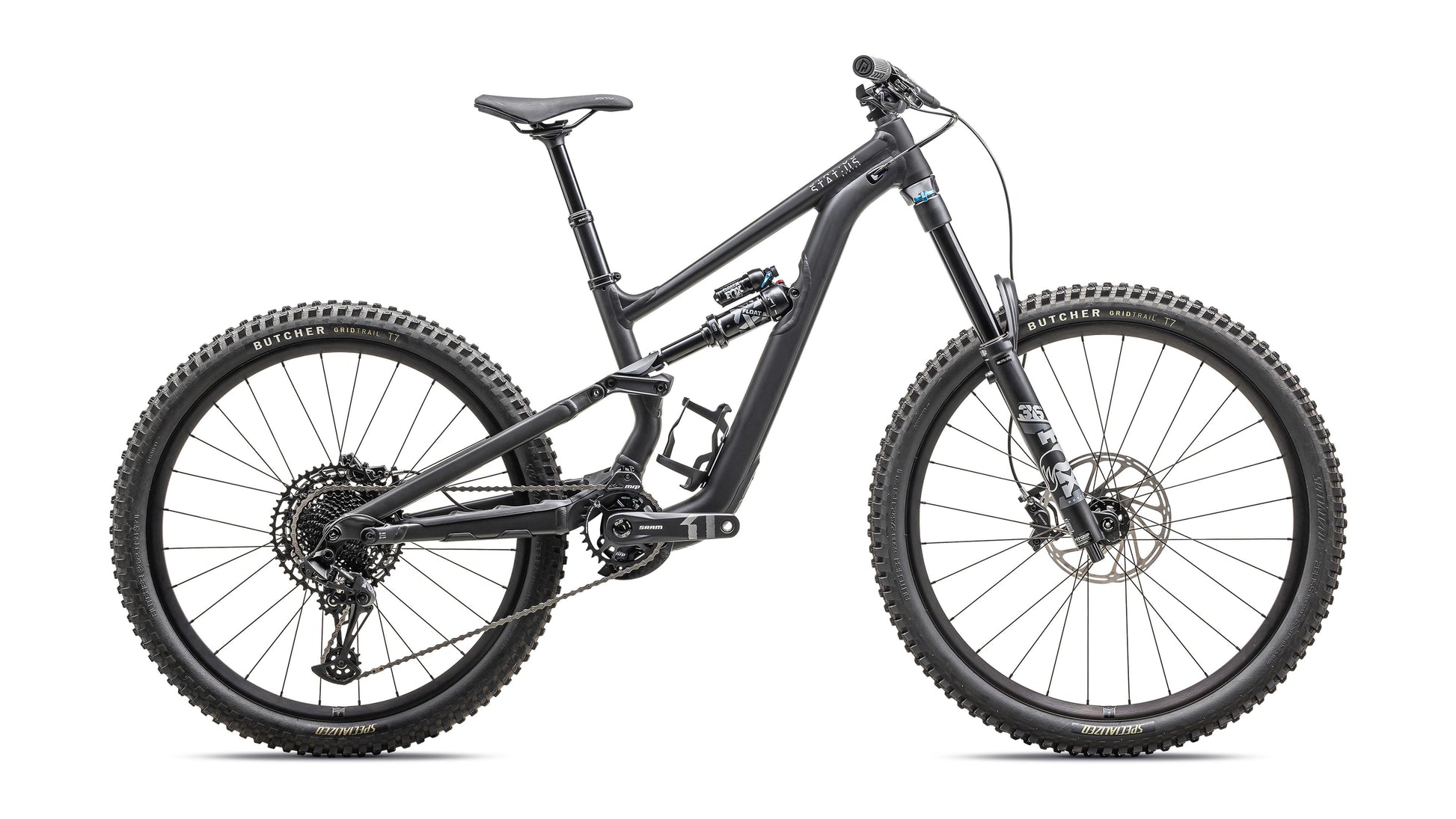

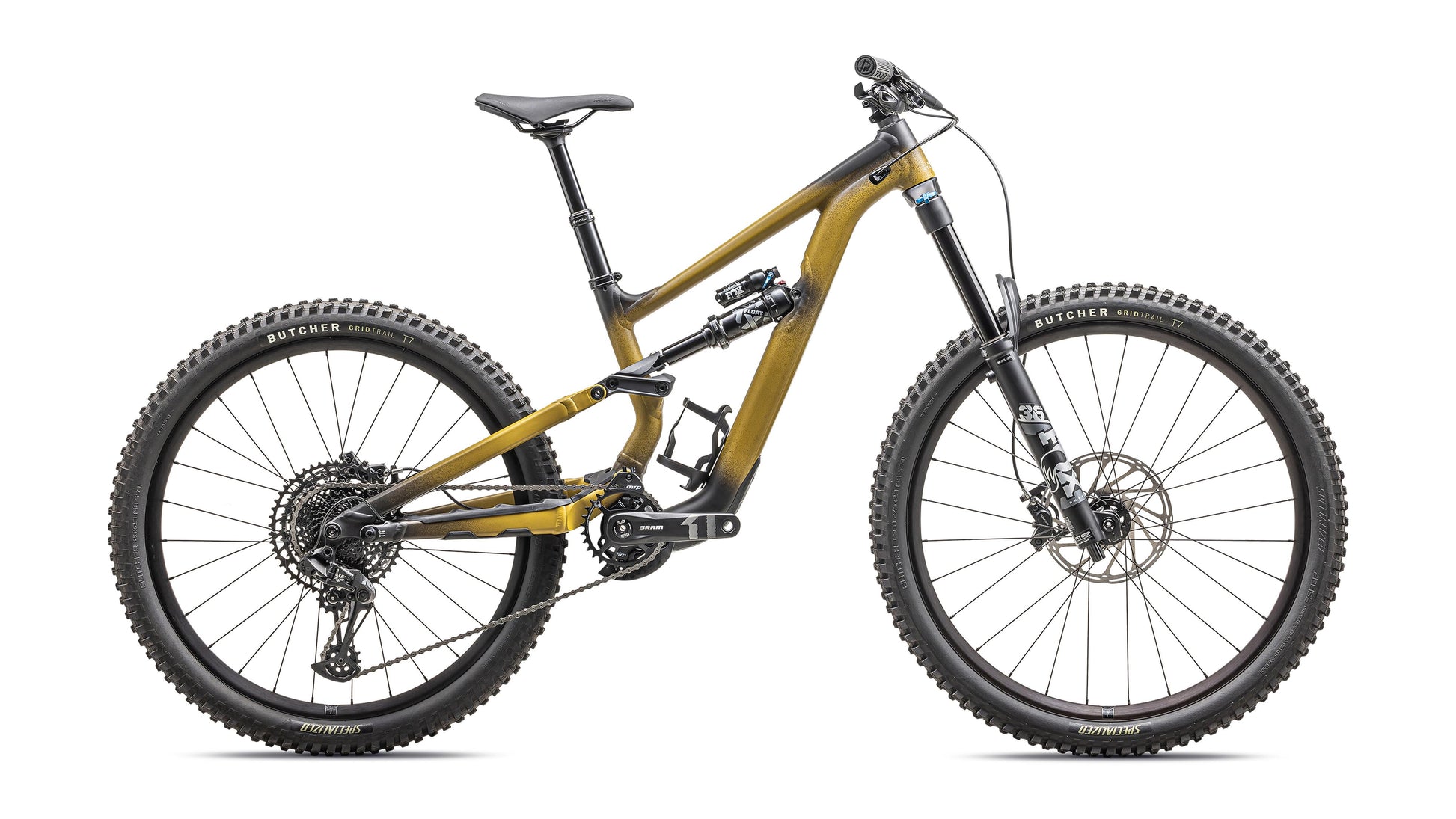

Specialized Status 2 170 ZERO Features

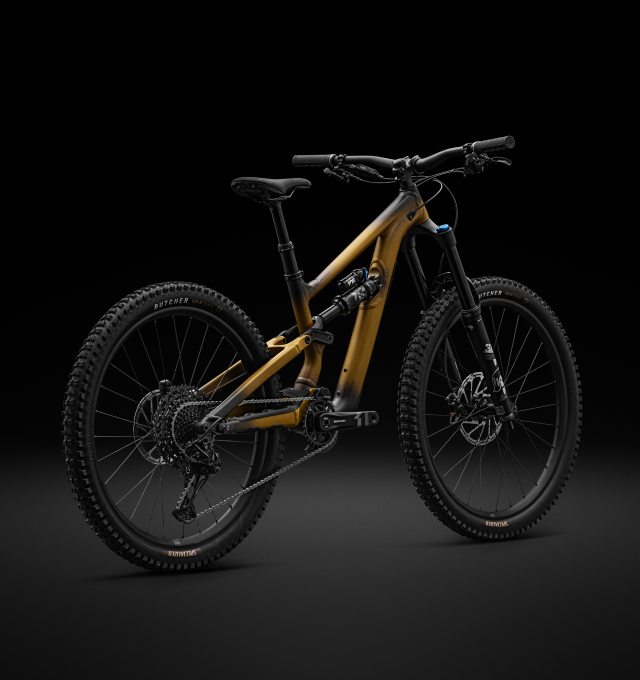

STATUS 2 ZERO finds the boundaries of mountain bikes made for smaller riders and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 ZERO is a bike meant to be ridden, however, or wherever you ride.
Whether you're on the trails, at the bike park, on the streets, or just cutting turns with your friends on a local hill, the STATUS 2 ZERO will allow you to ride your way.
GO BIG, START SMALL: STATUS 2 ZERO is a first for our mountain bikes. It is a ‘core’ and incredibly capable rig built intentionally for small riders who want to really get after it. It has custom-tuned kinematics and suspension from the Specialized Ride Dynamics team—specifically for smaller riders—and appropriately sized components.
BUILT BY RIDERS: STATUS 2 ZERO starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each bike gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to perfectly complement the new bike's kinematics and smaller size.

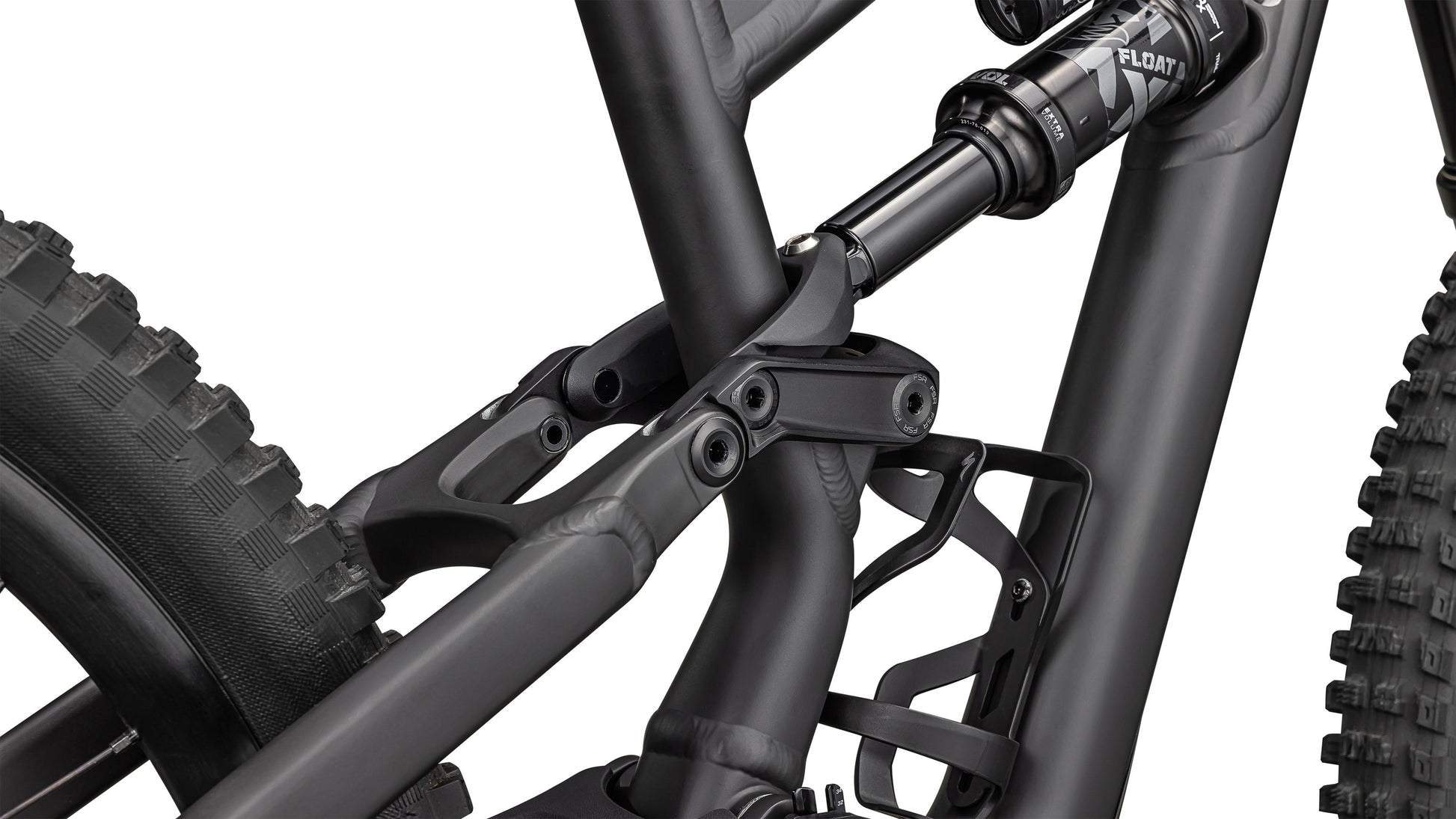

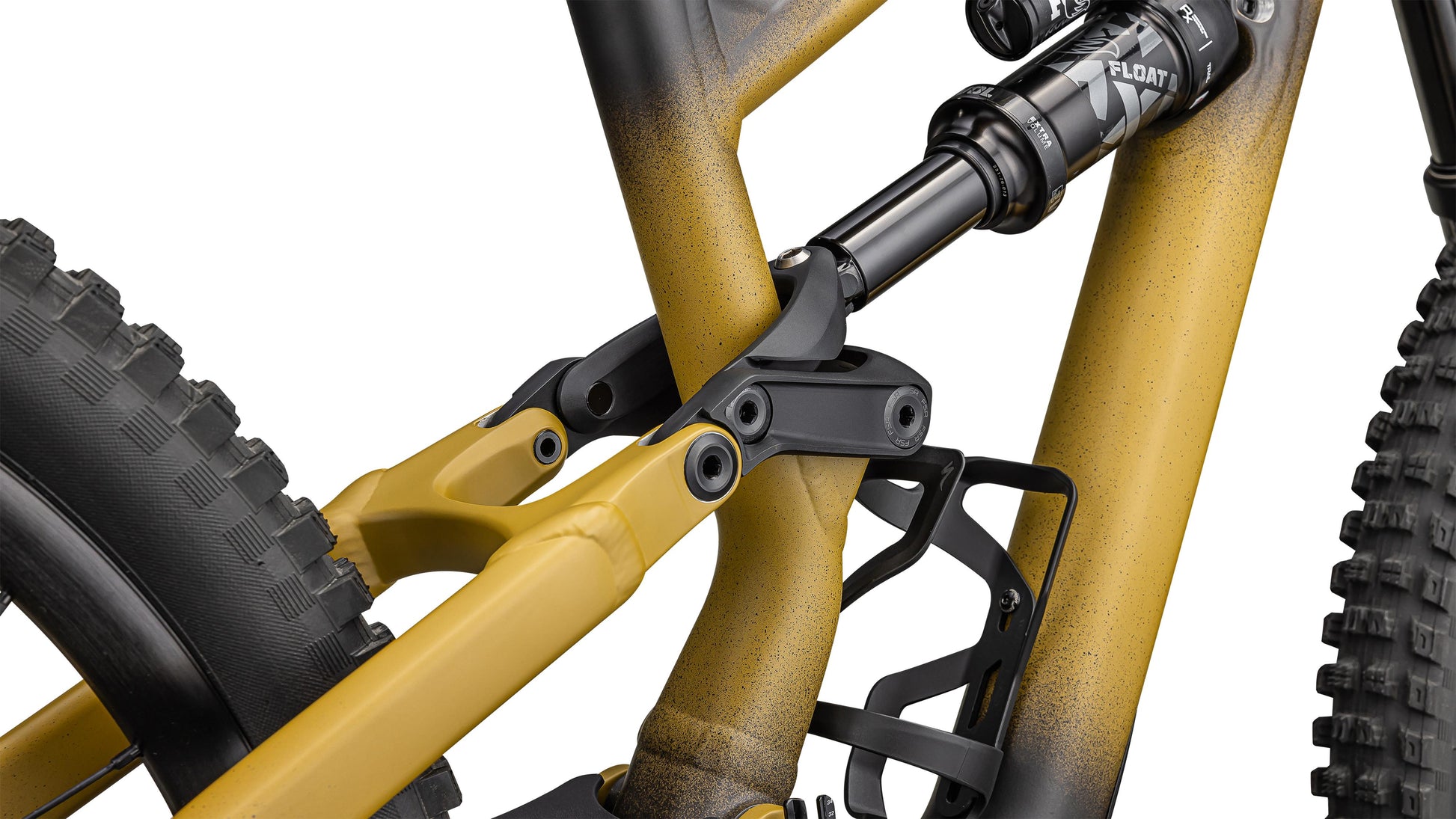

LET’S GET PERSONAL: Customize even more with neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame’s geometry to your desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
At a Glance
- 100% Redesigned durable alloy chassis
- New, more durable alloy rims
- Horst Link geometry adjust flip chip
- Updated geometry for more usability
- Curated parts spec for your desired ride experience
Component Specifications
| Frame | M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel |

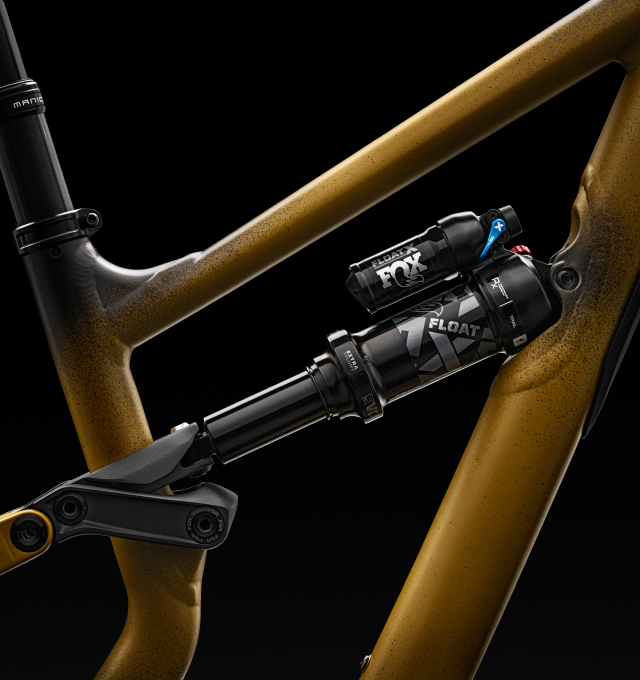

| Rear Shock | FOX FLOAT X Performance, Ride Dynamics Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm |
| Shift Levers | SRAM NX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM NX Eagle, 12-speed |

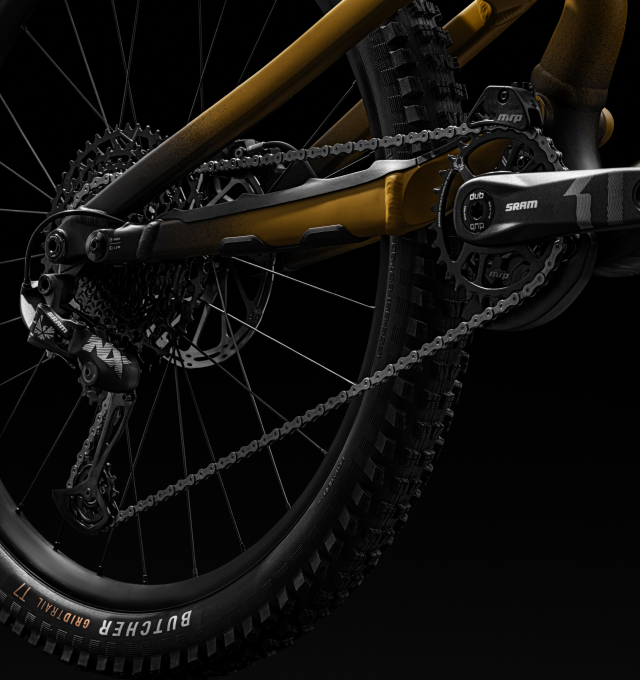

| Cassette | SRAM NX Eagle, 12-speed, 11-50t |
| Chain | SRAM NX Eagle, 12-speed |
| Crankset | SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T |
| Chain Rings | Steel, 30T |
| Bottom Bracket | SRAM DUB Threaded Wide |
| Rims | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready. Front: 27.5", Rear: 26" |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
| Rear Tire | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 180mm |

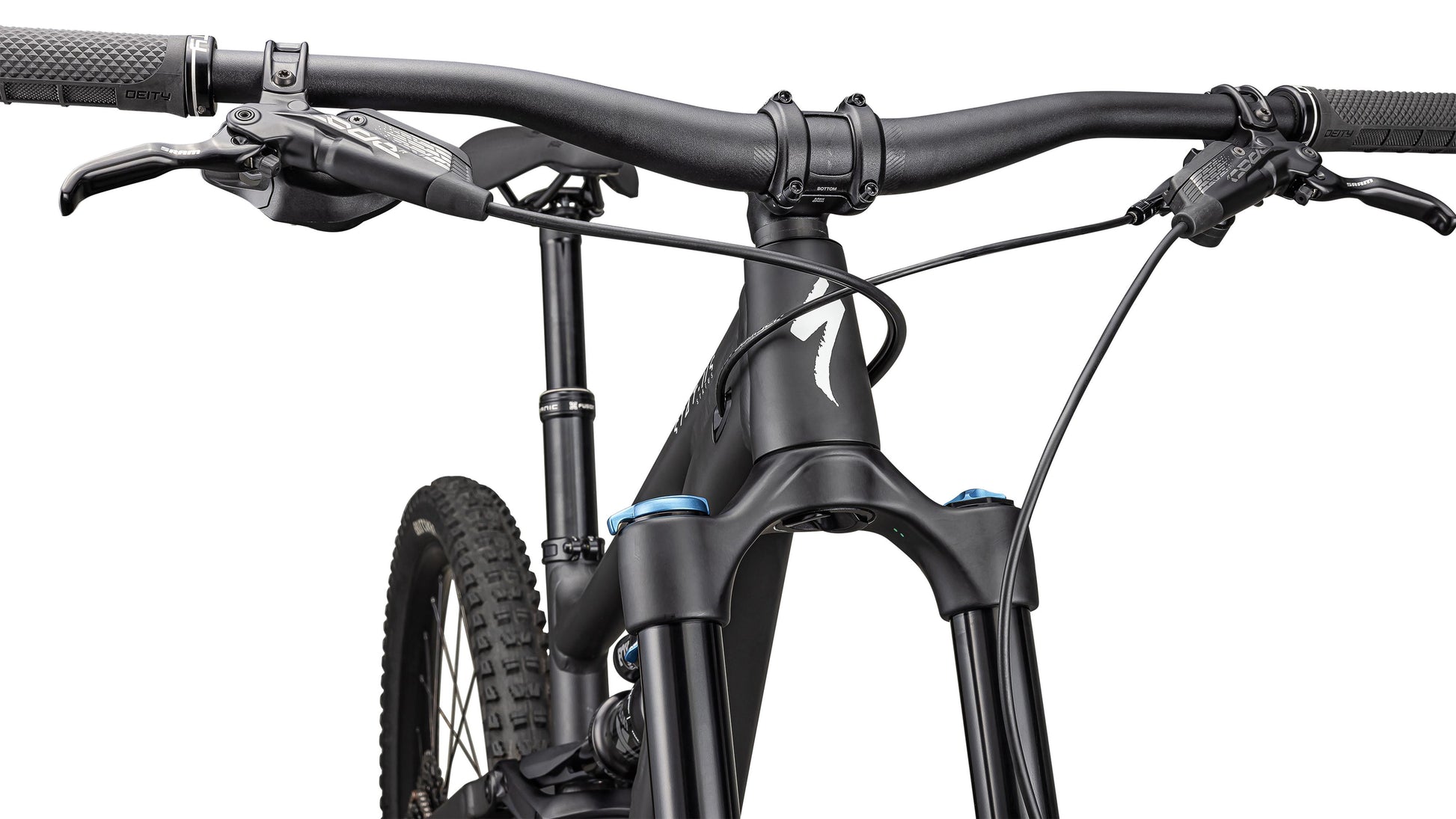

| Stem | Alloy Trail Stem, 35mm bar bore |

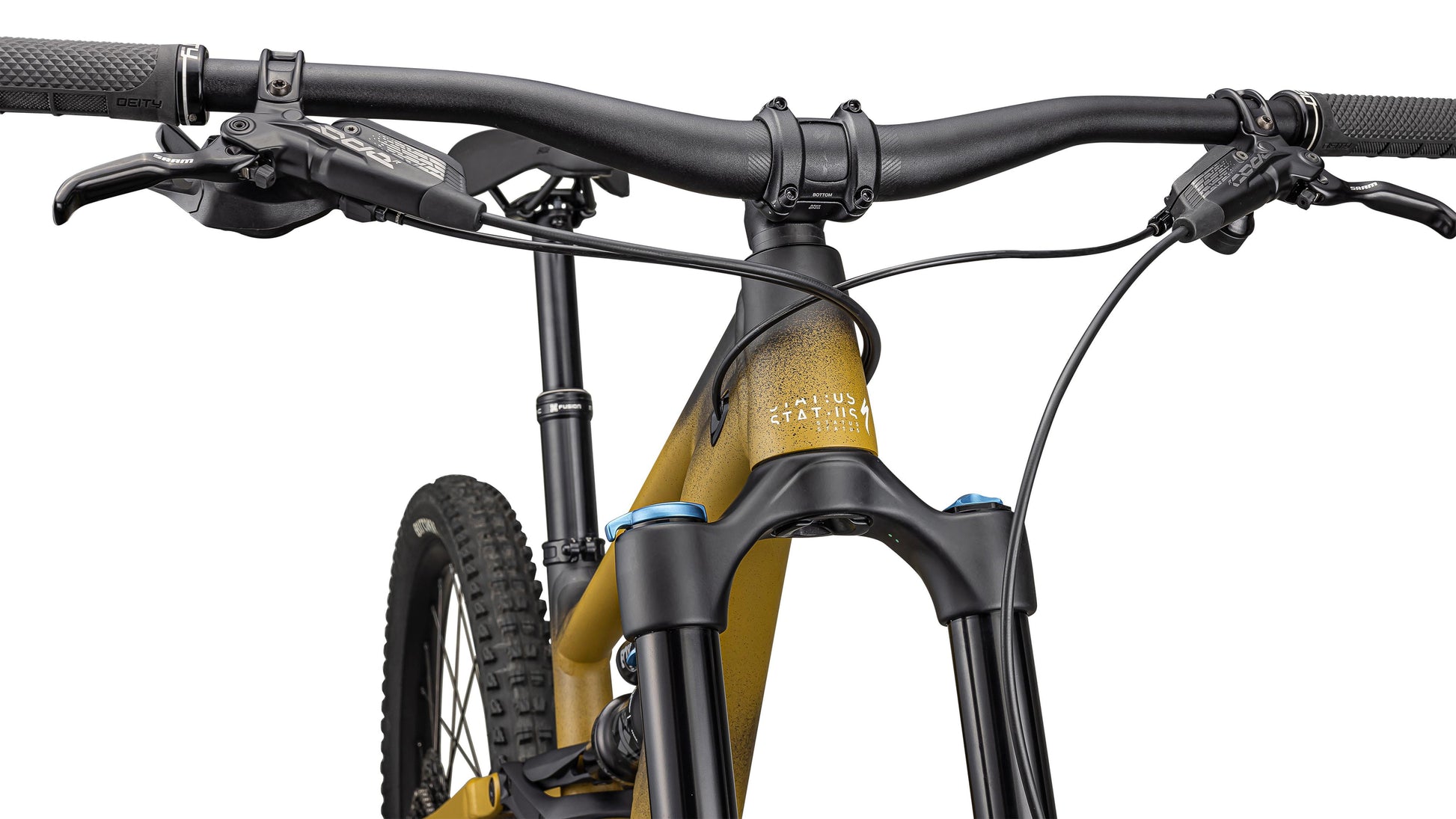

| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm width |
| Grips | Deity Lockjaw |
| Saddle | Bridge Saddle, steel rails, 130mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm |
Specialized Status 2 170 ZERO
| Bike/Frame Size | S0 |
|---|---|
| Stack (low) | 597 mm |
| Stack (high) | 593 mm |
| BB Drop (high) | 16 mm |
| Trail (low) | 136 mm |
| Trail (high) | 133 mm |
| Fork Length (full) | 563 mm |
| Fork Rake/Offset | 37 mm |
| Front Center | 718 mm |
| Chainstay Length (low) | 432 mm |
| Chainstay Length (high) | 428 mm |
| Wheelbase | 1148 mm |
| Top-tube Length (horizontal) | 509 mm |
| Reach (low) | 390 mm |
| Bike Standover Height | 722 mm |
| Seat Tube Length | 370 mm |
| Seat Tube Angle (low) | 77° |
| Seat Tube Angle (high) | 77.6° |
| Reach (high) | 396 mm |
| Headtube Length | 95 mm |
| Headtube Angle (low) | 63.5° |
| Headtube Angle (high) | 64° |
| BB Height (low) | 332 mm |
| BB Height (high) | 340 mm |
| BB Drop (low) | 24 mm |
