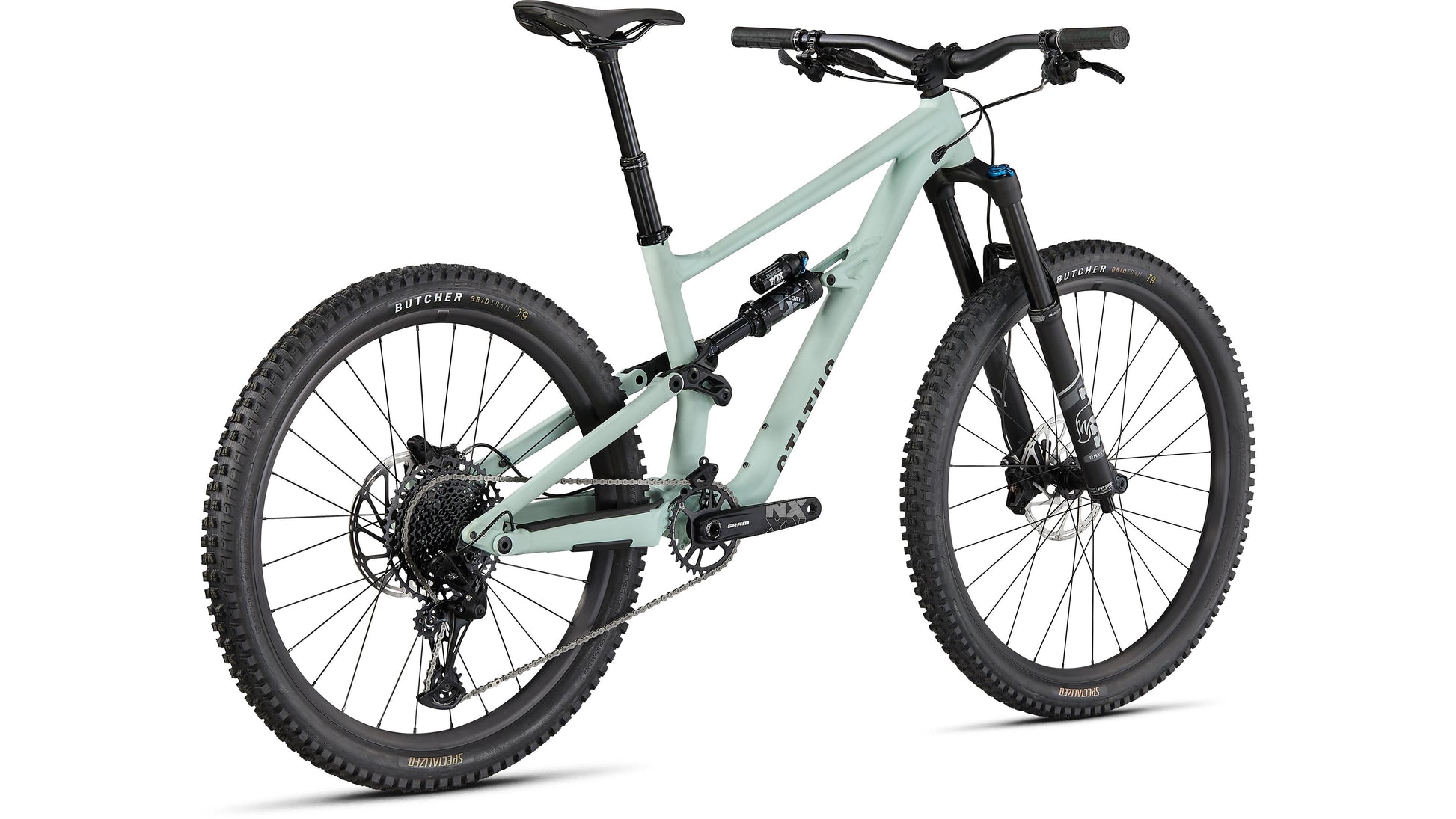

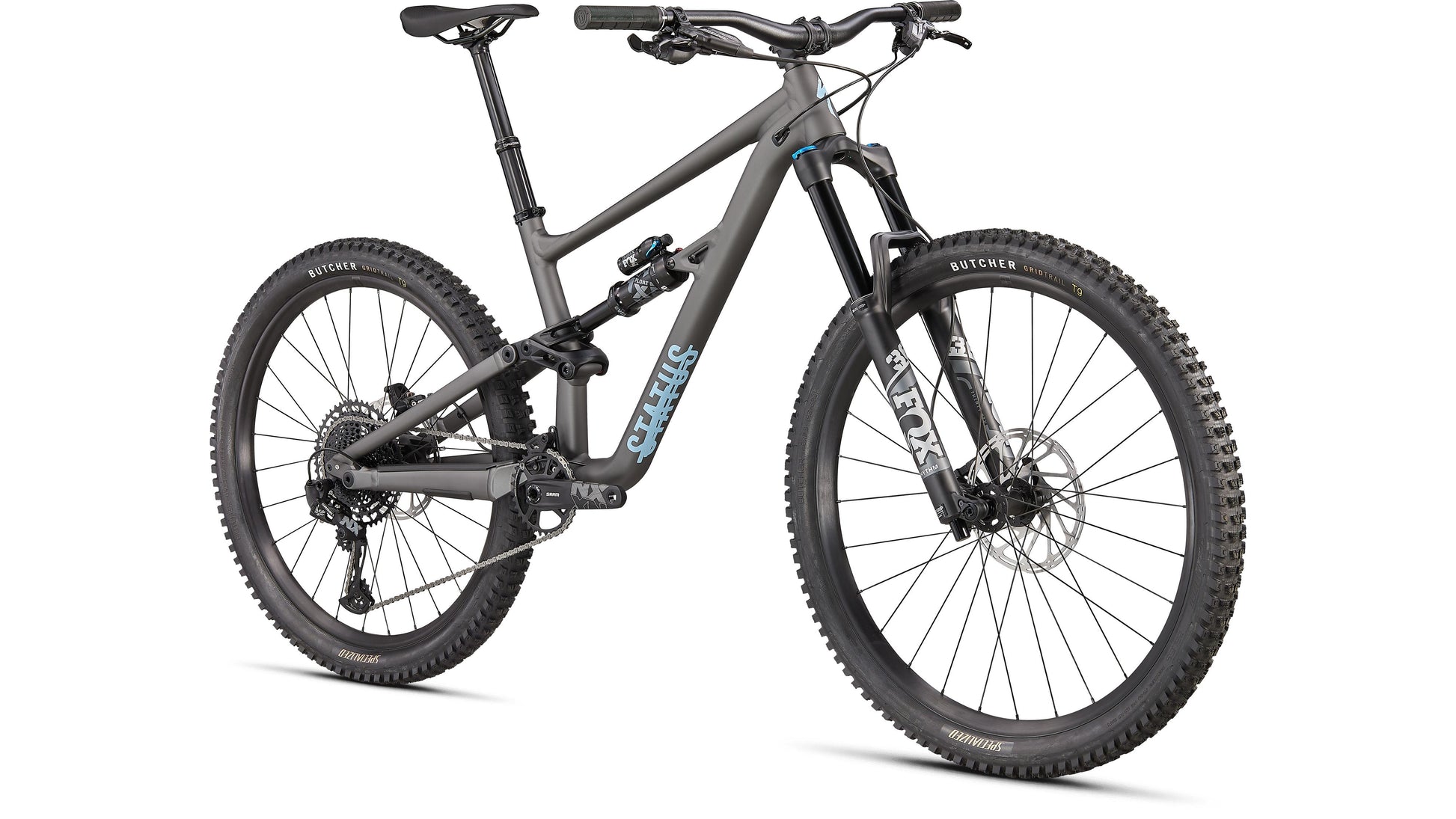

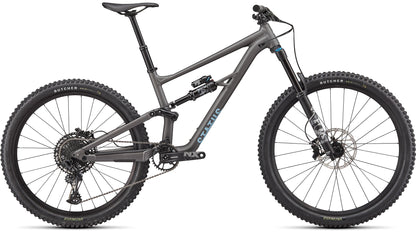

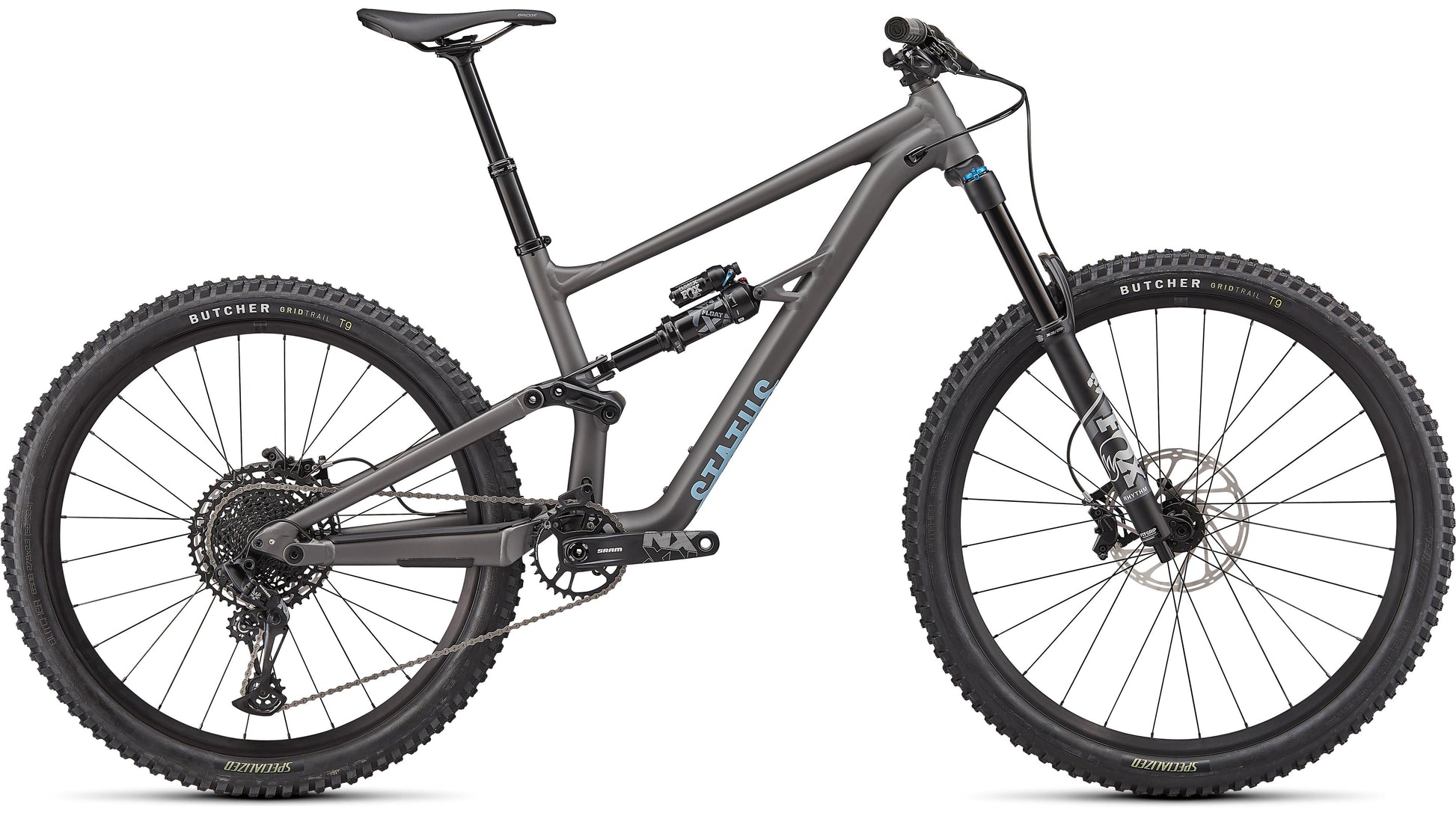

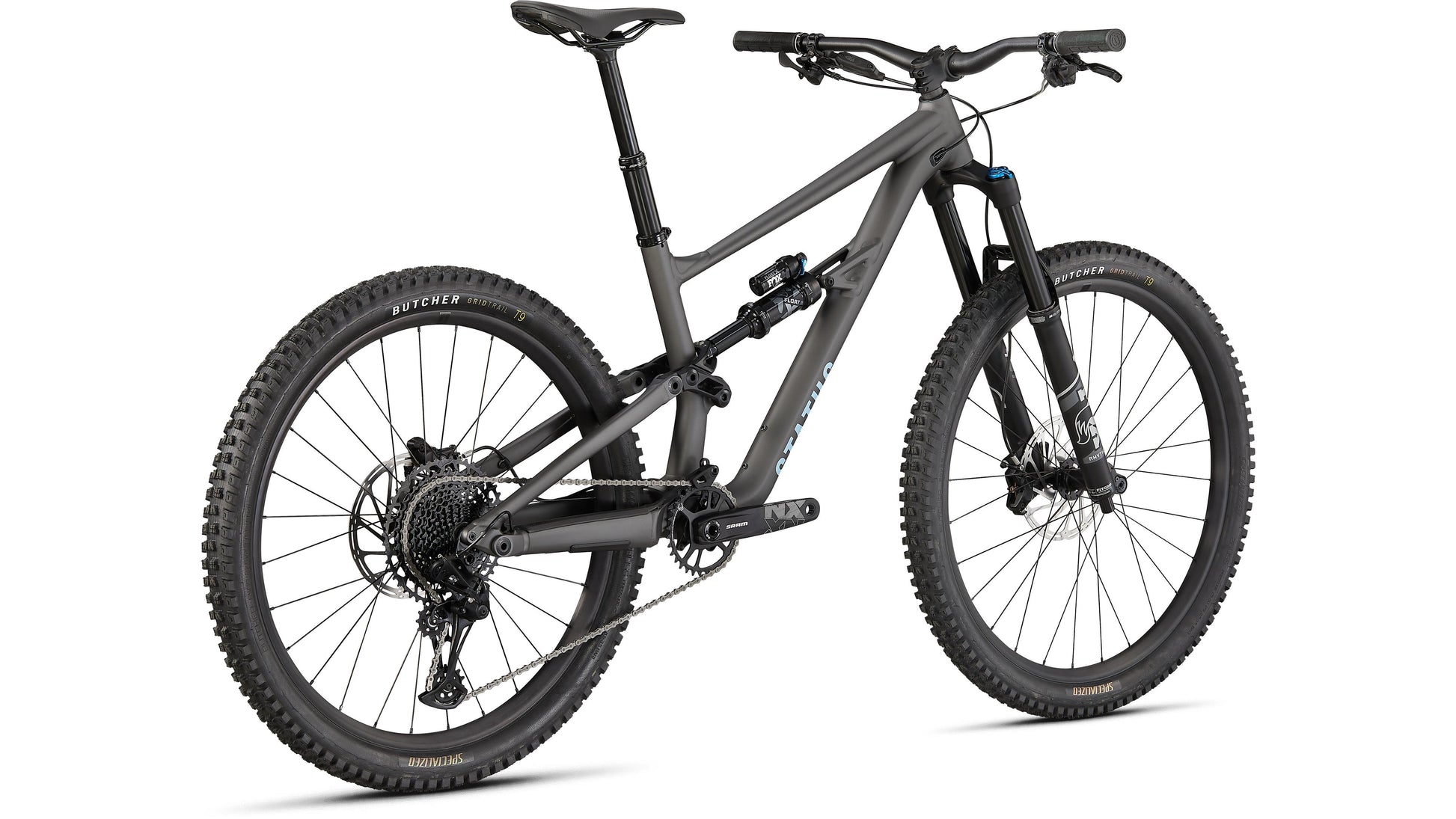

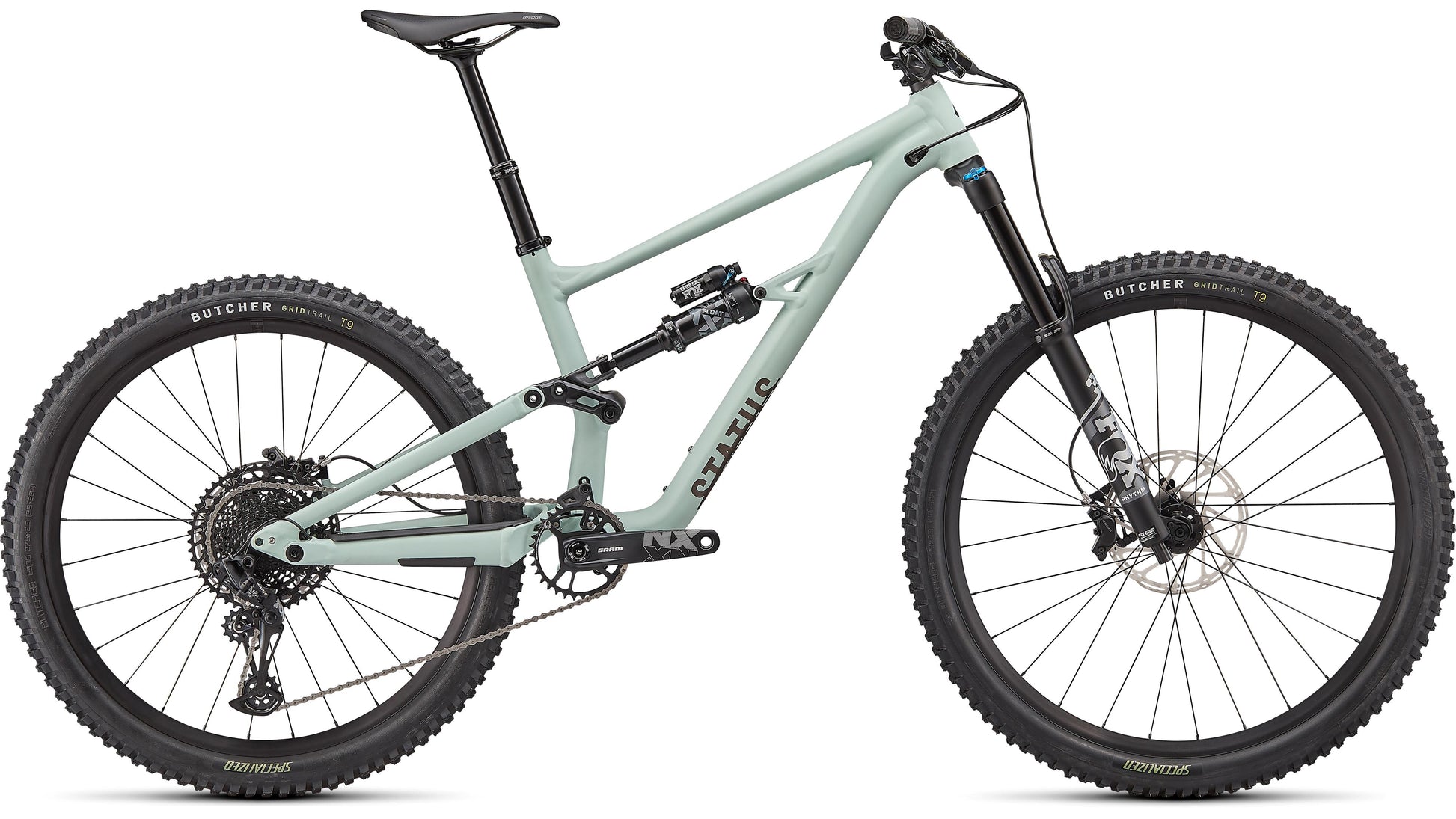

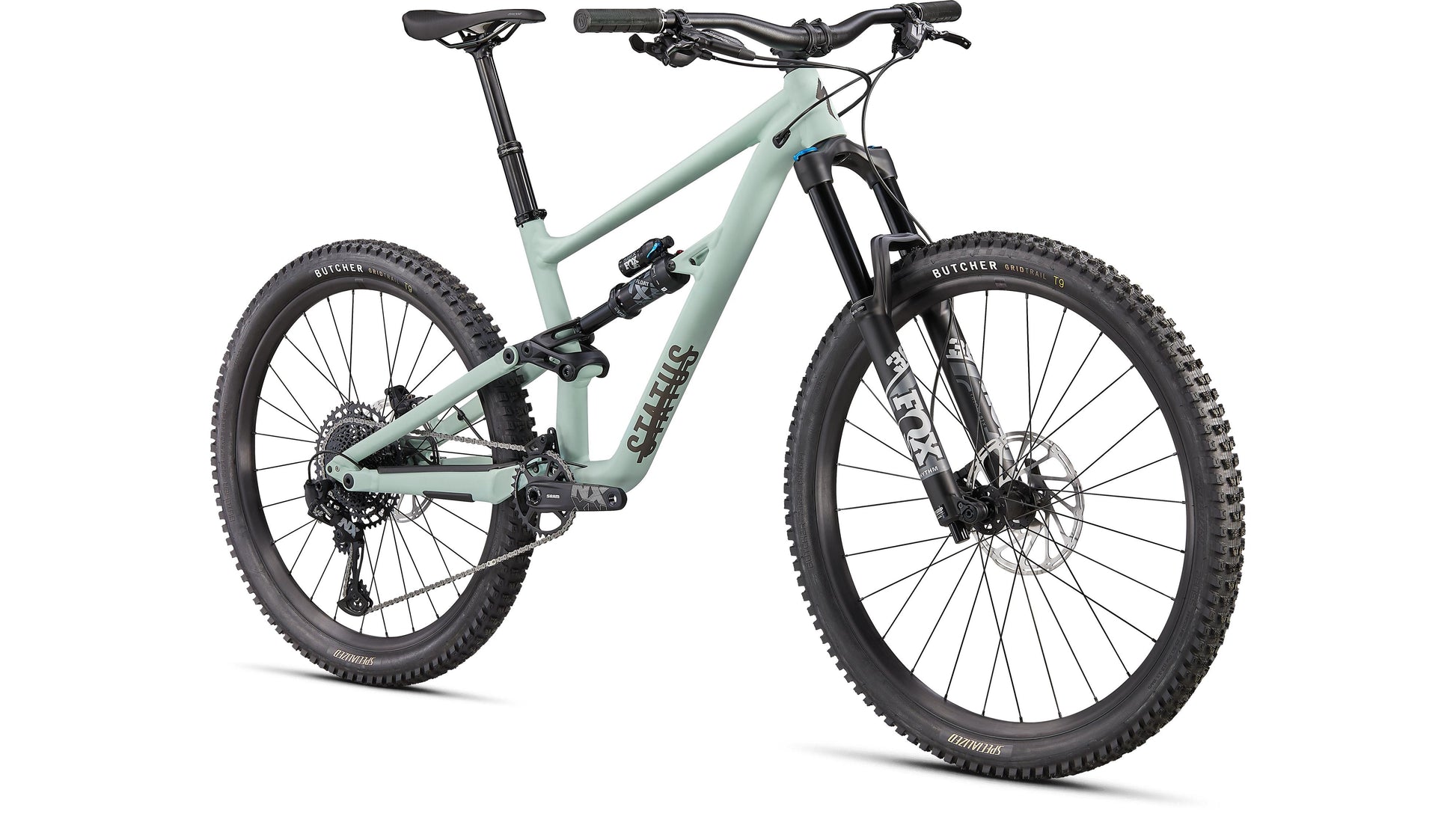

Specialized Status 160 Features
The Status 160 may be an all-new bike, but it’s really an all-new way of thinking about how to have the most fun possible on two wheels—even if that means they’re different sizes.
A 29-inch wheel offers up maximum cornering traction and roll-over capability in front while a 27.5 inch wheel out back brings with it shorter chainstays—and the party. Paired together with our playful Mixed Wheel-Size Trail Geometry the result is capital-F fun. Park-stomping, trail-slashing, getting-jibby-with-it fun.
We rounded out the Status 160’s fun-first frame with everything you need to keep the party going—big brakes, an X-Fusion Manic dropper post and Fox’s FLOAT 36 Rhythm Fork paired with a FLOAT X

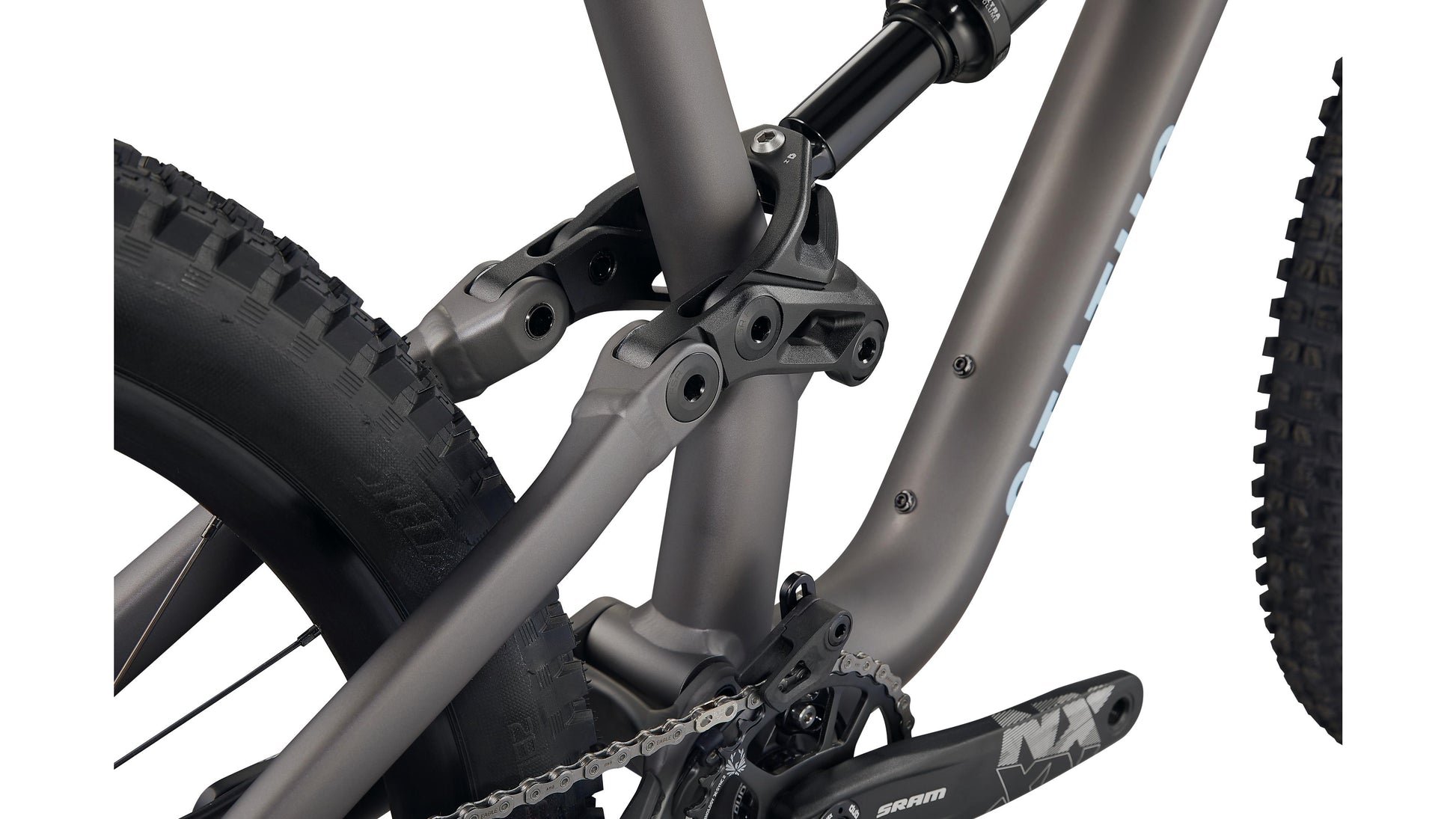

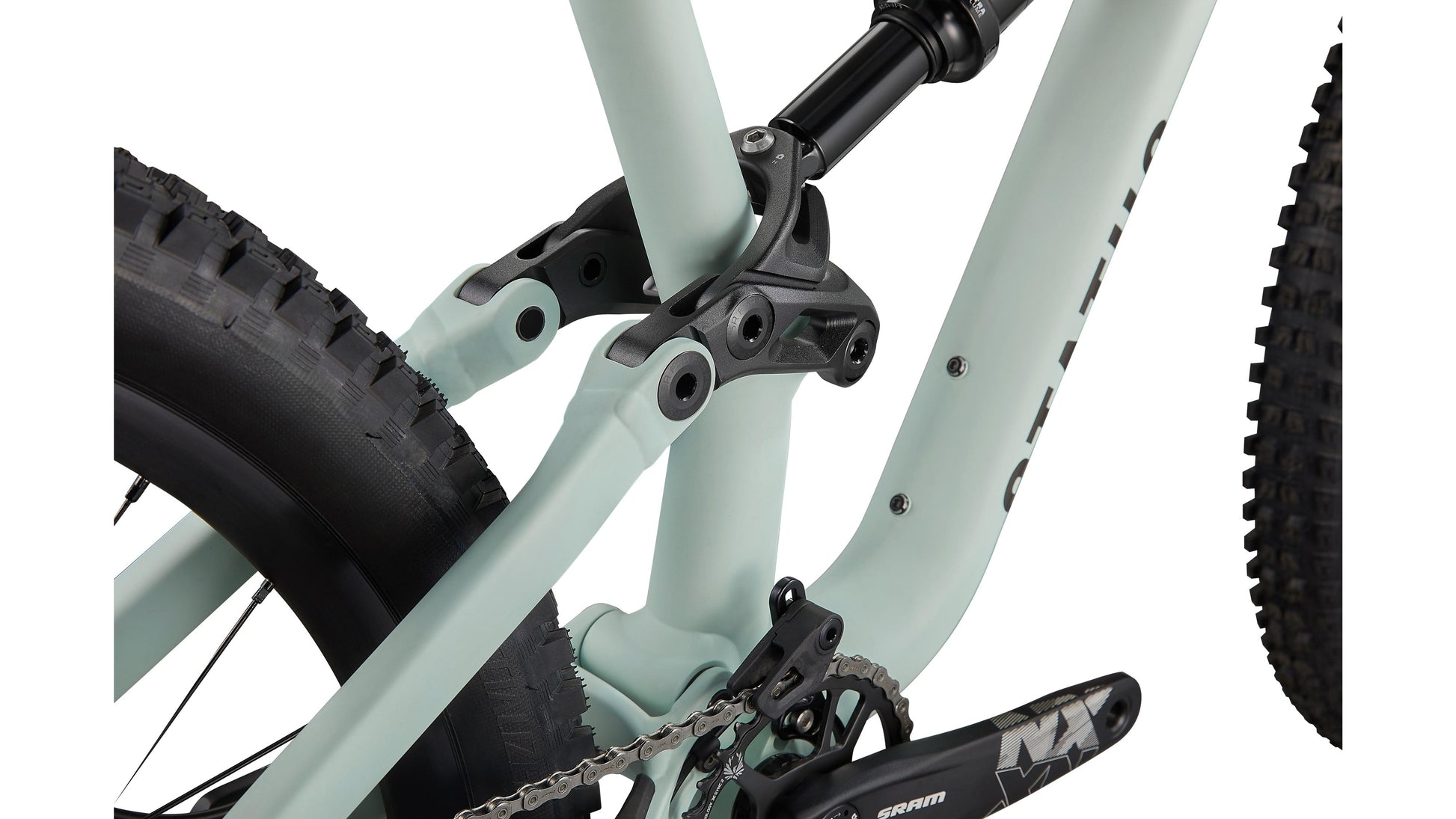

Performance shock, all brought together by the active, planted feel of our FSR suspension platform.
At a Glance
- Focused on fun and featuring our Mixed-Wheel Trail Geometry, the Status frameset is a fewer frills, all thrills FSR delivery system crafted from our hard-charging—and hard-wearing—M5 alloy and is designed not only to take a hit, but keep asking for more.
- Fox’s FLOAT 36 Rhythm calls their venerable Grip damper into service in the name of adventurous riders everywhere, offering impressively controlled travel with plenty of trail-feel that puts confidence on speed dial. The two-position Sweep adjustment ensures the FLOAT 36 Rhythm is right at home dealing out its 160-millimeters of travel in just about any environment while 36-millimeter stanchions promise plenty of stiffness for precise handling at the limit.
- Quality suspension unlocks some serious free speed, so to slow it all down, we tasked SRAM’s proven Code R brakes with stopping duties. Forged four-piston calipers offer serious stopping power, while 200-millimeter rotors on both ends of the bike promise plenty of fade-free bite when it matters.
Component Specifications
| Frame | M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |
| Rear Shock | FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm |
| Shift Levers | SRAM NX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
| Cassette | SRAM NX Eagle, 12-speed, 11-50t |
| Chain | SRAM NX Eagle, 12-speed |
| Crankset | SRAM NX Eagle, DUB, 170mm |
| Chain Rings | 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 27.5x2.3" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width |
| Grips | Deity, Knuckleduster, Black |
| Saddle | Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, S1:125, S2: 150mm, S3/S4/S5: 170mm |
Specialized Status 160
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Stack (low BB) | 610 mm | 614 mm | 623 mm | 632 mm | 641 mm |
| Reach (low BB) | 417 mm | 437 mm | 462 mm | 487 mm | 512 mm |
| Fork Length (full) | 567 mm | 567 mm | 567 mm | 567 mm | 567 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front-Center (low BB) | 756 mm | 778 mm | 808 mm | 837 mm | 867 mm |
| Chain-Stay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1181 mm | 1203 mm | 1233 mm | 1264 mm | 1292 mm |
| Seat-Tube Length | 400 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Seat-Tube Angle | 76° | 76° | 76° | 76° | 76° |
| Head-Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Head-Tube Angle (low BB) | 63.2° | 63.2° | 63.2° | 63.2° | 63.2° |
| Head-Tube Angle | 63.7° | 63.7° | 63.7° | 63.7° | 63.7° |
| B-B Height (low BB) | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| B-B Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| B-B Drop (low BB) | 17.5 mm | 17.5 mm | 17.5 mm | 17.5 mm | 17.5 mm |
| B-B Drop | 8.5 mm | 8.5 mm | 8.5 mm | 8.5 mm | 8.5 mm |
| Trail (low BB) | 141 mm | 141 mm | 141 mm | 141 mm | 141 mm |
Size Guide: Specialized Status 160
