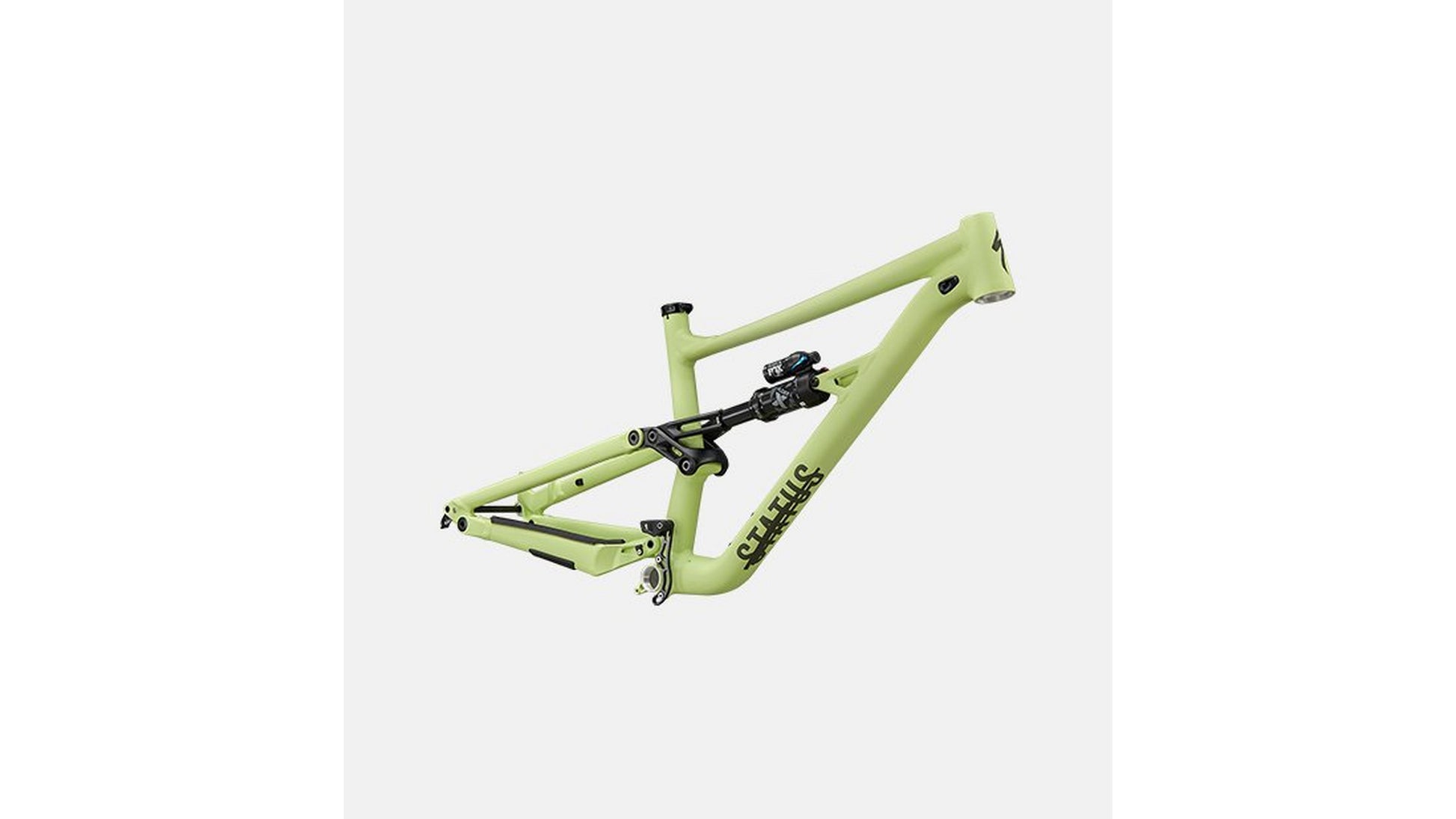

Specialized Status 140 Frame Only Features
We’ll leave it up to you to fine-tune your fun as you see fit with the Status 140 frameset. Fast and furious, smooth and stylish, or somewhere in the middle, you know the build that fits the bill, so have at it. Whether it’s to have another go at that new line or one last pass on that feature just to make sure you got the perfect shot, the Status’s durable M5 alloy construction is designed to take any punishment you throw at it with a smile. Far from giving the Status a split personality, its mixed wheel-size design gives it a single-minded focus on fun with a 29-inch wheel up front bringing plenty of cornering traction to the table, while the short, 27.5-inch-optimized rear end whispers in your ear to whip right over that table.
At a Glance
- With an eye on keeping maintenance to a minimum, oversized pivot bearings increase durability while a common size across all pivots makes service and replacement a breeze when that day does come around. A threaded SRAM DUB bottom bracket continues on the theme with worry-free performance.
- The active, planted feel of the Status’s FSR suspension design and Fox’s FLOAT X Performance rear shock equipped with our Rx Trail Tune make for perfect friends—and plenty of benefits. Calling on a twin-tube design that allows for two separate oil pathways during compression and rebound, the FLOAT X Performance rear shock provides plenty of support for big hits while still offering enough buttery small-bump sensitivity to keep you fresh for when the style points really count.
Product Specifications
Product Specifications
Frame |
|
Rear Shock |
|
Seat Binder |

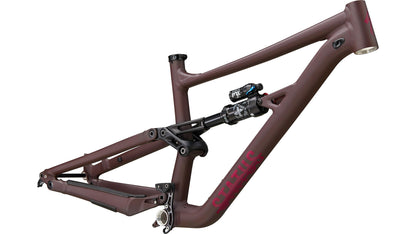

Specialized Status 140 Frame Only
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Stack (low BB) | 604 mm | 609 mm | 618 mm | 627 mm | 636 mm |
| Reach (low BB) | 415 mm | 440 mm | 465 mm | 490 mm | 515 mm |
| Fork Length (full) | 547 mm | 547 mm | 547 mm | 547 mm | 547 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front-Center (low BB) | 743 mm | 770 mm | 799 mm | 829 mm | 858 mm |
| Chain-Stay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1168 mm | 1195 mm | 1224 mm | 1254 mm | 1283 mm |
| Seat-Tube Length | 400 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Seat-Tube Angle | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Head-Tube Length | 100 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Head-Tube Angle (low BB) | 63.7° | 63.7° | 63.7° | 63.7° | 63.7° |
| Head-Tube Angle | 64.2 mm | 64.2 mm | 64.2 mm | 64.2 mm | 64.2 mm |
| B-B Height (low BB) | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| B-B Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| B-B Drop (low BB) | 22.5 mm | 22.5 mm | 22.5 mm | 22.5 mm | 22.5 mm |
| B-B Drop | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm |
| Trail (low BB) | 137 mm | 137 mm | 137 mm | 137 mm | 137 mm |
Size Guide: Specialized Status 140 Frame Only
