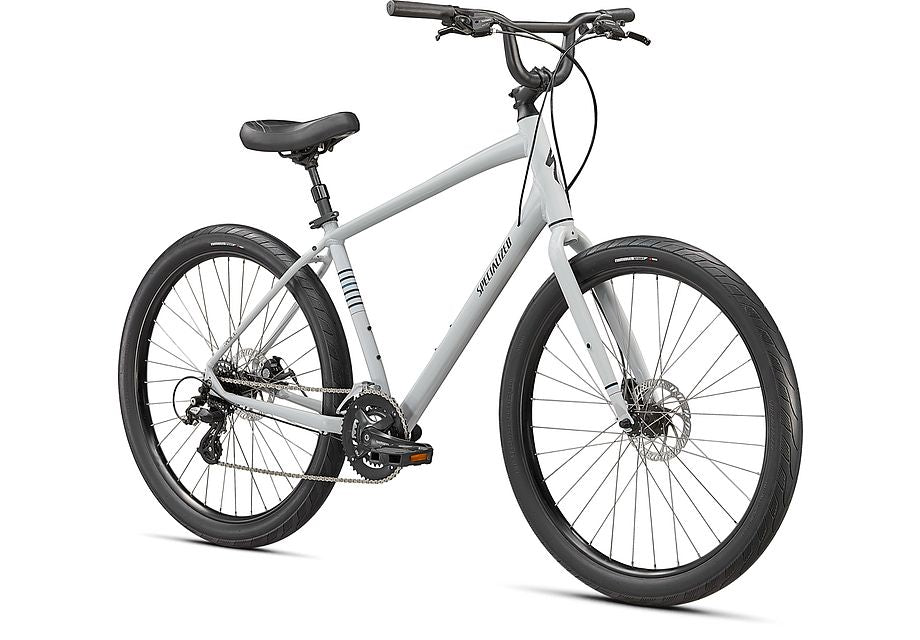

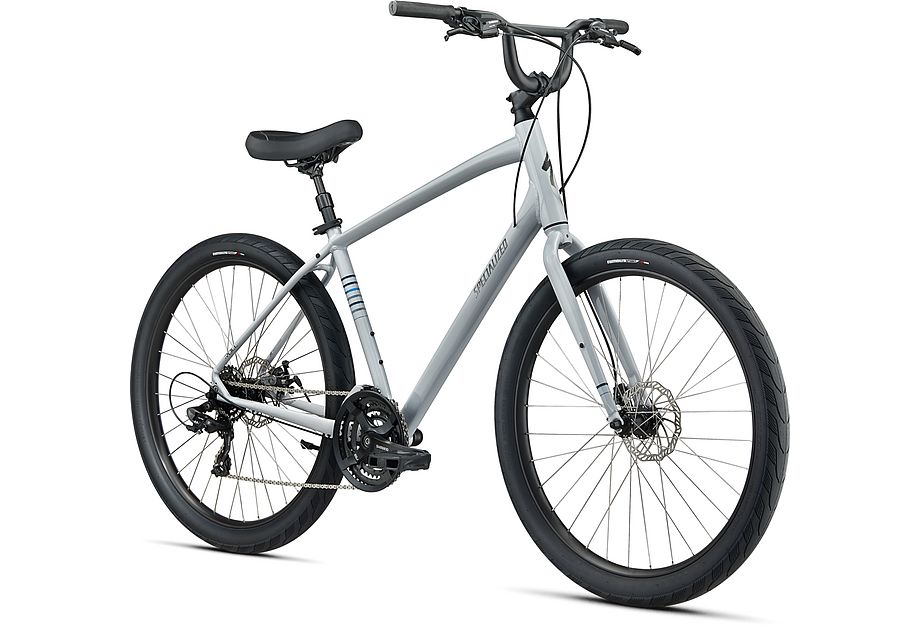

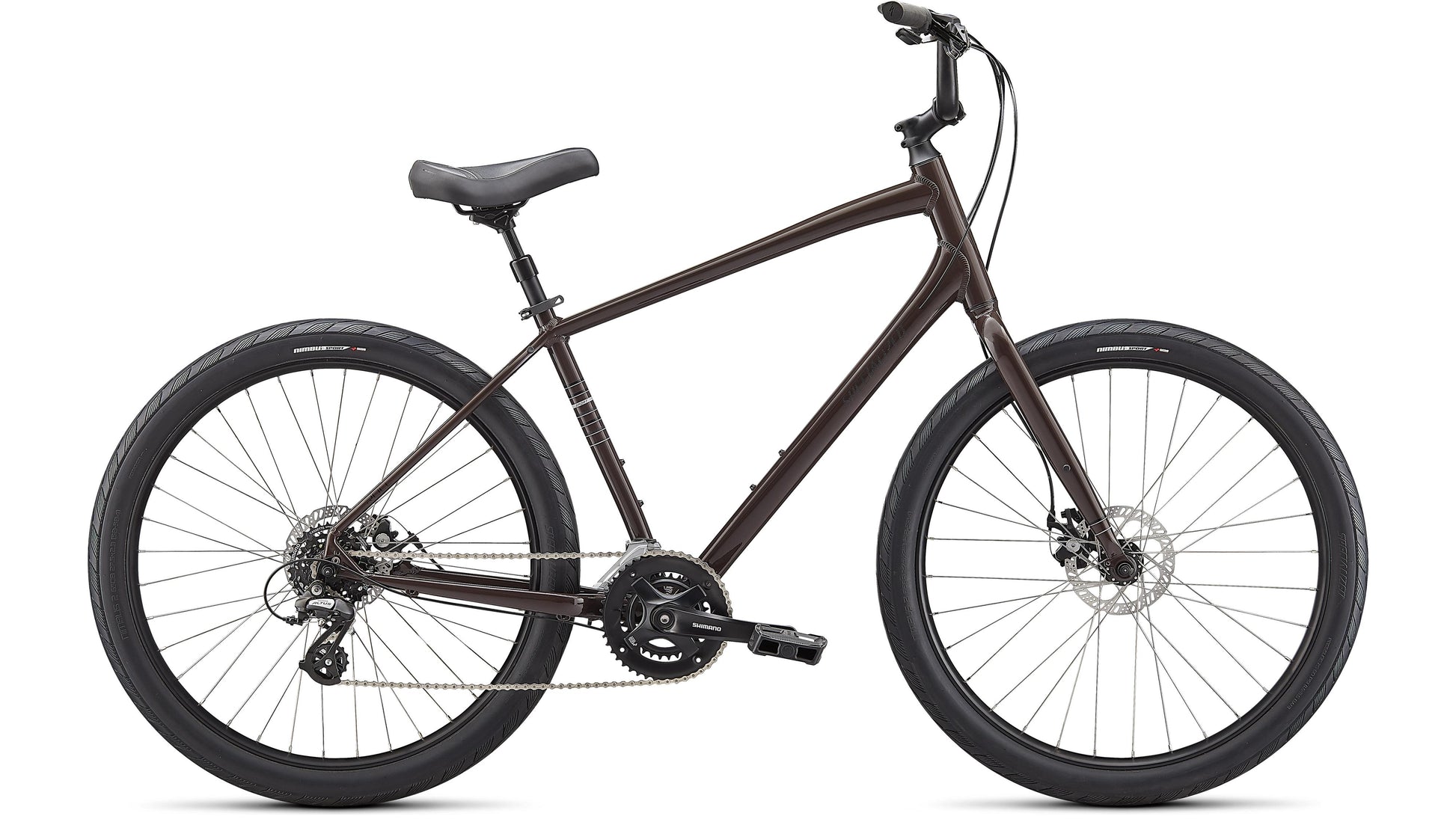

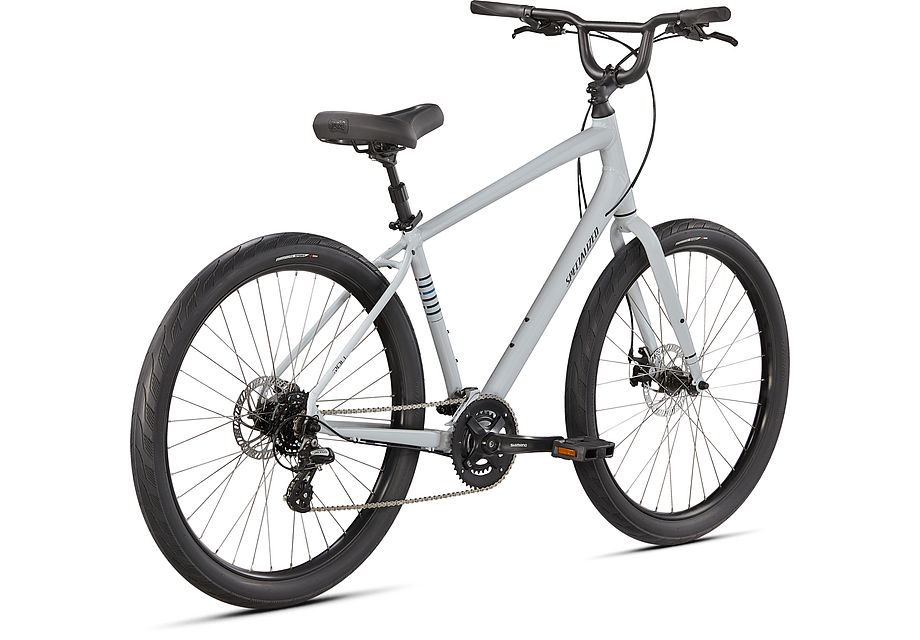

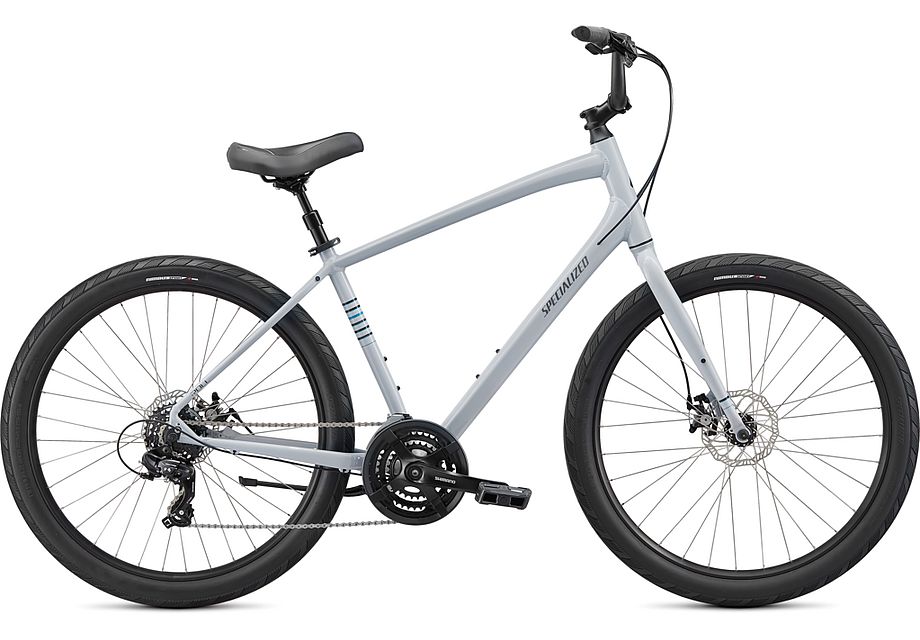

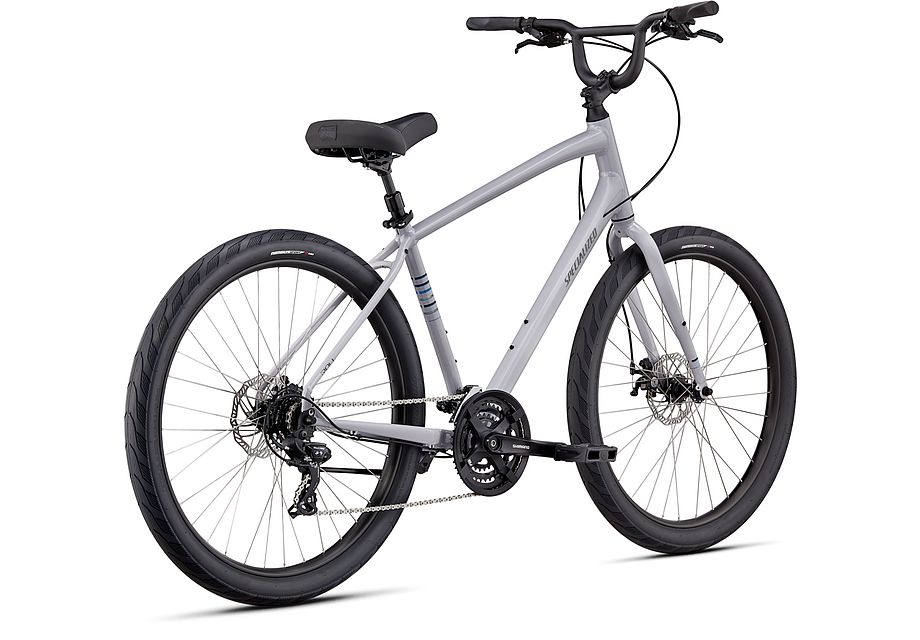

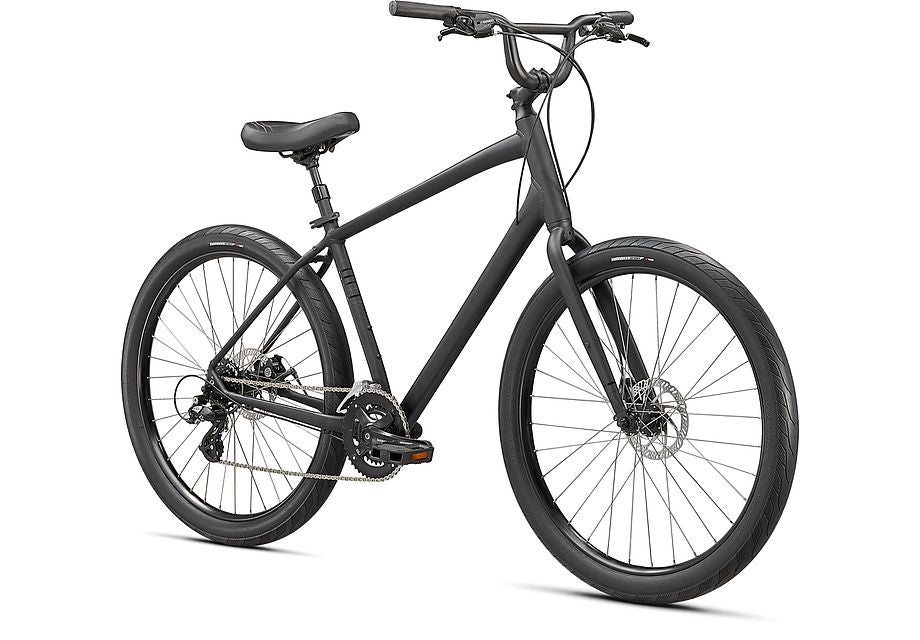

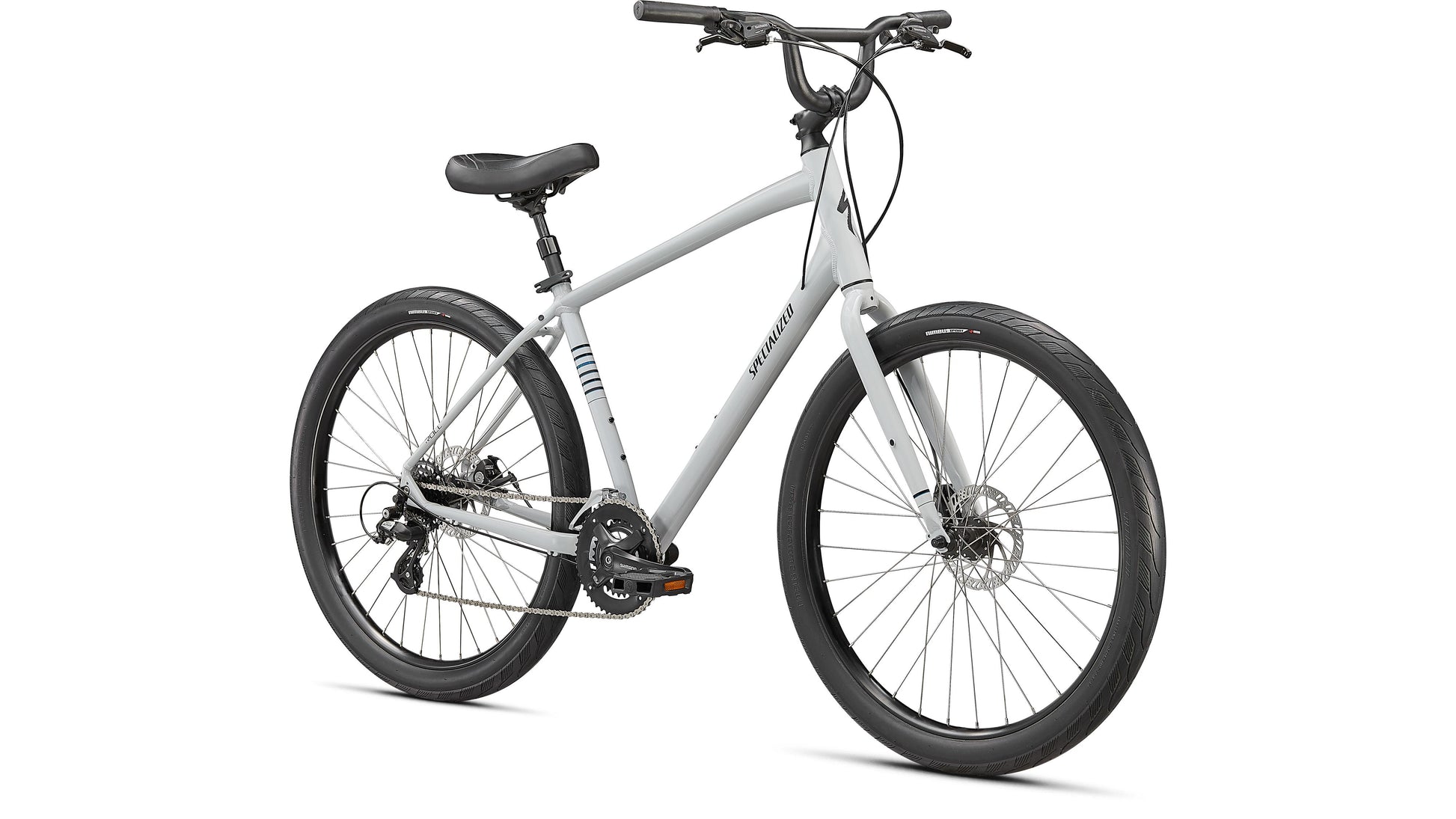

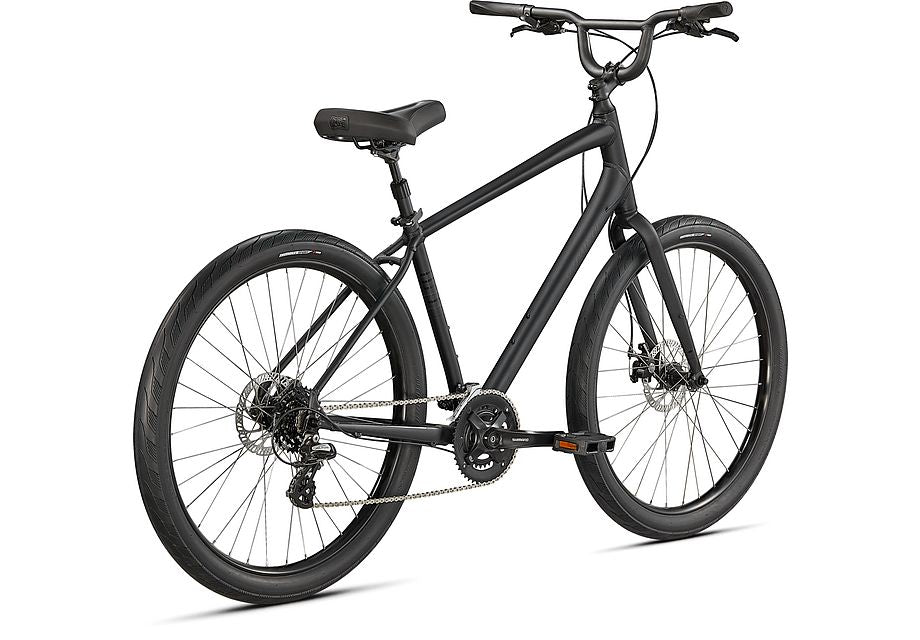

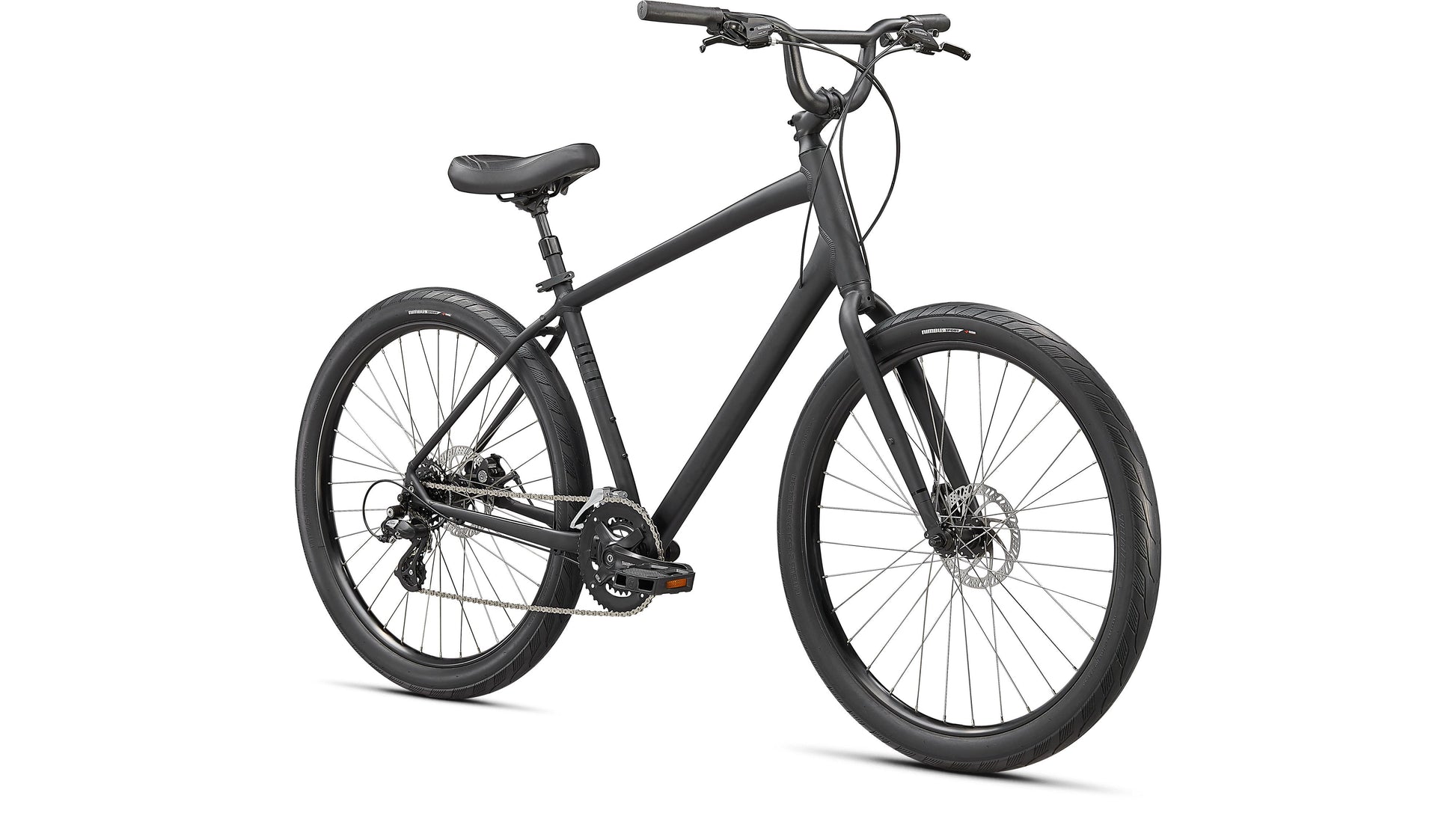

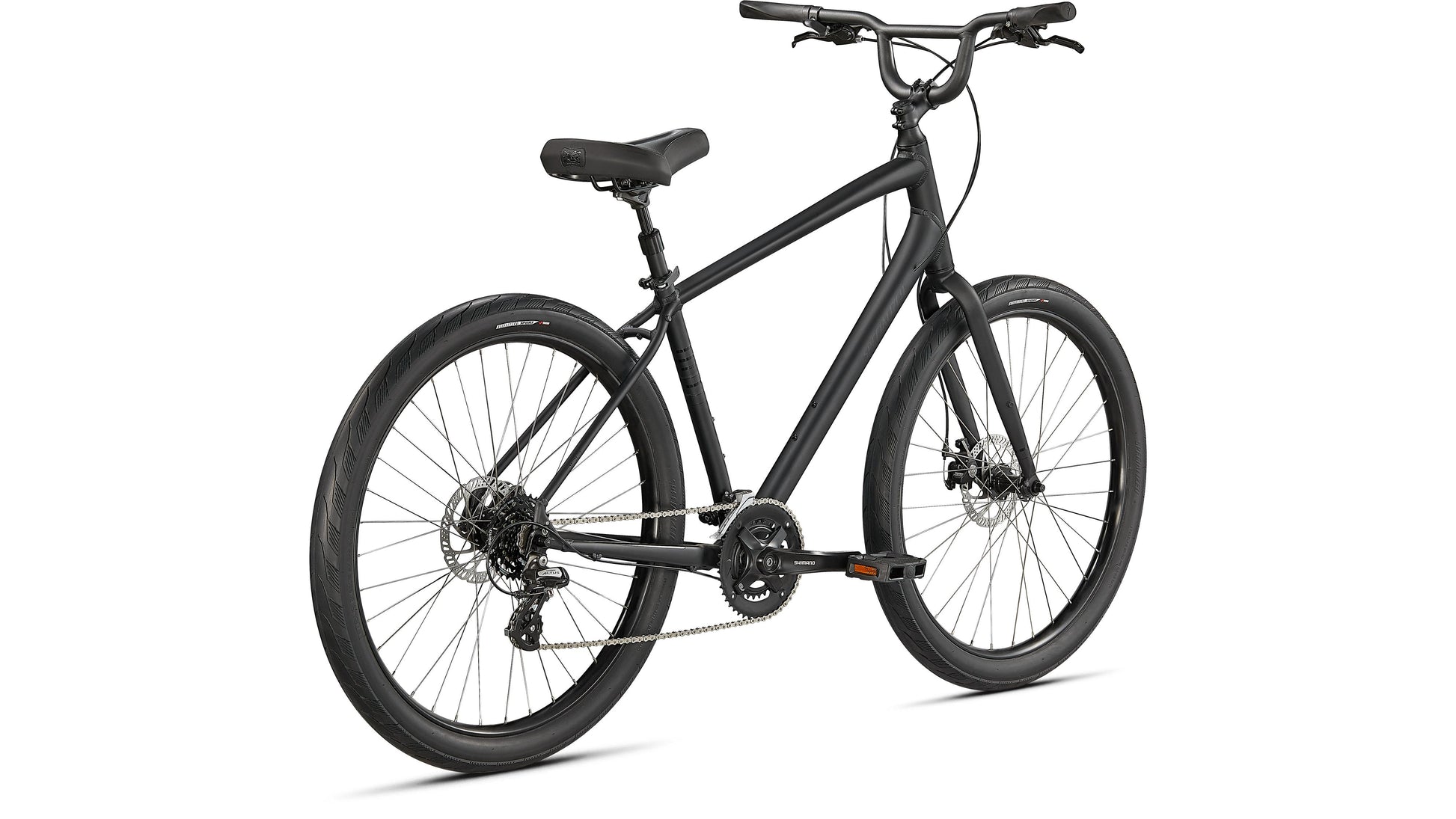

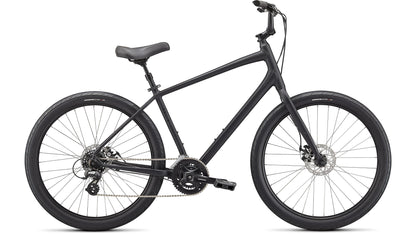

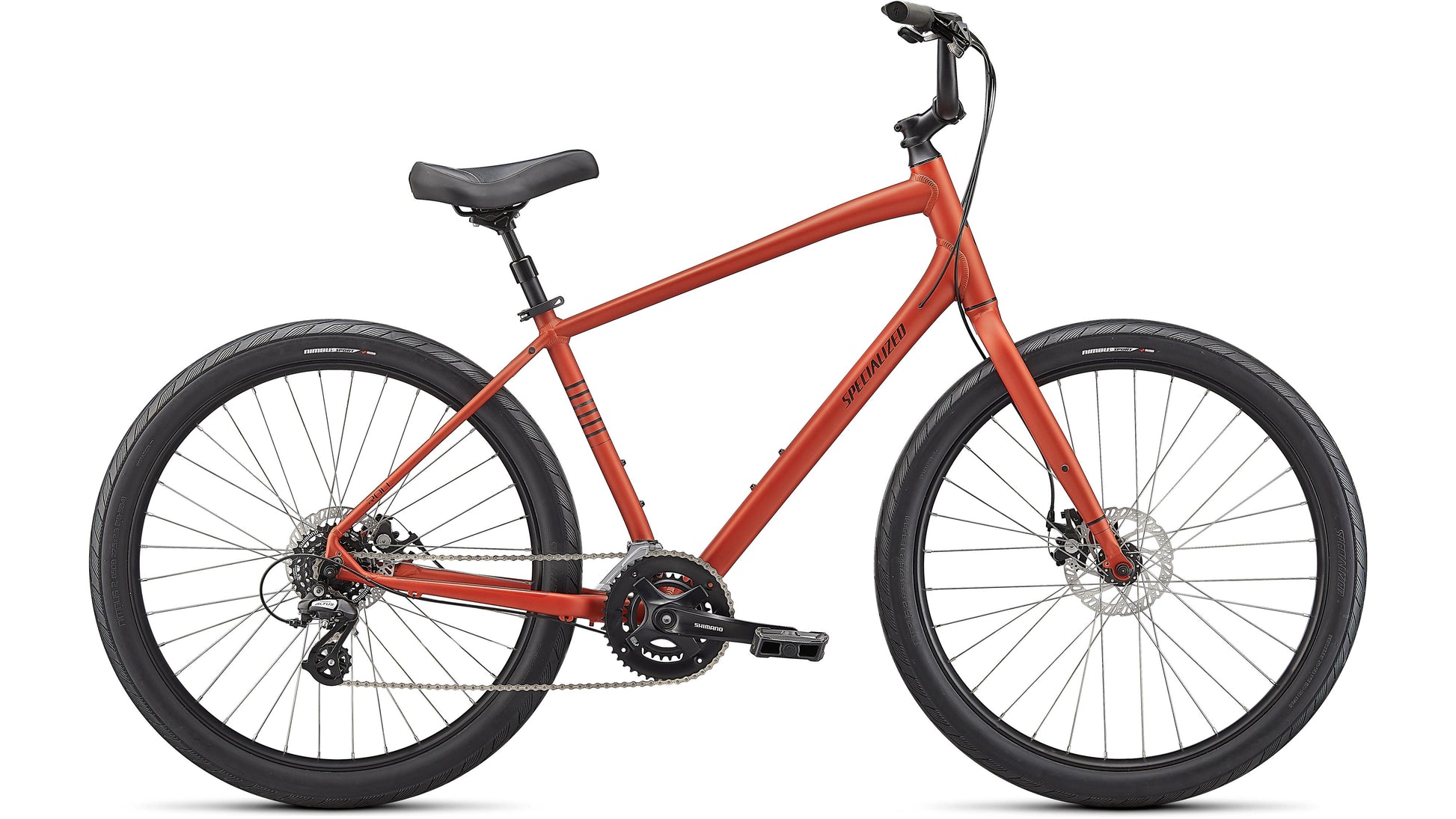

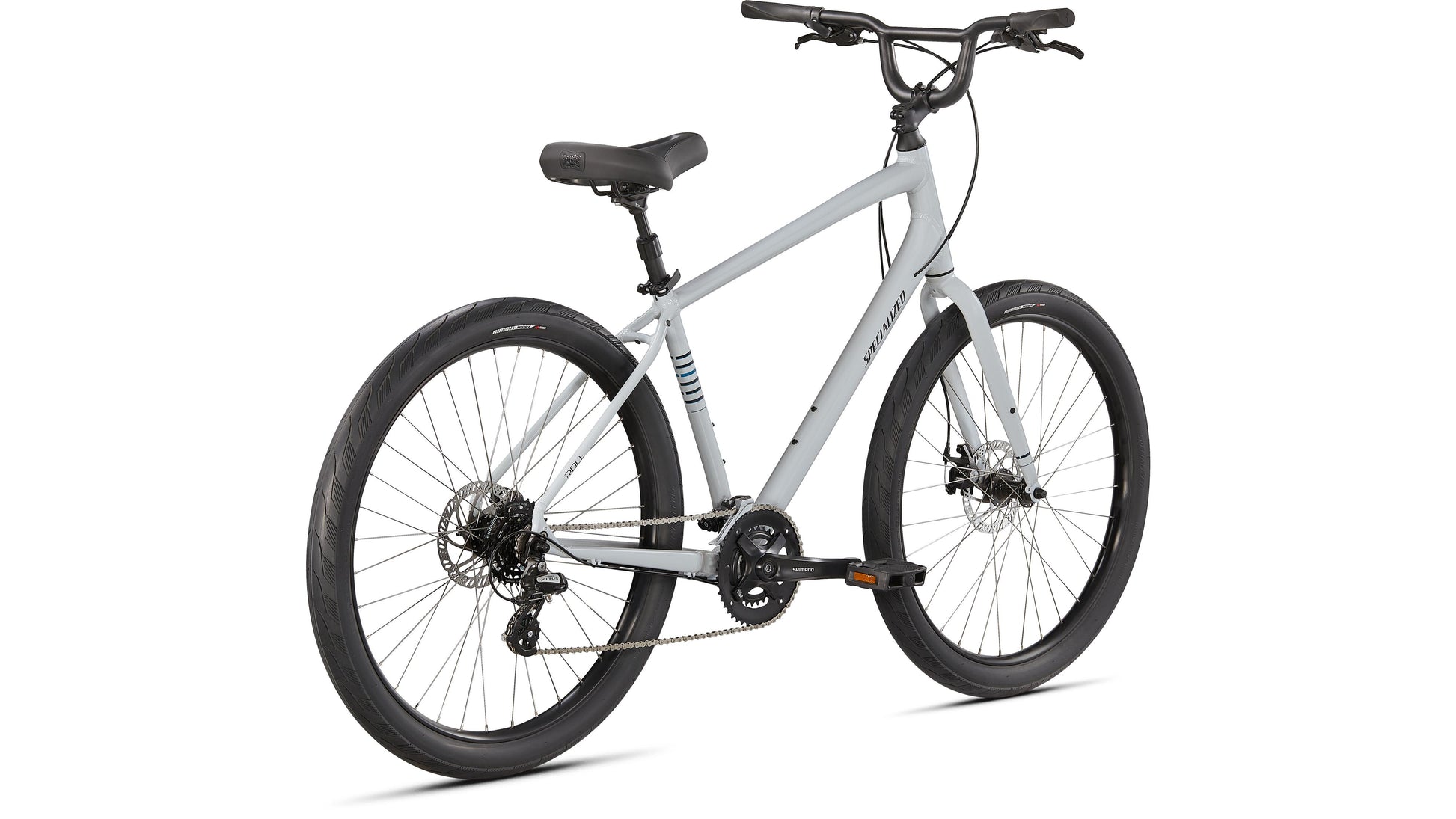

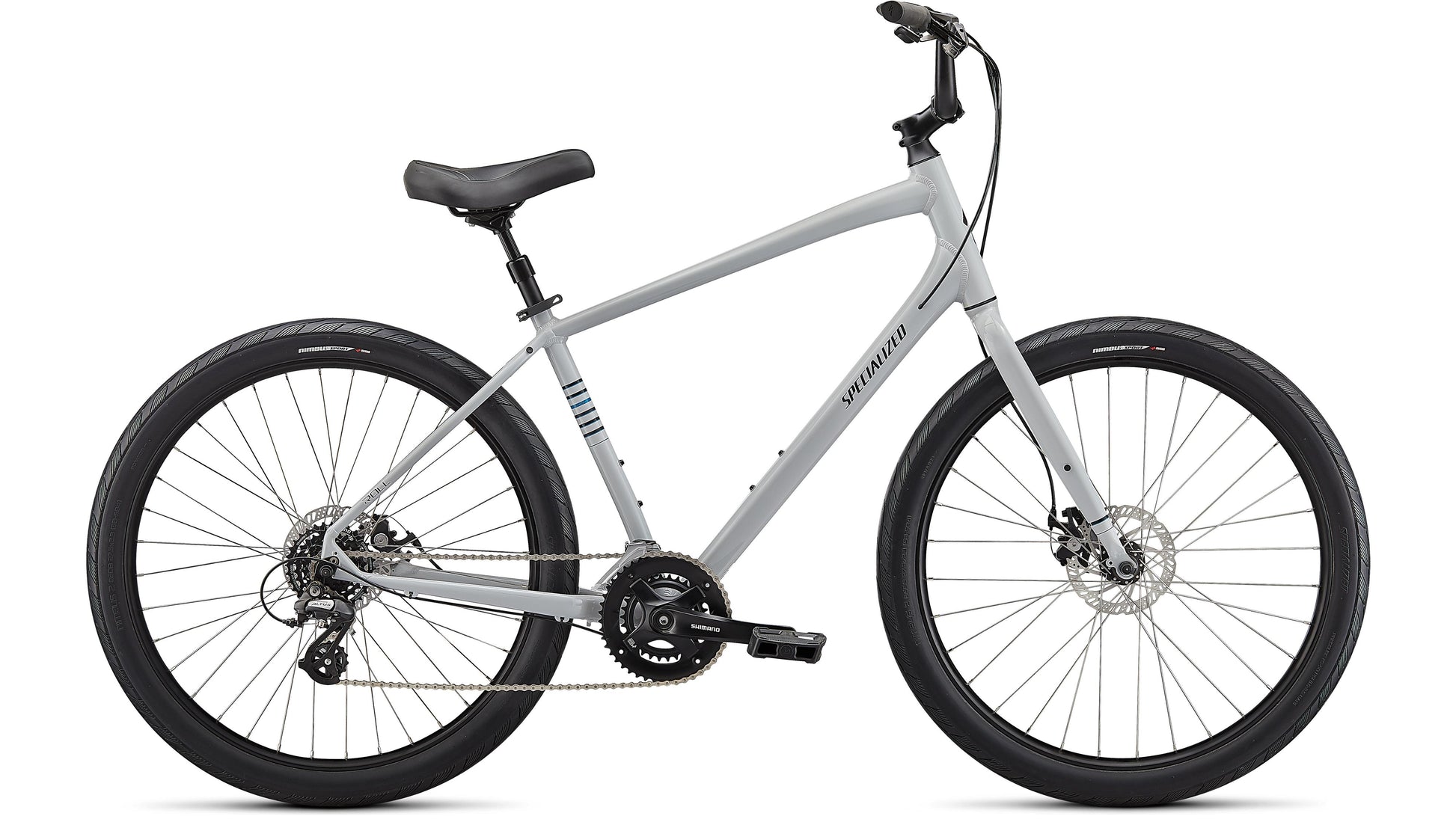

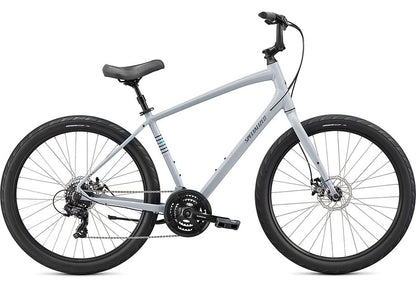

Specialized Roll Sport Features
They say that every journey begins with a single step, but when that journey is related to exercise, that first step can sure be a doozy. It can be life-changing, however, and there's no better machine to take the plunge with than with the Roll.
The Roll Sport has everything you need to help achieve your goals, like a wide range of Shimano gears, a comfortable, upright geometry, wide and grippy 650b tires, hassle-free mechanical disc brakes, and a whole host of other components that are built to withstand years of riding. You don't have to sacrifice—you just need the Roll Sport.
At a Glance
- The Roll is made from our A1 Premium Aluminum, and it features our Ground Control Positioning that makes it easy to put a foot down when stopped. This Roll also comes ready with rack/fender mount, making it easy to carry extra weight.
- Wide diameter, 650b x 2.3" Nimbus II Sport tires provide excellent traction, stability, and cushioning, which creates a safer, more reliable, and more comfortable ride on either paved or dirt roads.
- Equipped with a Body Geometry "The Cup" saddle, you can expect a supreme level of comfort anywhere you ridel. It delivers on these expectations by "cupping" your sit bones, which reduces pressure without feeling obtrusive or constraining.
Component Specifications
| Frame | Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts |
| Seat Binder | Quick-release clamp, 31.8mm |
| Fork | Steel formed tubes, post-mount disc, fender/rack mounts |
| Shift Levers | Shimano EF500, 7-speed |
| Front Derailleur | Shimano Tourney FD-TY710 |
| Rear Derailleur | Shimano Altus, 7-/8-speed |
| Cassette | Shimano HG200, 7-speed, 12-32t |
| Chain | KMC Z7, 7-speed w/ Missing Link™ |
| Crankset | Shimano Tourney, 3-piece, 46/30T |
| Chain Rings | 46/30T |
| Bottom Bracket | BSA, square-taper, 68mm |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h |
| Rear Hub | Alloy, 6-bolt disc, 8/9-Speed freehub, loose ball bearing, quick-release, 36h, 10x135mm |
| Spokes | Stainless, 14g |
| Front Tire | Nimbus 2 Sport, 650Bx2.3 |
| Rear Tire | Nimbus 2 Sport, 650Bx2.3 |
| Inner Tubes | Schrader, 40mm valve |
| Front Brake | Tektro SPD-21 Mechanical Disc, Post Mount, 160mm |
| Rear Brake | Tektro SPD-21 Mechanical Disc, Post Mount, 160mm |
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
| Handlebars | Specialized Roll, 6061 alloy, 15-degree backsweep, 125mm rise, 31.8mm |
| Grips | Specialized Body Geometry Contour, lock-on |
| Saddle | Body Geometry "The Cup," 6-degree rise, steel rails, 245mm |
| Seatpost | Spring suspension, alloy, 27.2mm, 2-bolt clamp |

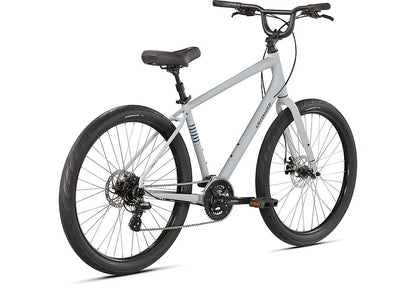

Specialized Roll Sport
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 583 mm | 616 mm | 644 mm | 667 mm |
| Reach | 346 mm | 352 mm | 370 mm | 392 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1088 mm | 1095 mm | 1124 mm | 1155 mm |
| Top Tube Length, Horizontal | 594 mm | 613 mm | 643 mm | 675 mm |
| Bike Standover Height | 801 mm | 850 mm | 881 mm | 911 mm |
| Seat Tube Length | 375 mm | 440 mm | 480 mm | 520 mm |
| Seat Tube Angle | 67° | 67° | 67° | 67° |
| Head Tube Length | 155 mm | 185 mm | 215 mm | 240 mm |
| Head Tube Angle | 68° | 69° | 69° | 69° |
| BB Height | 285 mm | 285 mm | 285 mm | 285 mm |
| BB Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Trail | 84 mm | 77 mm | 77 mm | 77 mm |
| Fork Length, Full | 420 mm | 420 mm | 420 mm | 420 mm |
| Fork Rake/Offset | 55 mm | 55 mm | 55 mm | 55 mm |
| Front Center | 617 mm | 624 mm | 653 mm | 684 mm |
Size Guide: Specialized Roll Sport
