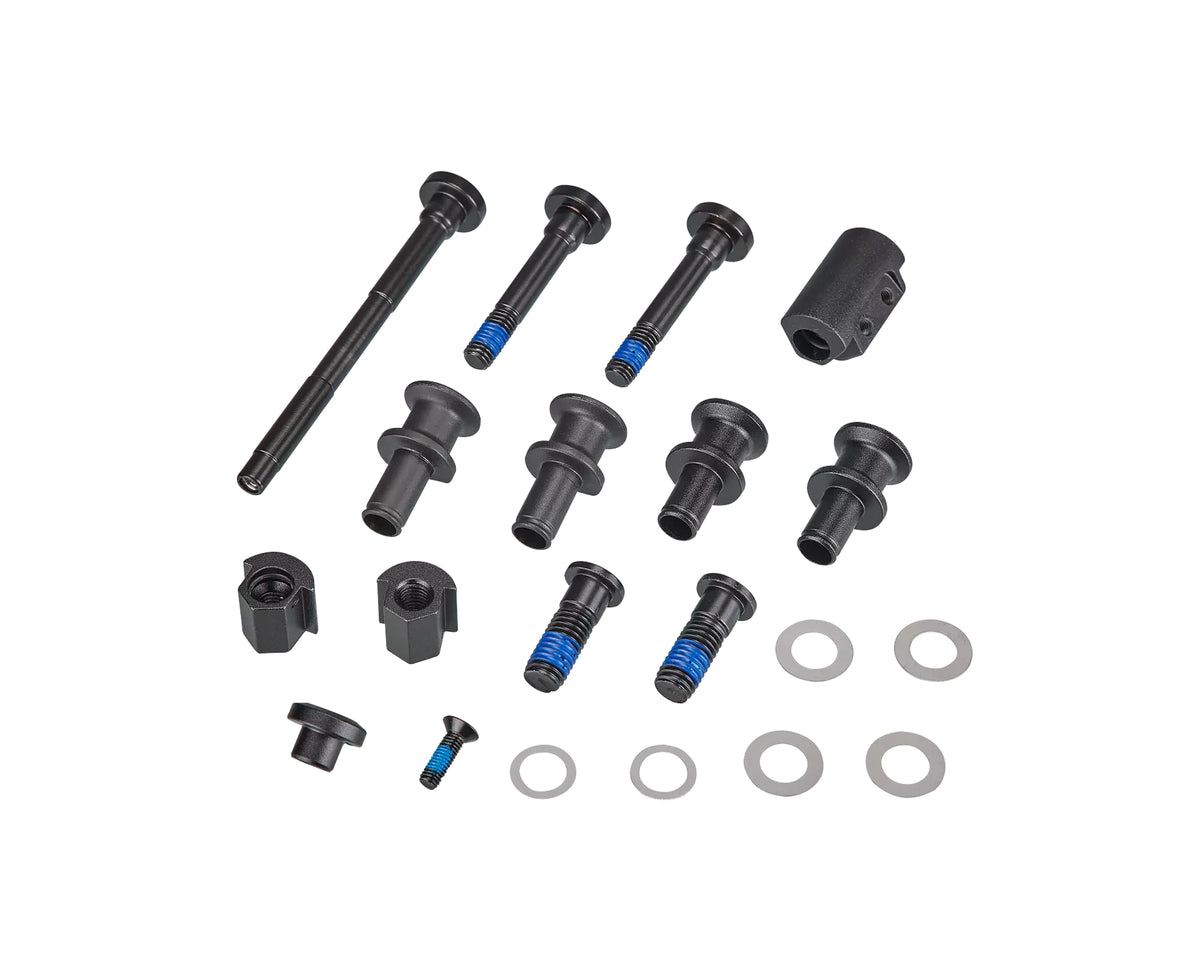

Specialized Bolt Kit MY22 Levo FSR Motor Mounting Hardware Features
Motor mounting hardware kit for Gen.3 Levo bikes.
- Replaced by S240500004.
- Rear Mounting Bolts (Qty 2): M10x1.5Px28mm Length
- Rear Mounting Bolt Washers (Qty 2): 15mm OD x 10.6mm ID x 0.2mm Thick
- Center Mounting Bolts (Qty 2): M8x1.25Px50mm Length
- Center Mounting Wedge Nuts (Qty 2): M8x1.25P
- Center Mounting Frame Spacers: 20mm OD x 8.2mm ID x 17.6mm Length
- Driveside Forward Axle Bolt (Qty 1): M5x0.8Px16mm Length
- Driveside Forward Axle Spacer (Qty 1): 10.2mm OD x 7.4mm ID x 12.5mm Thick
- Non-Driveside Forward Mounting Axle (Qty 1): M8x100mm Length
- Forward Mounting Frame Spacers (Qty 2): 20mm OD x 8.2mm ID x 17.6mm Length
- Forward Mounting Wedge (Qty 1): 35mm Width with M4x0.7P Threads
- Mounting Bolt Washers (Qty 4): 18mm OD x 10.5mm OD x 0.2mm Thick. Used for the DS Center Bolt on all frames. On Carbon frames also used for the Forward Axle, Forward Axle Spacer, and NDS Center Bolt.
- Not Included: Qty 3 of the 18mm OD x 10.6mm ID x 1.5mm Thick washer. Used for the Forward Axle, Forward Axle Spacer, and NDS Center Bolt on Alloy frames.
