2025 Specialized Haul ST Features
Whatever you’re into, get more into it with the Specialized Globe Haul ST. It’s down for the ride. With 419 pounds of cargo capacity (rider included) up to 60 miles at a time, this fully customizable electric bike has the speed, power, range, and stability to get you wherever you need to go with whatever you need. With a grip of mounting opportunities you can bring the kids, a kayak, and stop on the way home for groceries. Don’t sweat it getting dark on you either. Integrated front and rear lights will have you dialed from dawn patrol to golden hour.
POWERED UP. The rear hub motor will have you zooming up hills with all your gear. Need a little extra boost to make it through an intersection safely? Crank up the power to get up to top speed quick, then dial it back and hit the pedals for max range.
INCLUSIVE. All bodies, all fun. The unique single size frame fits riders comfortably all over the size spectrum. Using the Retül database, the adjustable fit was designed to be perfect for you. Make it longer here, shorter there, and you're ready to ride comfortably. The low center of gravity means it’s easy to handle for a newcomer or a pro, loaded up or loaded down.

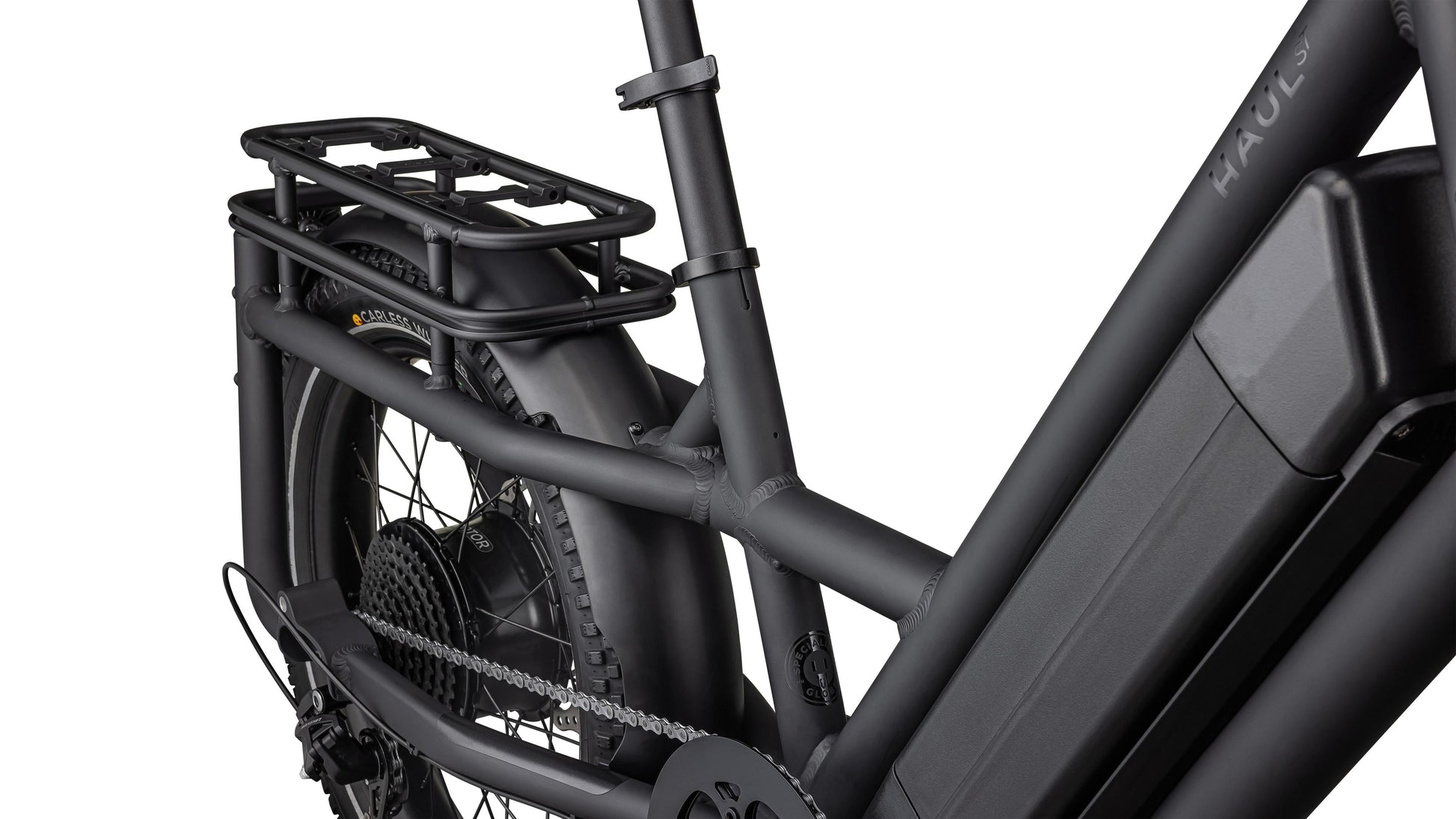

READY TO ROLL. The Globe Haul ST is ready to rock straight out of the box with an included MIK-compatible rear rack, full coverage fenders, integrated lights and center stand. D.I.Y. yourself into gear-nirvana, with a whole host of Globe accessories compatible with the auxiliary mounting points… It’s your Globe, we’re just living in it.
At a Glance
- 700w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides up to 60 miles of range at the lower levels of pedal assist.
- 419 lbs carrying capacity, rider included.
- All rear racks have been updated to 132 lbs (60kg) max weight capacity - even those labeled ‘40kg’. So get Haulin’.
- Unique; single-size frame fits riders from around 4’5” all the way up to 6'4". The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost six inches. It provides a comfortable ride to almost everyone measured in our Retül database.
- 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.
- A lifetime warranty on the frame, and two year e-system warranty will keep your bases covered. With the Specialized network of service centers and superior customer service, you’re never on your own.
Component Specifications
| E-Bike |
motor
battery
ui remote
charger
wiring harness
|
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
chain rings
bottom bracket
|
| Wheels & Tires |
rims
front hub
spokes
front tire
rear tire
inner tubes
|
| Cockpit |
stem
handlebars
grips
saddle
seatpost
pedals
|
| Accessories |
headlight
tail light
bell
fenders
kickstand
rack
|
2025 Specialized Haul ST
| Bike/Frame Size | HAUL ST |
|---|---|
| Stack | 610 mm |
| Reach | 345 mm |
| Chain-Stay Length | 465 mm |
| Wheelbase | 1089 mm |
| Top-Tube Length (horizontal) | 600 mm |
| Bike Stand-Over Height | 511 mm |
| Seat-Tube Length | 366 mm |
| Seat-Tube Angle | 68° |
| Head-Tube Length | 292 mm |
| Seat height - Max | 852 mm |
| Seat height - Min | 517 mm |
| Bar height form ground - Max | 1192 mm |
| Bar height from ground - Min | 1051 mm |
| Head-Tube Angle | 70° |
| B-B Height | 285 mm |
| B-B Drop | 5 mm |
| Trail | 47 mm |
| Fork Length (full) | 372 mm |
| Fork Rake/Offset | 55 mm |
| Front-Center | 624 mm |
Component Geometry
| Component | One Size |
|---|---|
| Crank Length | 160 mm |
| Handlebar Width | 700 mm |
| Stem Length | 45 mm |
| Saddle Width | 200 mm |
| Seatpost Length | 585 mm |
