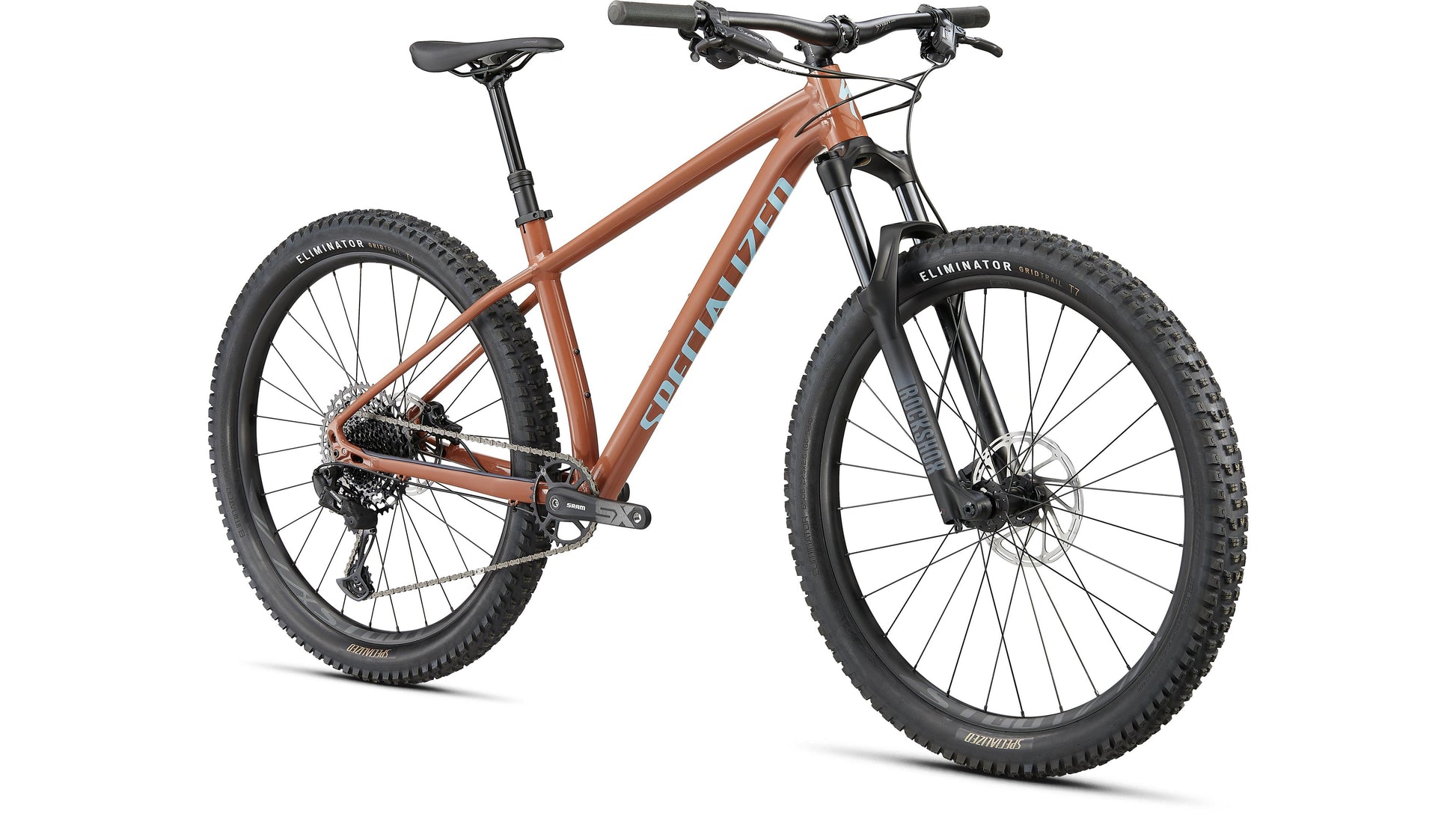

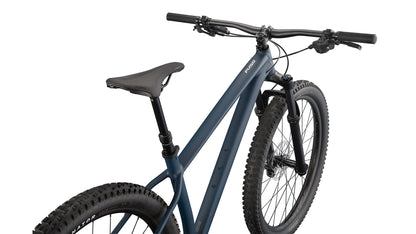

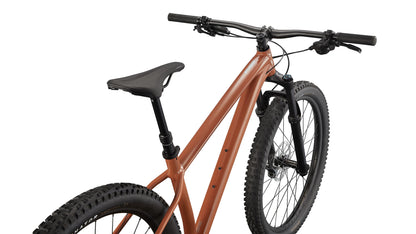

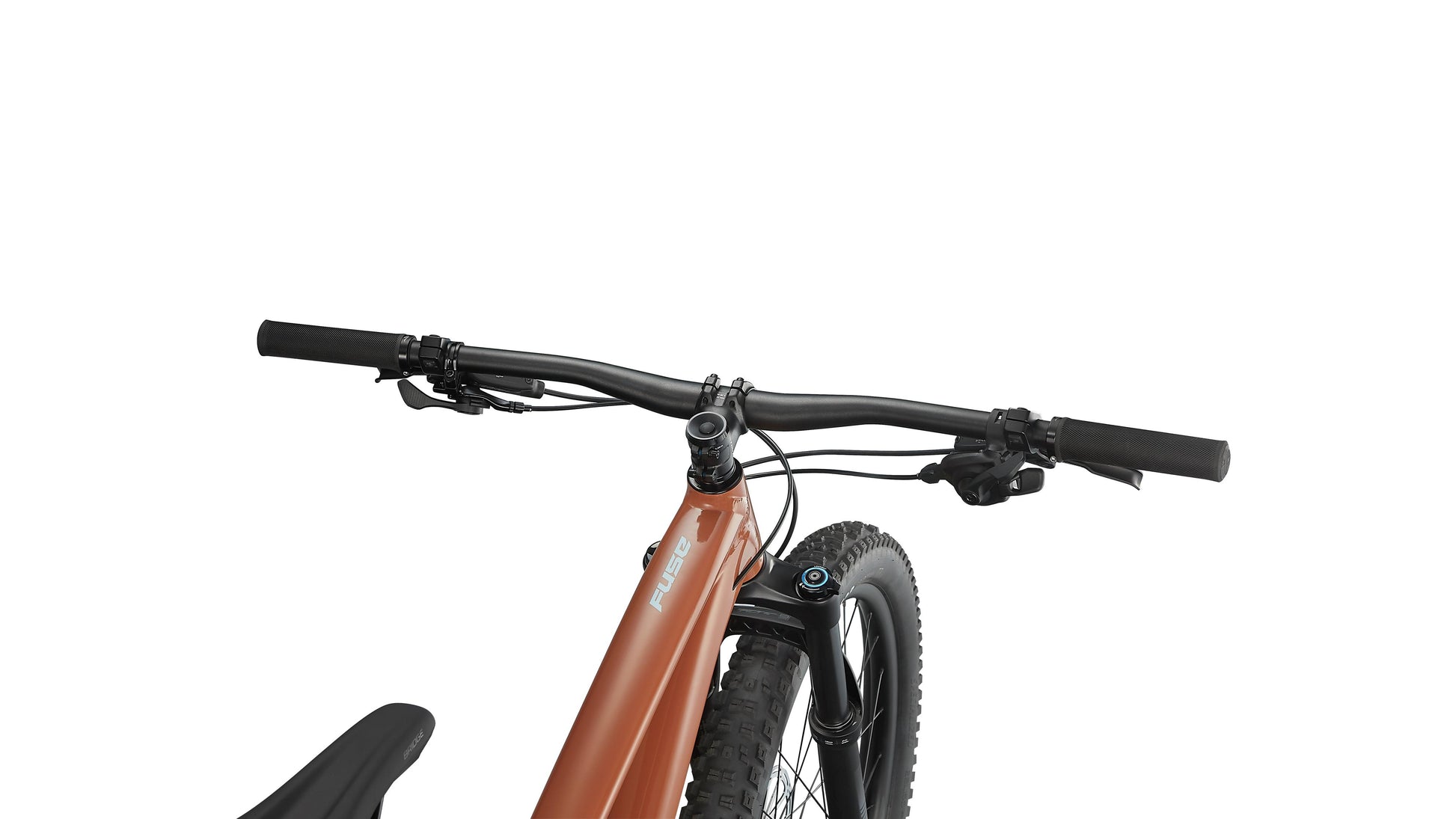

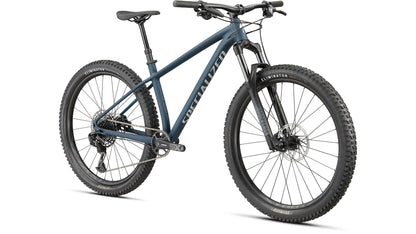

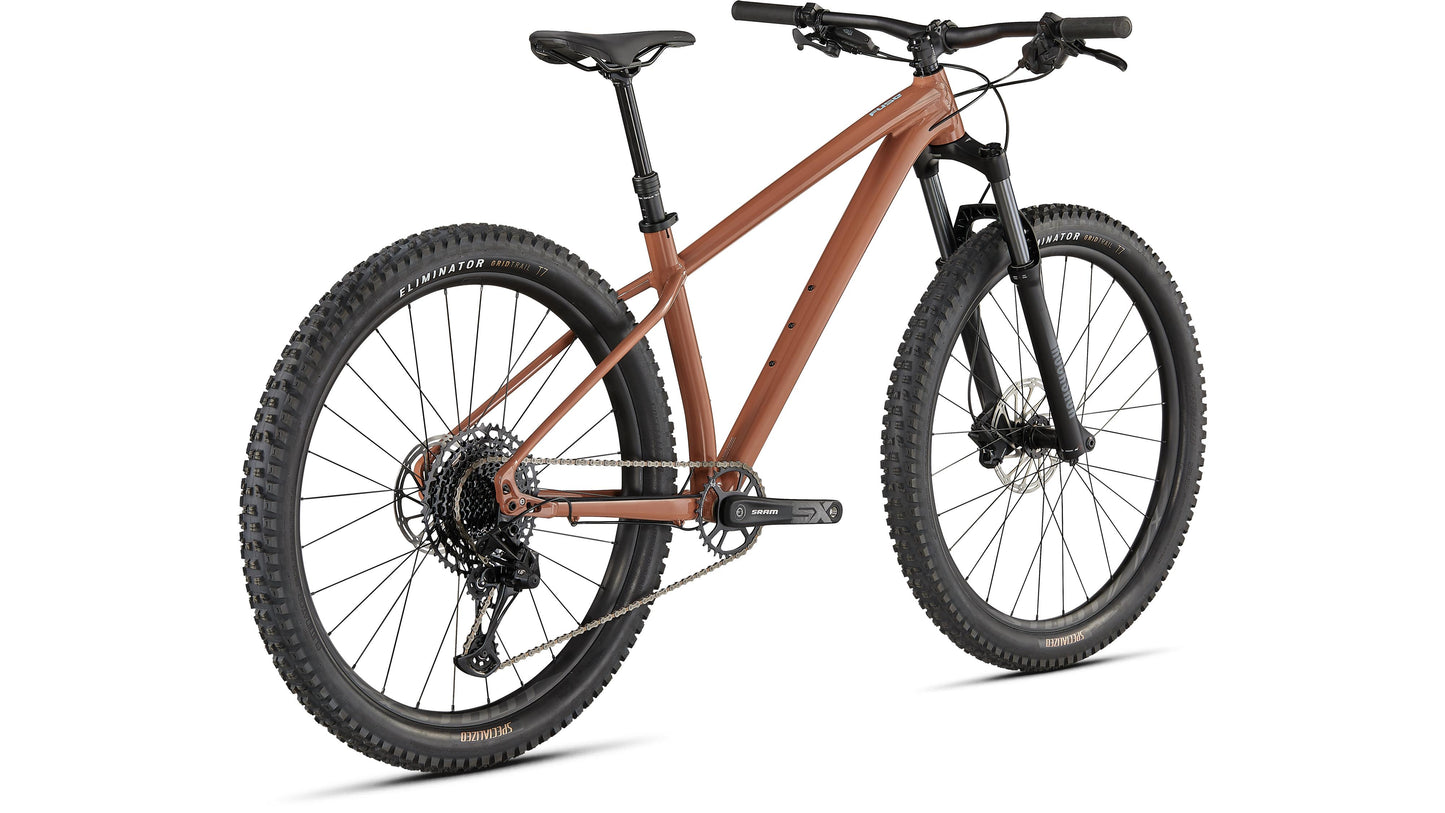

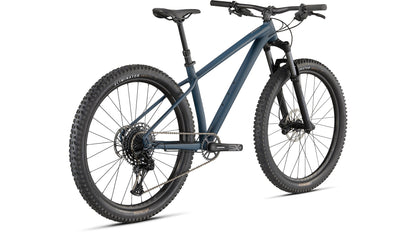

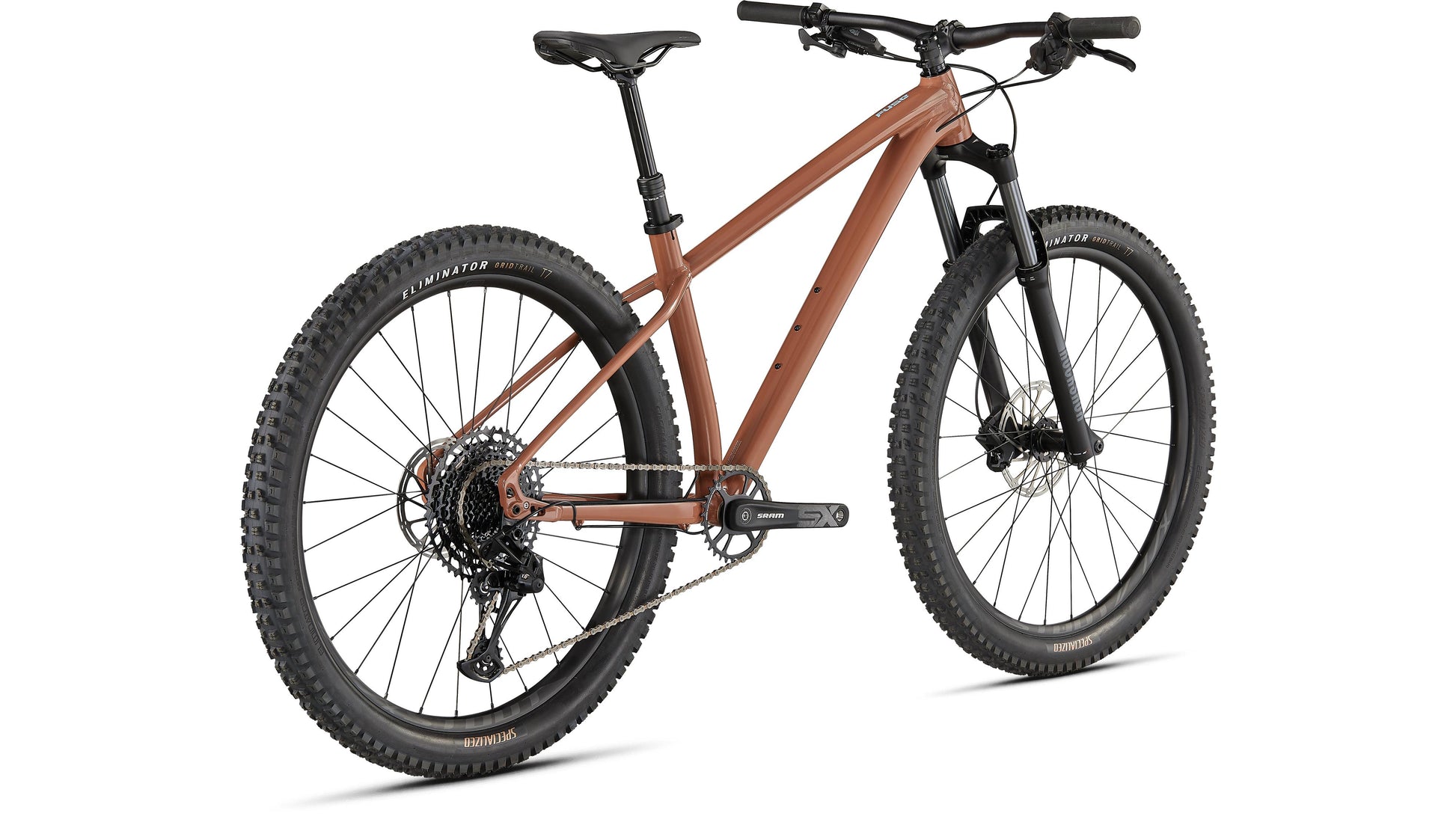

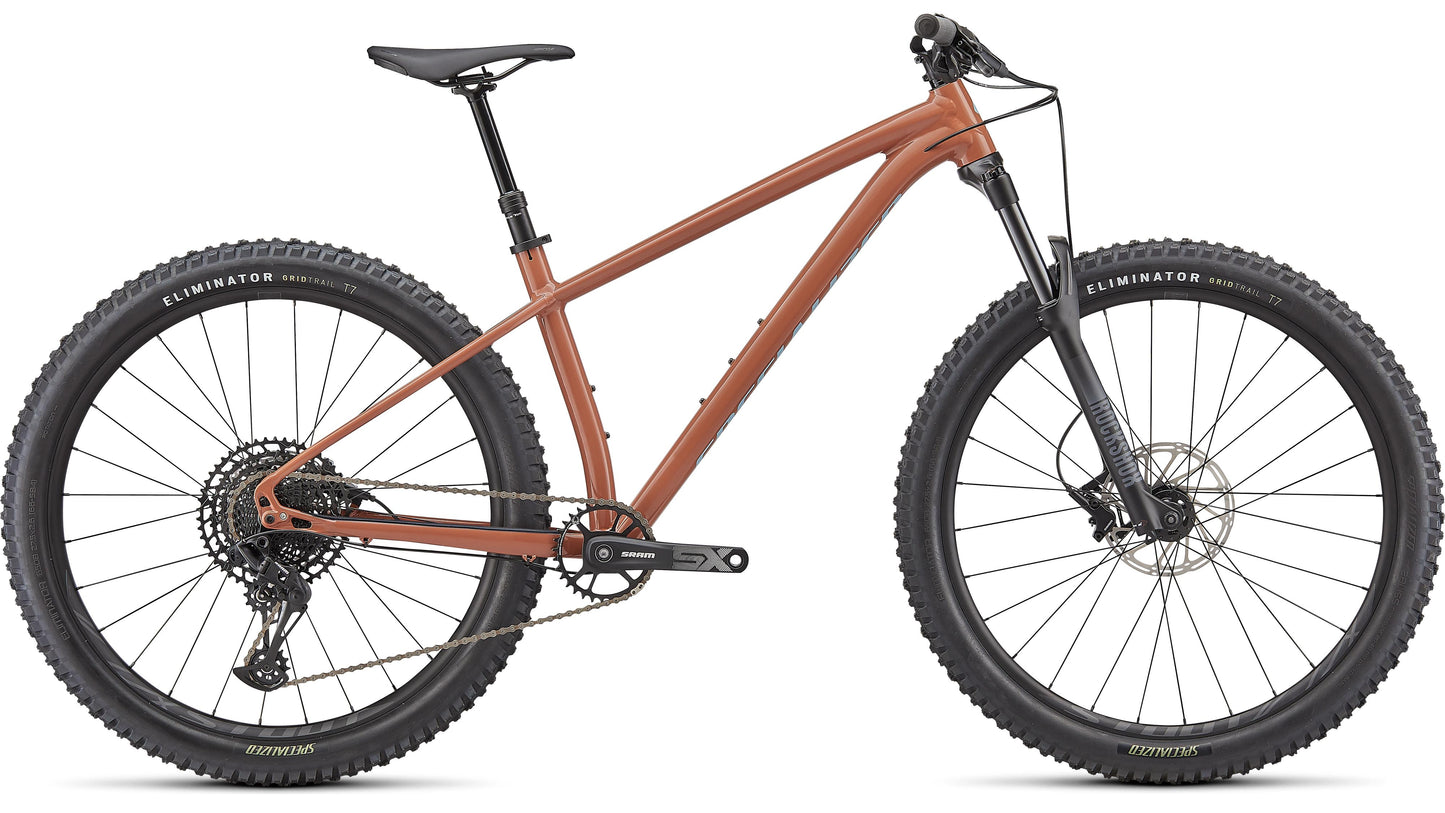

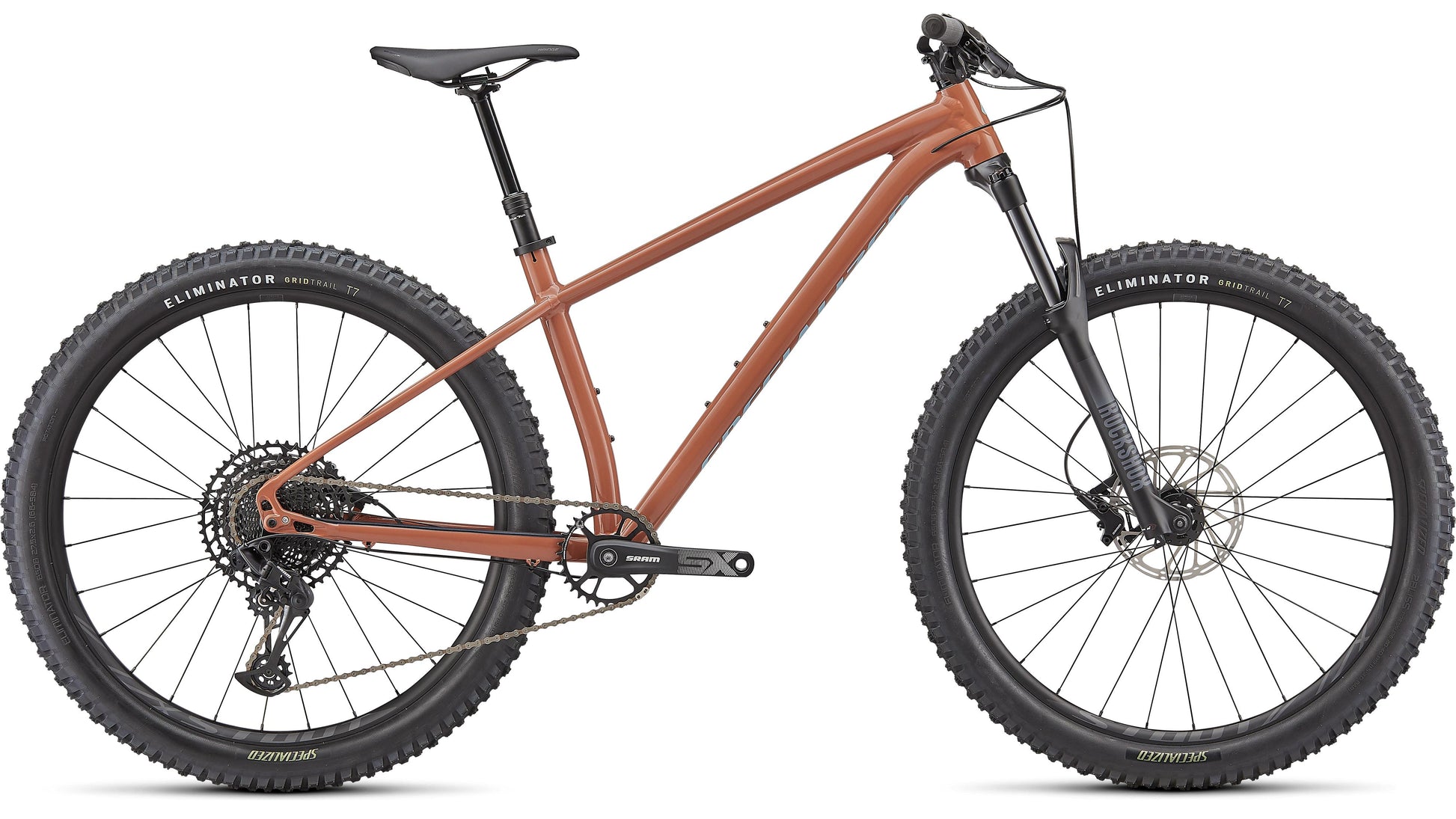

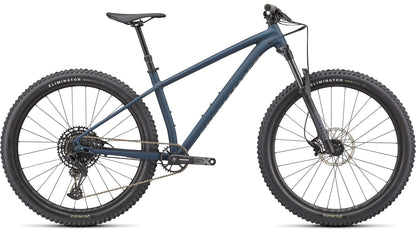

2023 Specialized Fuse Sport 27.5 Features

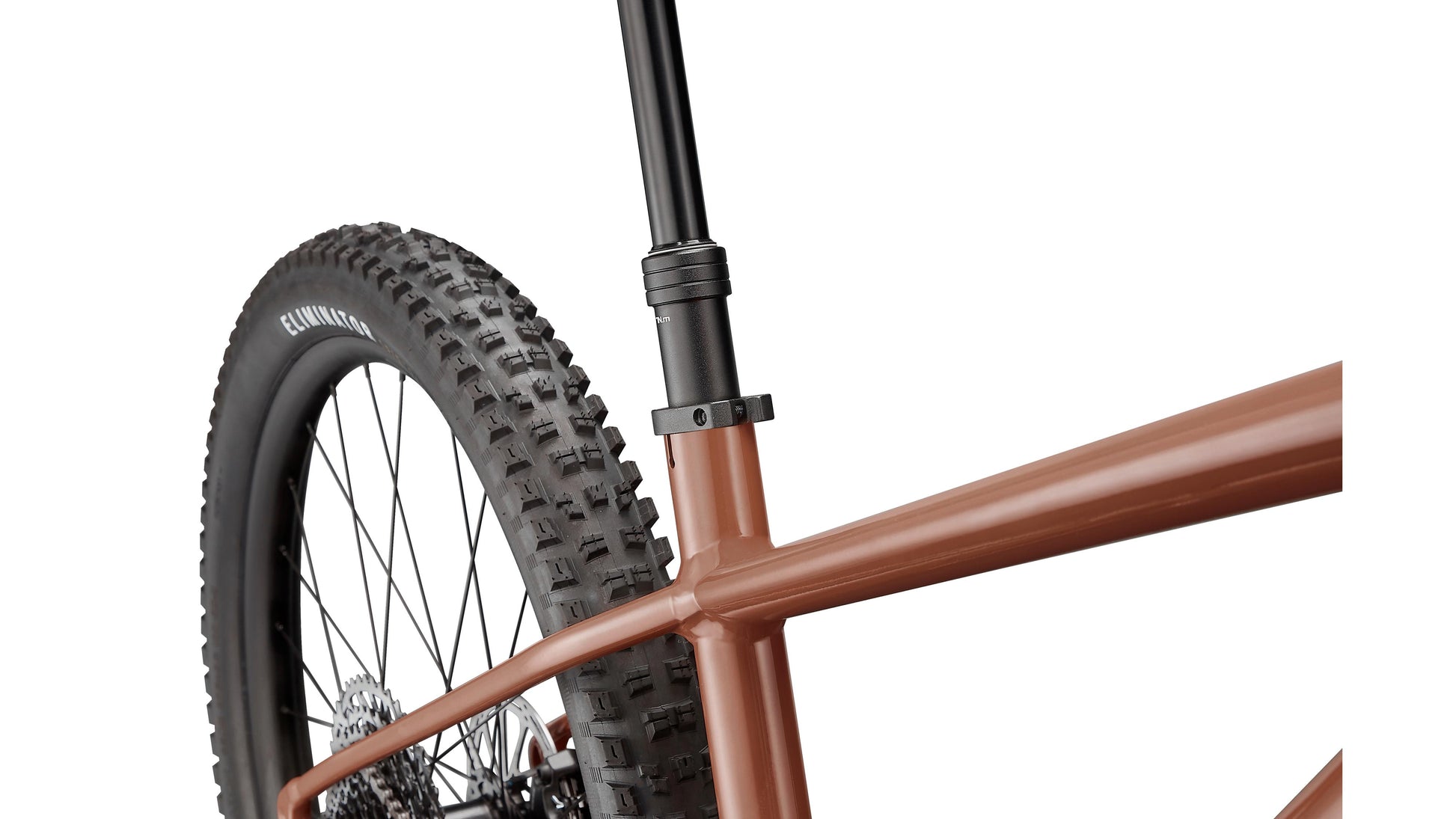

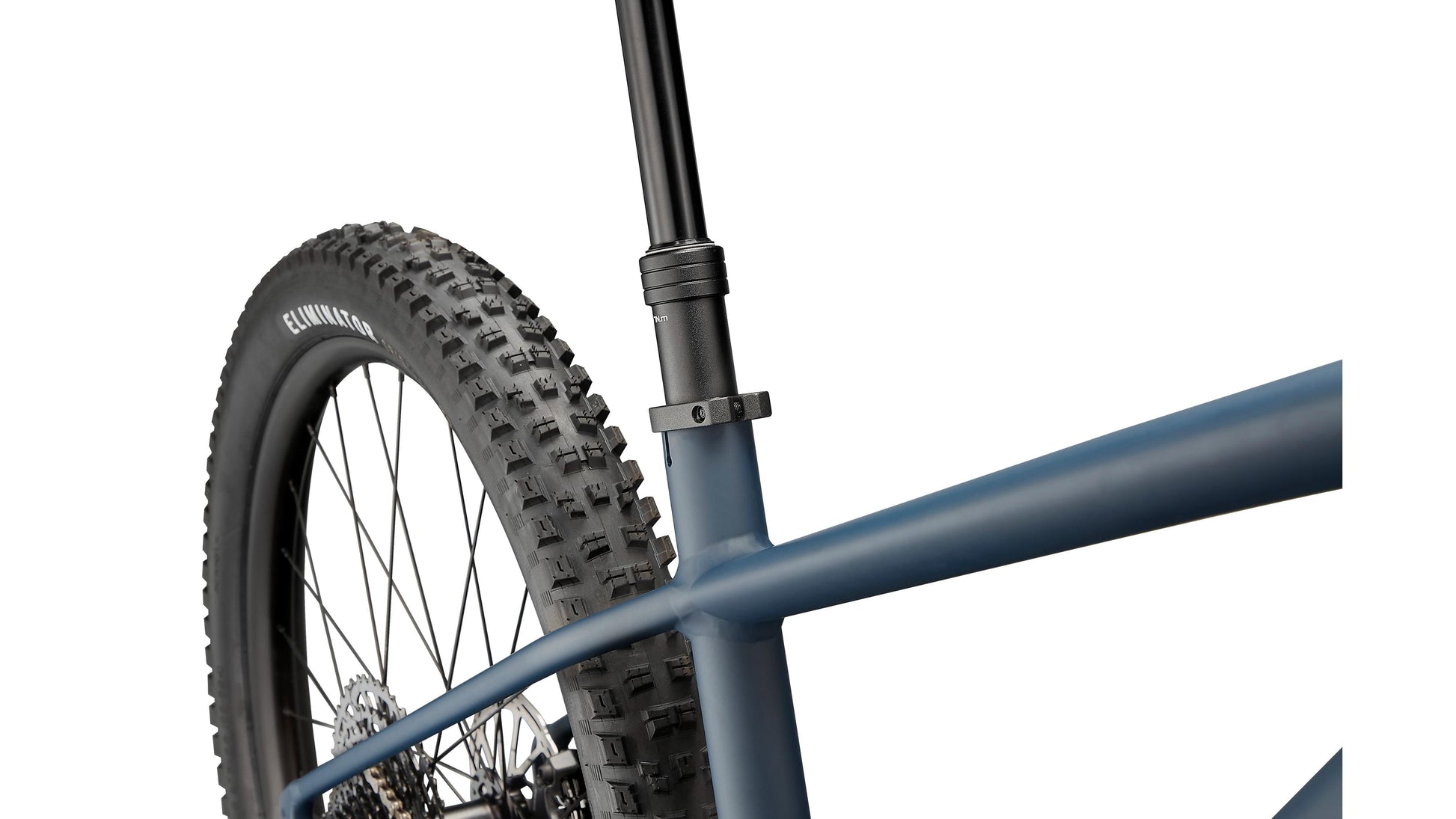

Here’s proof you don’t need tons of suspension travel to tackle challenging trails. Equipped with an all-new longer, lower, and rowdier chassis, we’ve added 27.5x2.6 wheels and tires to the Fuse Sport 27.5 to create a bike that lets you hit rocks and roots at speed with absolute control. ROWDY BY DESIGN The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverabilty on tight trails. And while this Fuse’s 27.5x2.6 tires give it ample traction and stability, it’s also compatible with 29er wheels and tires. PERFECTLY DIALED Fail to nail the geometry and advanced designs will still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
At a Glance
- 130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.

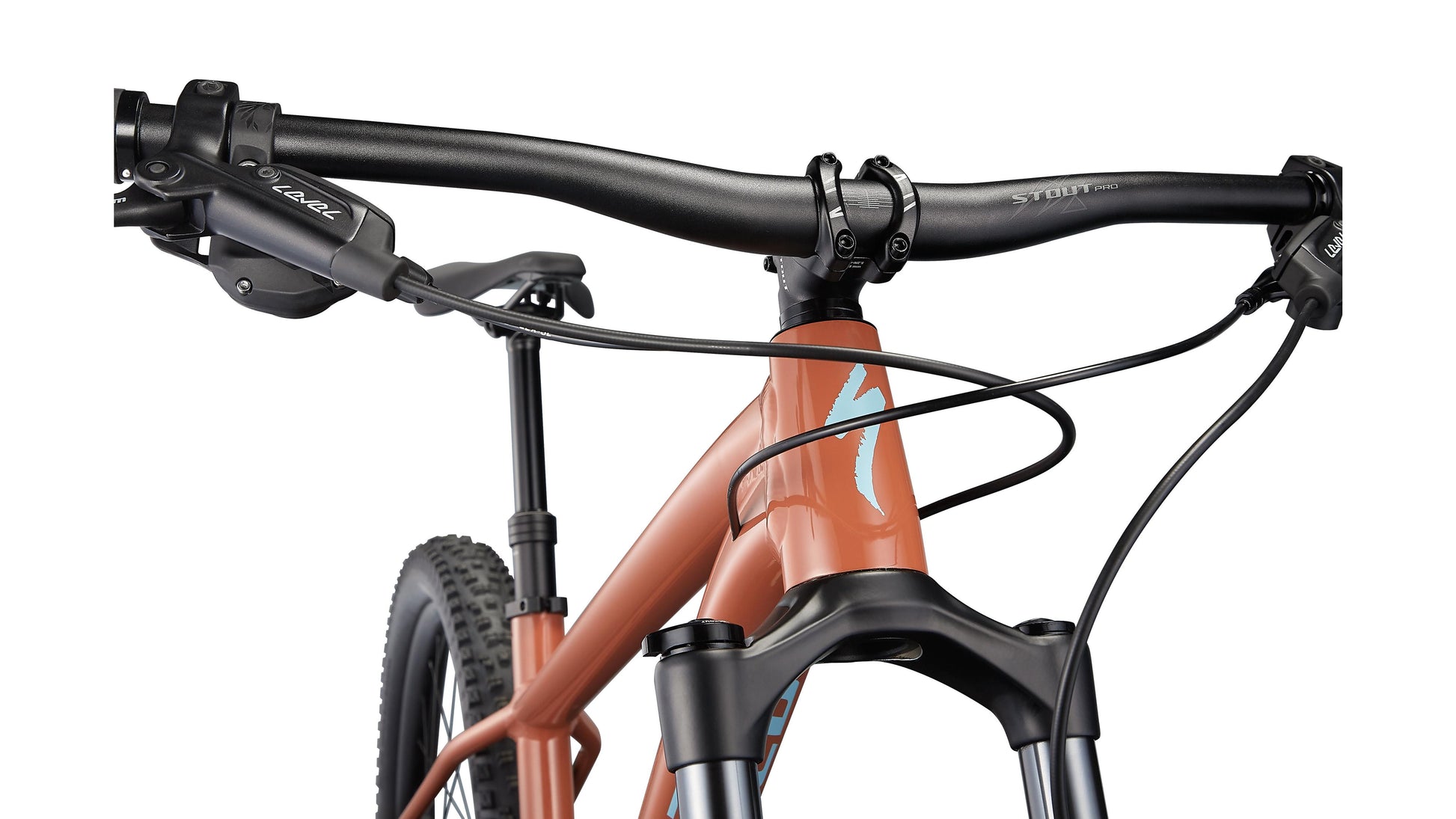

- Highlights include SRAM Level hydraulic disc brakes and TranzX dropper post.
- Wide-range SRAM SX 1X drivetrain provides crisp shifts and gearing to tackle any hill.
Component Specifications
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
bottom bracket
|
| Wheels & Tires |
rims
front hub
rear hub
spokes
front tire
rear tire
inner tubes
|
| Cockpit |
stem
handlebars
grips
saddle
seatpost
|
2023 Specialized Fuse Sport 27.5
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 603 mm | 603 mm | 603 mm | 615 mm | 630 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Chain-Stay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1120 mm | 1140 mm | 1160 mm | 1186 mm | 1213 mm |
| Top-Tube Length (horizontal) | 573 mm | 593 mm | 613 mm | 637 mm | 661 mm |
| Bike Stand-Over Height | 717 mm | 736 mm | 739 mm | 744 mm | 789 mm |
| Seat-Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 105 mm | 105 mm | 105 mm | 120 mm | 135 mm |
| Head-Tube Angle | 66° | 66° | 66° | 66° | 66° |
| B-B Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| B-B Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Fork Length (full) | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Fork Rake/Offset | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Front-Center | 695 mm | 715 mm | 735 mm | 761 mm | 787 mm |
Component Geometry
| Component | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Crank Length | 170 mm | 170 mm | 170 mm | 170 mm | 175 mm |
| Handlebar Width | 750 mm | 750 mm | 780 mm | 780 mm | 780 mm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Saddle Width | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 360 mm | 360 mm | 400 mm | 400 mm | 400 mm |
Size Guide: 2023 Specialized Fuse Sport 27.5
