2022 Specialized Fuse M4 Frameset

2022 Specialized Fuse M4 Frameset

76022-7001

$1,000.00
$1,000.00 $1,000.00
Sold out
Color
Size
View full details

    2022 Specialized Fuse M4 Frameset Features

    If you’re looking for a frame that’s snappy, confident, and happiest on trails that make other hardtails cry, you’ve come to the right place.

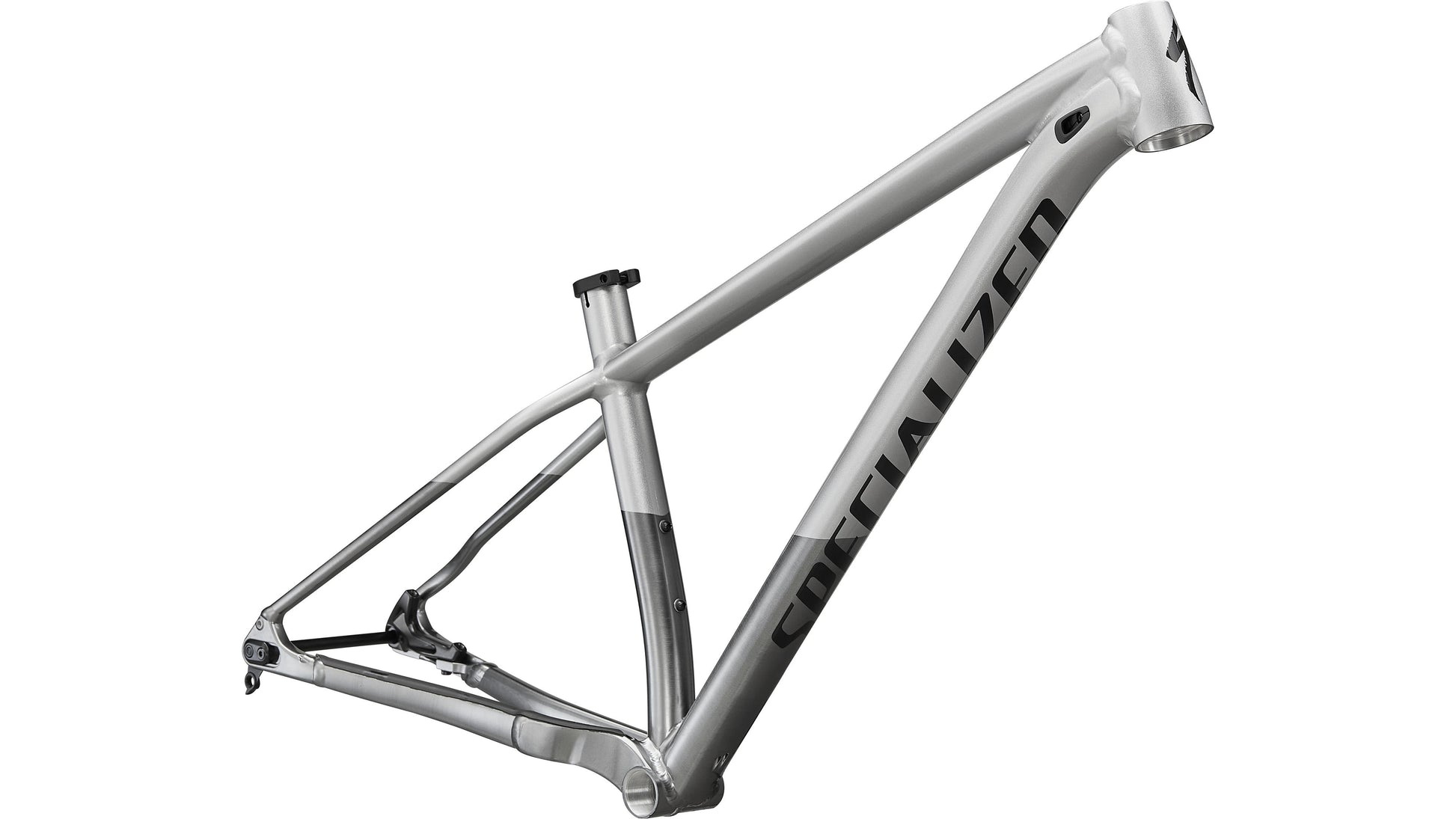

    The Fuse’s M4 aluminum frame is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube gives you the clearance to throw the bike around on tight trails. Adjustable dropouts let you run the Fuse geared or single-speed. Those same dropouts also let you adjust the chainstays by as much as 15 millimeters, lengthening the rear end for more stability or shortening it up for quick, nimble manners.

    The Fuse is a piece of rolling art—the kind of functional art that has you dragging handlebars in corners, braking way too late, and making indecent growling noises mid-ride.

    At a Glance

    • The Fuse’s M4 aluminum frame is loaded with smart touches.
    • Wide-diameter down tube boosts stiffness.
    • Low-slung top tube gives you the clearance to throw the bike around on tight trails.
    • Adjustable dropouts let you run the Fuse geared or single-speed.
    • Tune the Fuse to your trails, by changing chainstay length as much as 15 millimeters.

    Product Specifications

    frame

    Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing

    seat binder

    Alloy, 38.6mm

    category

    Mountain

    component geometry

    []

    experience

    Trail

    frame geometry

    [{"GEO_SET_NAME":"Fuse M4 (TRAIL HT D1.1) CS","GEO_SET_ID":"13211","MODEL_YEAR":"2022","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Front-Center","MEASUREMENT_GEO_CODE":"145431","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"698","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"718","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"738","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"764","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"790","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Length","MEASUREMENT_GEO_CODE":"178224","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"340","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"375","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"505","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle","MEASUREMENT_GEO_CODE":"139159","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"16","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height","MEASUREMENT_GEO_CODE":"171029","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"315","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"315","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"315","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"315","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"315","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length - long","MEASUREMENT_GEO_CODE":"201374","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"113","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"113","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"113","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"113","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"113","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"1122","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"1142","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"1162","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"1188","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"1214","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Stack","MEASUREMENT_GEO_CODE":"185154","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"625","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"625","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"625","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"639","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"652","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach","MEASUREMENT_GEO_CODE":"185155","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"400","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"440","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"460","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"480","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length (full)","MEASUREMENT_GEO_CODE":"178217","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"540","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"540","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"540","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"540","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"540","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length - short","MEASUREMENT_GEO_CODE":"201375","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Bike Stand-Over Height","MEASUREMENT_GEO_CODE":"173619","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"727","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"747","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"750","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"754","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"793","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle","MEASUREMENT_GEO_CODE":"143686","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"66.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"66.5","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"66.5","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"66.5","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"66.5","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Drop","MEASUREMENT_GEO_CODE":"151451","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"60","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"60","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"60","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"60","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"60","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Length","MEASUREMENT_GEO_CODE":"140152","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"110","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"125","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"0"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top-Tube Length (horizontal)","MEASUREMENT_GEO_CODE":"178222","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"579","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"599","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"619","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"643","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"667","GEO_DISPLAY_ORDER":"4"}]}]}]

    gender

    Men|Women

    group

    Framesets

    line

    BIKES

    material

    Aluminum

    model level

    Base

    model year

    2022

    product family

    Fuse

    shifting

    Mechanical

    suspension

    Rigid

    wheel size

    29"

    base color

    Grey

    color

    Gloss Light Silver / Brushed Dream Silver / Gloss Black

    size

    XS

    2022 Specialized Fuse M4 Frameset

    Bike/Frame Size XS S M L XL
    Stack 625 mm 625 mm 625 mm 639 mm 652 mm
    Reach 400 mm 420 mm 440 mm 460 mm 480 mm
    Chain-Stay Length - short 420 mm 420 mm 420 mm 420 mm 420 mm
    Chain-Stay Length - long 435 mm 435 mm 435 mm 435 mm 435 mm
    Wheelbase 1122 mm 1142 mm 1162 mm 1188 mm 1214 mm
    Top-Tube Length (horizontal) 579 mm 599 mm 619 mm 643 mm 667 mm
    Bike Stand-Over Height 727 mm 747 mm 750 mm 754 mm 793 mm
    Seat-Tube Length 340 mm 375 mm 410 mm 455 mm 505 mm
    Seat-Tube Angle 74° 74° 74° 74° 74°
    Head-Tube Length 95 mm 95 mm 95 mm 110 mm 125 mm
    Head-Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
    B-B Height 315 mm 315 mm 315 mm 315 mm 315 mm
    B-B Drop 60 mm 60 mm 60 mm 60 mm 60 mm
    Trail 113 mm 113 mm 113 mm 113 mm 113 mm
    Fork Length (full) 540 mm 540 mm 540 mm 540 mm 540 mm
    Fork Rake/Offset 46 mm 46 mm 46 mm 46 mm 46 mm
    Front-Center 698 mm 718 mm 738 mm 764 mm 790 mm

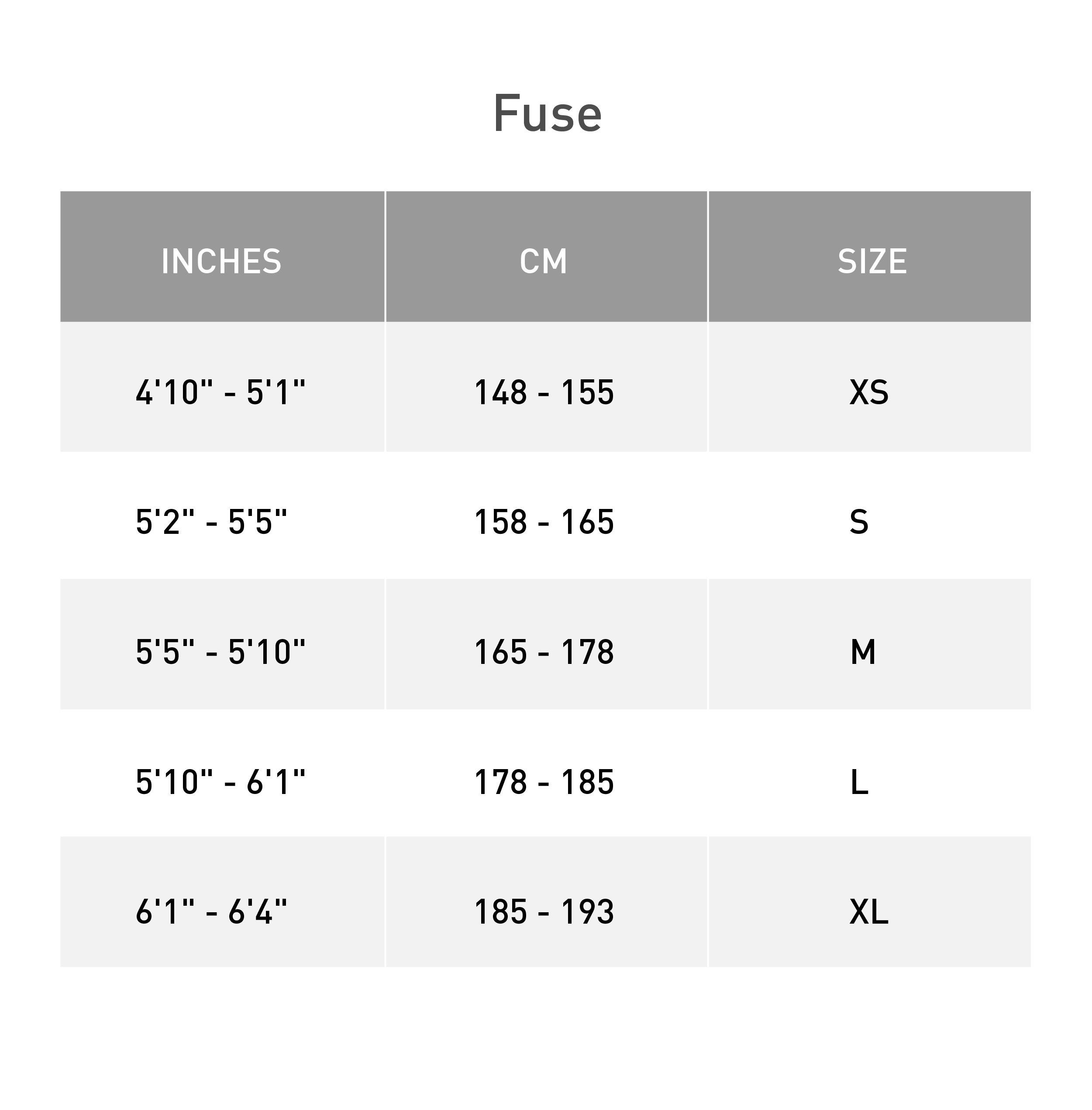

    Size Guide: 2022 Specialized Fuse M4 Frameset

    Size guide for 2022 Specialized Fuse M4 Frameset
