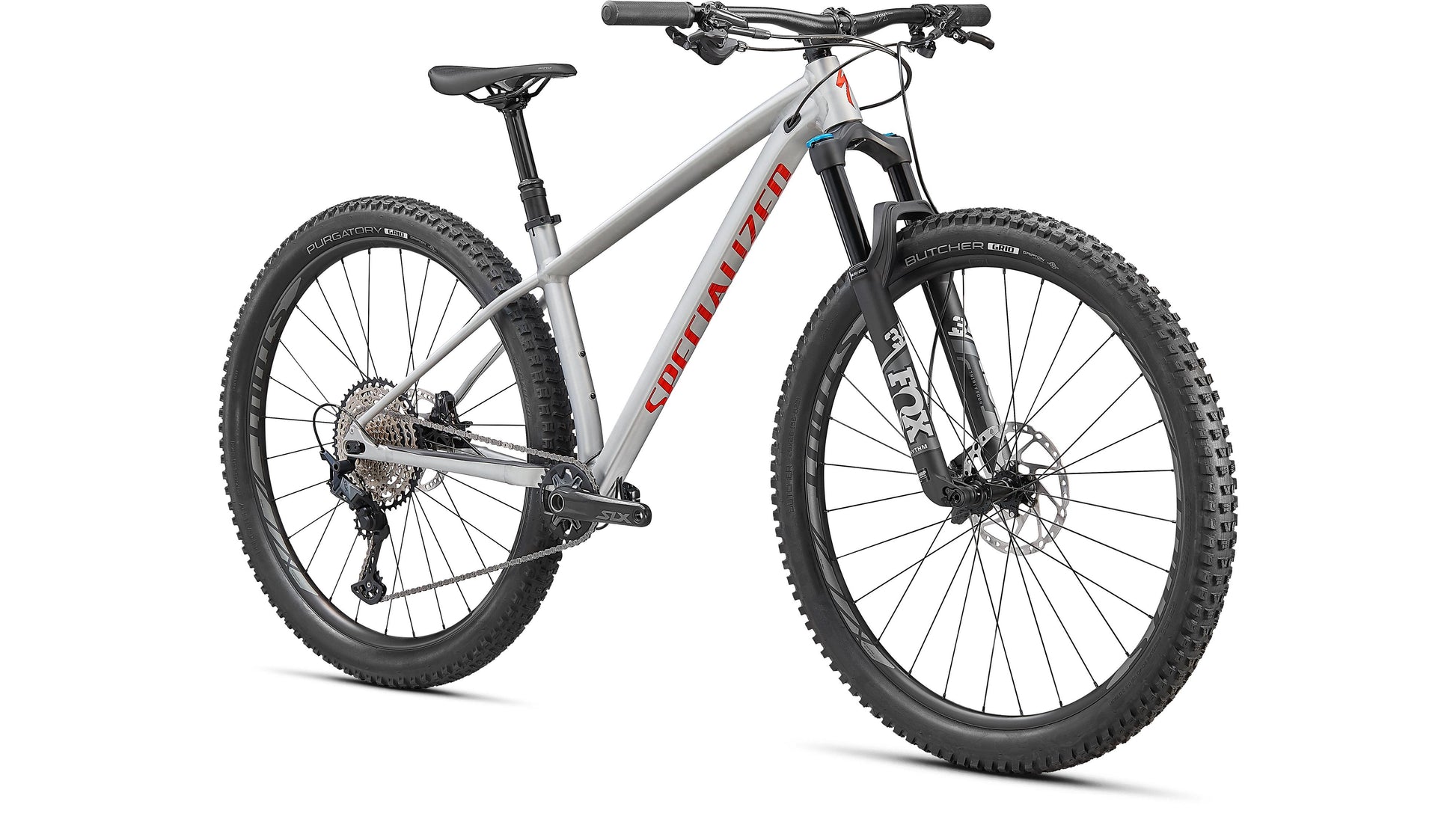

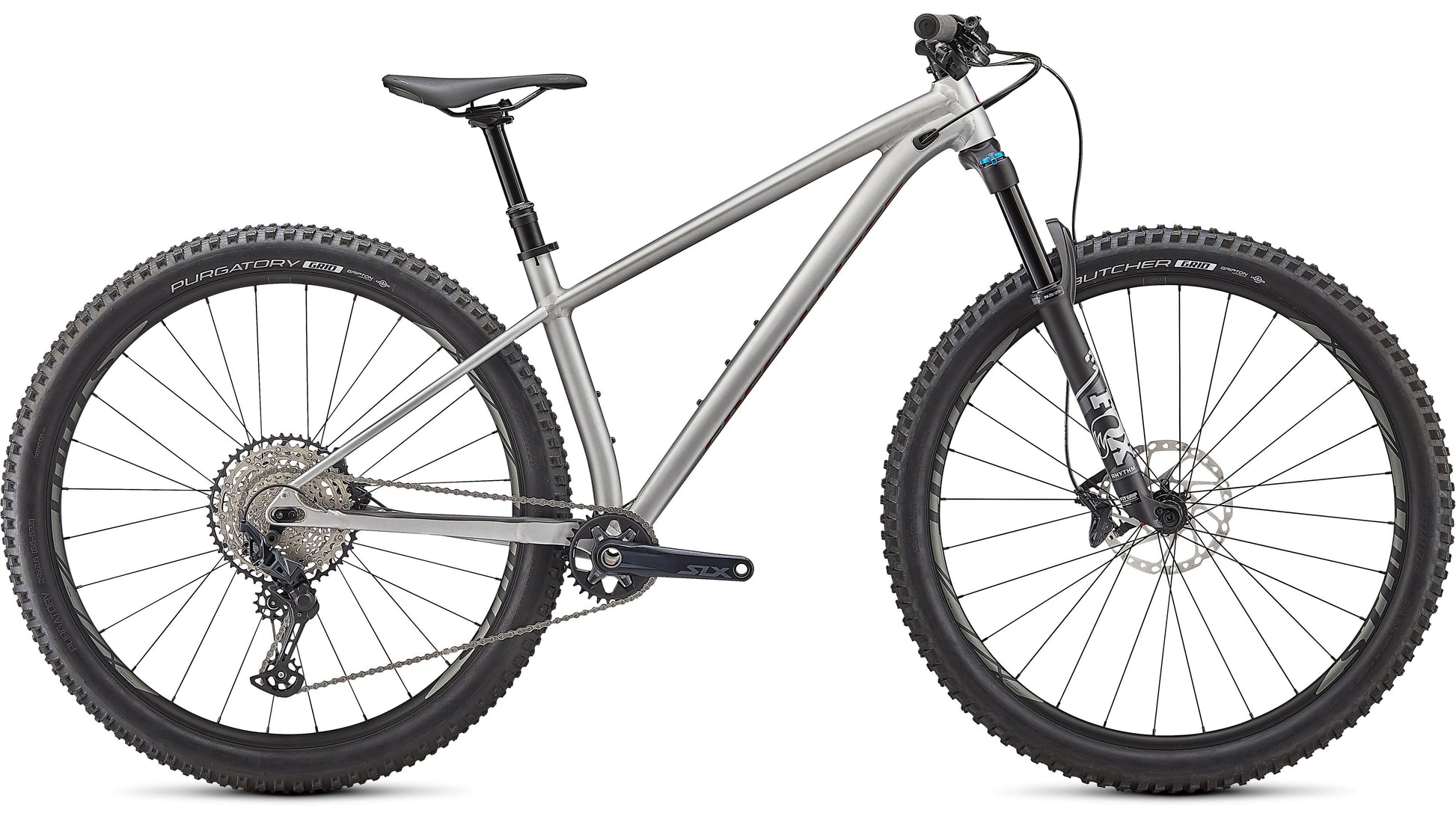

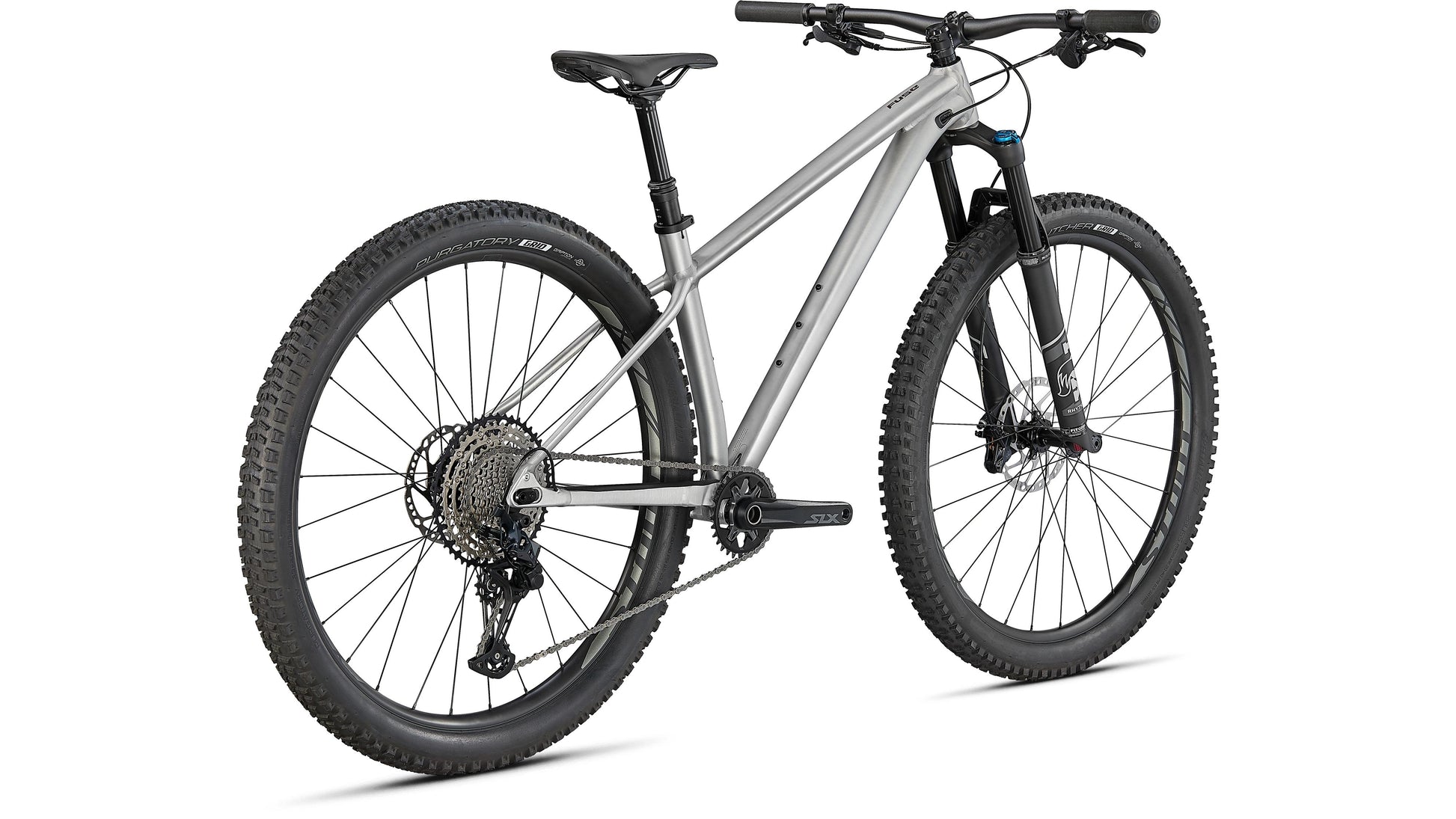

Specialized Fuse Expert 29 Features
The Fuse Expert 29 thriving on the kind of technical trails that make other hardtails cry. The top-shelf Fuse Expert 29 brings all of that to play with its light-yet-burly M4 aluminum chassis and a component package that takes a beating and comes back for more.
ROWDY BY DESIGN

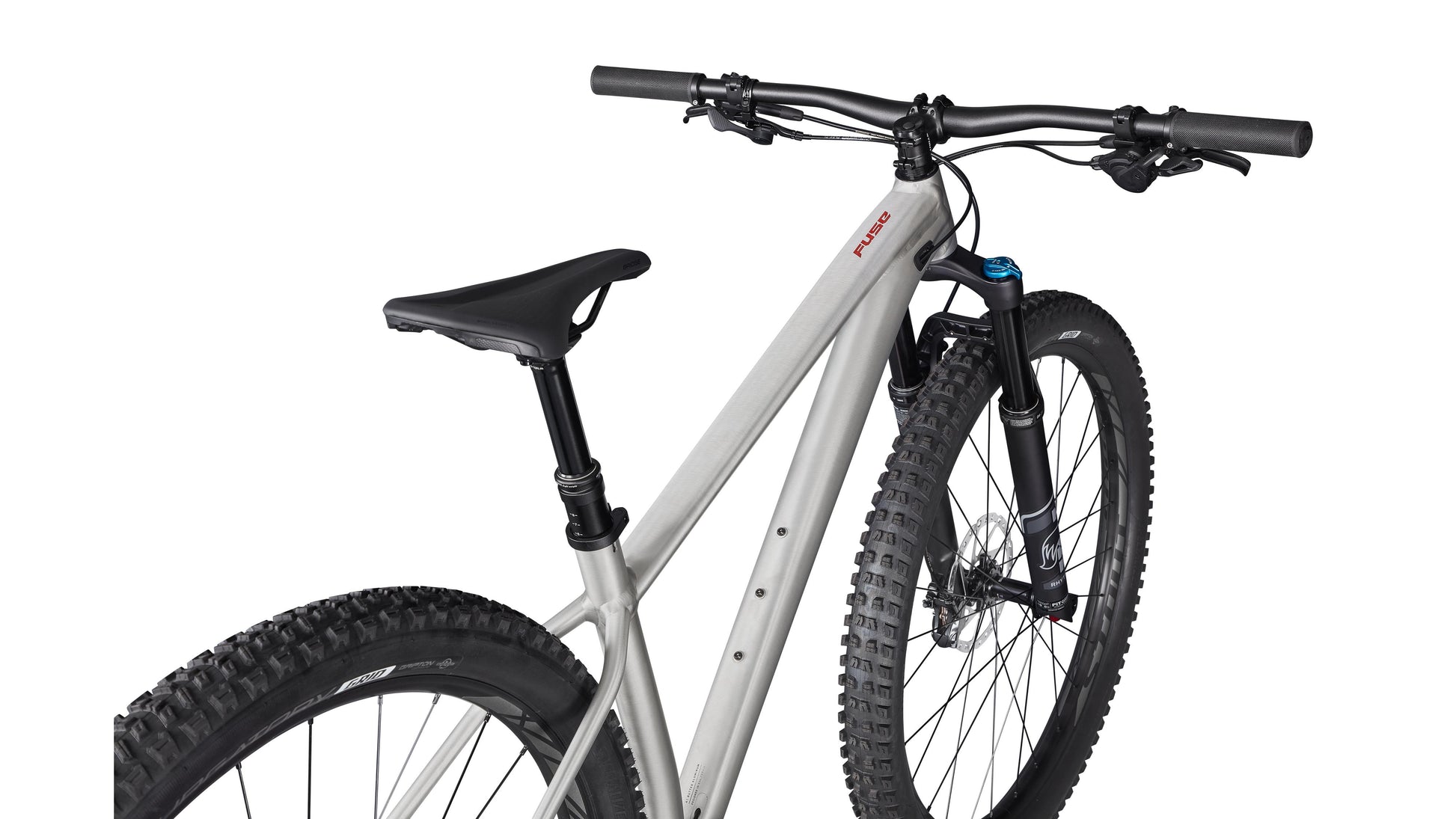

The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube gives you the clearance to throw the bike around on tight trails. And while this Fuse's 29x2.6 tires give it a precise, nimble feel, the frame is also compatible with 27.5+ wheels and tires.
PERFECTLY DIALED
If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing out on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
TAKES A BEATING
• 130-millimeters of plush suspension courtesy of a Fox Float 34 Rythm fork.
• Stout Trail SL wheelset is light yet fends off abuse.
• Shimano SLX 12-speed drivetrain gives you single-ring simplicity yet lets you tackle big climbs without coughing up a lung.
At a Glance
- 130-millimeters of plush suspension courtesy of a Fox Float 34 Rythm fork.
- Shimano SLX 12-speed drivetrain gives you single-ring simplicity yet lets you tackle big climbs without coughing up a lung.
- Stout Trail SL wheelset is light yet fends off abuse.
Component Specifications
| Frame | Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 130mm of travel |
| Shift Levers | Shimano SLX, M7100, 12spd |
| Rear Derailleur | Shimano SLX M7100, SGS, 12-speed |
| Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Chain | Shimano SLX, M7100 w/Quicklink |
| Crankset | Shimano SLX, M7120 12spd |
| Chain Rings | 32T |
| Bottom Bracket | Shimano, BB-MT800, Threaded |
| Rims | Specialized Alloy, Tubeless Ready, 29mm internal width, 28h |
| Front Hub | Shimano MT410-B, Centerlock 28h, 15x110 Boost |
| Rear Hub | Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline |
| Spokes | Stainless, 14g |
| Front Tire | Butcher, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Purgatory, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Shimano Deore, M6100 4-piston , 180mm |
| Rear Brake | Shimano Deore, M6100 4-piston , 160/180mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Handlebars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Seatpost | TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm |
Specialized Fuse Expert 29
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 625 mm | 625 mm | 625 mm | 639 mm | 652 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Chain-Stay Length - short | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Chain-Stay Length - long | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1122 mm | 1142 mm | 1162 mm | 1188 mm | 1214 mm |
| Top-Tube Length (horizontal) | 579 mm | 599 mm | 619 mm | 643 mm | 667 mm |
| Bike Stand-Over Height | 727 mm | 747 mm | 750 mm | 754 mm | 793 mm |
| Seat-Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head-Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| B-B Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| B-B Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Fork Length (full) | 540 mm | 540 mm | 540 mm | 540 mm | 540 mm |
| Fork Rake/Offset | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Front-Center | 698 mm | 718 mm | 738 mm | 764 mm | 790 mm |
Size Guide: Specialized Fuse Expert 29
