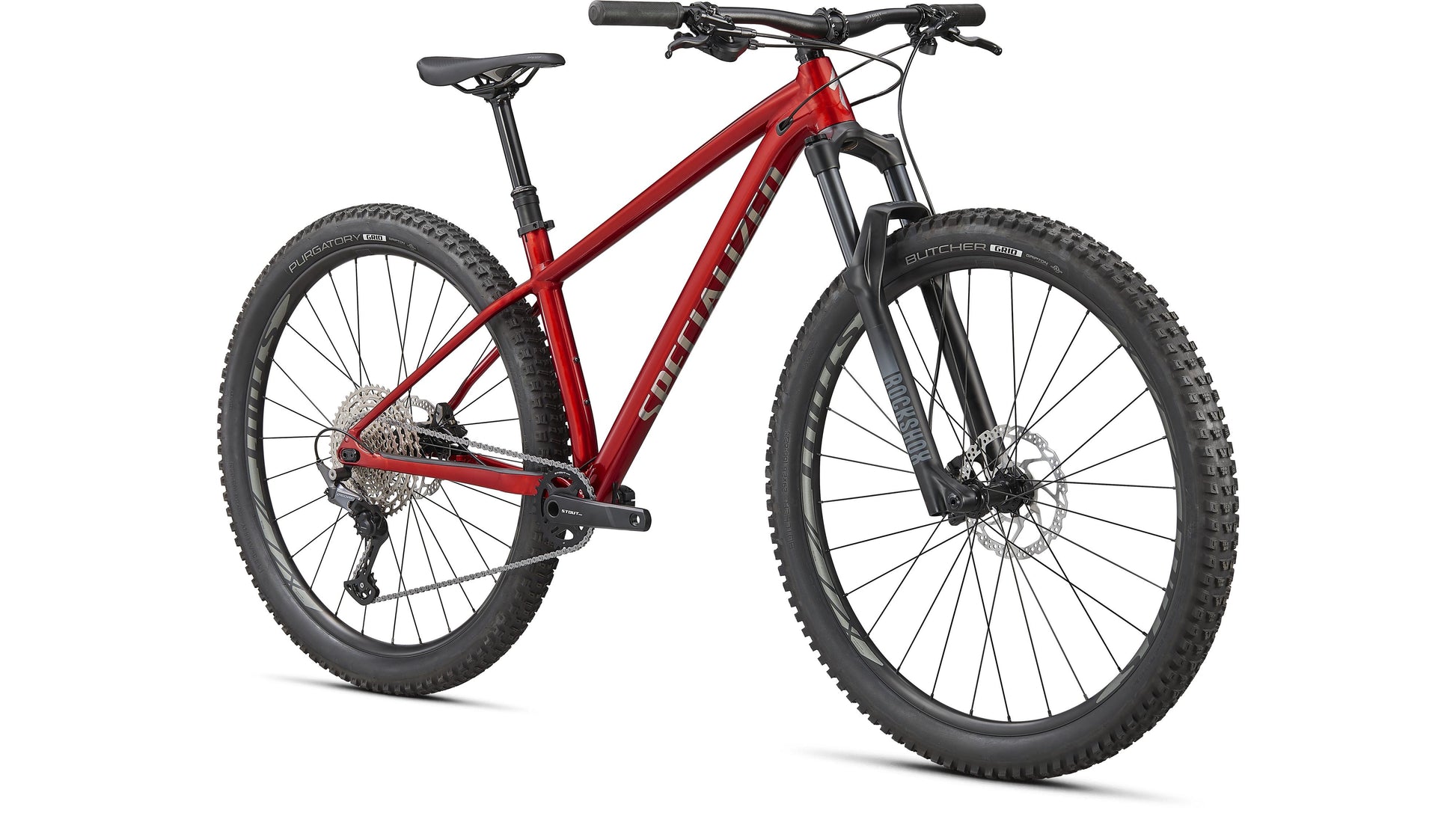

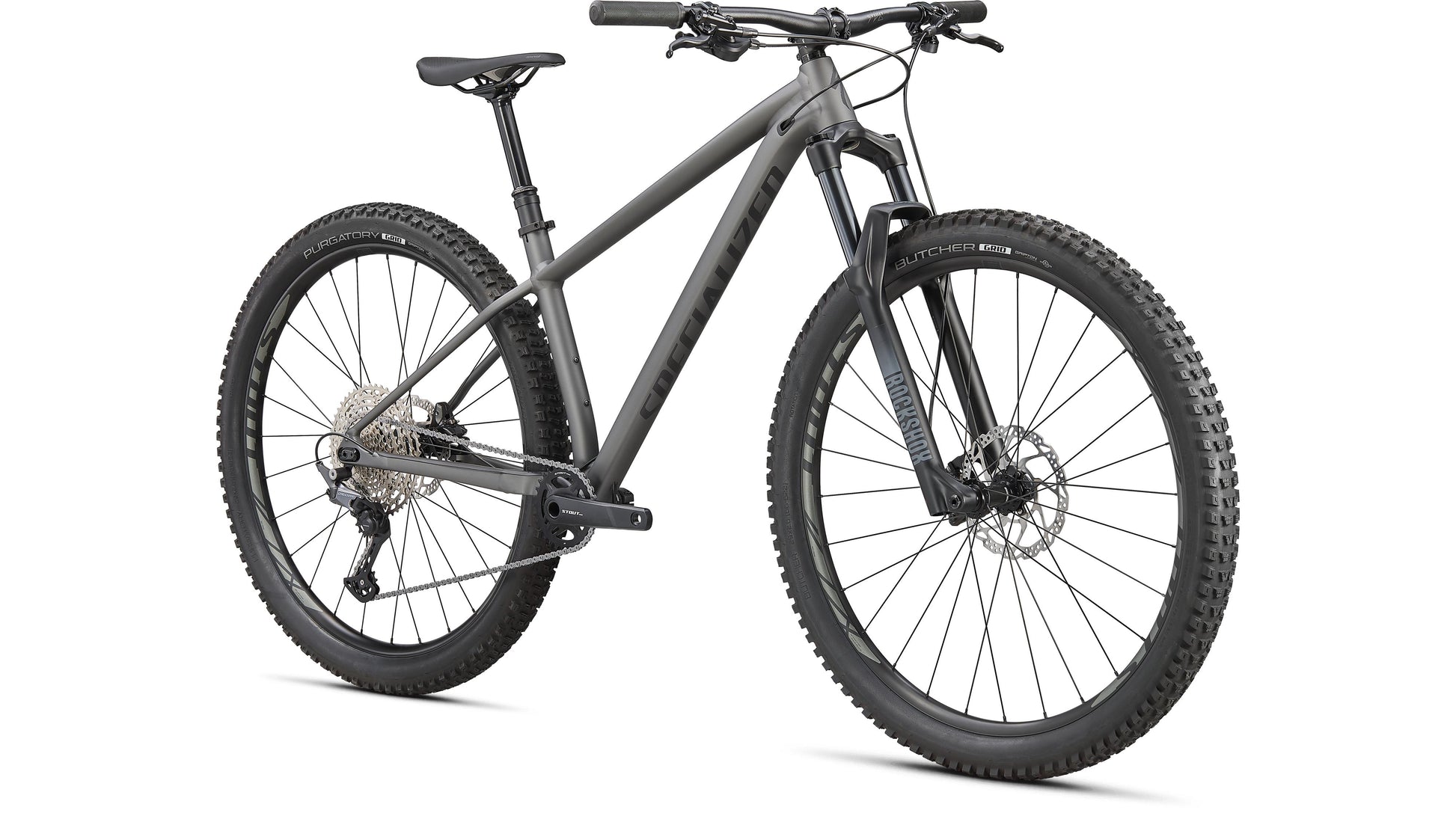

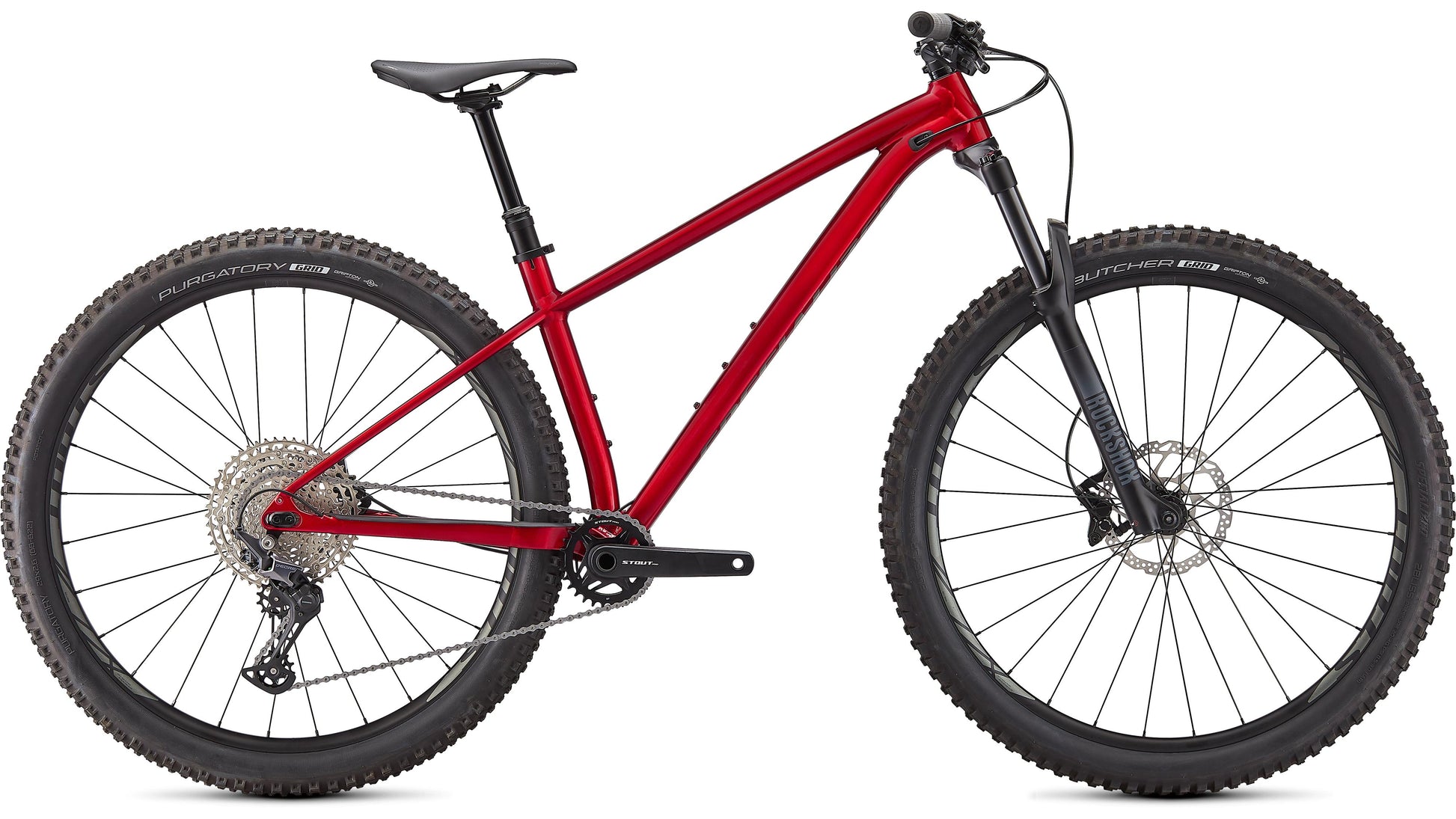

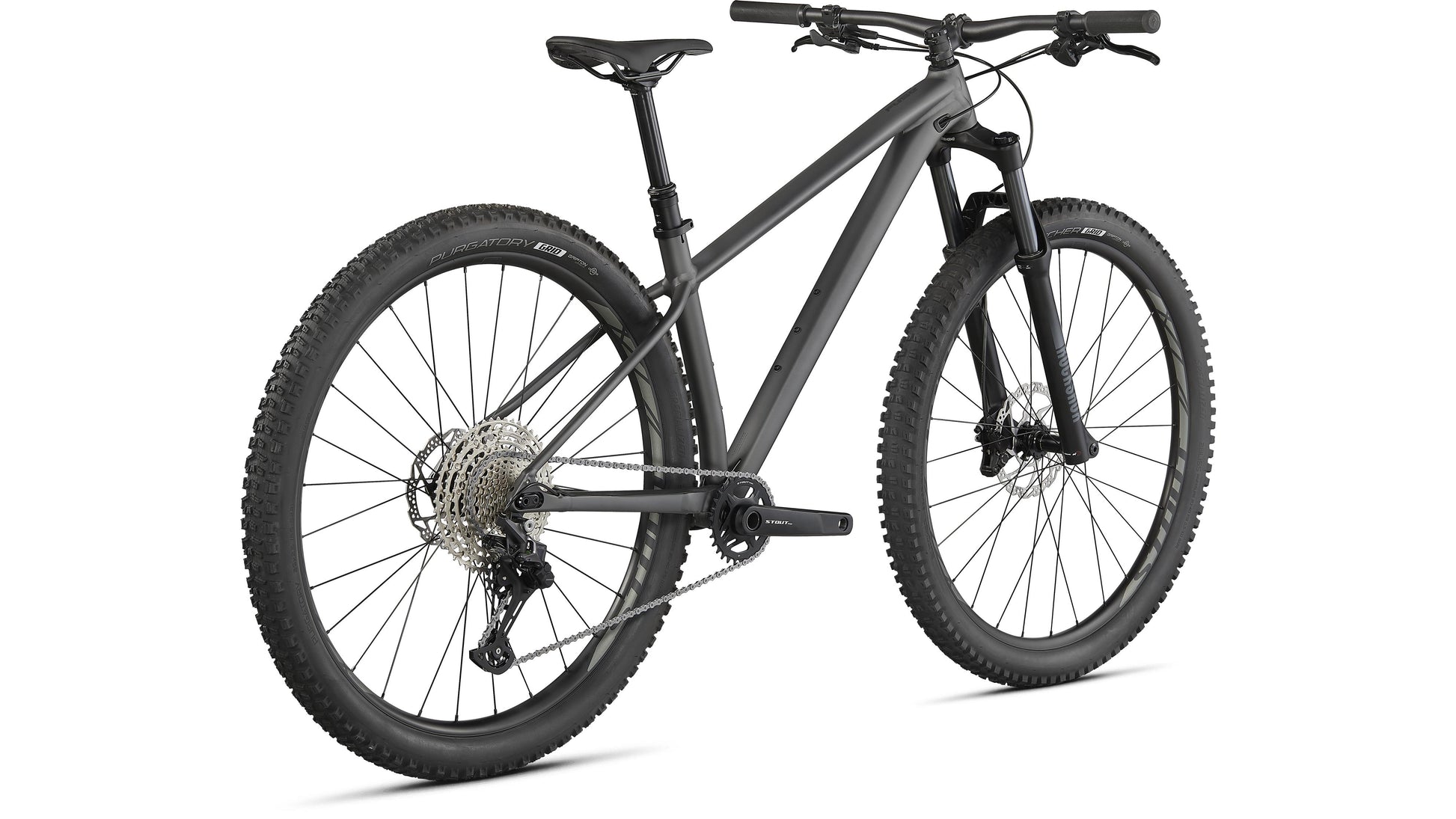

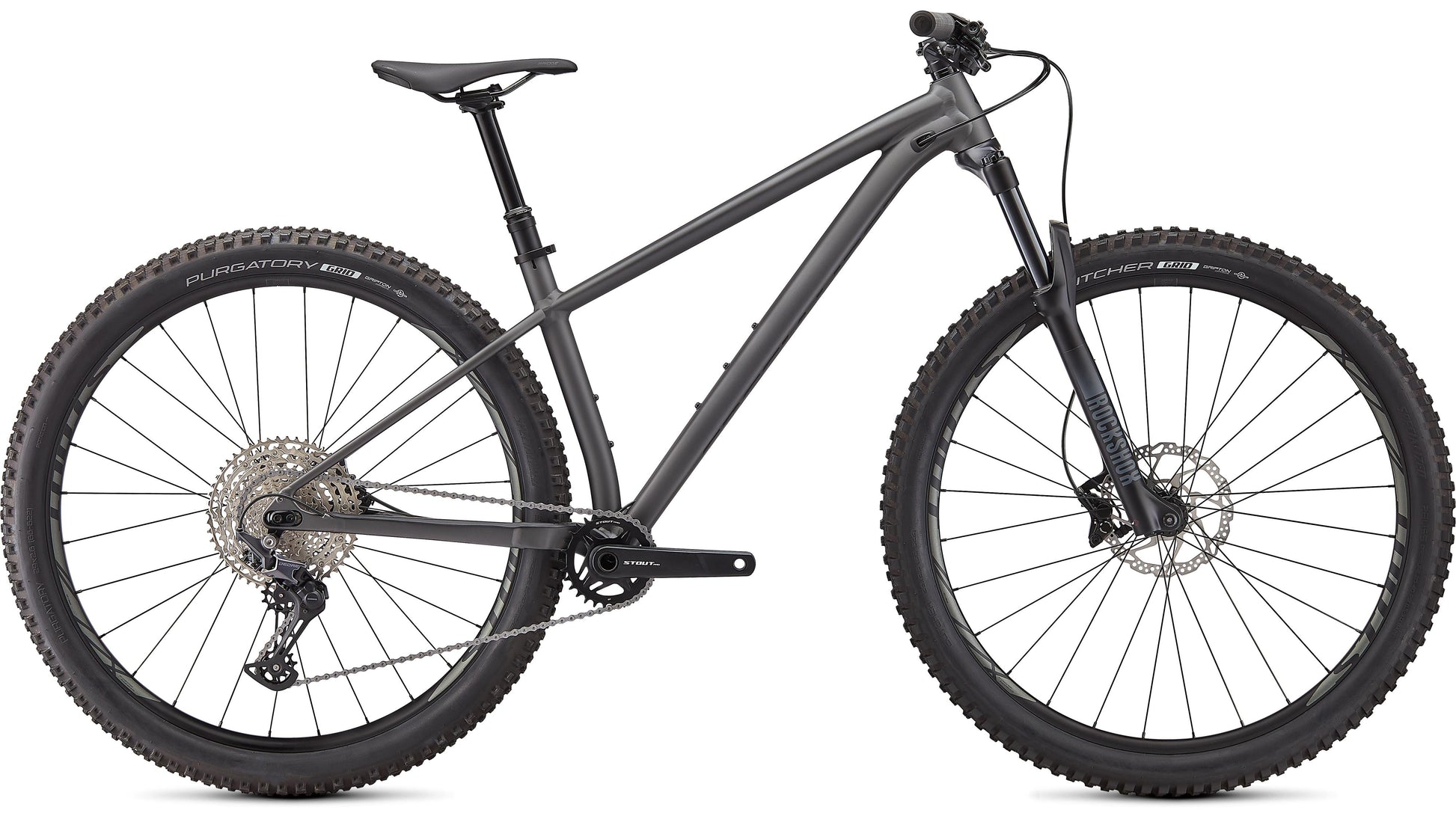

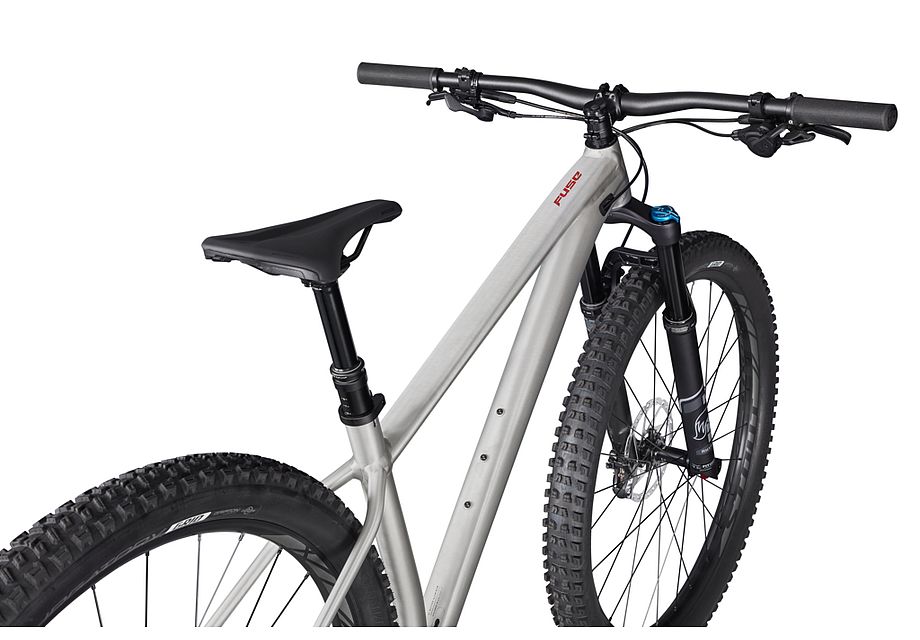

Specialized Fuse Comp 29 Features
The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverability. And while this Fuse's 29x2.6 tires give it a precise, nimble feel, the M4 aluminum frame is also compatible with 27.5+ wheels and tires.
PERFECTLY DIALED
If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
BUILT TO SHRED
• 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
• Highlights include powerful Shimano M4100 disc brakes and a TranzX dropper post.
• Shimano Deore M6100 12-speed drivetrain gives you single-ring simplicity and gearing to spare.
At a Glance
- 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
- Highlights include powerful Shimano M4100 disc brakes and a TranzX dropper post.
- Shimano Deore M6100 drivetrain gives you single-ring simplicity and gearing to spare.
Component Specifications
| Frame | Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing |
| Seat Binder | Alloy, 38.6mm |
| Fork | RockShox Recon RL, air spring, 46mm offset, 130mm of travel |
| Shift Levers | Shimano Deore M6100, 12-speed |
| Rear Derailleur | Shimano Deore, M6100, 12pd, Shadow Plus |
| Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
| Chain | KMC X12EPT, 12-speed, anti-corrosion coating w/ reusable Missing Link™ |
| Crankset | Stout Pro, forged alloy |
| Chain Rings | 30T |
| Bottom Bracket | BSA for 24mm spindle |
| Rims | Specialized Alloy, Tubeless Ready, 29mm internal width, 28h |
| Front Hub | Shimano MT410-B, Centerlock 28h, 15x110 Boost |
| Rear Hub | Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline |
| Spokes | Stainless, 14g |
| Front Tire | Butcher, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Purgatory, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Shimano M4100, 4-piston, 200/180mm |
| Rear Brake | Shimano M4100, 2-piston, 180/160mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Handlebars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Seatpost | TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm |
Specialized Fuse Comp 29
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 625 mm | 625 mm | 625 mm | 639 mm | 652 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Chain-Stay Length - short | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Chain-Stay Length - long | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1122 mm | 1142 mm | 1162 mm | 1188 mm | 1214 mm |
| Top-Tube Length (horizontal) | 579 mm | 599 mm | 619 mm | 643 mm | 667 mm |
| Bike Stand-Over Height | 727 mm | 747 mm | 750 mm | 754 mm | 793 mm |
| Seat-Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head-Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| B-B Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| B-B Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Fork Length (full) | 540 mm | 540 mm | 540 mm | 540 mm | 540 mm |
| Fork Rake/Offset | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Front-Center | 698 mm | 718 mm | 738 mm | 764 mm | 790 mm |
Size Guide: Specialized Fuse Comp 29
