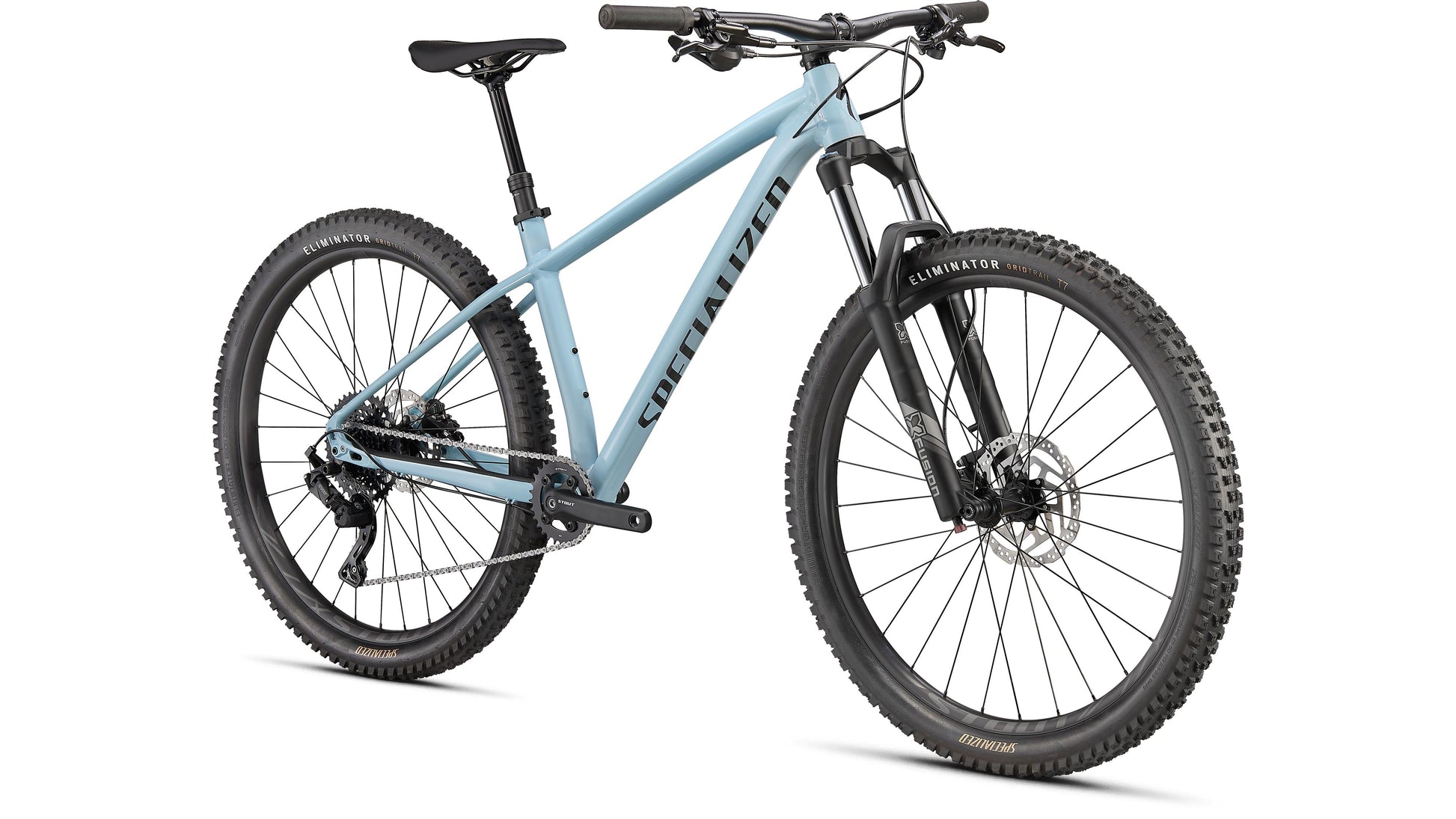

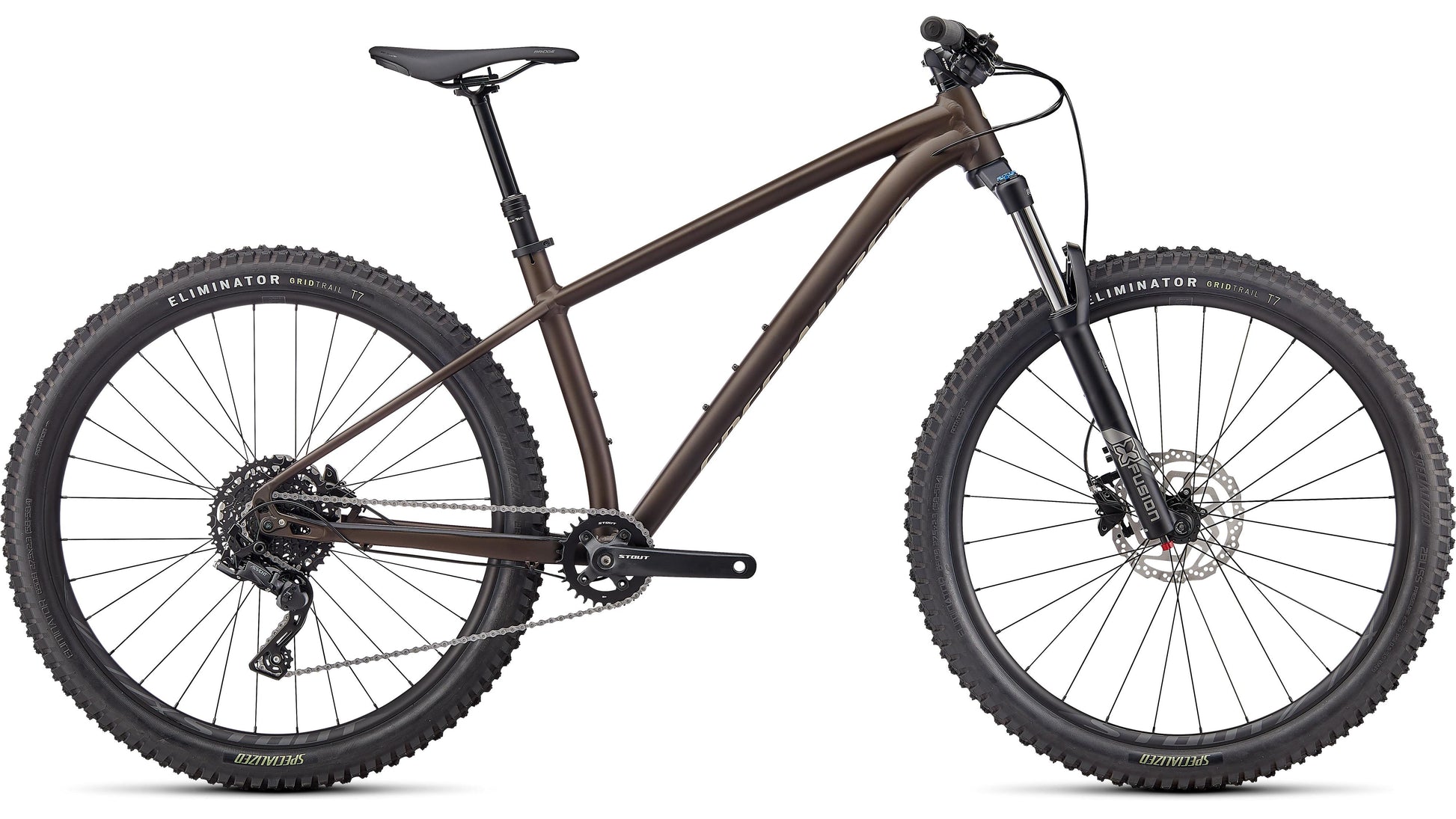

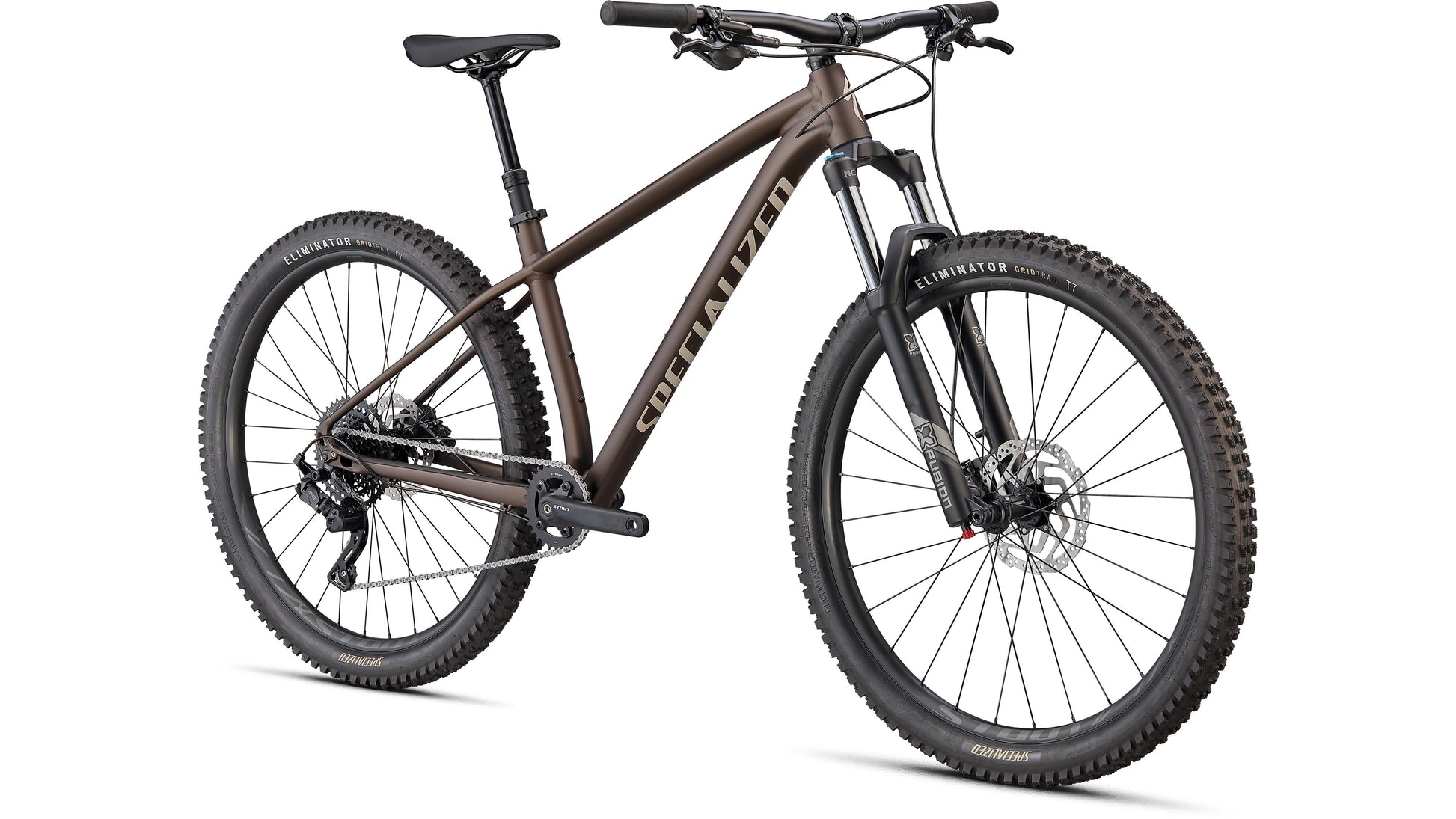

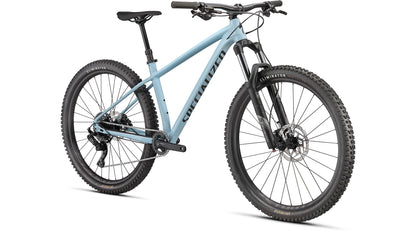

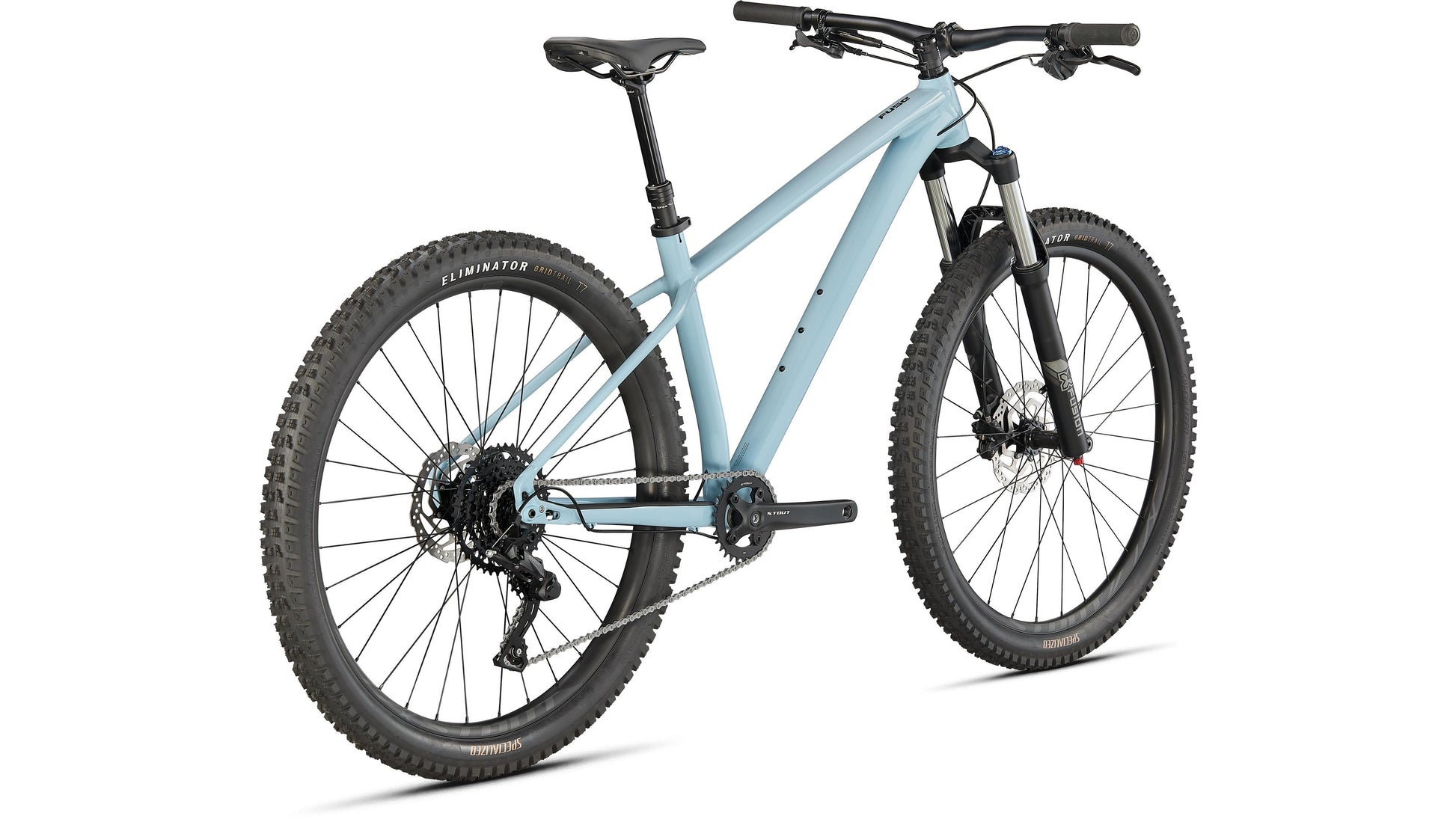

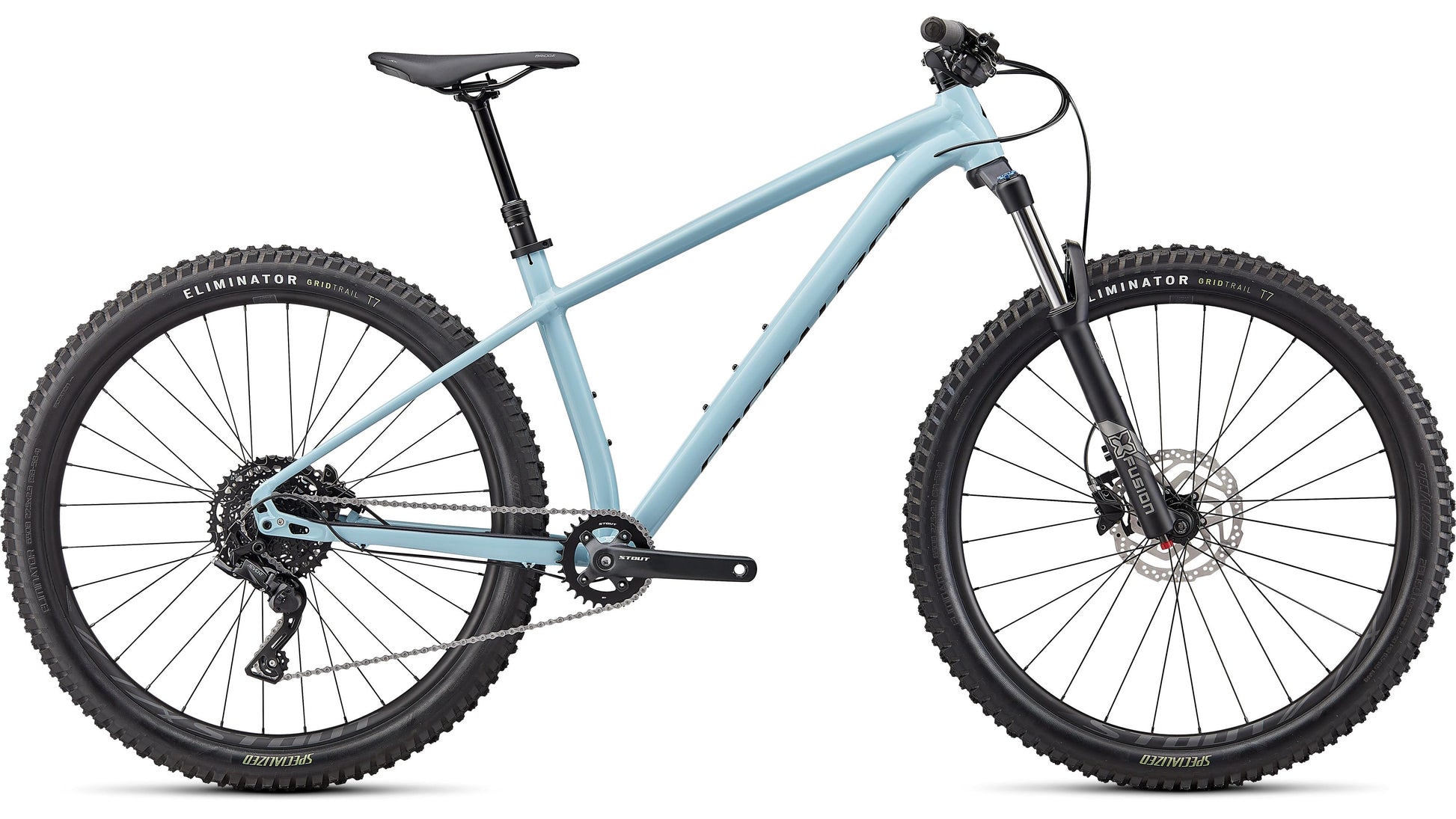

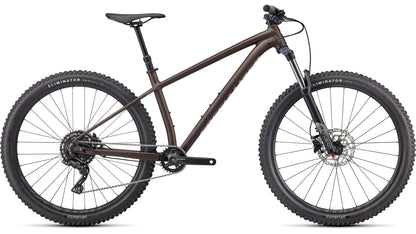

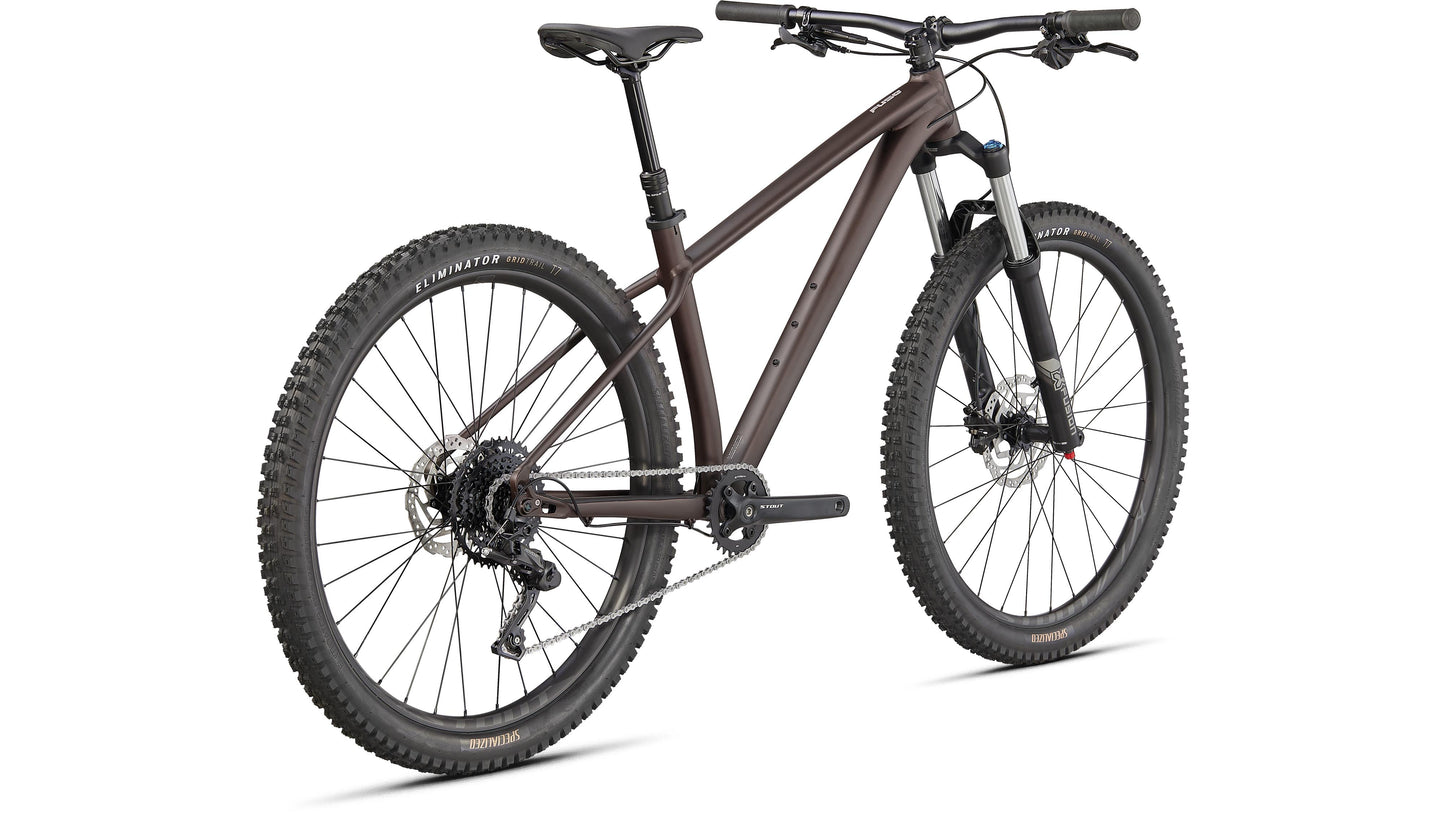

Specialized Fuse 27.5 Features
Calm under pressure, yet deft and precise, the Fuse is an entirely different kind of hardtail. Featuring an all-new longer, lower, and rowdier chassis and 27.5x2.3 wheels and tires, the Fuse 27.5 handles rough, sketchy descents and steep, technical climbs with absolute confidence. ROWDY BY DESIGN The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverabilty on tight trails. And while this Fuse’s 27.5x2.3 tires give it ample traction and stability, it’s also compatible with 29er wheels and tires. PERFECTLY DIALED Fail to nail the geometry and advanced designs will still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
At a Glance
- 130-millimeters of suspension courtesy of an X-Fusion fork.
- Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
- Durable 29mm interal width alloy wheelset.
Component Specifications
| Frame | Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing |
| Seat Binder | Alloy, 38.6mm |
| Fork | X-Fusion MIG 27.5, External Rebound and Compression adjust, coil spring, 46mm Offset, 130mm of travel |
| Shift Levers | microSHIFT Advent, 9-speed |
| Rear Derailleur | microSHIFT Advent, 1x9 w/ clutch |
| Cassette | CASSETTE, MICROSHIFT, CS-H093(11T-46T), 11-46T, 9 SP, FREE HUB, NO SPIDER,W/STEEL LOCKRING, ED BLACK |
| Chain | KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™ |
| Crankset | Stout, forged alloy, 76mm BCD |
| Bottom Bracket | Square-tapered, 73mm, internal bearings, 122.5mm spindle |
| Rims | Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible |
| Front Hub | Shimano MT400-B, Centerlock 28h, 15x110 Boost |
| Rear Hub | Shimano MT400-B, Centerlock, 12x148 Boost, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3" |
| Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3" |
| Inner Tubes | Presta, 40mm valve |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 160mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Handlebars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm |
| Grips | Specialized Trail Grips, lock-on |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | TranzX Dropper, 30.9mm, S: 100mm, M-XL: 120mm |
Specialized Fuse 27.5
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 603 mm | 603 mm | 603 mm | 615 mm | 630 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Chain-Stay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1120 mm | 1140 mm | 1160 mm | 1186 mm | 1213 mm |
| Top-Tube Length (horizontal) | 573 mm | 593 mm | 613 mm | 637 mm | 661 mm |
| Bike Stand-Over Height | 717 mm | 736 mm | 739 mm | 744 mm | 789 mm |
| Seat-Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 105 mm | 105 mm | 105 mm | 120 mm | 135 mm |
| Head-Tube Angle | 66° | 66° | 66° | 66° | 66° |
| B-B Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| B-B Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Fork Length (full) | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Fork Rake/Offset | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Front-Center | 695 mm | 715 mm | 735 mm | 761 mm | 787 mm |
Size Guide: Specialized Fuse 27.5
