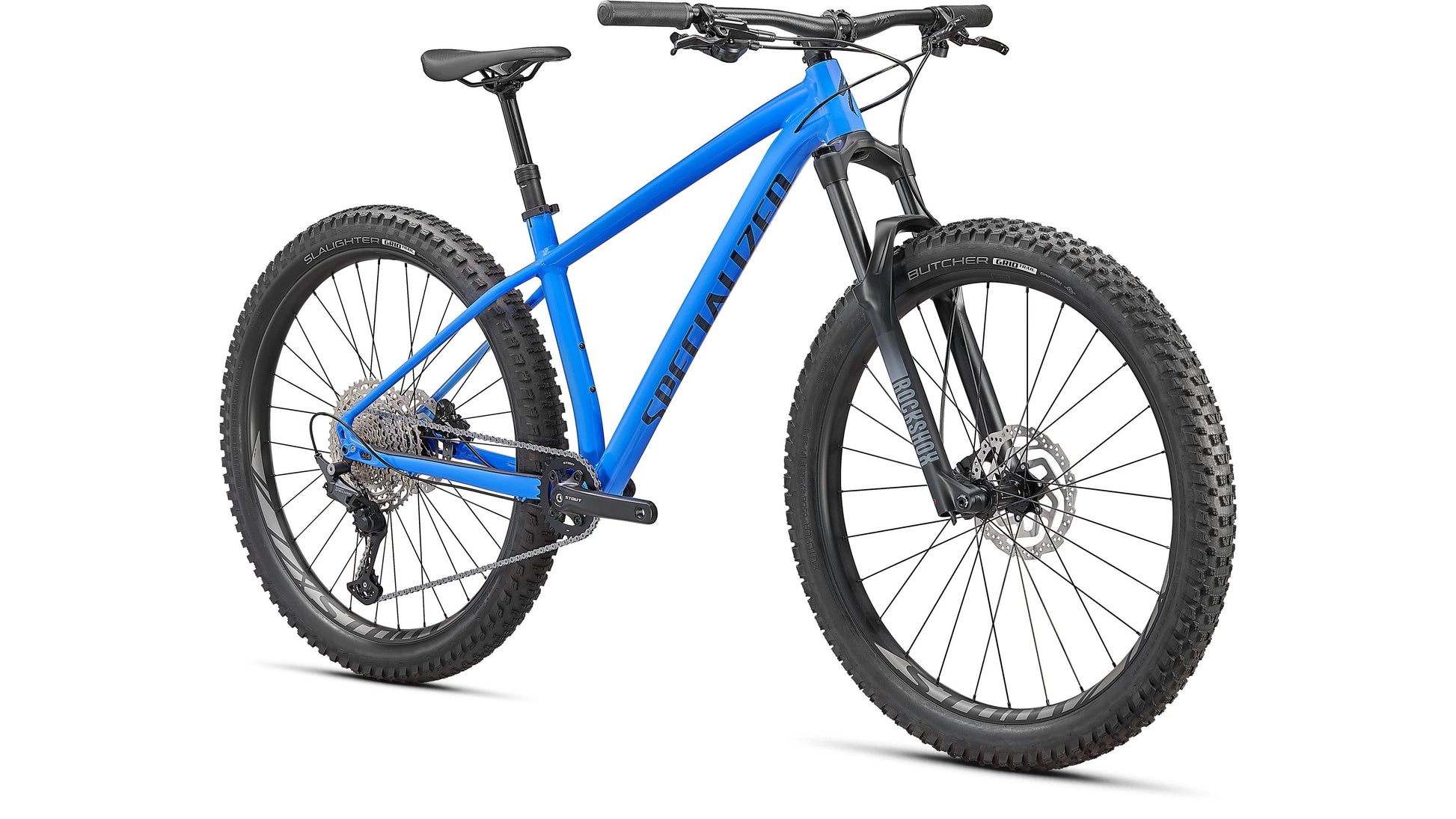

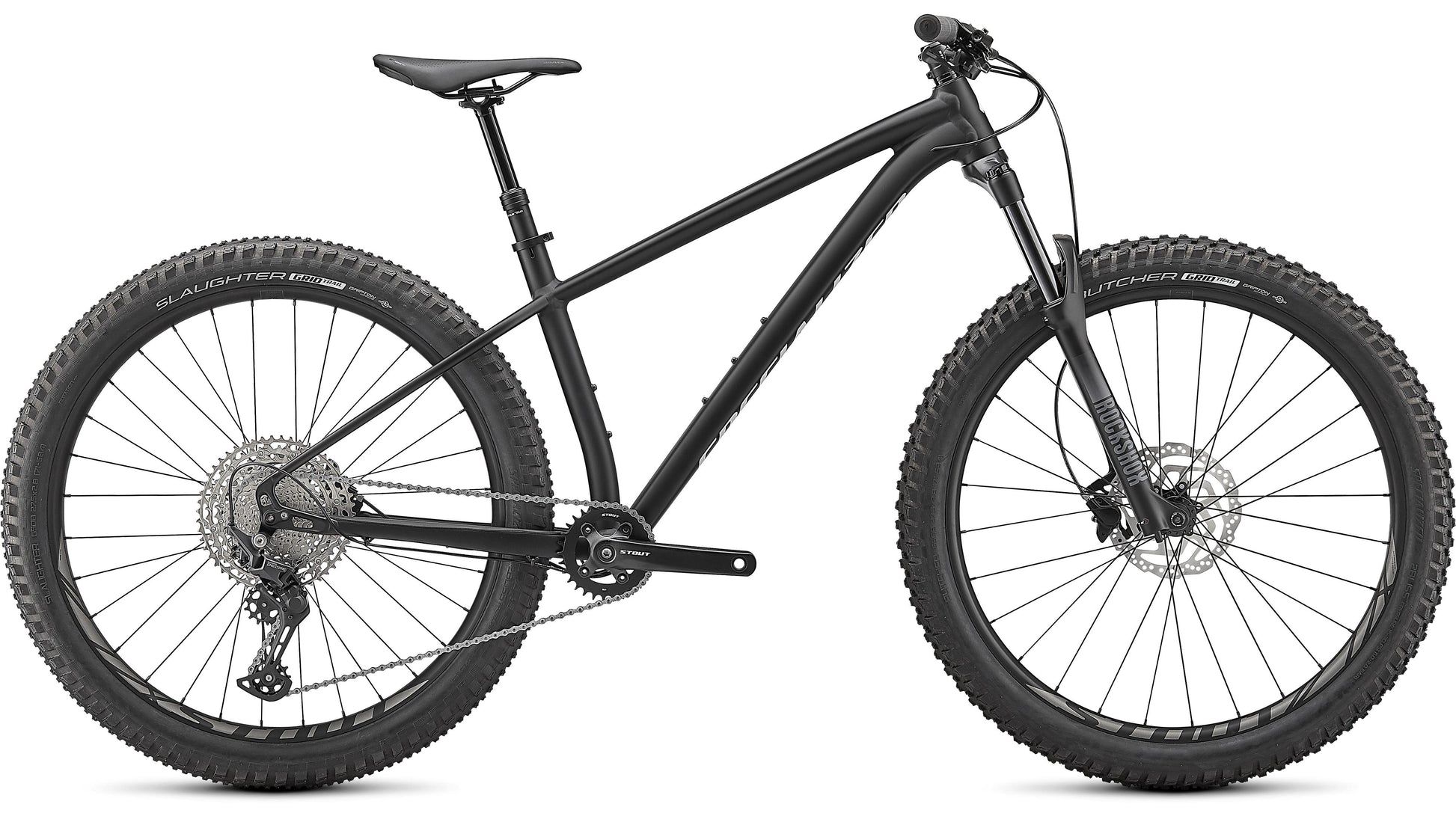

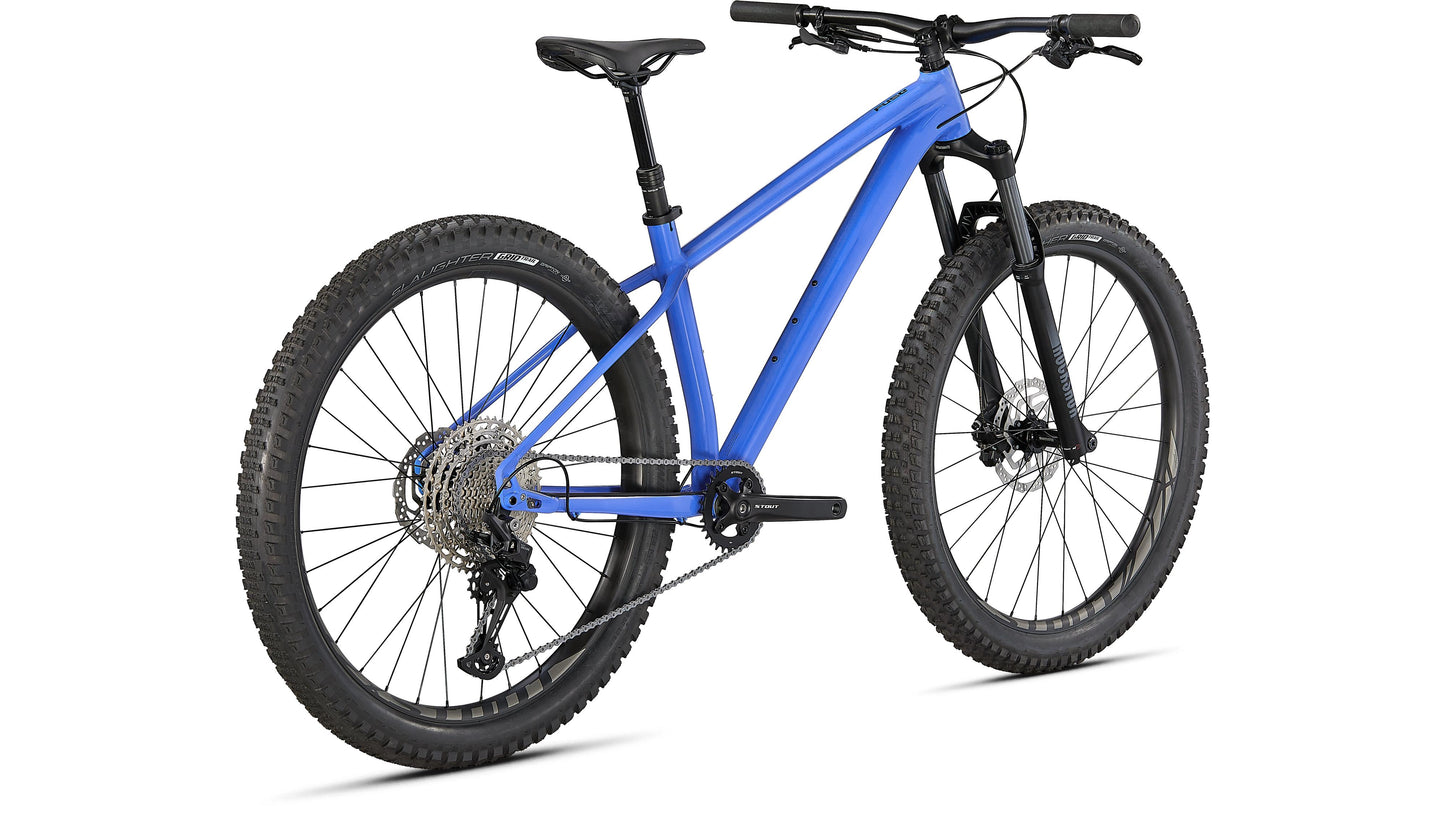

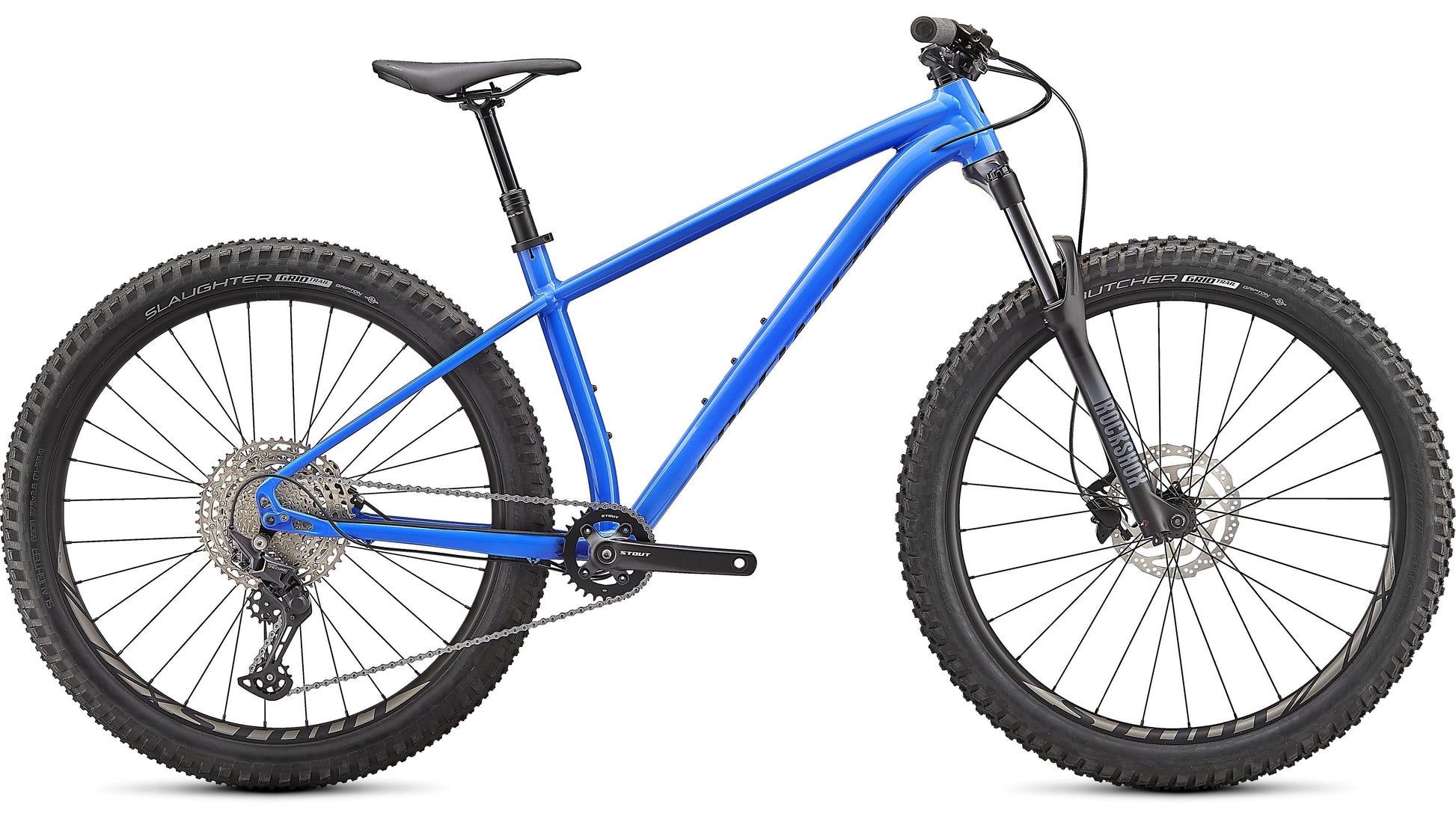

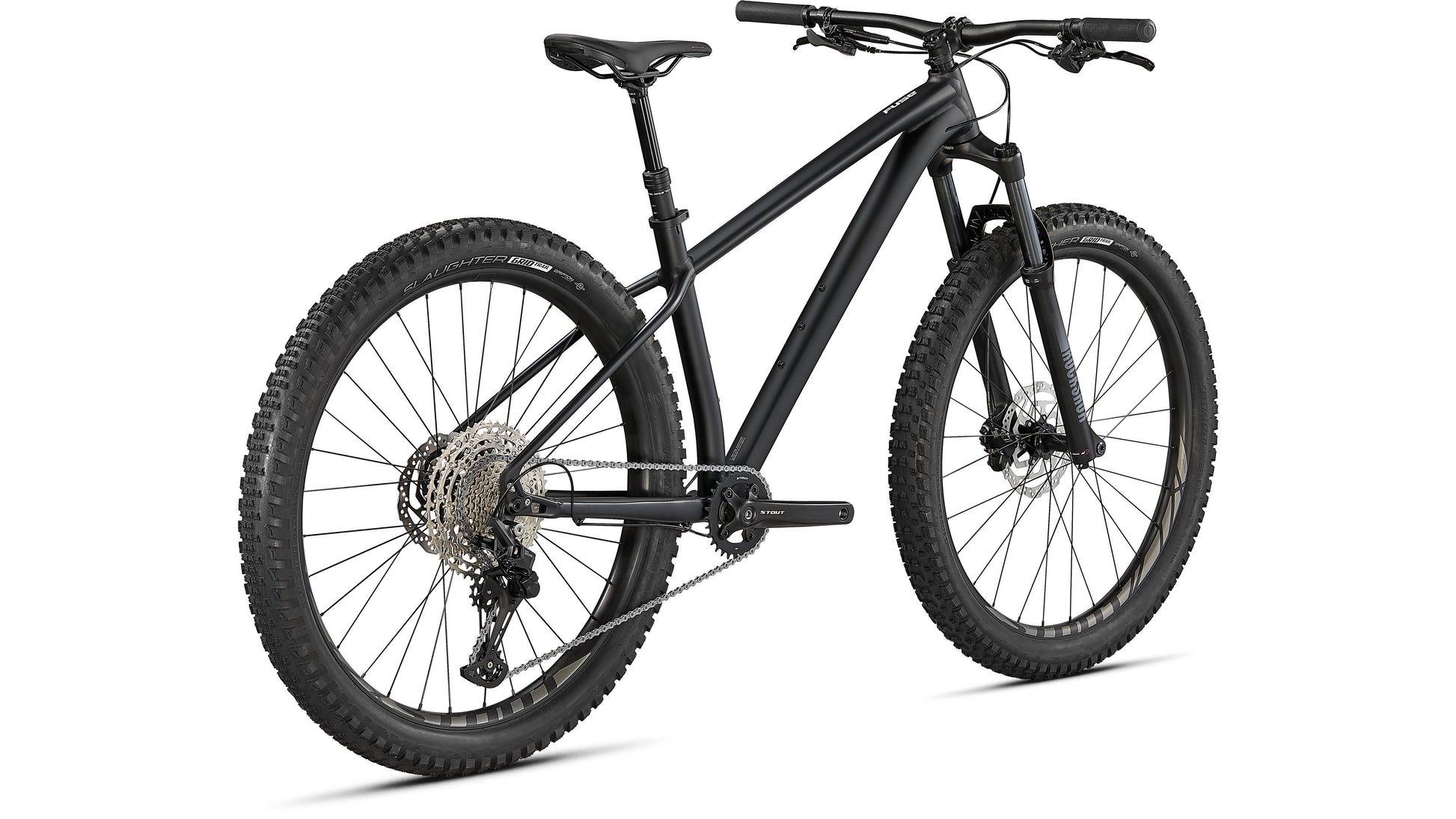

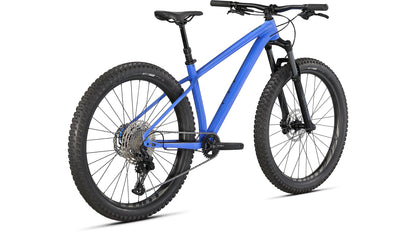

Specialized Fuse 27.5 Features
Here's proof you don't need tons of suspension travel to tackle challenging trails. Equipped with an all-new, longer, lower and rowdier chassis, we've added 27.5x2.8 wheels and tires to the Fuse 27.5 to create a bike that lets you hit rocks and roots at speed with absolute control.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverabilty on tight trails. And while this Fuse's 27.5x2.8 tires give it tons of traction and stability, it's also compatible with 29er wheels and tires.
PERFECTLY DIALED
Fail to nail the geometry and advanced designs will still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
SMART PARTS PICK
• Plus-size tires provide insane traction and stability on the choppiest trails.
• 130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.
• Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
At a Glance
- 130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.
- Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
- Plus-size tires provide insane traction and stability on the choppiest trails.
Component Specifications
| Frame | Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing |
| Seat Binder | Alloy, 38.6mm |
| Fork | RockShox Judy Silver TK, air spring, 42mm offset, 130mm of travel |
| Shift Levers | Shimano Deore, M5100, 11spd |
| Rear Derailleur | Shimano Deore M5100, SGS, 11-speed |
| Cassette | Shimano Deore, 11spd, 11-51t |
| Chain | KMC X11EPT, 11-speed, anti-corrosion coating w/ reusable Missing Link™ |
| Crankset | Stout, forged alloy, 76mm BCD |
| Bottom Bracket | Square-tapered, 73mm, internal bearings, 122.5mm spindle |
| Rims | Stout Trail 27.5, 38mm internal width, disc-specific |
| Front Hub | Shimano MT400-B, Centerlock 28h, 15x110 Boost |
| Rear Hub | Shimano MT400-B, Centerlock, 12x148 Boost, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Butcher GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8" |
| Rear Tire | Slaughter GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8" |
| Inner Tubes | Presta, 40mm valve |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Handlebars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | TranzX Dropper, 30.9mm, S: 100mm, M-XL: 120mm |
Specialized Fuse 27.5
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 603 mm | 603 mm | 603 mm | 615 mm | 630 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Chain-Stay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1120 mm | 1140 mm | 1160 mm | 1186 mm | 1213 mm |
| Top-Tube Length (horizontal) | 573 mm | 593 mm | 613 mm | 637 mm | 661 mm |
| Bike Stand-Over Height | 717 mm | 736 mm | 739 mm | 744 mm | 789 mm |
| Seat-Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 105 mm | 105 mm | 105 mm | 120 mm | 135 mm |
| Head-Tube Angle | 66° | 66° | 66° | 66° | 66° |
| B-B Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| B-B Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Fork Length (full) | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Fork Rake/Offset | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Front-Center | 695 mm | 715 mm | 735 mm | 761 mm | 787 mm |
Size Guide: Specialized Fuse 27.5
