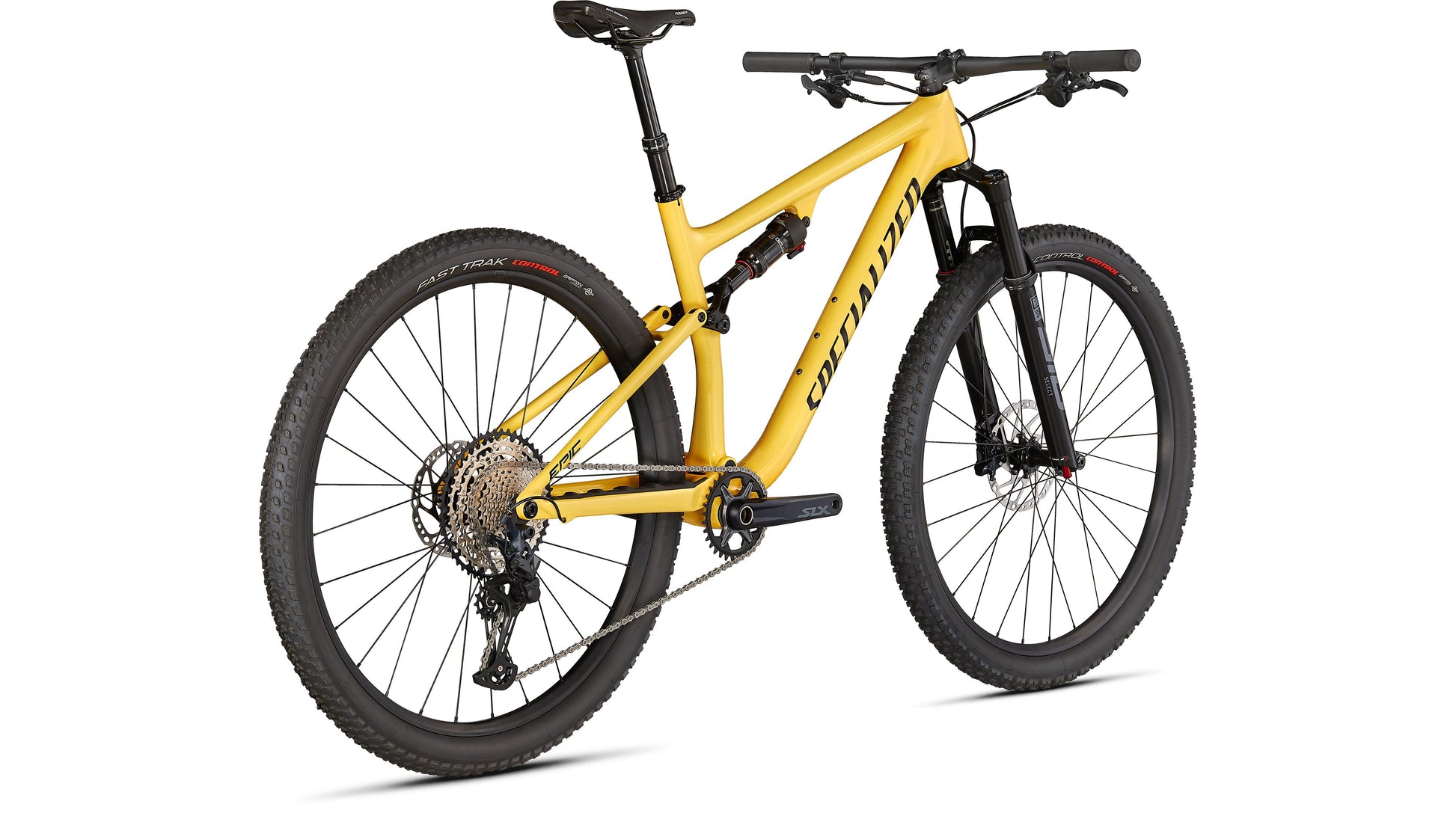

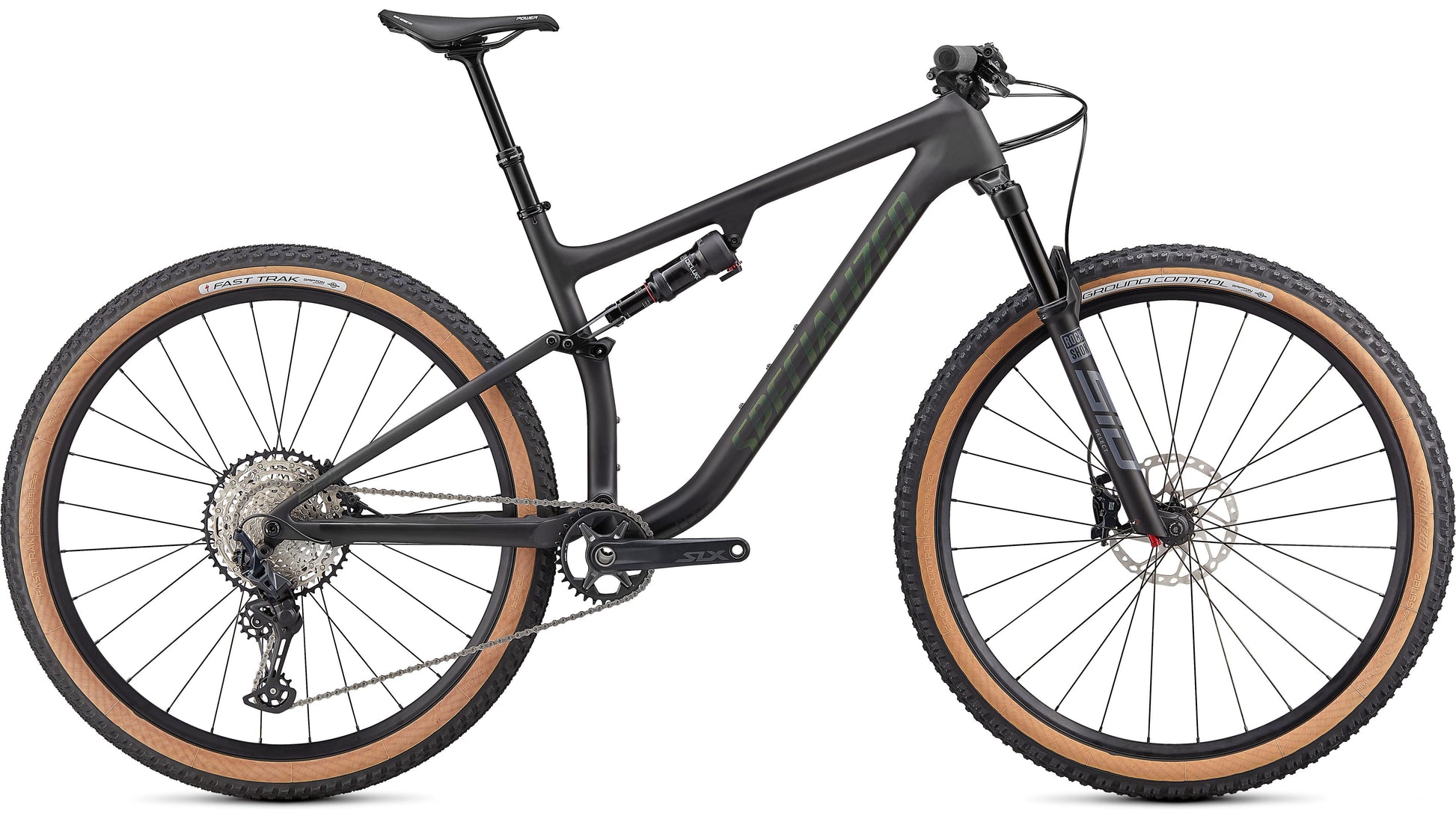

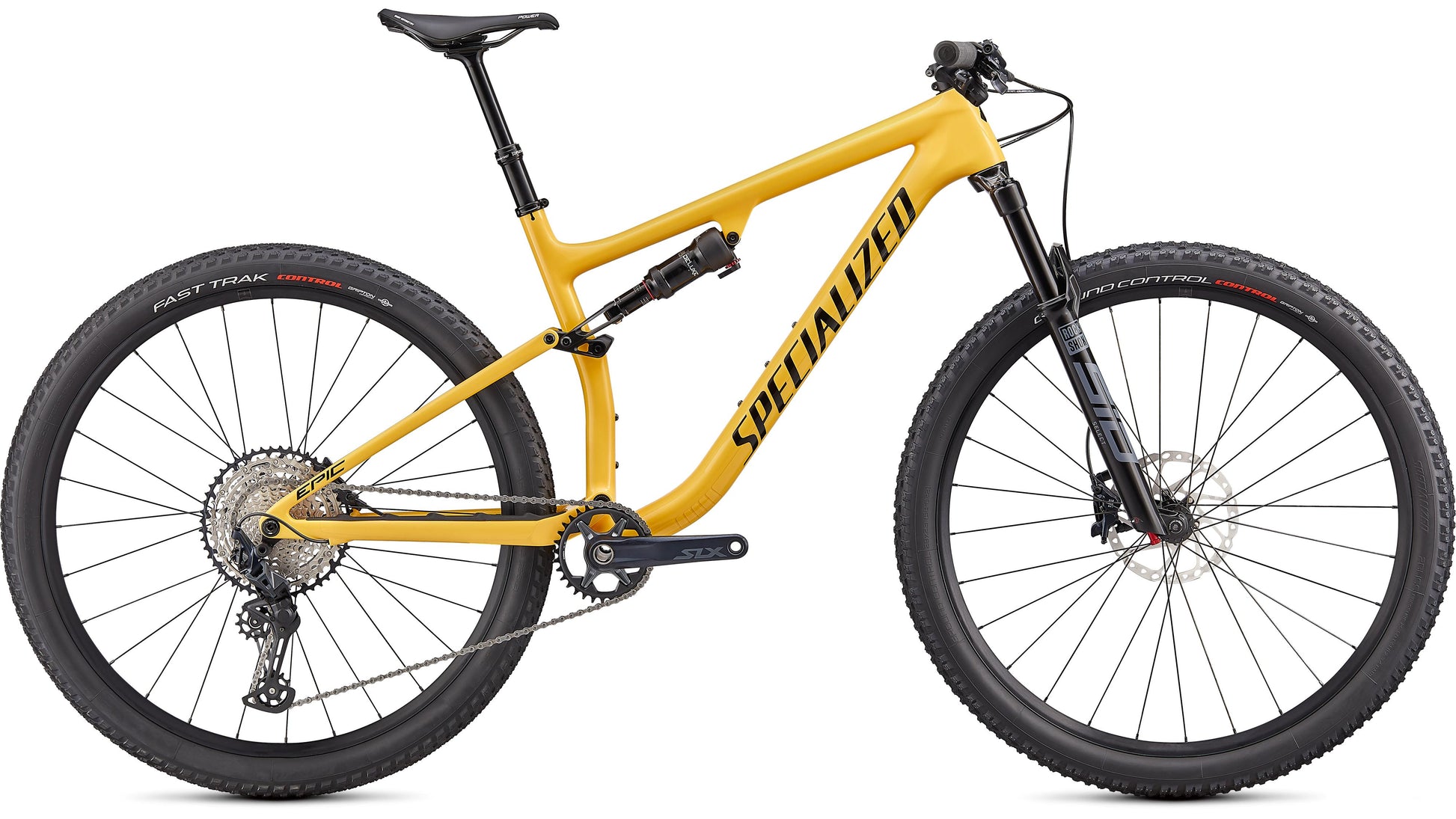

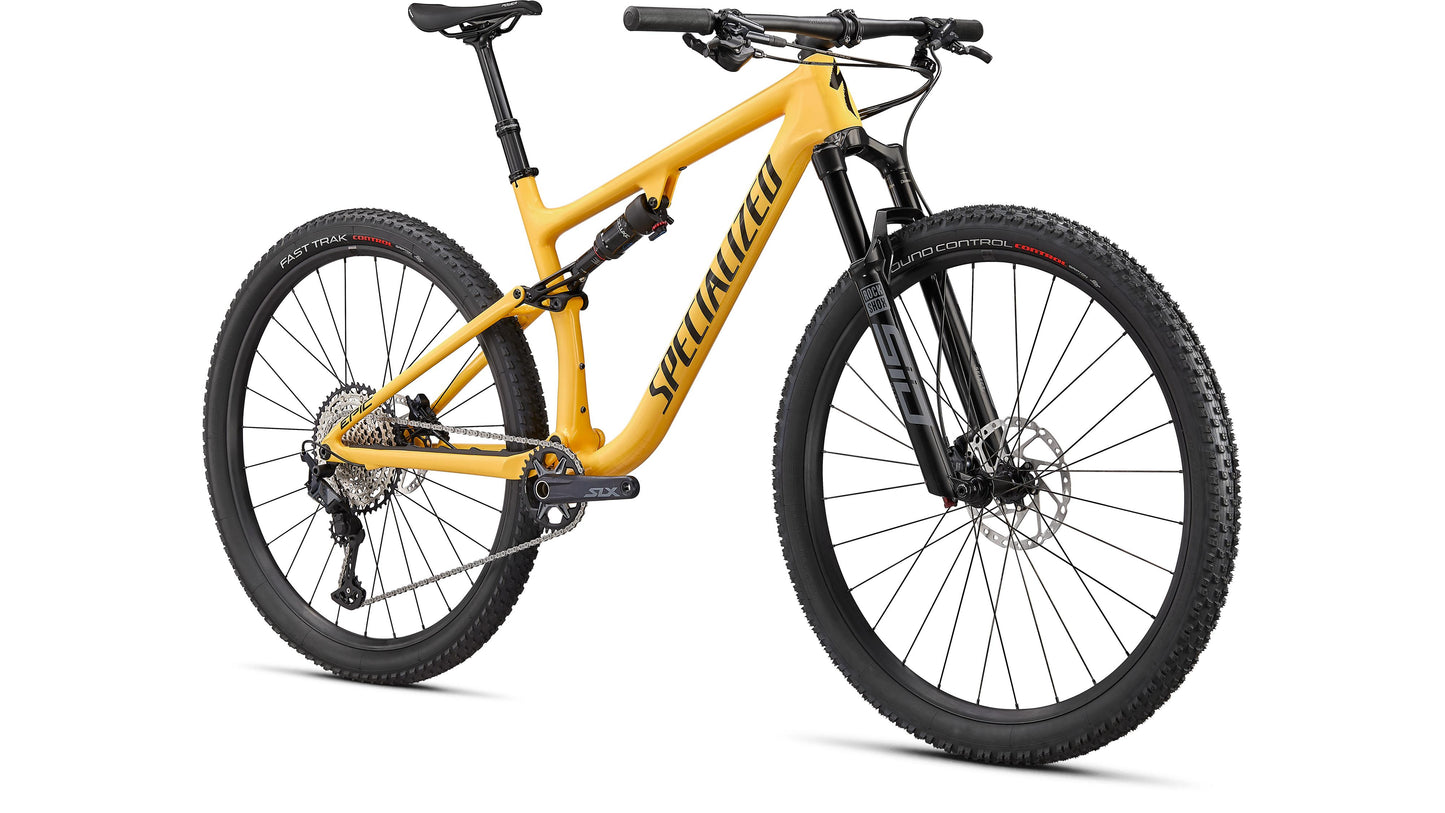

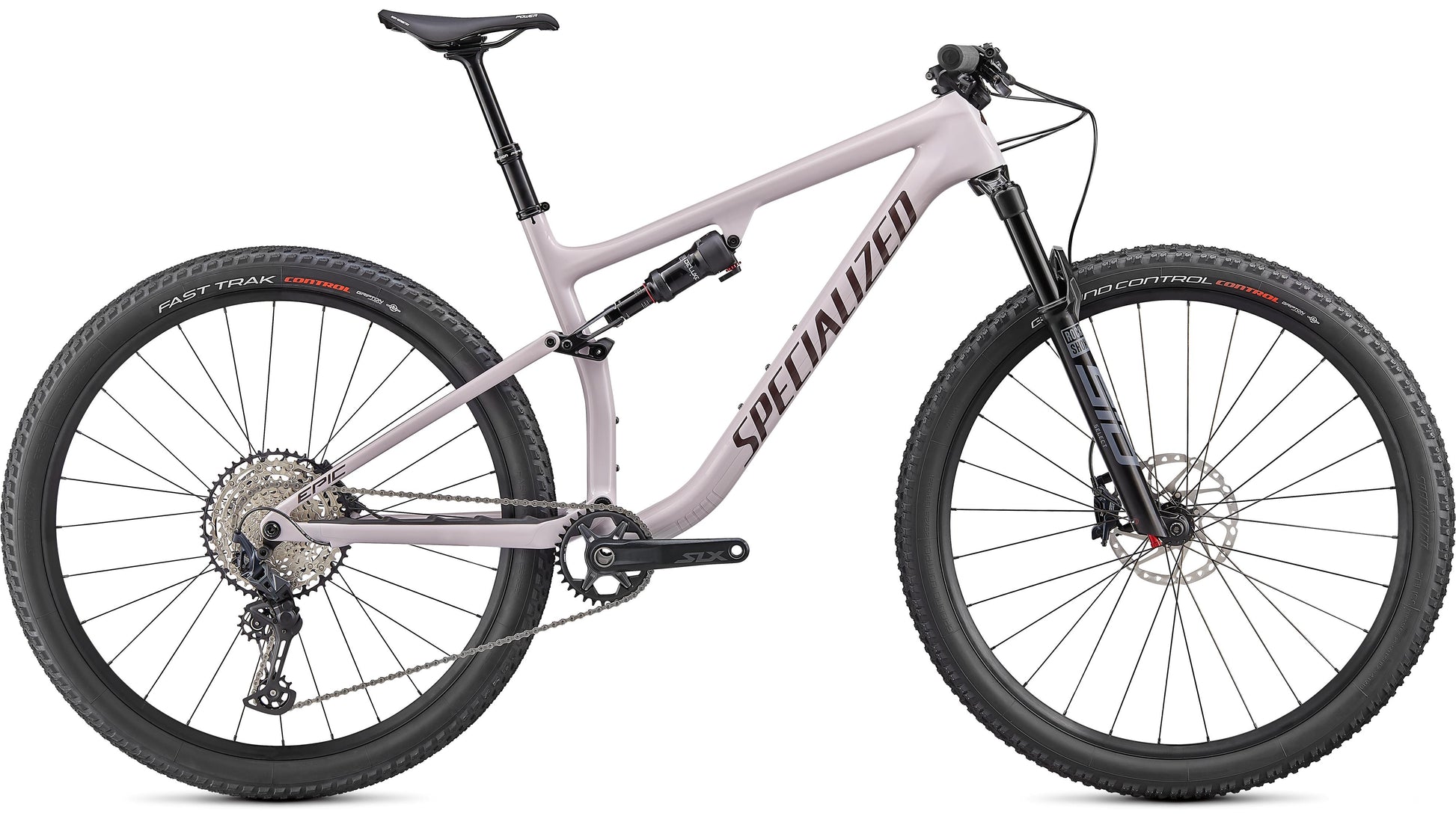

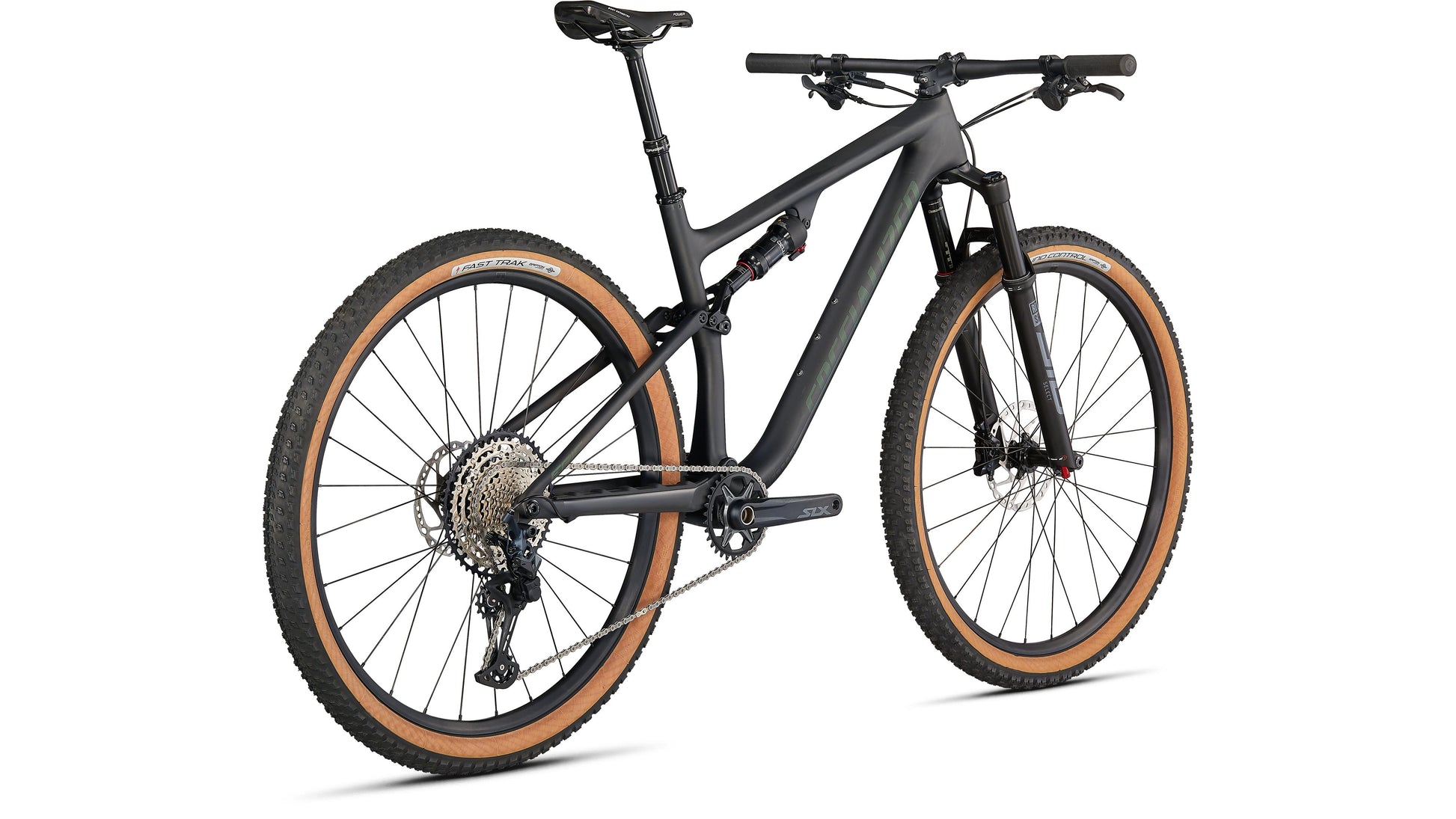

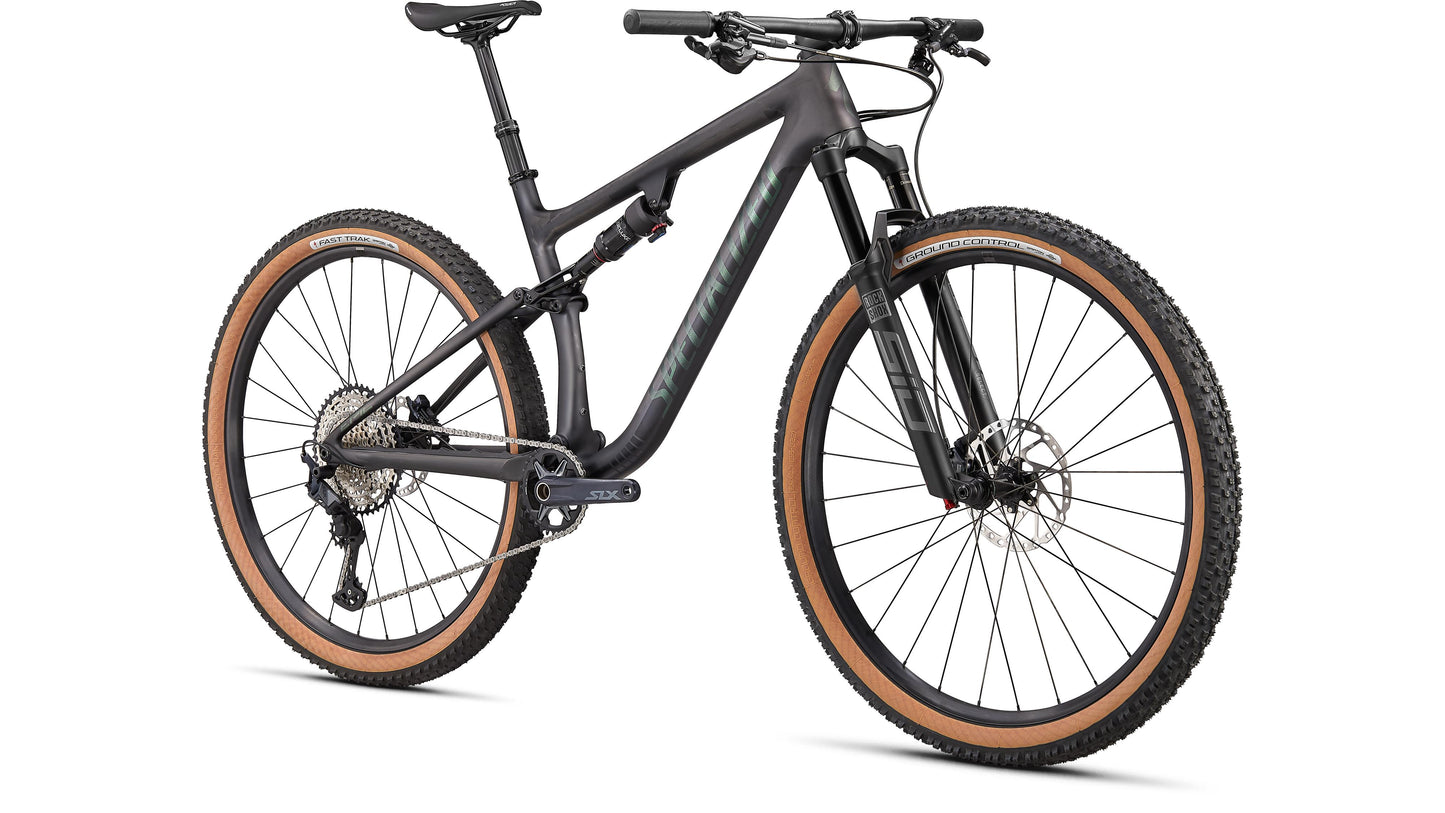

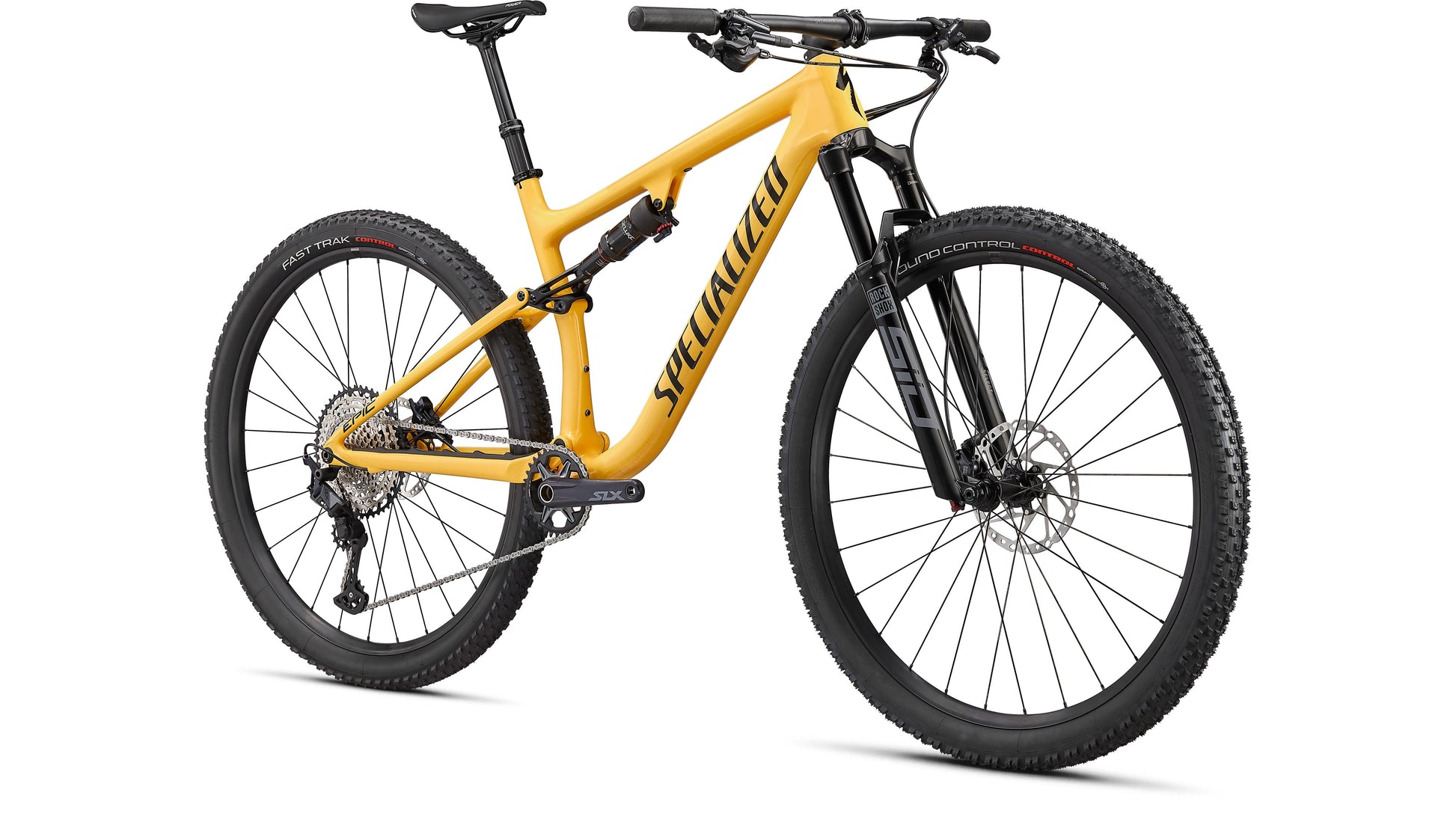

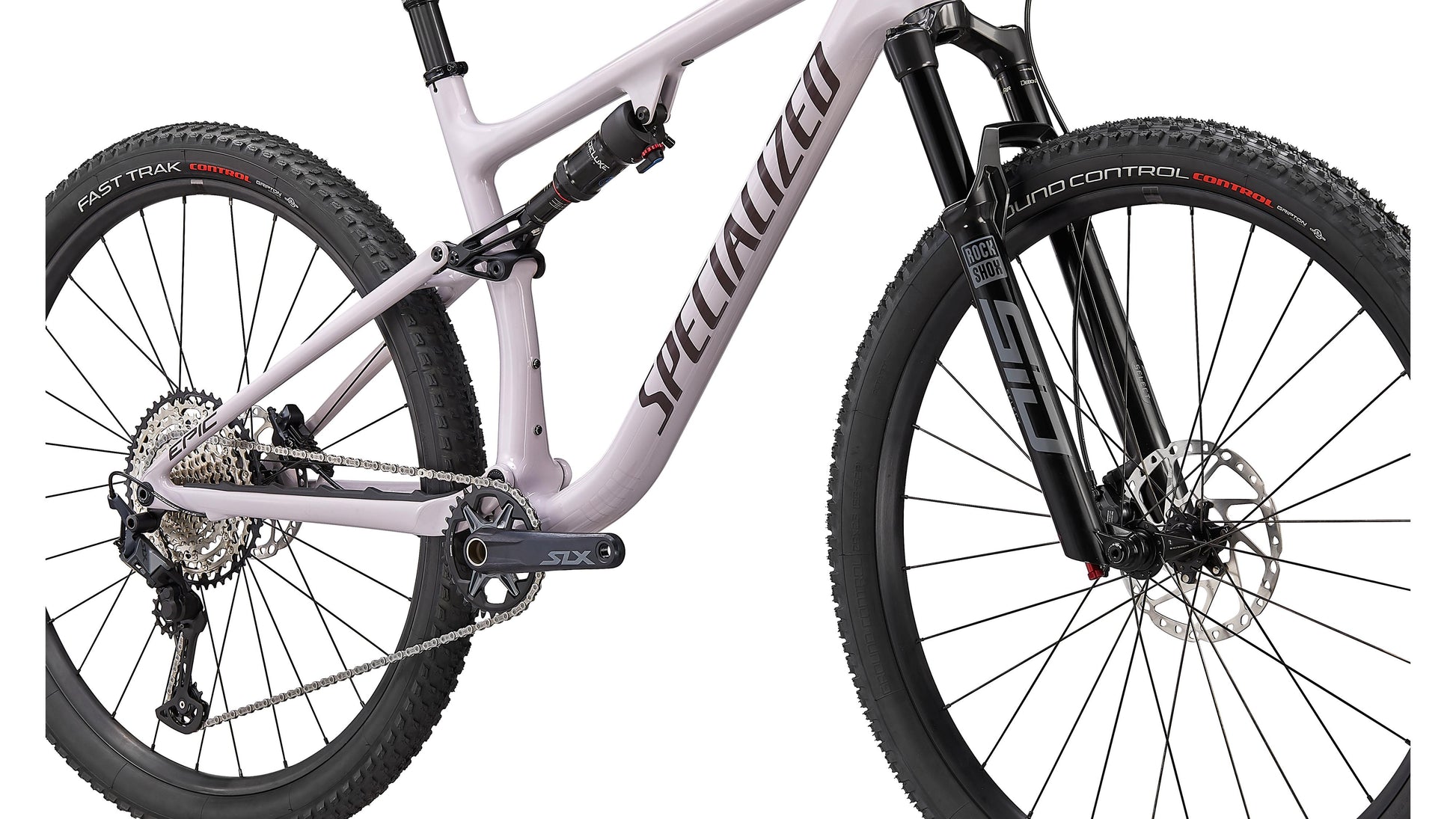

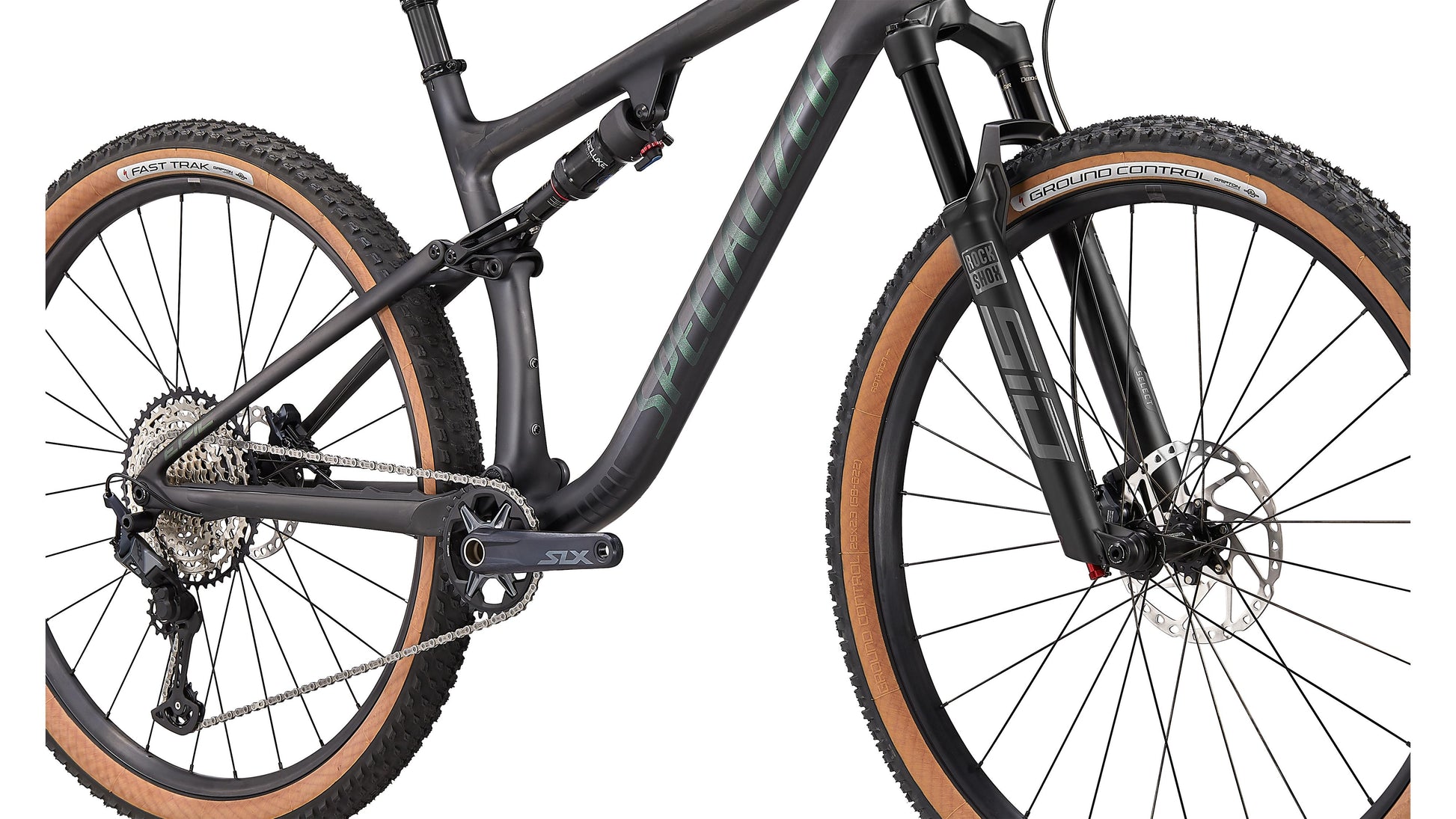

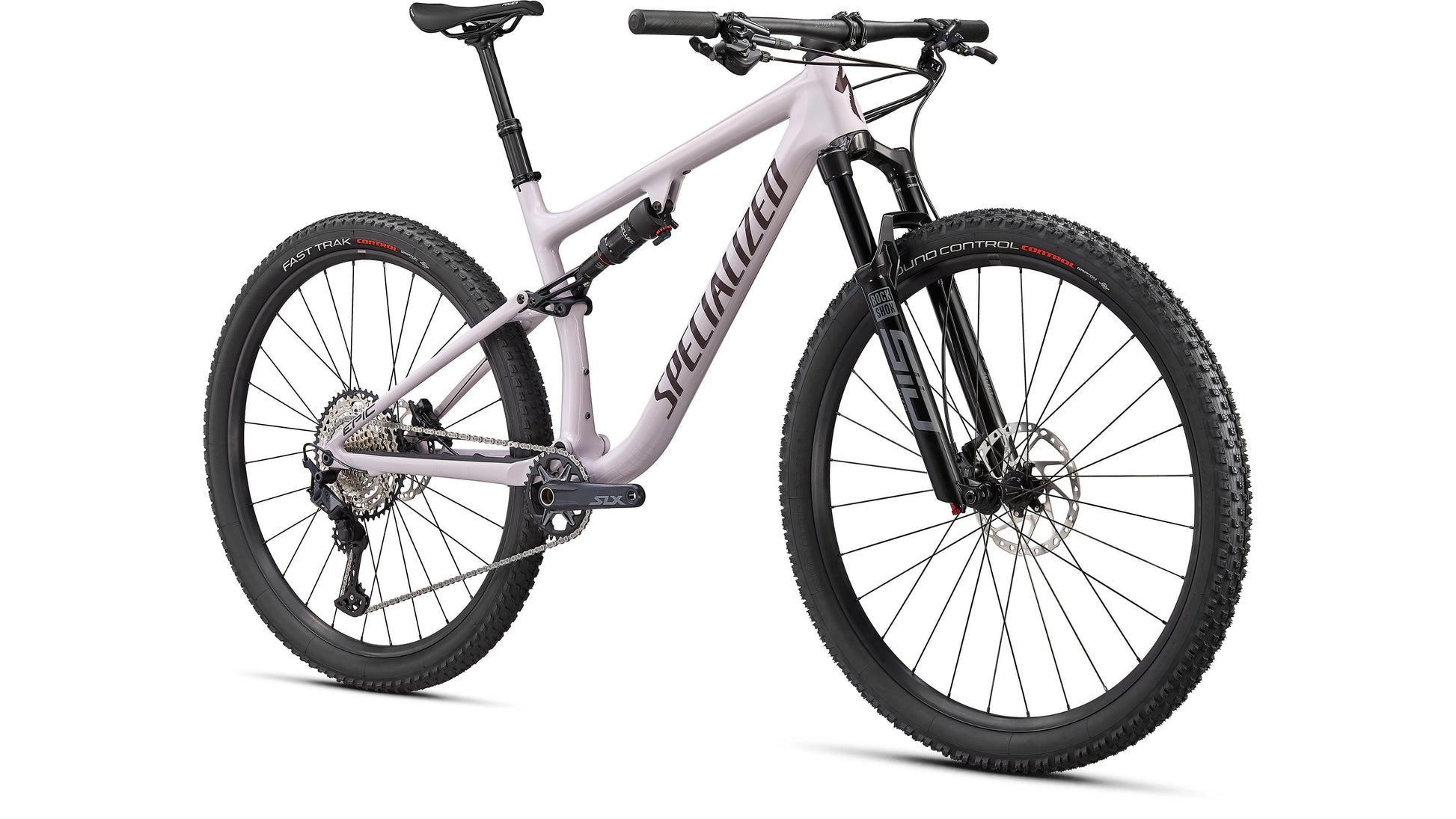

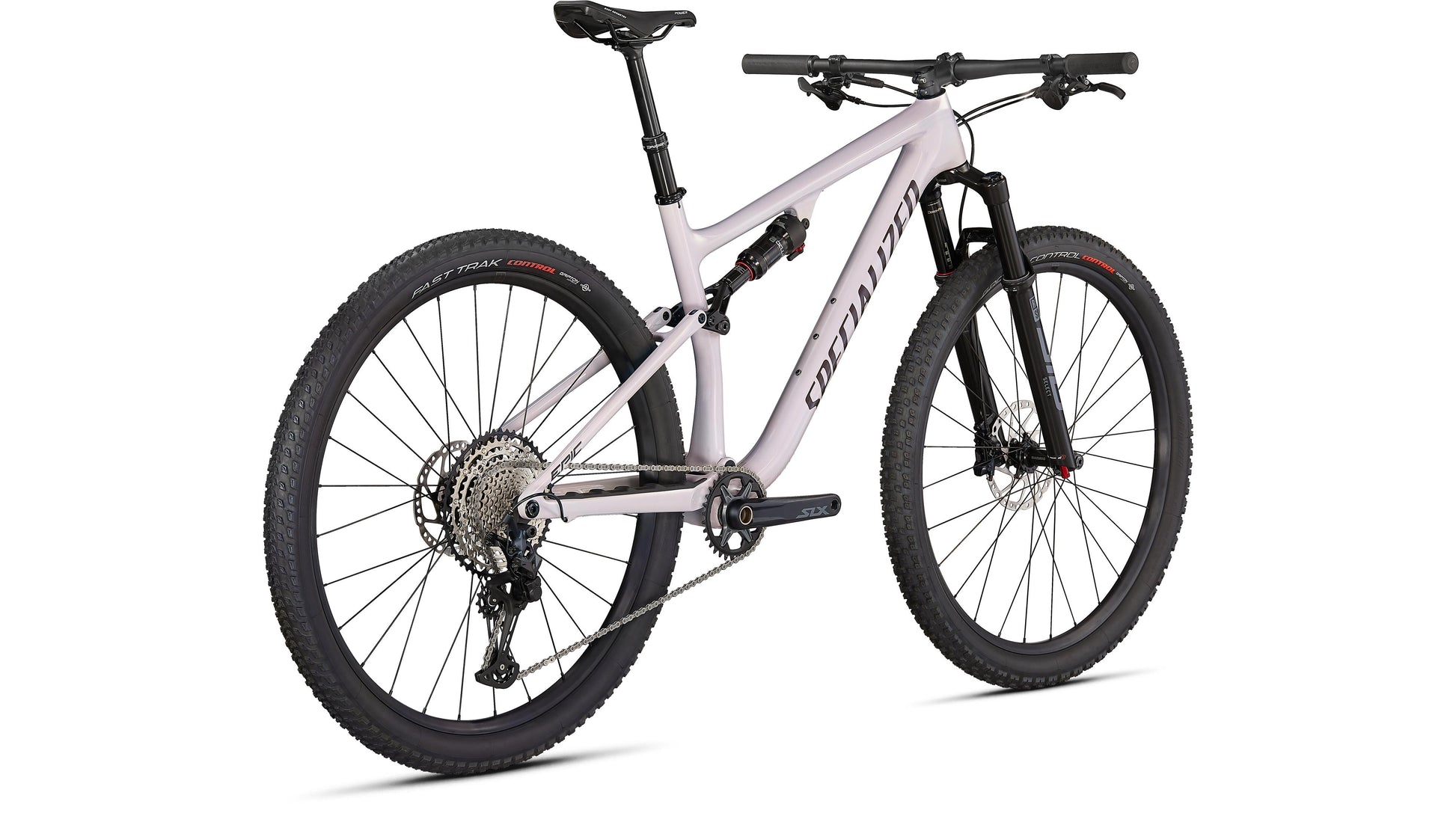

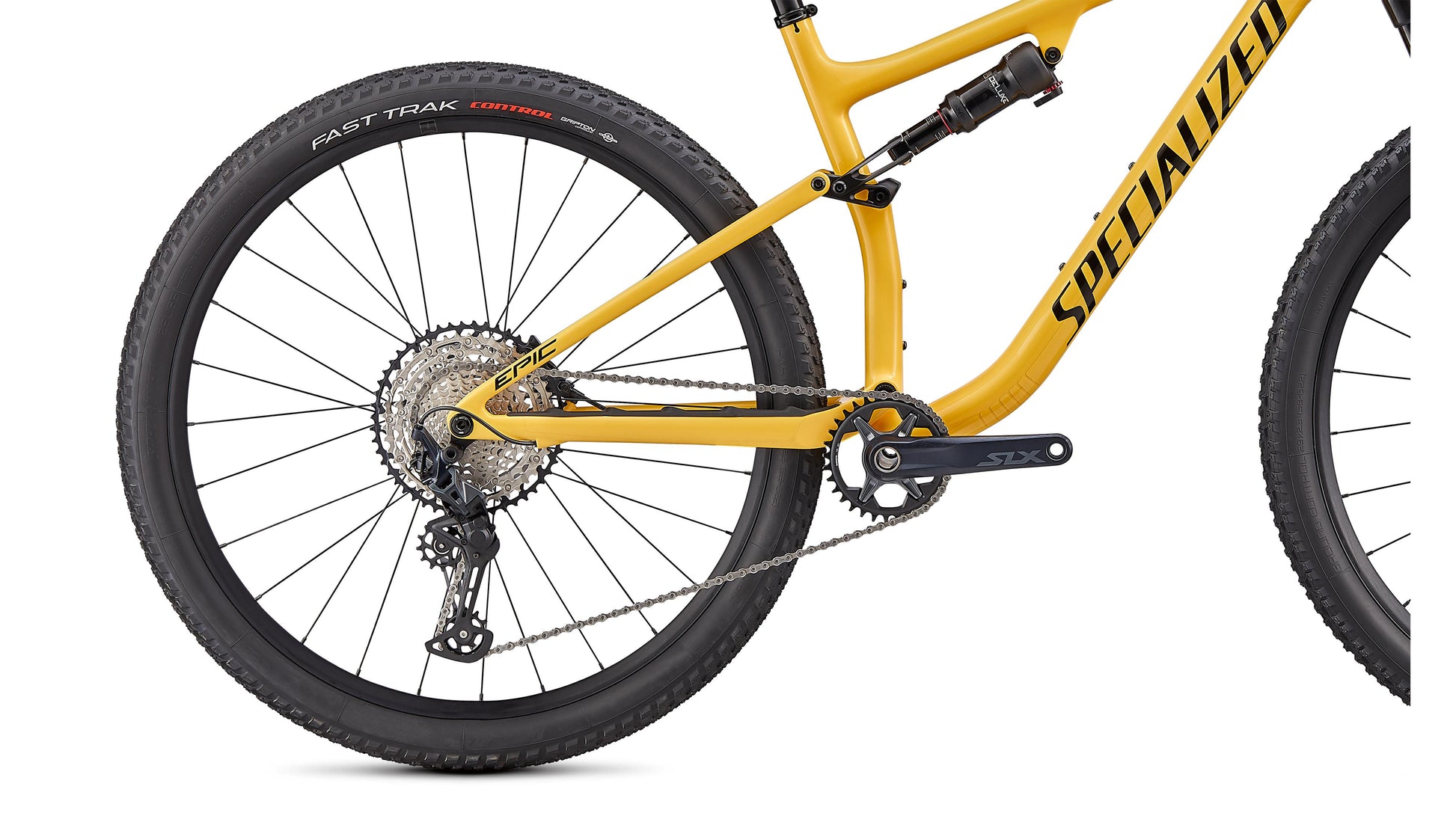

Specialized Epic Evo Comp Features
Lightweight yet stiff. Capable yet efficient. Fun yet focused. Hell, if Goldilocks ever wanted to drop you, our money's on her picking an Epic EVO Comp to do the job.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we've worked overtime to make sure it's been implemented in a way that'll have you saying 'Whoa!' as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic's standard-setting efficiency as possible, the EVO's new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It's also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO's handling characteristics.
Keeping the Epic EVO Comp
just
right is a well-balanced component mix featuring powerful four-piston Shimano SLX brakes, an X-Fusion Manic dropper and RockShox SID Select fork.
At a Glance
- Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to steepen the EVO’s headtube angle by half a degree while raising the bottom bracket height by six millimeters.
- X-Fusion's Manic dropper post offers infinitely adjustable travel via it's slick shifter-stye remote lever for hassle-free operation when things get dicey.
- 4-piston calipers on an XC bike? What a wonderful time to be alive—Shimano's 4-piston SLX calipers carry only a slight weight penalty over their 2-piston siblings, but offer plenty of smooth, controllable power to keep the EVO's newfound speed in check.
- Tubeless-ready rims feature a modern 25-millimeter internal width, allowing tires to achieve their ideal profile and footprint for optimal traction.
Component Specifications
| Frame | FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel |
| Seat Binder | Specialized Alloy, 34.9mm |

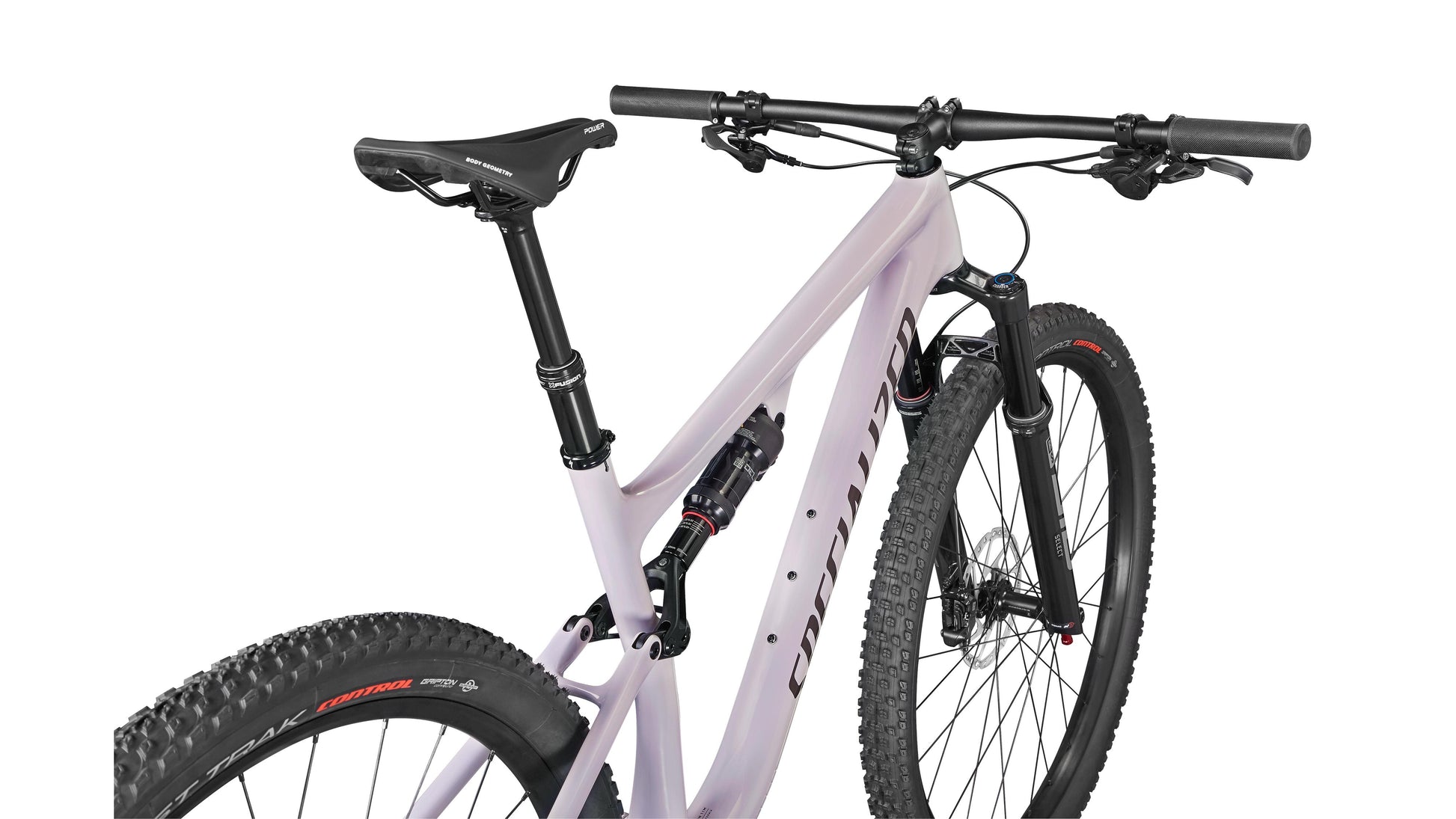

| Fork | Rockshox SID Select, Charger RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel |

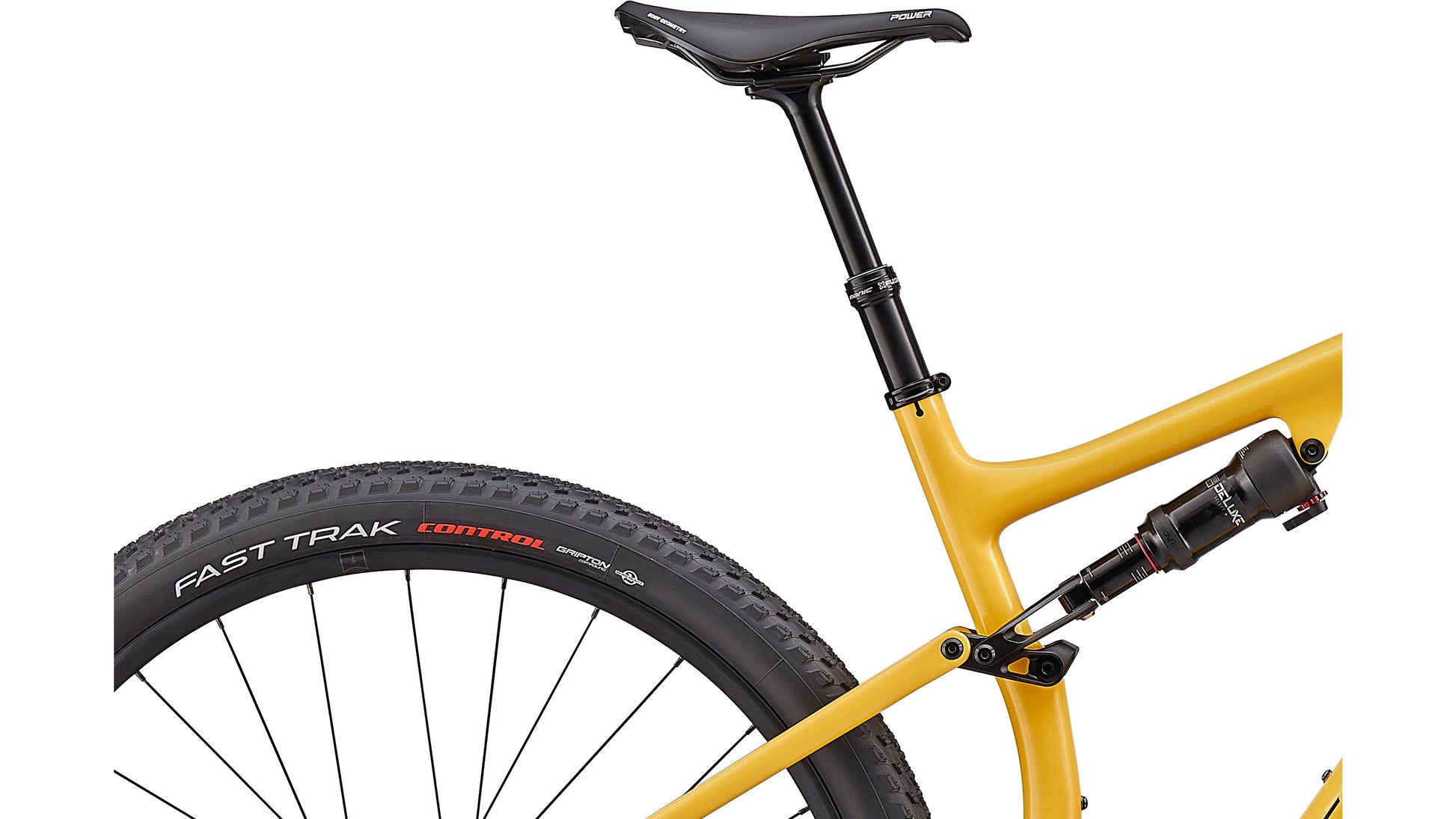

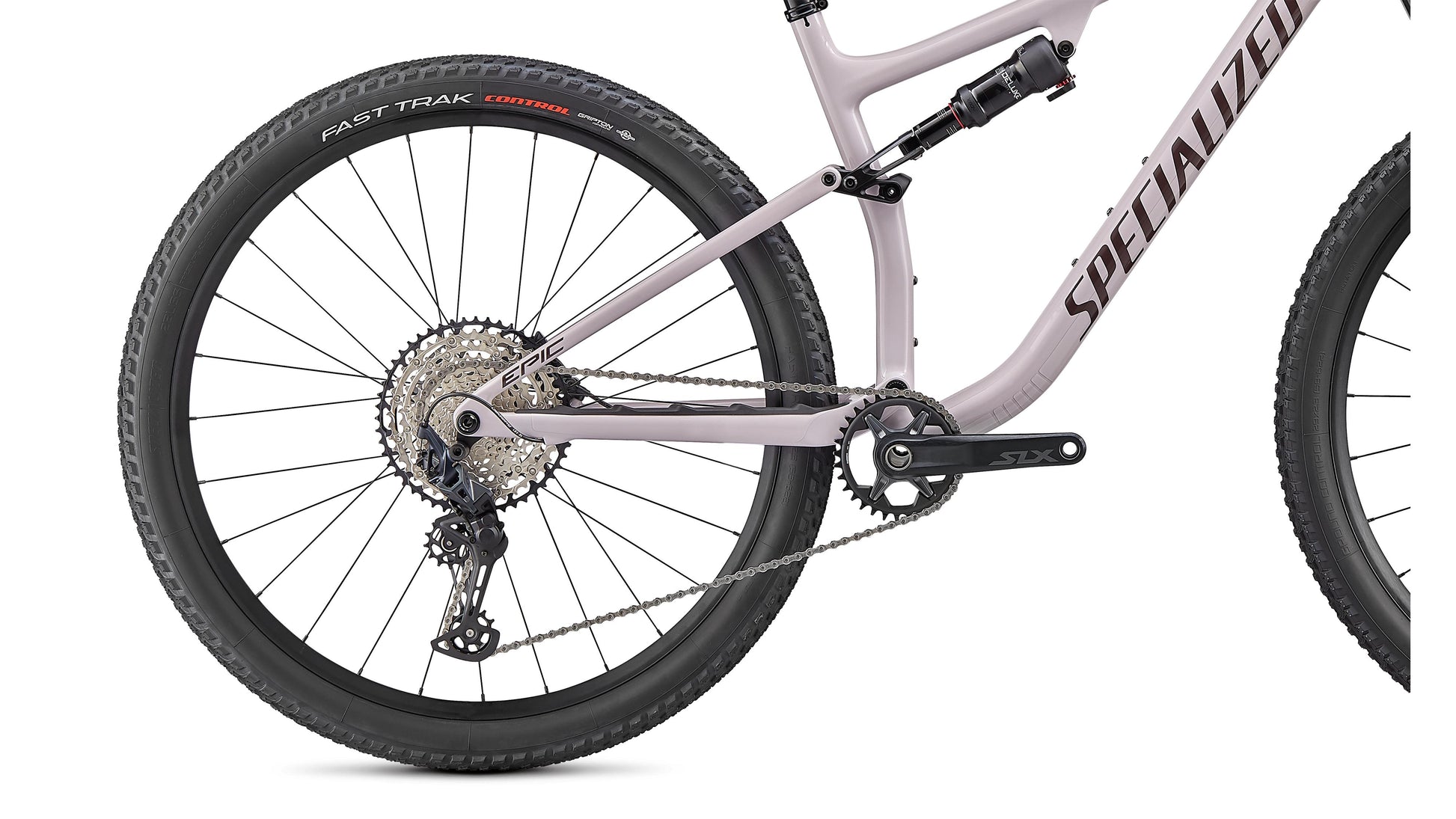

| Rear Shock | RockShox Deluxe Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm |
| Shift Levers | Shimano SLX, M7100, 12spd |

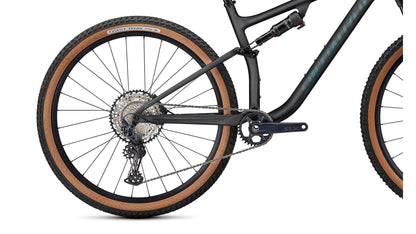

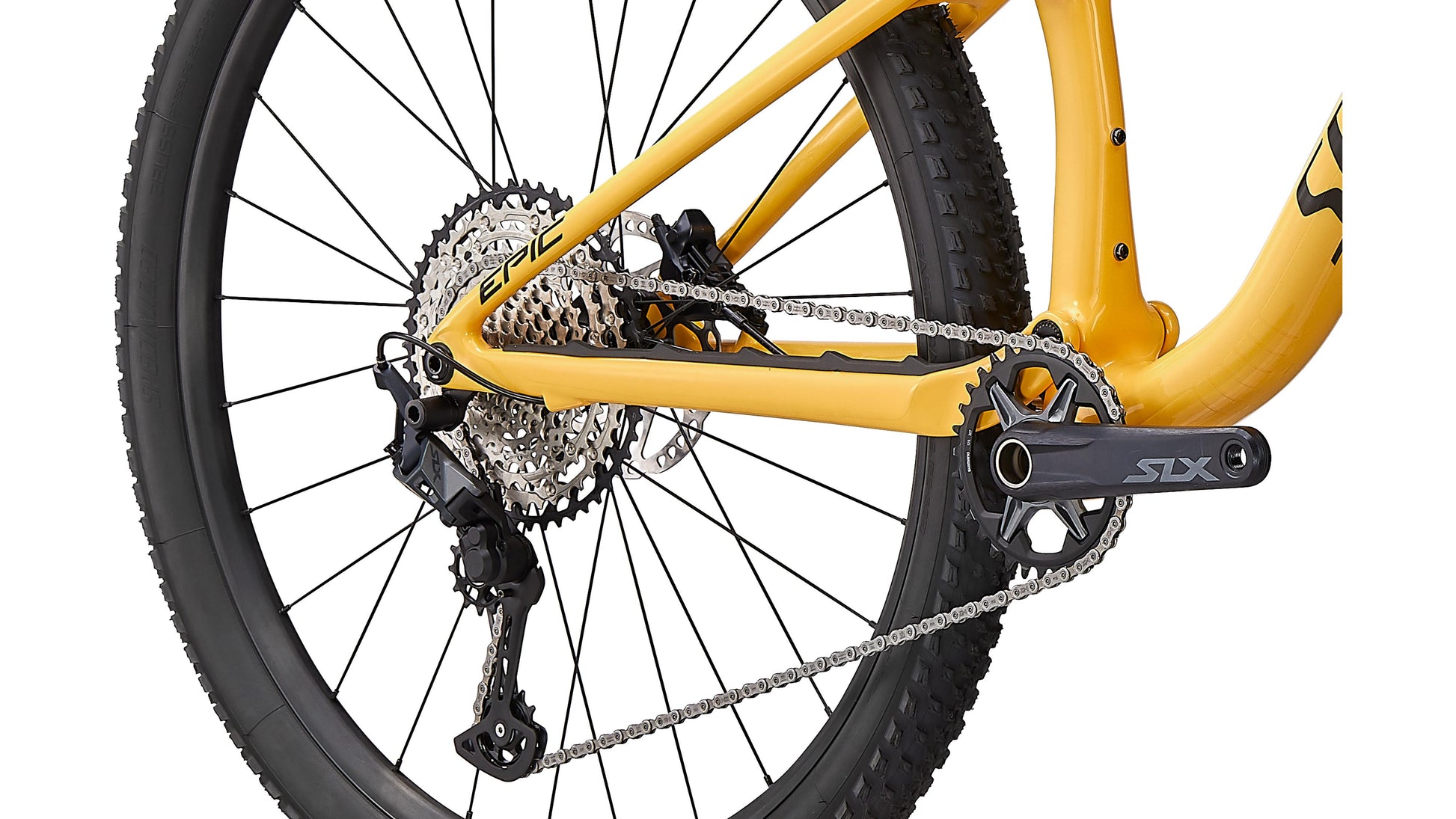

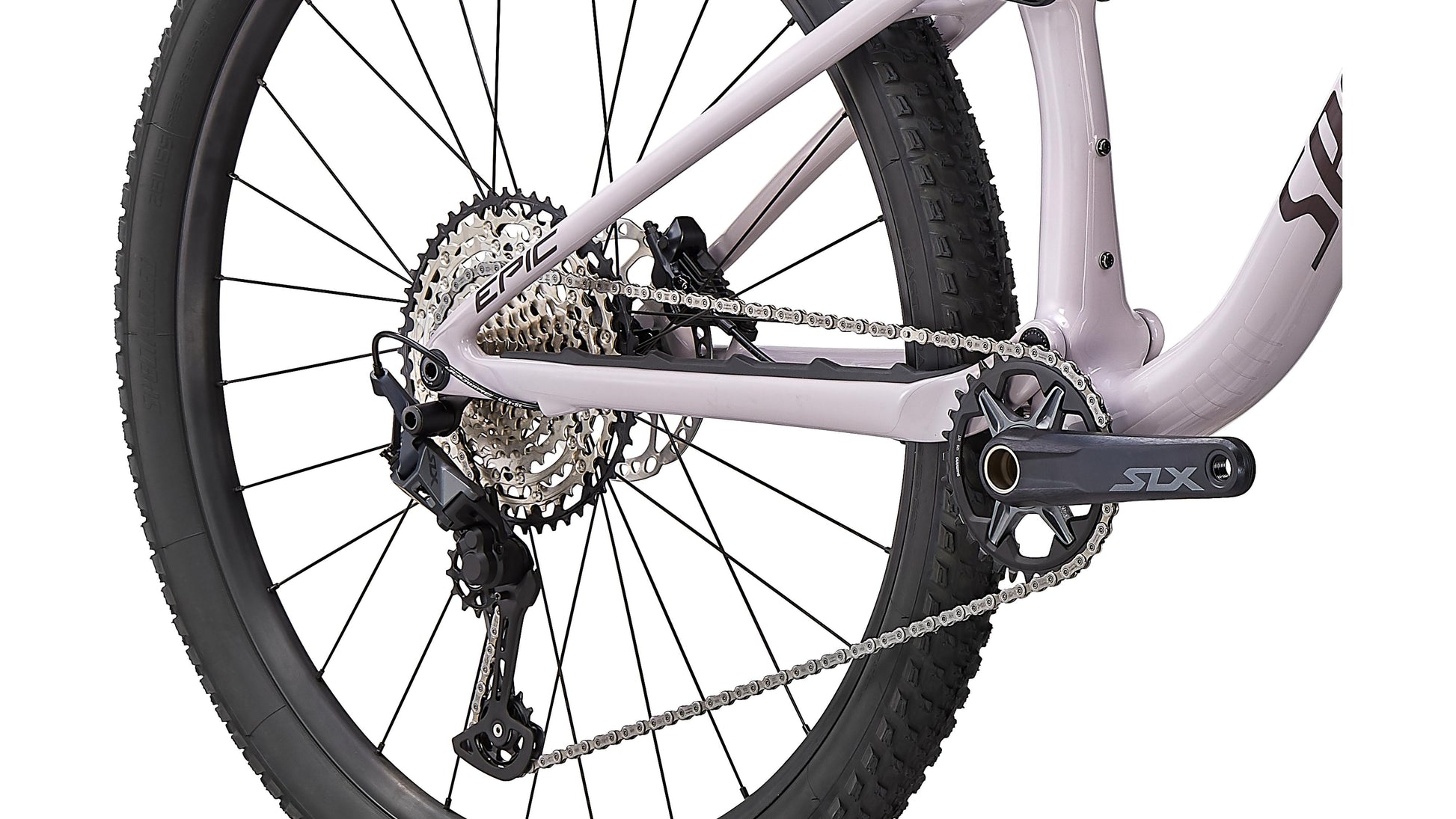

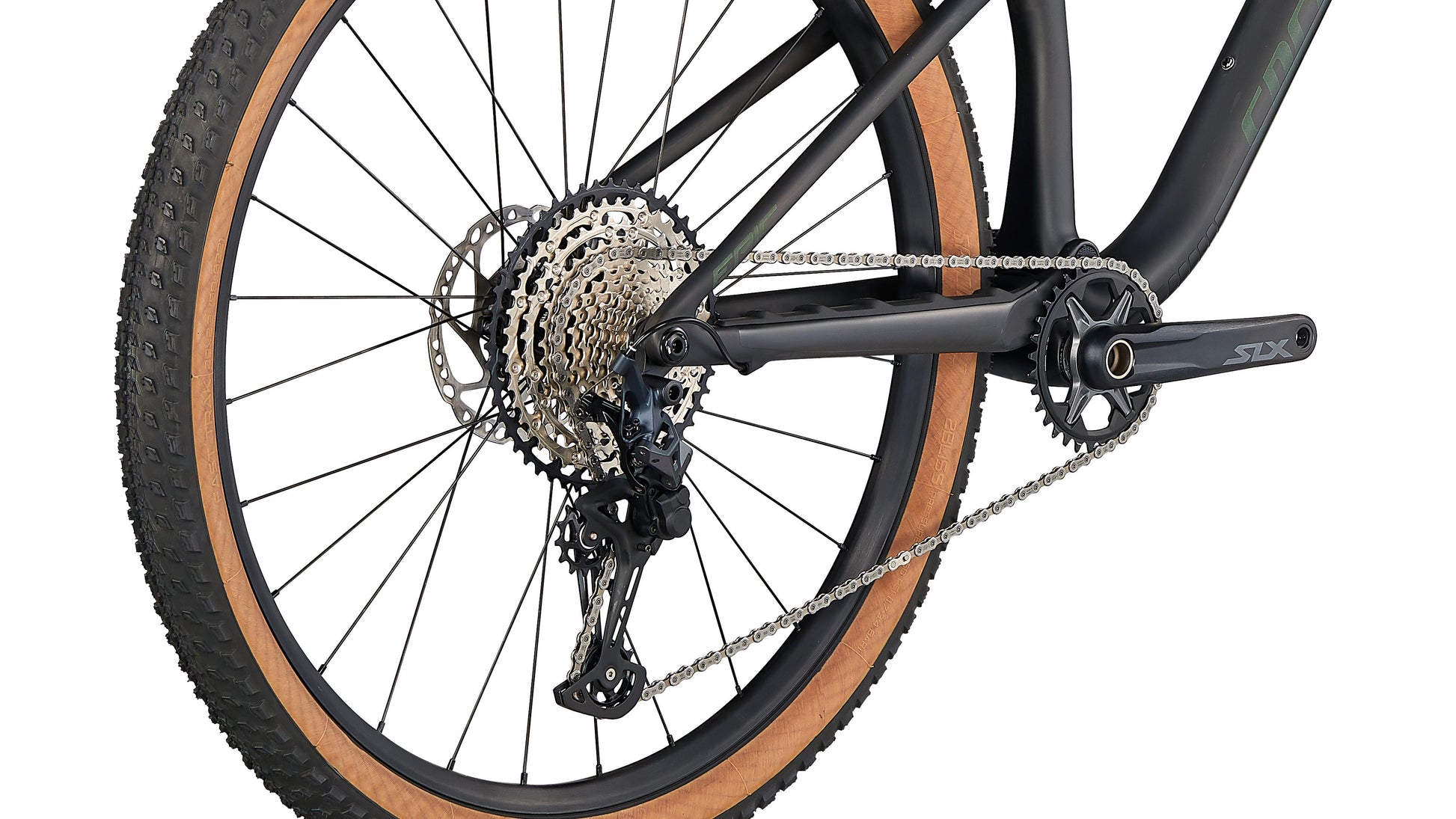

| Rear Derailleur | Shimano SLX M7100, SGS, 12-speed |
| Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Chain | Shimano SLX, M7100, 12-speed |
| Crankset | Shimano SLX 7100, Hollowtech 2 |
| Chain Rings | 32T |
| Bottom Bracket | Shimano, BB52, Threaded |
| Rims | Specialized Alloy, Tubeless Ready, 25mm internal width, 28h |
| Front Hub | Shimano MT400-B, Centerlock 28h, 15x110 Boost |
| Rear Hub | Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline |
| Spokes | DT Swiss Industry |
| Front Tire | Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Rear Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Presta, 60mm valve |
| Front Brake | Shimano SLX M7120, 4-piston caliper, hydraulic disc, 180mm |
| Rear Brake | Shimano SLX M7120, 4-piston caliper, hydraulic disc, 160mm |
| Stem | Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise |

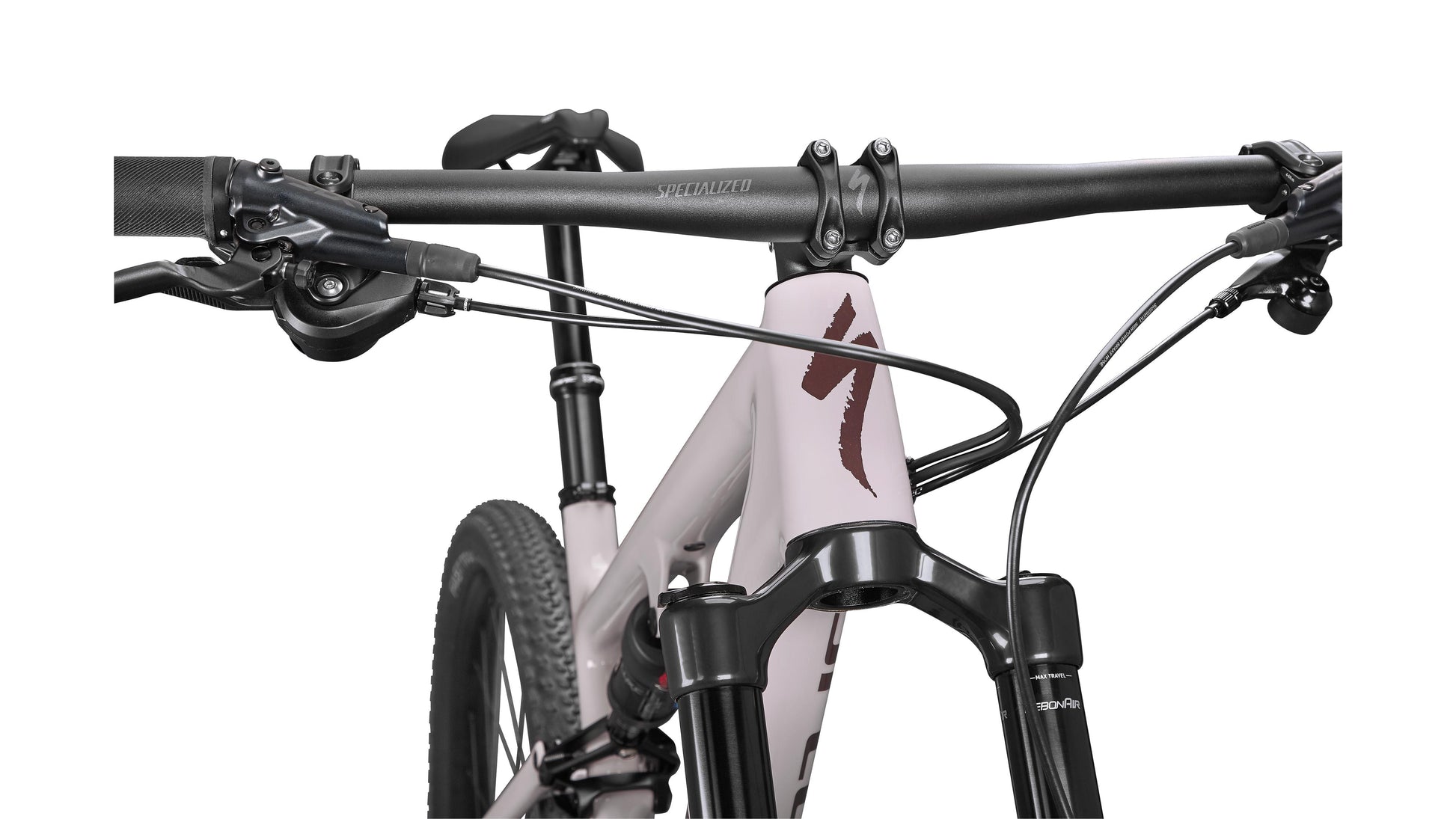

| Handlebars | Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Comp, Cromoly rails |

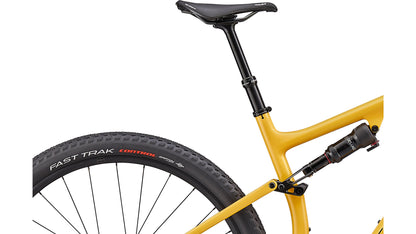

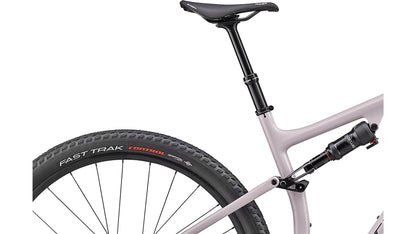

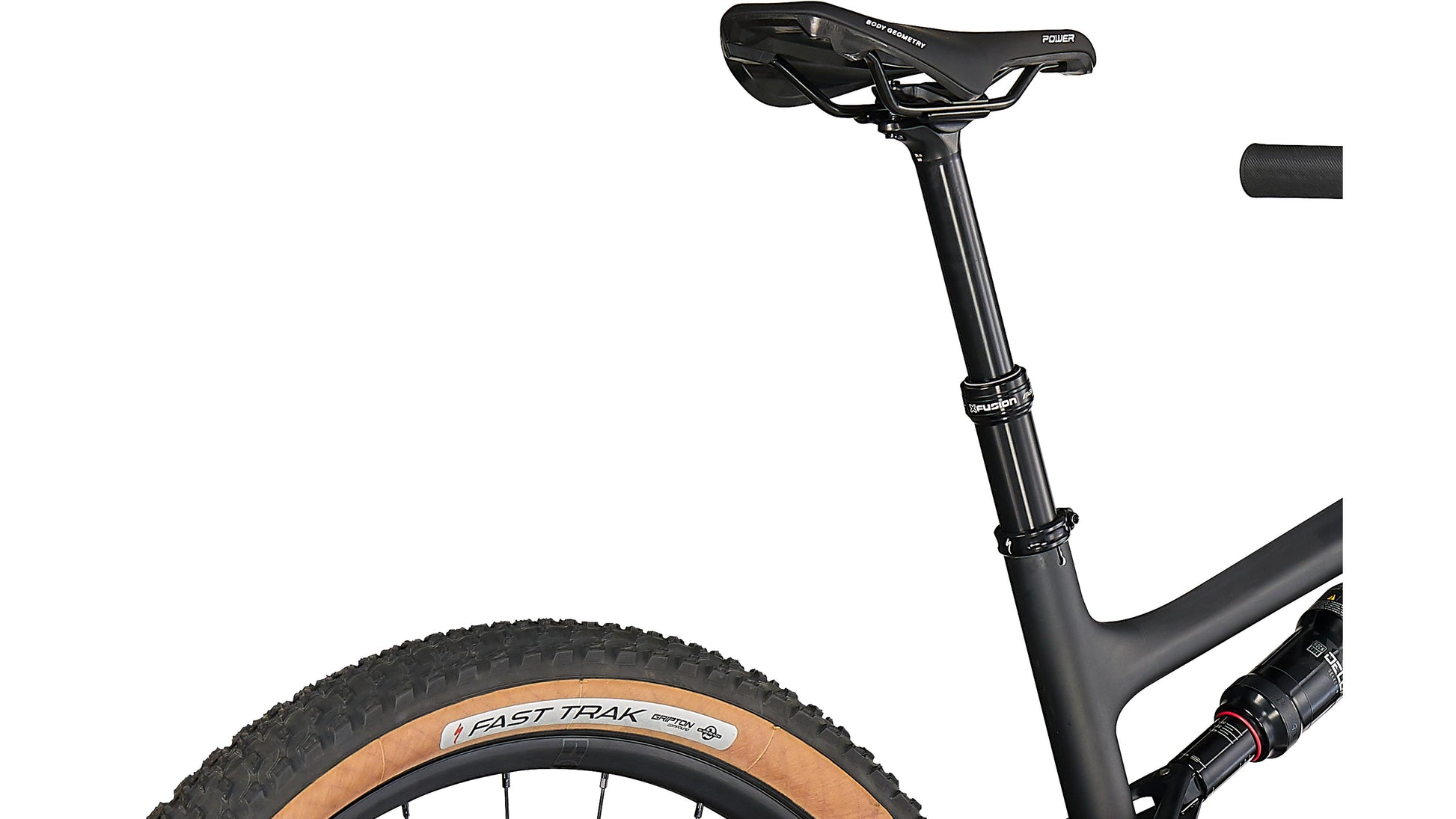

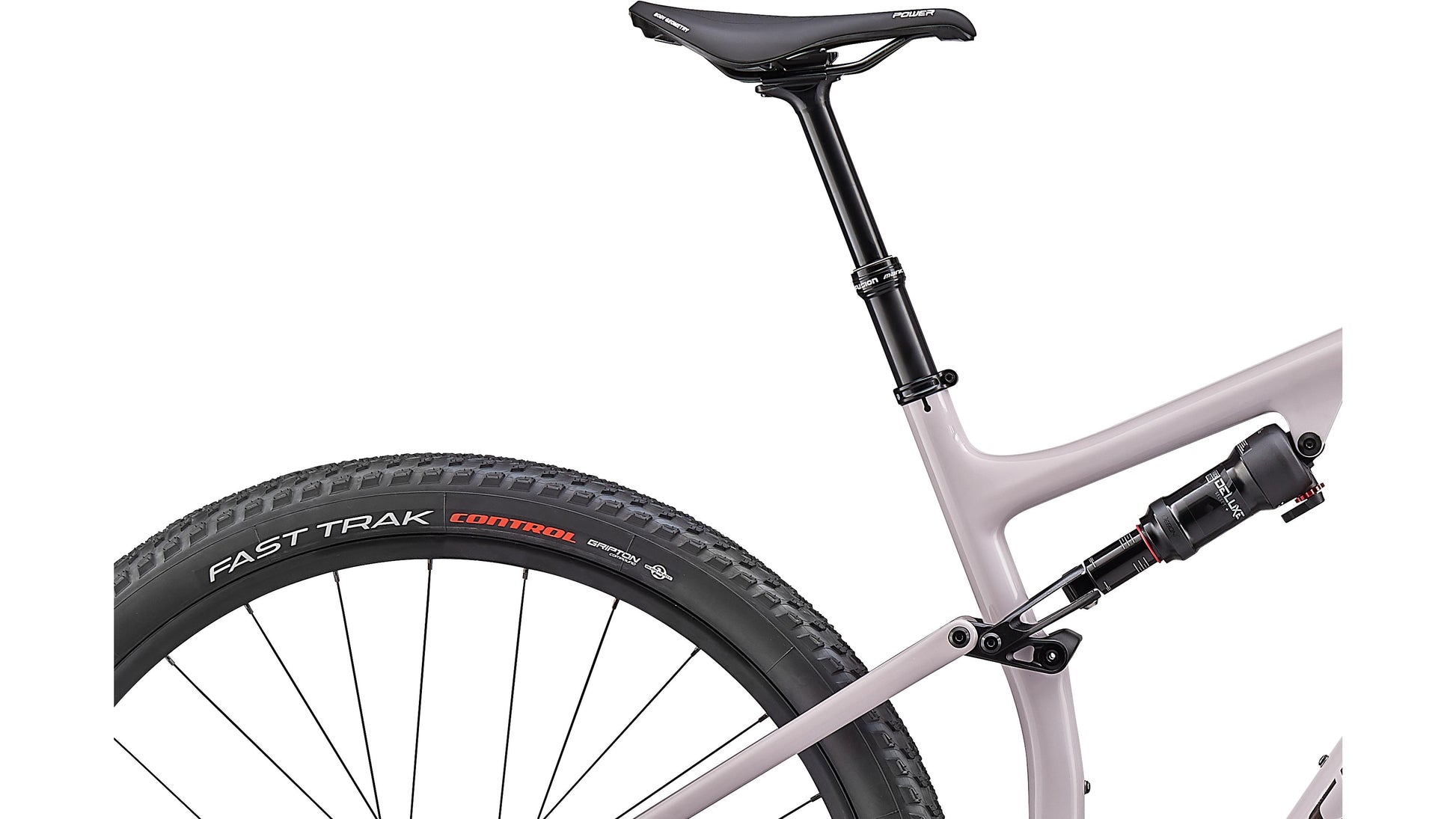

| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, SM: 100mm travel, M: 125mm travel, L-XL: 150mm travel |
Specialized Epic Evo Comp
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 593 mm | 597 mm | 611 mm | 629 mm |
| Reach | 406 mm | 436 mm | 460 mm | 485 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1132 mm | 1164 mm | 1194 mm | 1227 mm |
| Bike Standover Height | 779 mm | 781 mm | 793 mm | 804 mm |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 567 mm | 602 mm | 629 mm | 659 mm |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 336 mm | 336 mm | 336 mm | 336 mm |
| BB Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Fork Length, Full | 530 mm | 530 mm | 530 mm | 530 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 697 mm | 729 mm | 759 mm | 792 mm |
