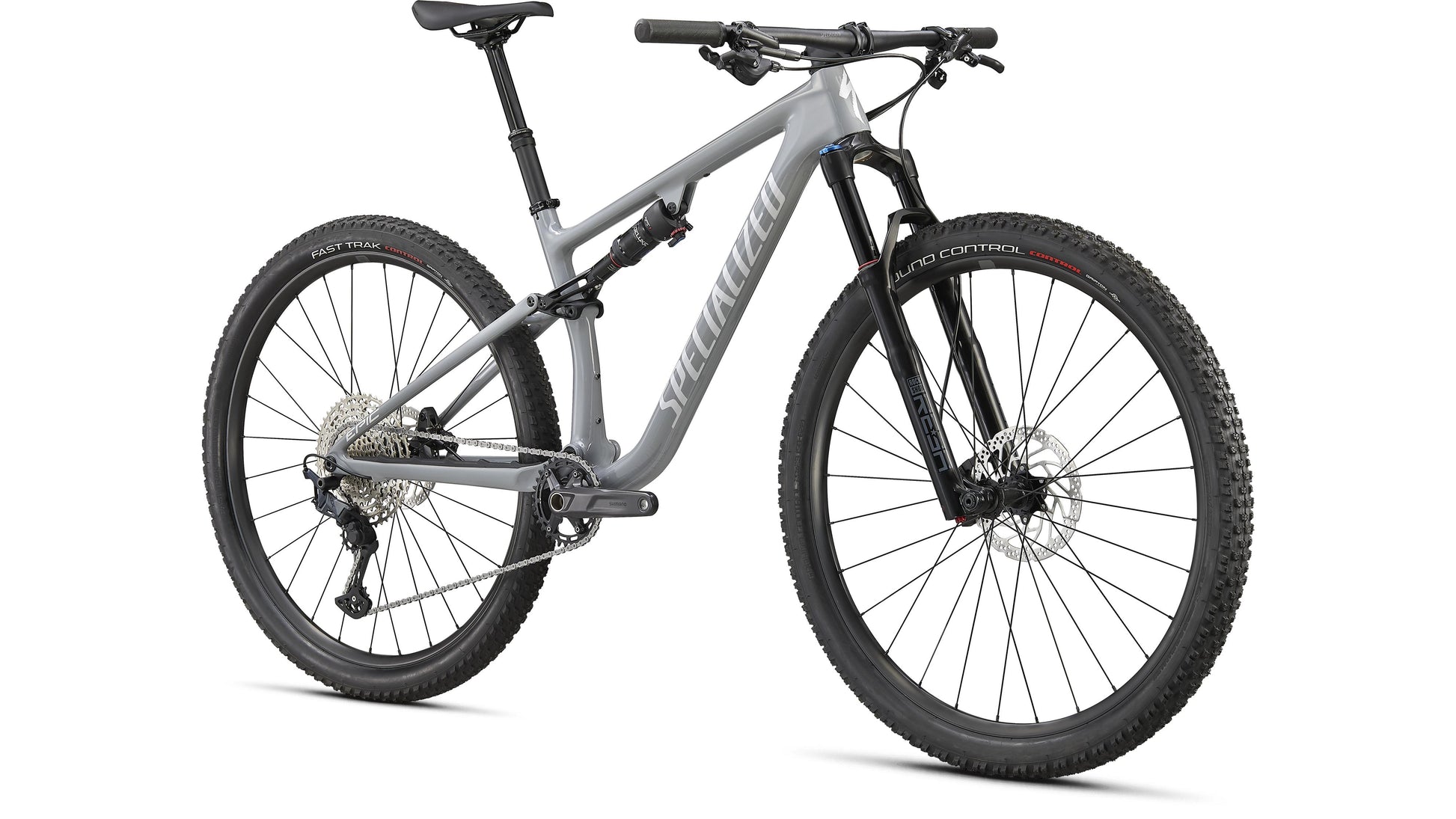

Specialized Epic Evo Features
Remember when cross country didn't always involve a starting gun? So do we.
And; while it'll never turn down a number plate, Epic EVO is well-acquainted with the fact that the next ridgeline makes a perfectly good finish line too, offering an incredible combination of pedaling efficiency and impressive trail-taming capability to get you there faster.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we've worked overtime to make sure it's been implemented in a way that'll have you saying 'Whoa!' as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic's standard-setting efficiency as possible, the EVO's new suspension kinematics work in concert with our Rx XC shock tune to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It's also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize the Epic EVO's handling characteristics.

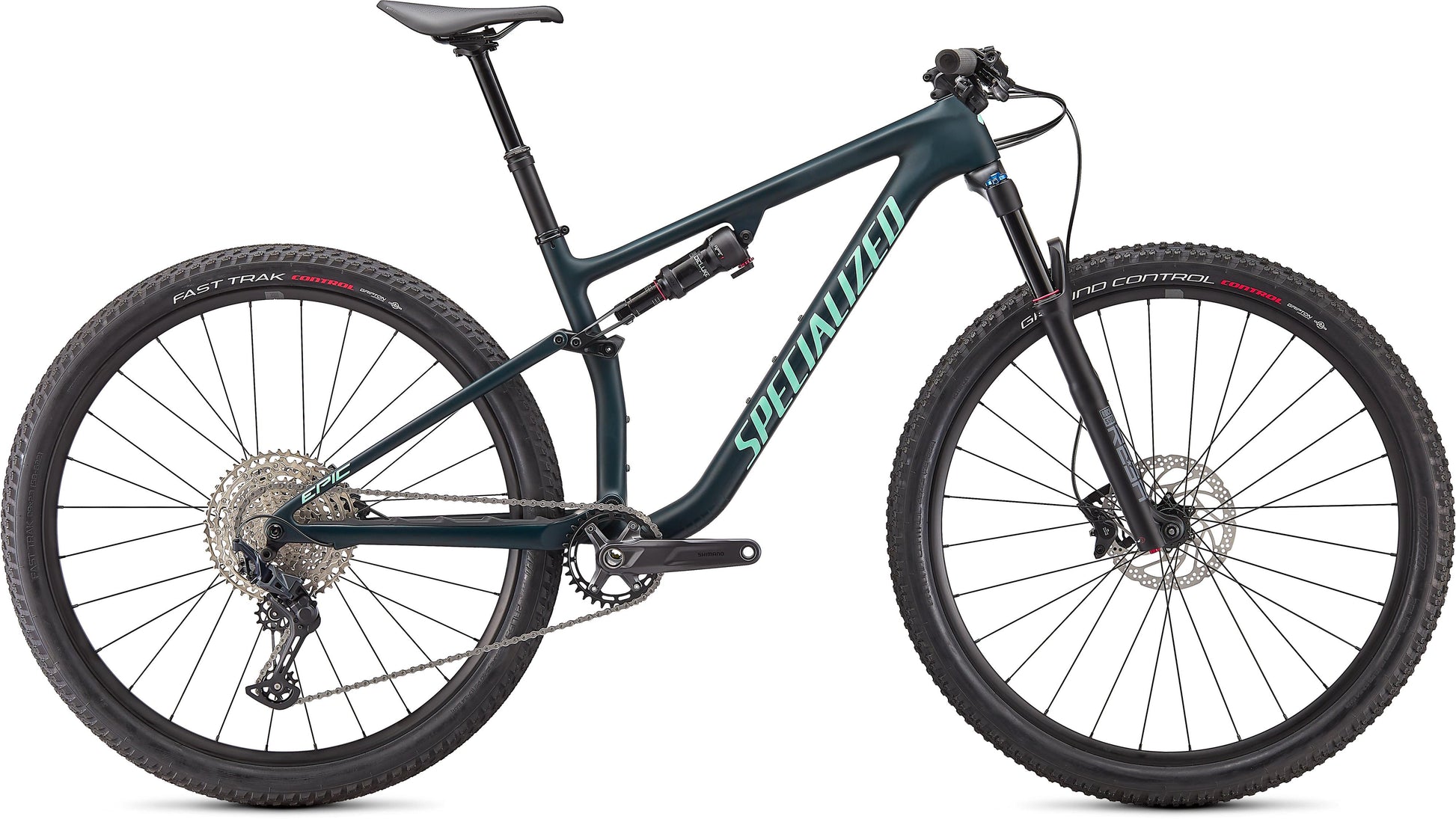

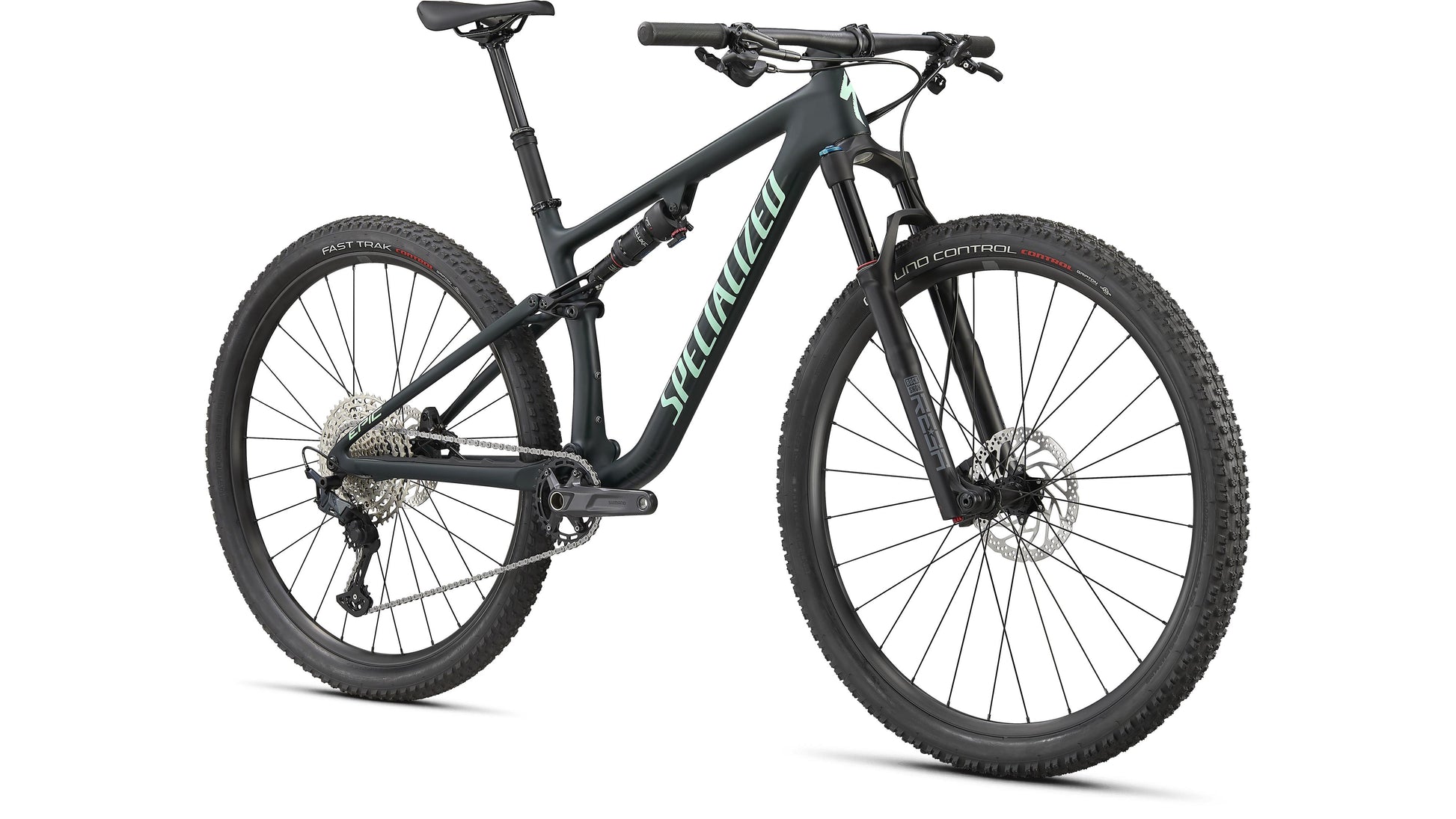

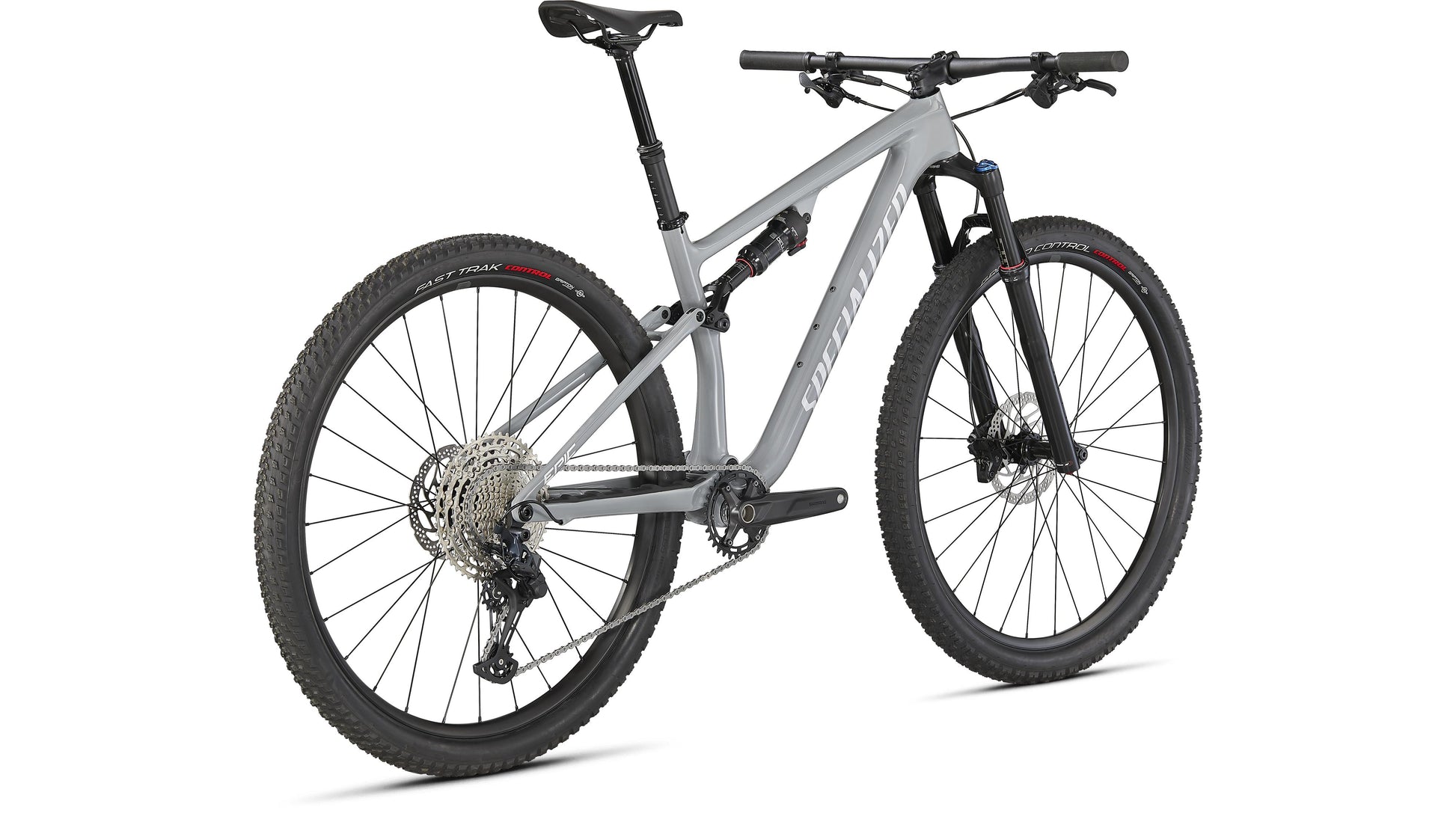

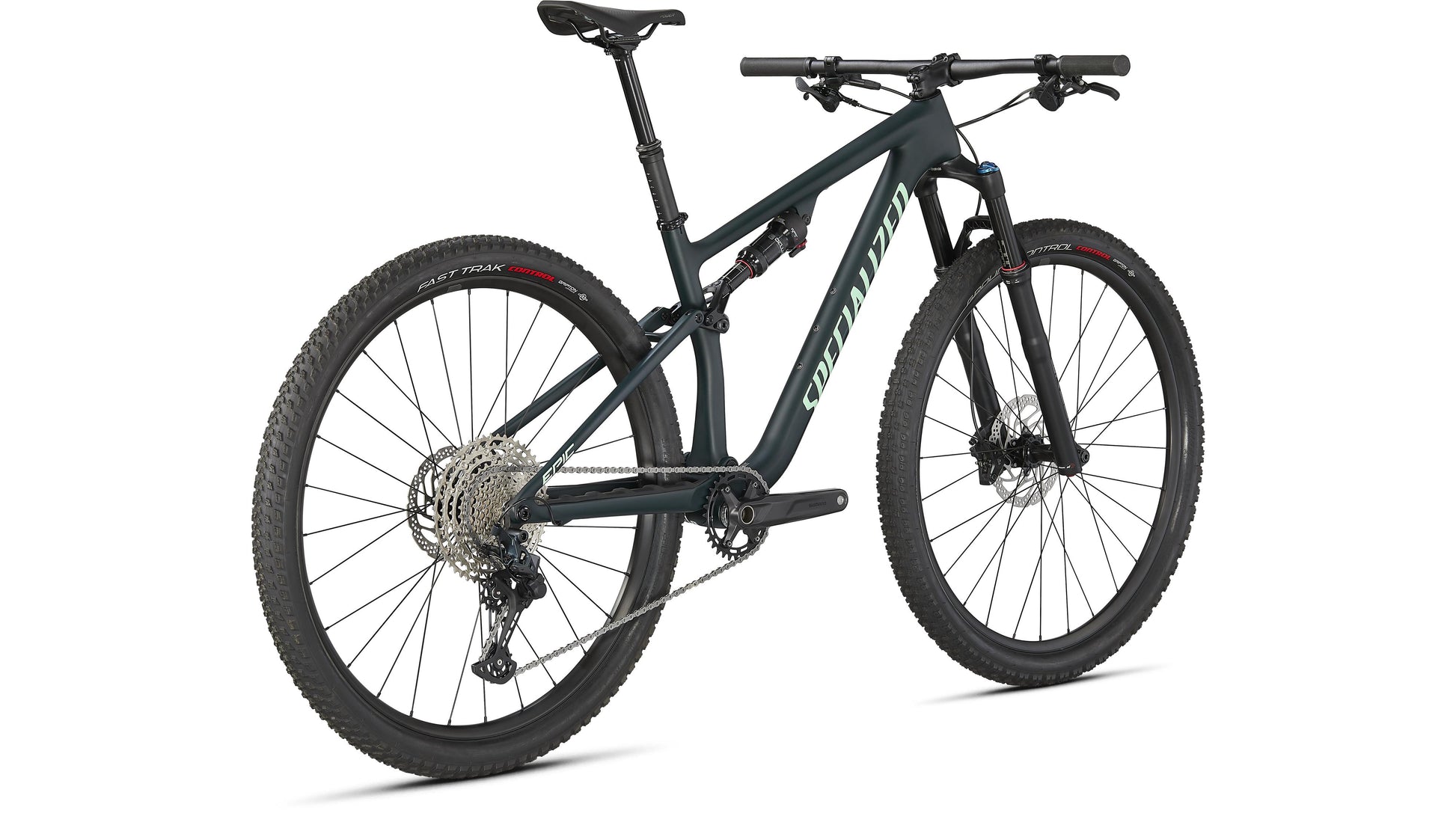

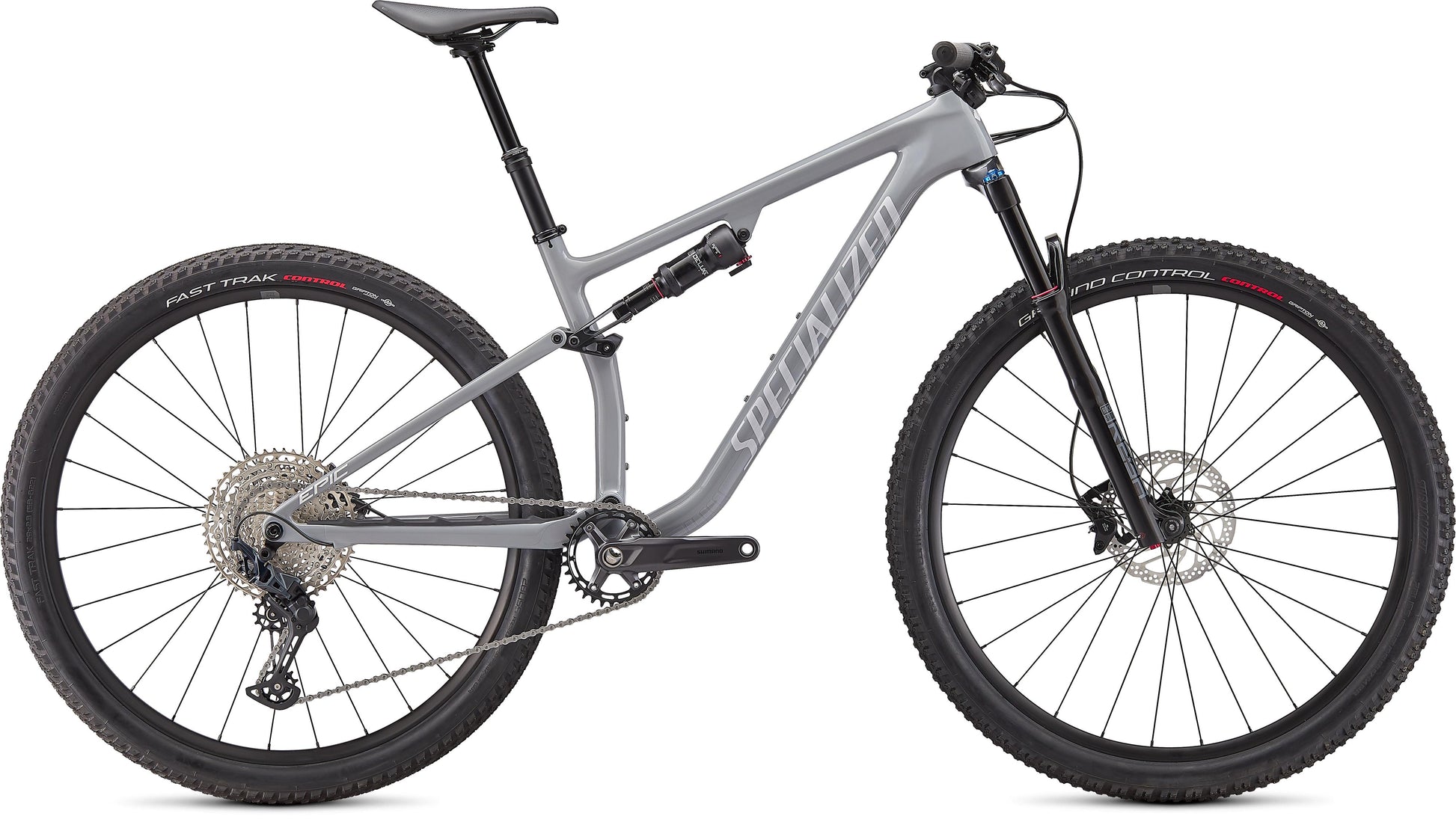

Epic EVO's flyweight FACT 11m carbon frame features heavy-hitting Shimano components and RockShox suspension for a package tailor-made for making miles disappear faster than ever.
At a Glance
- Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to steepen the EVO’s headtube angle by half a degree while raising the bottom bracket height by six millimeters.
- The Reba RL doles out travel with a steady hand courtesy of RockShox's Motion Control damper, while SoloAir adjustability makes dialing in suspension performance a breeze.
- Shimano's SLX shifting has always been the benchmark for affordable high performance, and the latest M7100 series simply raises it even further.
Component Specifications
| Frame | FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel |
| Seat Binder | Specialized Alloy, 34.9mm |
| Fork | RockShox Reba RL, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 120mm of travel |
| Rear Shock | RockShox Deluxe Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm |
| Shift Levers | Shimano SLX, M7100, 12spd |

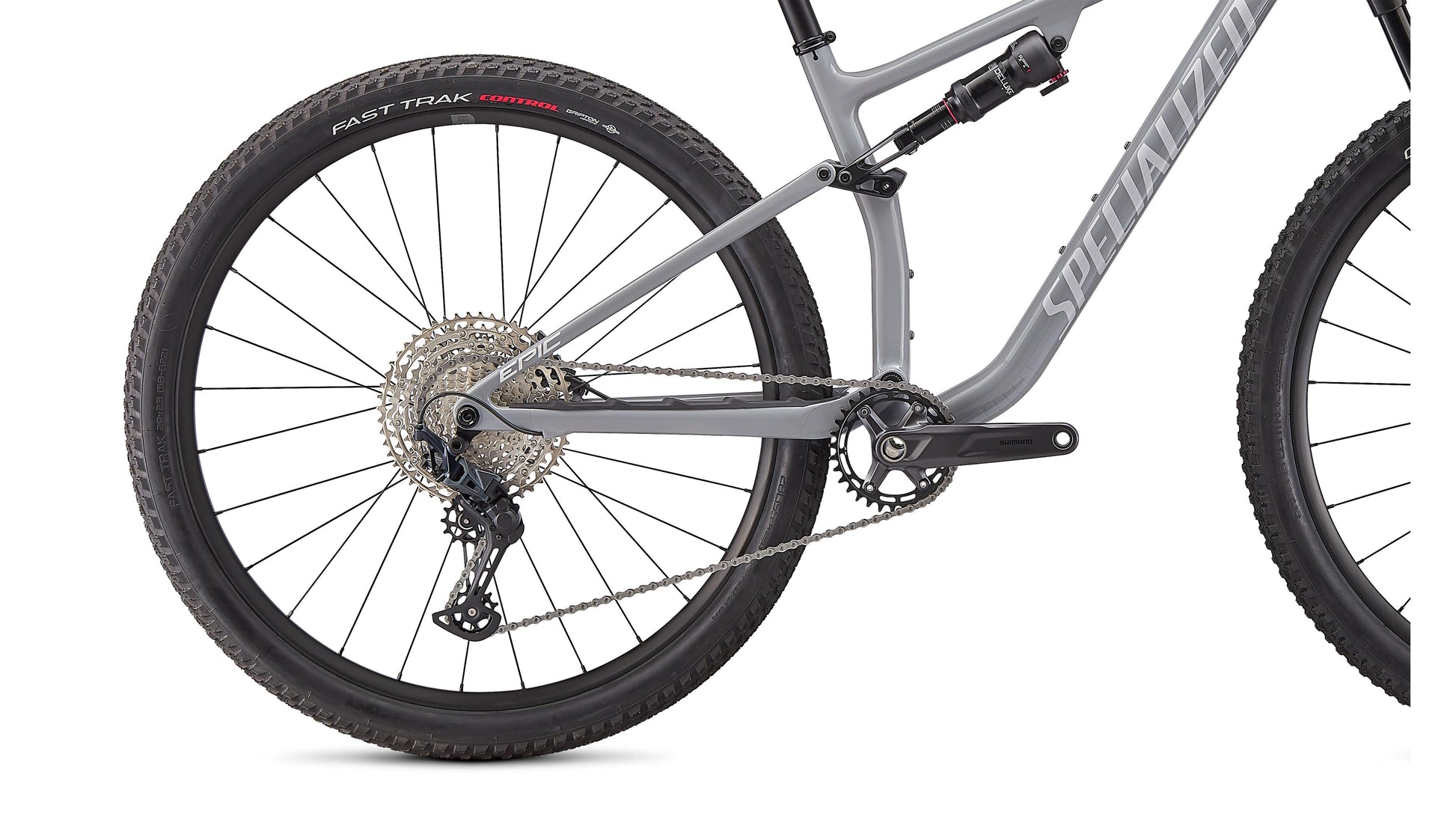

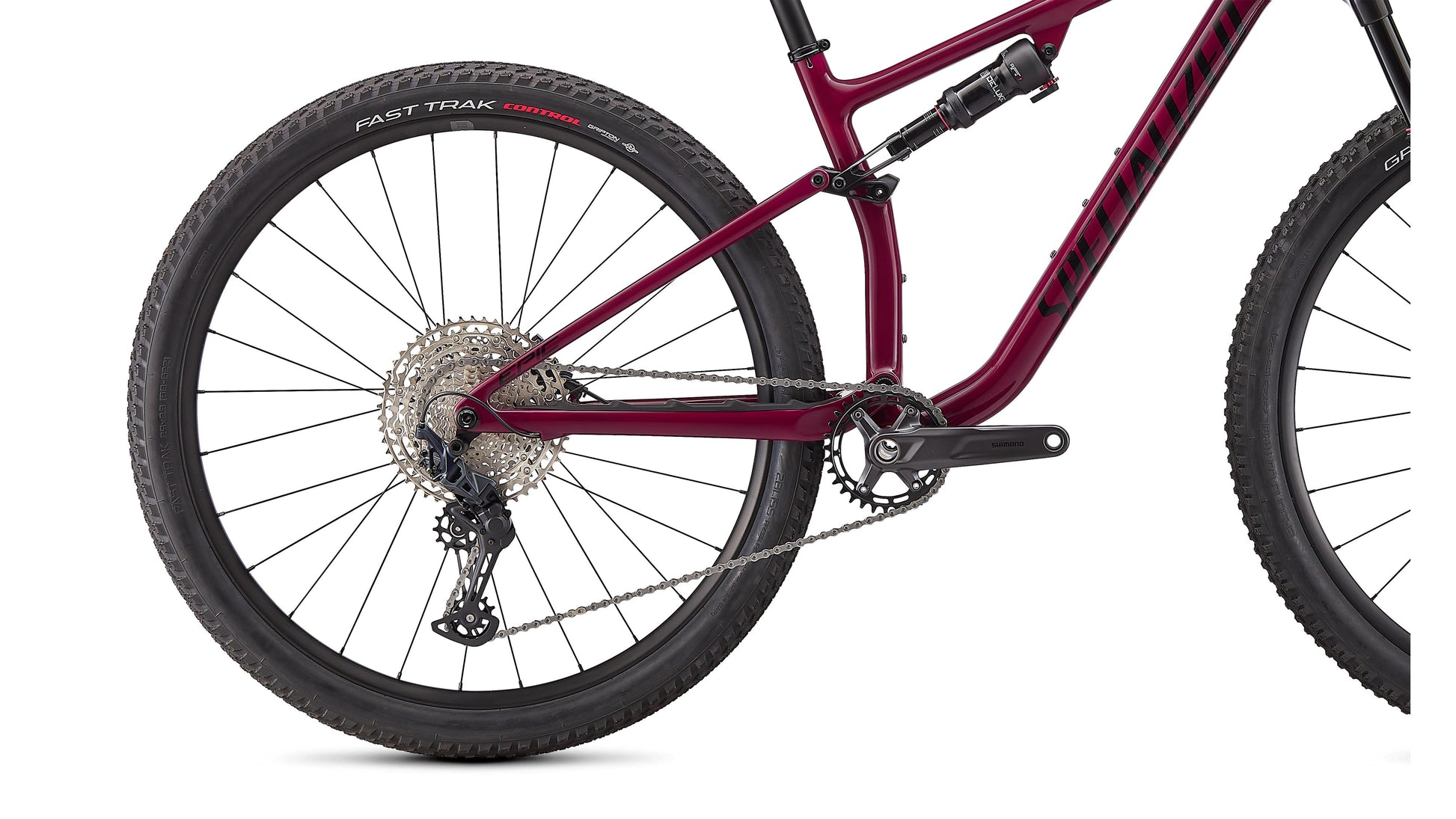

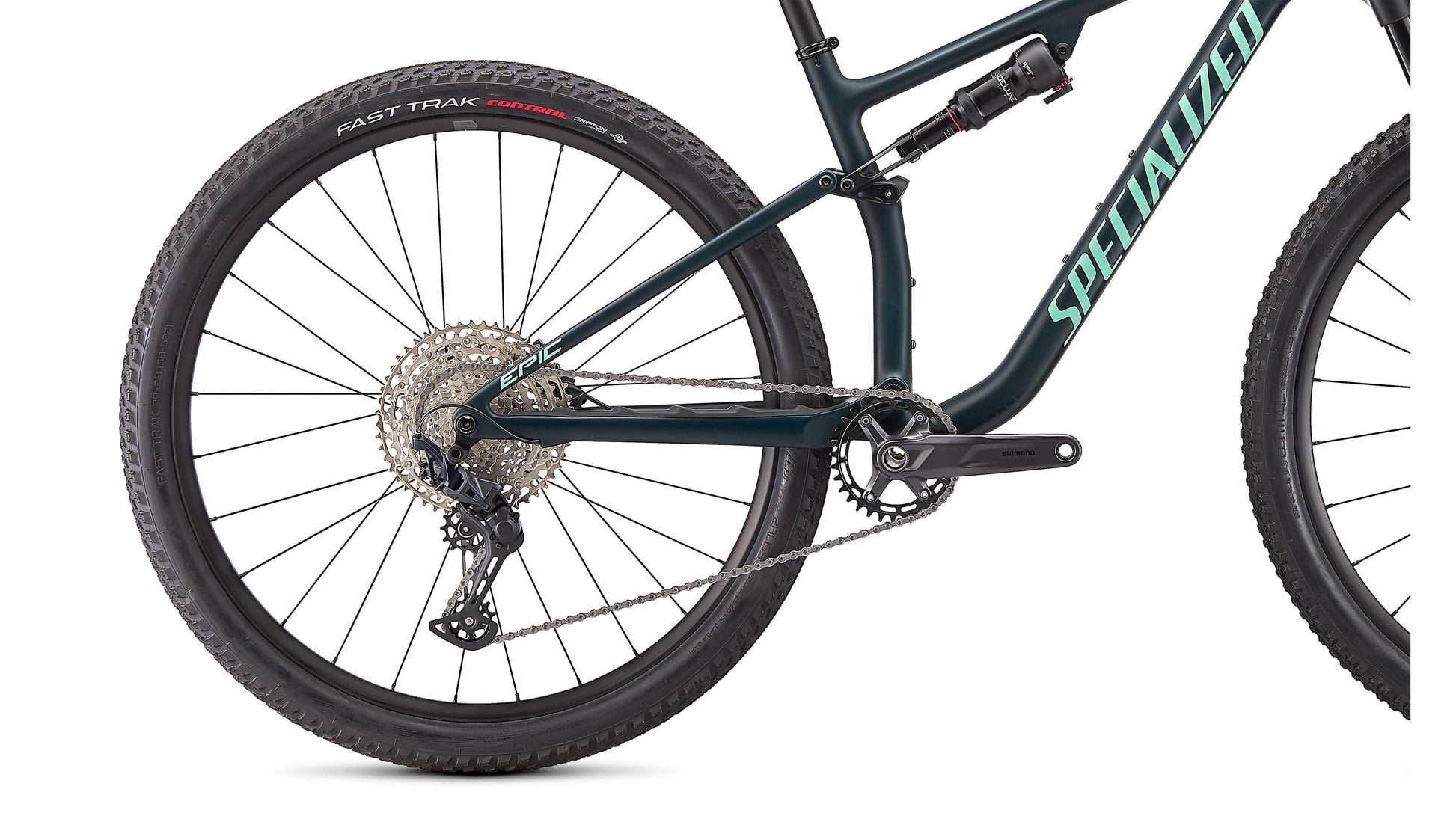

| Rear Derailleur | Shimano SLX M7100, SGS, 12-speed |
| Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
| Chain | Shimano Deore M6100, 12spd w/quick link |
| Crankset | Shimano MT511, 32T Chainring |
| Bottom Bracket | Shimano, BB52, Threaded |
| Rims | 29", 25mm internal width, disc-specific |
| Front Hub | Shimano MT400-B, Centerlock 28h, 15x110 Boost |
| Rear Hub | Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline |
| Spokes | Stainless, 14g |

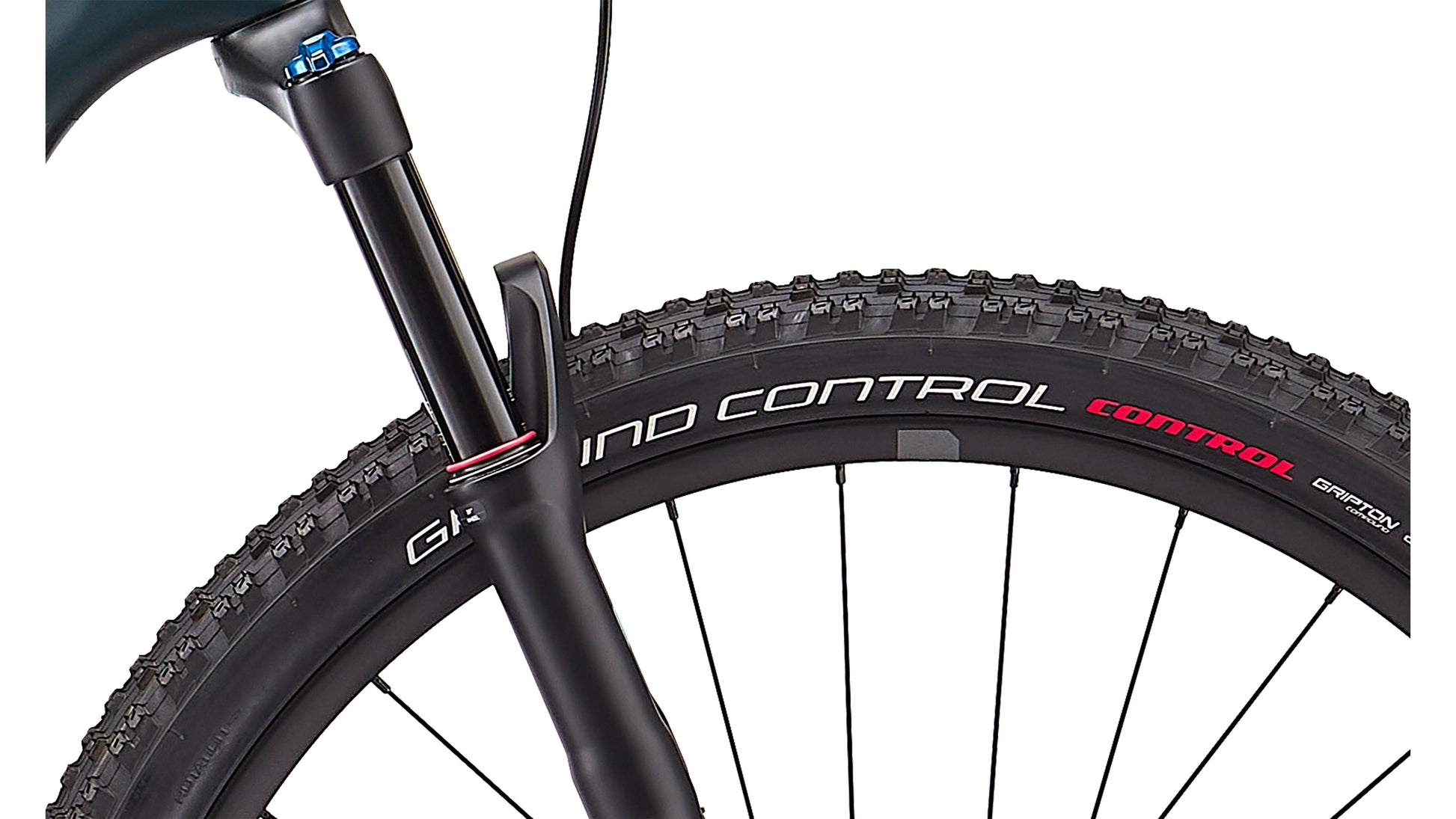

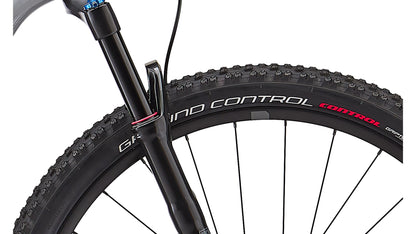

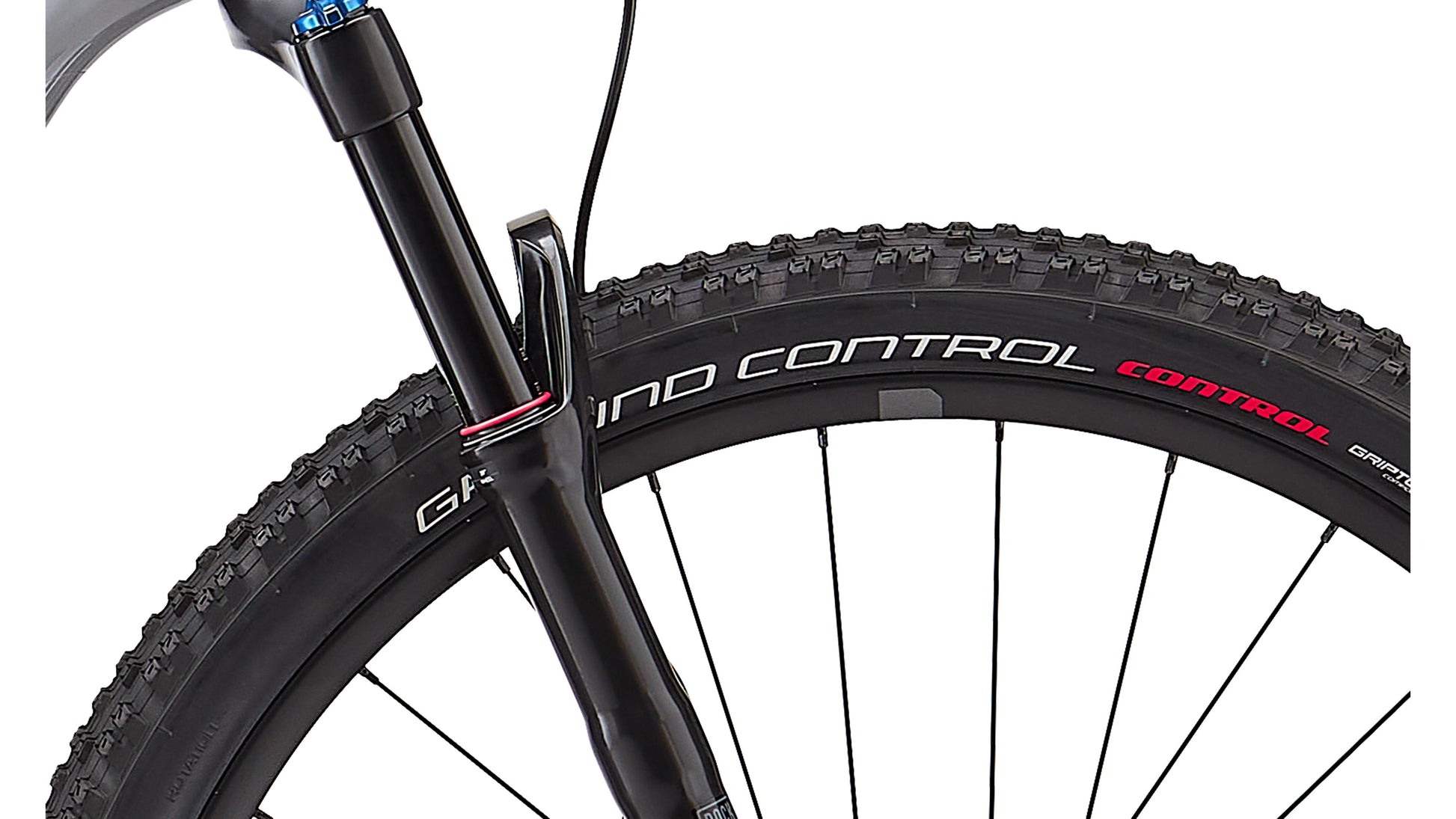

| Front Tire | Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Rear Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Presta, 60mm valve |
| Front Brake | Shimano M6100, 2-piston caliper, hydraulic disc |
| Rear Brake | Shimano M6100, 2-piston caliper, hydraulic disc |
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
| Handlebars | Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm |

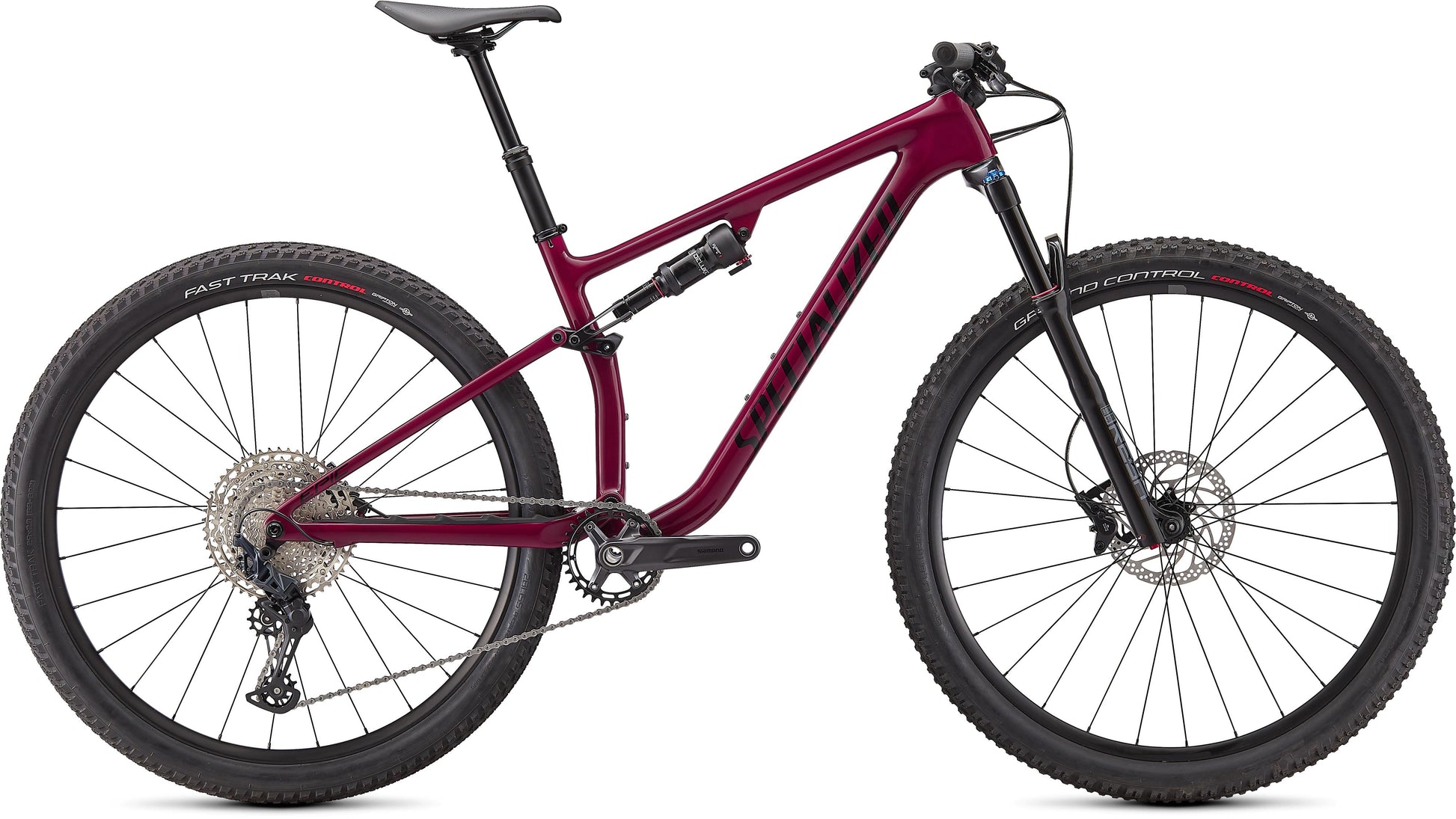

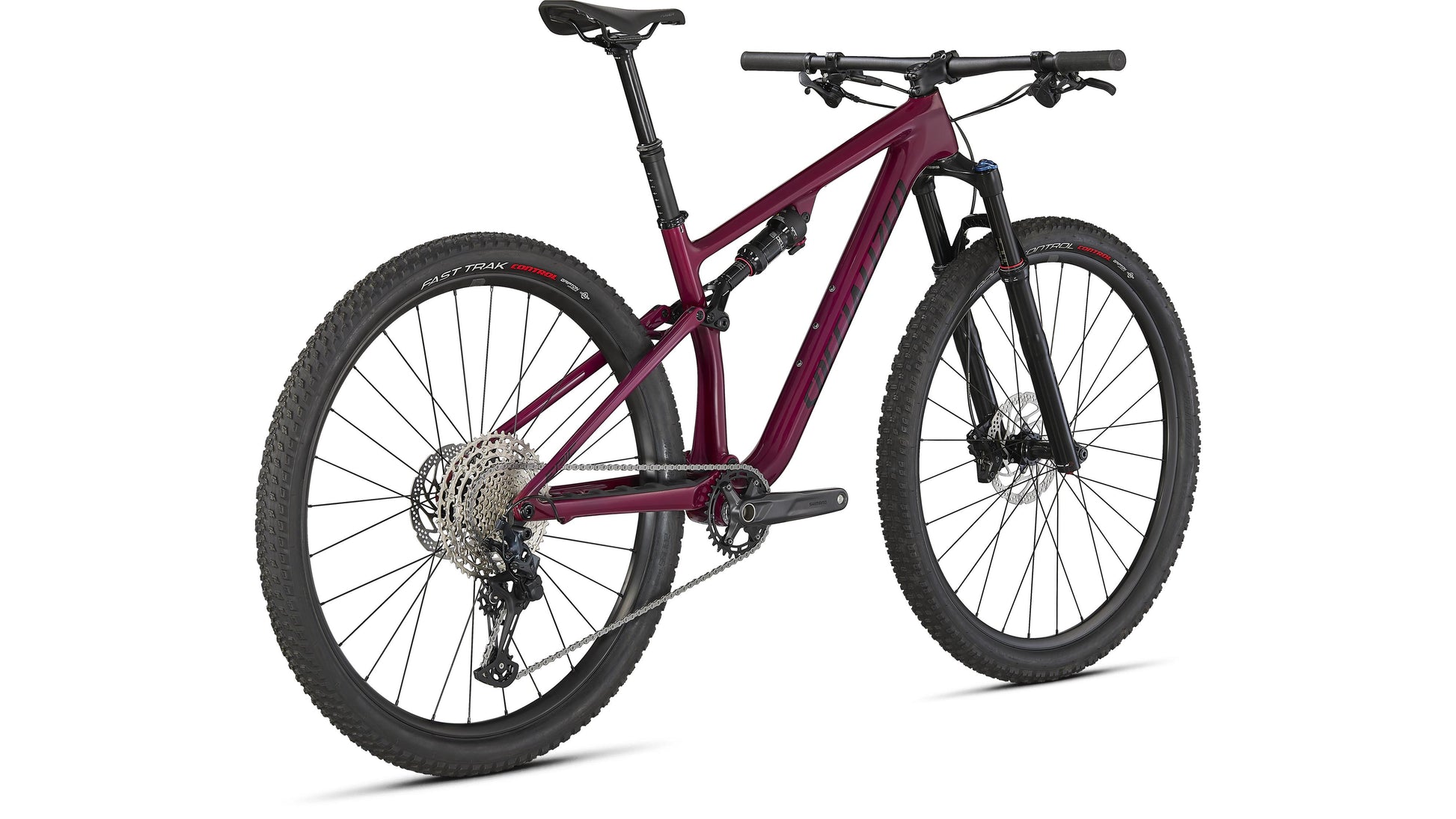

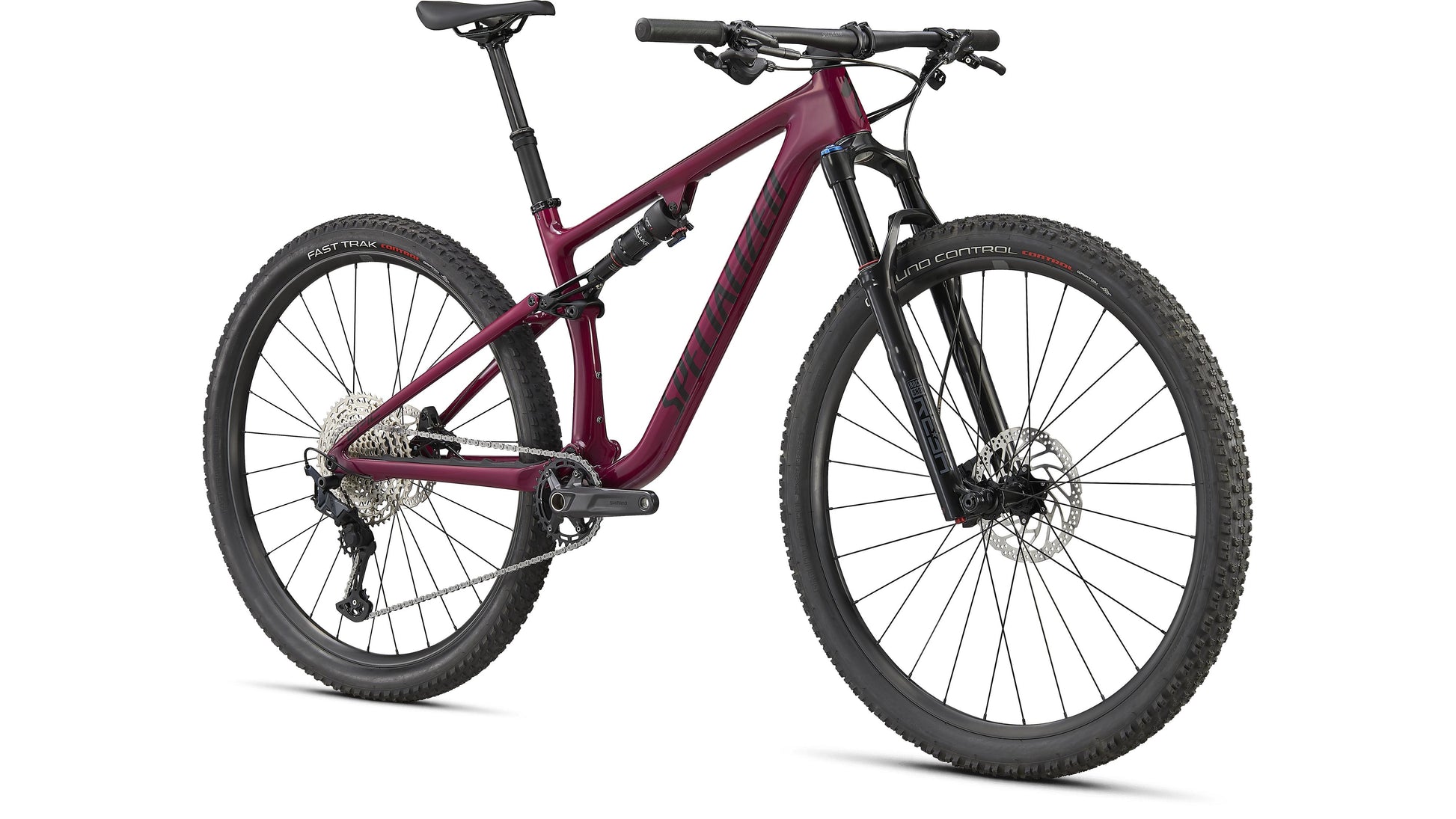

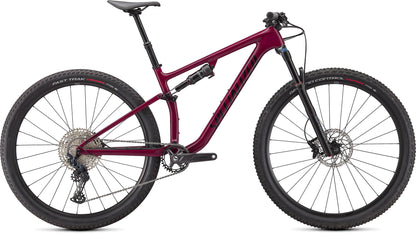

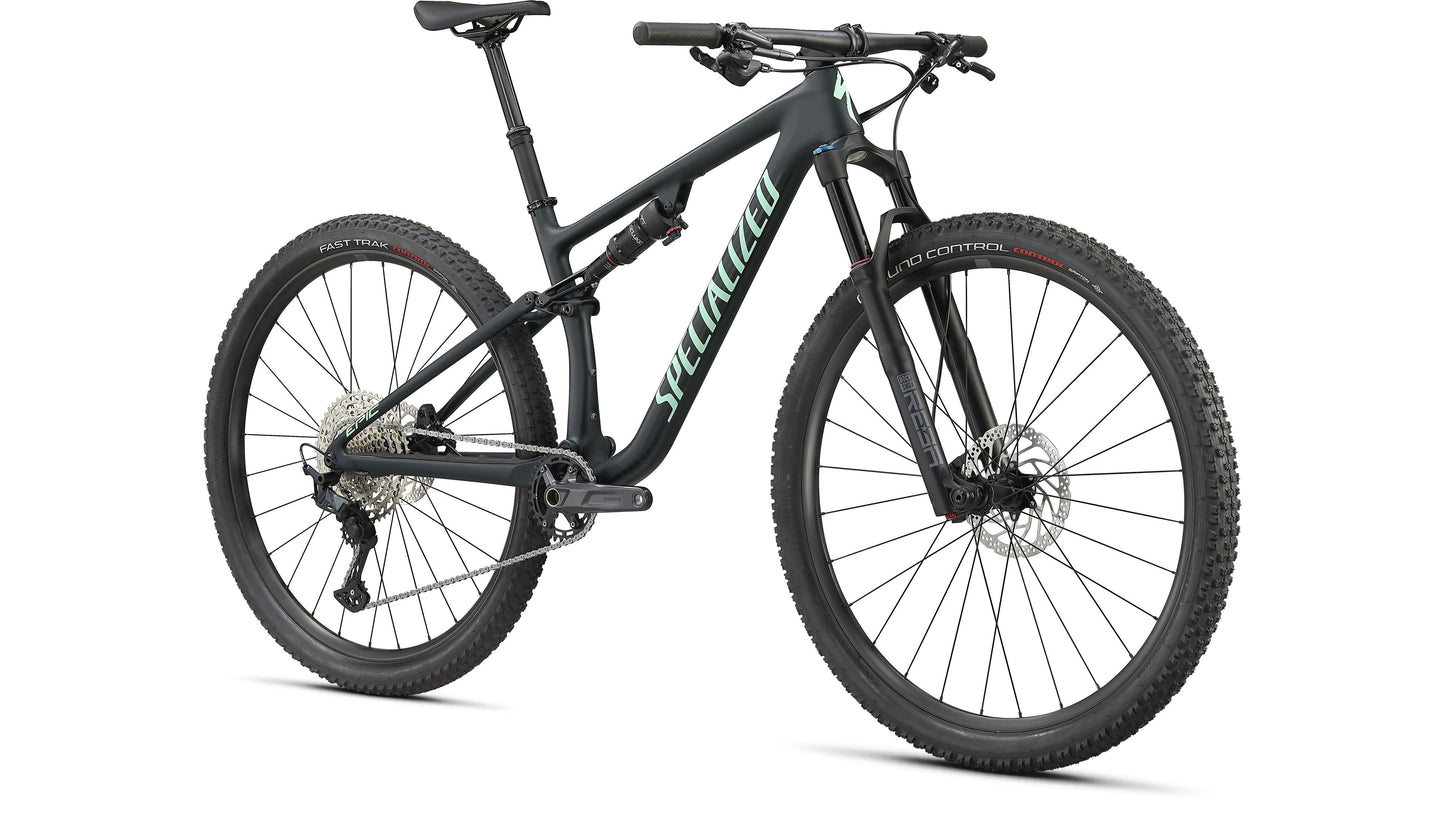

Specialized Epic Evo
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 603 mm | 593 mm | 597 mm | 611 mm | 629 mm |
| Reach | 380 mm | 406 mm | 436 mm | 460 mm | 485 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1106 mm | 1132 mm | 1164 mm | 1194 mm | 1227 mm |
| Bike Standover Height | 760 mm | 779 mm | 781 mm | 793 mm | 804 mm |
| Seat Tube Length | 375 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 75.5° | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 536 mm | 567 mm | 602 mm | 629 mm | 659 mm |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 115 mm | 135 mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 326 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| BB Drop | 46 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm | 114 mm |
| Fork Length, Full | 530 mm | 530 mm | 530 mm | 530 mm | 530 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 672 mm | 697 mm | 729 mm | 759 mm | 792 mm |
Size Guide: Specialized Epic Evo
