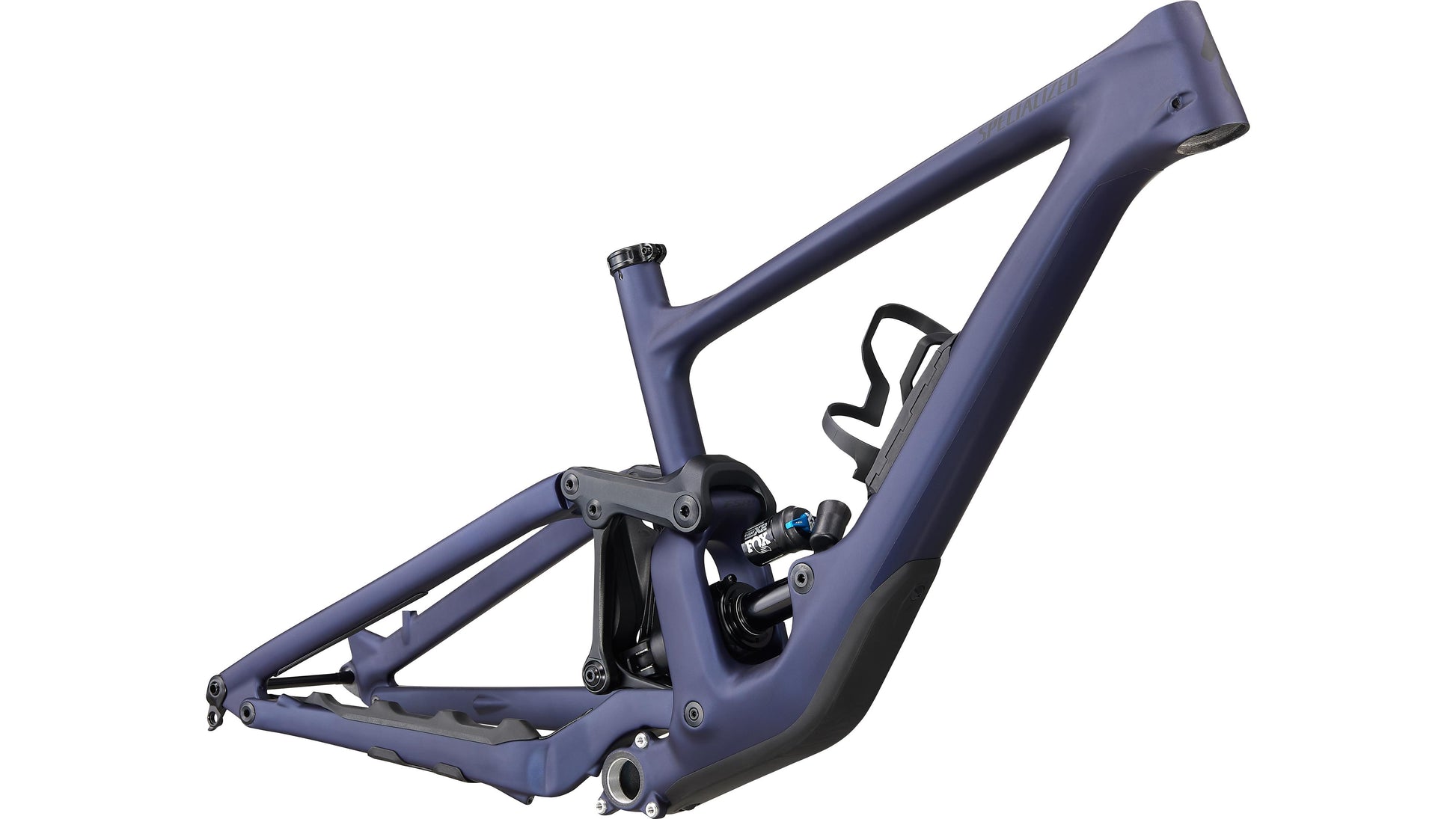

2022 Specialized Enduro Frameset

2022 Specialized Enduro Frameset

73622-7002

$2,599.97
$2,899.99 $2,599.97
Sale Sold out
Color
Size
View full details

    2022 Specialized Enduro Frameset Features

    If you’re looking to build the fastest, most capable enduro race bike, this is the frame you want to start with. The Enduro combines peerless downhill performance with surprisingly-quick acceleration. It delivers blistering speed, mega-travel length, and smart features that're big on performance. Get ready to go fast.

    At a Glance

    • INCREDIBLY CAPABLE — If the Enduro looks like its sibling, the Demo, it’s because they share plenty of downhill DNA. A more-rearward axle path reduces wheel hang-up on big impacts. A low- and forward-positioned shock keeps it planted and confident-feeling at high speeds. And balanced chassis stiffness helps the front-end steer precisely and keeps the rear-end tracking like it’s on rails. Add it all up and you have a bike that laughs in the face of the steepest, rockiest trails.
    • ASTONISHINGLY FAST—UP AND DOWN THE TRAIL — Stomp on the pedals and the new Enduro accelerates far quicker than you'd expect possible from a downhill bruiser. To start, we increased anti-squat, so the suspension better-resists pedal bob. Then, to further its efficiency, we re-directed the angle of the chainstay and upper shock linkages for a much more efficient design. The end result? Less bobbing, more speed.
    • FAST STARTS WITH FIT — Fast and fit aren't mutually exclusive, which is why the progressive geometry of the Enduro has been designed for going up and down. To start, seat tubes and stack heights don’t grow massively between sizes, meaning you can now pick a frame size based on both your height and your riding style. Pair this new sizing style with a slacker head angle, longer reach, and steeper seat tube across the line, and you’re left with a quicker and more capable steed, no matter the size.

    Product Specifications

    frame

    FACT 11m carbon chassis and rear-end, S-Sizing Enduro Race Geometry, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 170mm of travel

    rear shock

    FOX FLOAT X2 Performance, Rx Trail Tune, 2-position adjustment, low speed rebound and compression adjust, Trunnion mount, 205x60mm

    seat binder

    Alloy, 38.6mm

    category

    Mountain

    component geometry

    []

    experience

    Trail

    frame geometry

    [{"GEO_SET_NAME":"Enduro 29 (AMTN FSR I1.1 I1.3 ) II","GEO_SET_ID":"14630","MODEL_YEAR":"2024","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Stack (low BB)","MEASUREMENT_GEO_CODE":"100641","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"616","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"620","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"629","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"638","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach (low BB)","MEASUREMENT_GEO_CODE":"100642","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"437","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"464","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"487","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"511","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Length","MEASUREMENT_GEO_CODE":"140152","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"100","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"110","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle (low BB)","MEASUREMENT_GEO_CODE":"100644","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"63.9","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"63.9","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"63.9","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"63.9","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle","MEASUREMENT_GEO_CODE":"143686","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"64.3","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"64.3","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"64.3","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"64.3","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height (low BB)","MEASUREMENT_GEO_CODE":"196631","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"347","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"347","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"347","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"347","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height","MEASUREMENT_GEO_CODE":"171029","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"354","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"354","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"354","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"354","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Drop (low BB)","MEASUREMENT_GEO_CODE":"100648","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"28","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"28","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"28","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"28","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Drop","MEASUREMENT_GEO_CODE":"151451","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"21","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"21","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"21","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"21","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail (low BB)","MEASUREMENT_GEO_CODE":"100650","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length (full)","MEASUREMENT_GEO_CODE":"178217","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"581","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"581","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"581","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"581","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"46","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front-Center (low BB)","MEASUREMENT_GEO_CODE":"100653","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"833","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"862","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"777","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"806","GEO_DISPLAY_ORDER":"1"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length","MEASUREMENT_GEO_CODE":"143687","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"442","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"442","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"442","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"442","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"1217","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"1246","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"1274","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"1302","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Length","MEASUREMENT_GEO_CODE":"178224","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"400","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"440","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"465","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle","MEASUREMENT_GEO_CODE":"139159","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"16","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top Tube Length (Horizontal)","MEASUREMENT_GEO_CODE":"141572","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"17","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"591","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"619","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"644","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"670","GEO_DISPLAY_ORDER":"3"}]}]}]

    gender

    Men|Women

    group

    Framesets

    line

    BIKES

    material

    Carbon

    model level

    Base

    model year

    2022

    product family

    Enduro

    shifting

    Mechanical

    suspension

    Front & Rear

    wheel size

    29"

    base color

    Purple

    color

    Satin Blue Onyx / Black

    size

    S2

    2022 Specialized Enduro Frameset

    Bike/Frame Size S2 S3 S4 S5
    Stack (low BB) 616 mm 620 mm 629 mm 638 mm
    Reach (low BB) 437 mm 464 mm 487 mm 511 mm
    Fork Length (full) 581 mm 581 mm 581 mm 581 mm
    Fork Rake/Offset 46 mm 46 mm 46 mm 46 mm
    Front-Center (low BB) 777 mm 806 mm 833 mm 862 mm
    Chain-Stay Length 442 mm 442 mm 442 mm 442 mm
    Wheelbase 1217 mm 1246 mm 1274 mm 1302 mm
    Seat-Tube Length 400 mm 420 mm 440 mm 465 mm
    Seat-Tube Angle 76° 76° 76° 76°
    Top Tube Length (Horizontal) 591 mm 619 mm 644 mm 670 mm
    Head-Tube Length 95 mm 100 mm 110 mm 120 mm
    Head-Tube Angle (low BB) 63.9° 63.9° 63.9° 63.9°
    Head-Tube Angle 64.3° 64.3° 64.3° 64.3°
    B-B Height (low BB) 347 mm 347 mm 347 mm 347 mm
    B-B Height 354 mm 354 mm 354 mm 354 mm
    B-B Drop (low BB) 28 mm 28 mm 28 mm 28 mm
    B-B Drop 21 mm 21 mm 21 mm 21 mm
    Trail (low BB) 132 mm 132 mm 132 mm 132 mm

    Size Guide: 2022 Specialized Enduro Frameset

    Size guide for 2022 Specialized Enduro Frameset
