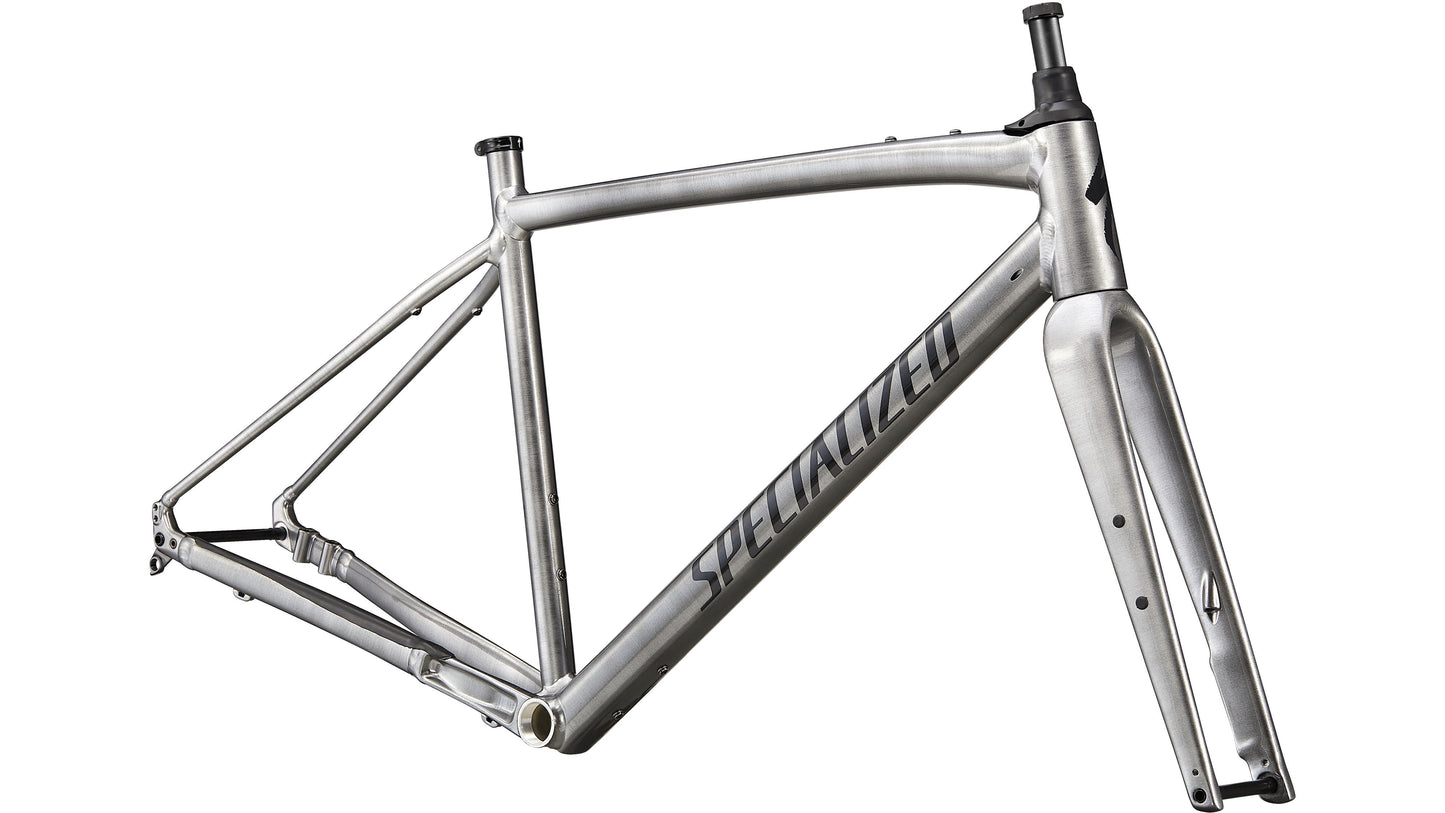

Specialized Diverge E5 Evo Frameset

Specialized Diverge E5 Evo Frameset

SKU:75422-7002

Regular price $999.97
Regular price $1,699.99 USD Sale price $999.97
Sale
Color
Size
View full details

    Specialized Diverge E5 Evo Frameset Features

    This thing called 'gravel riding' is still evolving, still being defined. What's next? Hop on the new Diverge Expert EVO and you tell us. It's designed to get aggressive, to push the boundaries of what we thought was possible on a gravel bike. With flat bars and geometry even more progressive then the new drop bar Diverge you better hang onto your flannel. We've significantly increased the reach, slackened the head tube and lowered the bottom bracket, to put you 'in' the bike for a super planted feeling. From sending technical single track to ripping flowing fire road descents, if you're looking for a partner to take your gravel riding to new levels, nothing's faster, more fun, or rowdier than the Diverge EVO.

    At a Glance

    • Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge EVO becomes a light, lively and versatile bike ready to tackle the most technical gravel and dirt as aggressively as you could wish.
    • Speed, control and confidence - Future Shock 2.0 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 2.0 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
    • With the Diverge EVO, we took our new progressive gravel geometry to new levels. We’ve lengthened the frame 30mm over a drop bar Diverge (Size Medium), lowered the bottom bracket and slackened the head tube. This gives the Diverge EVO more confidence over technical terrain while keeping the cockpit comfortable with flat bars. It also allows for a short stem to make all that stability feel nimble and quick at the bars.

    Product Specifications

    Fork

    Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

    Frame

    Specialized Diverge E5 Premium Aluminum, Future Shock suspension, 1x specific EVO geometry, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

    Seat Binder

    Specialized Alloy, 30.8mm

    Specialized Diverge E5 Evo Frameset

    Bike/Frame Size S M L
    Stack 580 mm 607 mm 632 mm
    Reach 395 mm 420 mm 440 mm
    Chainstay Length 432 mm 432 mm 432 mm
    Wheelbase 1057 mm 1092 mm 1121 mm
    Top Tube Length, Horizontal 456 mm 600 mm 627 mm
    Bike Standover Height 732 mm 754 mm 774 mm
    Seat Tube Length 470 mm 500 mm 530 mm
    Seat Tube Angle 73.5° 73.5° 73.5°
    Head Tube Length 104 mm 133 mm 159 mm
    Head Tube Angle 70° 70° 70°
    BB Height 265 mm 265 mm 265 mm
    BB Drop 85 mm 85 mm 85 mm
    Trail 69 mm 69 mm 69 mm
    Fork Length, Full 390 mm 390 mm 390 mm
    Fork Rake/Offset 55 mm 55 mm 55 mm
    Front Center 639 mm 674 mm 703 mm

    Size Guide: Specialized Diverge E5 Evo Frameset

    Size guide for Specialized Diverge E5 Evo Frameset
