2023 Specialized Diverge E5 EVO Frameset Features
This thing called 'gravel riding' is still evolving, still being defined. What's next? Hop on the new Diverge Expert EVO and you tell us. It's designed to get aggressive, to push the boundaries of what we thought was possible on a gravel bike. With flat bars and geometry even more progressive then the new drop bar Diverge you better hang onto your flannel. We've significantly increased the reach, slackened the head tube and lowered the bottom bracket, to put you 'in' the bike for a super planted feeling. From sending technical single track to ripping flowing fire road descents, if you're looking for a partner to take your gravel riding to new levels, nothing's faster, more fun, or rowdier than the Diverge EVO.
At a Glance
- Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge EVO becomes a light, lively and versatile bike ready to tackle the most technical gravel and dirt as aggressively as you could wish.
- Speed, control and confidence - Future Shock 2.0 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 2.0 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
- With the Diverge EVO, we took our new progressive gravel geometry to new levels. We’ve lengthened the frame 30mm over a drop bar Diverge (Size Medium), lowered the bottom bracket and slackened the head tube. This gives the Diverge EVO more confidence over technical terrain while keeping the cockpit comfortable with flat bars. It also allows for a short stem to make all that stability feel nimble and quick at the bars.
Product Specifications
Product Specifications
fork |
|
frame |
|
seat binder |
|
category |
|
component geometry |
|
frame geometry |
|
gender |
|
group |
|
line |
|
material |
|
model level |
|
model year |
|
product family |
|
shifting |
|
suspension |
|
wheel size |
|
base color |
|
color |
|
size |

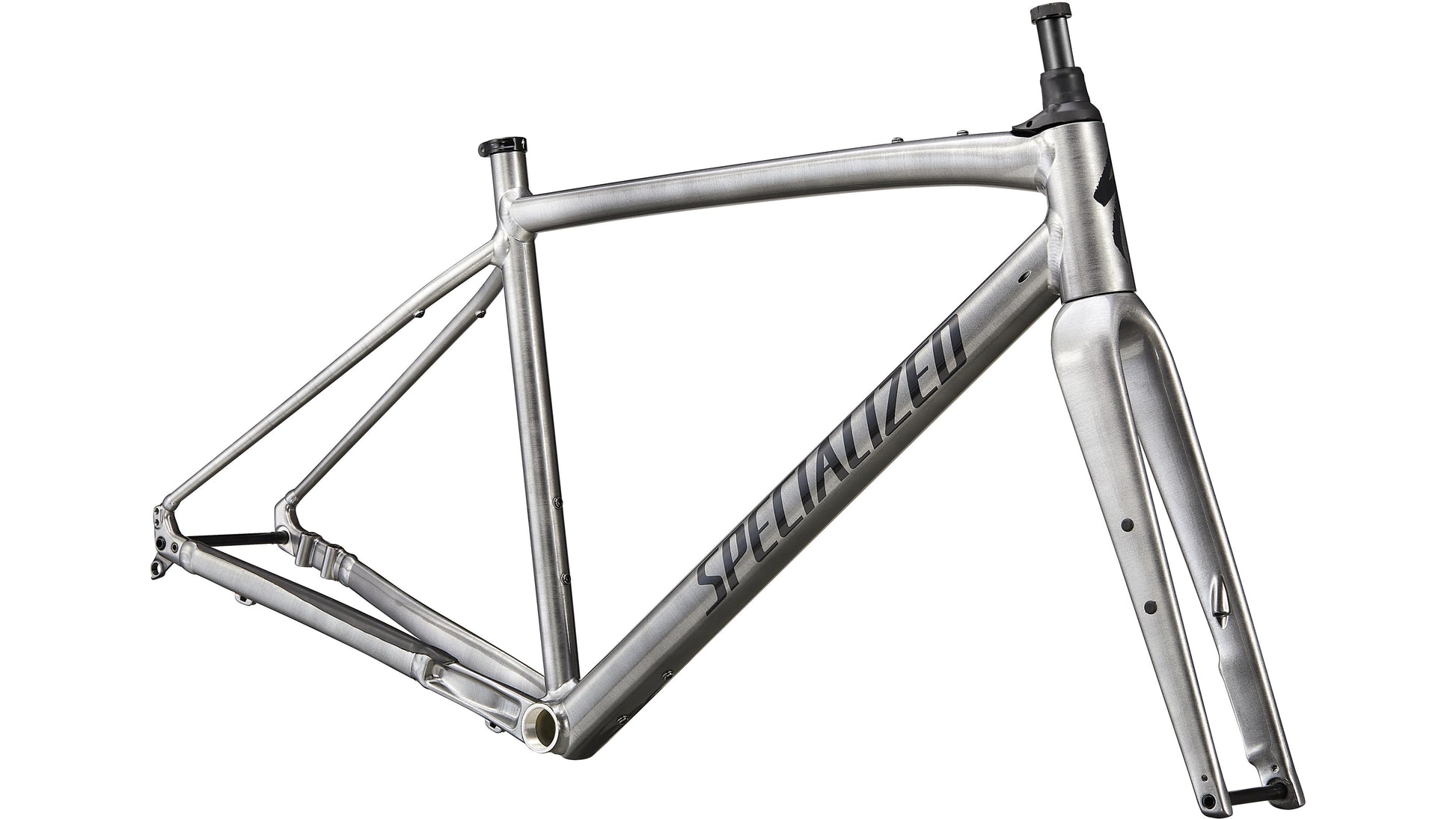

2023 Specialized Diverge E5 EVO Frameset
| Bike/Frame Size | S | M | L |
|---|---|---|---|
| Stack | 580 mm | 607 mm | 632 mm |
| Reach | 395 mm | 420 mm | 440 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1057 mm | 1092 mm | 1121 mm |
| Top Tube Length, Horizontal | 456 mm | 600 mm | 627 mm |
| Bike Standover Height | 732 mm | 754 mm | 774 mm |
| Seat Tube Length | 470 mm | 500 mm | 530 mm |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° |
| Head Tube Length | 104 mm | 133 mm | 159 mm |
| Head Tube Angle | 70° | 70° | 70° |
| BB Height | 265 mm | 265 mm | 265 mm |
| BB Drop | 85 mm | 85 mm | 85 mm |
| Trail | 69 mm | 69 mm | 69 mm |
| Fork Length, Full | 390 mm | 390 mm | 390 mm |
| Fork Rake/Offset | 55 mm | 55 mm | 55 mm |
| Front Center | 639 mm | 674 mm | 703 mm |
Size Guide: 2023 Specialized Diverge E5 EVO Frameset
