SPECIALIZED

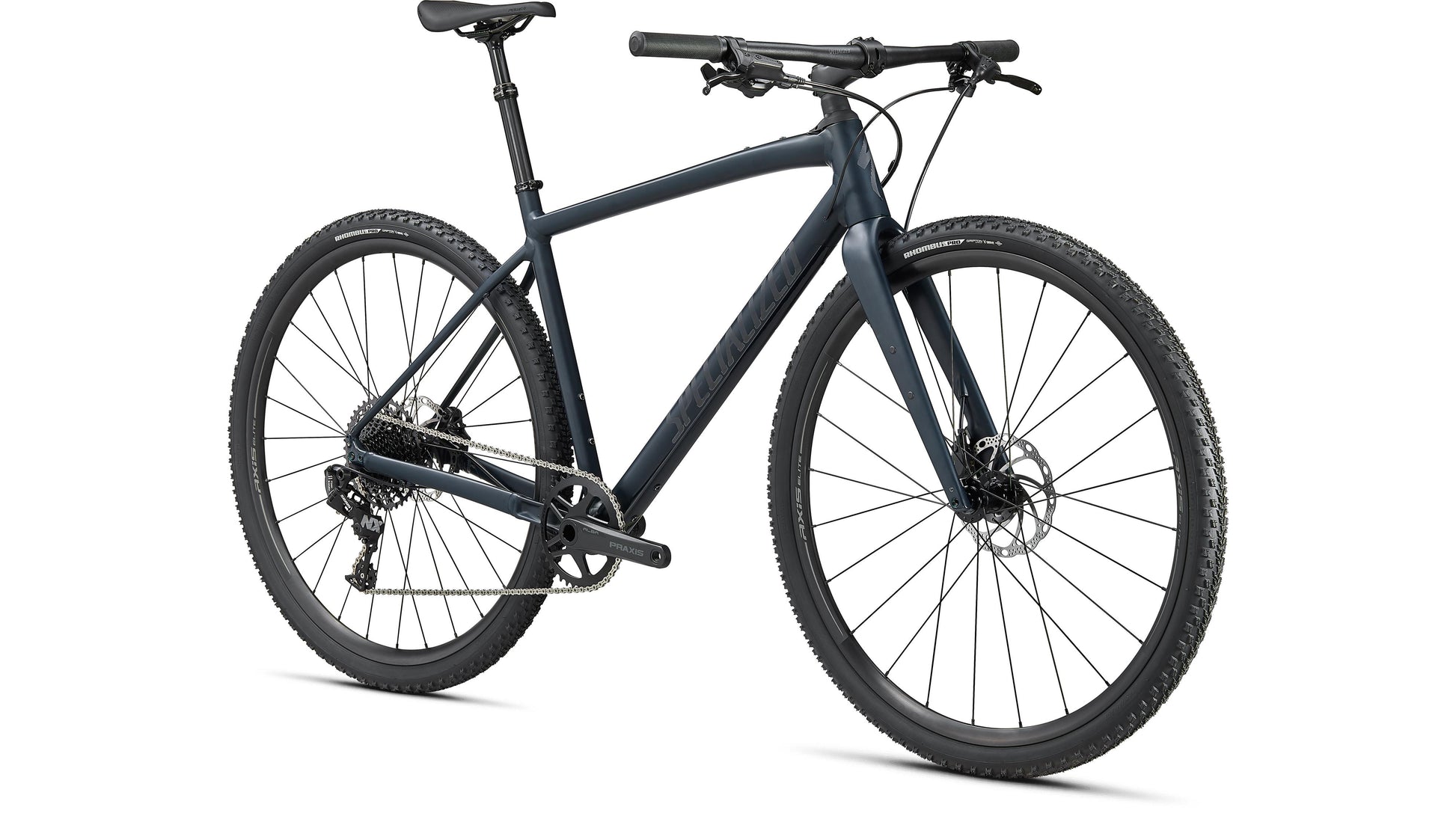

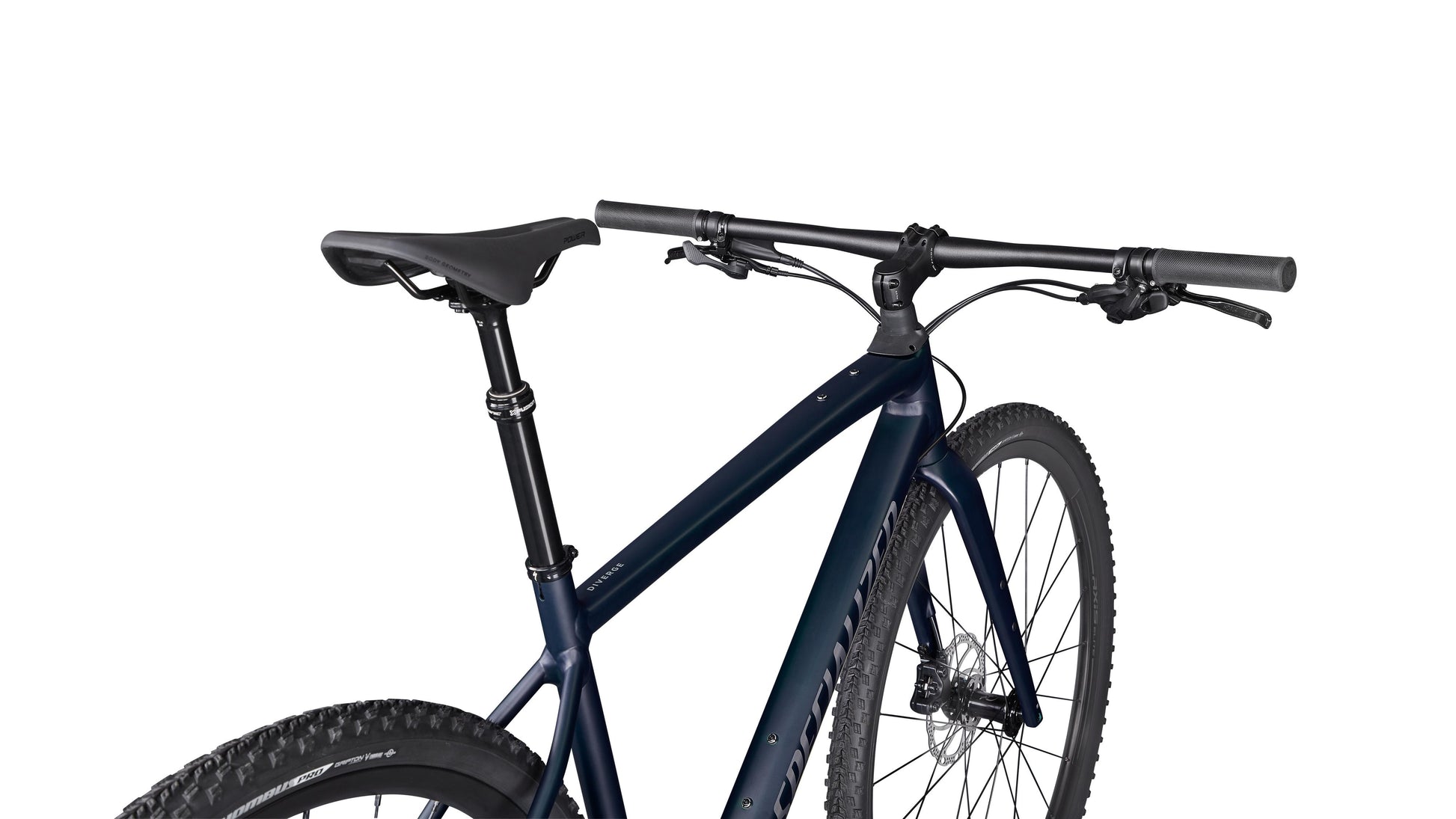

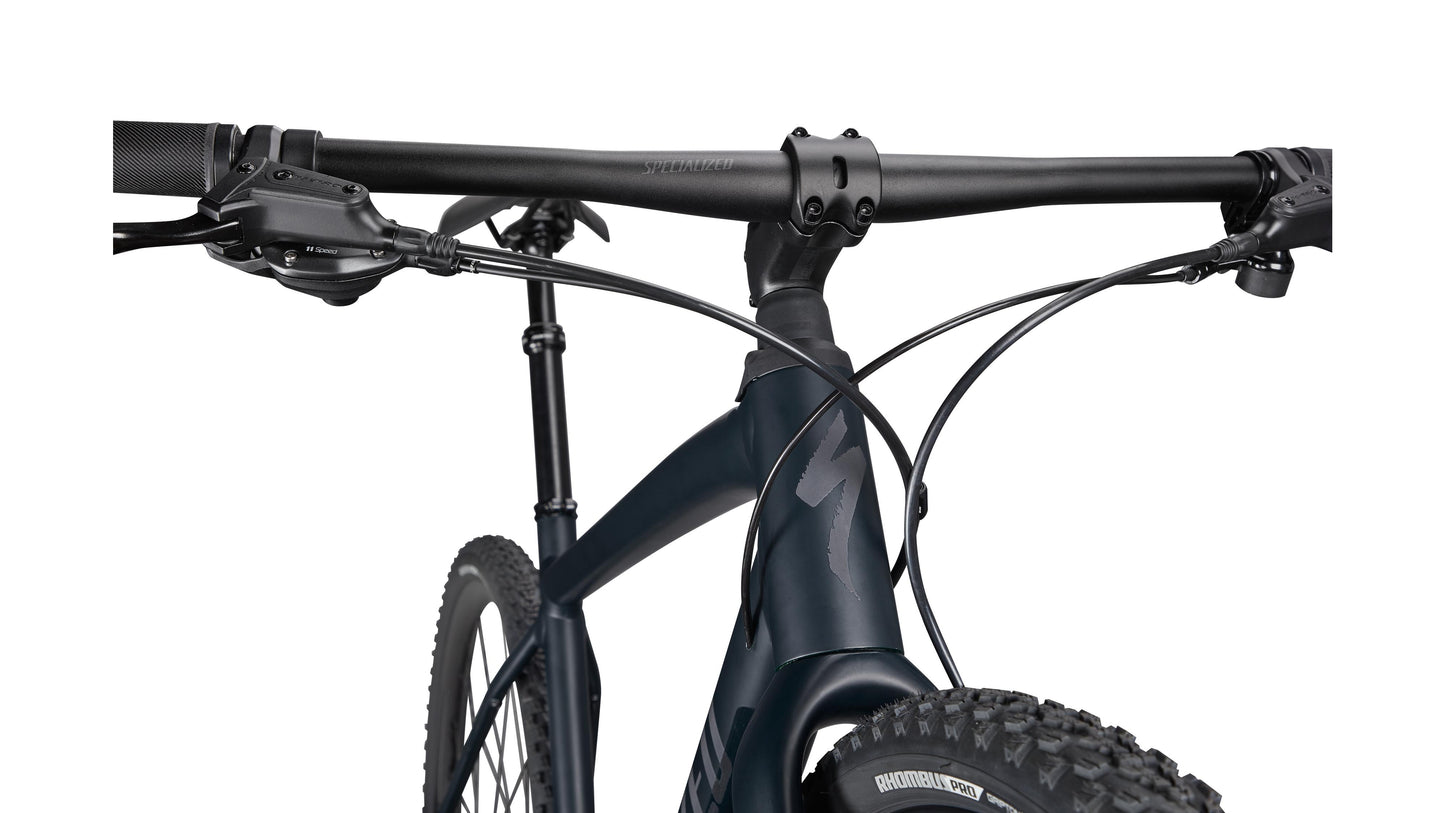

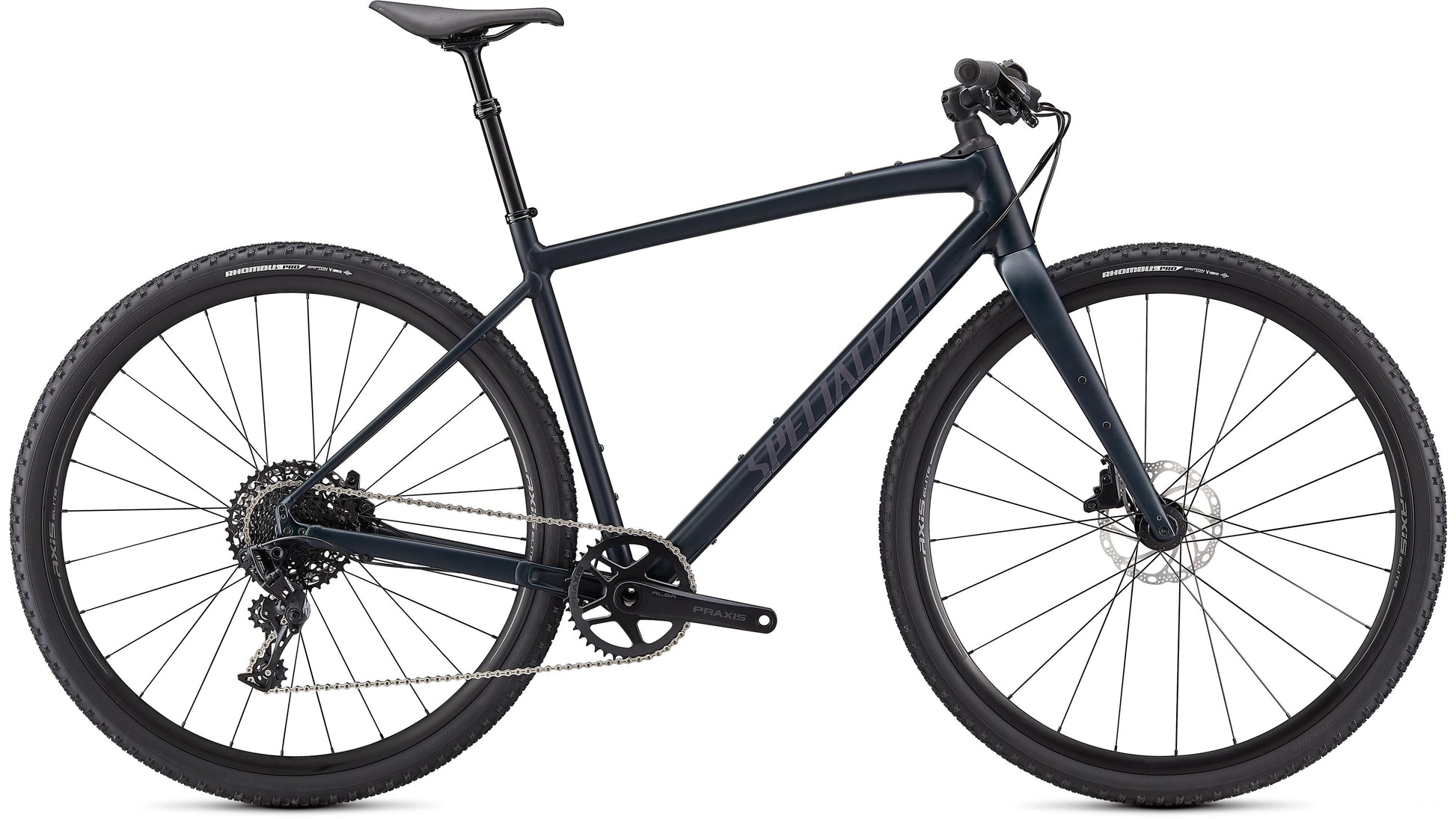

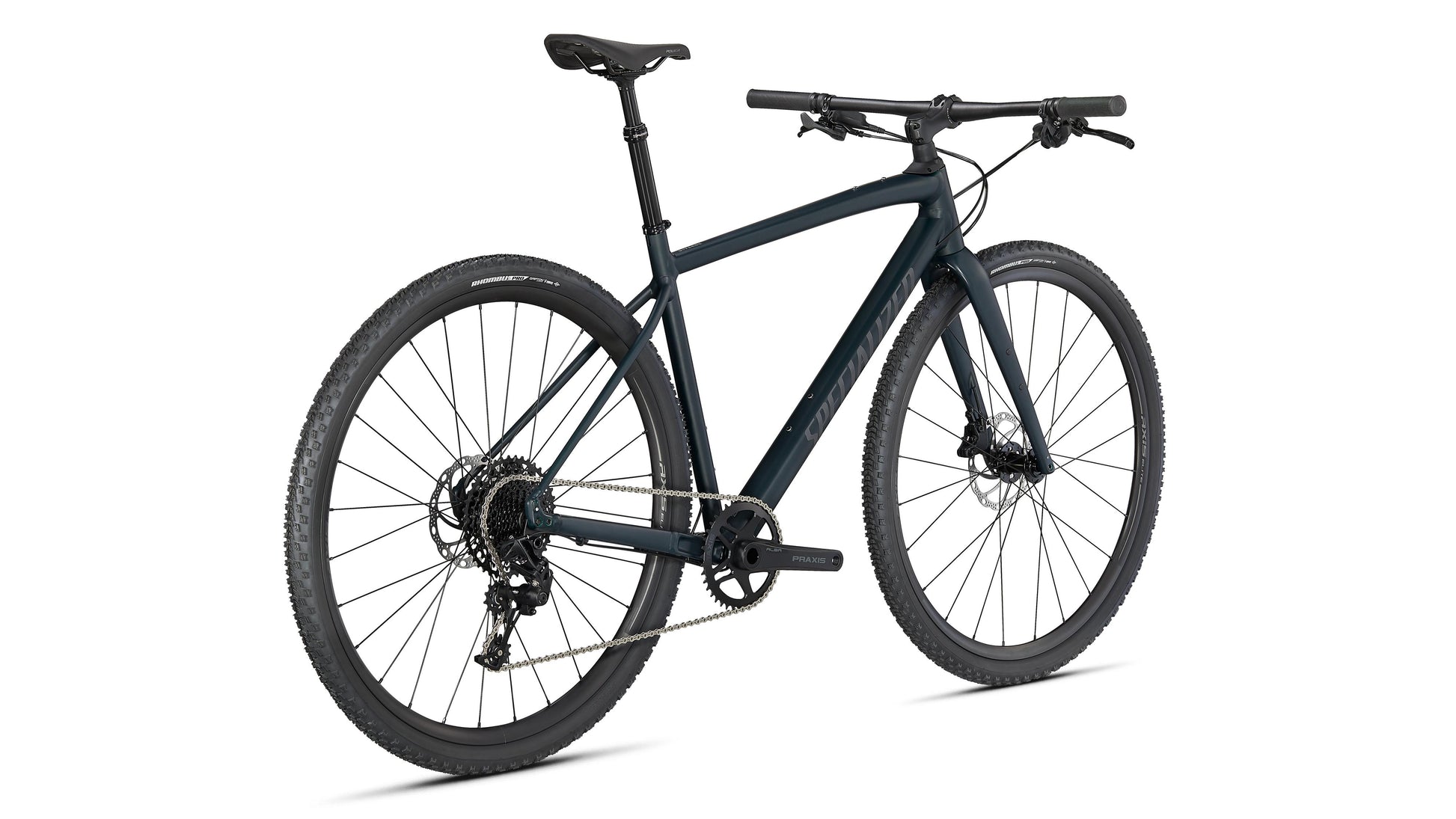

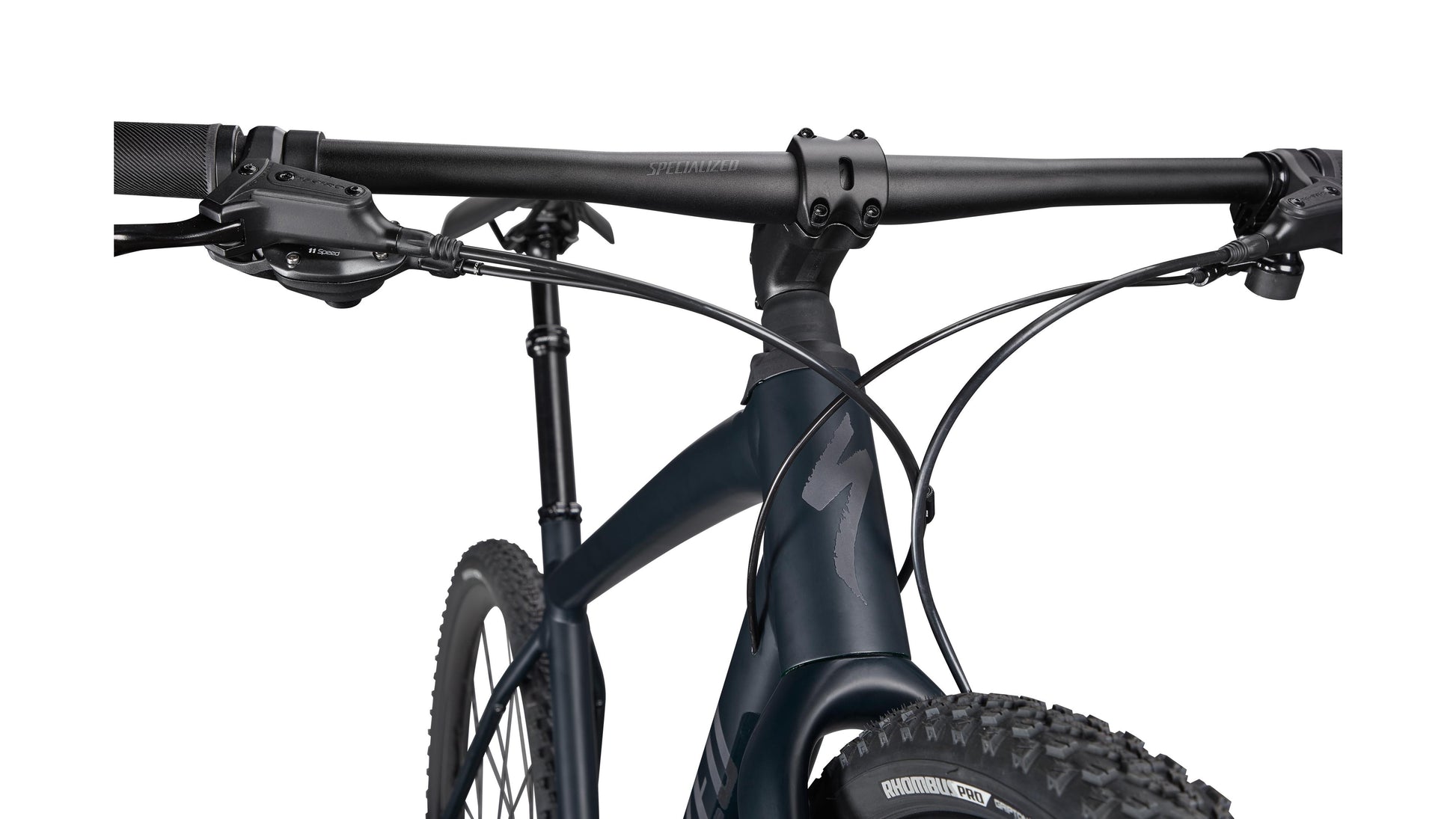

Specialized Diverge E5 Comp Evo

Specialized Diverge E5 Comp Evo

SKU:96220-5602

Regular price $1,700.00
Regular price $1,700.00 USD Sale price $1,700.00
Sold out
Color
Size
View full details

    Specialized Diverge E5 Comp Evo Features

    This thing called 'gravel riding' is still evolving, still being defined. What's next? Hop on the new Diverge Expert EVO and you tell us. It's designed to get aggressive, to push the boundaries of what we thought was possible on a gravel bike. With flat bars and geometry even more progressive then the new drop bar Diverge you better hang onto your flannel. We've significantly increased the reach, slackened the head tube and lowered the bottom bracket, to put you 'in' the bike for a super planted feeling. From sending technical single track to ripping flowing fire road descents, if you're looking for a partner to take your gravel riding to new levels, nothing's faster, more fun, or rowdier than the Diverge EVO.

    The Diverge Comp EVO's premium E5 Aluminum frame is spec'd with our Future Shock 1.5, specifically tuned for technical gravel riding. The bike's SRAM NX 1x11 group, Tektro brakes, and X-Fusion Manic dropper post add to the Diverge Comp EVO's boundary pushing abilities. Our new Rhombus 42mm gravel tire, the most aggressive gravel tread we make, and a set of Axis Elite alloy wheels round out the Diverge Comp EVO's personality as a capable and rowdy partner.

    At a Glance

    • Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge EVO becomes a light, lively and versatile bike ready to tackle the most technical gravel and dirt as aggressively as you could wish.
    • Speed, control and confidence - Future Shock 1.5 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 1.5 is progressively tuned to keep you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
    • With the Diverge EVO, we took our new progressive gravel geometry to new levels. We’ve lengthened the frame 30mm over a drop bar Diverge (Size Medium), lowered the bottom bracket and slackened the head tube. This gives the Diverge EVO more confidence over technical terrain while keeping the cockpit comfortable with flat bars. It also allows for a short stem to make all that stability feel nimble and quick at the bars.
    • Nothing unlocks a bike’s capability like tire clearance, so we gave the Diverge EVO a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a machined alloy beam behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.

    Component Specifications

    Frame Specialized Diverge E5 Premium Aluminum, Future Shock suspension, 1x specific EVO geometry, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
    Seat Binder Integrated w/ frame
    Fork Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
    Shift Levers SRAM NX, 11-speed
    Rear Derailleur SRAM NX, 11-speed
    Cassette SRAM PG-1130, 11-speed, 11-42t
    Chain KMC X11 Extra Lightweight, 11-speed
    Crankset Praxis Alba M30, 1x direct-mount
    Chain Rings 40T
    Bottom Bracket Praxis 68mm BSA
    Front Tire Rhombus Pro, 2Bliss Ready, 700x42mm
    Rear Tire Rhombus Pro, 2Bliss Ready, 700x42mm
    Inner Tubes Standard 40mm PV 700x32-50
    Front Brake Tektro HD-R290, hydraulic disc, 160mm
    Rear Brake Tektro HD-R290, hydraulic disc, 160mm
    Stem Future Stem, Comp
    Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
    Grips Specialized Trail Grips
    Saddle Body Geometry Power Sport, steel rails
    Seatpost X-Fusion Manic Dropper, 50mm travel

    Specialized Diverge E5 Comp Evo

    Bike/Frame Size S M L
    Stack 580 mm 607 mm 632 mm
    Reach 395 mm 420 mm 440 mm
    Chainstay Length 432 mm 432 mm 432 mm
    Wheelbase 1057 mm 1092 mm 1121 mm
    Top Tube Length, Horizontal 456 mm 600 mm 627 mm
    Bike Standover Height 732 mm 754 mm 774 mm
    Seat Tube Length 470 mm 500 mm 530 mm
    Seat Tube Angle 73.5° 73.5° 73.5°
    Head Tube Length 104 mm 133 mm 159 mm
    Head Tube Angle 70° 70° 70°
    BB Height 265 mm 265 mm 265 mm
    BB Drop 85 mm 85 mm 85 mm
    Trail 69 mm 69 mm 69 mm
    Fork Length, Full 390 mm 390 mm 390 mm
    Fork Rake/Offset 55 mm 55 mm 55 mm
    Front Center 639 mm 674 mm 703 mm

    Size Guide: Specialized Diverge E5 Comp Evo

    Size guide for Specialized Diverge E5 Comp Evo
