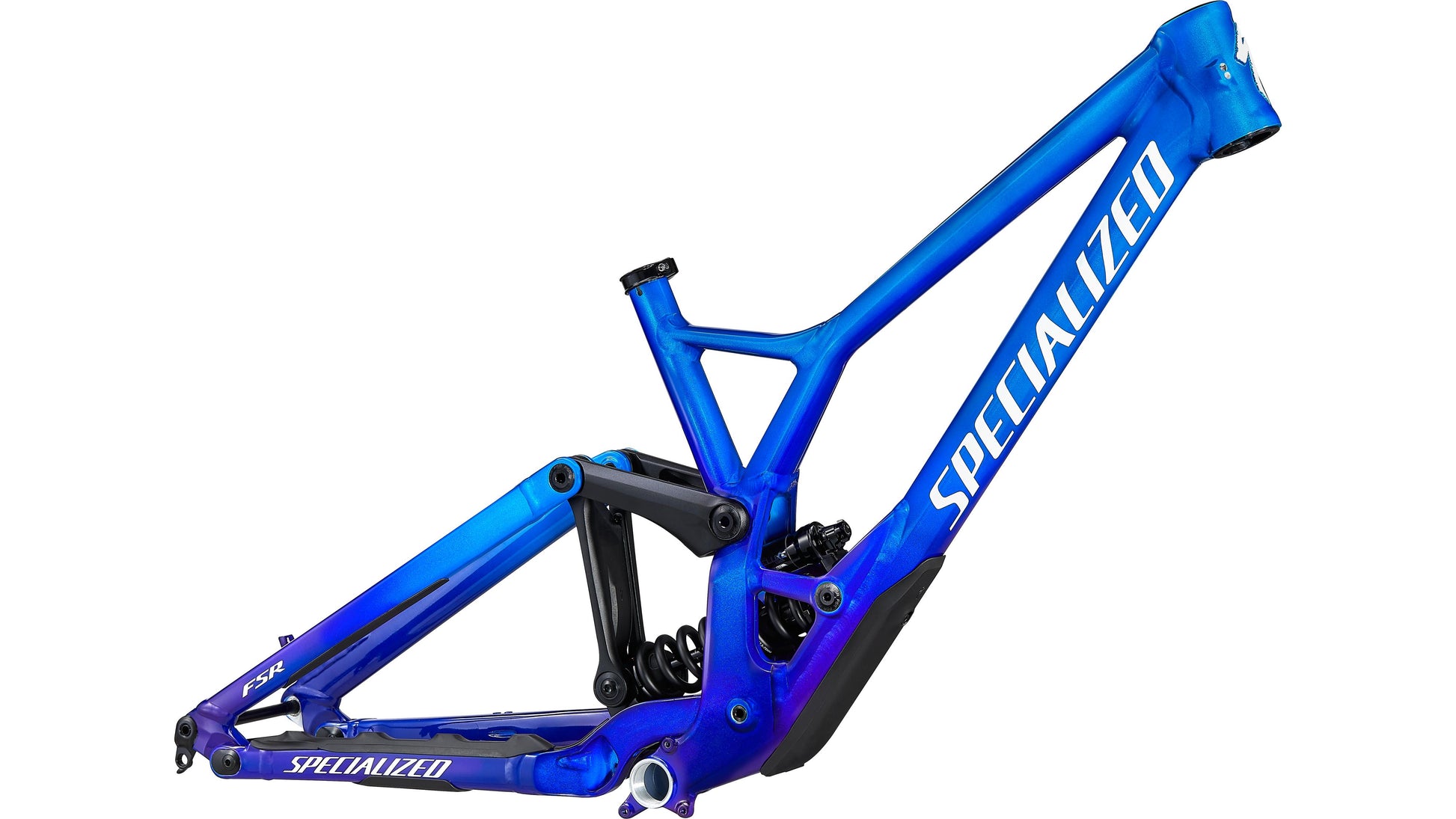

Specialized Demo Race Frame Features
The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed, traction and maneuverability while allowing for unmatched versatility.
RockShox’s proven Super Deluxe DH Coil gives you a head start on suspension perfection, just hang your time-tested race kit before you pick up the search where we left off and there’s a good chance you’ll find a few podiums along the way.
At a Glance
- The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaiining the ability to change your rear wheel size to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.
- The Rockshox Super Deluxe Ultimate DH coil shock may be heavy on adjectives, but it’s even heavier on performance, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.
Product Specifications
Product Specifications
Frame |
|
Rear Shock |
|
Saddle |
|
Seat Binder |
|
Seatpost |
Specialized Demo Race Frame
| Bike/Frame Size | S2 | S3 | S4 |
|---|---|---|---|
| Stack | 632 mm | 632 mm | 632 mm |
| Stack (29 mid) | 629 mm | 629 mm | 629 mm |
| B-B Height | 350 mm | 350 mm | 350 mm |
| B-B Height (29 mid) | 355 mm | 355 mm | 355 mm |
| B-B Height (27.5 mid) | 345 mm | 345 mm | 345 mm |
| B-B Drop | 25 mm | 25 mm | 25 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Trail (29 mid) | 127 mm | 127 mm | 127 mm |
| Trail (27.5 mid) | 132 mm | 132 mm | 132 mm |
| Fork Rake/Offset | 56 mm | 56 mm | 56 mm |
| Front-Center | 801 mm | 821 mm | 841 mm |
| Front-Center (29 mid) | 801 mm | 821 mm | 841 mm |
| Stack (27.5 mid) | 635 mm | 635 mm | 635 mm |
| Front-Center (27.5 mid) | 801 mm | 821 mm | 841 mm |
| Chain-Stay Length (29) | 448 mm | 448 mm | 448 mm |
| Chain-Stay Length (27.5) | 438 mm | 438 mm | 438 mm |
| Chain-Stay Length (mid) | 443 mm | 443 mm | 443 mm |
| Wheelbase (27.5) | 1239 mm | 1259 mm | 1279 mm |
| Wheelbase (29) | 1249 mm | 1269 mm | 1289 mm |
| Wheelbase (mid) | 1244 mm | 1264 mm | 1284 mm |
| Seat-Tube Length | 394 mm | 420 mm | 420 mm |
| Seat-Tube Angle | 78.2° | 76.8° | 76.8° |
| Seat-Tube Angle (29 mid) | 78.5° | 77.1° | 77.1° |
| Reach | 426 mm | 446 mm | 466 mm |
| Seat-Tube Angle (27.5 mid) | 77.8° | 76.4° | 76.4° |
| Reach (29 mid) | 430 mm | 450 mm | 470 mm |
| Reach (27.5 mid) | 423 mm | 443 mm | 463 mm |
| Head-Tube Length | 105 mm | 105 mm | 105 mm |
| Head-Tube Angle | 62.8° | 62.8° | 62.8° |
| Head-Tube Angle (29 mid) | 63.2° | 63.2° | 63.2° |
| Head-Tube Angle (27.5 mid) | 62.5° | 62.5° | 62.5° |
Size Guide: Specialized Demo Race Frame
