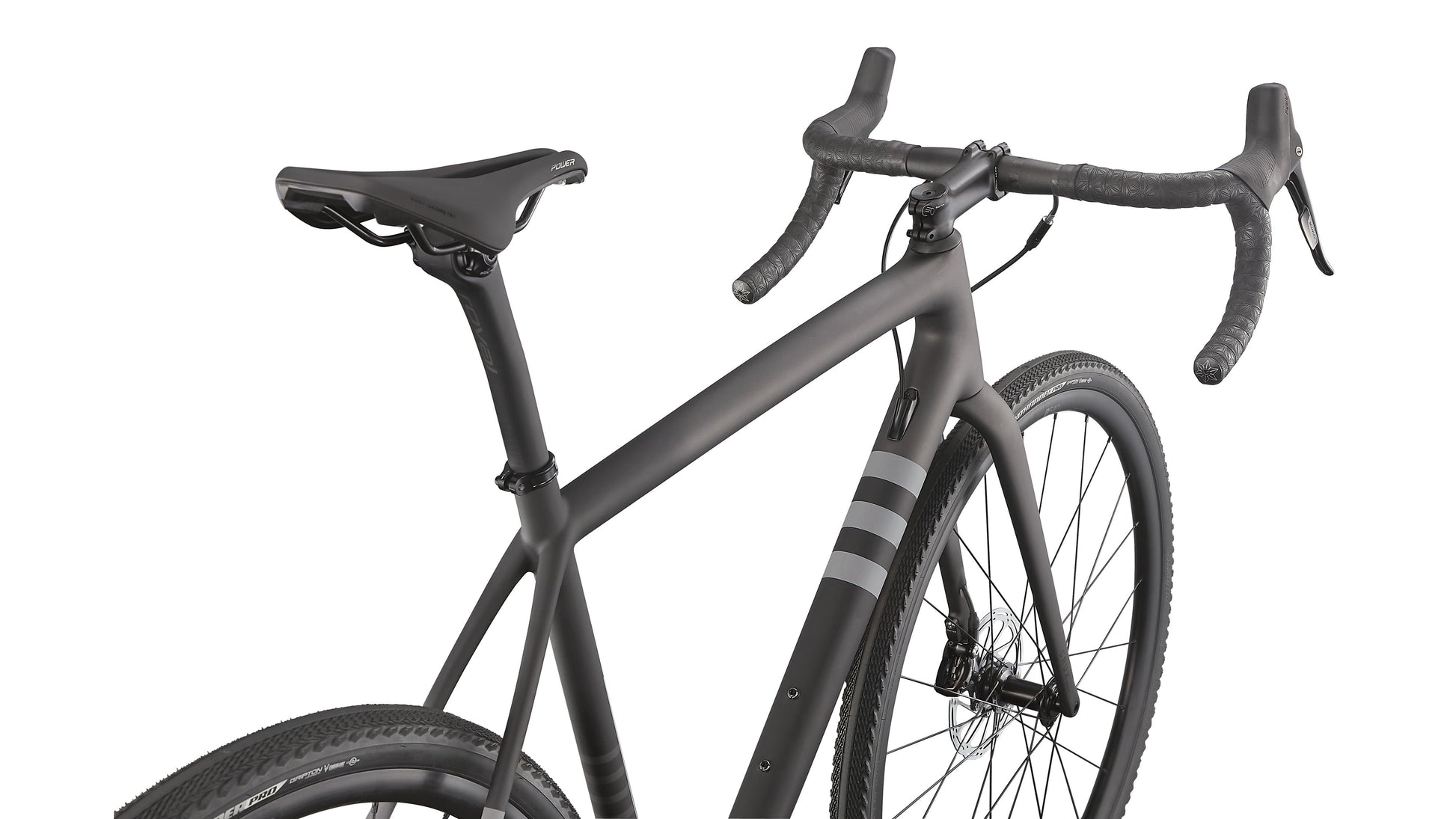

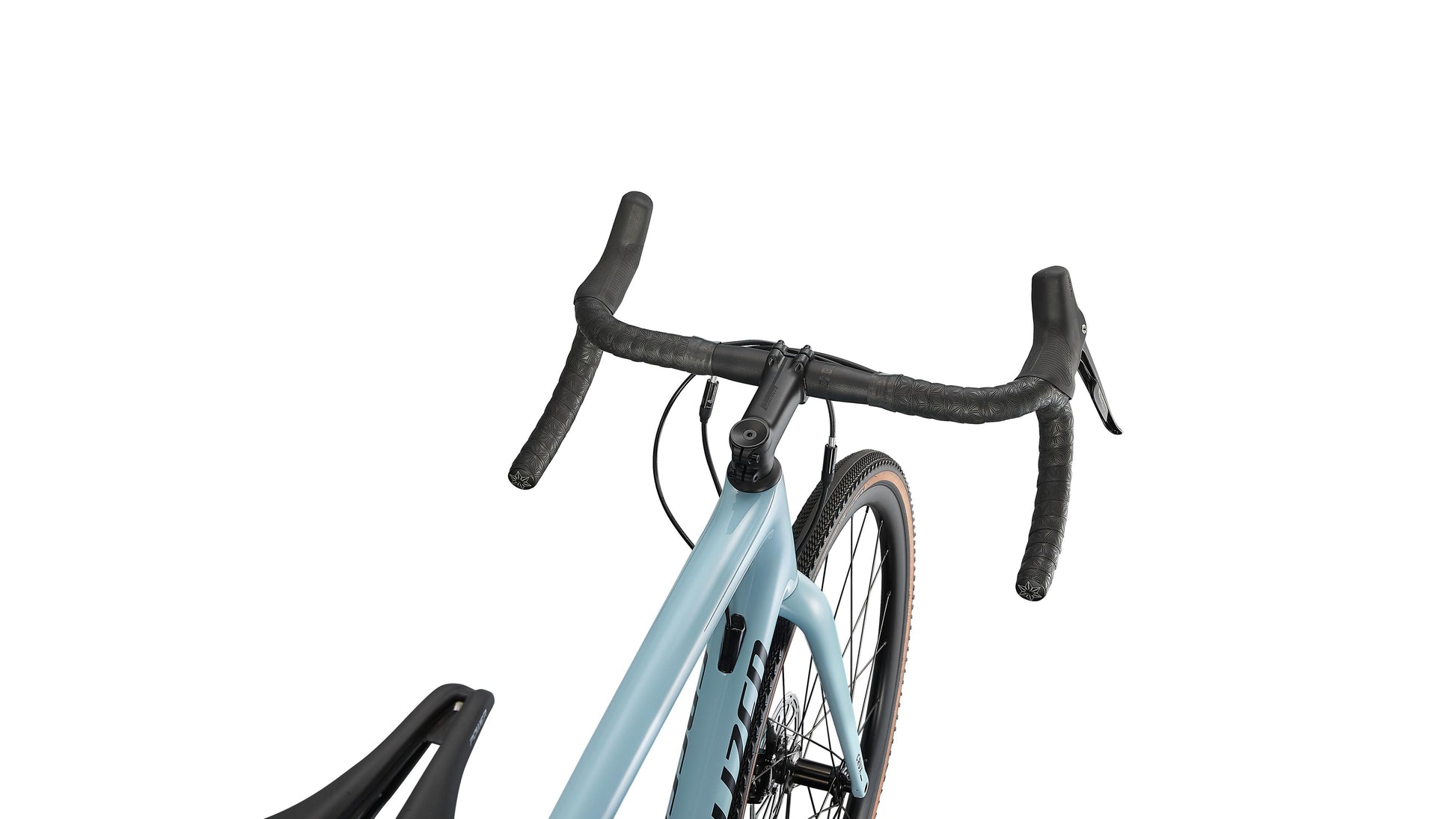

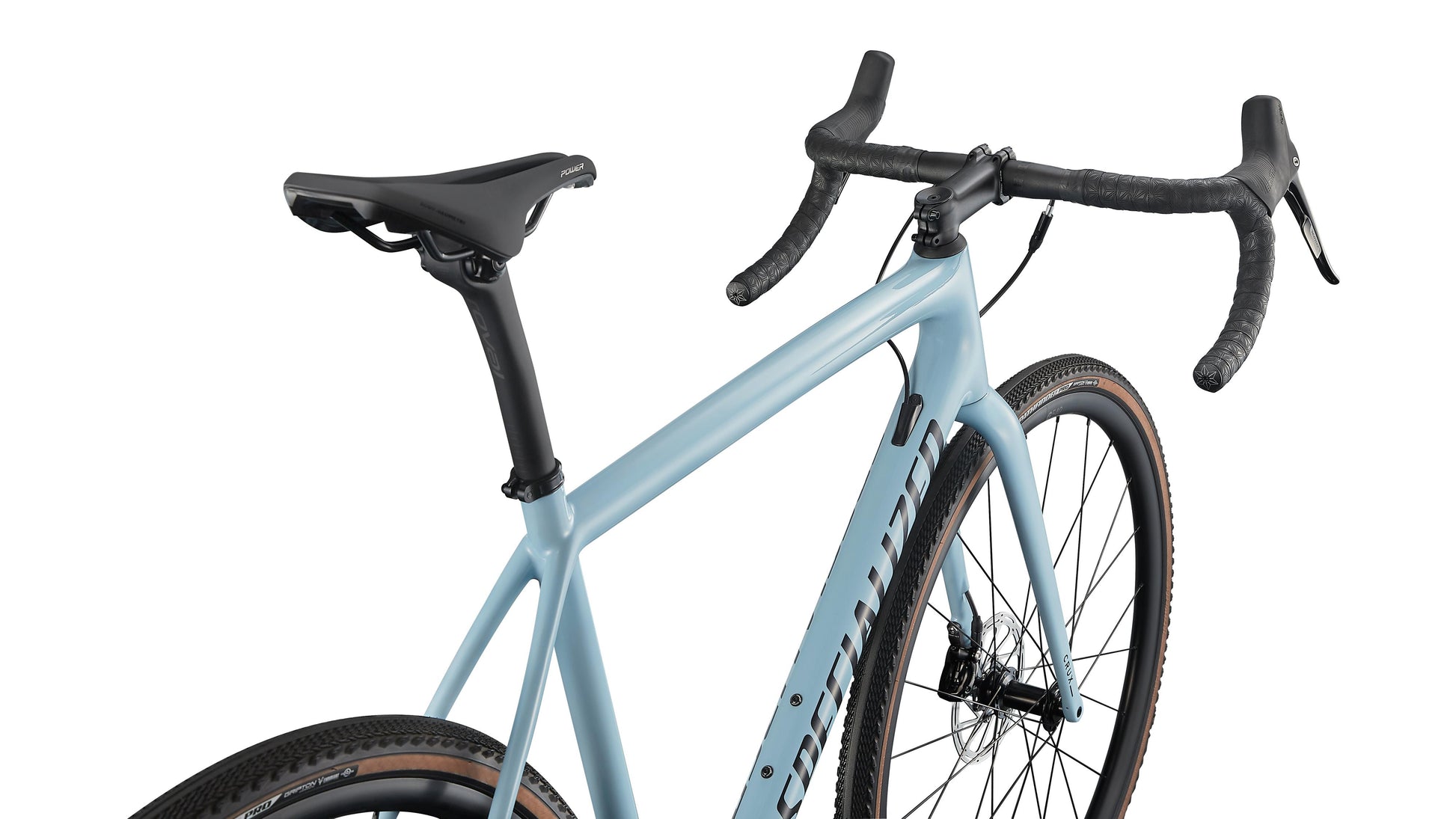

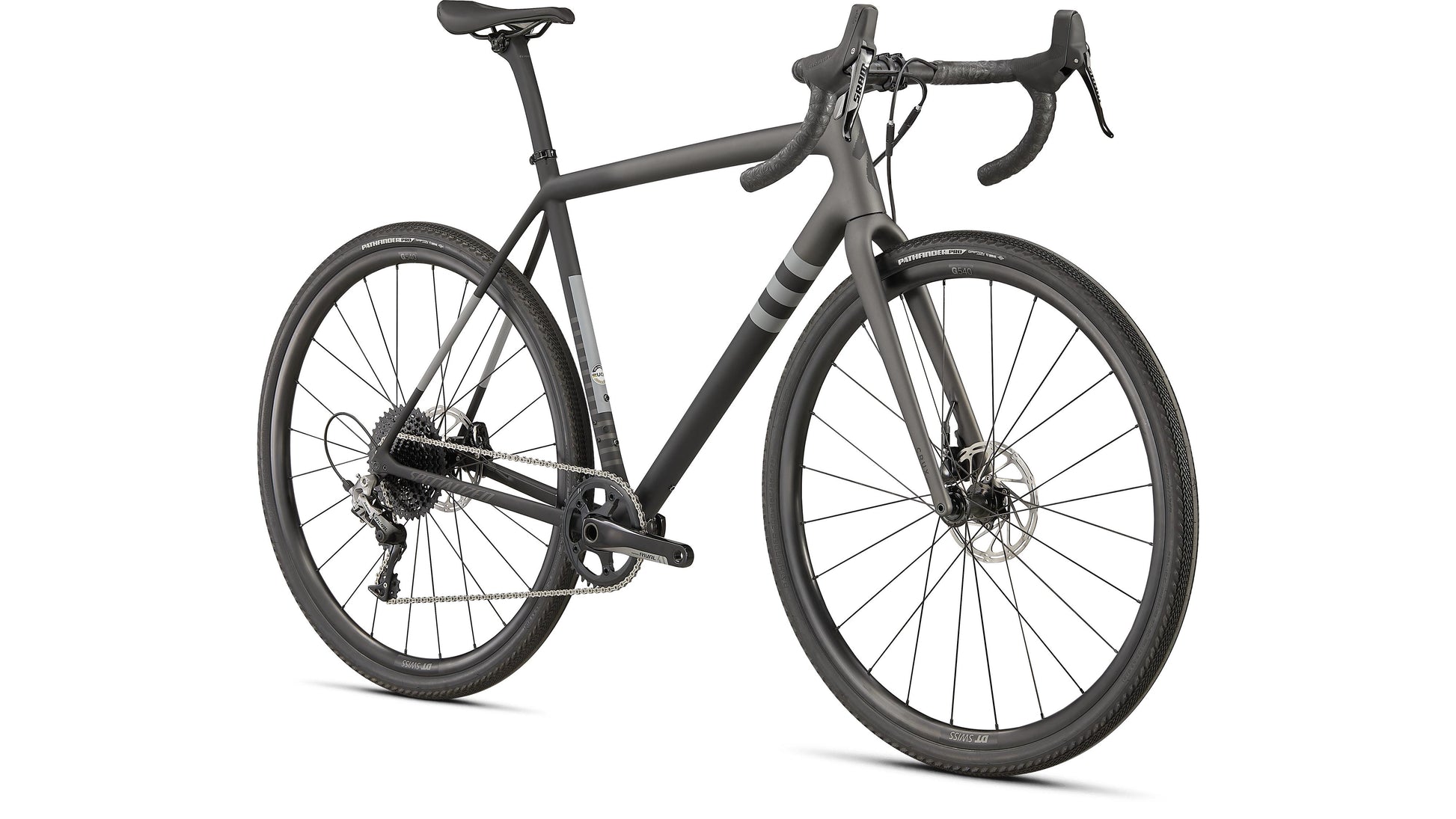

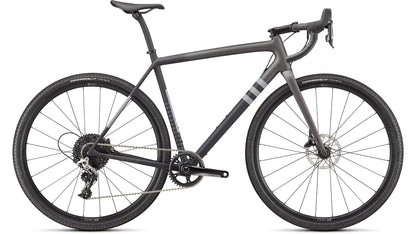

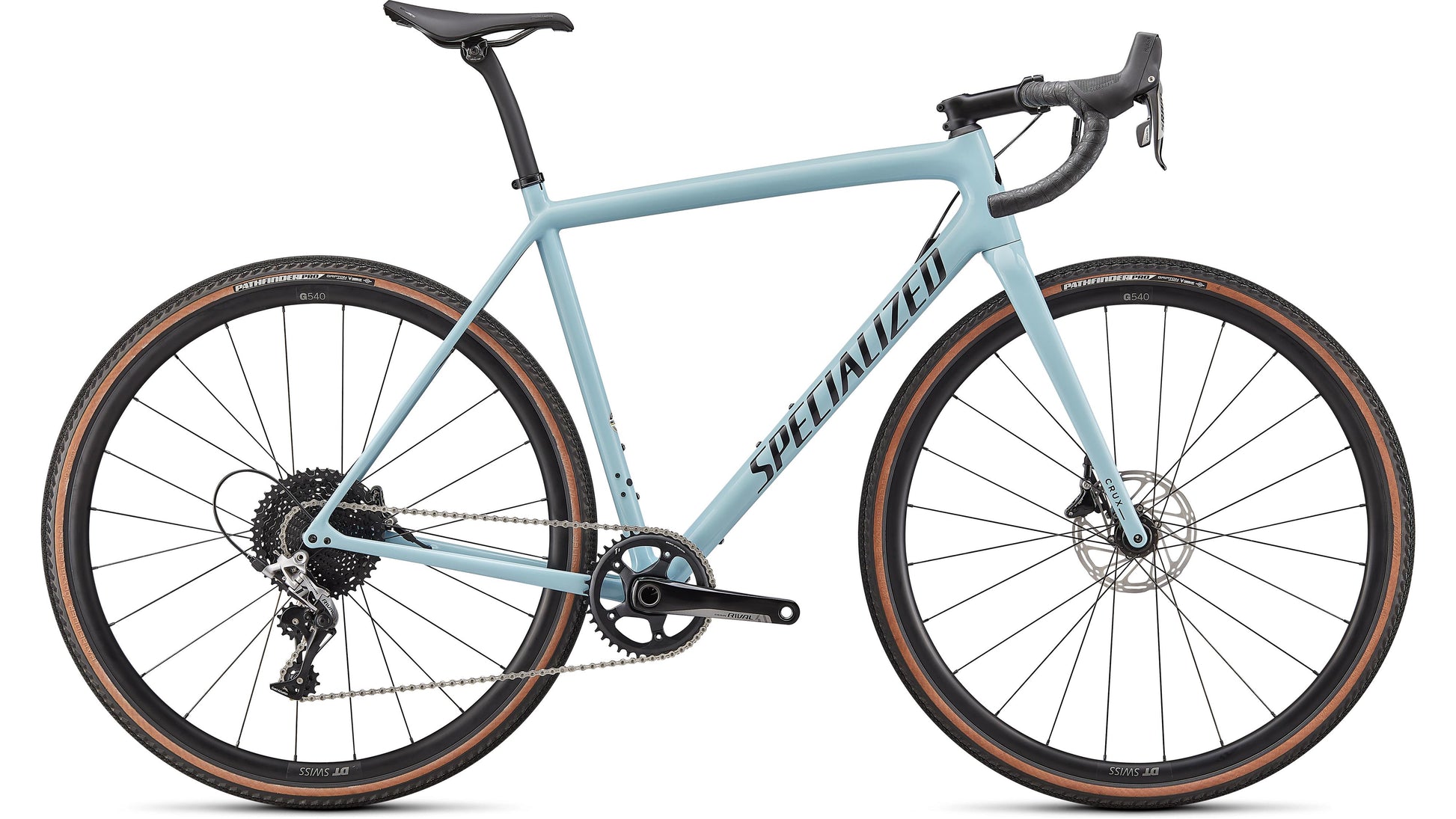

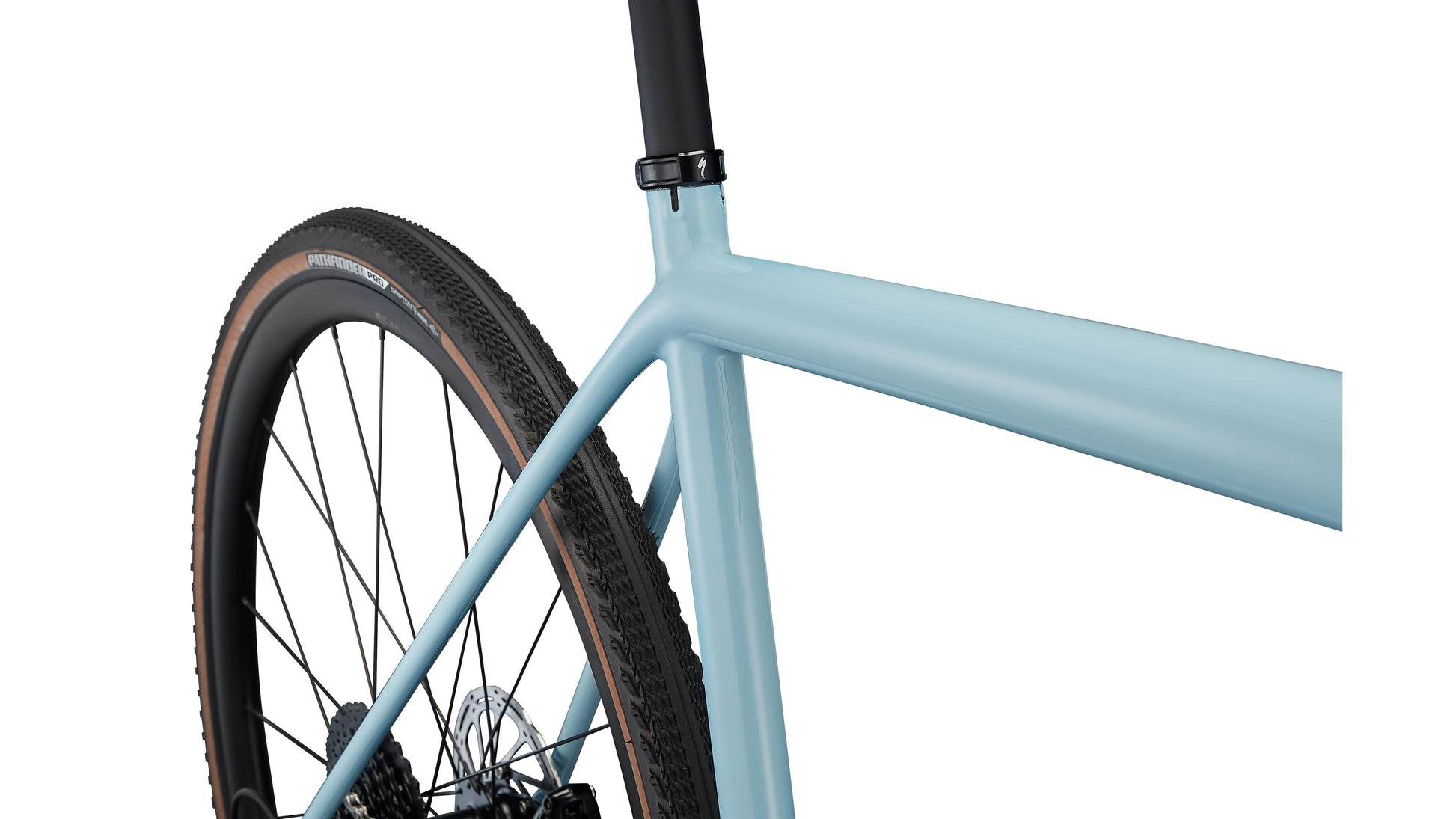

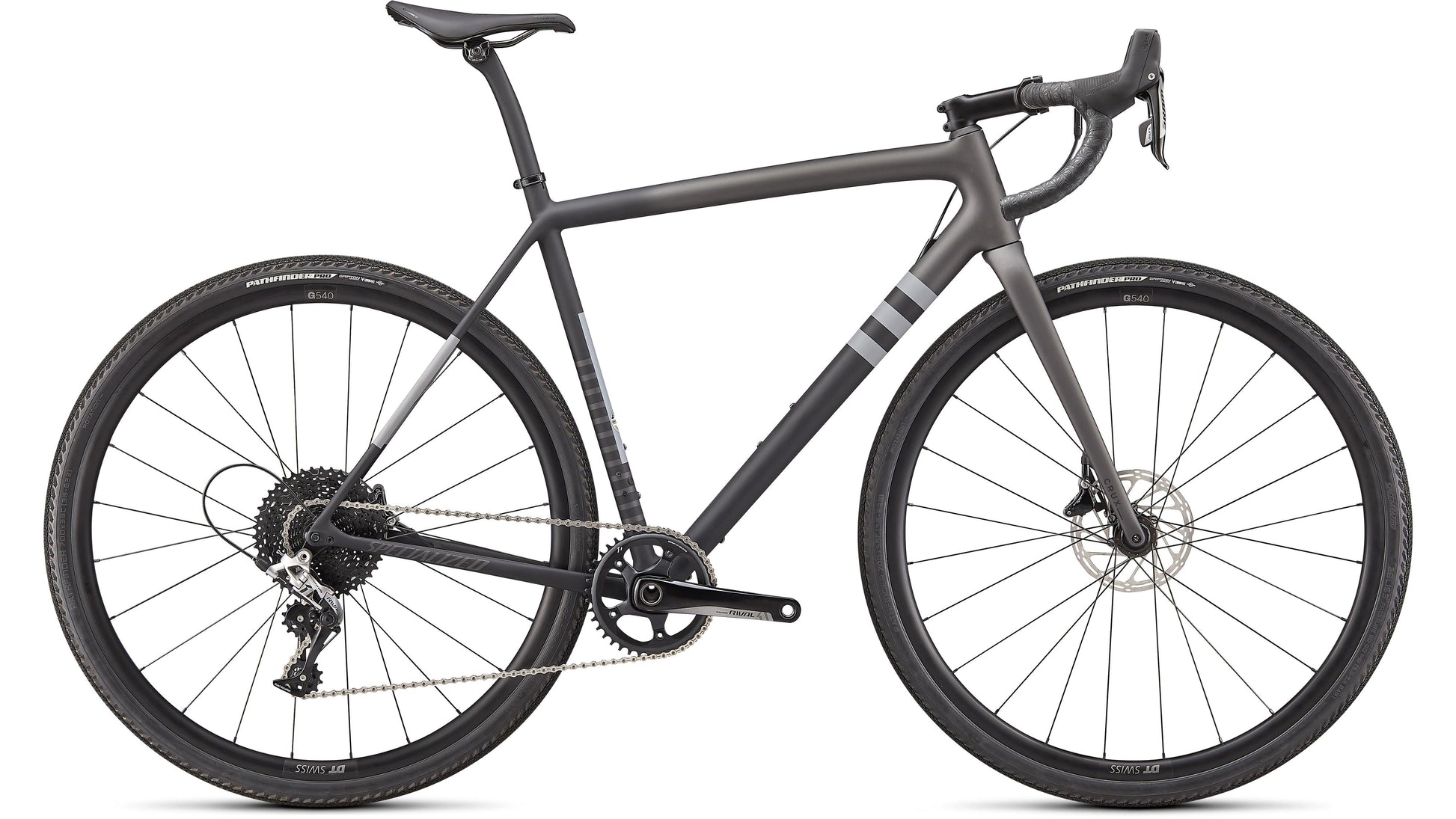

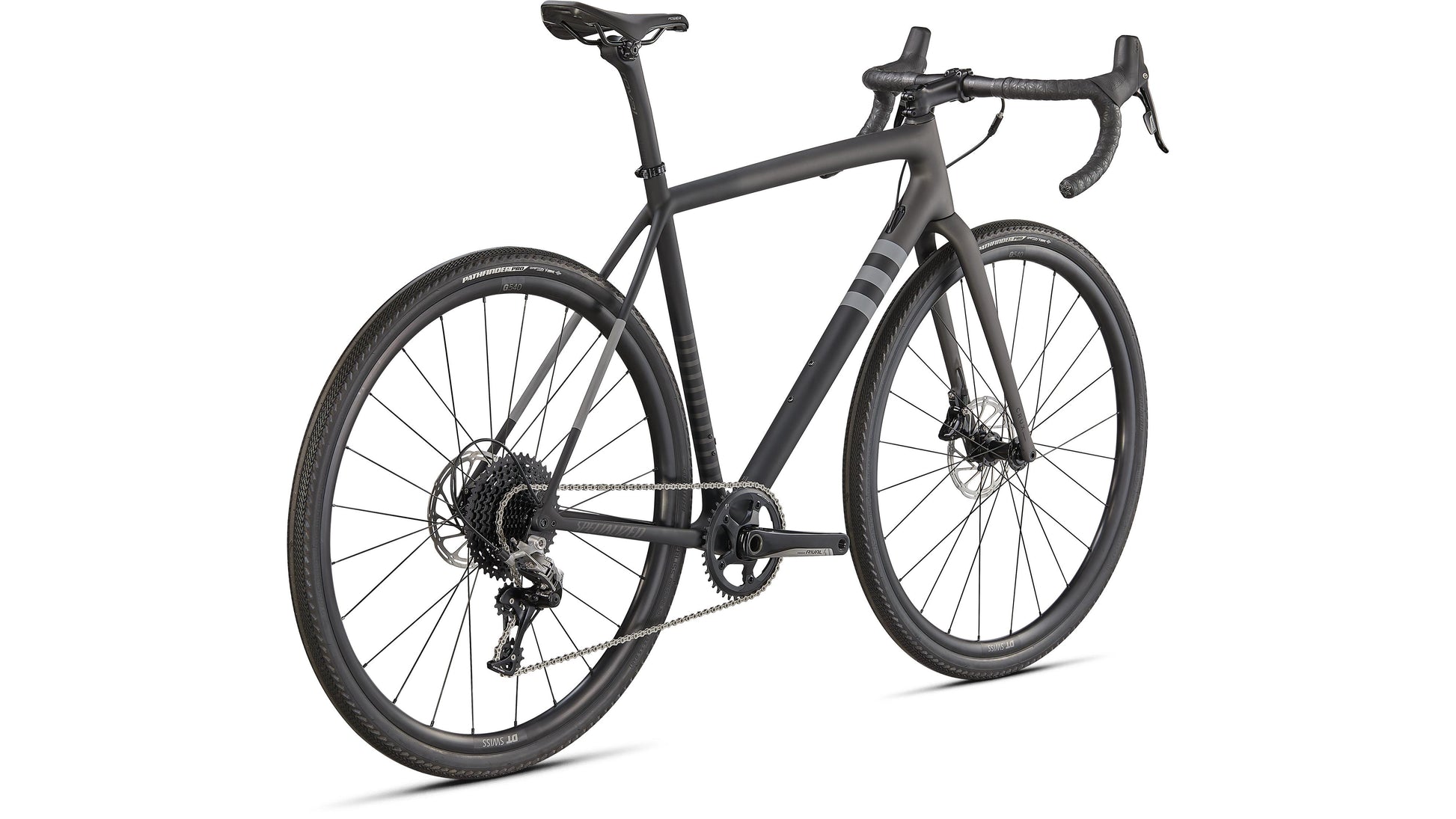

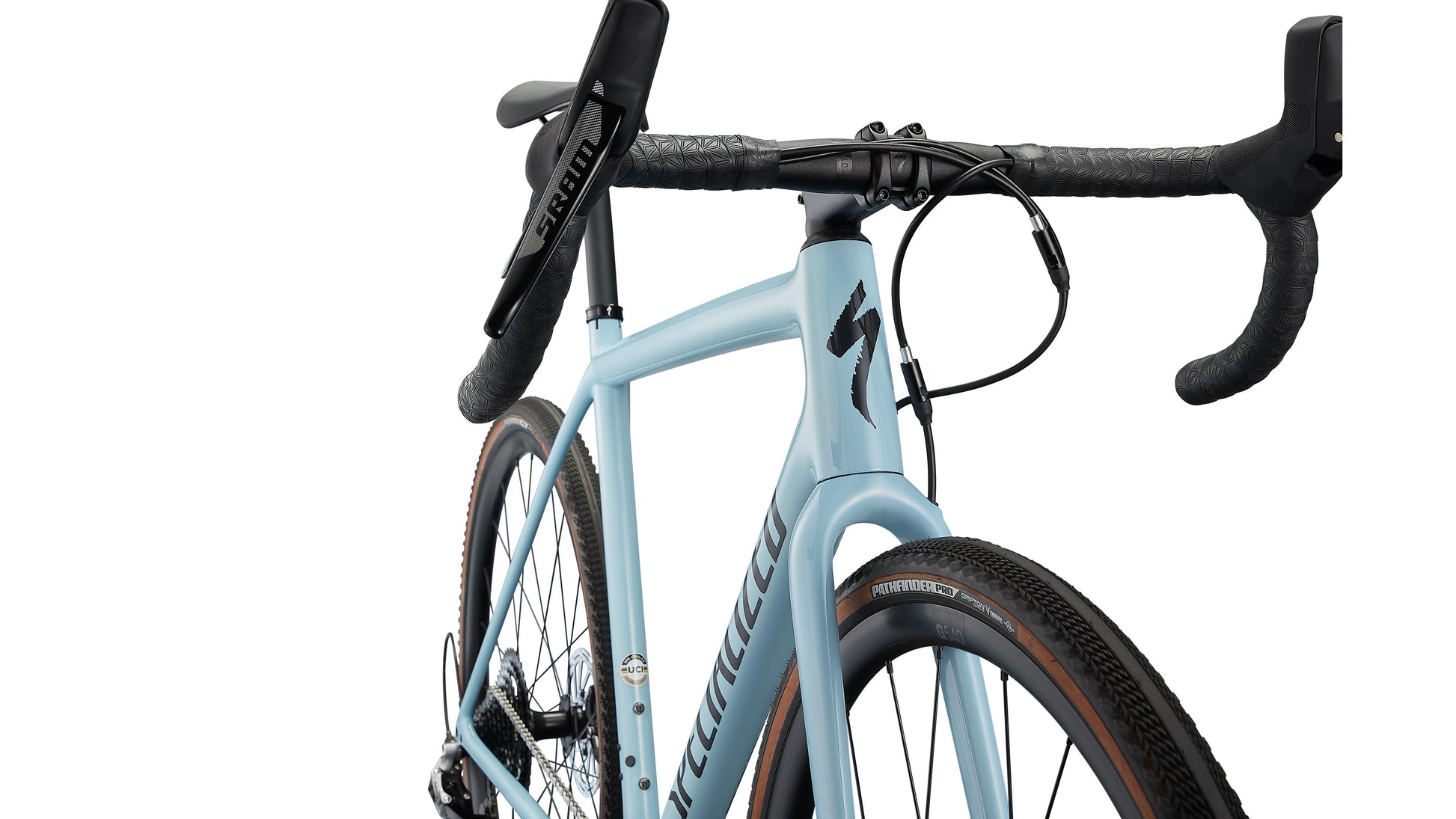

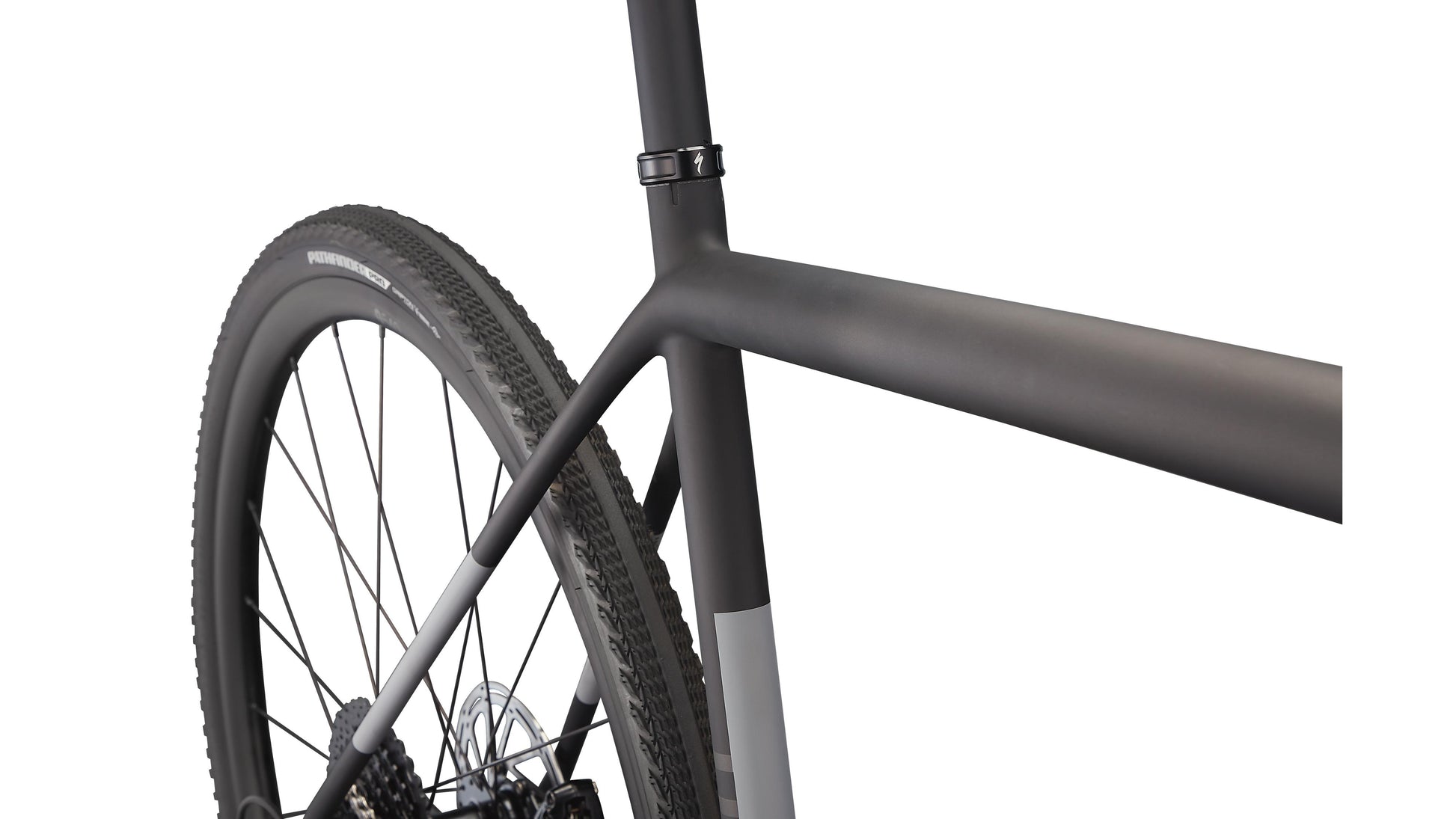

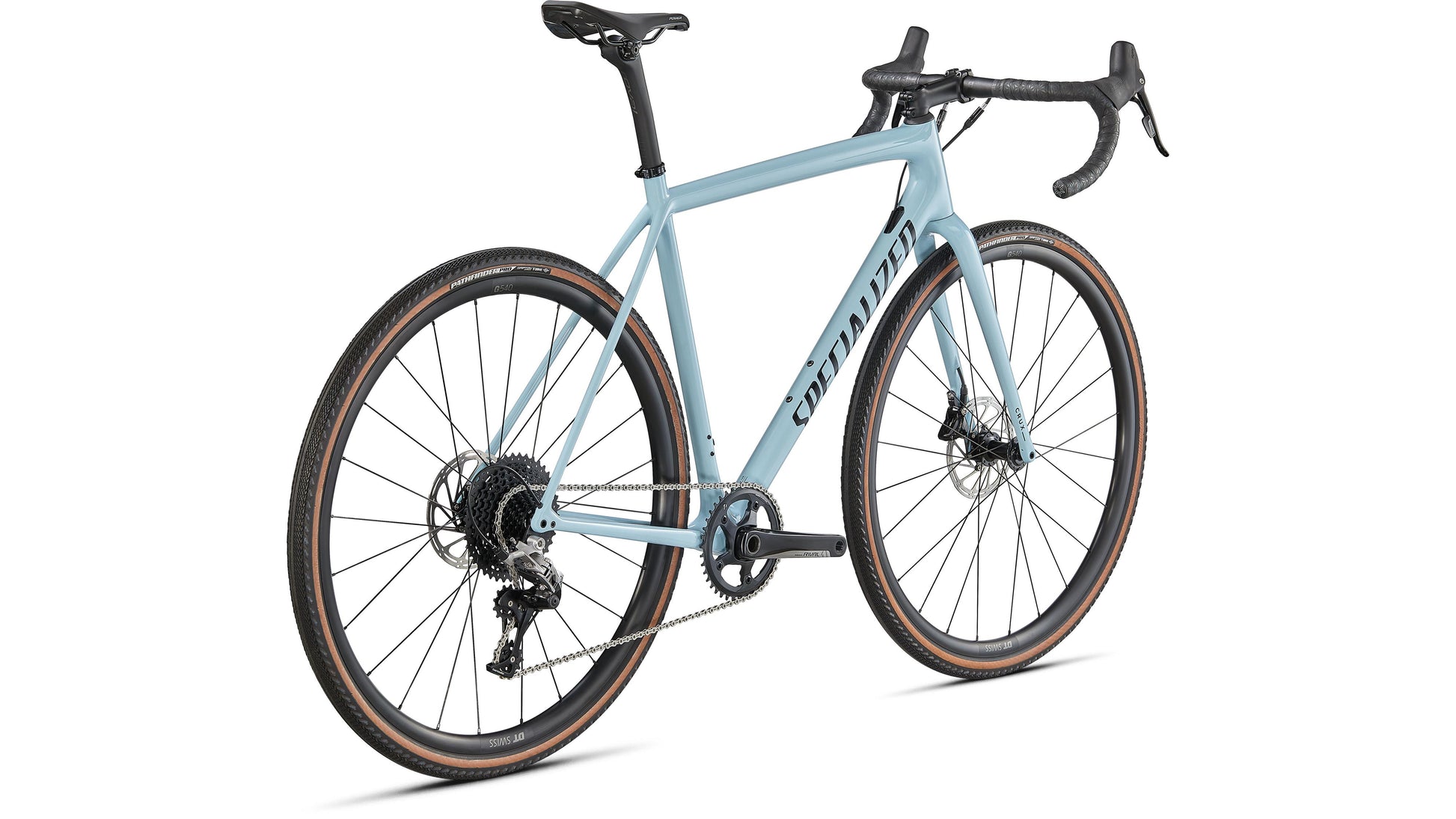

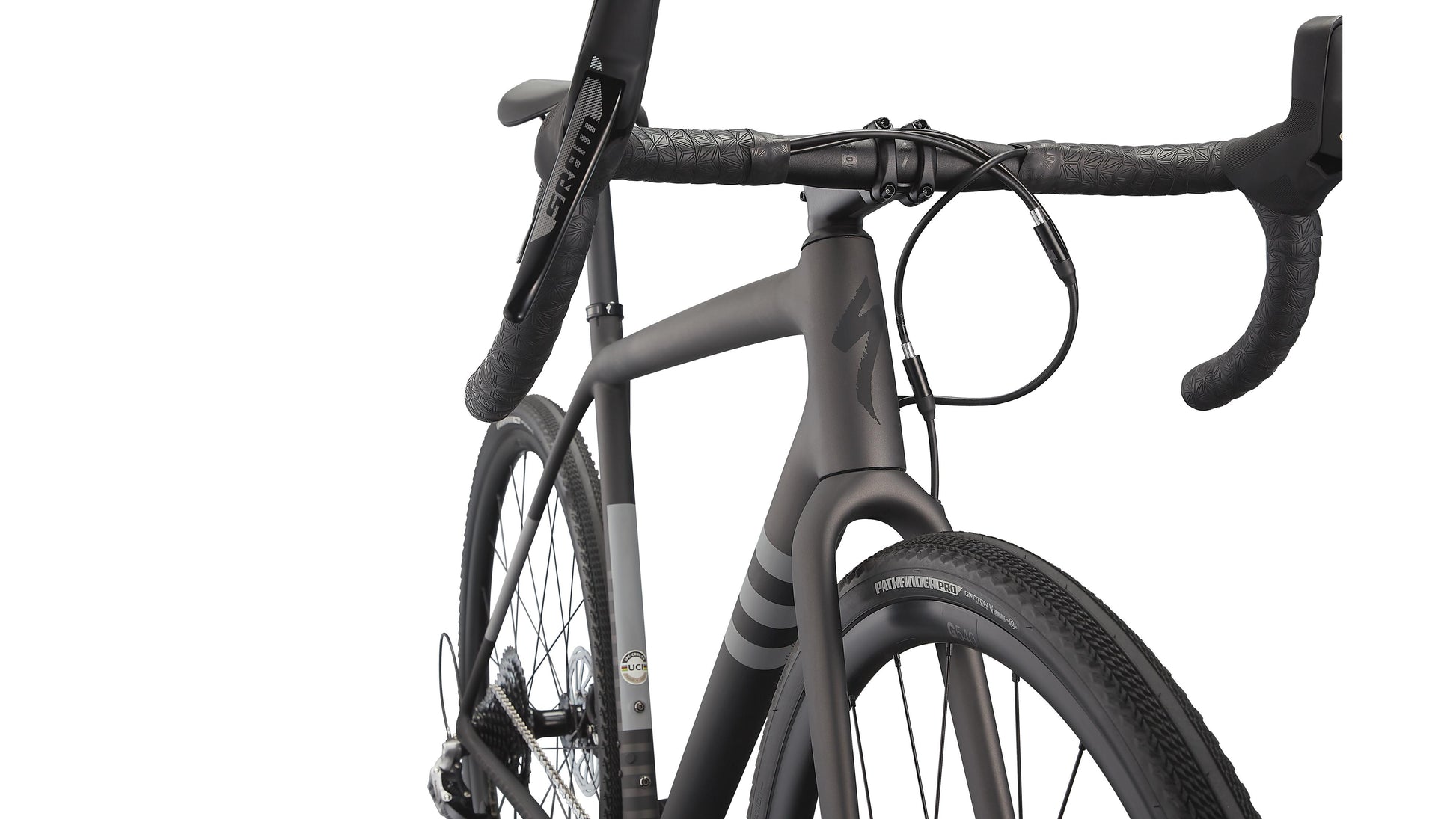

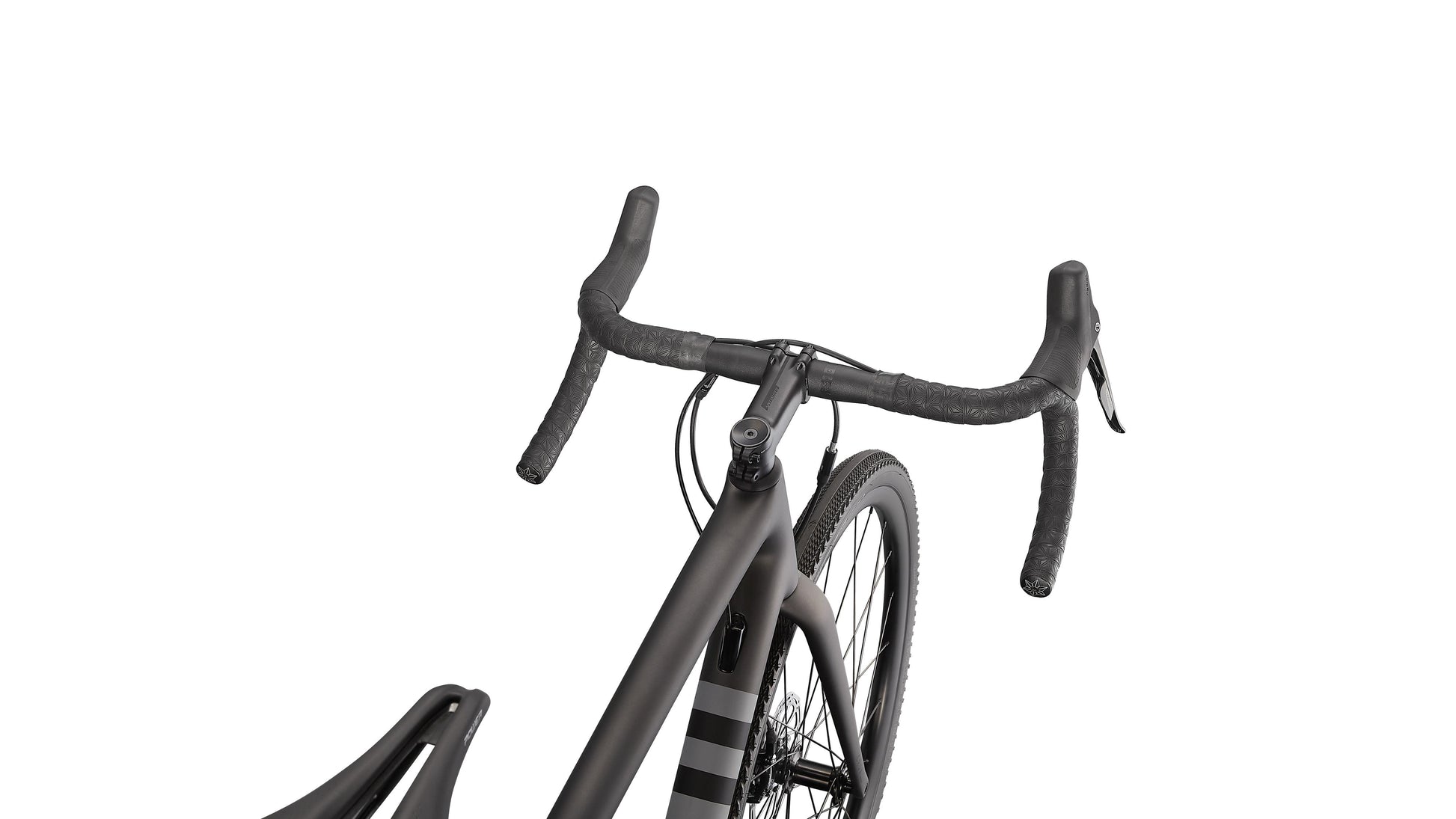

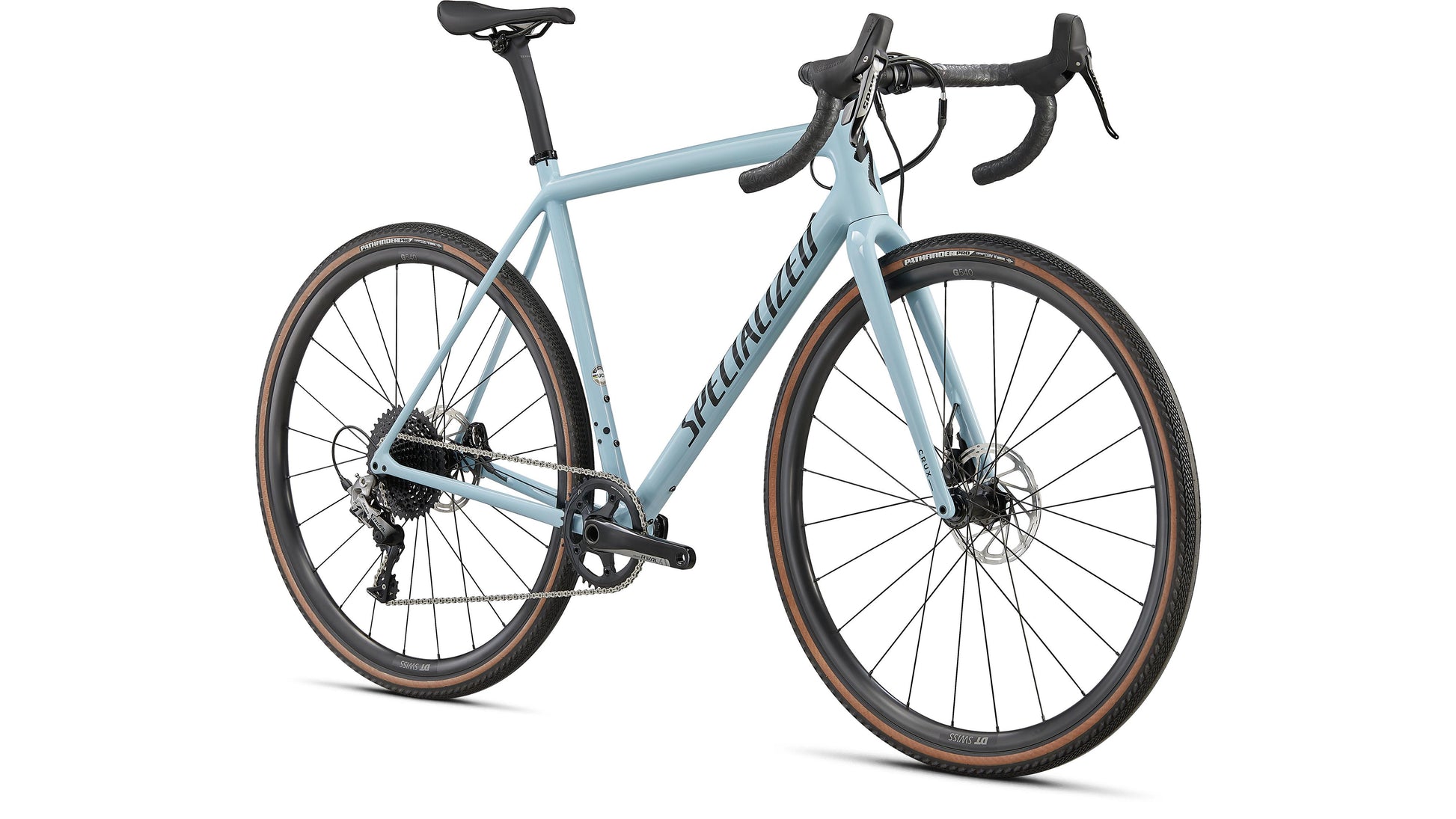

2022 Specialized Crux Comp - SRAM Rival Features
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Comp comes spec'd with a reliable and smooth-shifting SRAM Rival 1 hydraulic disc groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.
At a Glance
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.
Component Specifications
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
chain rings
bottom bracket
|
| Wheels & Tires |
front tire
rear tire
inner tubes
front wheel
rear wheel
|
| Cockpit |
stem
handlebars
saddle
seatpost
tape
|
2022 Specialized Crux Comp - SRAM Rival
| Bike/Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 530 mm | 547 mm | 560 mm | 578 mm | 598 mm | 621 mm |
| Reach | 375 mm | 382 mm | 388 mm | 397 mm | 405 mm | 415 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1008 mm | 1014 mm | 1023 mm | 1033 mm | 1045 mm | 1059 mm |
| Top Tube Length, Horizontal | 512 mm | 539 mm | 549 mm | 568 mm | 582 mm | 599 mm |
| Bike Standover Height | 749 mm | 772 mm | 794 mm | 816 mm | 841 mm | 866 mm |
| Seat Tube Length | 466 mm | 496 mm | 521 mm | 546 mm | 576 mm | 606 mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 147 mm | 167 mm | 190 mm |
| Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| BB Height | 284 mm | 284 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| BB Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Trail | 74 mm | 69 mm | 67 mm | 64 mm | 62 mm | 60 mm |
| Fork Length, Full | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Center | 594 mm | 600 mm | 608 mm | 618 mm | 630 mm | 644 mm |
Component Geometry
| Component | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Crank Length | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Handlebar Width | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Stem Length | 70 mm | 80 mm | 90 mm | 100 mm | 110 mm | 110 mm |
| Saddle Width | 155 mm | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 330 mm | 330 mm | 330 mm | 380 mm | 380 mm | 380 mm |
Size Guide: 2022 Specialized Crux Comp - SRAM Rival
