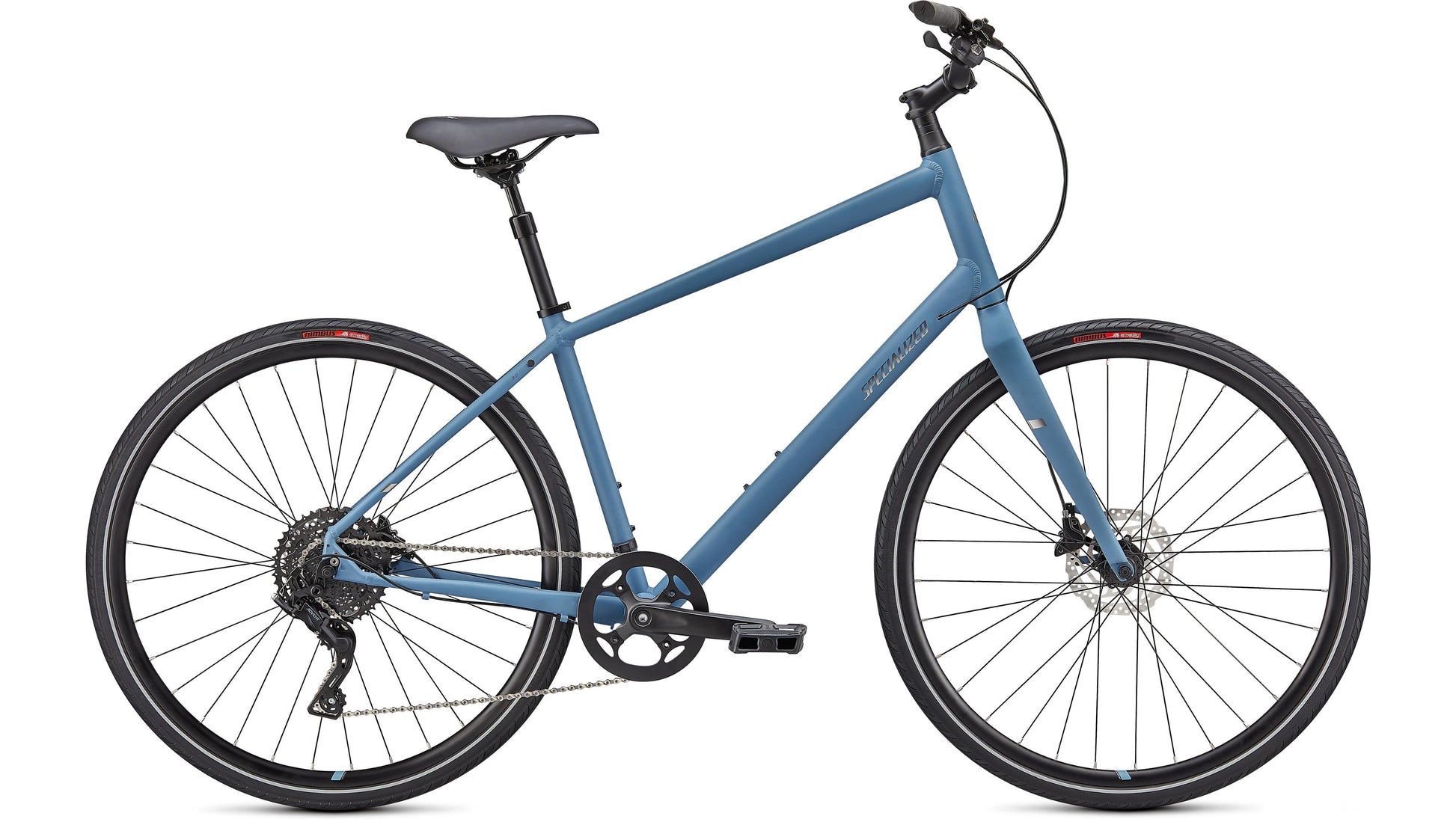

Specialized Crossroads 3.0 Features
The Crossroads is your companion to a better, fitter, and happier you—whether it be along the road or dirt path. It features a comfortable, upright geometry, a simple-to-shift 1x drivetrain, and reflective elements that increase your visibility to motorists in low-light conditions.

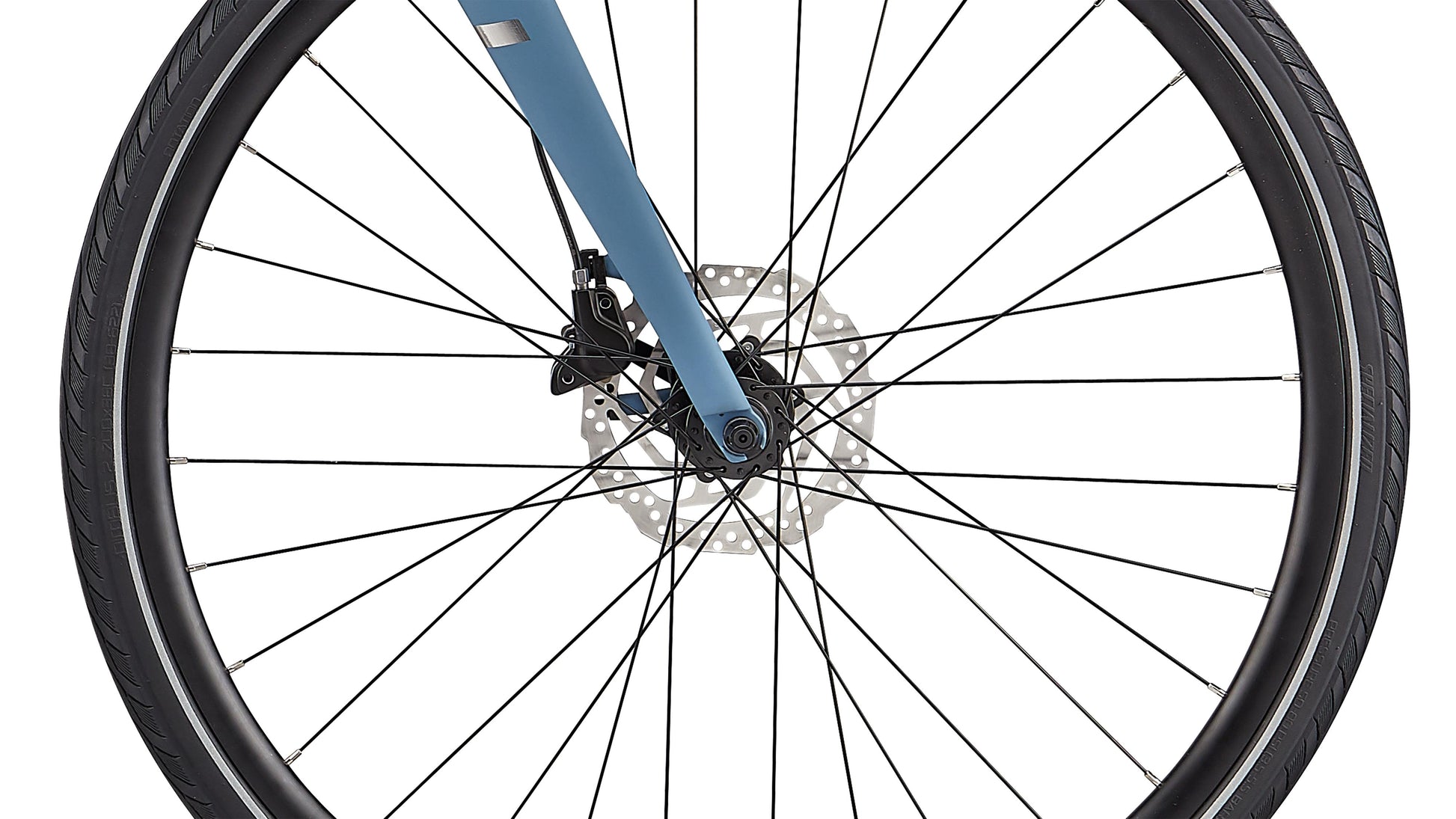

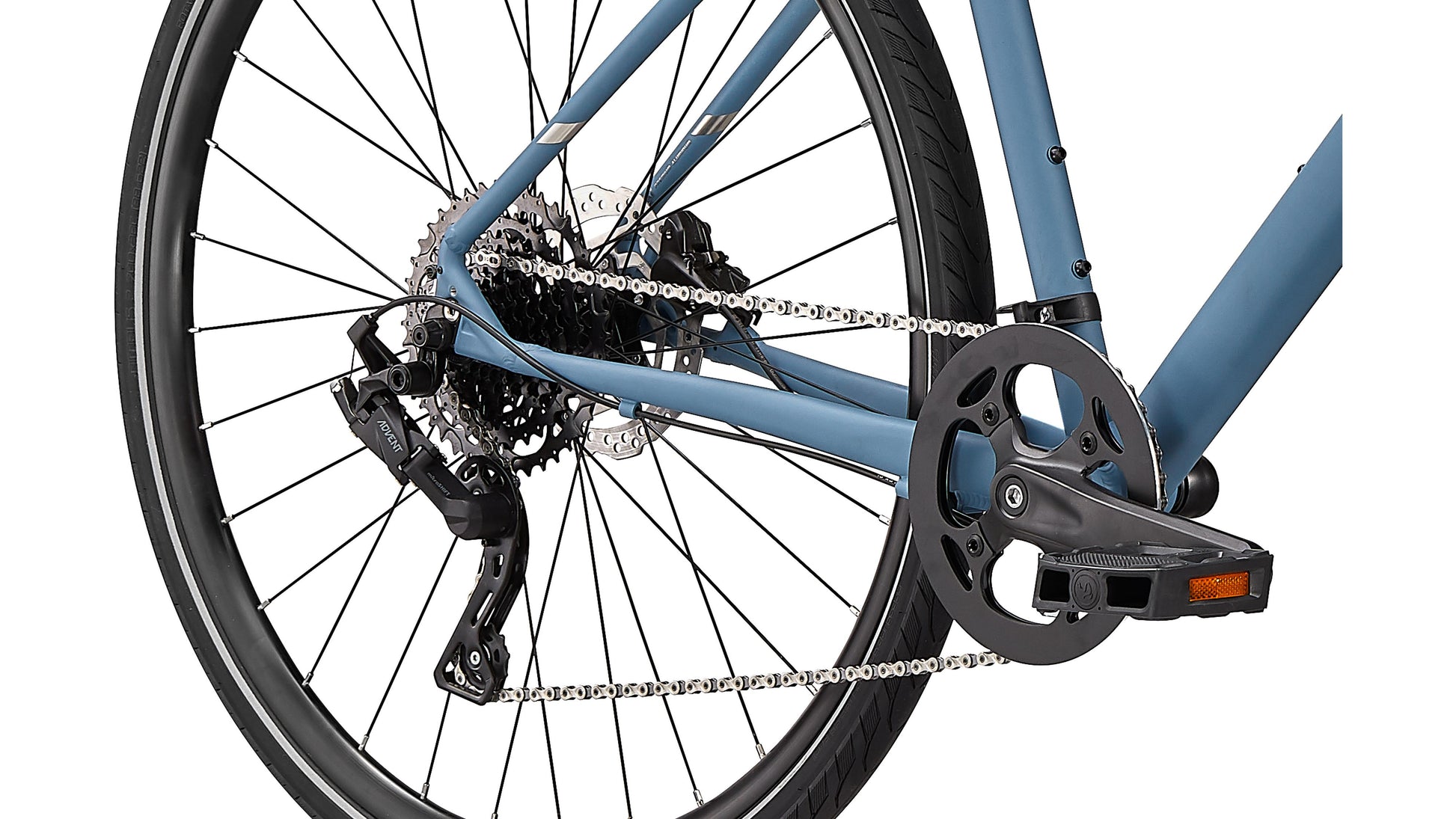

On this Crossroads, you'll find powerful Shimano hydraulic disc brakes, a lightweight FACT carbon fiber fork, and Nimbus II Armadillo Reflect tires that all but eliminate flat tires, while still providing plenty of traction. Meanwhile, a 9-speed Microshift drivetrain handles shifting duties with ease.
At a Glance

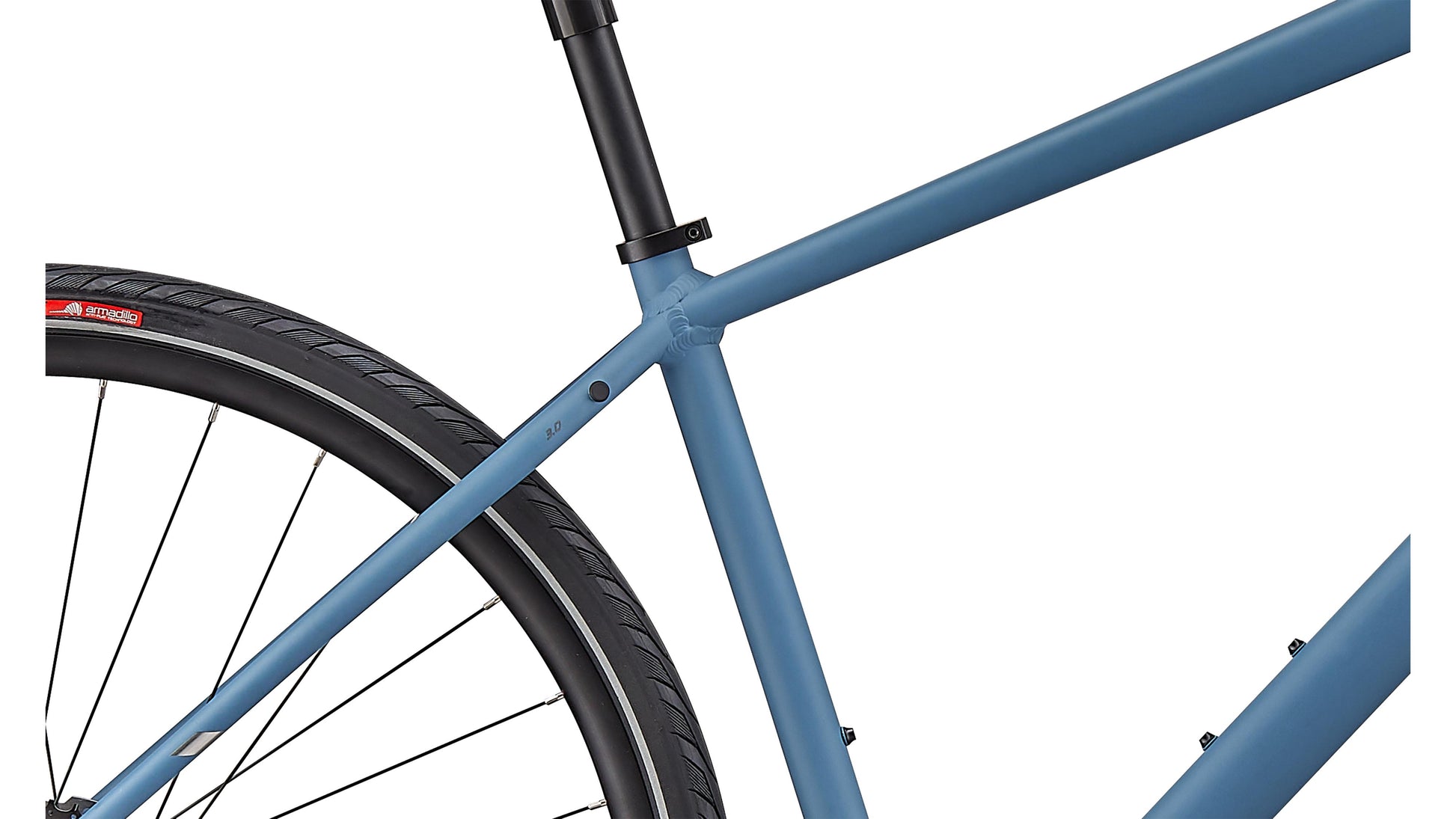

- The sturdy A1 Premium Aluminum frame, combined with a carbon fork and rack/fender mounts, delivers reliable handling for a confident ride and plenty of options for carrying your goodies.
- For the Crossroads, we devoted ourselves to achieving the perfect geometry for comfort and performance over a diverse set of riding styles, ultimately making it a purpose-built machine to help you stay fit and healthy.
- Body Geometry touchpoints take the sting out of saddle time with their ergonomically designed, and scientifically tested, shapes.
- Reflective elements throughout the frame and components increase your visibility to motorists in low-light conditions.

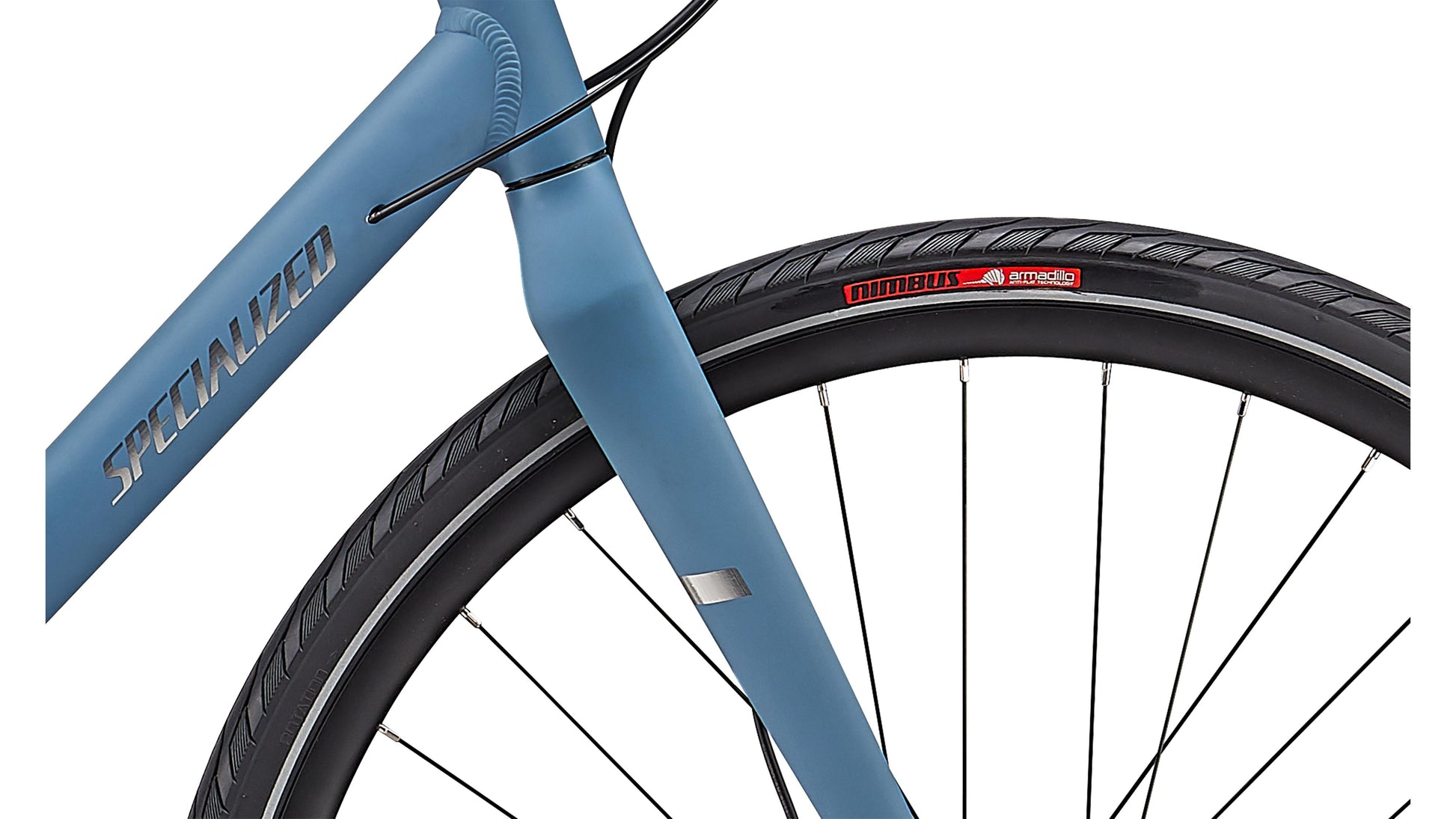

- A FACT carbon fiber fork lightens up the Crossroads not only making it more lively on the road, but also easier to carry up stairs, or hang up in the garage.

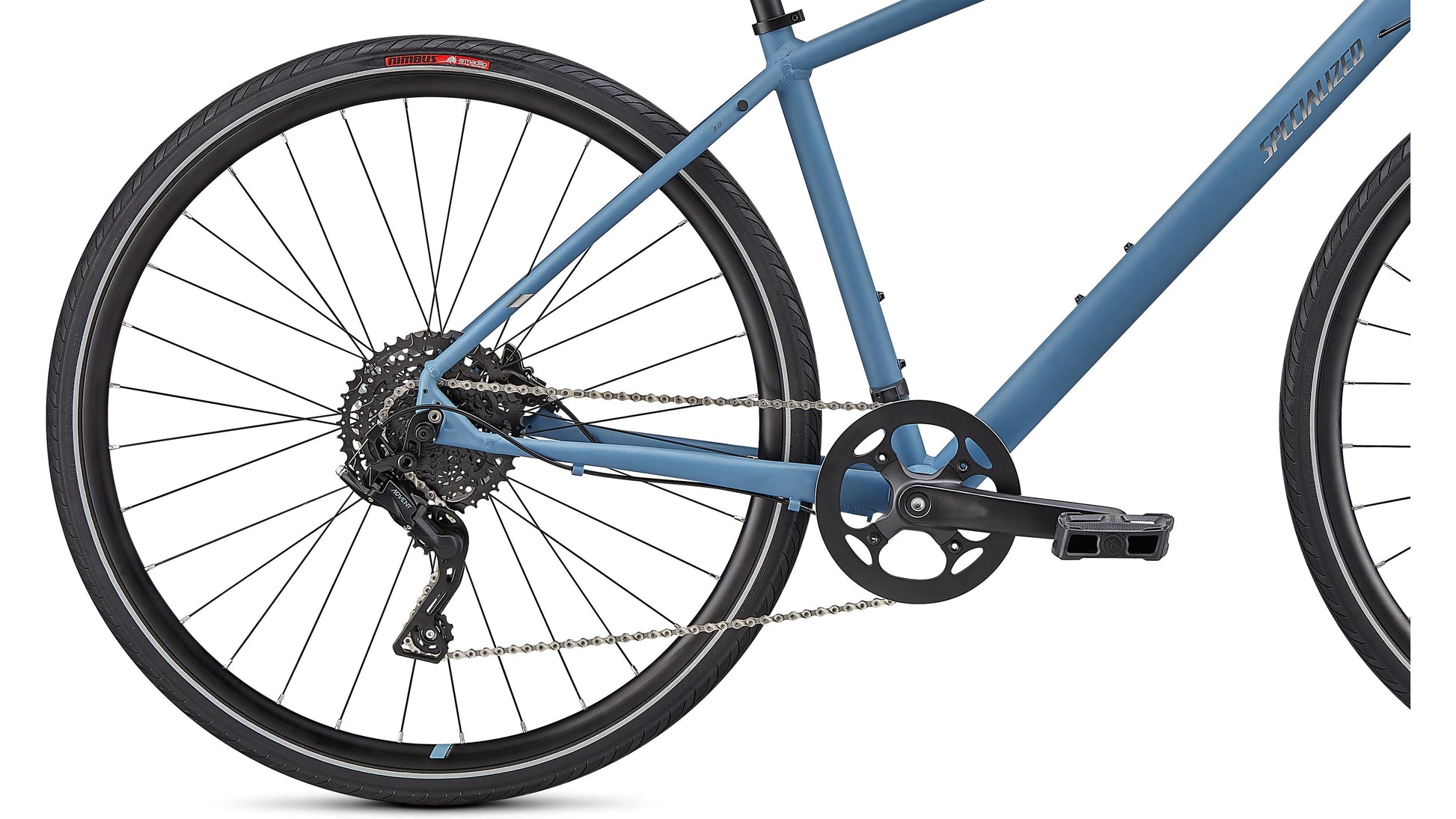

Component Specifications
| Frame | Specialized A1 Premium Aluminum, formed tubes, fender/rack mounts |
| Seat Binder | Bolt-type, 31.8mm |
| Fork | Crossroads Carbon Disc Brake Fork |
| Shift Levers | microSHIFT Advent, 9-speed |
| Rear Derailleur | MicroSHIFT Advent 9 Speed, W/O Clutch |
| Cassette | microSHIFT Advent, 9-speed, 11-42t |
| Chain | KMC X9, 9-speed w/ Missing Link™ |
| Crankset | Forged alloy, 104mm BCD |
| Chain Rings | 48/32 w/ chainguard |
| Bottom Bracket | BSA, square-taper, 68mm |
| Front Tire | Nimbus II Armadillo Reflect, 60 TPI, 700x38mm |
| Rear Tire | Nimbus II Armadillo Reflect, 60 TPI, 700x38mm |
| Inner Tubes | Schrader valve, 40mm |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |

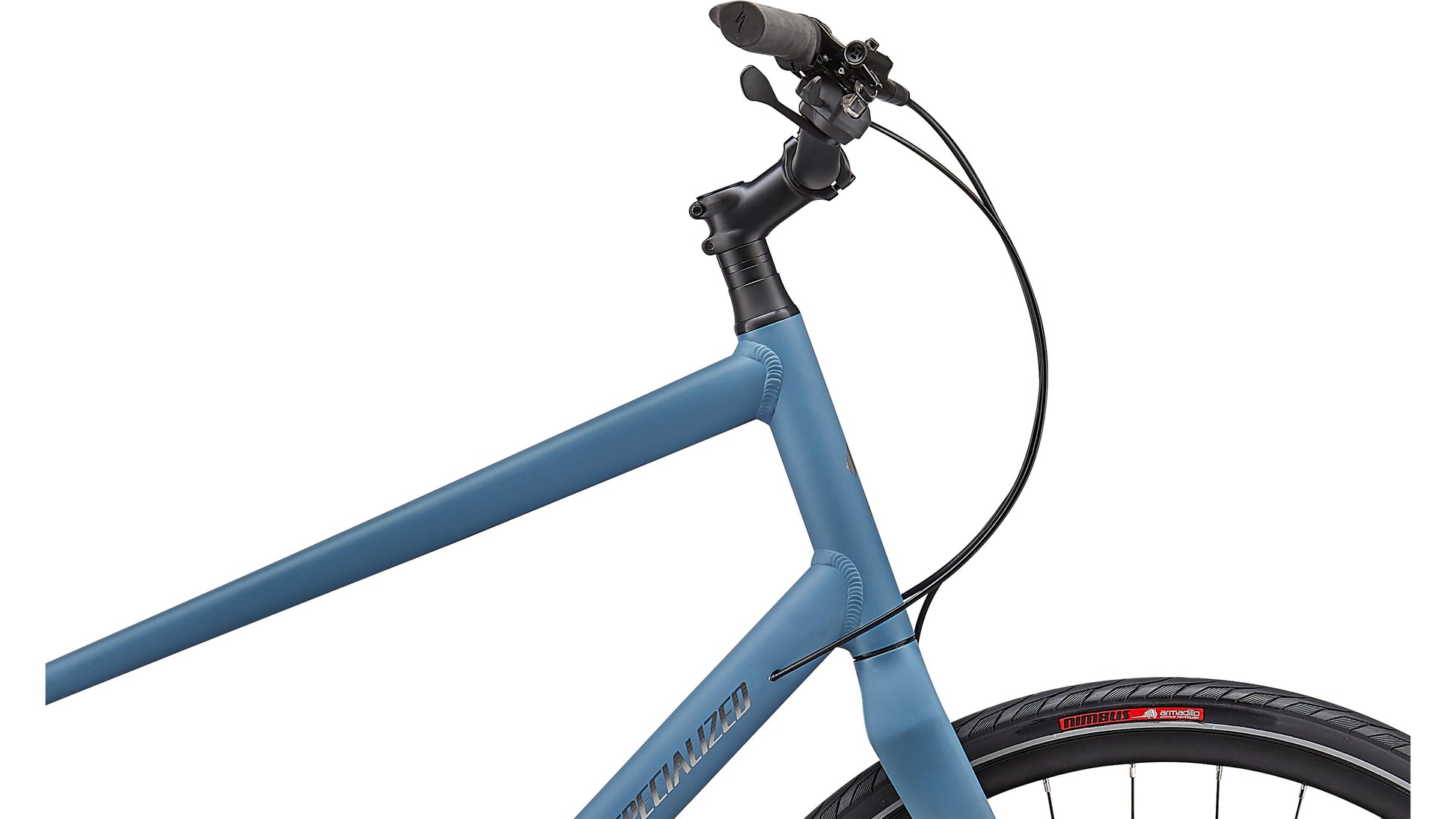

| Handlebars | Alloy, 15-degree backsweep, 80mm rise, 31.8mm |
| Saddle | Specialized Body Geometry Comfort Gel |
| Seatpost | Spring suspension, alloy, 27.2mm, 2-bolt clamp |
Specialized Crossroads 3.0
| Bike/Frame Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 605 mm | 631 mm | 650 mm | 680 mm |
| Reach | 401 mm | 405 mm | 415 mm | 420 mm |
| Chain-Stay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1095 mm | 1097 mm | 1117 mm | 1132 mm |
| Top-Tube Length (horizontal) | 586 mm | 598 mm | 614 mm | 628 mm |
| Bike Stand-Over Height | 731 mm | 773 mm | 807 mm | 853 mm |
| Seat-Tube Length | 390 mm | 439 mm | 476 mm | 532 mm |
| Seat-Tube Angle | 73° | 73° | 73° | 73° |
| Head-Tube Length | 177 mm | 200 mm | 226 mm | 257 mm |
| Head-Tube Angle | 69.5° | 70.5° | 70.5° | 70.5° |
| B-B Height | 288 mm | 288 mm | 293 mm | 293 mm |
| B-B Drop | 70 mm | 70 mm | 65 mm | 65 mm |
| Trail | 79 mm | 72 mm | 72 mm | 72 mm |
| Fork Length (full) | 410 mm | 410 mm | 410 mm | 410 mm |
| Fork Rake/Offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Front-Center | 659 mm | 661 mm | 679 mm | 695 mm |
Size Guide: Specialized Crossroads 3.0
