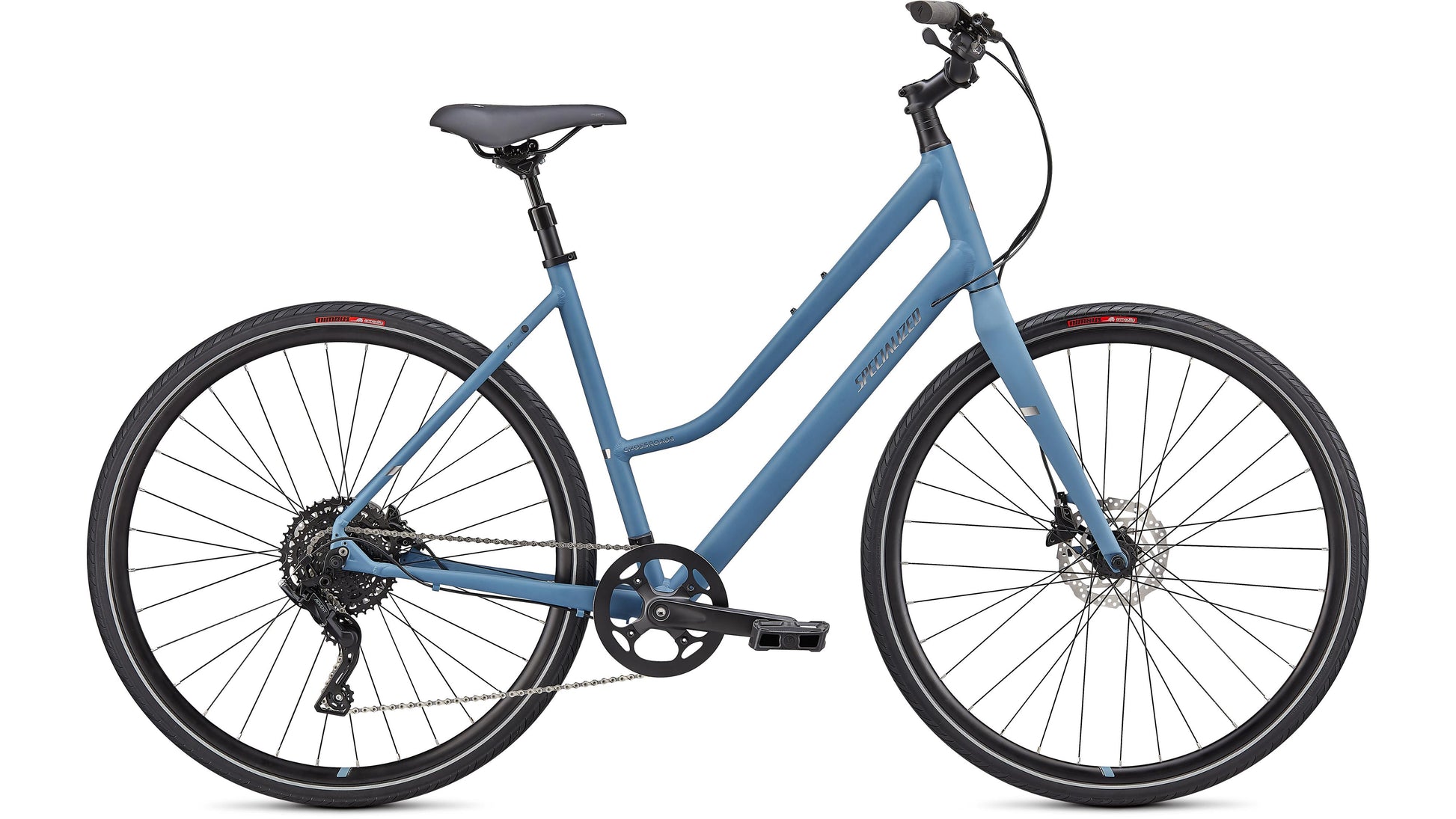

2021 Specialized Crossroads 3.0 Step-Through Features
The Crossroads is your companion to a better, fitter, and happier you—whether it be along the road or dirt path. It features a comfortable upright geometry with a step-through design that makes it easy to put a foot down at a stop, a simple-to-shift 1x drivetrain, and reflective elements that increase your visibility to motorists in low-light conditions.

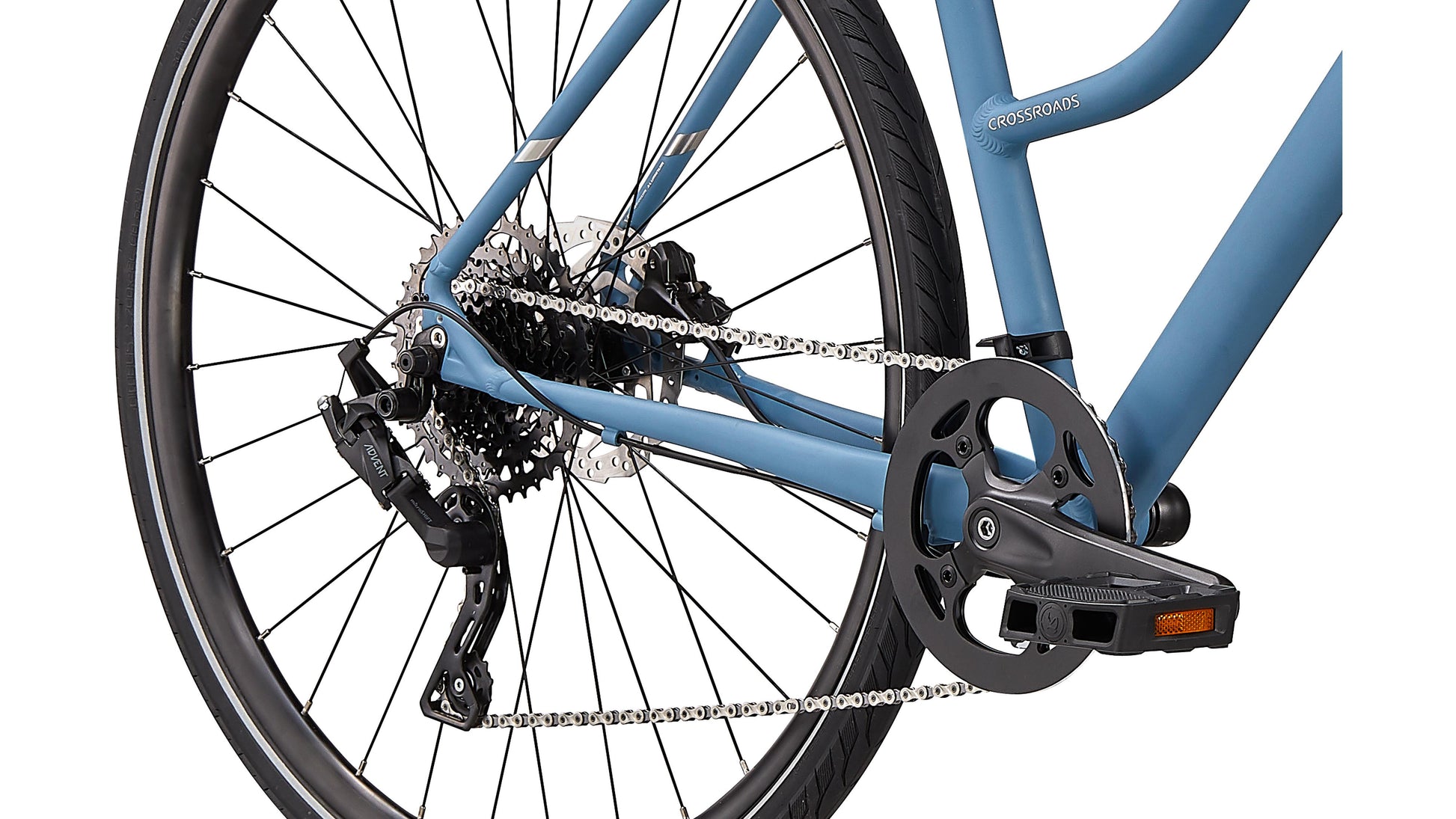

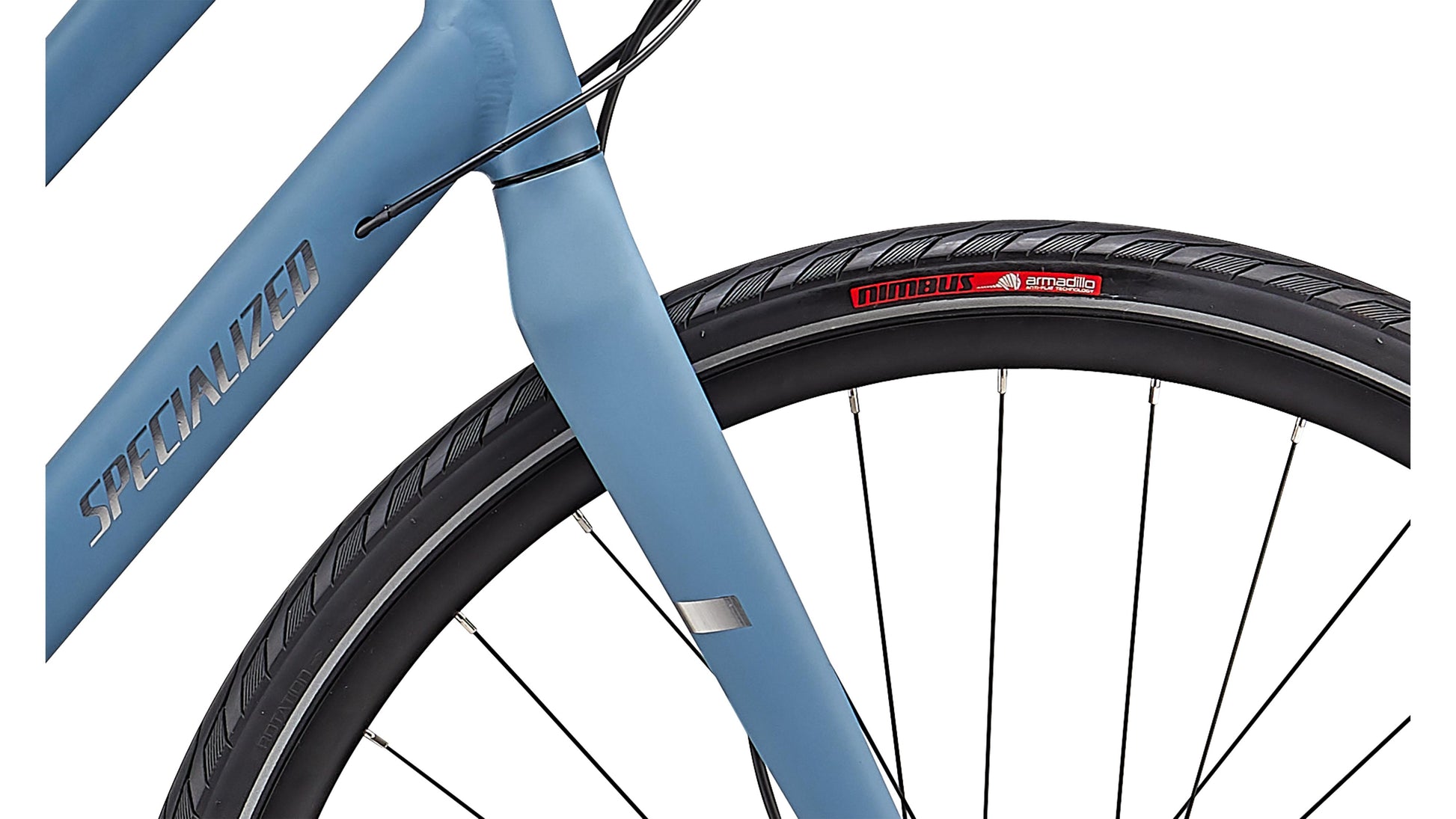

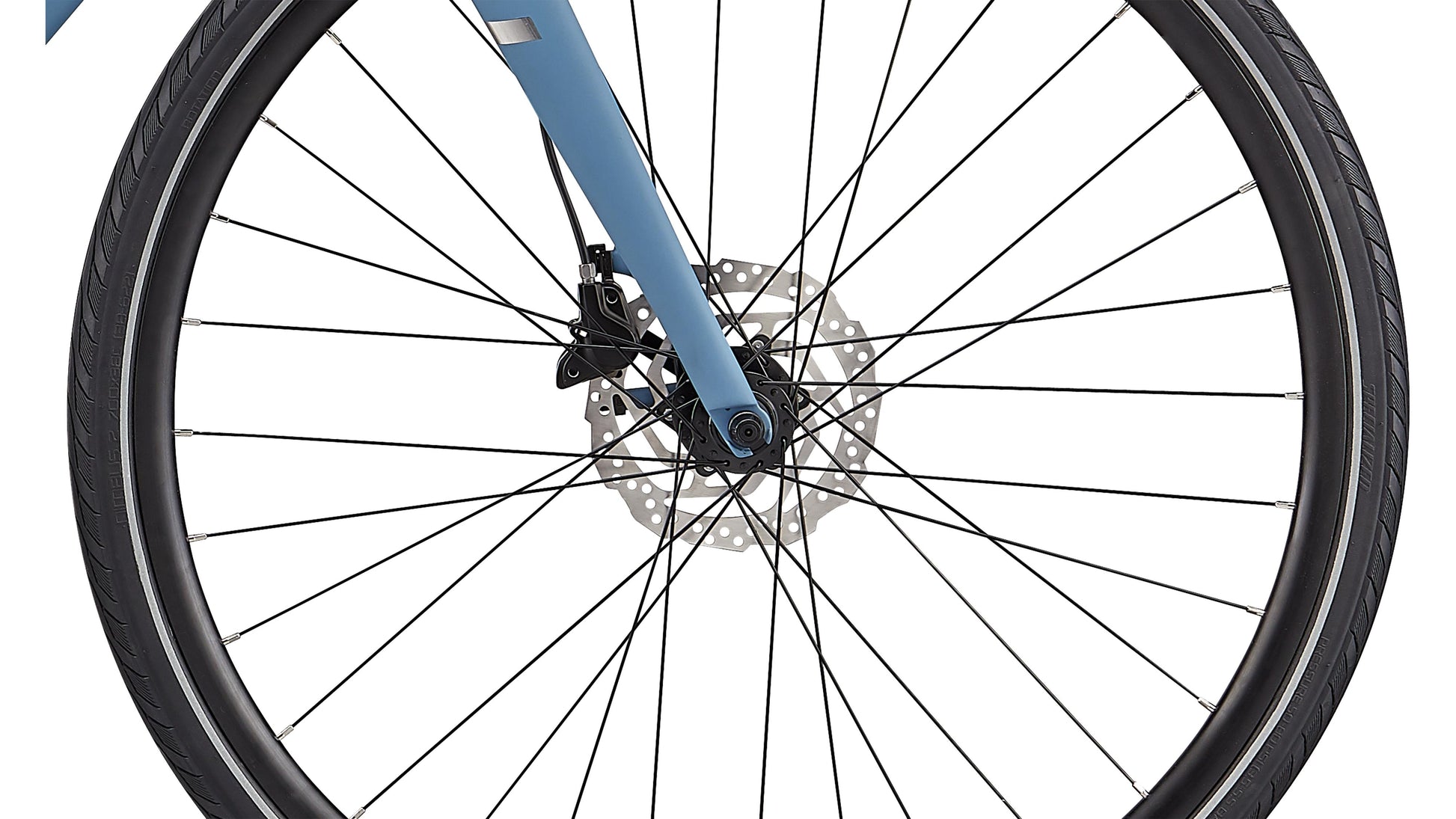

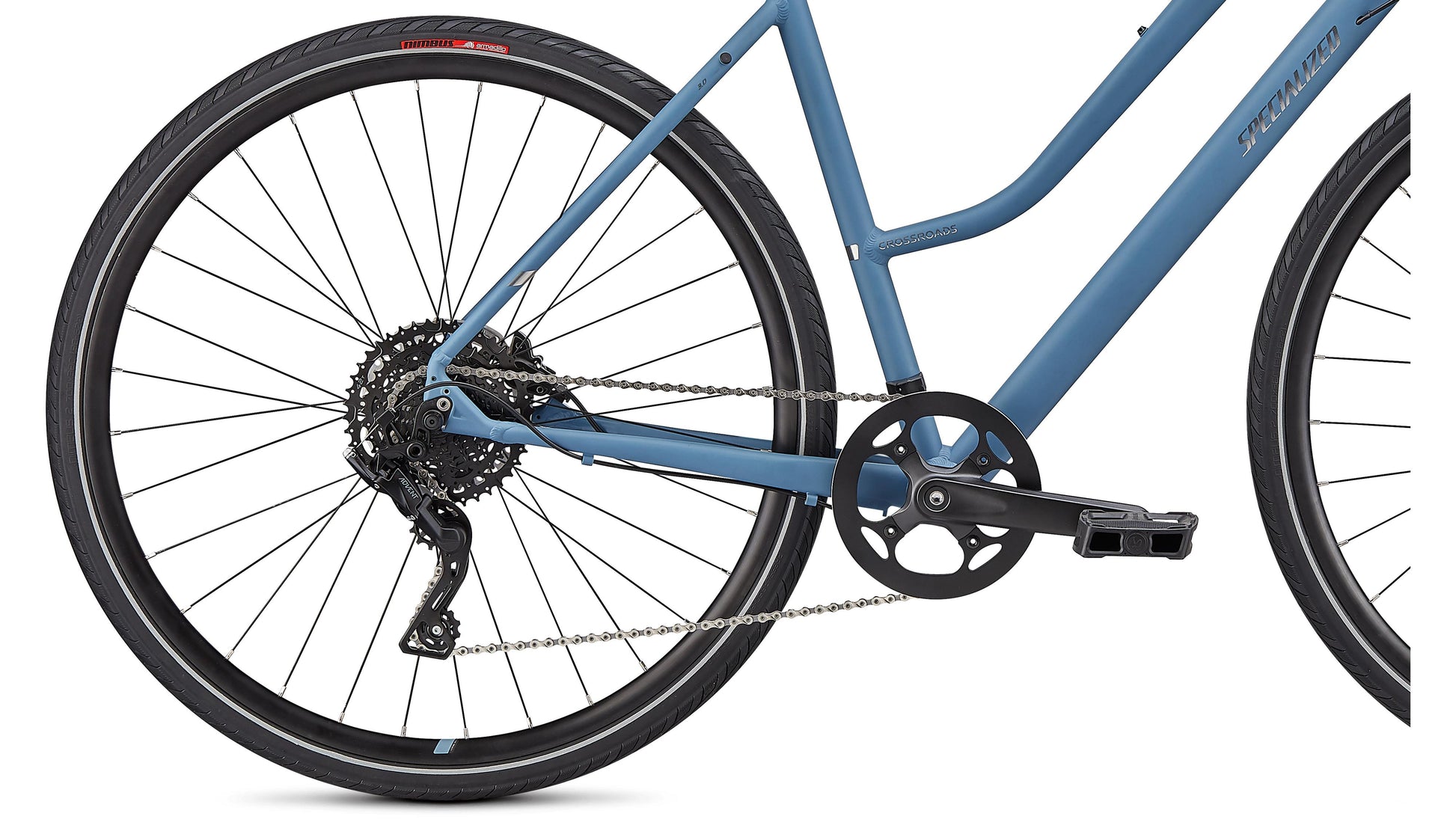

On this Crossroads, you'll find powerful Shimano hydraulic disc brakes, a lightweight FACT carbon fiber fork, and Nimbus II Armadillo Reflect tires that all but eliminate flat tires, while still providing plenty of traction. Meanwhile, a 9-speed Microshift drivetrain handles shifting duties with ease.
At a Glance

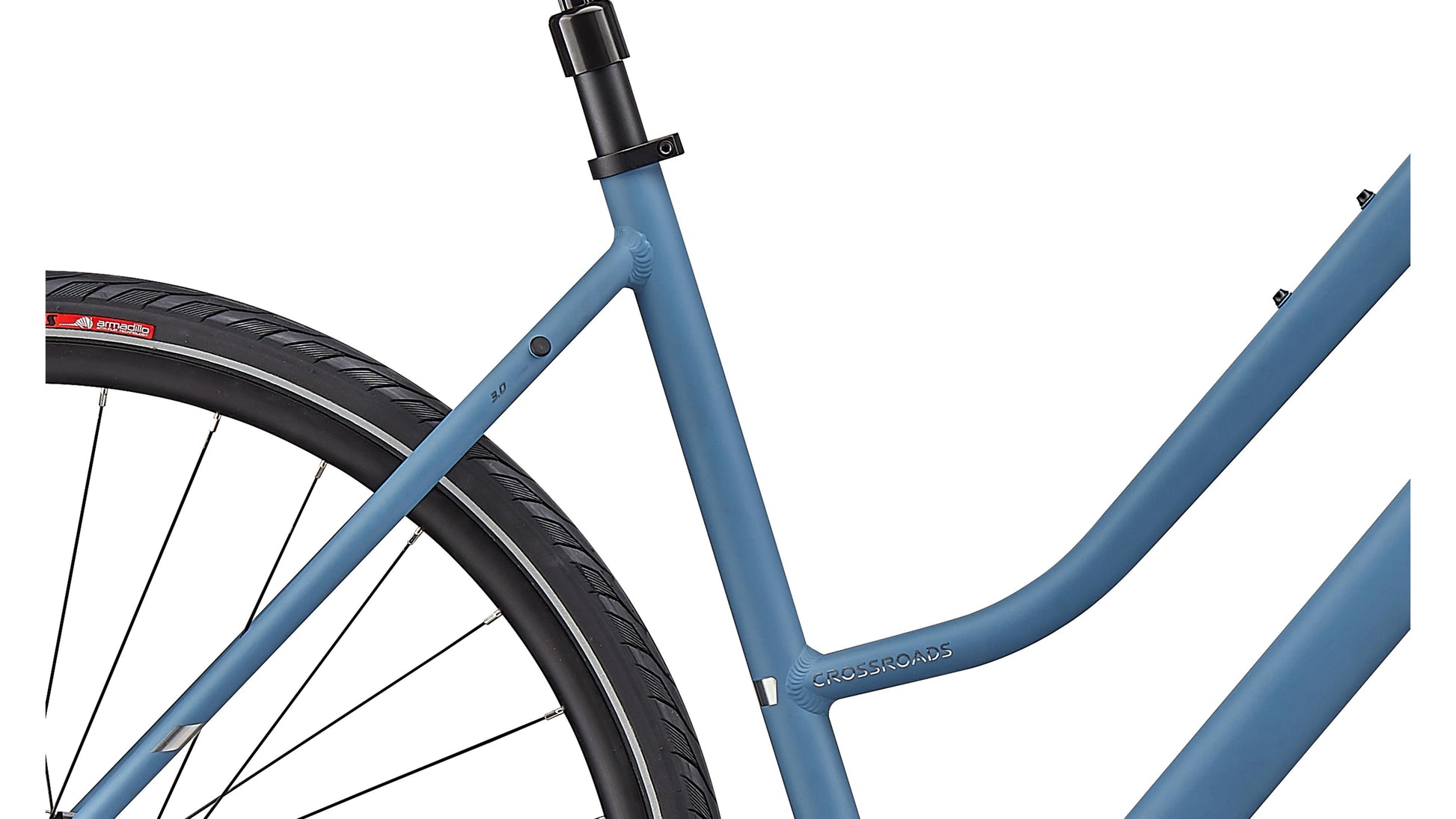

- The sturdy A1 Premium Aluminum frame, combined with a carbon fork and rack/fender mounts, delivers reliable handling for a confident ride and plenty of options for carrying your goodies.
- For the Crossroads, we devoted ourselves to achieving the perfect geometry for comfort and performance over a diverse set of riding styles. An upright geometry paired with a step-through design ultimately makes it a purpose-built machine to help you stay fit and healthy.

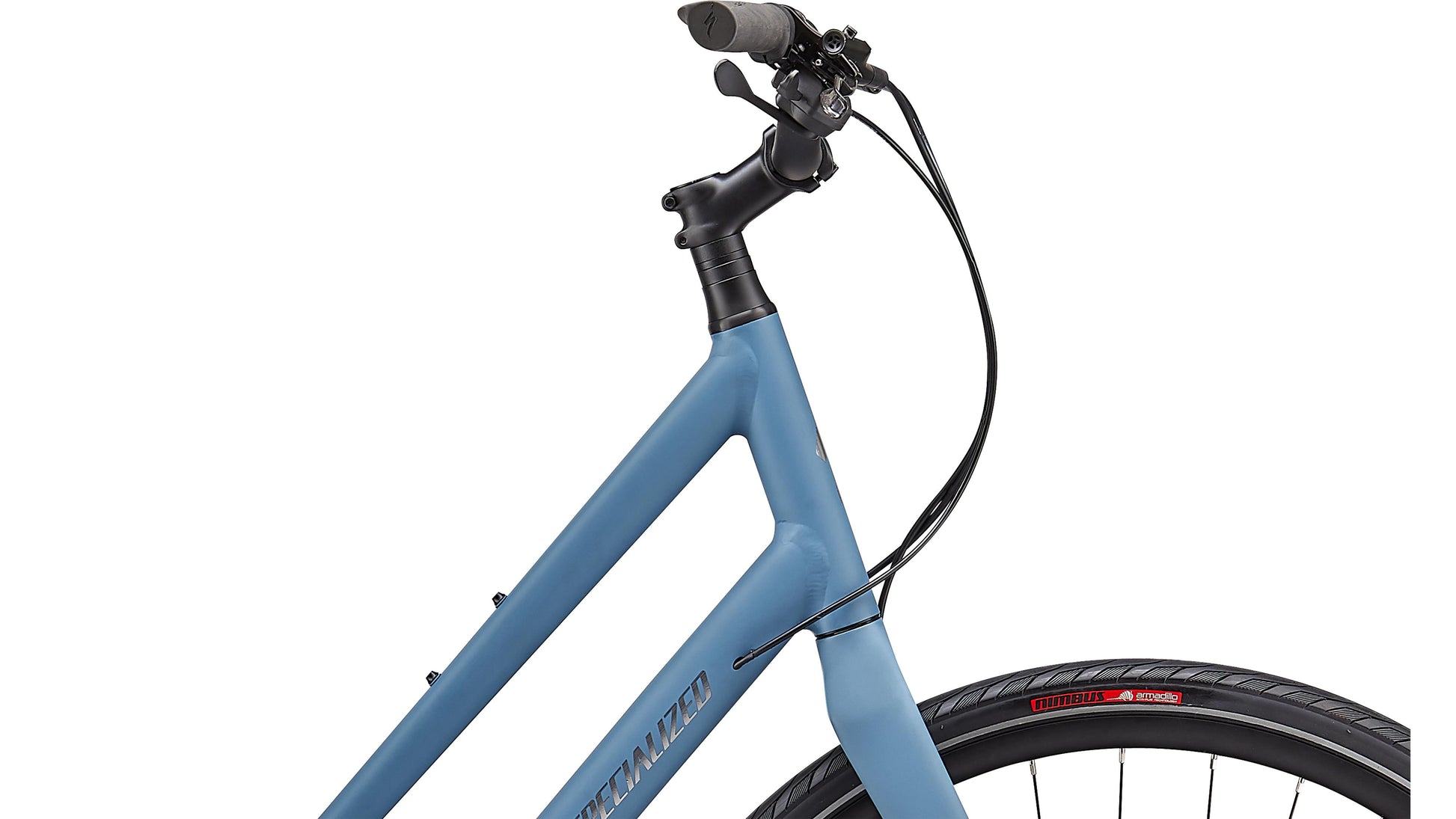

- Body Geometry touchpoints take the sting out of saddle time with their ergonomically designed, and scientifically tested, shapes.
- Reflective elements throughout the frame and components increase your visibility to motorists in low-light conditions.
- A FACT carbon fiber fork lightens up the Crossroads not only making it more lively on the road, but also easier to carry up stairs, or hang up in the garage.
Component Specifications
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
chain rings
bottom bracket
|
| Wheels & Tires |
front tire
rear tire
inner tubes
front wheel
rear wheel
|
| Cockpit |
stem
handlebars
saddle
seatpost
tape
pedals
|
2021 Specialized Crossroads 3.0 Step-Through
| Bike/Frame Size | SM | MD | LG |
|---|---|---|---|
| Stack | 580 mm | 610 mm | 635 mm |
| Reach | 360 mm | 371 mm | 375 mm |
| Chain-Stay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1050 mm | 10678 mm | 1068 mm |
| Top-Tube Length (horizontal) | 537 mm | 558 mm | 599 mm |
| Bike Stand-Over Height | 541 mm | 573 mm | 599 mm |
| Seat-Tube Length | 375 mm | 435 mm | 500 mm |
| Seat-Tube Angle | 73° | 73° | 73° |
| Head-Tube Length | 153 mm | 183 mm | 204 mm |
| Head-Tube Angle | 69° | 69.5° | 70.5° |
| B-B Height | 288 mm | 288 mm | 288 mm |
| B-B Drop | 70 mm | 70 mm | 70 mm |
| Trail | 83 mm | 79 mm | 72 mm |
| Fork Length (full) | 410 mm | 410 mm | 410 mm |
| Fork Rake/Offset | 51 mm | 51 mm | 51 mm |
| Front-Center | 614 mm | 631 mm | 633 mm |
Component Geometry
| Component | S | M | L |
|---|---|---|---|
| Crank Length | 165mm mm | 170mm mm | 175mm mm |
| Handlebar Width | 640mm mm | 640mm mm | 660mm mm |
| Stem Length | 60mm mm | 60mm mm | 70mm mm |
| Saddle Width | 200mm mm | 200mm mm | 200mm mm |
| Seatpost Length | 350mm mm | 350mm mm | 350mm mm |
