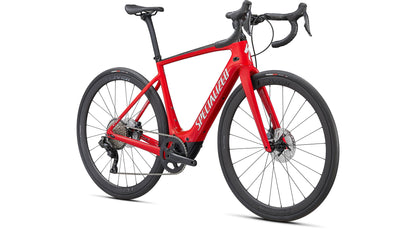

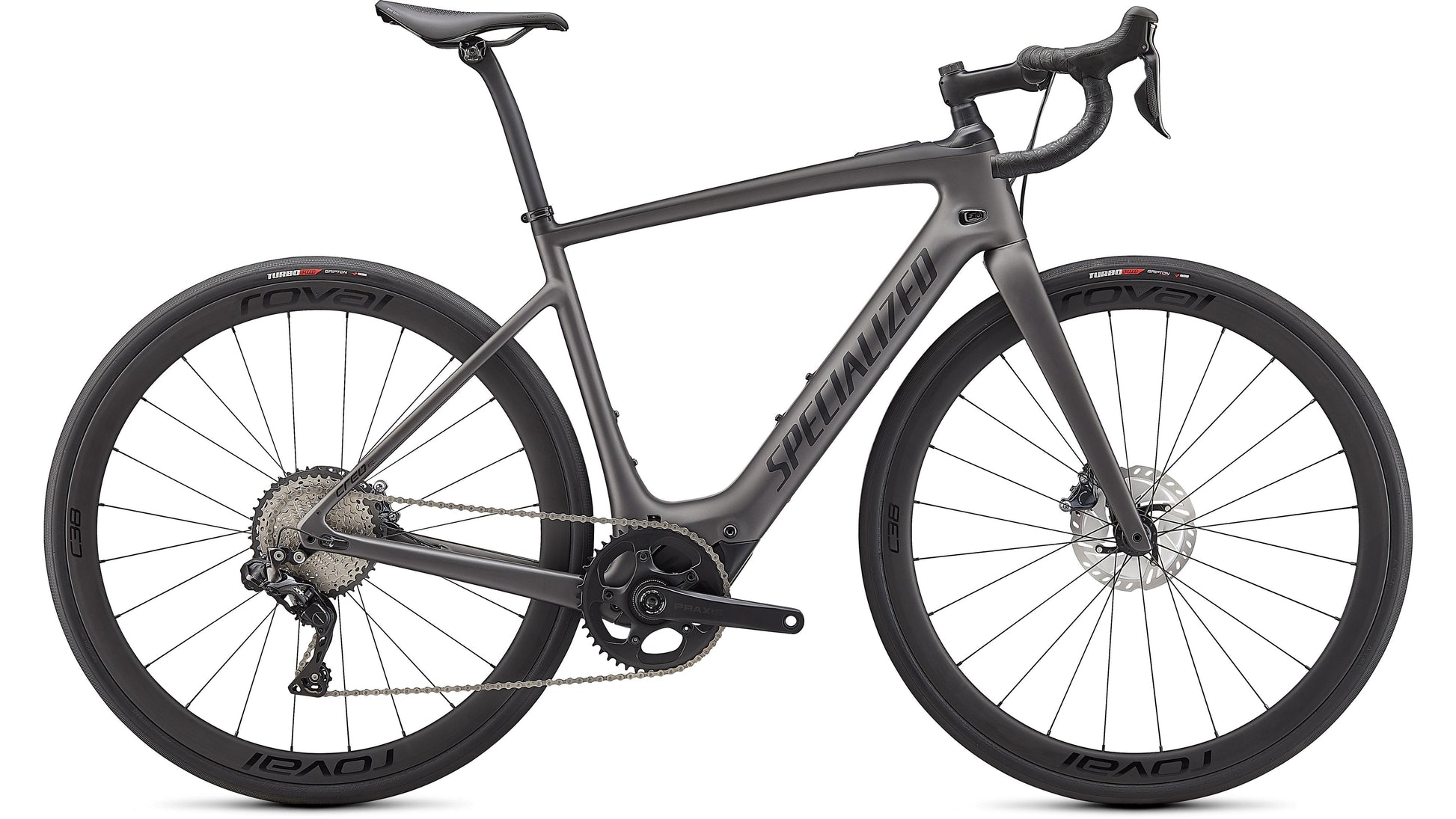

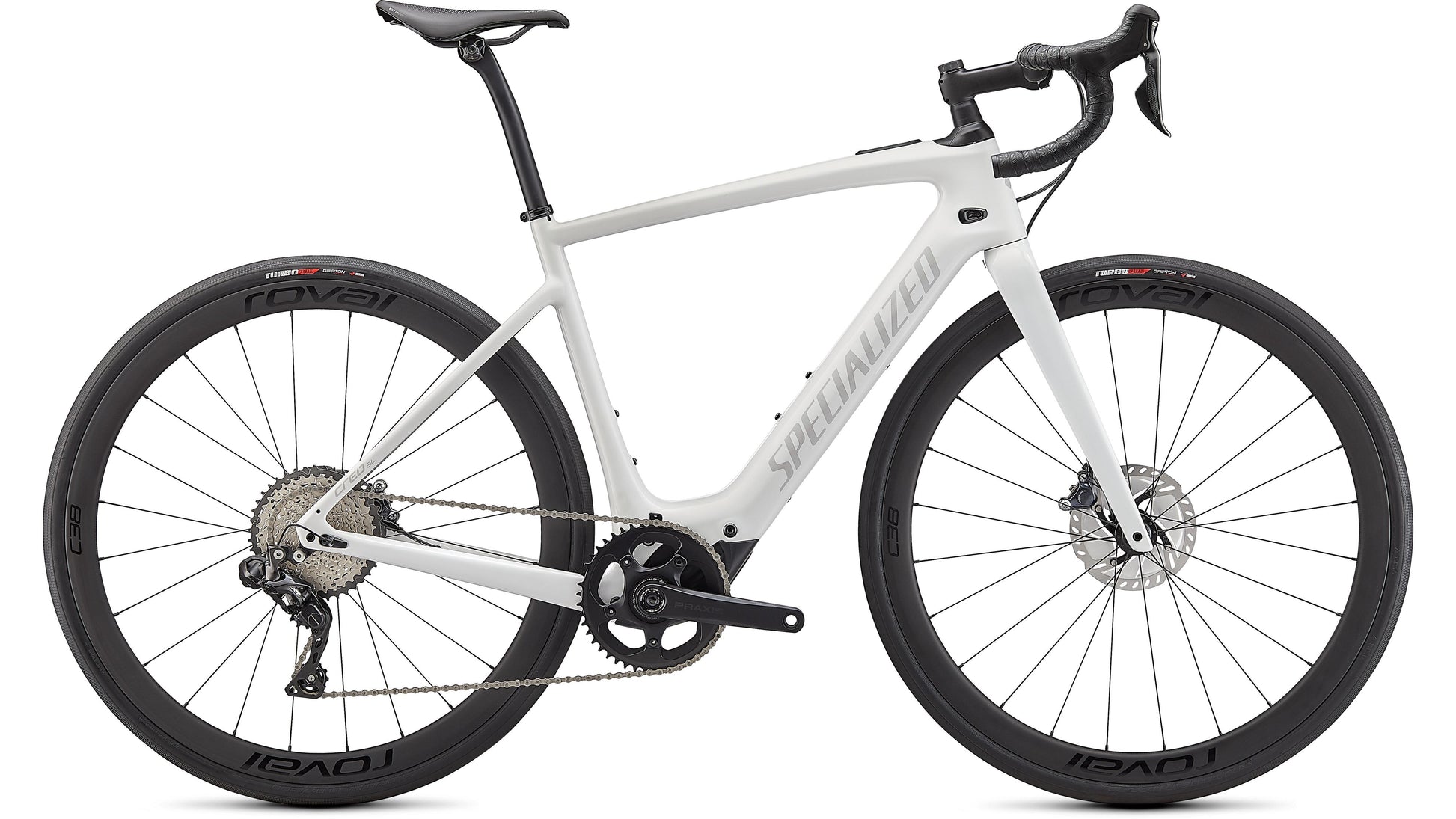

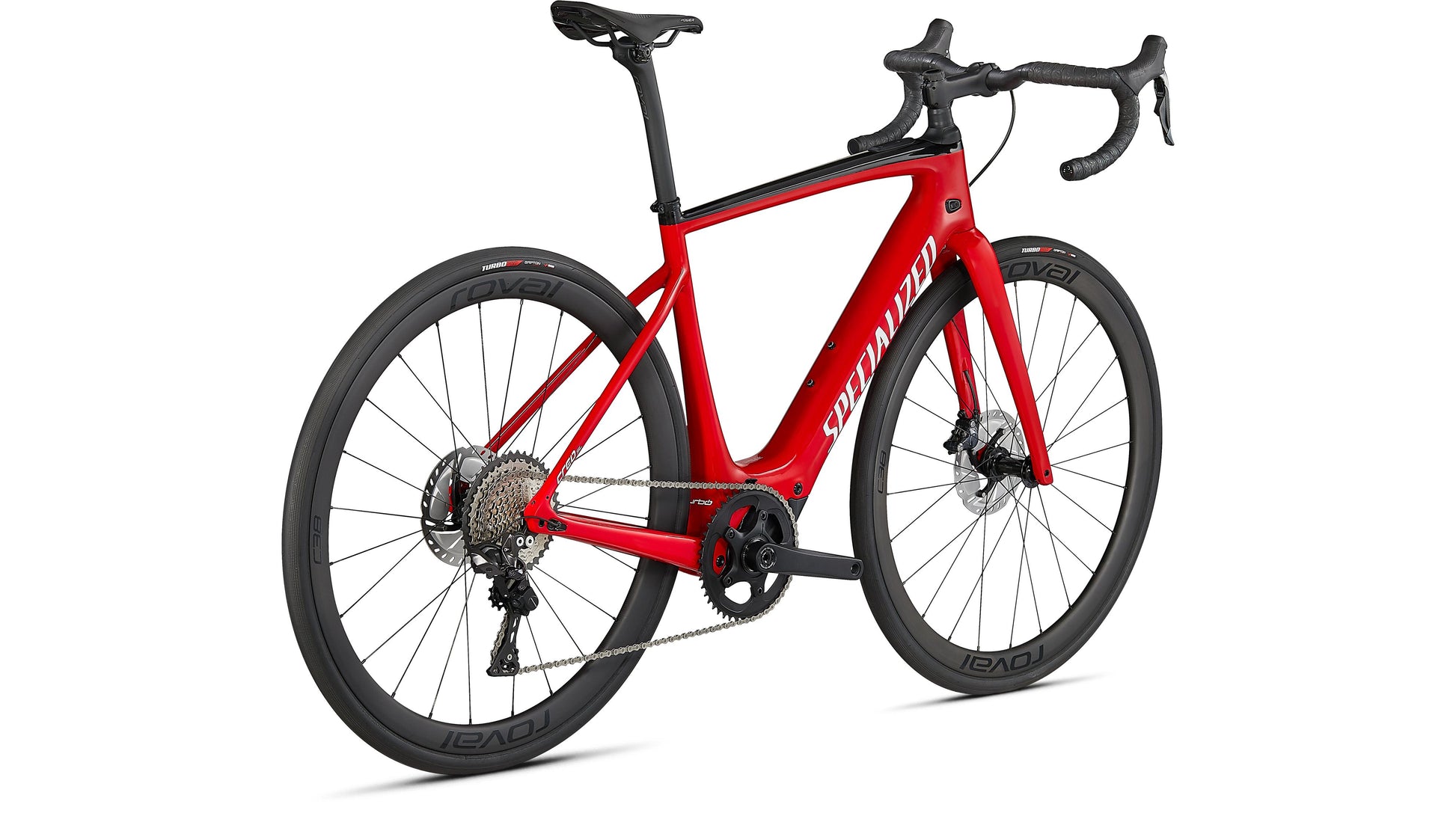

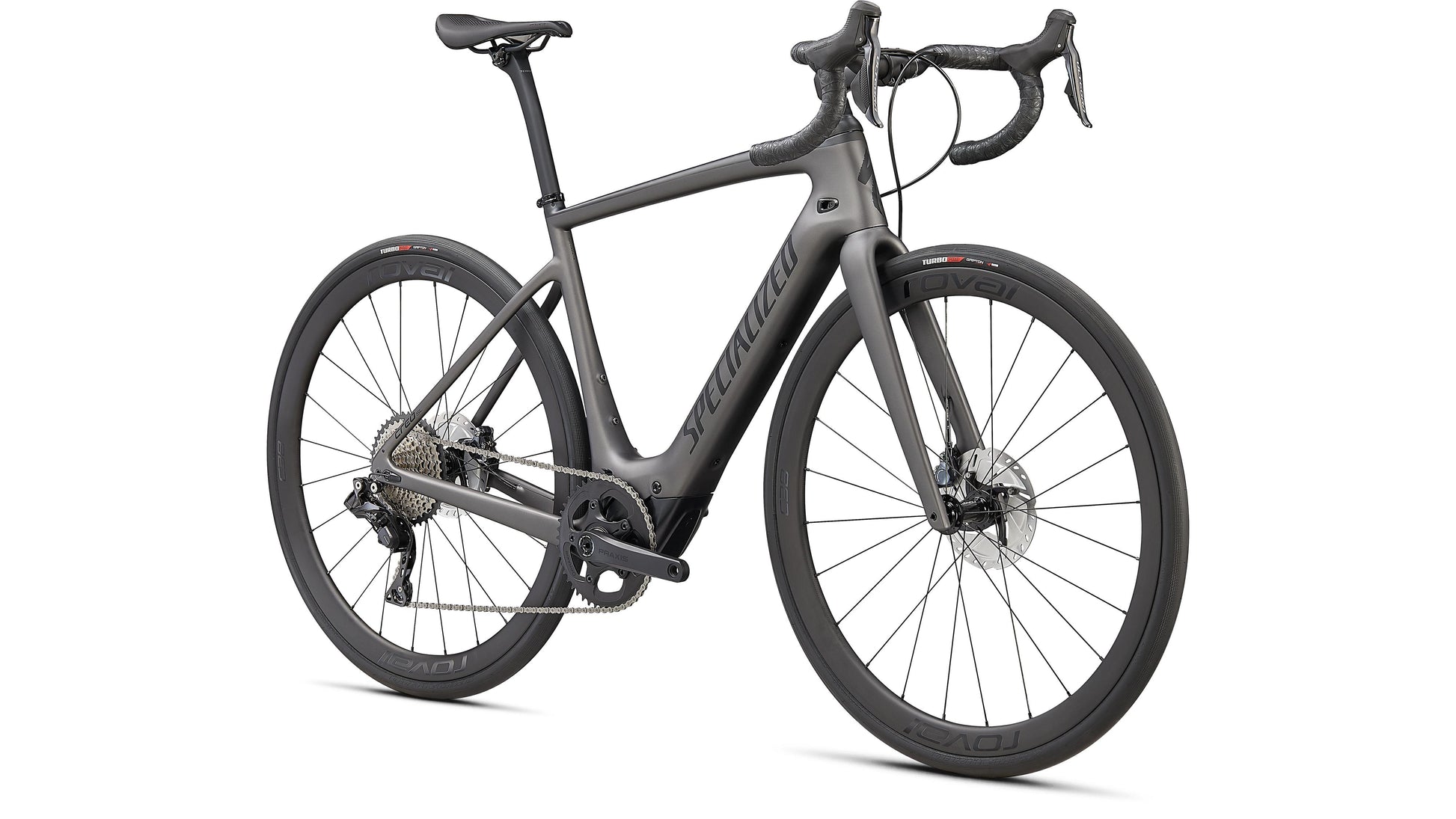

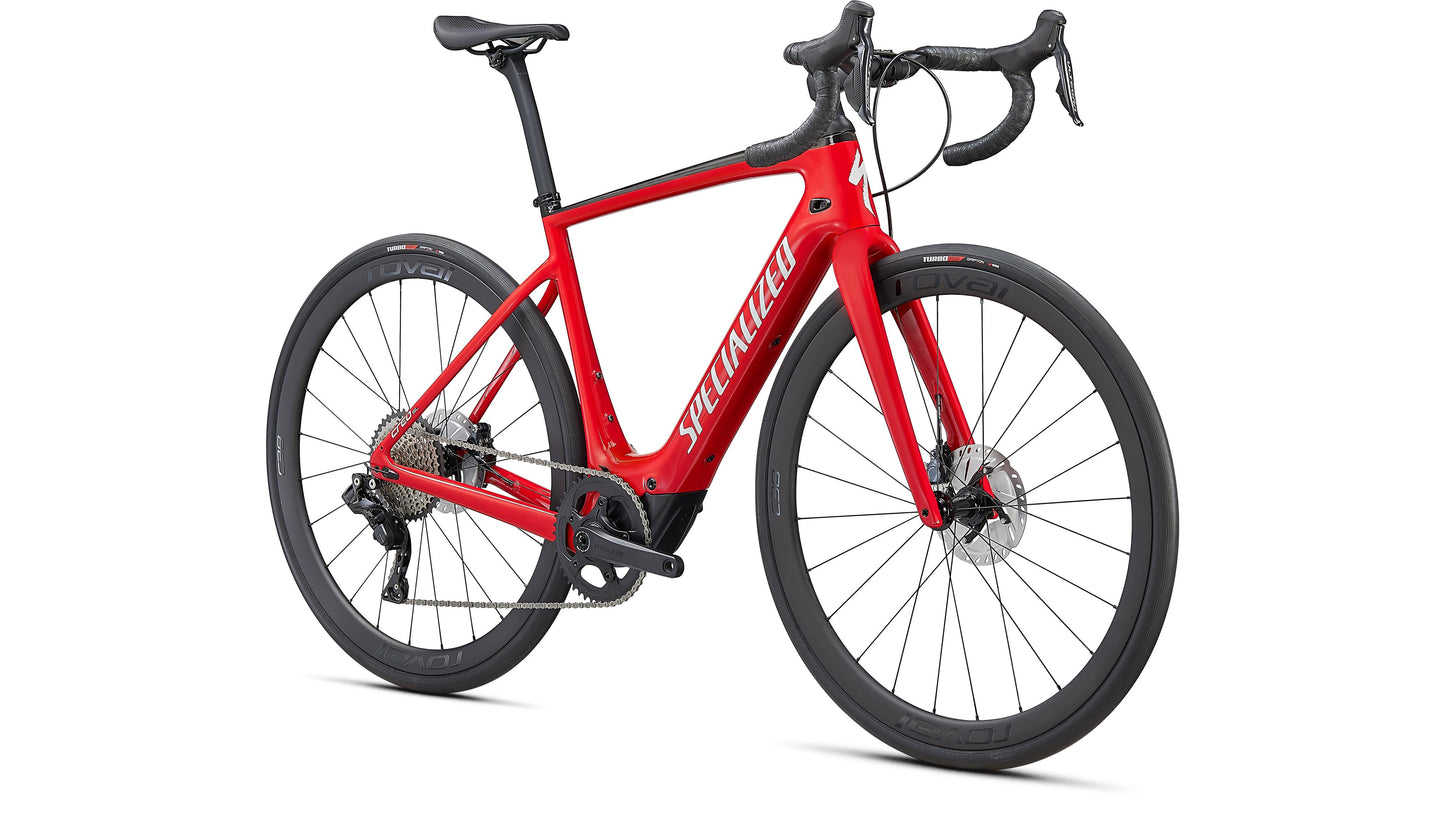

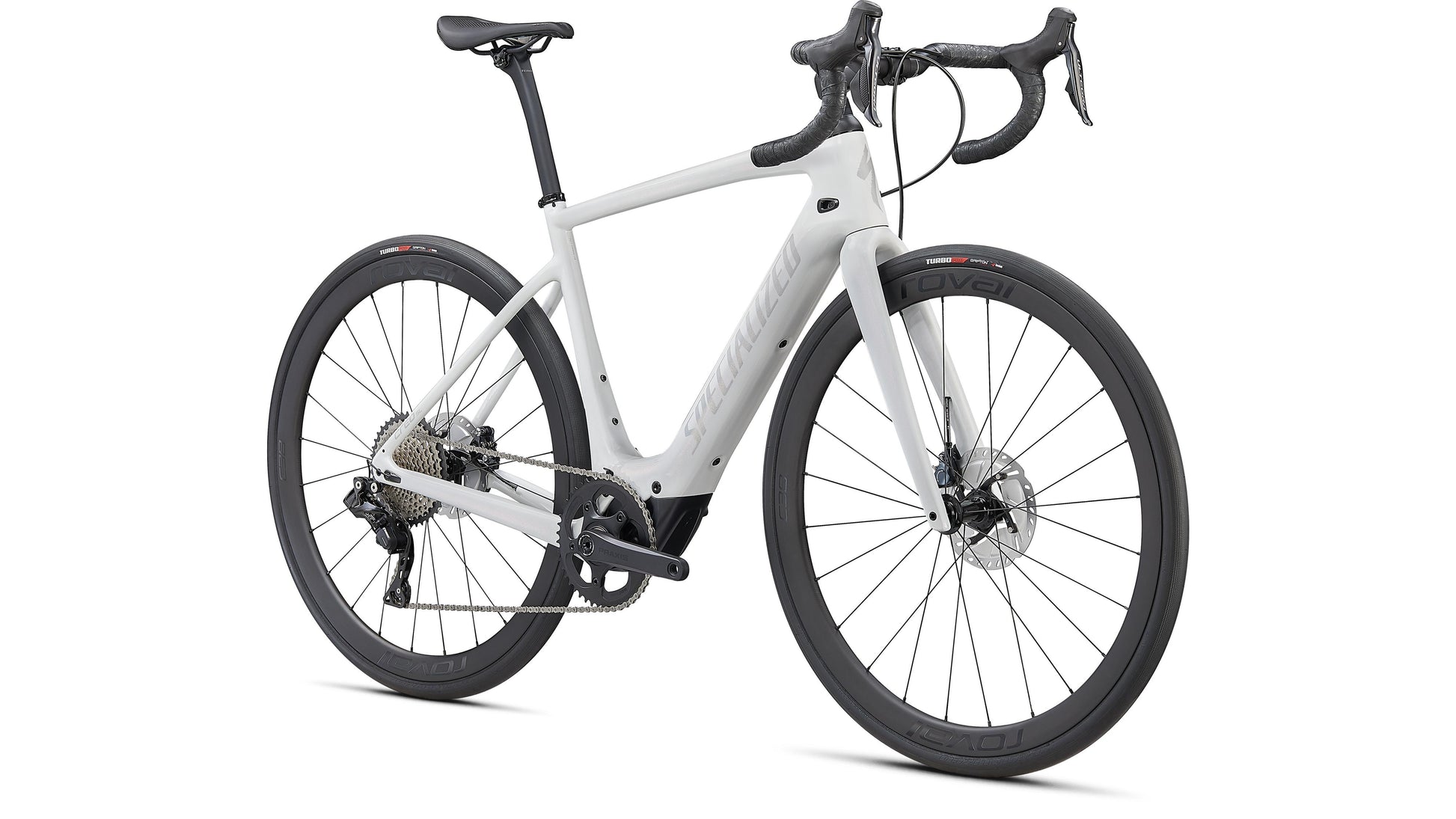

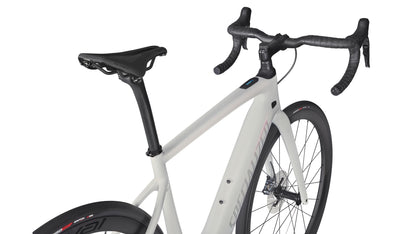

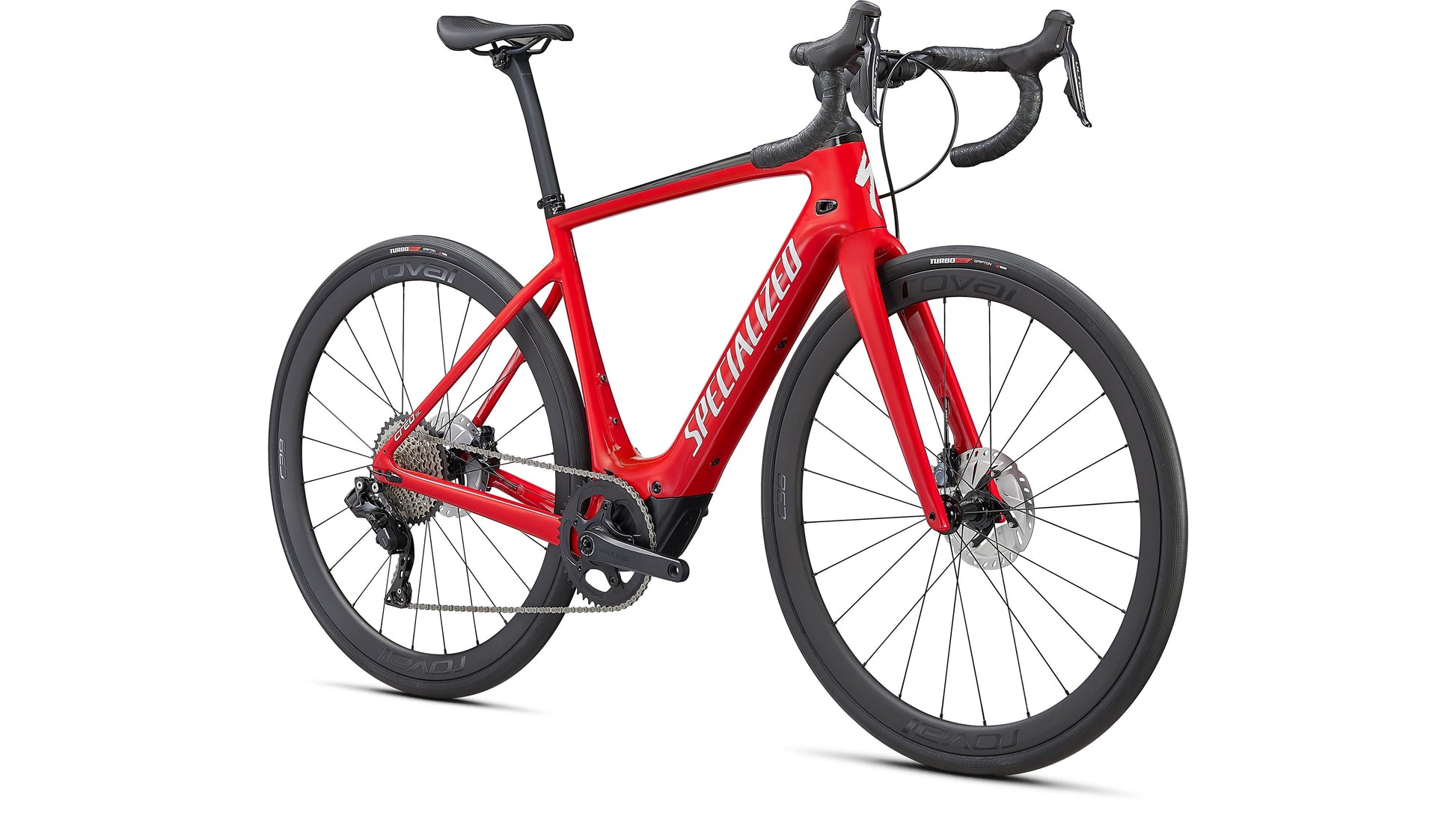

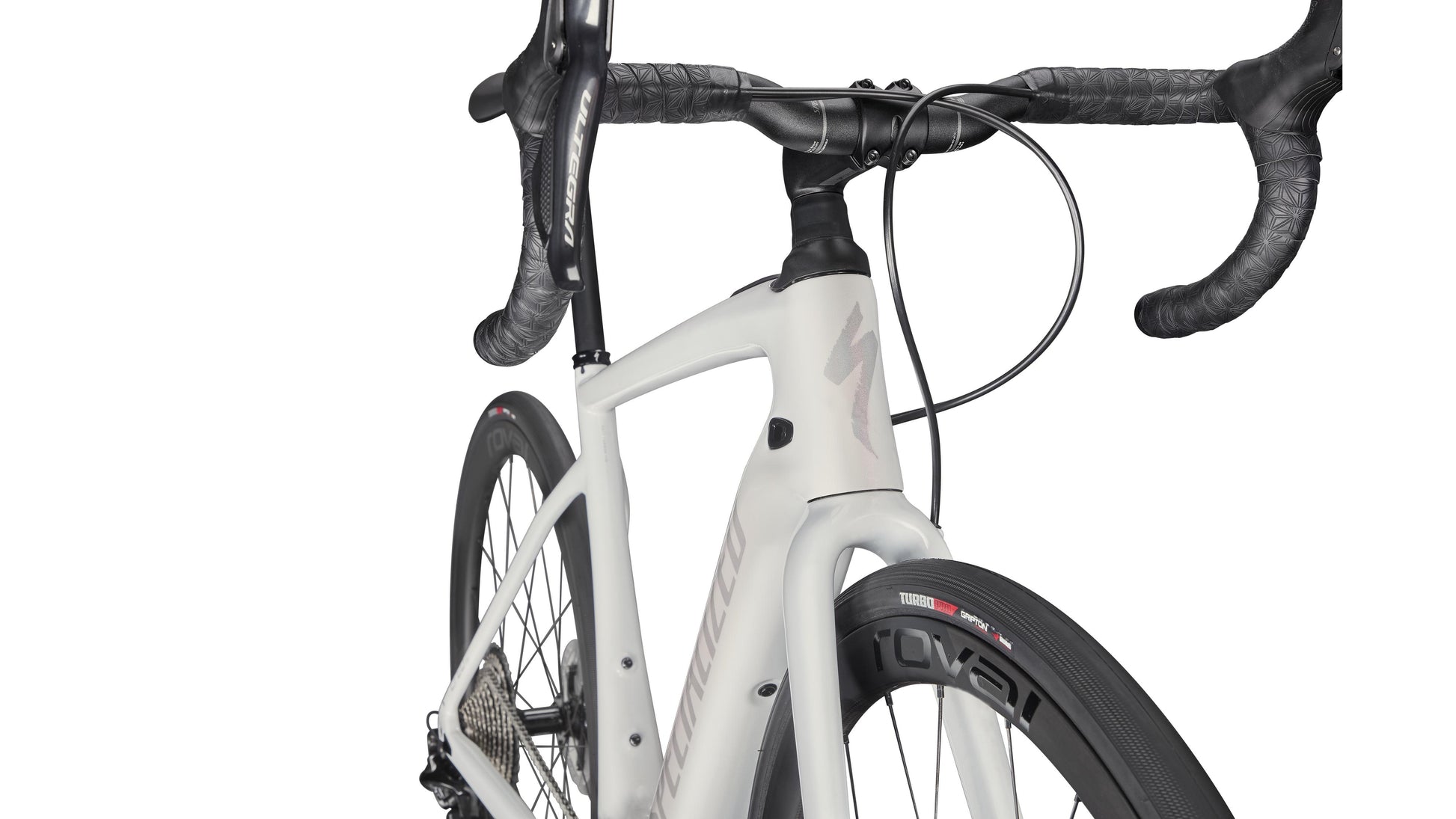

Specialized Creo Sl Expert Carbon Features
We have a long history of developing the world's highest performing road bikes. Tarmac, Venge, Roubaix, Allez, Diverge—each one dominates their respective category, featuring the best technologies in the industry. And while that's a tough palmarès to follow, the Turbo Creo SL redefines e-road bike performance. It's lightweight, smooth, capable, and lively—all with the power to flatten mountains, laugh at headwinds, and go farther than you ever thought possible. It's you, only faster.
The Turbo Creo SL Expert features out Fact 11r carbon chassis. Yes, that's the same one on the S-Works model, and you'll also get the new Future Shock 2.0. For the spec, we included a 1x Shimano Ultegra Di2 build with an XT rear derailleur and an 11-42t cassette to take on shifting and braking duties, while Roval C 38 Disc carbon wheels get wrapped in 30mm Turbo Pro tires to keep you rolling worry-free and super fast. And filling out the build are our Future Stem Pro, alloy Expert Hover bars, and our fan-favorite Body Geometry Power Expert saddle.
At a Glance
- The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff FACT 11r carbon frame inspire dancing on the pedals and diving into corners, but it also reduces overall system weight and increases the range.

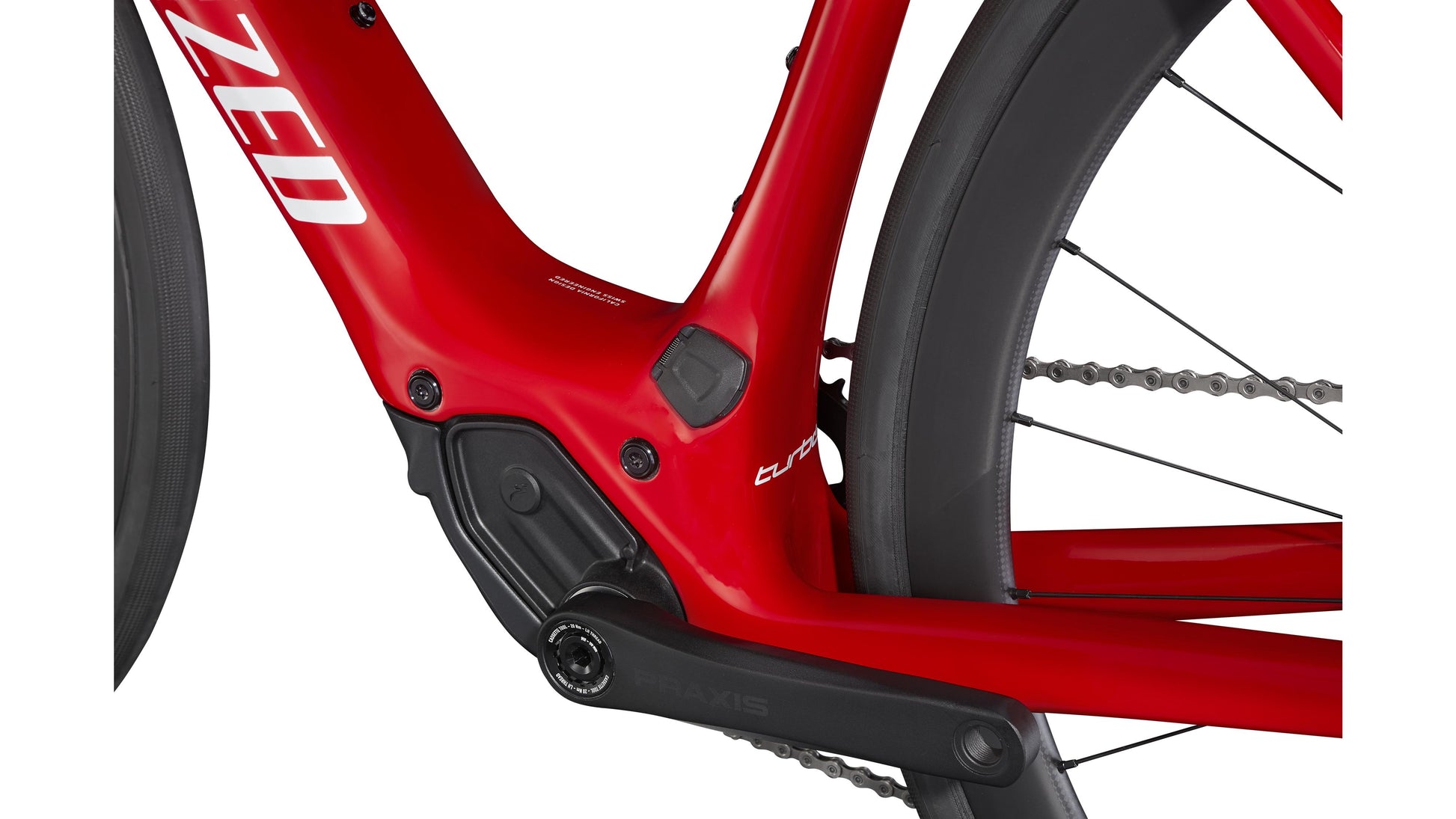

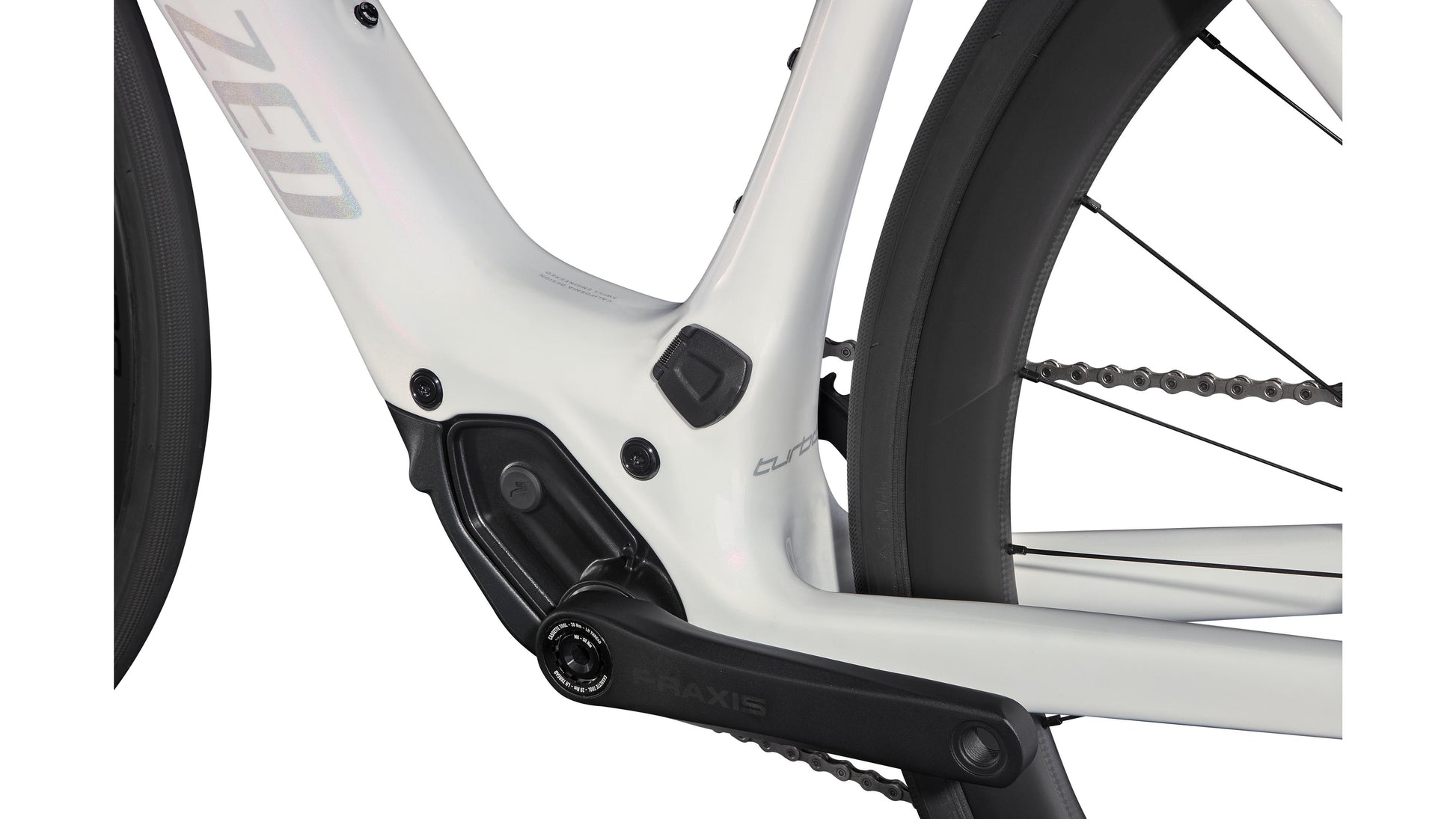

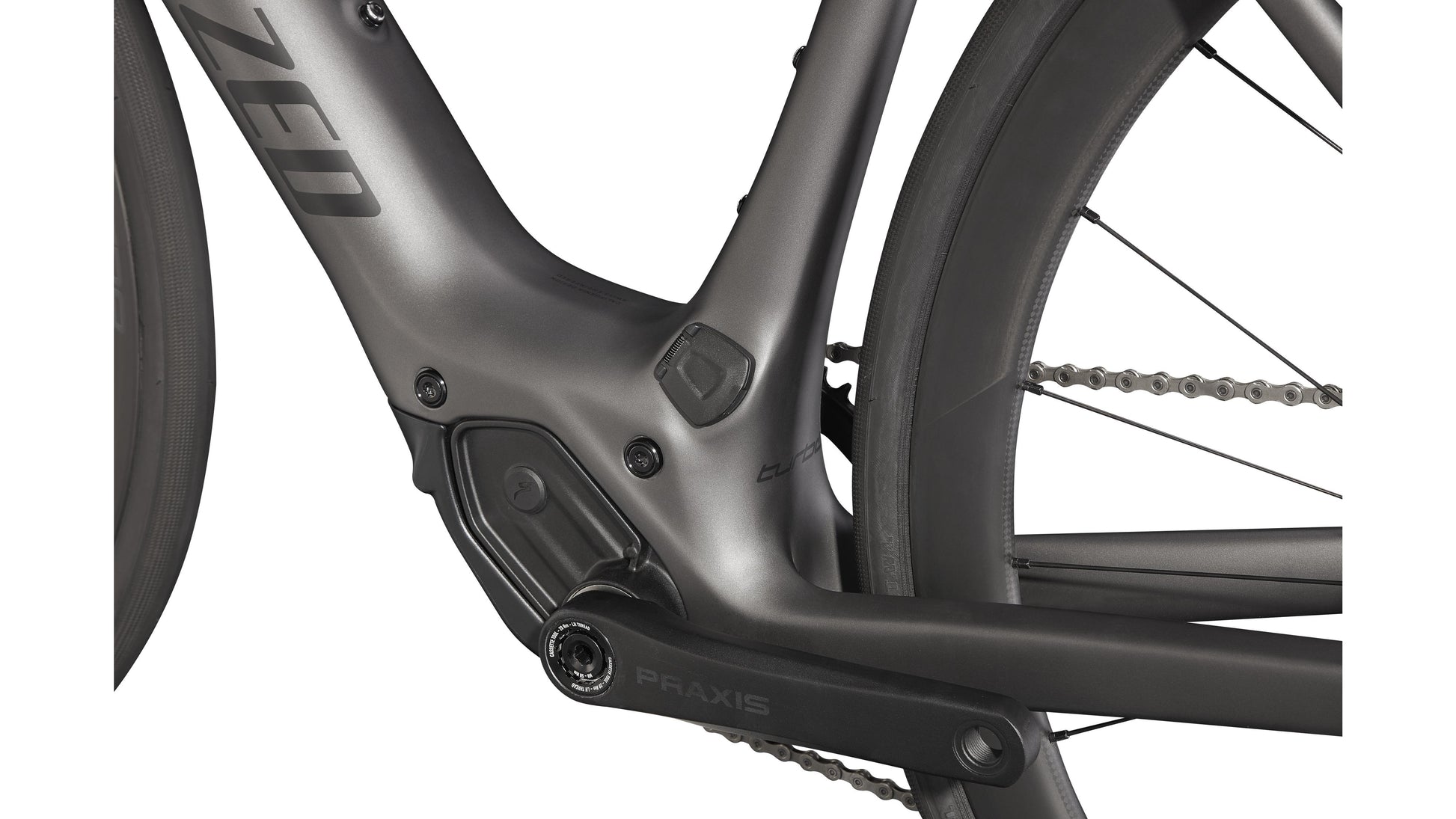

- The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.
- Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our optional range extender provides up to 40 additional miles of mountain-flattening power.

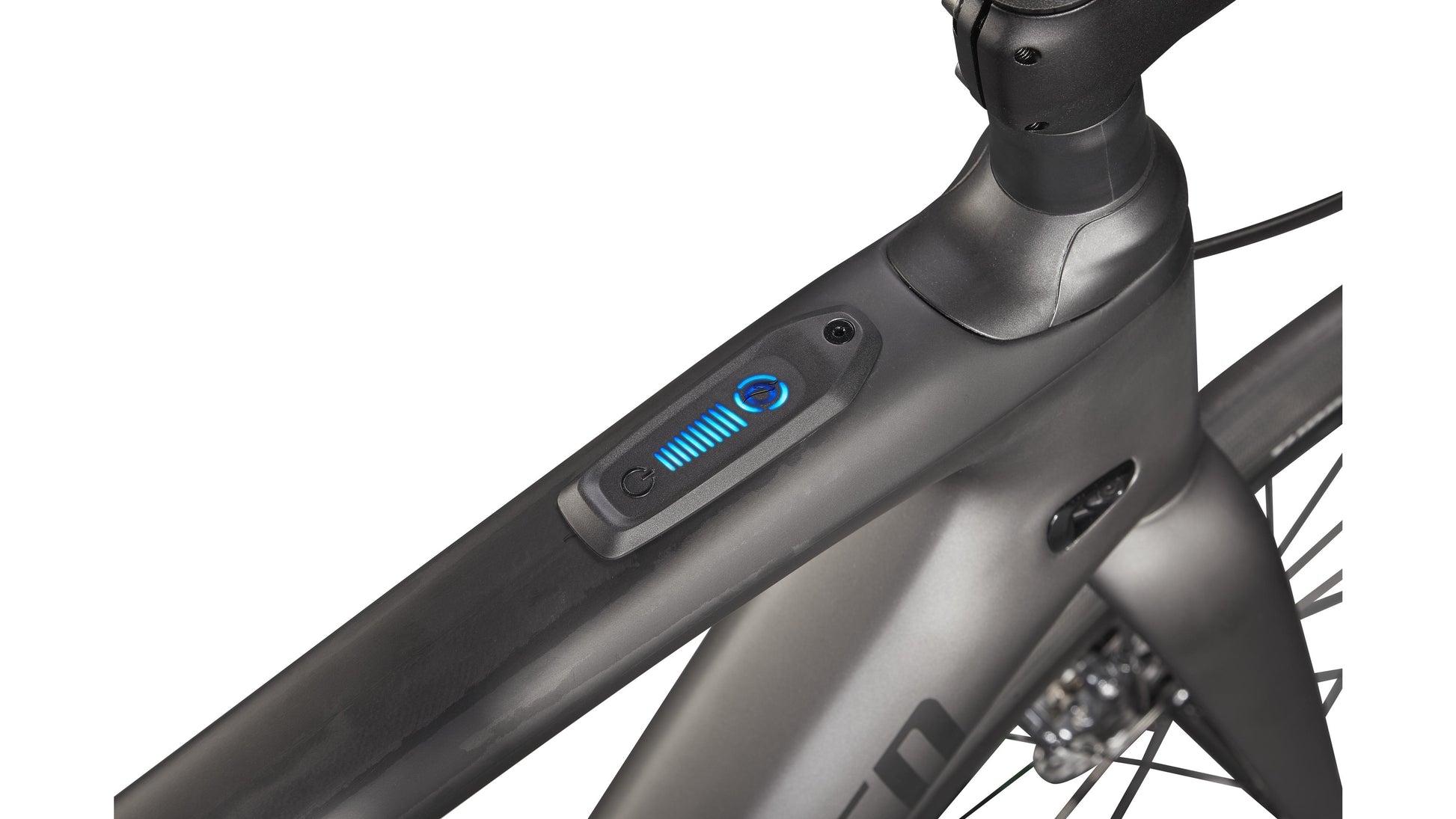

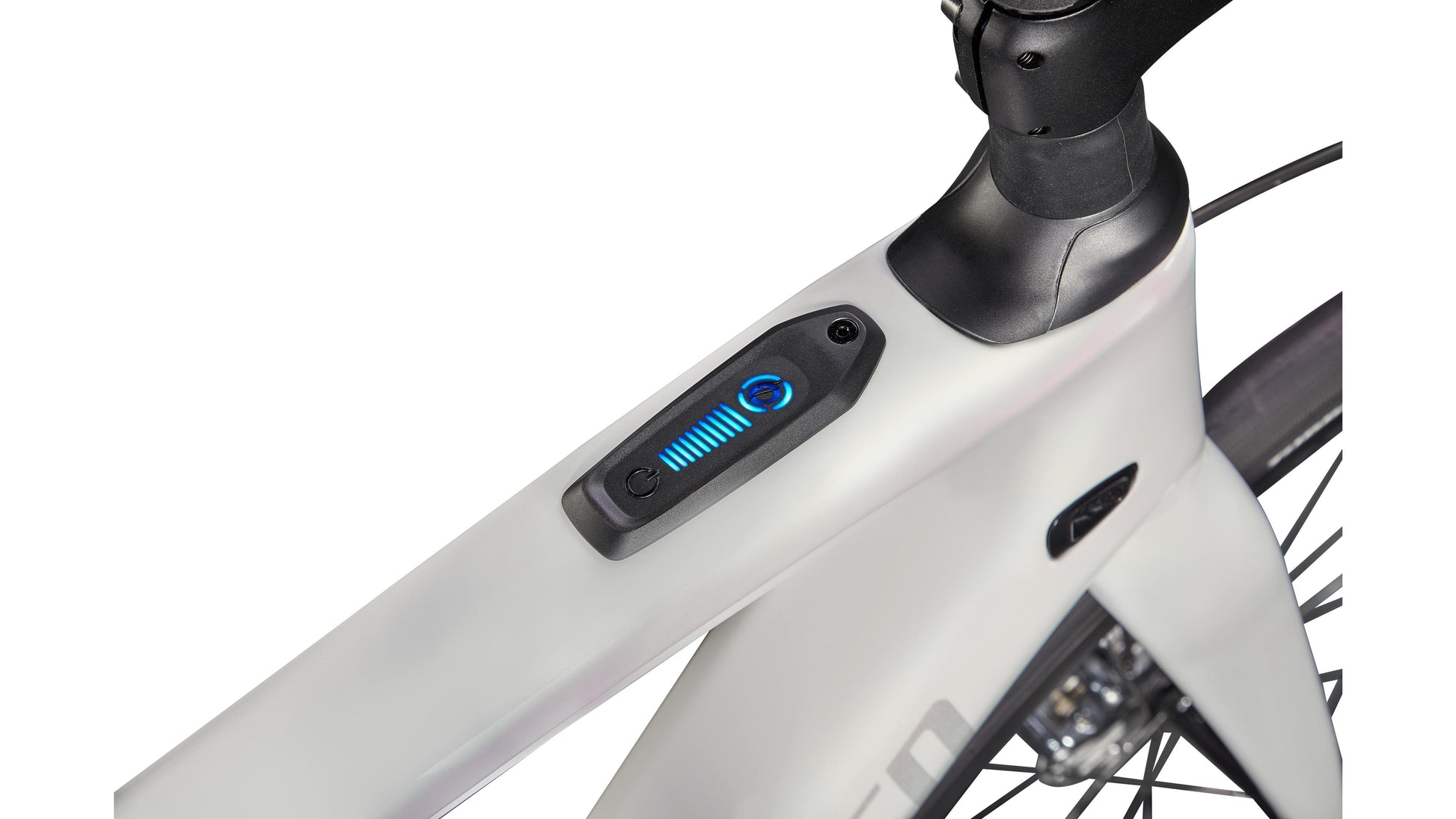

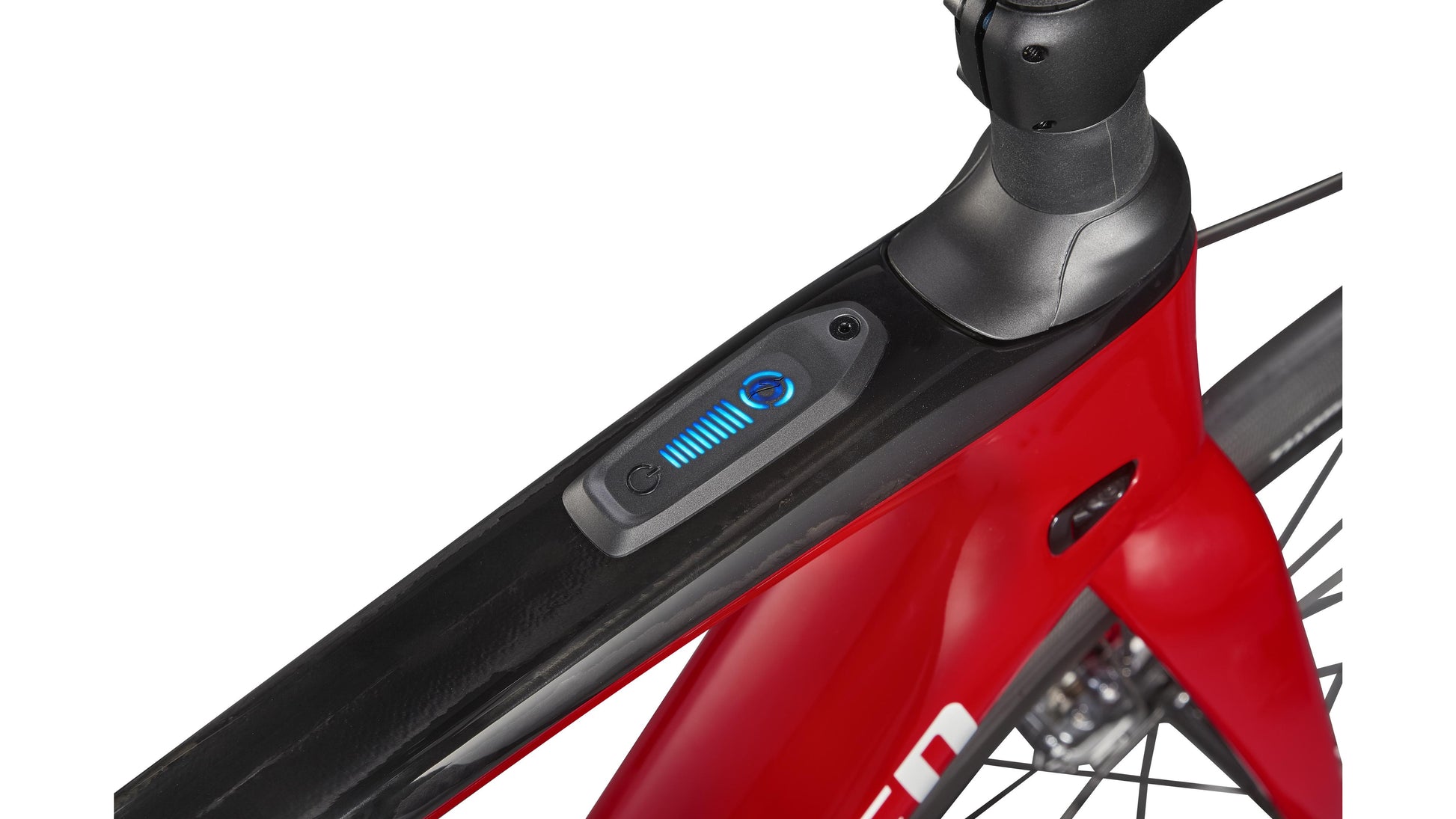

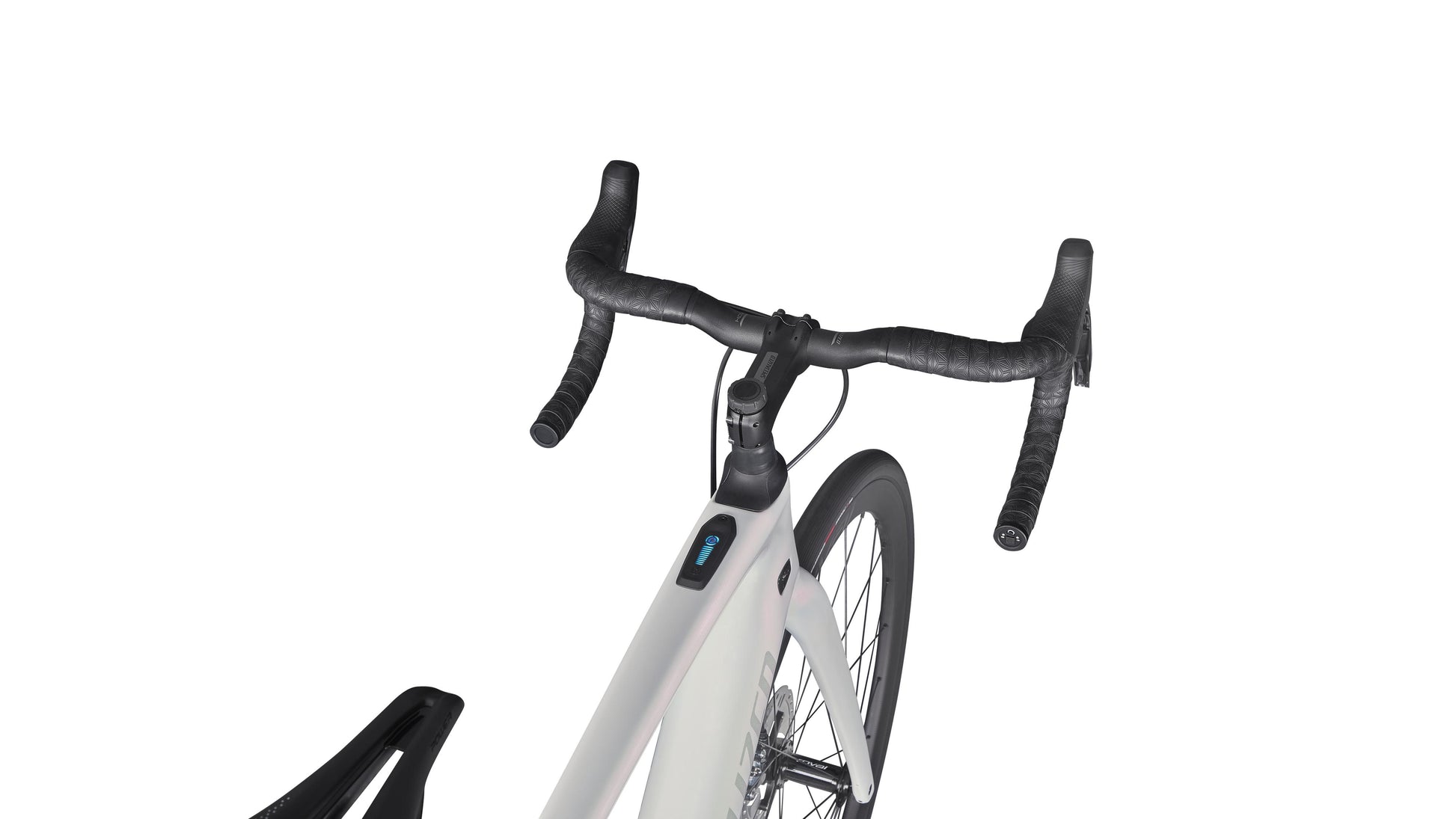

- By connecting with our Mission Control App, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit. Don’t want to connect? No worries— the Turbo Connect Unit (TCU) on the top tube gives you all the control you need to ride.

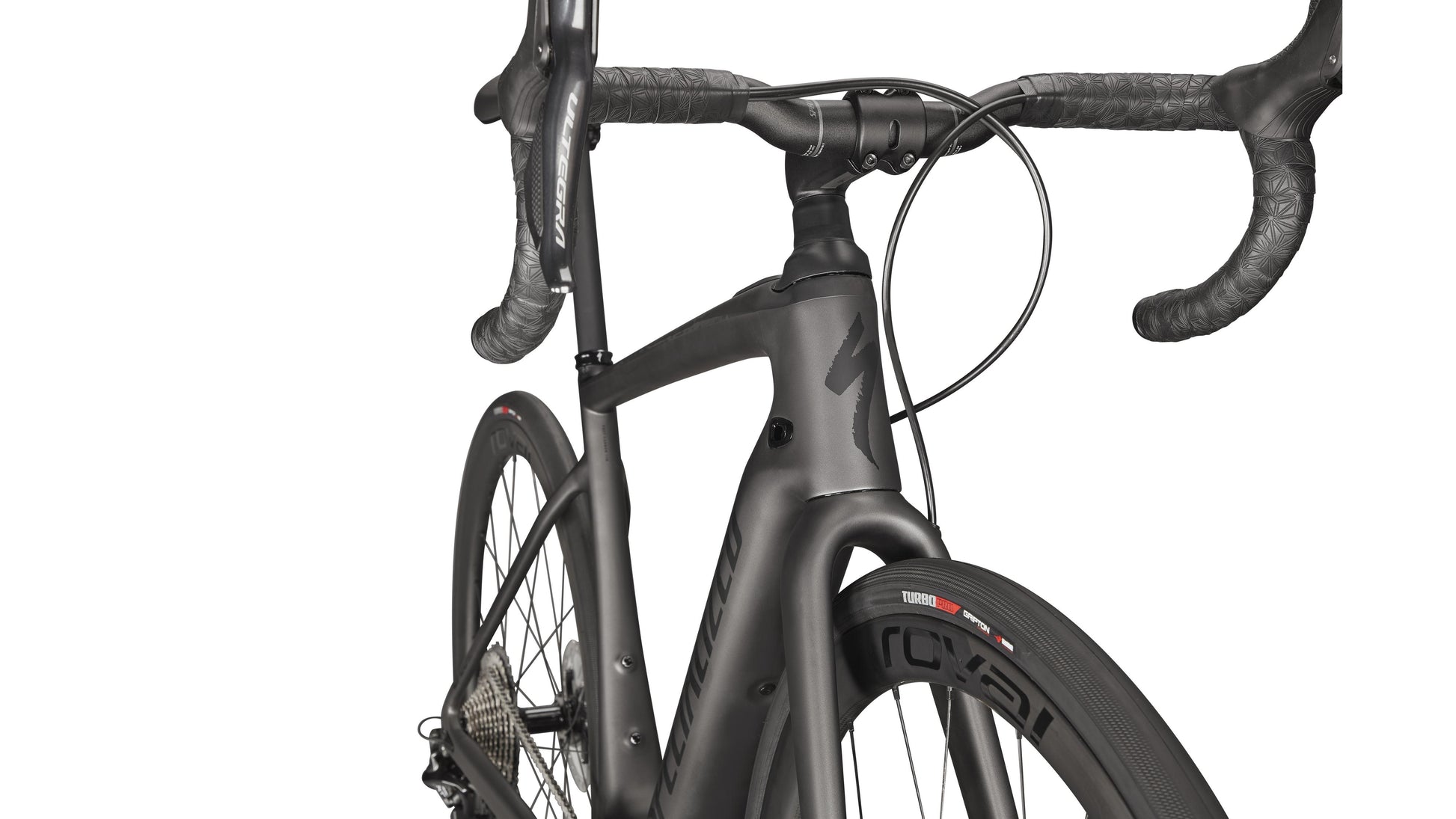

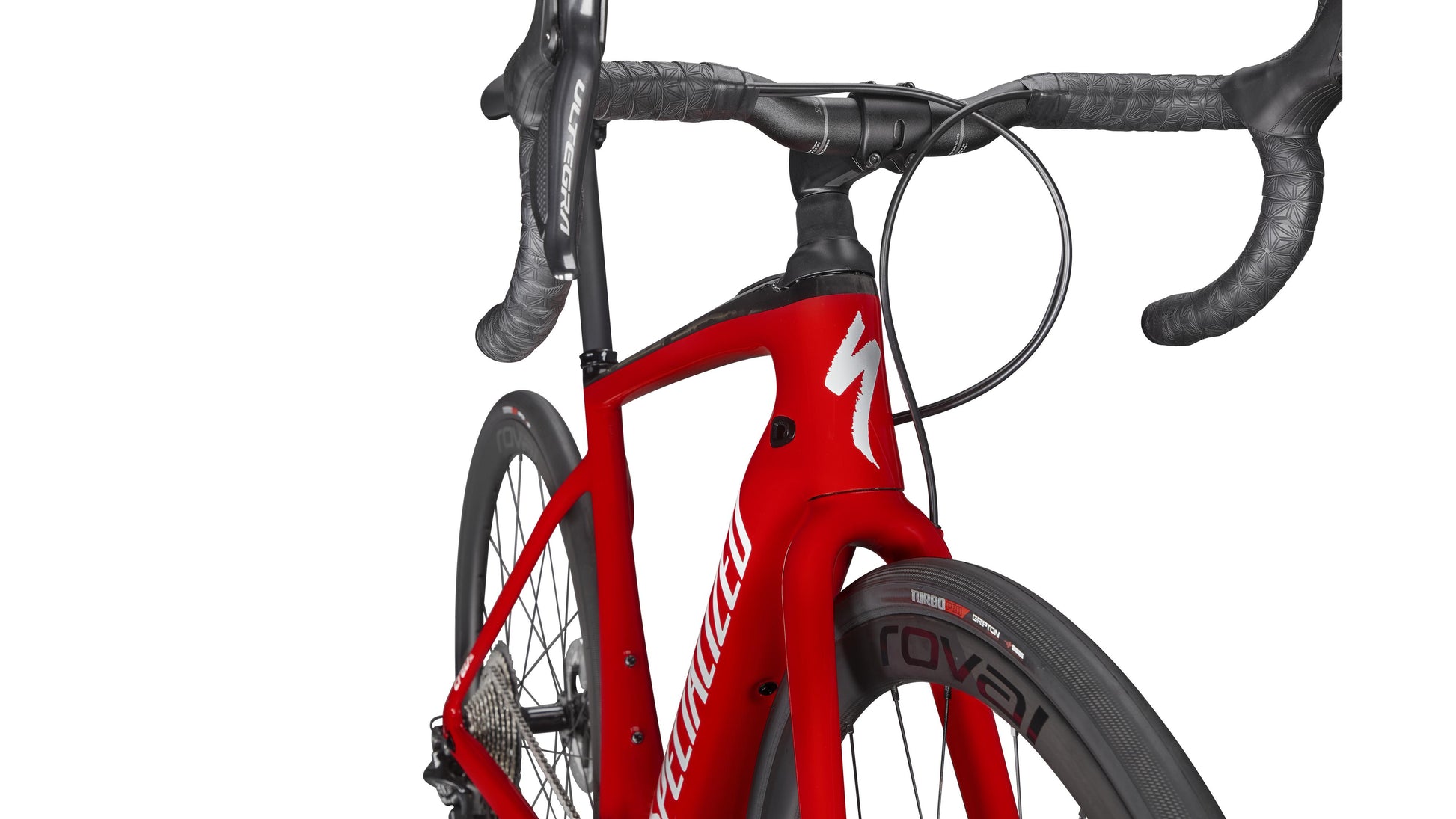

- With the Future Shock 2.0, you'll feel a reduction in fatigue and an increase in speed, no matter the terrain. The 2.0 iteration gives you more control via a knob atop the stem. This knob adjusts
- We’ve learned there can be more difference between two male cyclists than between a male and a female cyclist. Gender alone doesn’t provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders—one that's comfortable, snappy, and handles like a dream.
Component Specifications
| Motor | Specialized SL 1.1, custom lightweight motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| UI Remote | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth® |
| Charger | Custom charger, 48V System w/ SL system charger plug |
| Frame | FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm |
| Seat Binder | Specialized Alloy, 30.8mm |
| Fork | Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc |
| Shift Levers | Shimano Ultegra Di2 Disc R8070 |
| Rear Derailleur | Shimano Deore XT Di2, Shadow Plus, 11-speed |
| Cassette | Shimano XT, 11-speed, 11-42t |
| Chain | Shimano Ultegra, 11-speed |
| Crankset | Praxis Forged/M30 Spindle Interface |
| Chain Rings | 46T |
| Front Tire | Specialized Turbo Pro, 700x28mm |
| Rear Tire | Specialized Turbo Pro, 700x28mm |
| Inner Tubes | Presta valve, 48mm |
| Front Brake | Shimano Ultegra, Hydraulic disc |
| Rear Brake | Shimano Ultegra, Hydraulic disc |
| Stem | Future Stem, Pro |
| Handlebars | Specialized Hover Expert, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole |
| Saddle | Body Geometry Power Expert |
| Seatpost | Roval Terra Carbon Seat Post, 20mm Offset |
Specialized Creo Sl Expert Carbon
| Bike/Frame Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Stack | 573 mm | 575 mm | 592 mm | 615 mm | 643 mm | 675 mm |
| Reach | 363 mm | 373 mm | 379 mm | 384 mm | 391 mm | 399 mm |
| Chain-Stay Length | 426 mm | 426 mm | 426 mm | 427 mm | 427 mm | 428 mm |
| Wheelbase | 999 mm | 1005 mm | 1012 mm | 1020 mm | 1036 mm | 1052 mm |
| Top-Tube Length (horizontal) | 527 mm | 539 mm | 548 mm | 566 mm | 581 mm | 605 mm |
| Bike Stand-Over Height | 728 mm | 731 mm | 759 mm | 782 mm | 810 mm | 840 mm |
| Seat-Tube Length | 415 mm | 447.5 mm | 477.5 mm | 502.5 mm | 527.5 mm | 557.5 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| Head-Tube Length | 145.5 mm | 145.5 mm | 163.5 mm | 185.5 mm | 217 mm | 250 mm |
| Head-Tube Angle | 71.5° | 72° | 72.5° | 73° | 73° | 73° |
| B-B Height | 264.5 mm | 264.5 mm | 267 mm | 267 mm | 269.5 mm | 269.5 mm |
| B-B Drop | 80.5 mm | 80.5 mm | 78 mm | 78 mm | 75.5 mm | 75.5 mm |
| Trail | 68 mm | 60 mm | 56 mm | 53 mm | 53 mm | 52 mm |
| Fork Length (full) | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front-Center | 586 mm | 592 mm | 598 mm | 605 mm | 621 mm | 636 mm |
