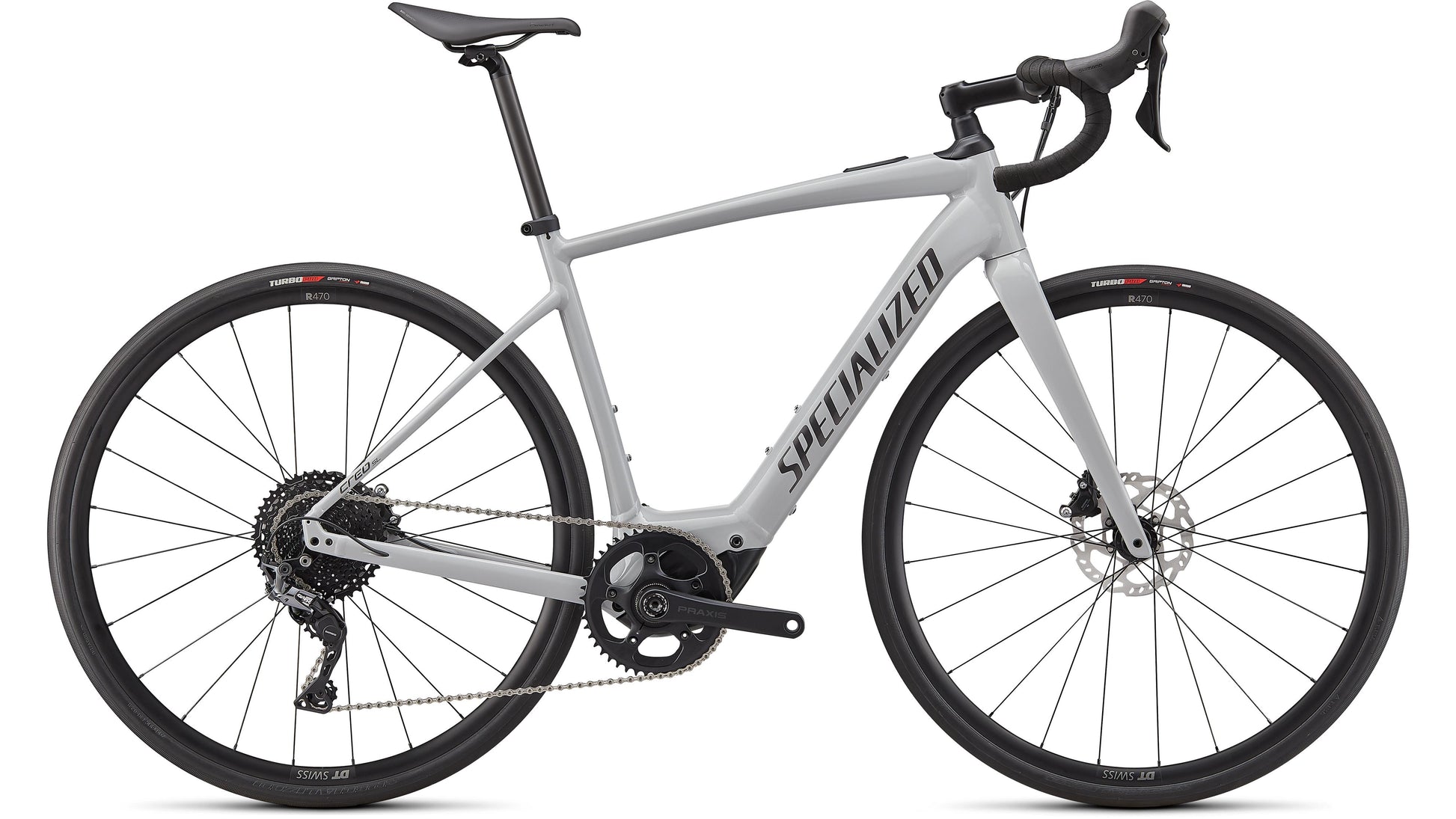

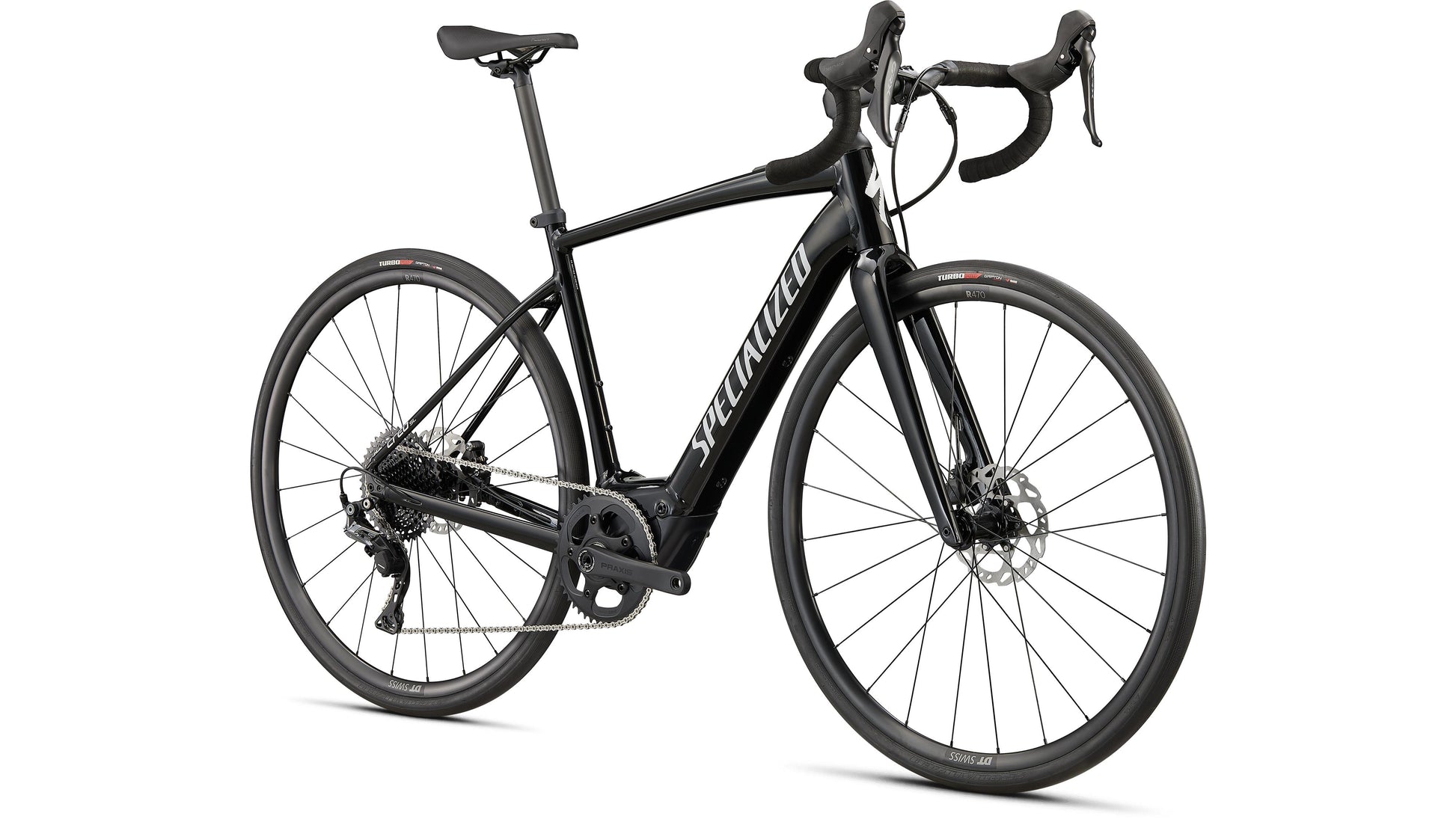

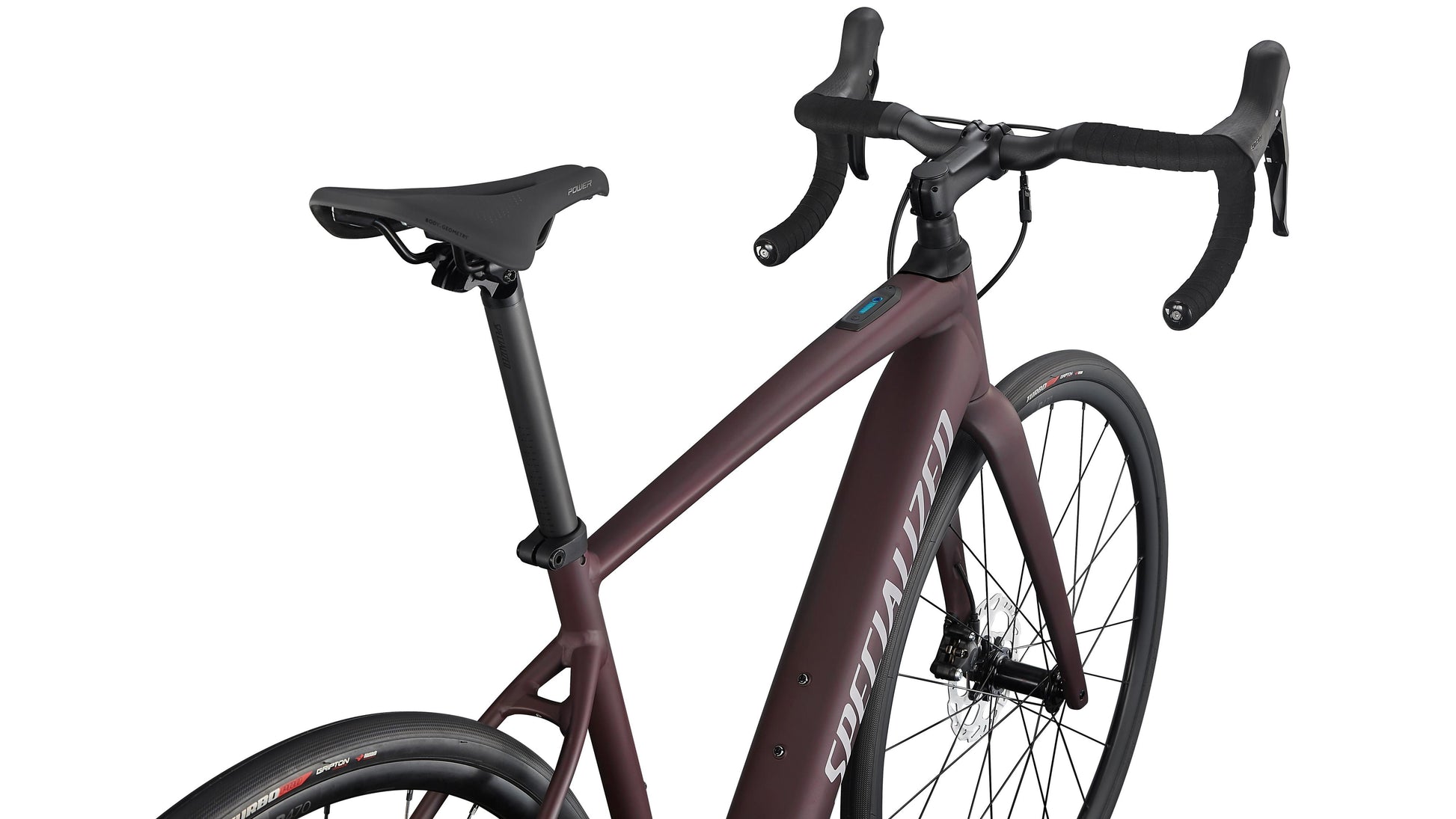

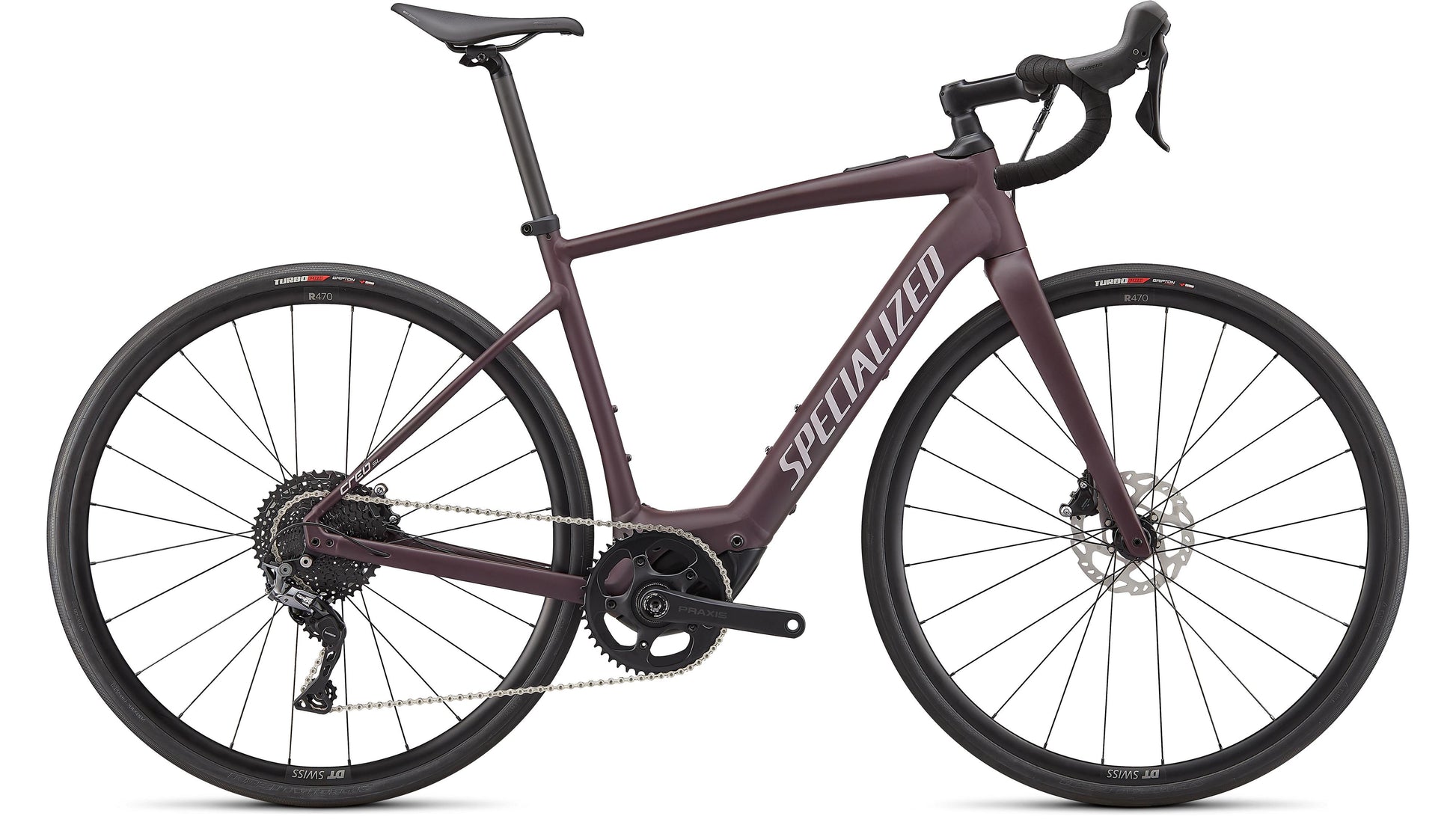

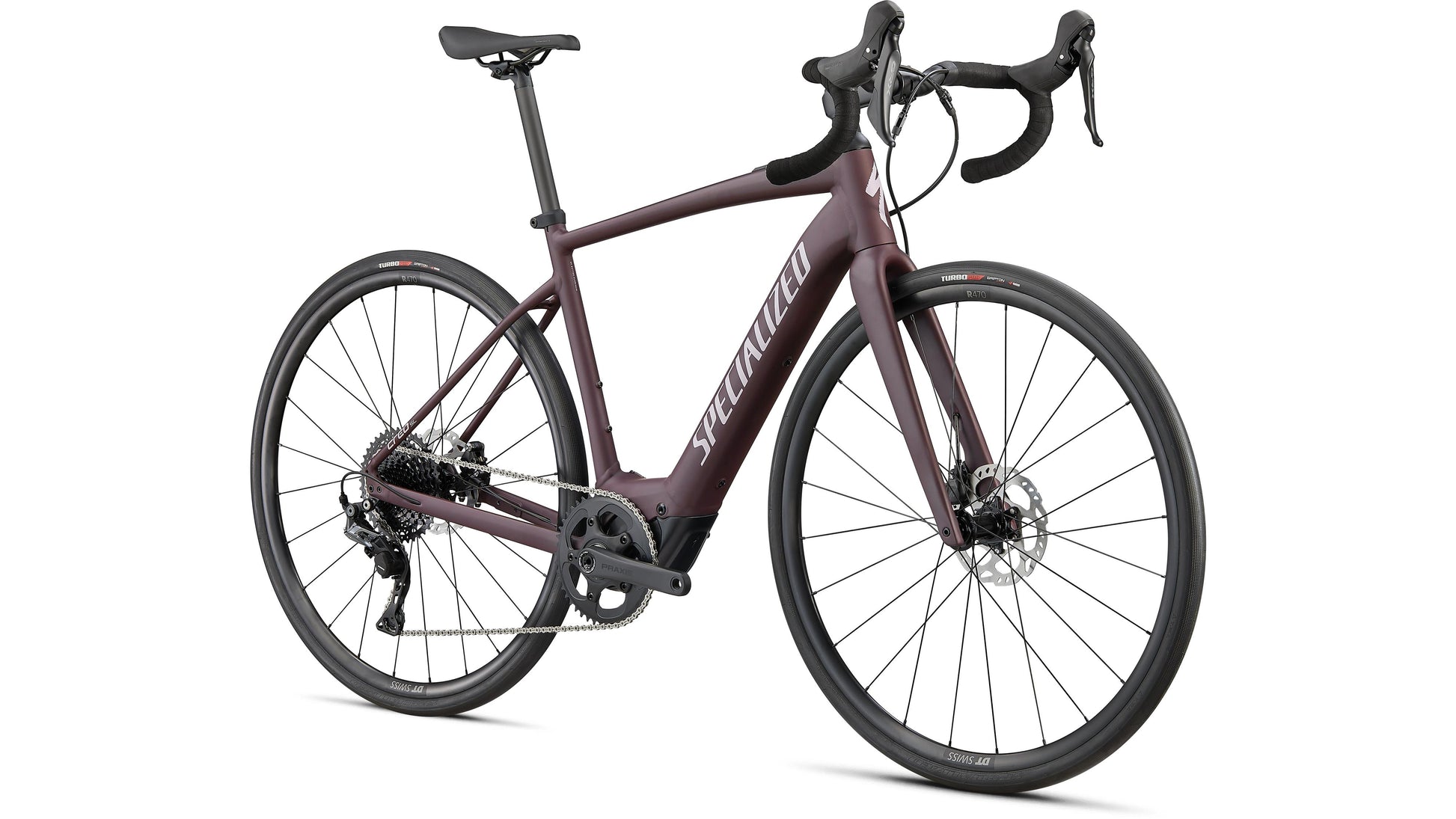

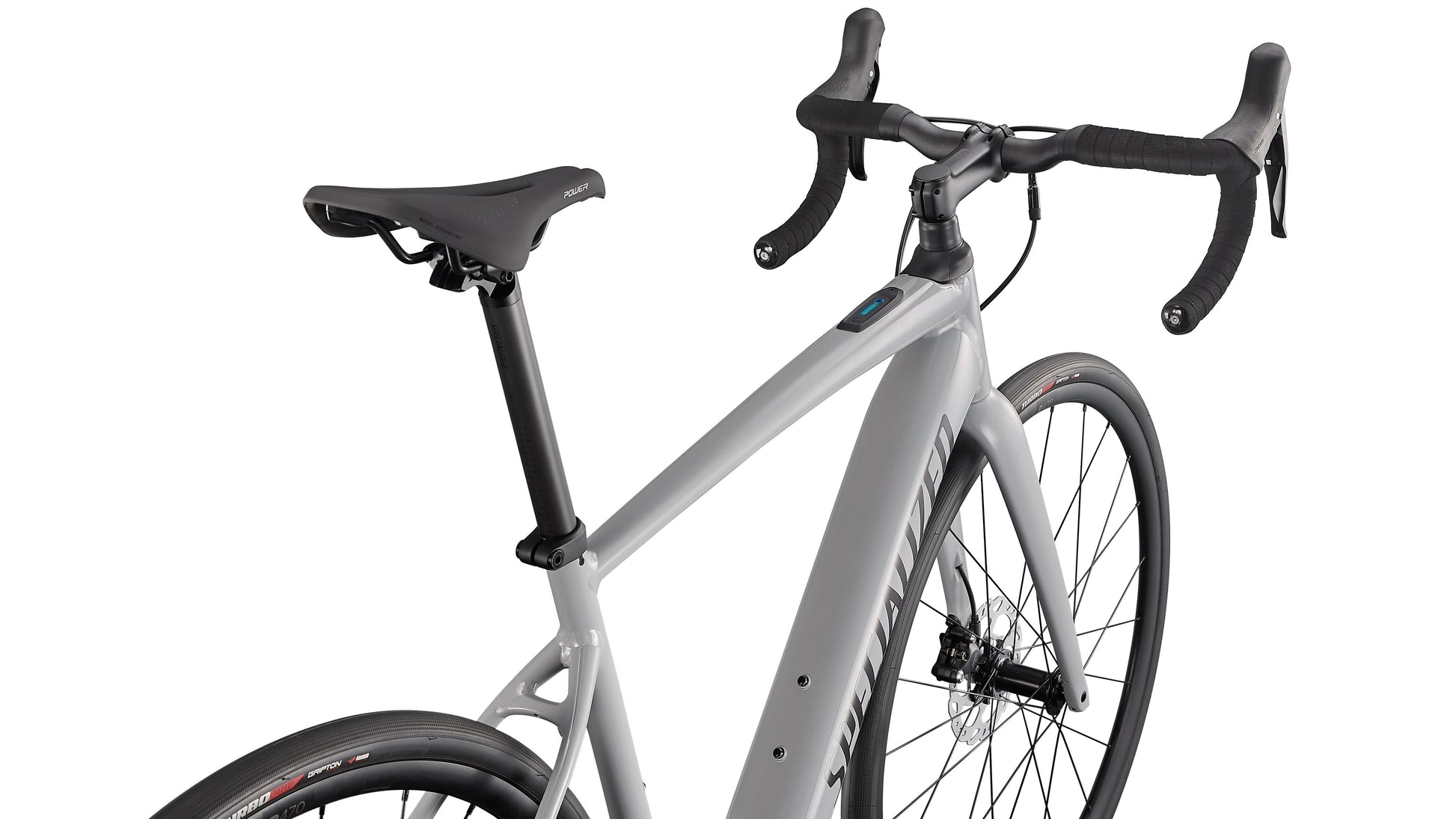

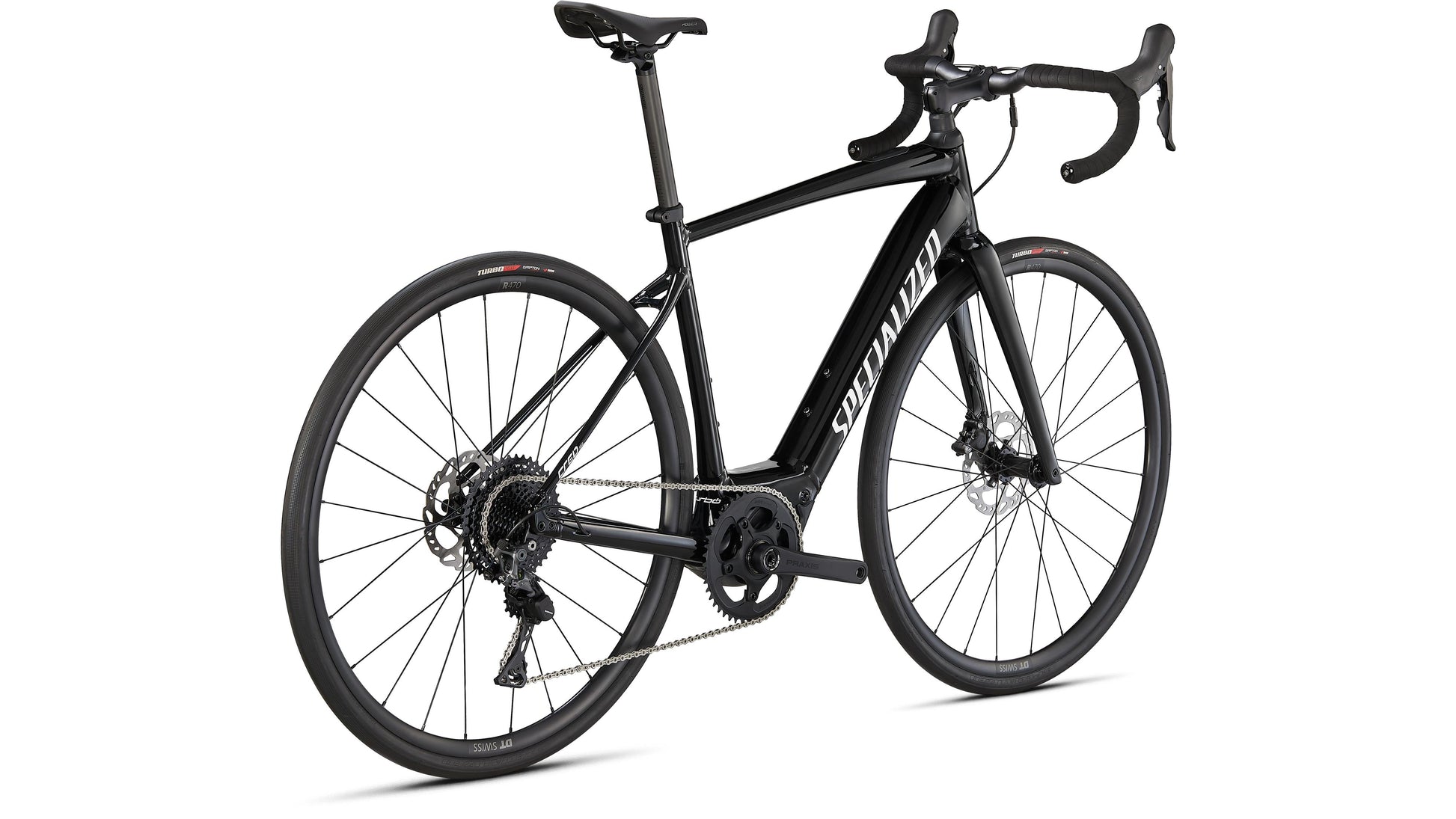

2023 Specialized Turbo Creo SL Comp E5 Features
We have a long history of developing the world's highest performing road bikes. Tarmac, Venge, Roubaix, Allez, Diverge—each one dominates their respective category, featuring the best technologies in the industry. And while that's a tough palmarès to follow, the Turbo Creo SL redefines e-road bike performance. It's lightweight, smooth, capable, and lively—all with the power to flatten mountains, laugh at headwinds, and go farther than you ever thought possible. It's you, only faster.
The Turbo Creo SL E5 Comp features an E5 Premium Aluminum frame and a Future Shock 1.5. For the spec, we included a 1x Shimano GRX group to take on shifting and braking duties, while DT R470 Boost™ wheels get wrapped in 28mm Turbo Pro tires to keep you rolling worry-free. And for the saddle, you'll find that our fan-favorite Body Geometry Power Sport provides plenty of comfort.
At a Glance
- The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff, premium E5 alloy frame inspire dancing on the pedals and diving into corners, it also reduces overall system weight and increases the range.

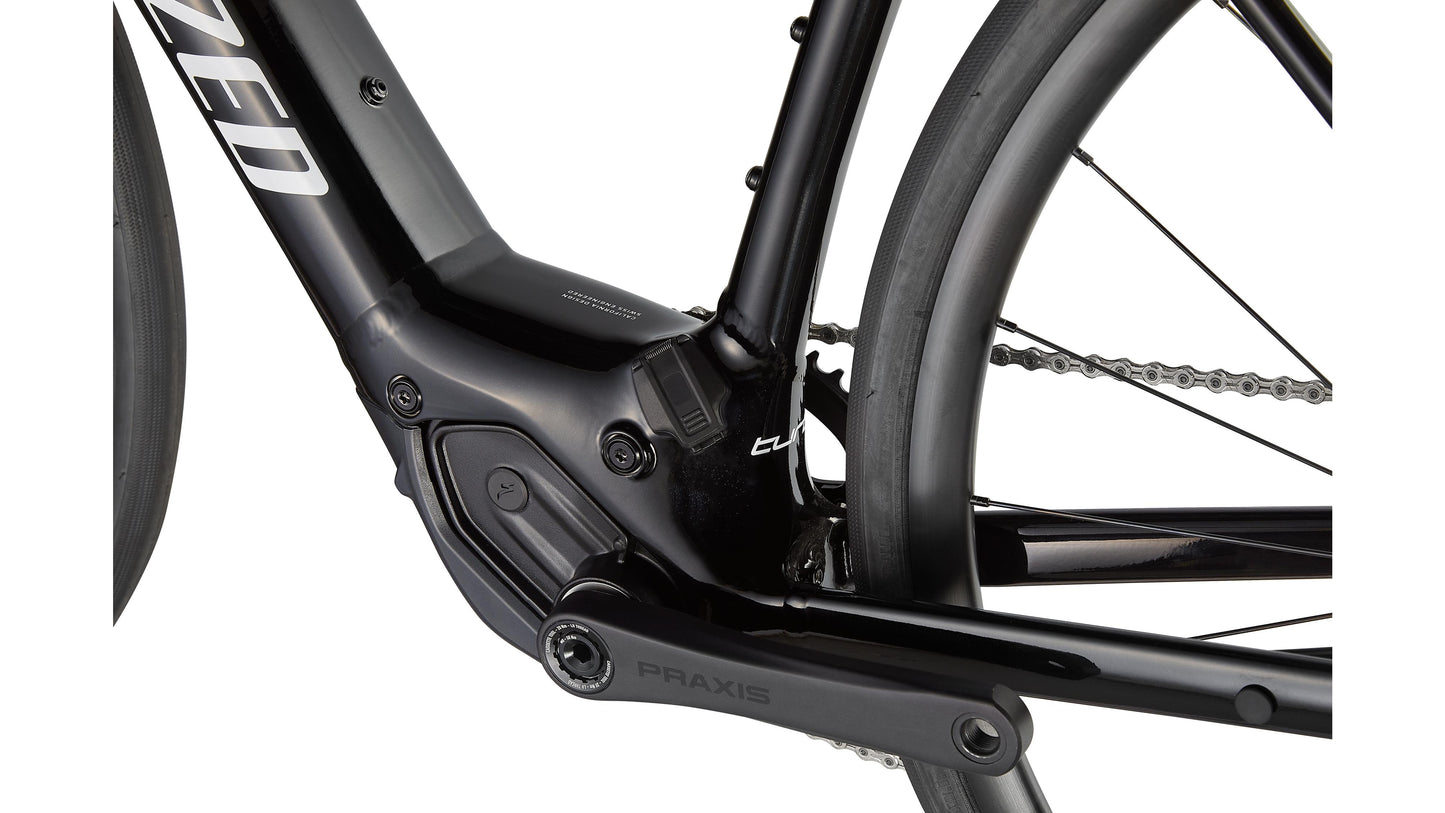

- The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor's responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.
- Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our optional range extender provides up to 40 additional miles of mountain-flattening power.
- By connecting with our Specialized app, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit.

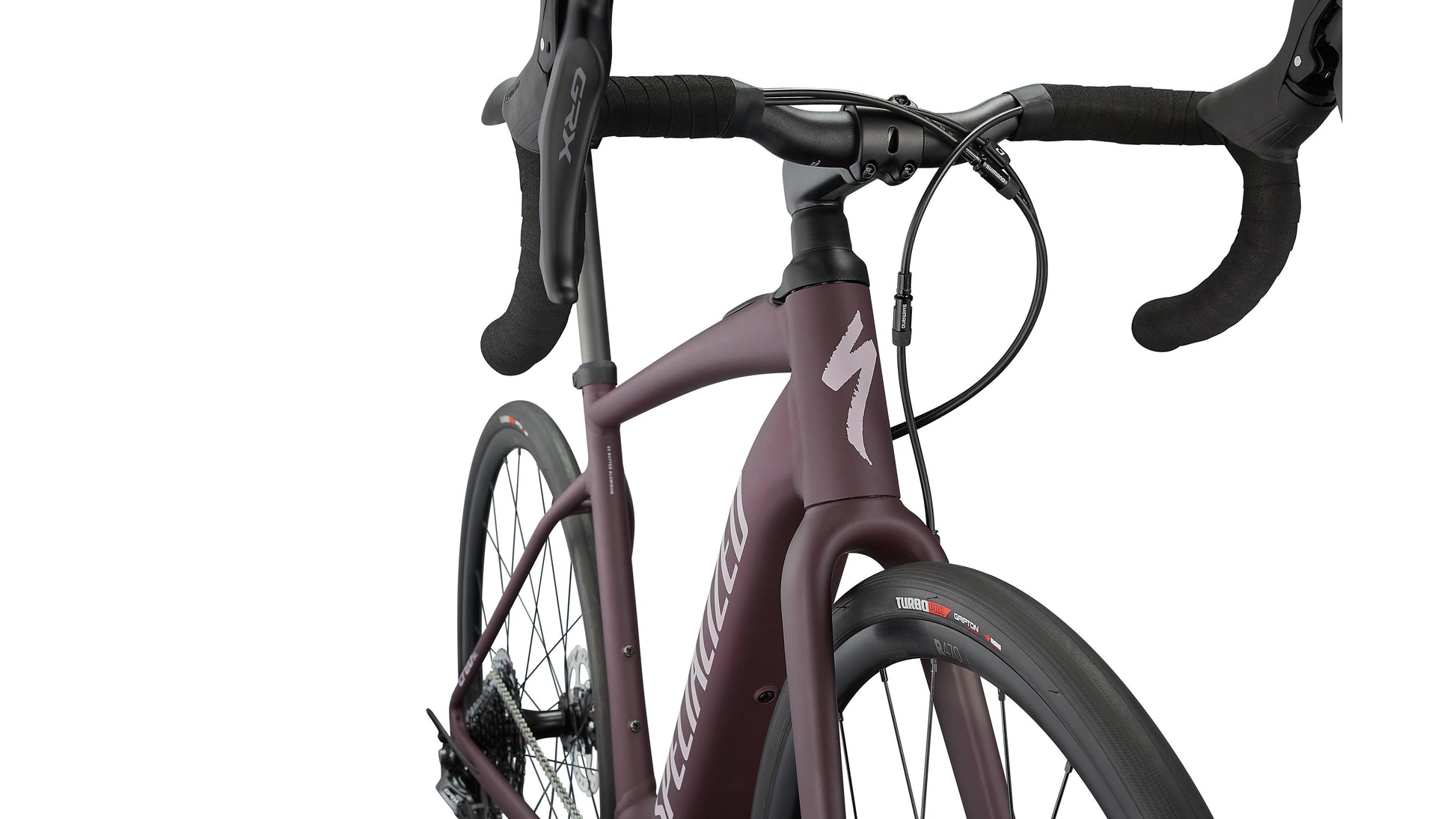

- With 20mm of rough-road-taming travel, the Future Shock 1.5 not only delivers a smoother, more comfortable ride, but it also reduces fatigue and increases speed over harsh terrain. The new Smooth Boot, meanwhile, enhances the aesthetics to bring a clean transition from the head tube to the stem.
- We've learned there can be more difference between two male cyclists than between a male and a female cyclist. Gender alone doesn't provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders—one that's comfortable, snappy, and handles like a dream.
Component Specifications
| E-Bike |
motor
battery
ui remote
charger
wiring harness
|
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
chain rings
|
| Wheels & Tires |
front tire
rear tire
inner tubes
front wheel
rear wheel
|
| Cockpit |
stem
handlebars
saddle
seatpost
tape
|
2023 Specialized Turbo Creo SL Comp E5
| Bike/Frame Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Stack | 575 mm | 592 mm | 615 mm | 643 mm | 675 mm |
| Reach | 373 mm | 379 mm | 384 mm | 391 mm | 399 mm |
| Chain-Stay Length | 426 mm | 426 mm | 427 mm | 427 mm | 428 mm |
| Wheelbase | 1005 mm | 1012 mm | 1020 mm | 1036 mm | 1052 mm |
| Top-Tube Length (horizontal) | 539 mm | 548 mm | 566 mm | 581 mm | 605 mm |
| Bike Stand-Over Height | 731 mm | 759 mm | 782 mm | 810 mm | 840 mm |
| Seat-Tube Length | 447.5 mm | 477.5 mm | 502.5 mm | 527.5 mm | 557.5 mm |
| Seat-Tube Angle | 74° | 74° | 73.5° | 73.5° | 73° |
| Head-Tube Length | 145.5 mm | 163.5 mm | 185.5 mm | 217 mm | 250 mm |
| Head-Tube Angle | 72° | 72.5° | 73° | 73° | 73° |
| B-B Height | 264.5 mm | 267 mm | 267 mm | 269.5 mm | 269.5 mm |
| B-B Drop | 80.5 mm | 78 mm | 78 mm | 75.5 mm | 75.5 mm |
| Trail | 60 mm | 56 mm | 53 mm | 53 mm | 52 mm |
| Fork Length (full) | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front-Center | 592 mm | 598 mm | 605 mm | 621 mm | 636 mm |
Component Geometry
| Component | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Crank Length | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Handlebar Width | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Stem Length | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Saddle Width | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 350 mm | 350 mm | 400 mm | 400 mm | 400 mm |
