Specialized Creo Sl Comp Carbon Features
We have a long history of developing the world's highest performing road bikes. Tarmac, Venge, Roubaix, Allez, Diverge—each one dominates their respective category, featuring the best technologies in the industry. And while that's a tough palmarès to follow, the Turbo Creo SL redefines e-road bike performance. It's lightweight, smooth, capable, and lively—all with the power to flatten mountains, laugh at headwinds, and go farther than you ever thought possible. It's you, only faster.

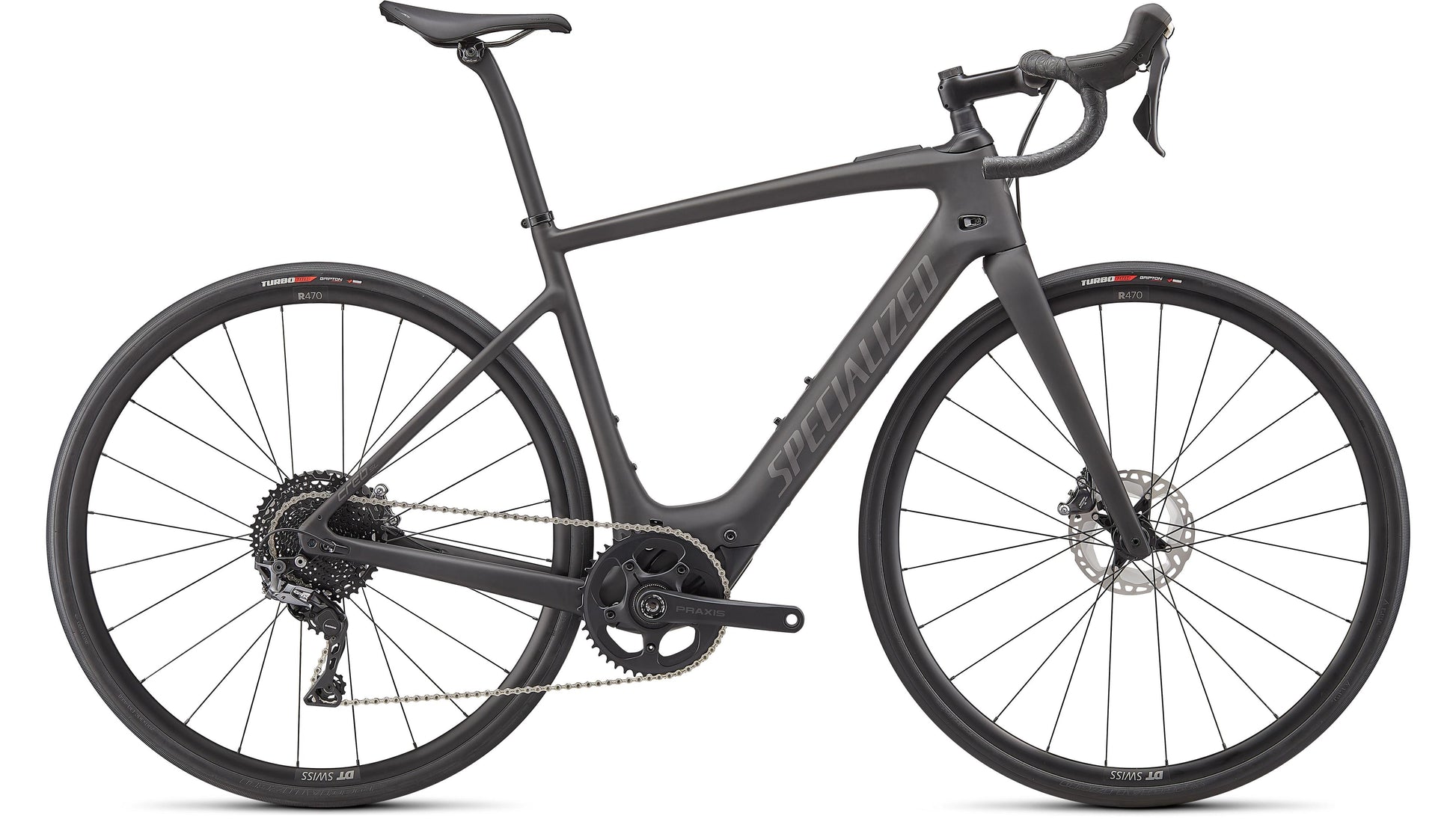

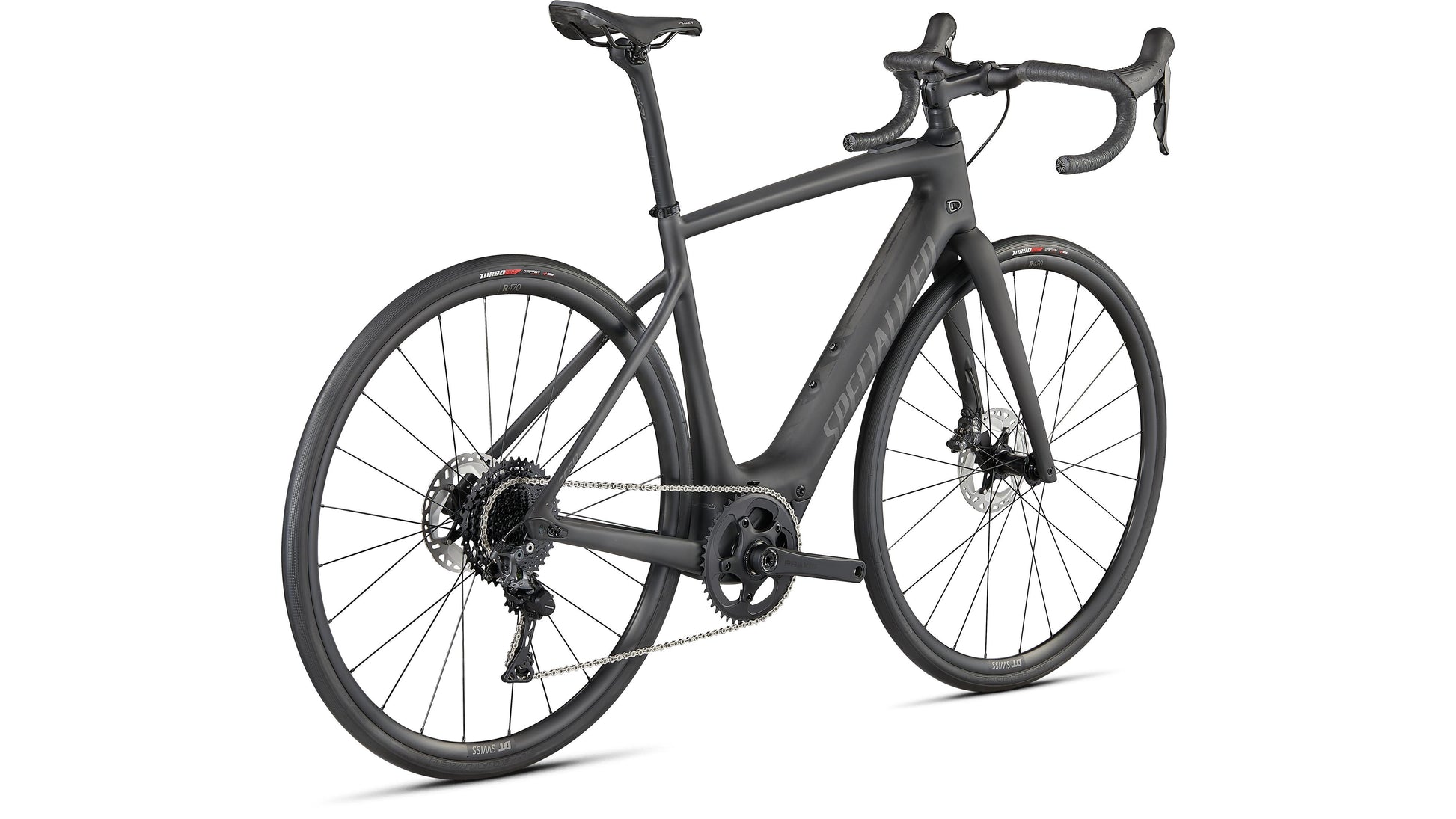

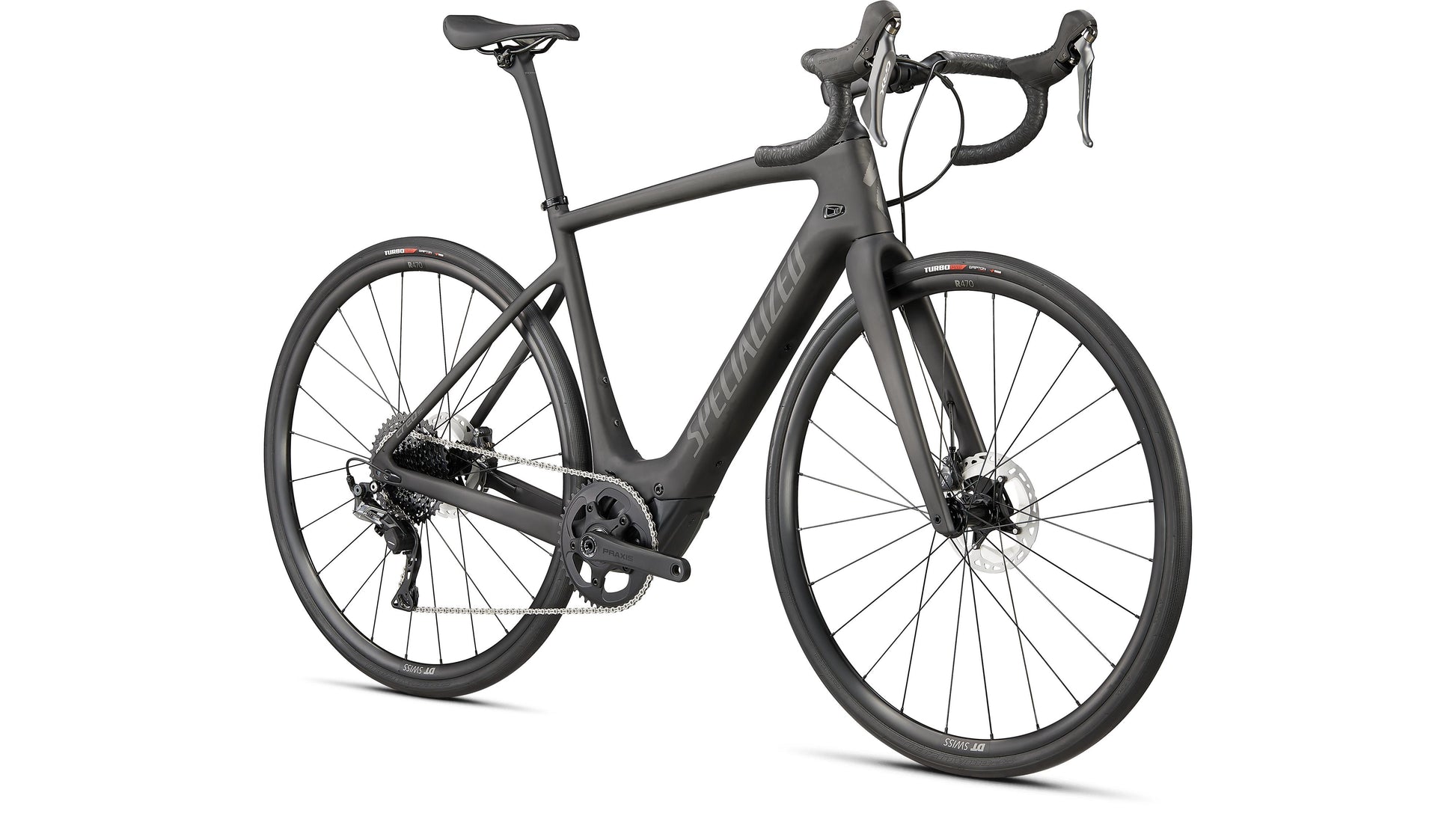

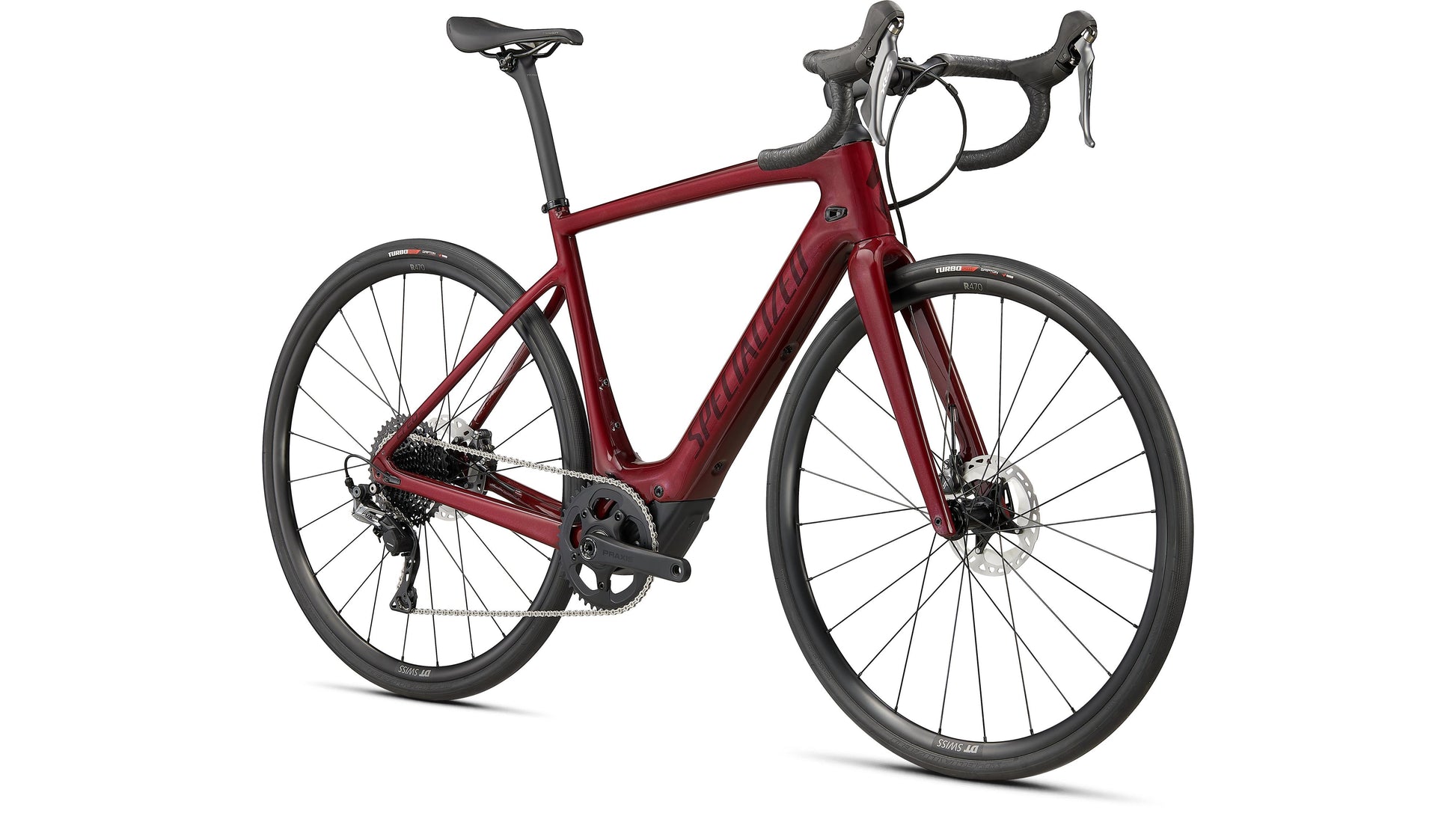

The Turbo Creo SL Comp Carbon features out Fact 11r carbon chassis. Yes, that's the same one on the S-Works model, and you'll also get a Future Shock 2.0. For the spec, we included a 1x Shimano GRX group to take on shifting and braking duties, while DT R470 Boost™ wheels get wrapped in 28mm Turbo Pro tires to keep you rolling worry-free. And for the saddle, you'll find that our fan-favorite Body Geometry Power Sport provides plenty of comfort.
At a Glance
- The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff FACT 11r carbon frame inspire dancing on the pedals and diving into corners, but it also reduces overall system weight and increases the range.

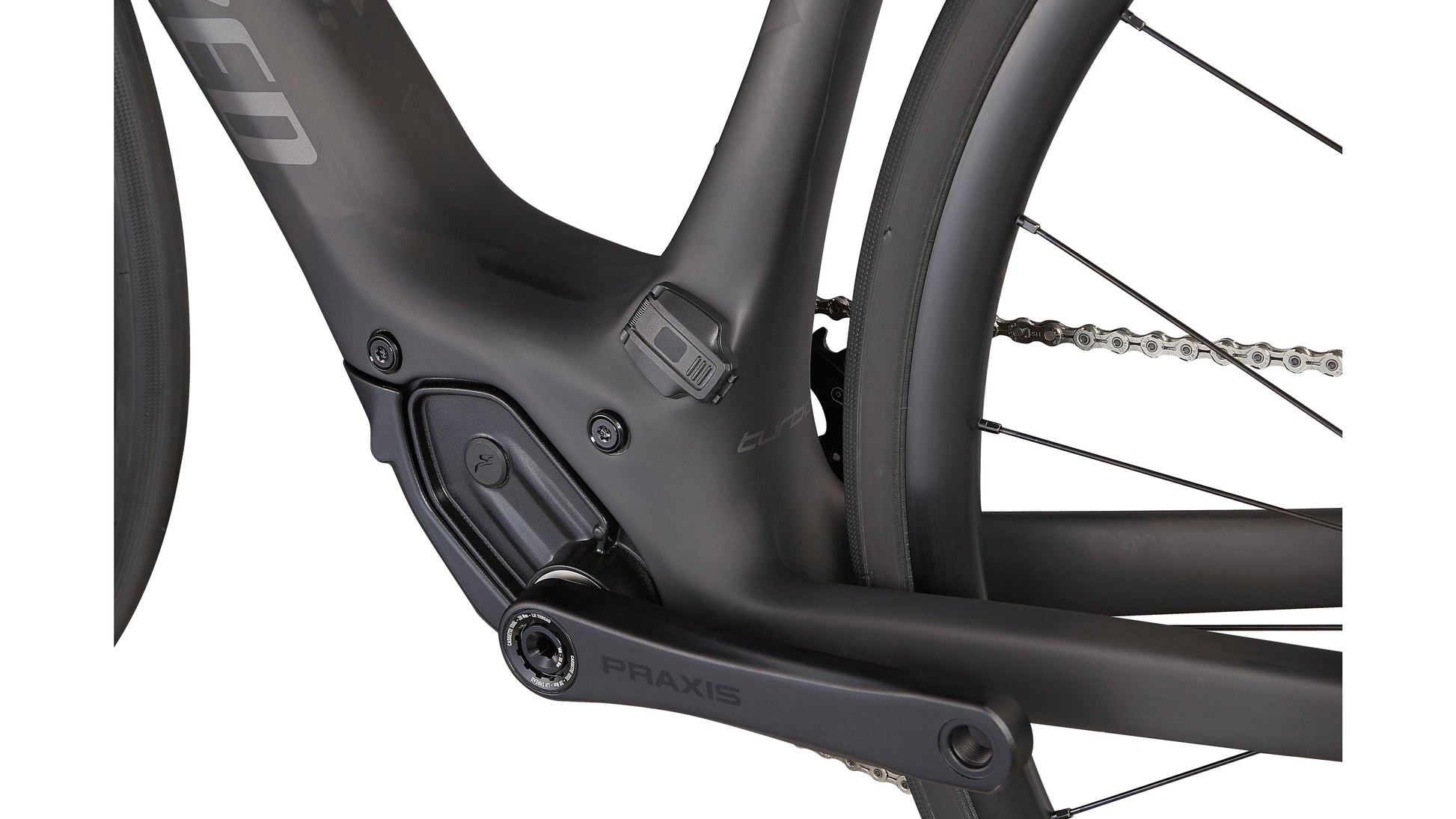

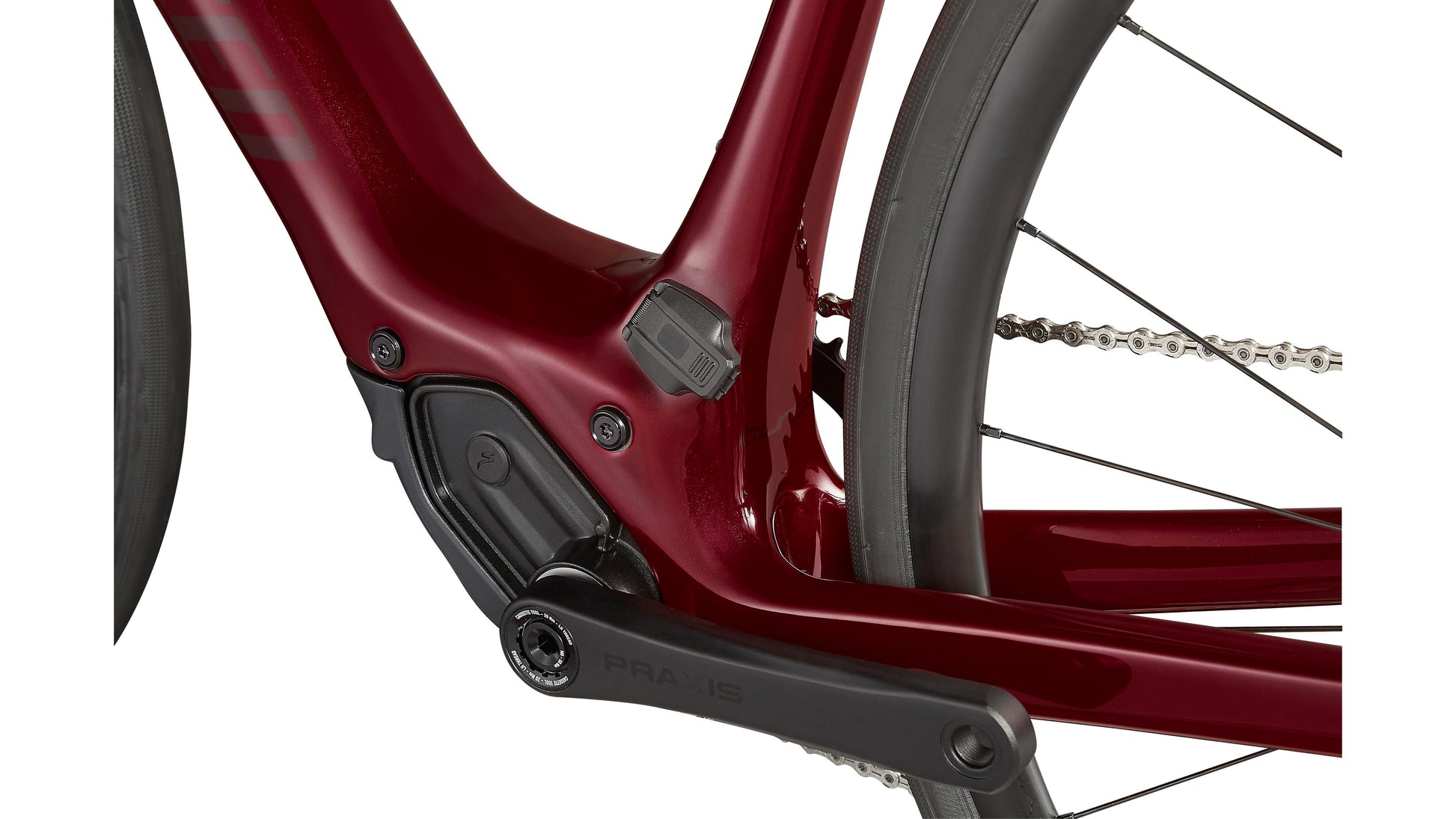

- The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.
- Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our optional range extender provides up to 40 additional miles of mountain-flattening power.
- By connecting with our Specialized app, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit.

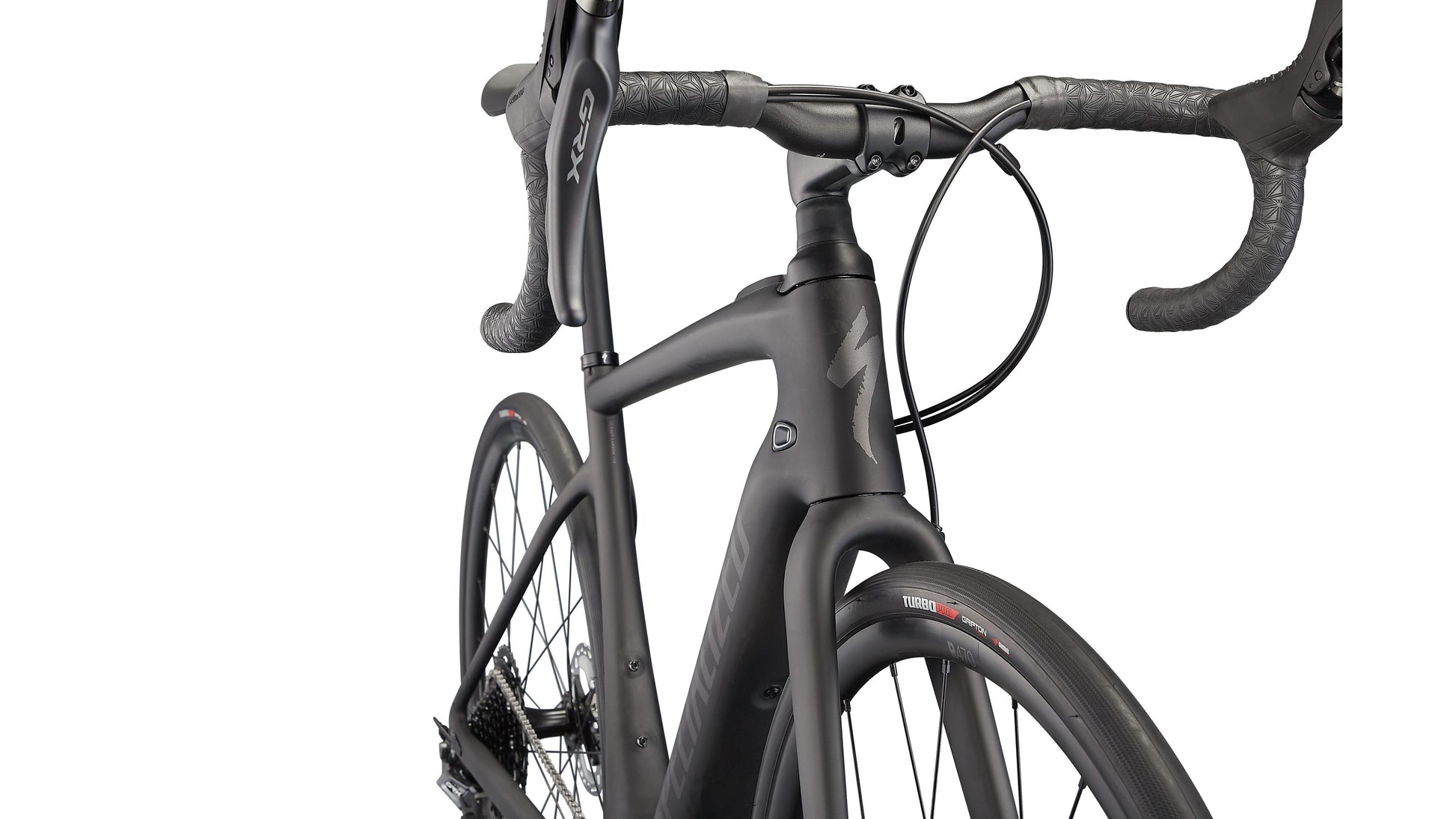

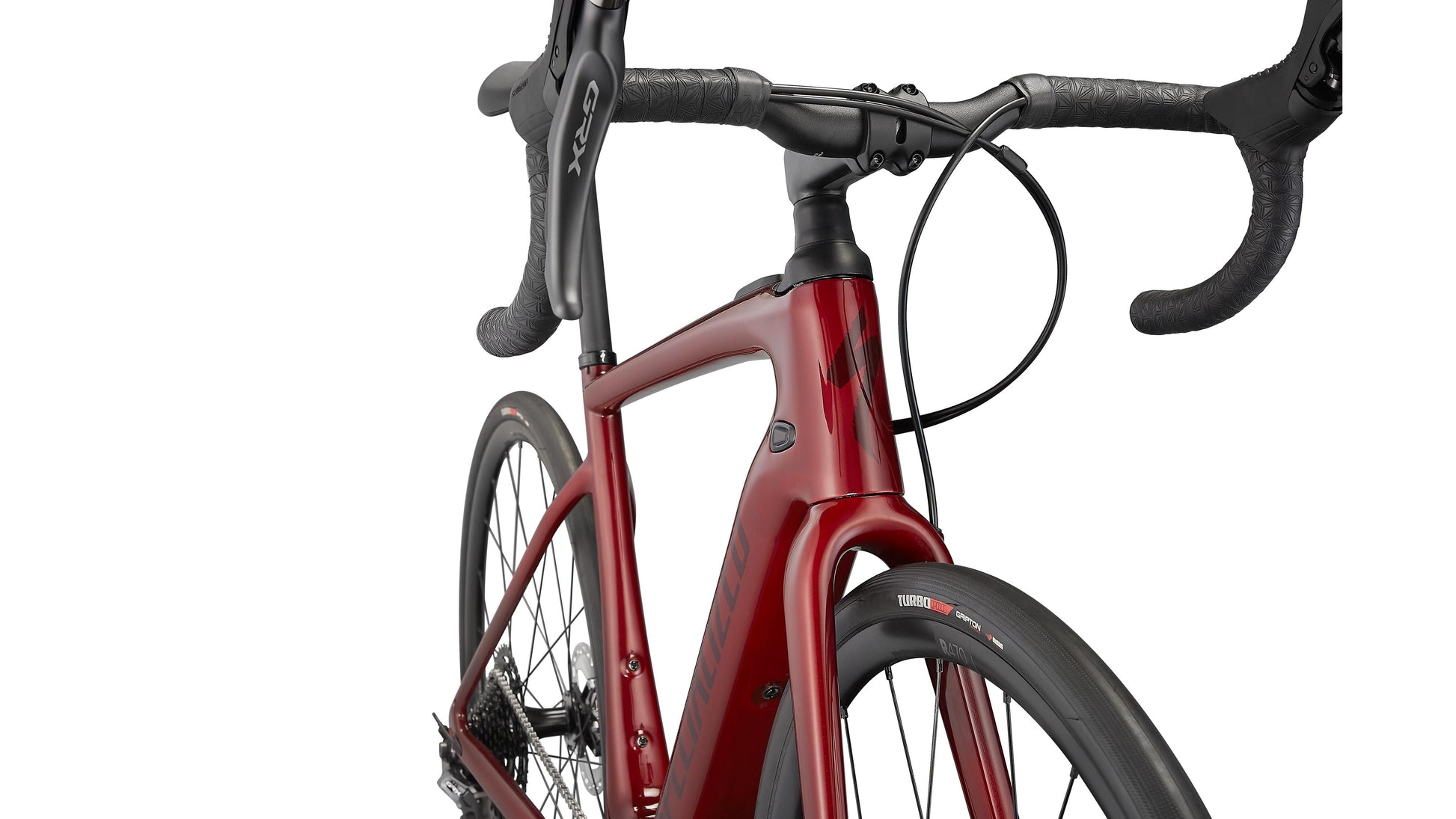

- With the Future Shock 2.0, you'll feel a reduction in fatigue and an increase in speed, no matter the terrain. The 2.0 iteration gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.
- We’ve learned there can be more difference between two male cyclists than between a male and female. Gender alone doesn’t provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders—one that's comfortable, snappy, and handles like a dream.
Component Specifications
| Motor | Specialized SL 1.1, custom lightweight motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| UI Remote | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote |
| Charger | Custom charger, 48V System w/ SL system charger plug |

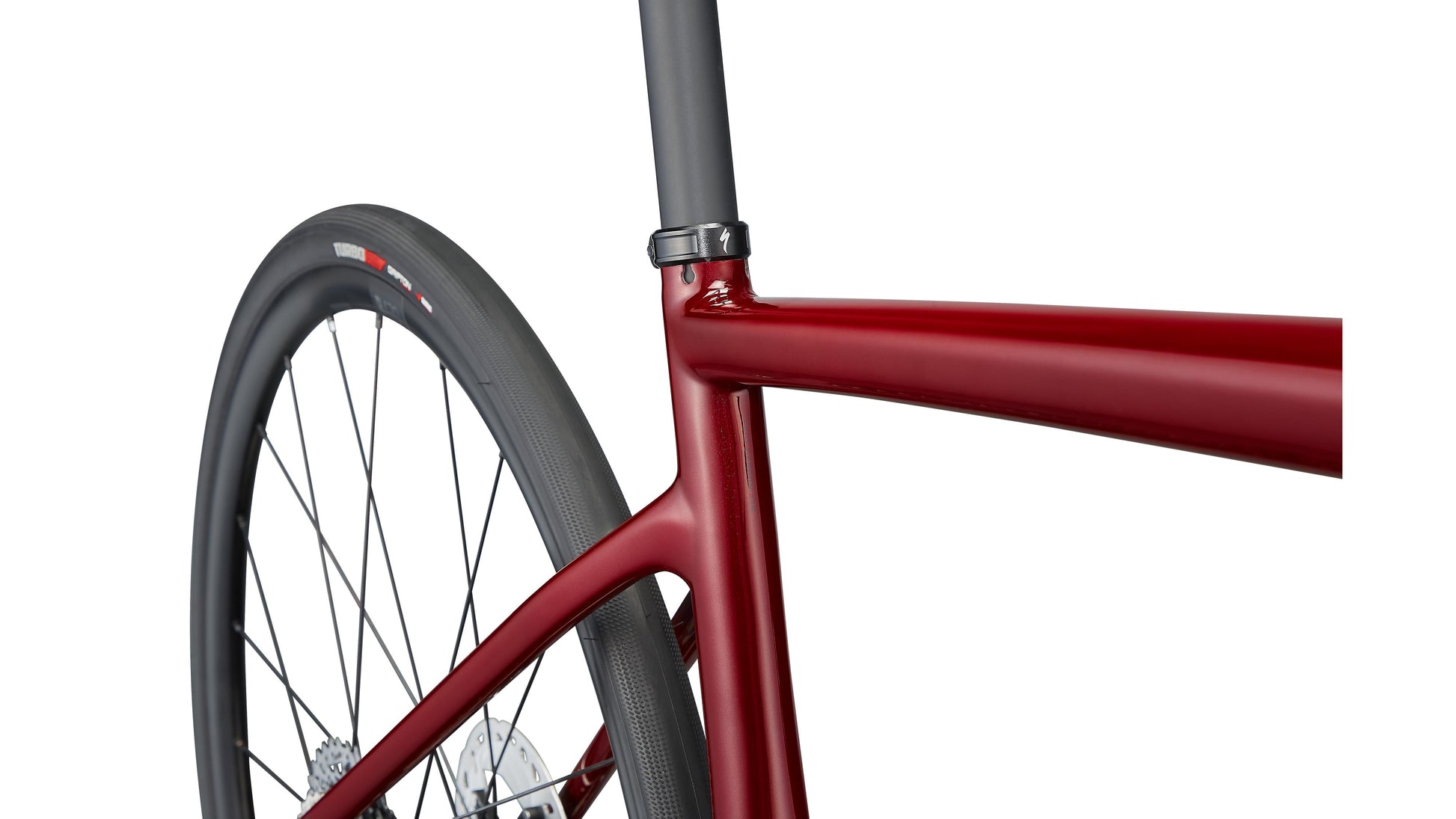

| Frame | FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm |

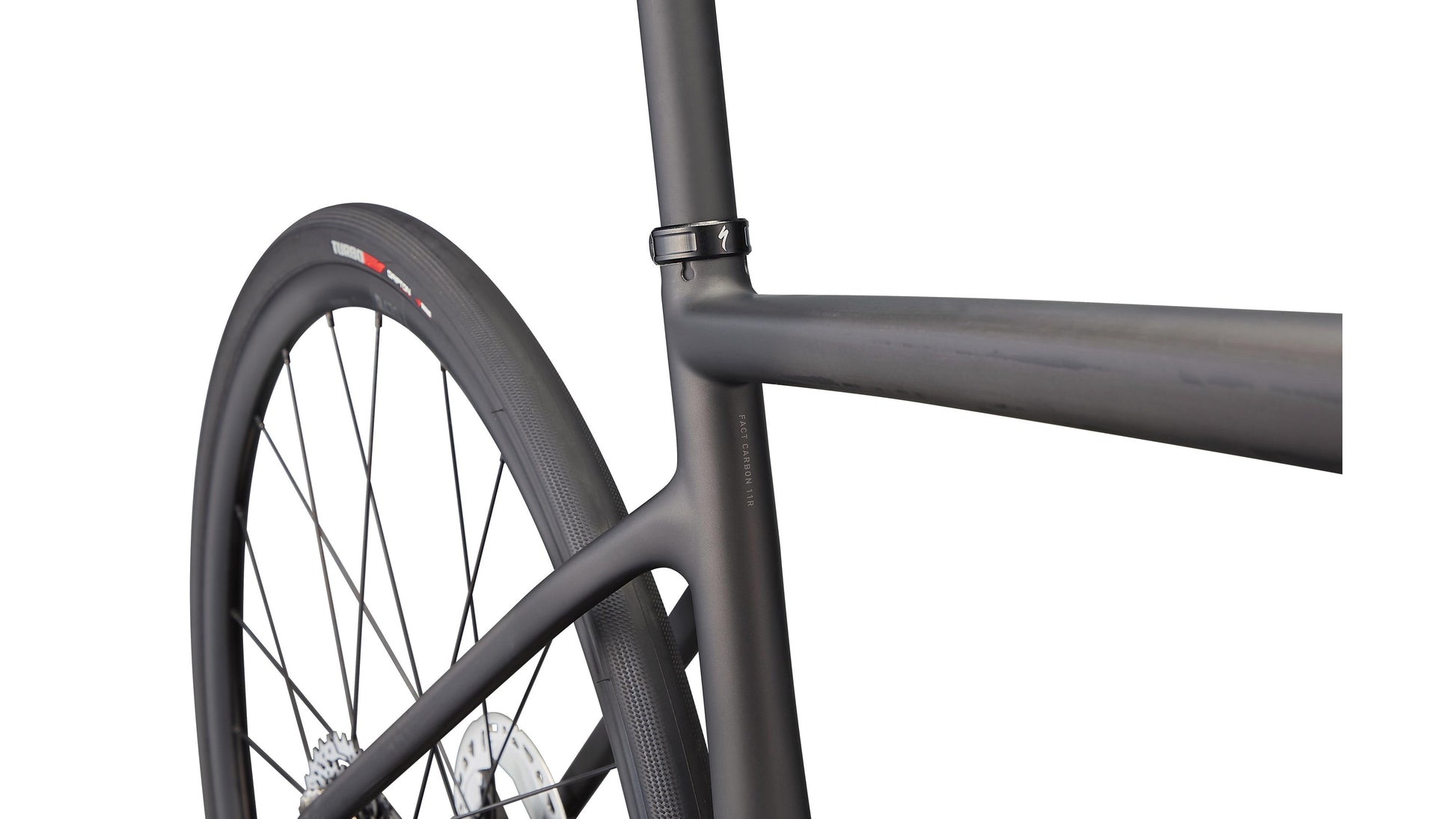

| Seat Binder | Specialized Alloy, 30.8mm |
| Fork | Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc |
| Shift Levers | Shimano GRX 810 hydraulic brake levers, mechanical shifting |
| Rear Derailleur | Shimano RX812 GX, Shadow Plus, 11-speed |
| Cassette | Sunrace, 11-speed, alloy spider, 11-42t |
| Chain | KMC X11 Extra Lightweight, 11-speed |
| Crankset | Praxis Forged/M30 Spindle Interface |
| Chain Rings | 46T |
| Front Tire | Specialized Turbo Pro, 700x30mm |
| Rear Tire | Specialized Turbo Pro, 700x30mm |
| Inner Tubes | Presta, 48mm valve |
| Front Brake | Shimano GRX, Hydraulic disc |
| Rear Brake | Shimano GRX, Hydraulic disc |
| Stem | Future Stem, Comp |
| Handlebars | Specialized Hover Comp, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Roval Terra Carbon Seat Post, 20mm Offset |
Specialized Creo Sl Comp Carbon
| Bike/Frame Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Stack | 573 mm | 575 mm | 592 mm | 615 mm | 643 mm | 675 mm |
| Reach | 363 mm | 373 mm | 379 mm | 384 mm | 391 mm | 399 mm |
| Chain-Stay Length | 426 mm | 426 mm | 426 mm | 427 mm | 427 mm | 428 mm |
| Wheelbase | 999 mm | 1005 mm | 1012 mm | 1020 mm | 1036 mm | 1052 mm |
| Top-Tube Length (horizontal) | 527 mm | 539 mm | 548 mm | 566 mm | 581 mm | 605 mm |
| Bike Stand-Over Height | 728 mm | 731 mm | 759 mm | 782 mm | 810 mm | 840 mm |
| Seat-Tube Length | 415 mm | 447.5 mm | 477.5 mm | 502.5 mm | 527.5 mm | 557.5 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 73.5° | 73.5° | 73° |
| Head-Tube Length | 145.5 mm | 145.5 mm | 163.5 mm | 185.5 mm | 217 mm | 250 mm |
| Head-Tube Angle | 71.5° | 72° | 72.5° | 73° | 73° | 73° |
| B-B Height | 264.5 mm | 264.5 mm | 267 mm | 267 mm | 269.5 mm | 269.5 mm |
| B-B Drop | 80.5 mm | 80.5 mm | 78 mm | 78 mm | 75.5 mm | 75.5 mm |
| Trail | 68 mm | 60 mm | 56 mm | 53 mm | 53 mm | 52 mm |
| Fork Length (full) | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front-Center | 586 mm | 592 mm | 598 mm | 605 mm | 621 mm | 636 mm |
