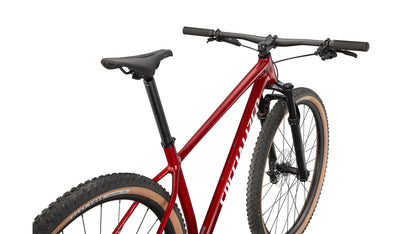

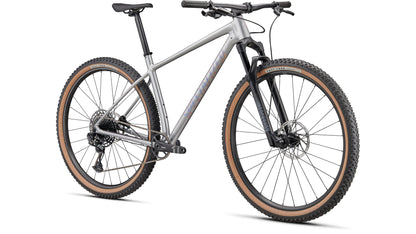

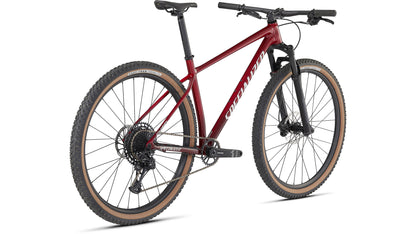

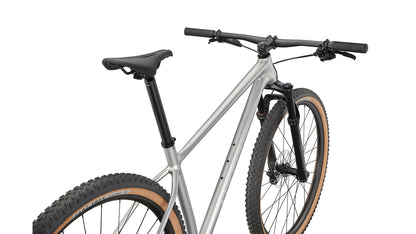

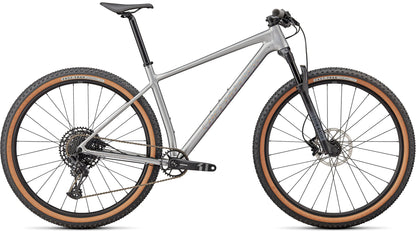

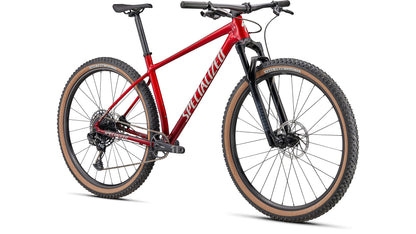

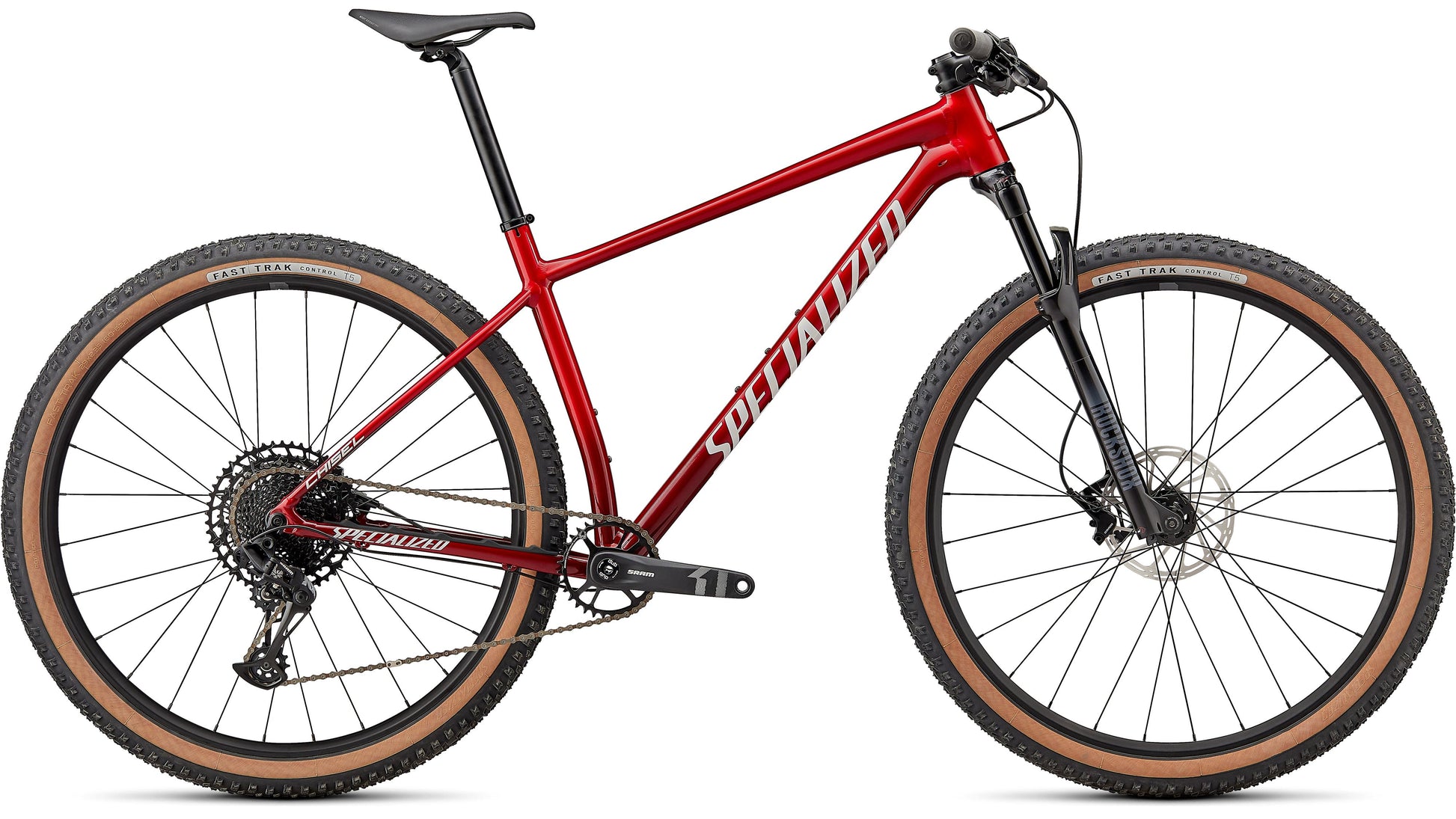

Specialized Chisel Hardtail Comp Features
The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle left over for race entries. This Chisel comes dressed with SRAM's crisp-shifting NX Eagle 1x12 drivetrain and powerful Level T hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.
At a Glance
- We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.

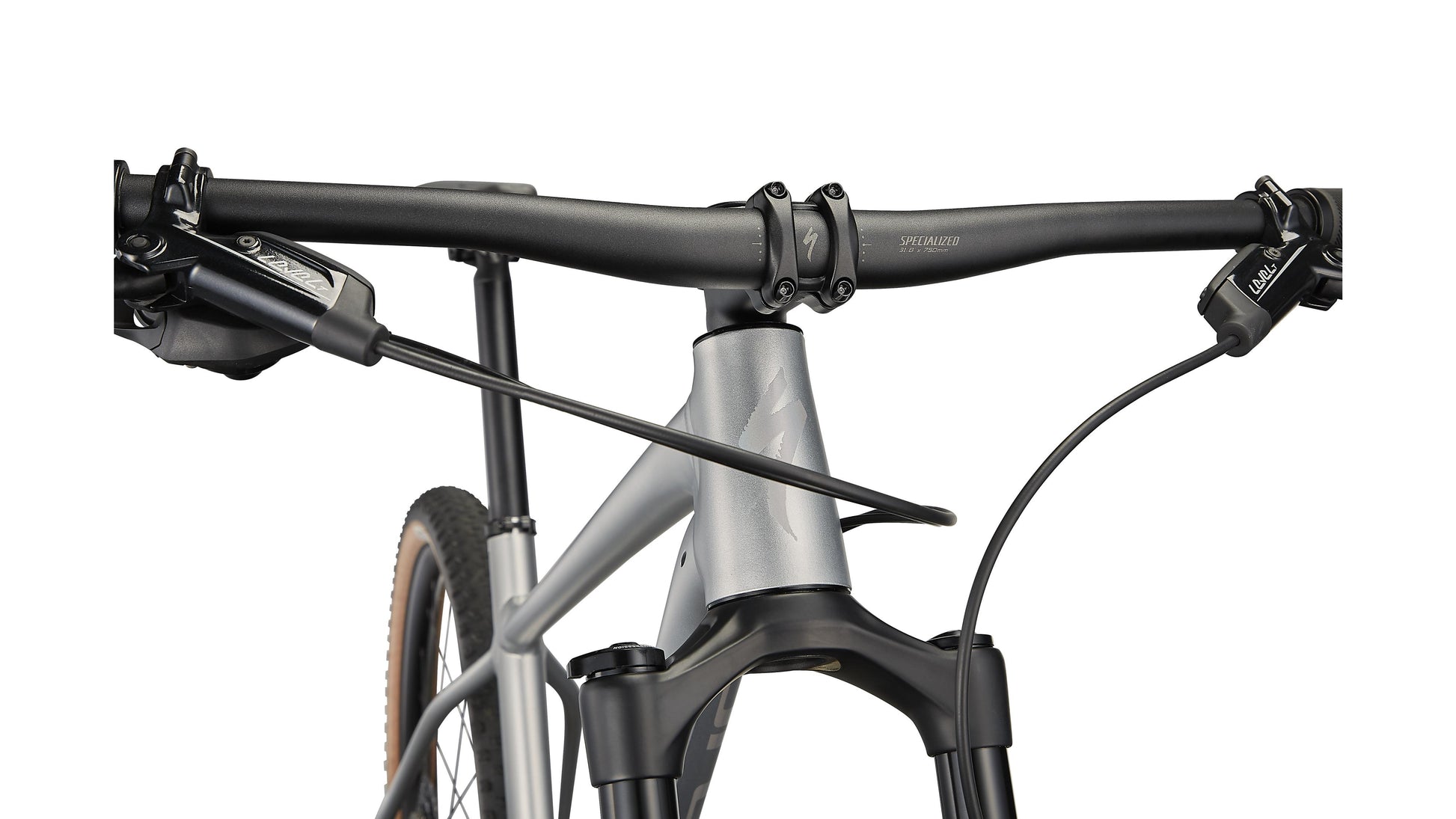

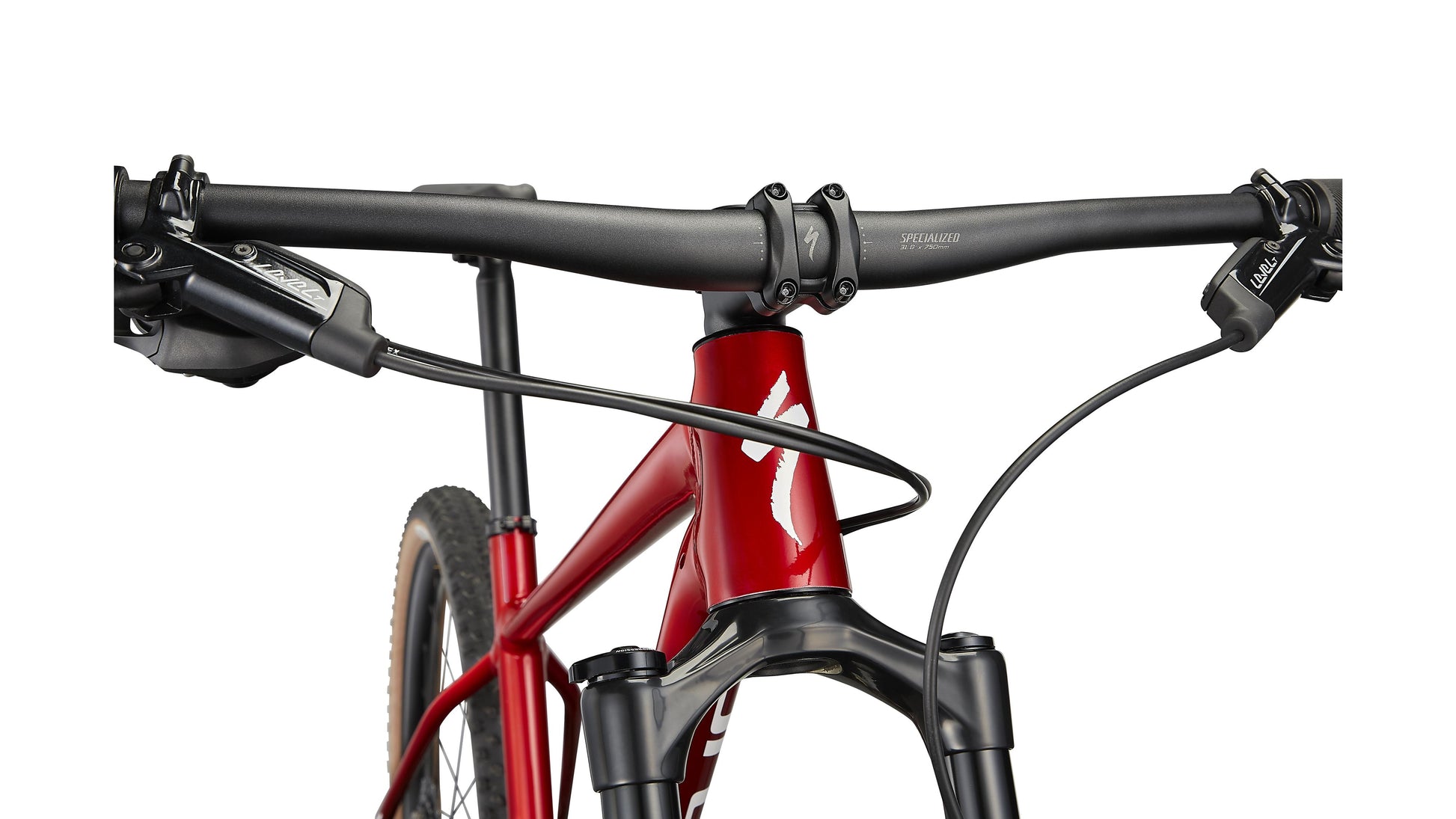

- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Component Specifications
| Frame | Specialized D''Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible |
| Seat Binder | Specialized Alloy, 34.9mm |
| Fork | RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel) |
| Shift Levers | SRAM NX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
| Cassette | SRAM NX Eagle, 12-speed, 11-50t |
| Chain | SRAM, SX Eagle, 12-speed |
| Crankset | SRAM X1000 Eagle, DUB, 170/175mm 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Specialized Alloy, hookless, Tubeless ready, 25mm inner width |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | Stainless, 14g |
| Front Tire | Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35 |
| Rear Tire | Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35 |
| Inner Tubes | Standard 40mm PV 29x1.75-2.4 |
| Front Brake | SRAM Level T hydraulic disc, 2-Piston Caliper, Centerline Rotor, 160mm (XS/S/M), 180mm (L/XL) |
| Rear Brake | SRAM Level T, Post Mount, 160mm Centerline Rotor |
| Stem | 3D-forged alloy, 31.8mm, 7-degree rise |
| Handlebars | Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Specialized Alloy, Single Bolt, 30.9mm |

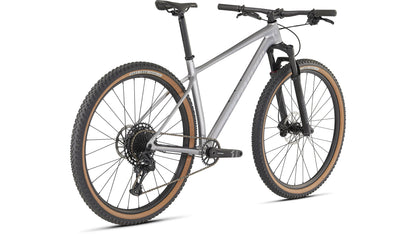

Specialized Chisel Hardtail Comp
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 591 mm | 605 mm | 605 mm | 619 mm | 633 mm |
| Reach | 385 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1070 mm | 1099 mm | 1124 mm | 1154 mm | 1185 mm |
| Top Tube Length, Horizontal | 555 mm | 578 mm | 603 mm | 632 mm | 661 mm |
| Bike Standover Height | 732 mm | 762 mm | 792 mm | 816 mm | 847 mm |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| BB Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| BB Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Fork Length, Full | 486 mm | 506 mm | 506 mm | 506 mm | 506 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
Size Guide: Specialized Chisel Hardtail Comp
