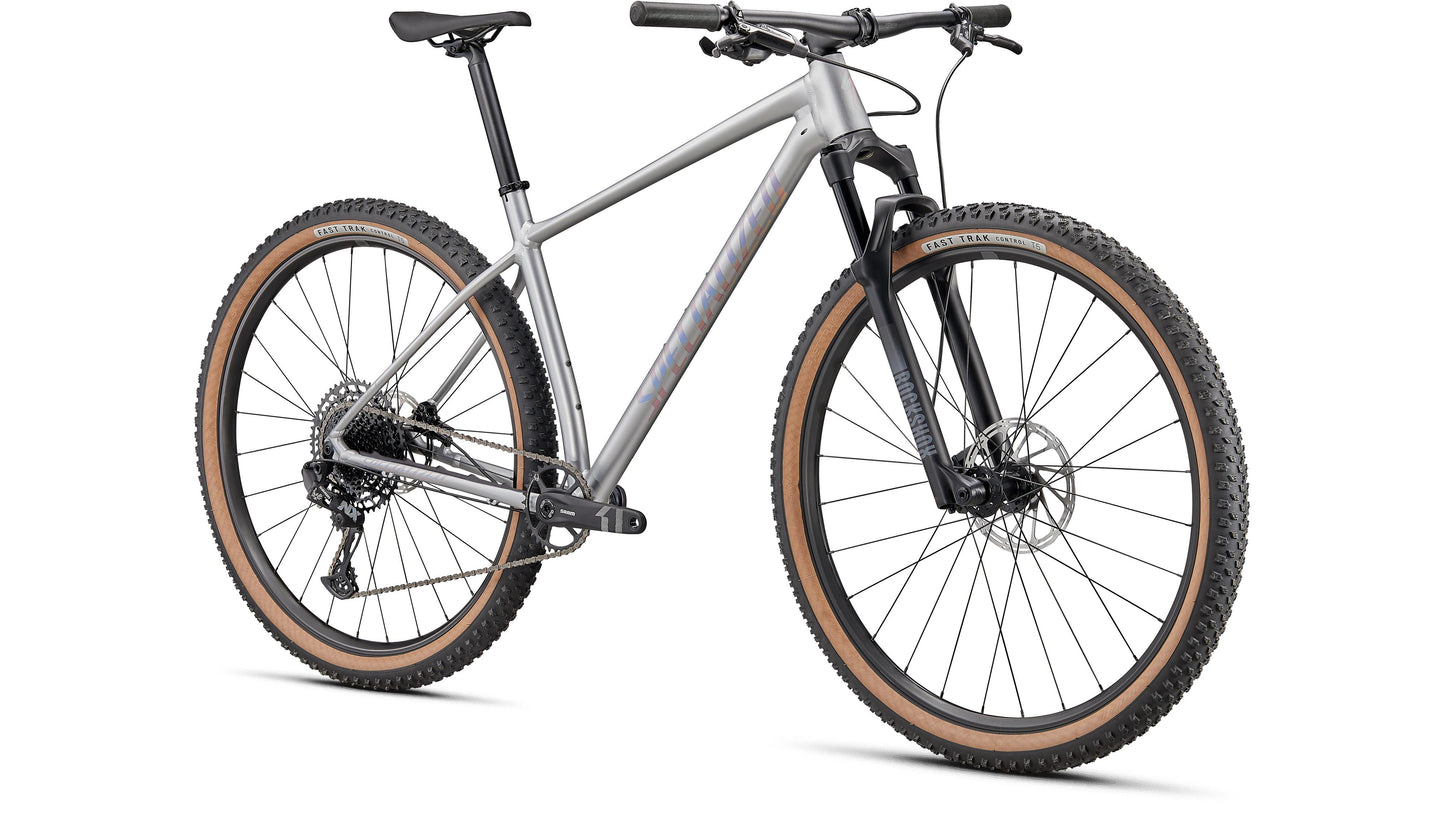

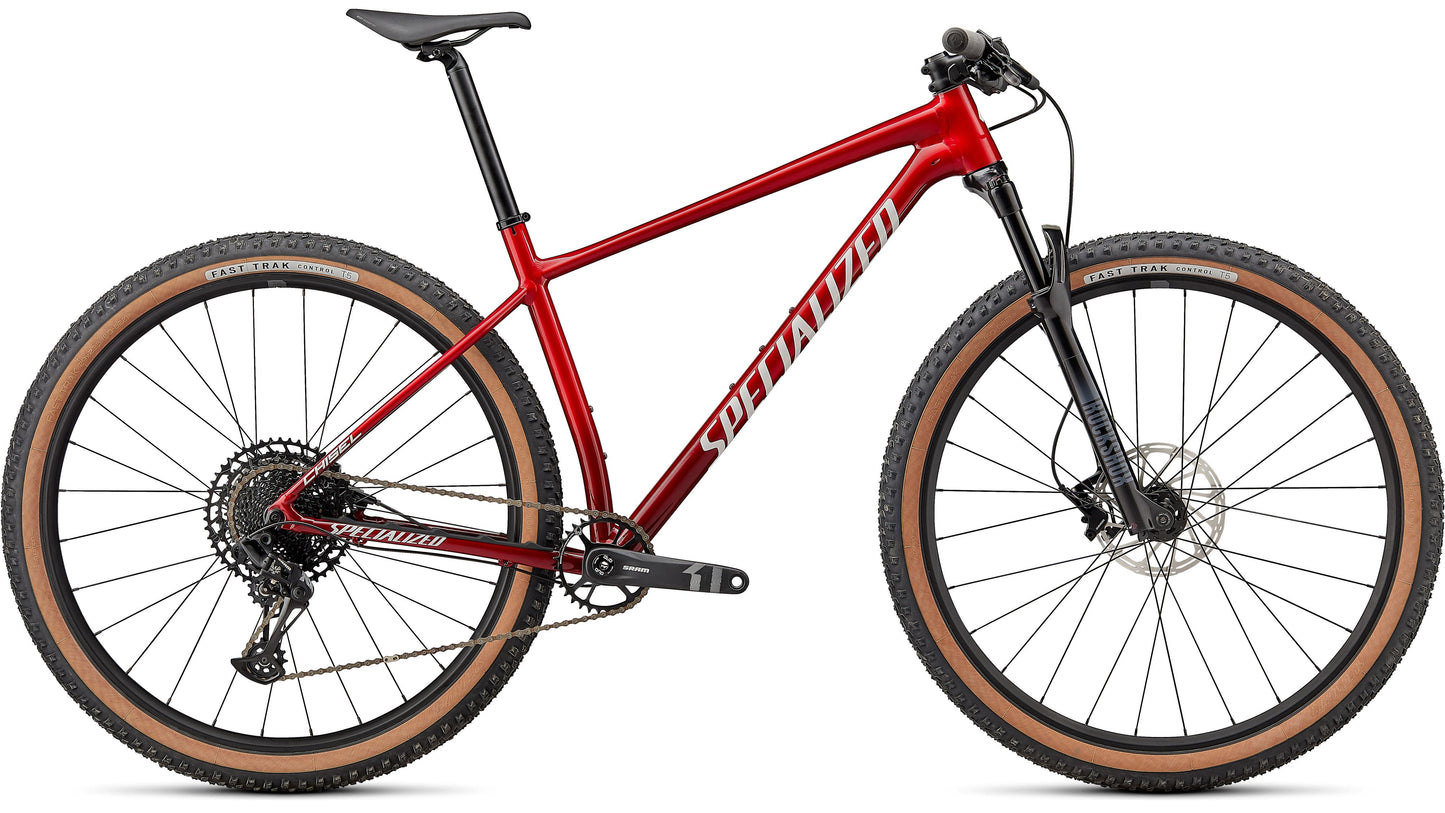

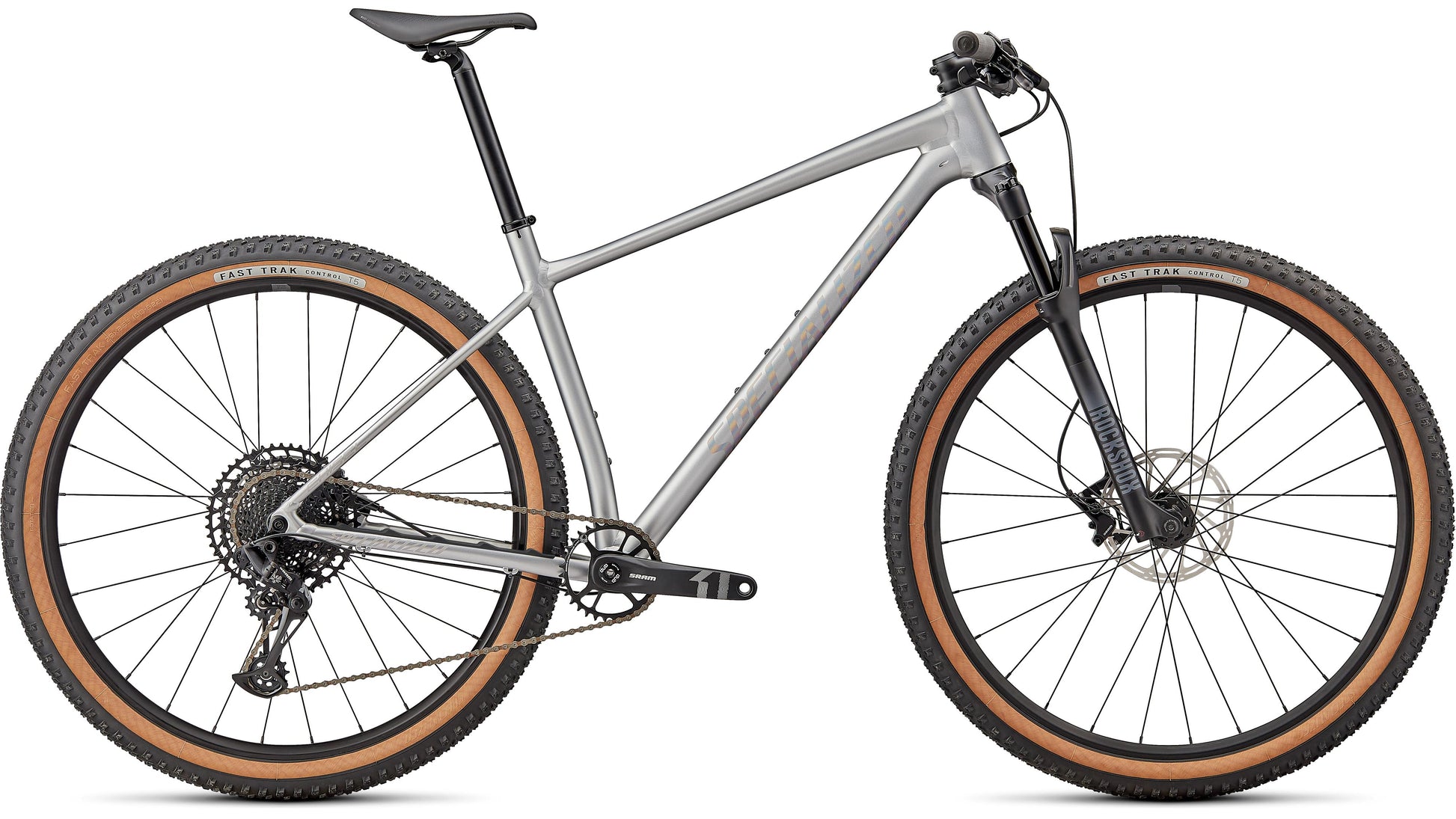

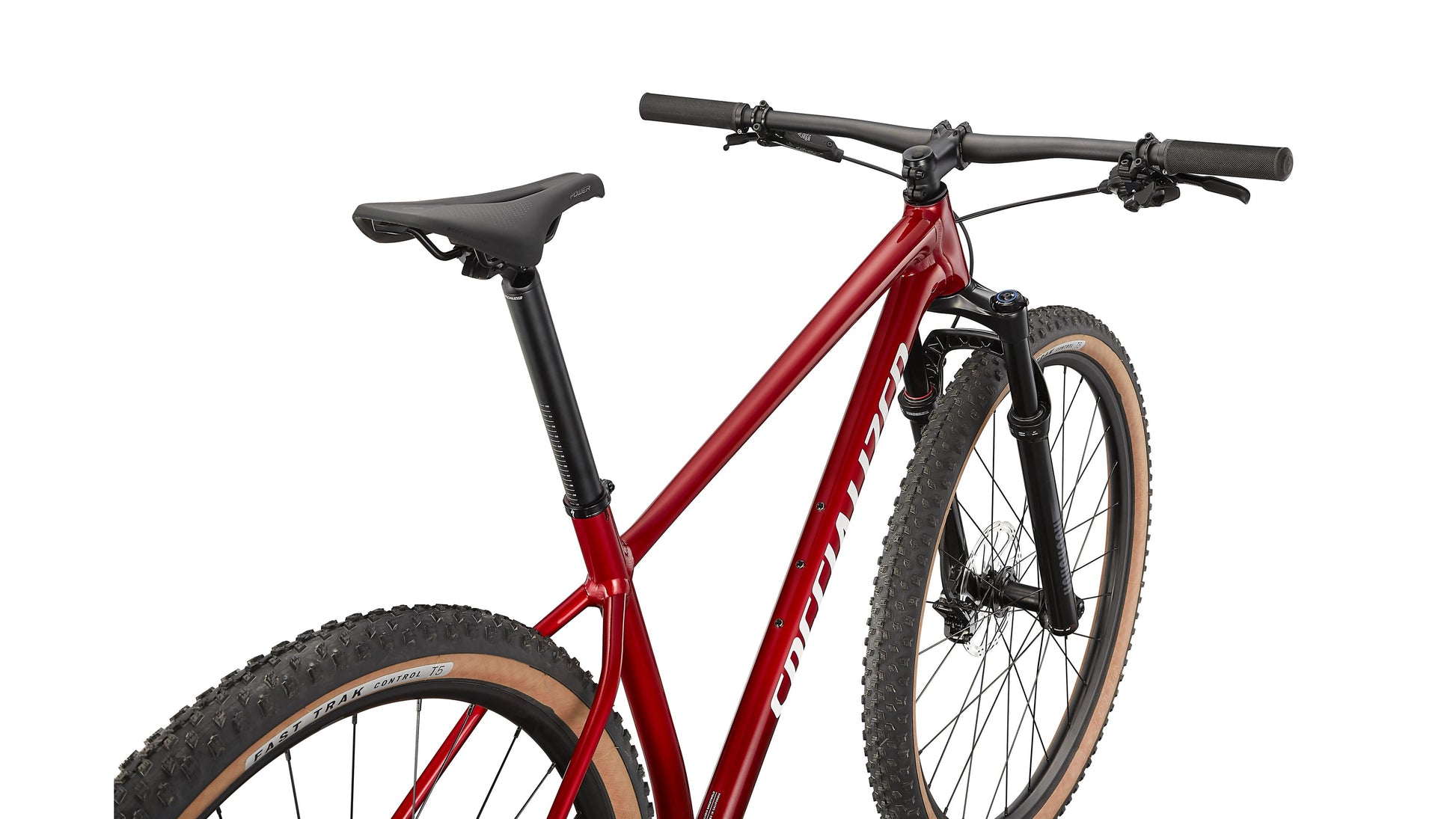

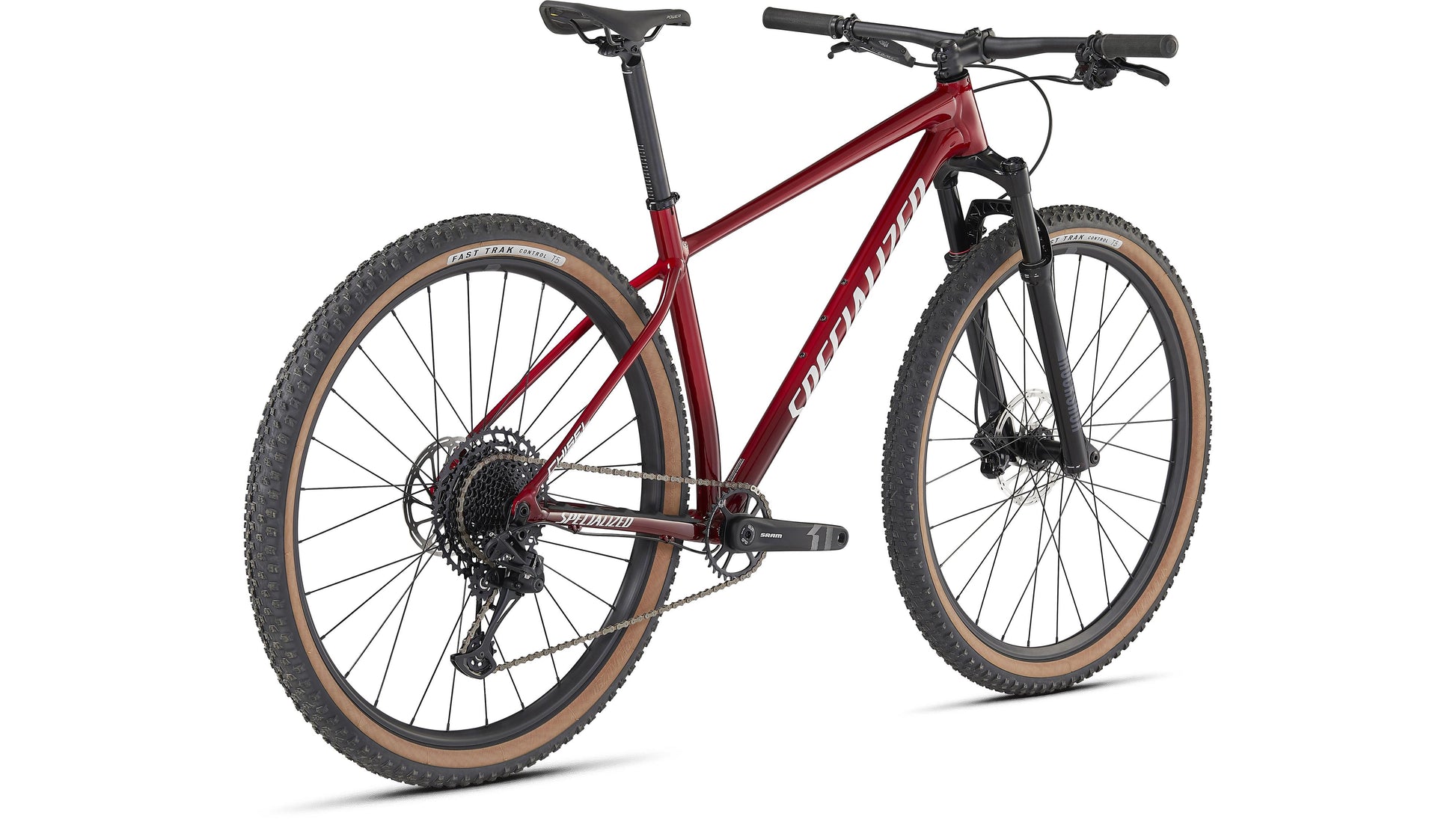

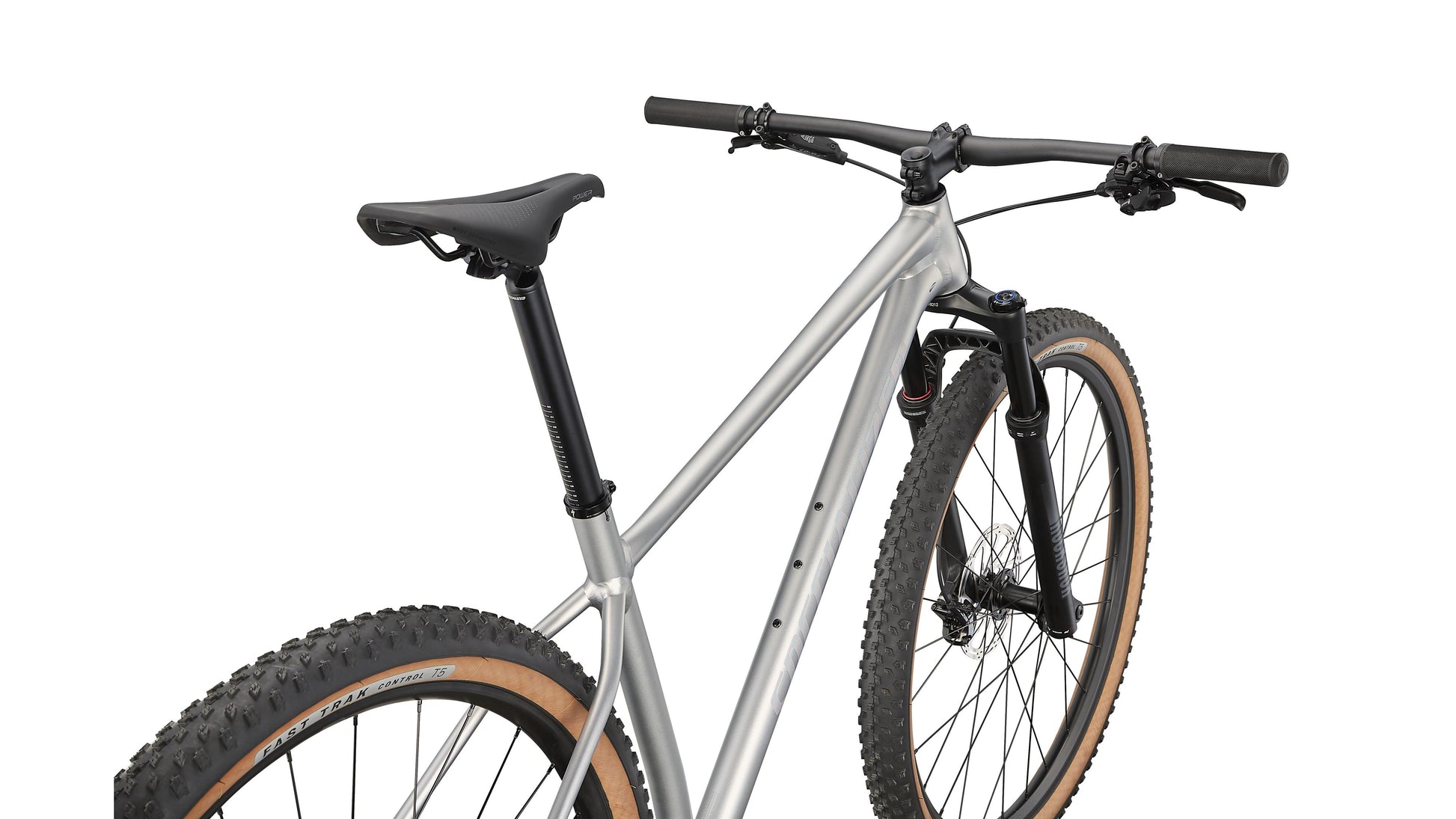

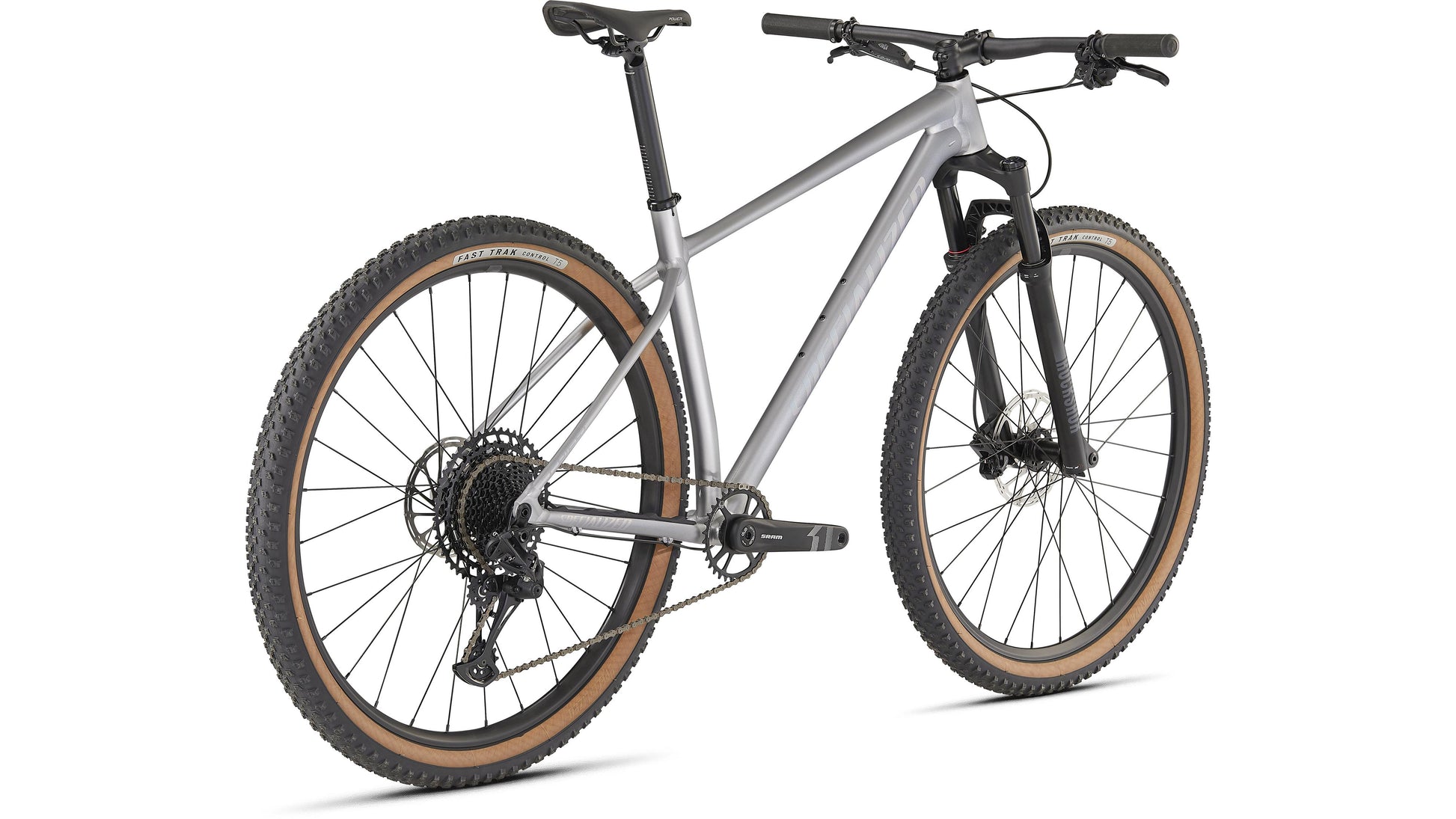

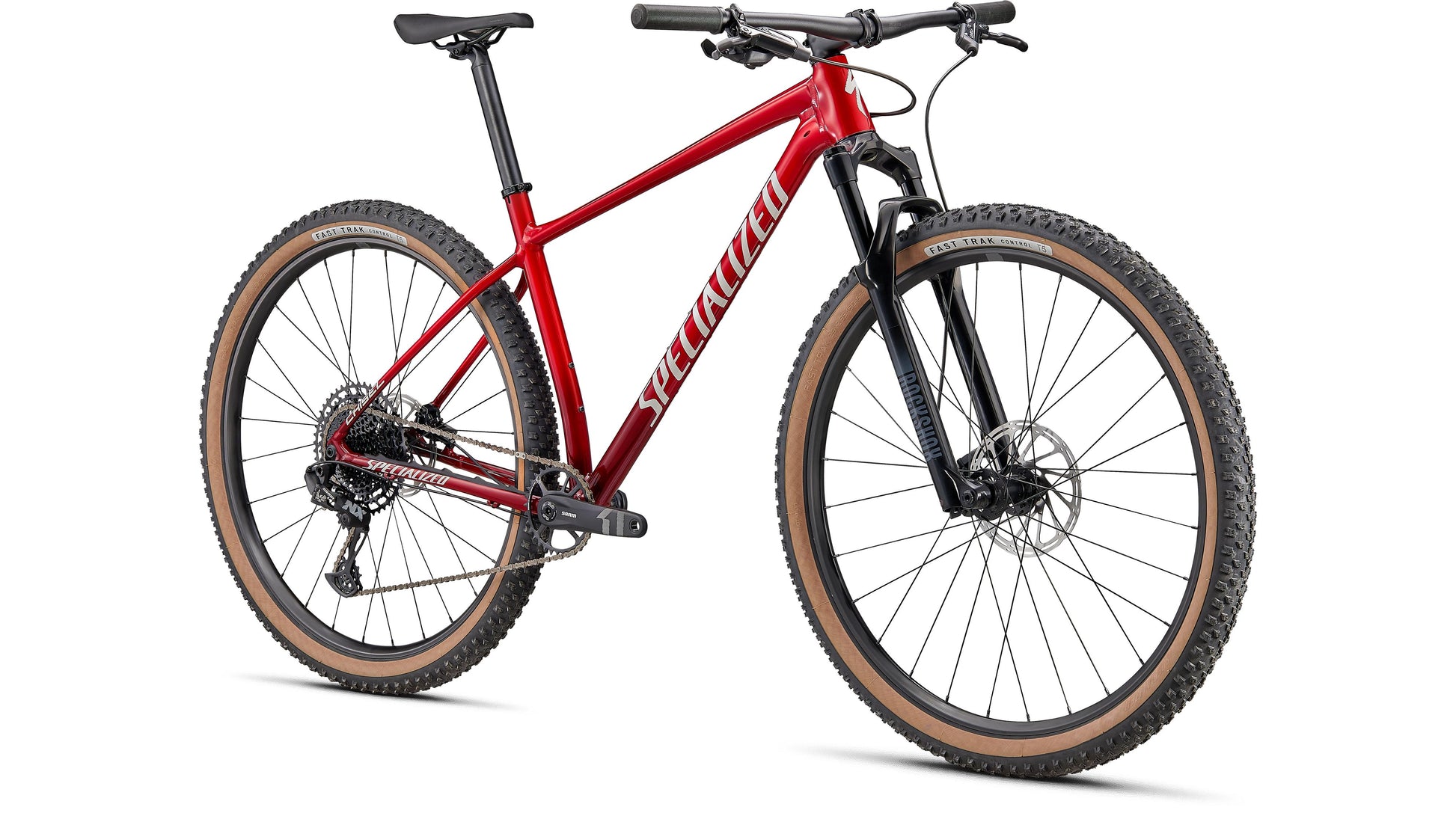

2022 Specialized Chisel Hardtail Comp Features
The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle left over for race entries. This Chisel comes dressed with SRAM's crisp-shifting NX Eagle 1x12 drivetrain and powerful Level T hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.
At a Glance
- We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Component Specifications
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
bottom bracket
|
| Wheels & Tires |
rims
front hub
rear hub
spokes
front tire
rear tire
inner tubes
|
| Cockpit |
stem
handlebars
grips
saddle
seatpost
|
2022 Specialized Chisel Hardtail Comp
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 591 mm | 605 mm | 605 mm | 619 mm | 633 mm |
| Reach | 385 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1070 mm | 1099 mm | 1124 mm | 1154 mm | 1185 mm |
| Top Tube Length, Horizontal | 555 mm | 578 mm | 603 mm | 632 mm | 661 mm |
| Bike Standover Height | 732 mm | 762 mm | 792 mm | 816 mm | 847 mm |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| BB Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| BB Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Fork Length, Full | 486 mm | 506 mm | 506 mm | 506 mm | 506 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
Component Geometry
| Component | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Crank Length | 165m mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Handlebar Width | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Stem Length | 60 mm | 60 mm | 70 mm | 70 mm | 70 mm |
| Saddle Width | 155 mm | 155 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 350 mm | 400 mm | 400 mm | 400 mm | 400 mm |
