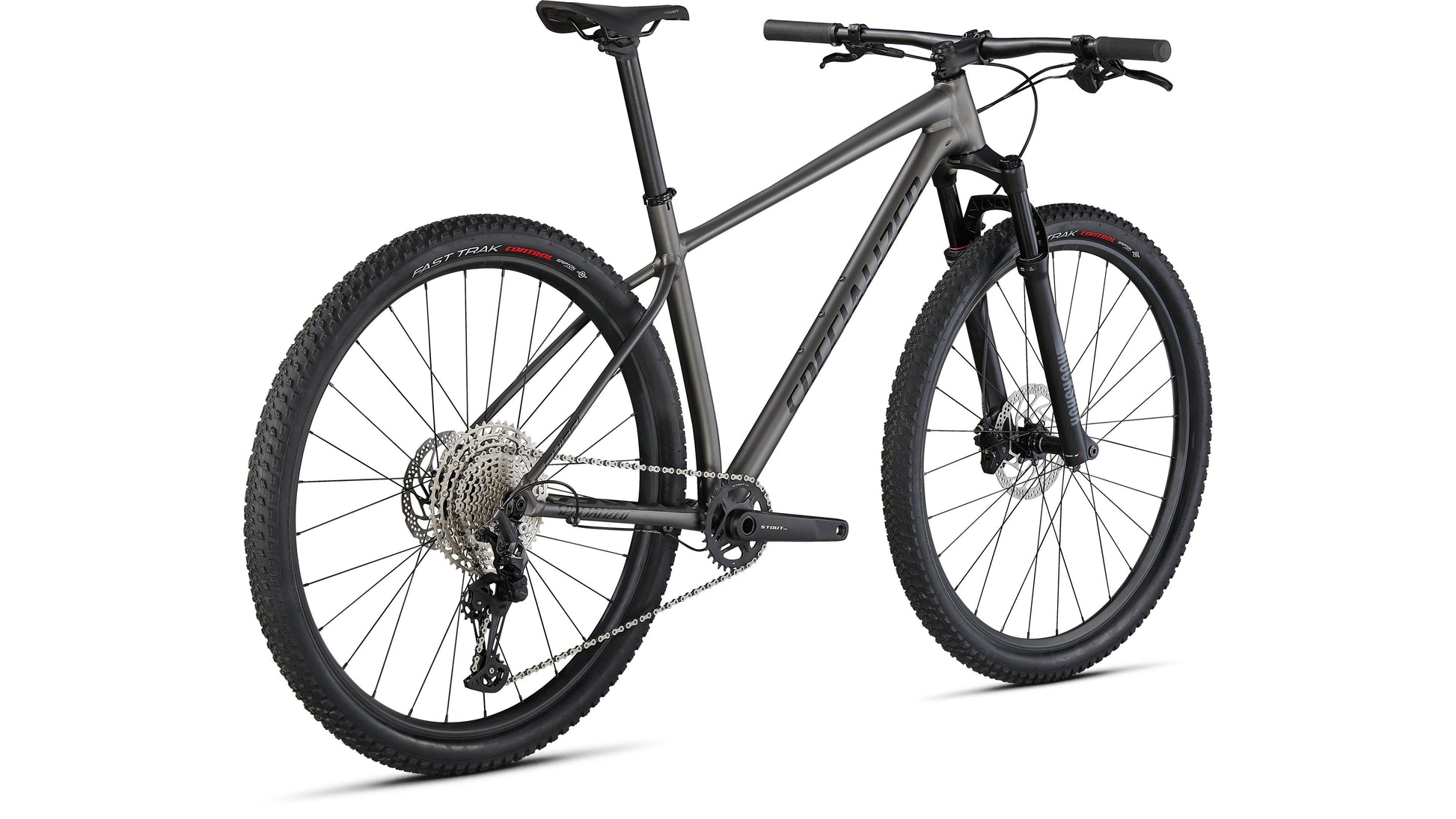

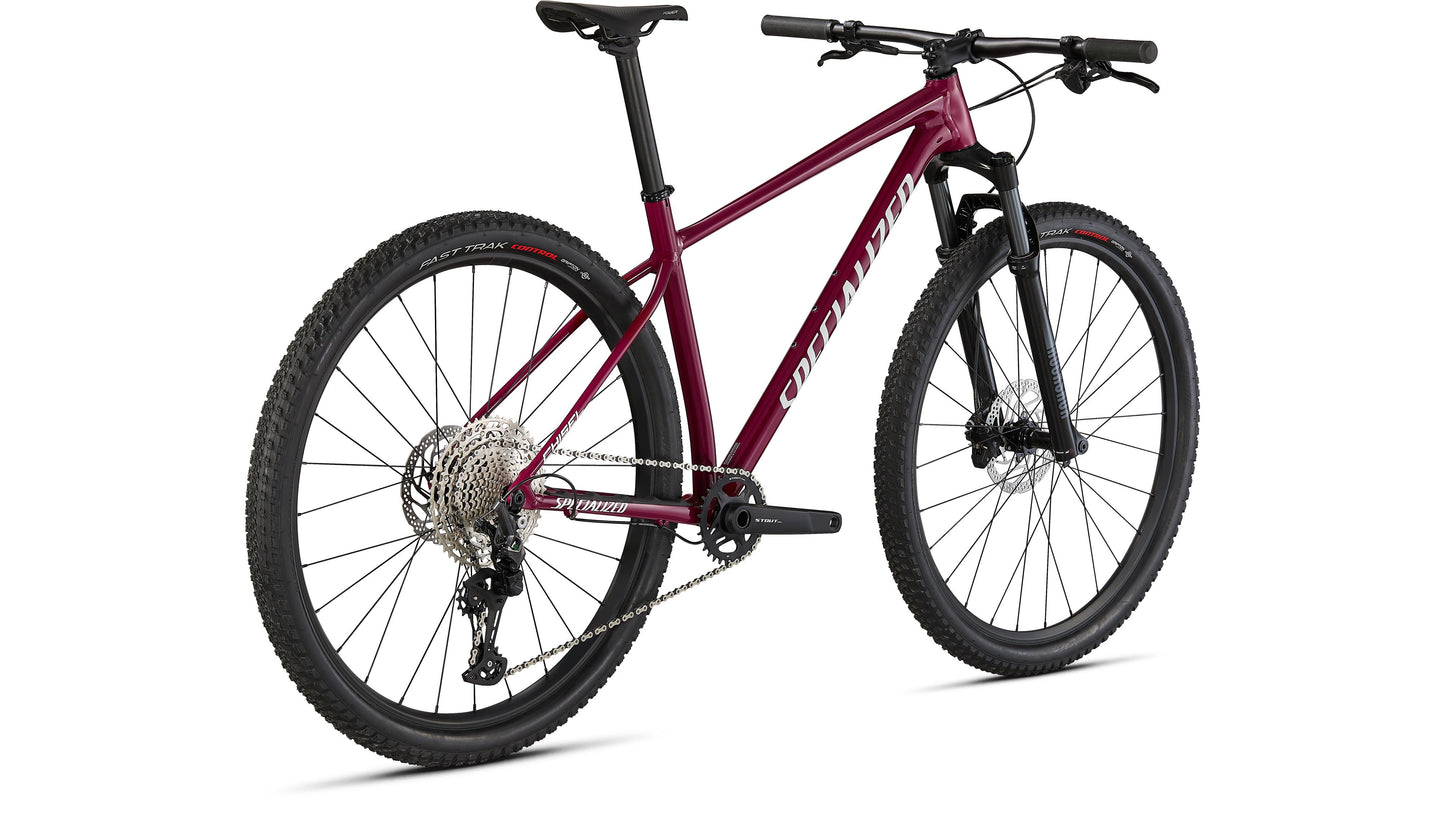

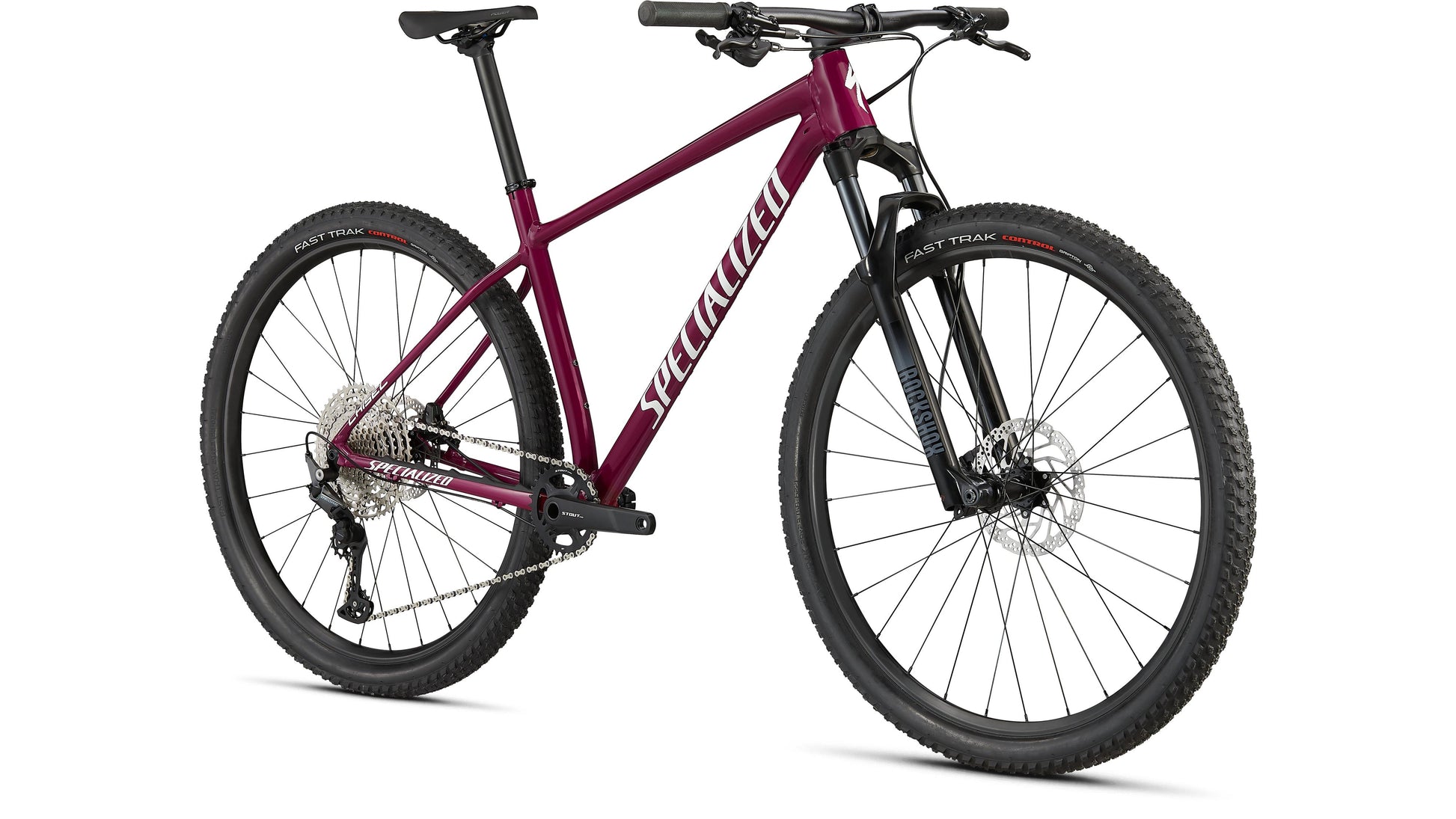

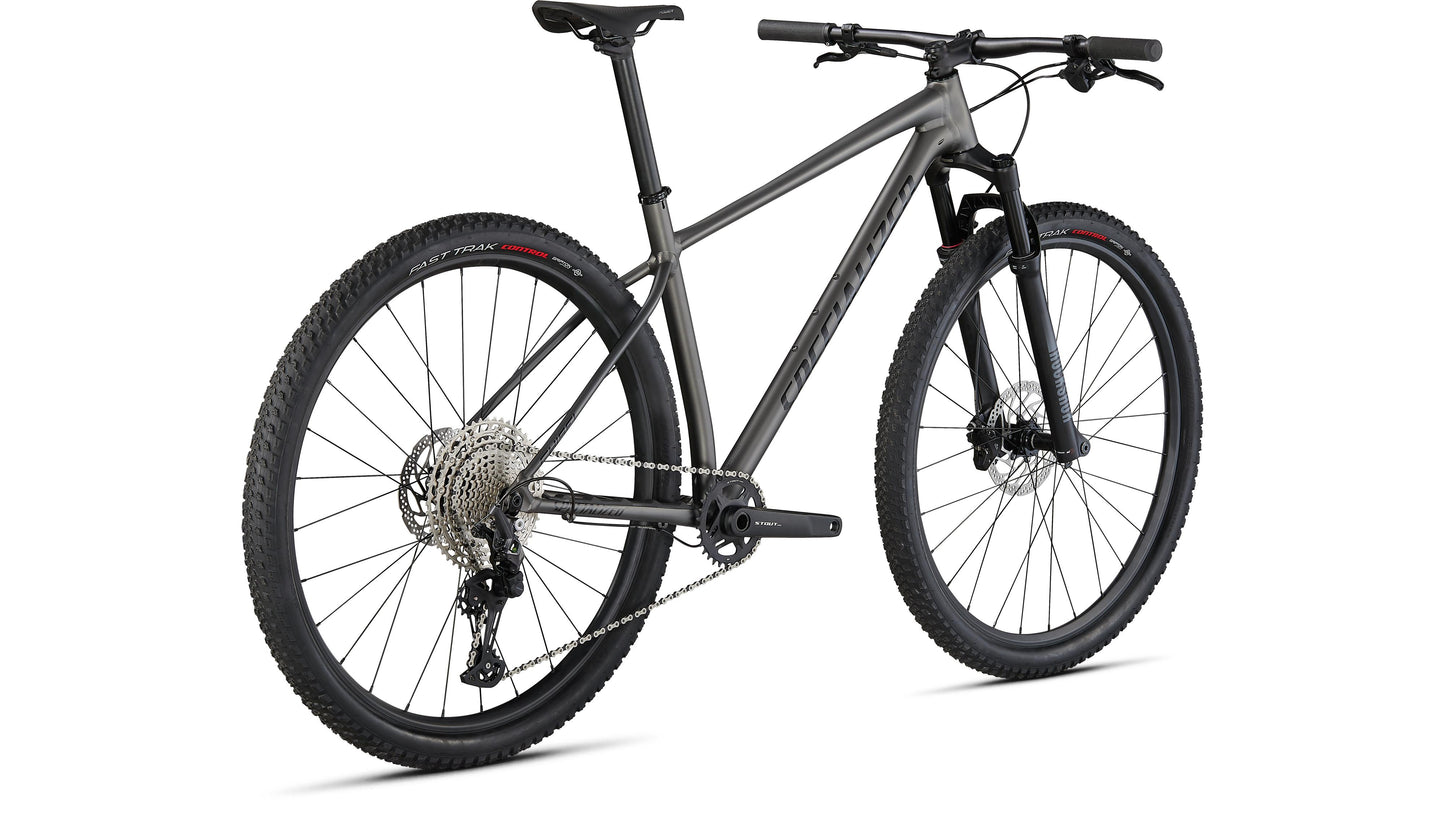

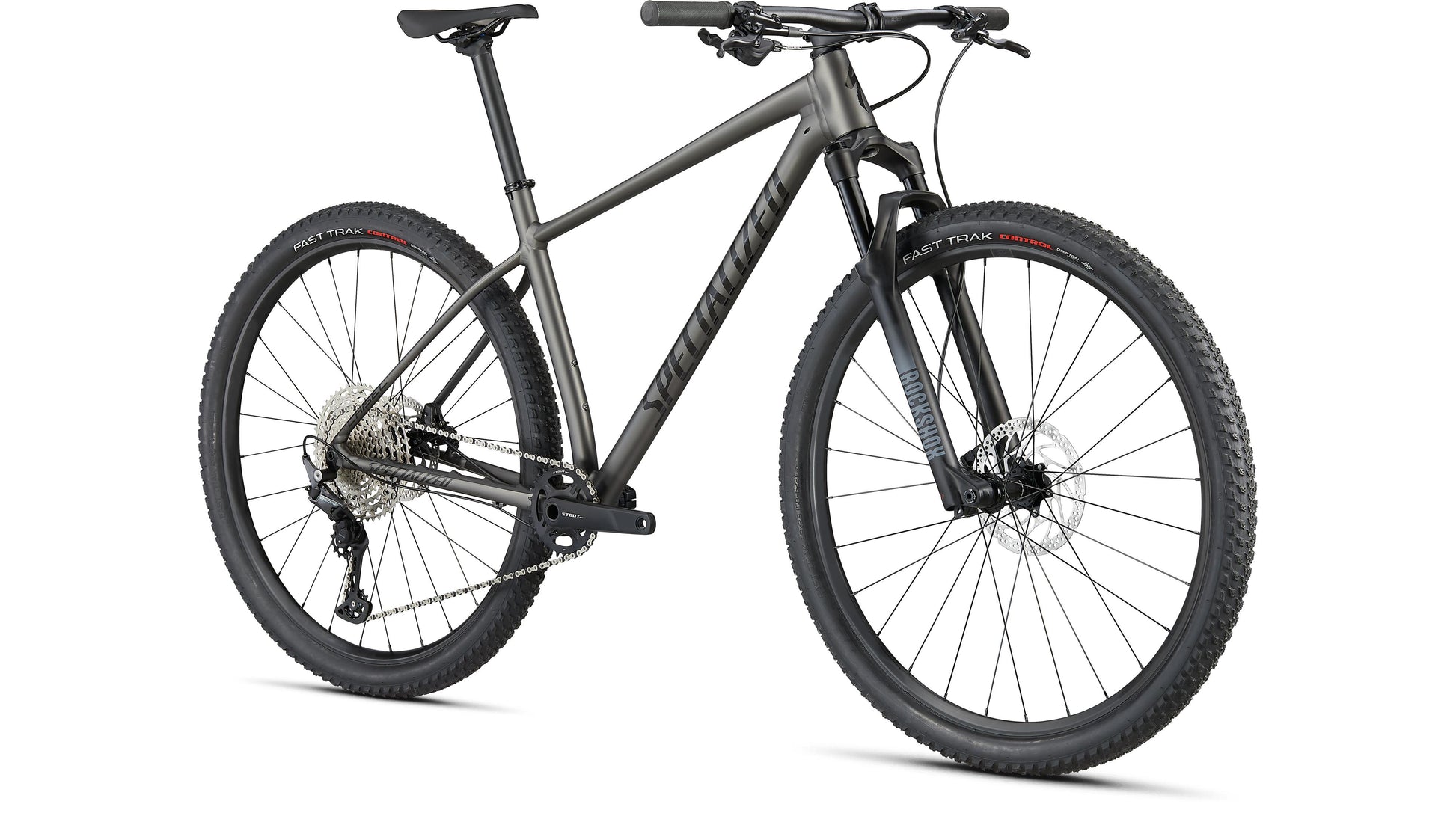

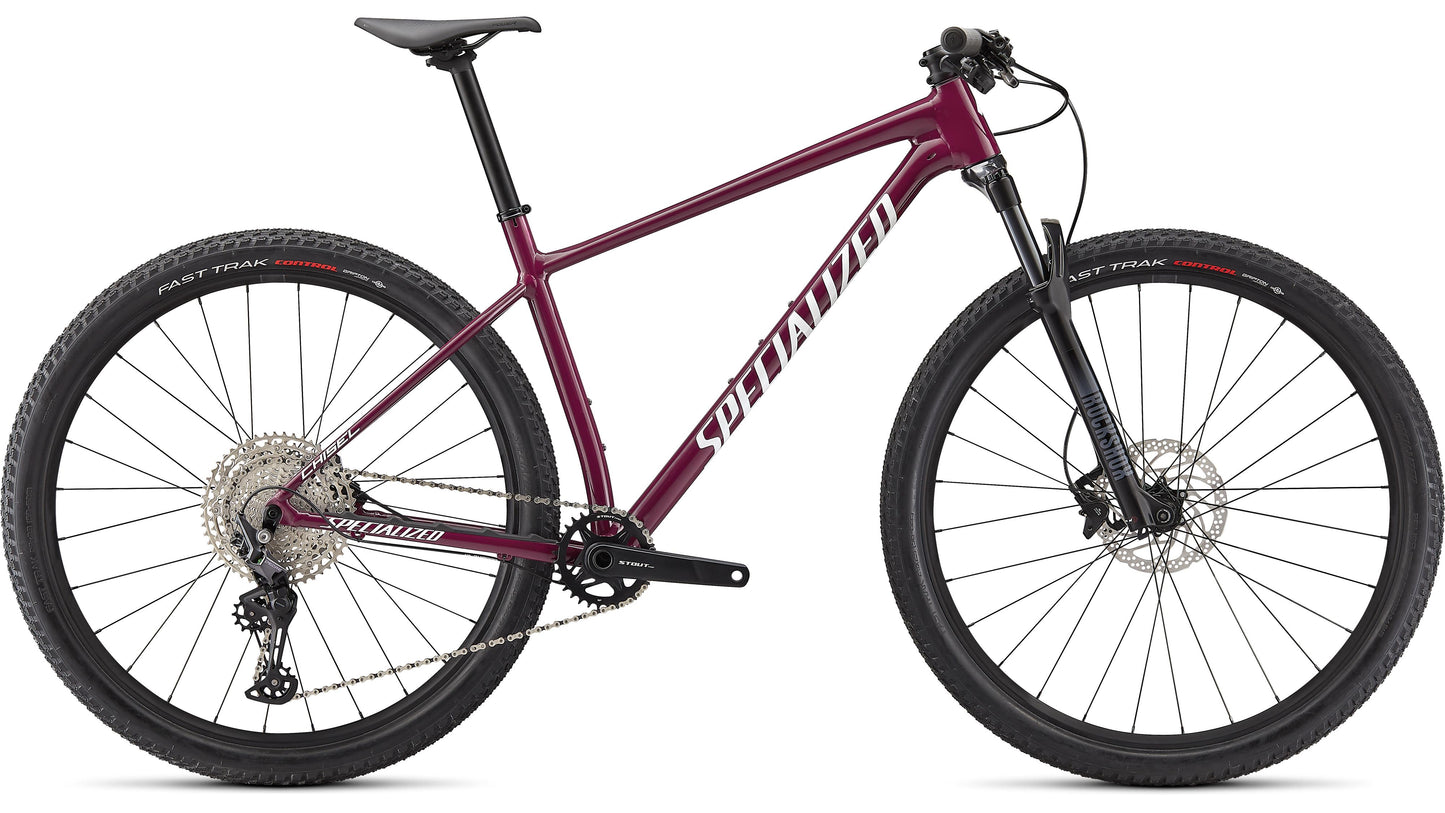

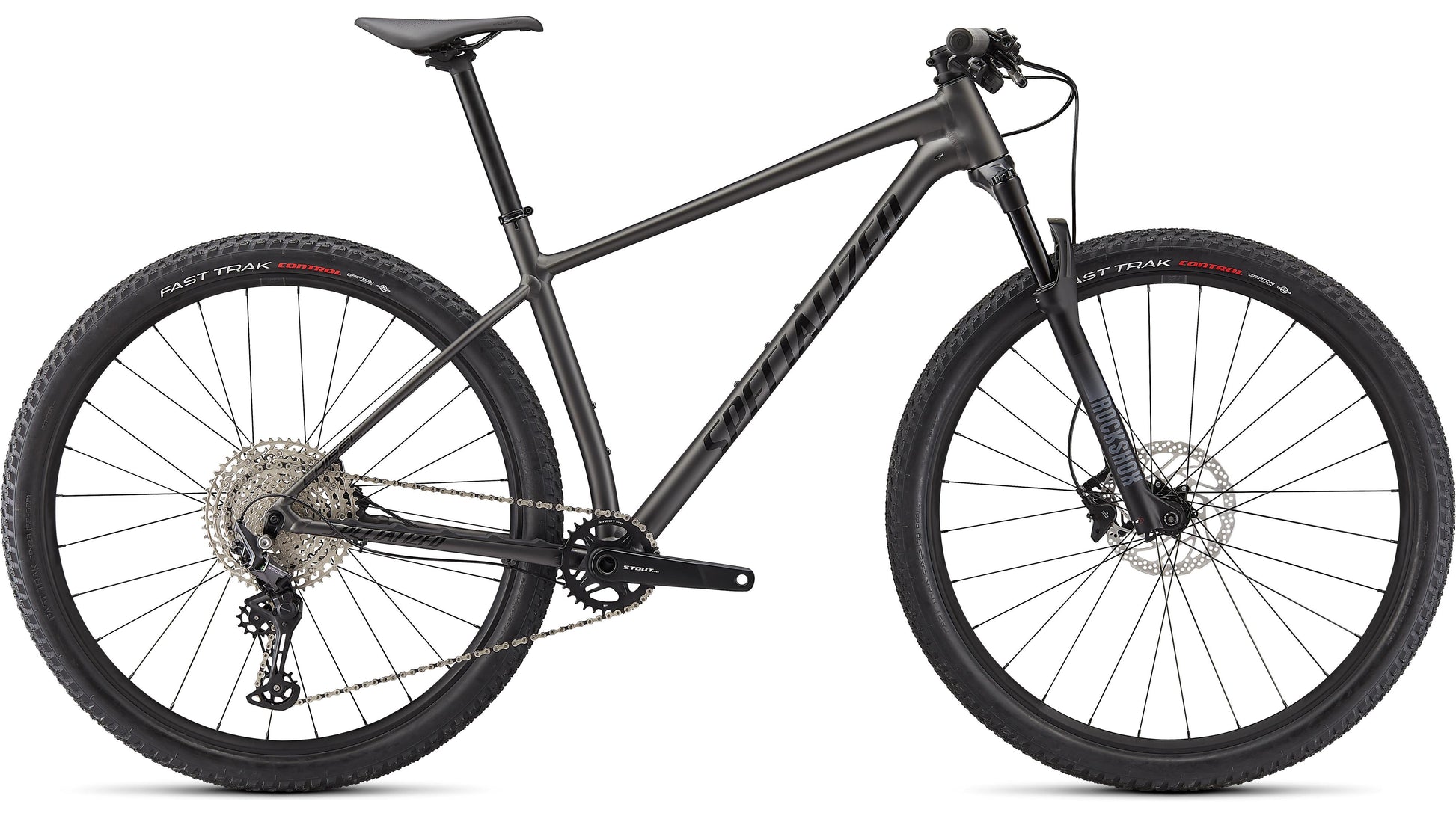

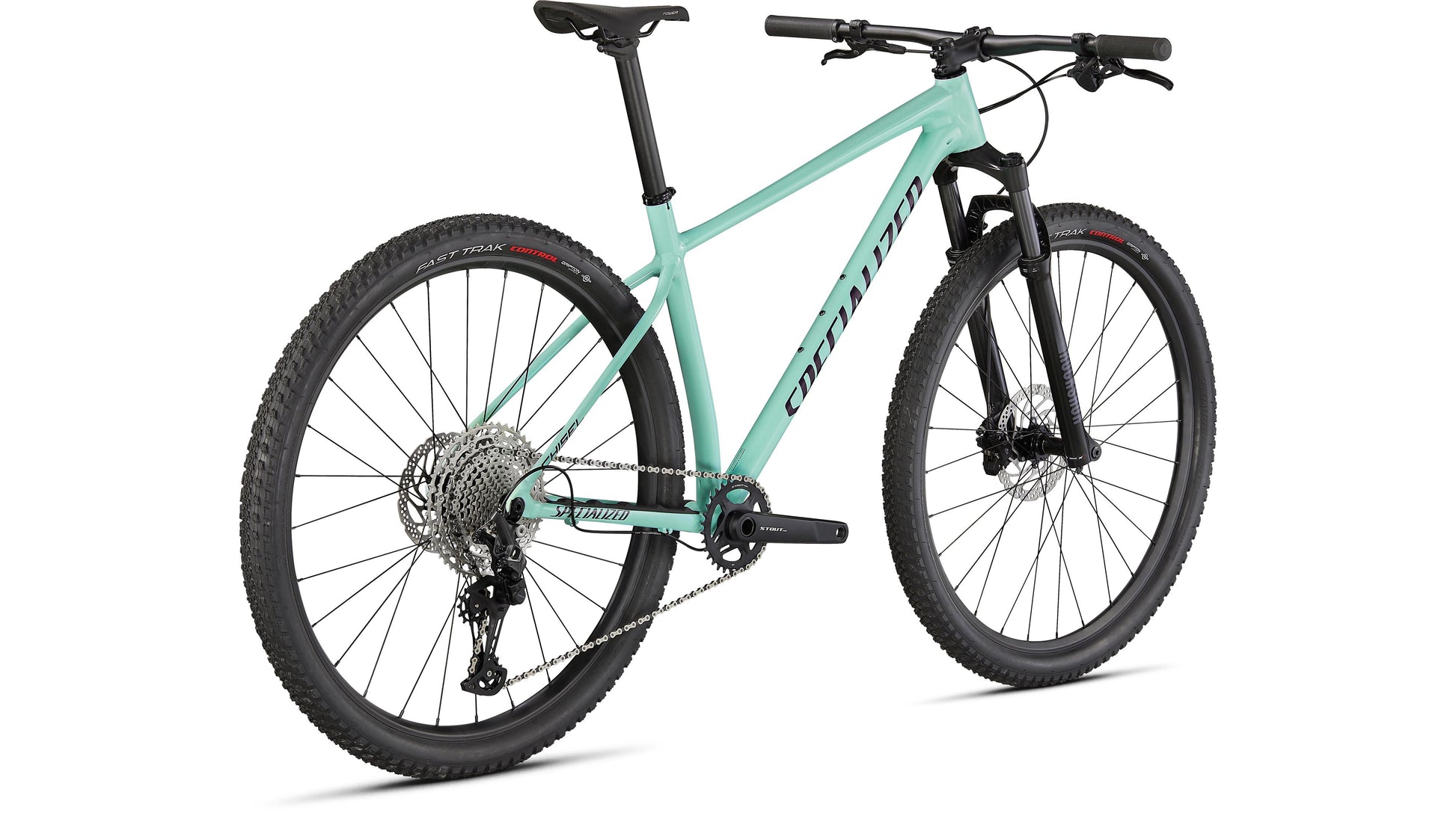

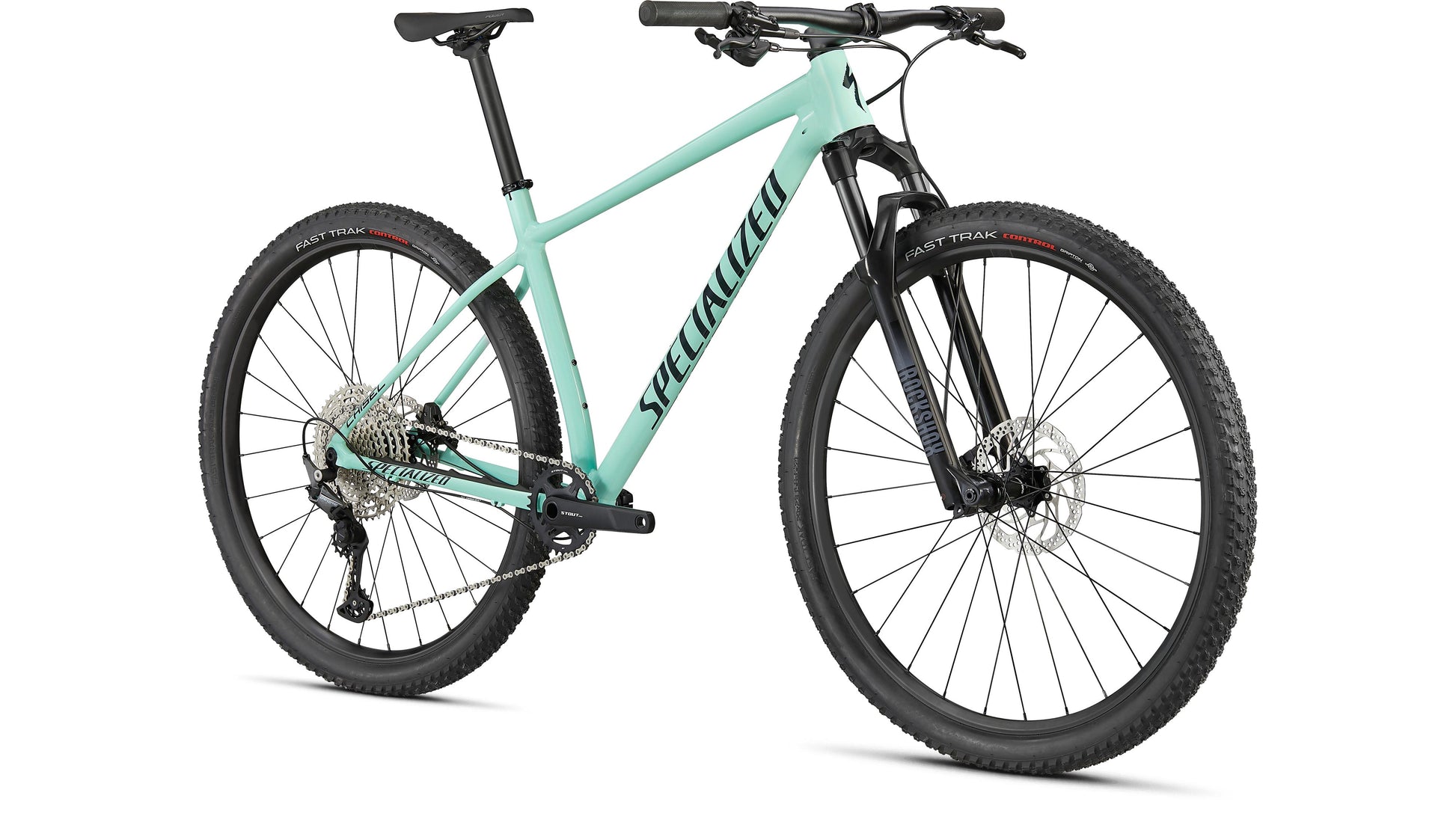

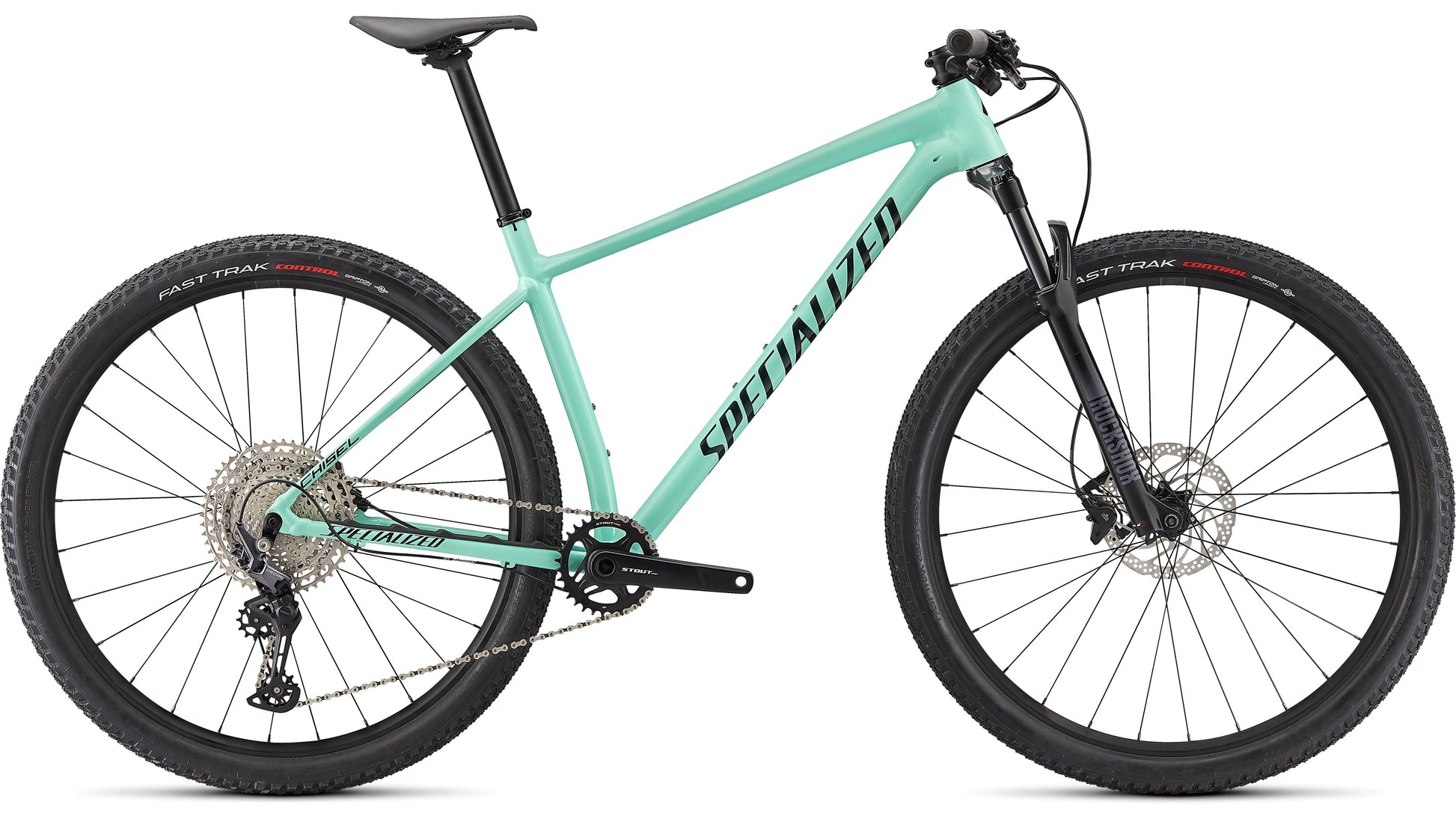

2021 Specialized Chisel Features
The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

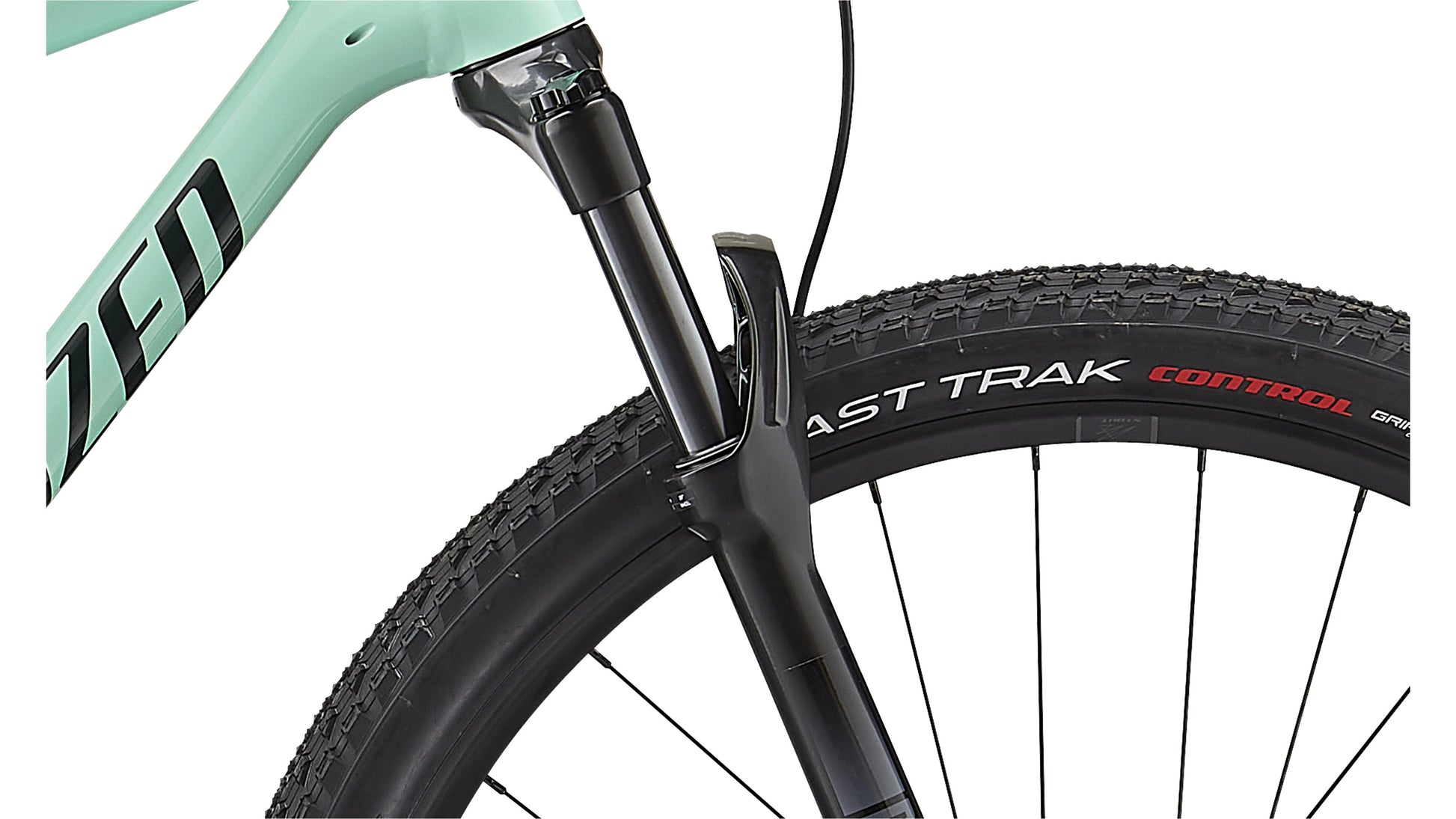

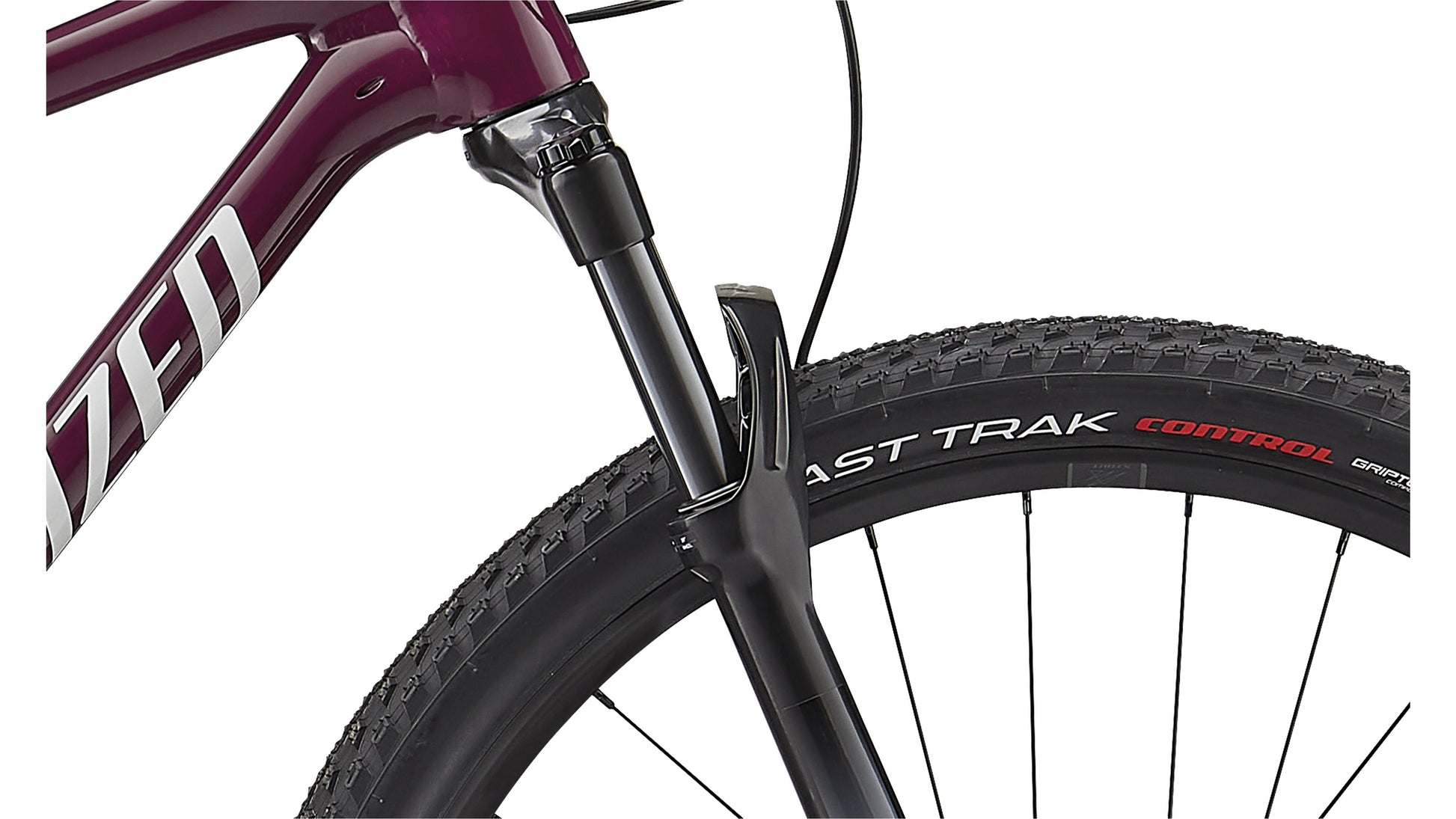

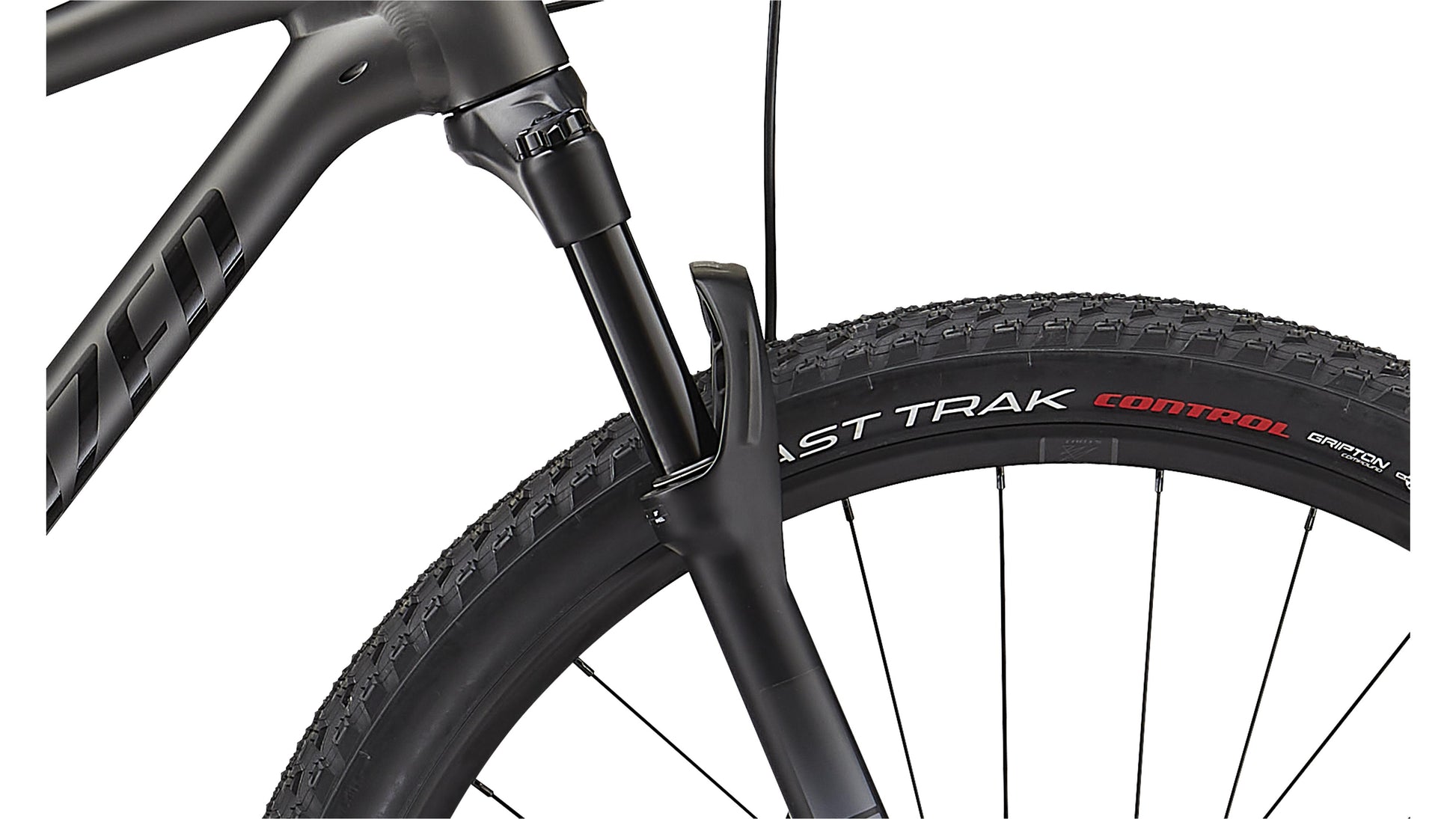

This Chisel comes spec'd with Shimano's tried and true Deore 1x12 speed drivetrain and MT400 hydraulic disc brakes, a RockShox Judy Silver fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.
At a Glance
- The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Component Specifications
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
bottom bracket
|
| Wheels & Tires |
rims
front hub
rear hub
spokes
front tire
rear tire
inner tubes
|
| Cockpit |
stem
handlebars
grips
saddle
seatpost
pedals
|
2021 Specialized Chisel
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 591 mm | 605 mm | 605 mm | 619 mm | 633 mm |
| Reach | 385 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1070 mm | 1099 mm | 1124 mm | 1154 mm | 1185 mm |
| Top Tube Length, Horizontal | 555 mm | 578 mm | 603 mm | 632 mm | 661 mm |
| Bike Standover Height | 732 mm | 762 mm | 792 mm | 816 mm | 847 mm |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| BB Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| BB Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Fork Length, Full | 486 mm | 506 mm | 506 mm | 506 mm | 506 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
Component Geometry
| Component | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Crank Length | 165 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Handlebar Width | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Stem Length | 60 mm | 60 mm | 70 mm | 70 mm | 70 mm |
| Saddle Width | 155 mm | 155 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 350 mm | 350 mm | 400 mm | 400 mm | 400 mm |
