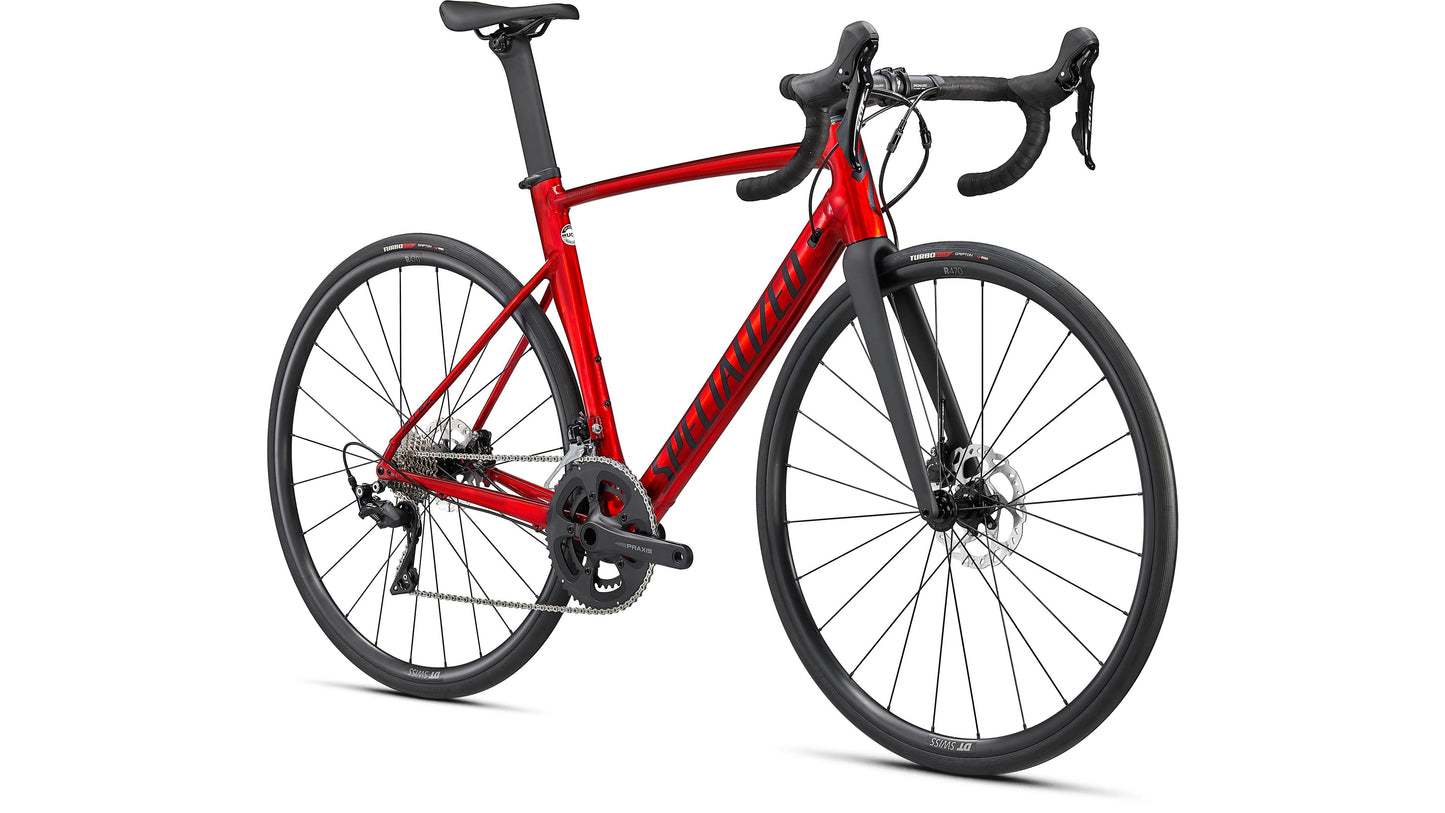

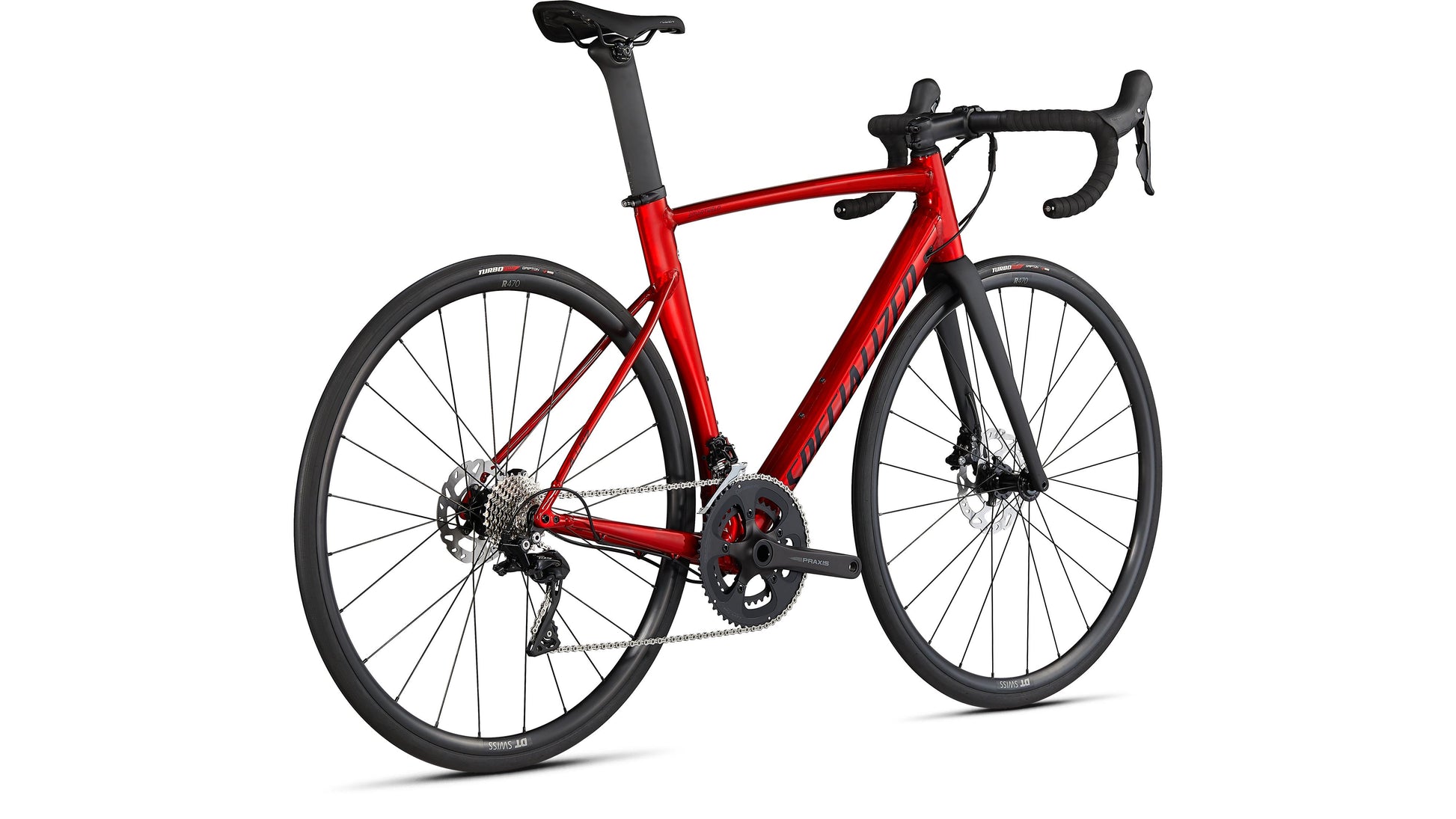

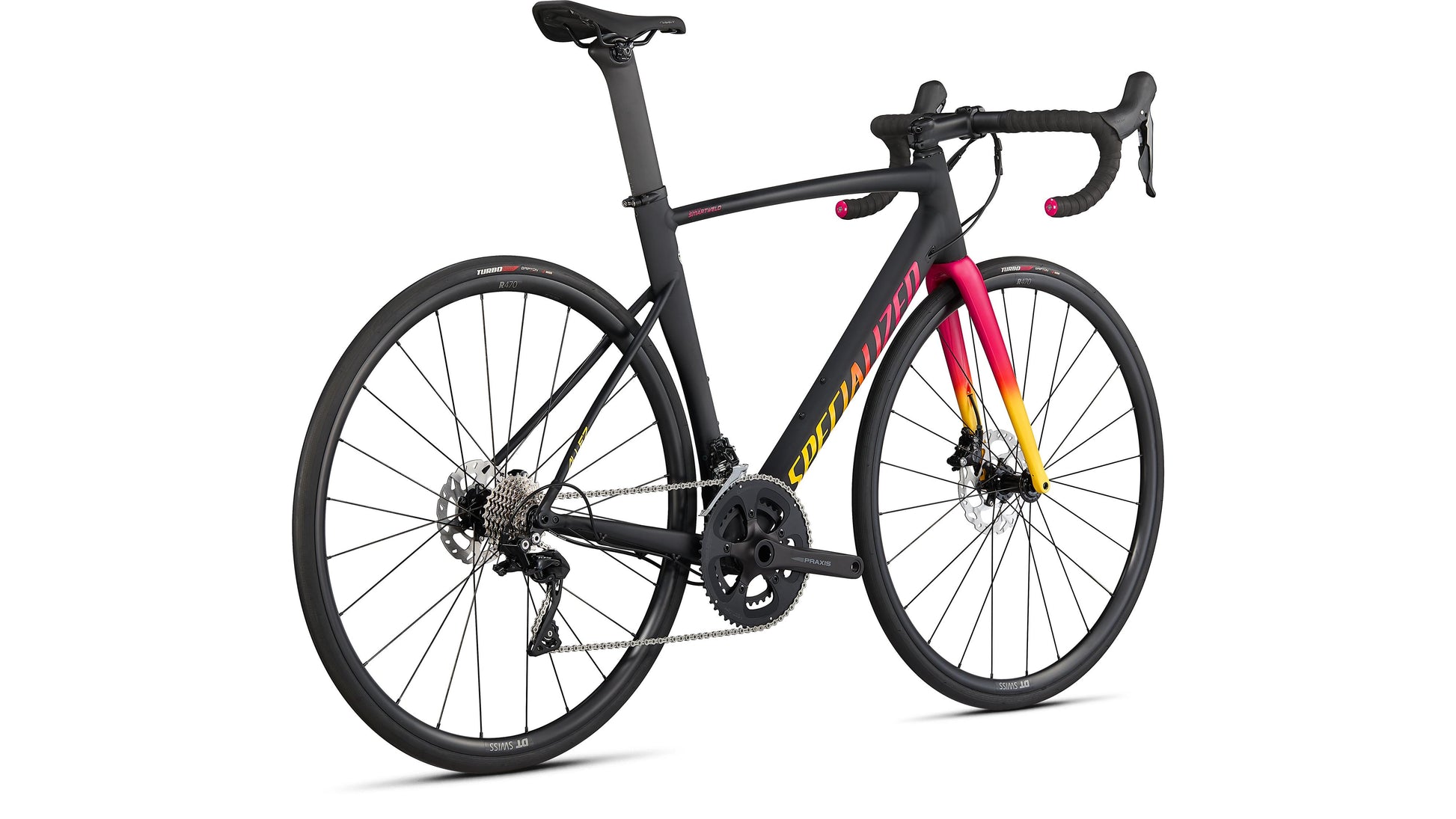

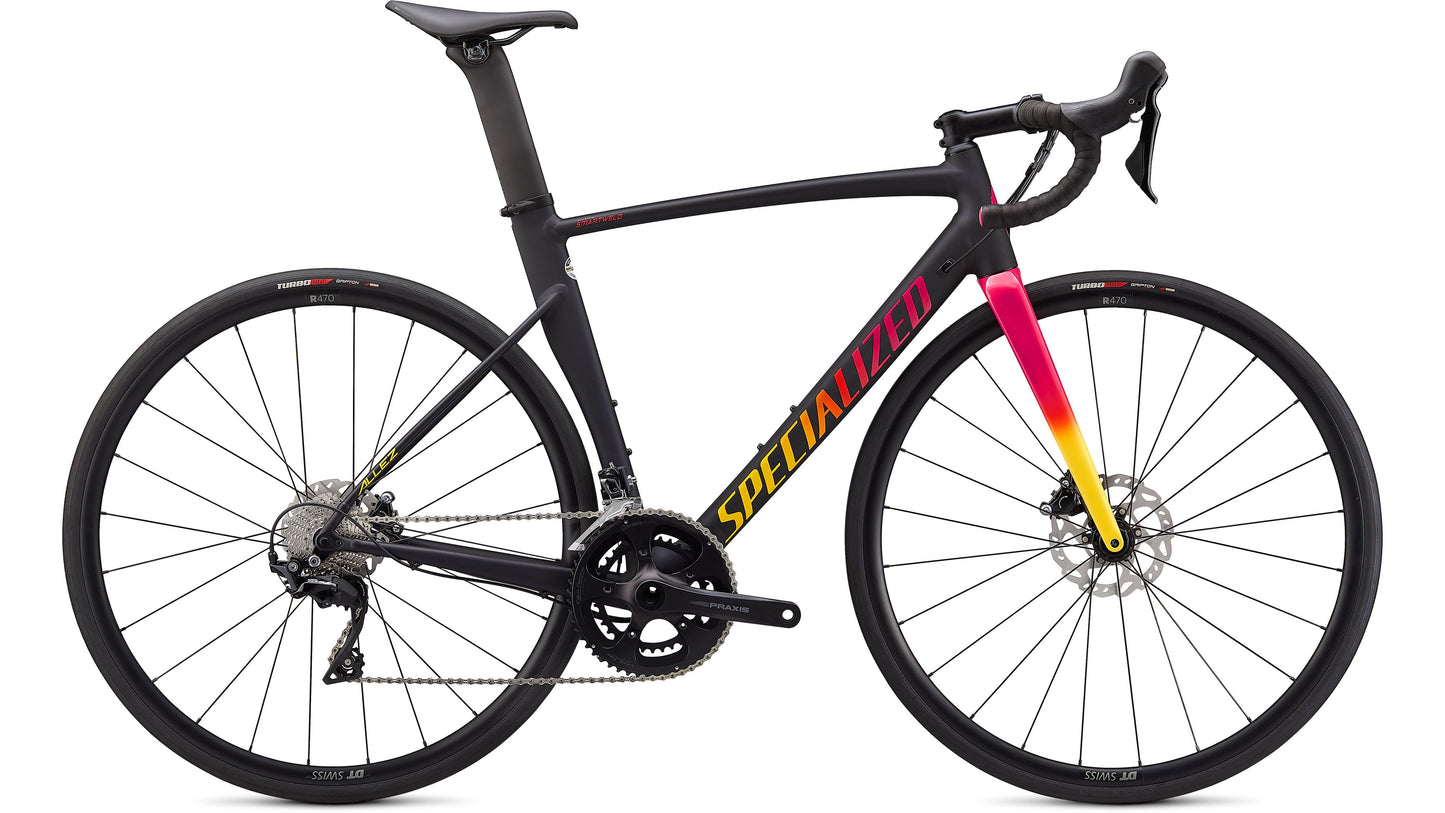

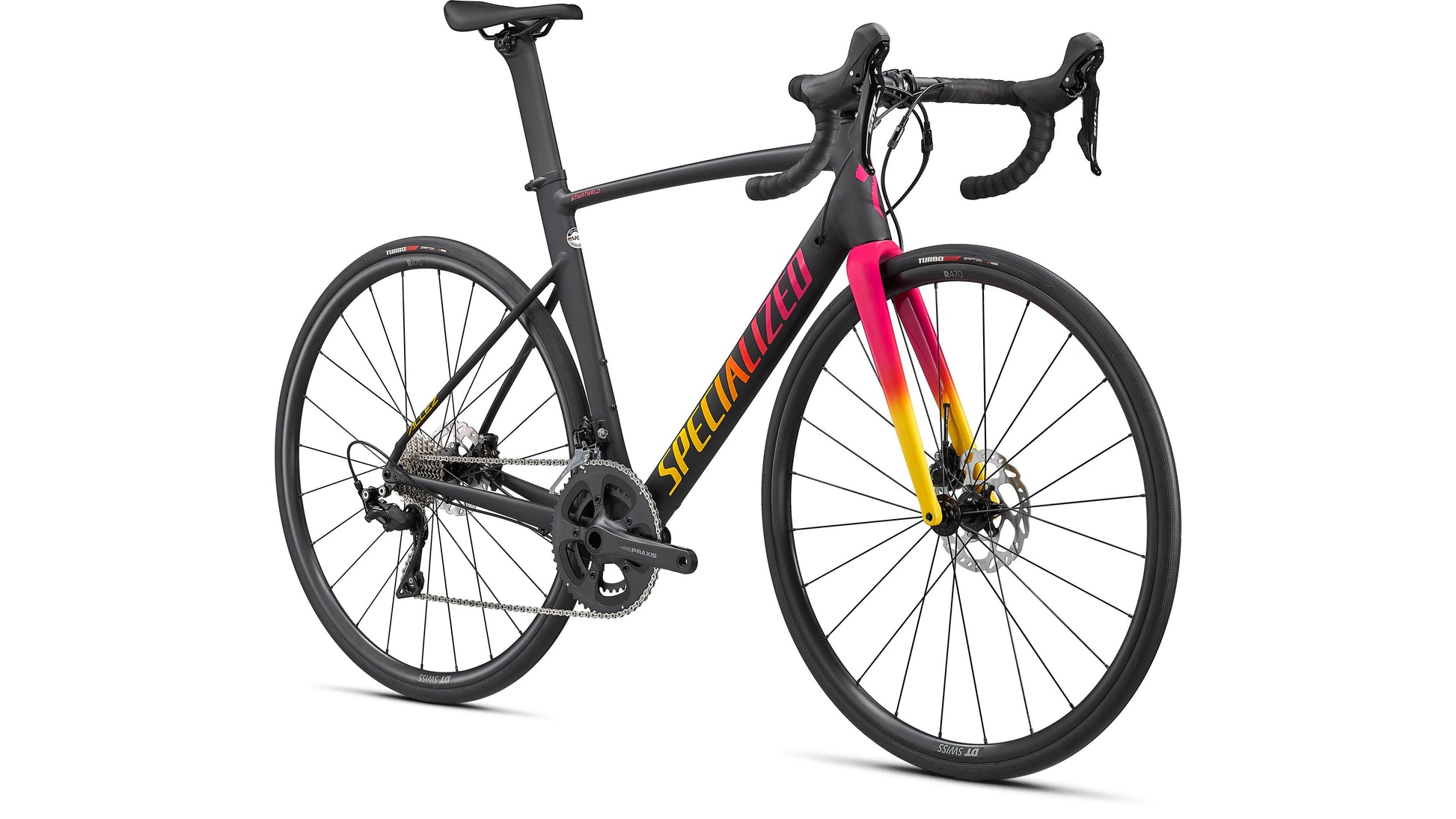

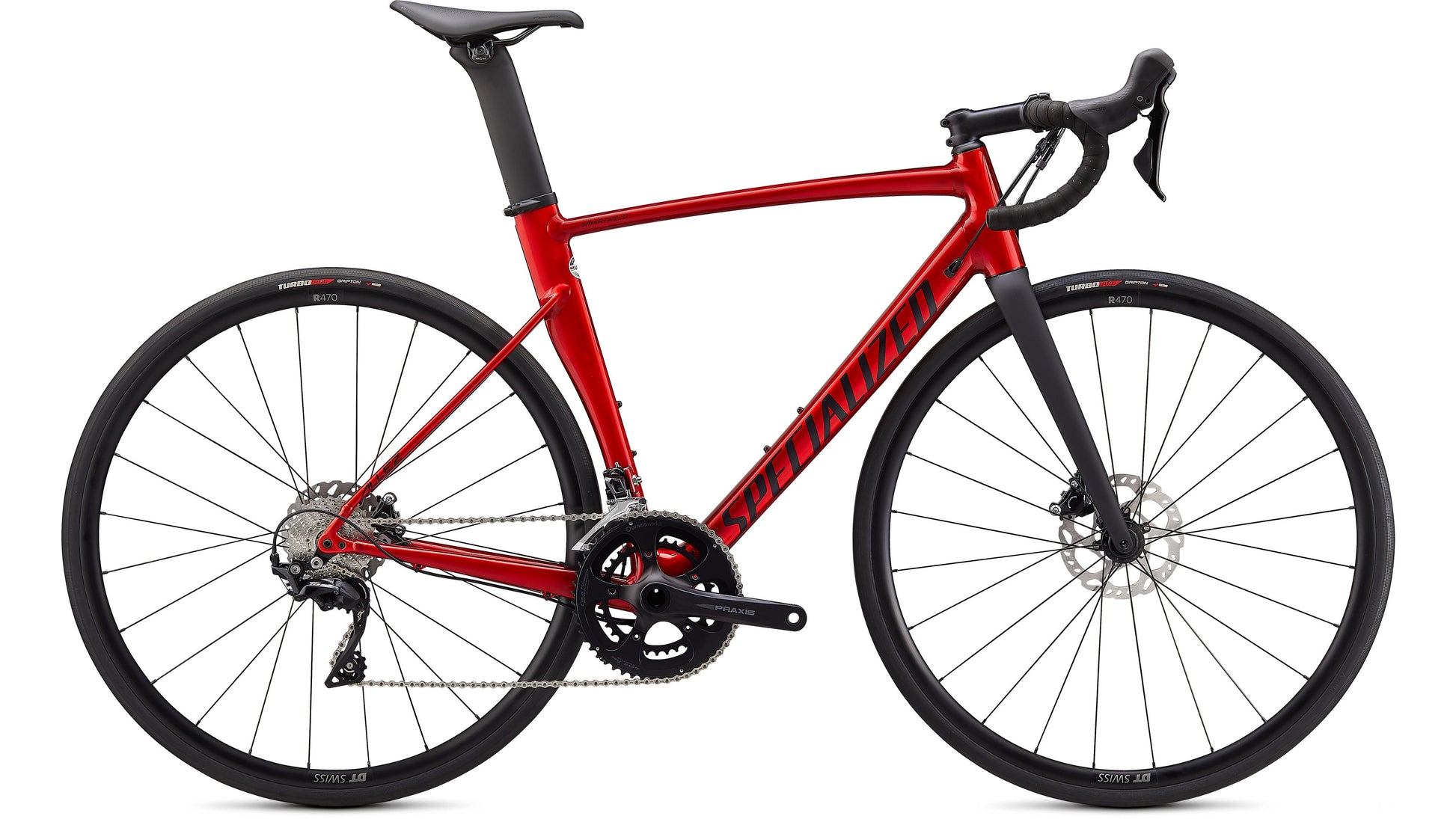

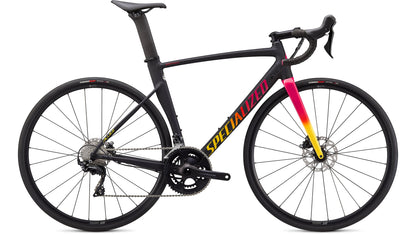

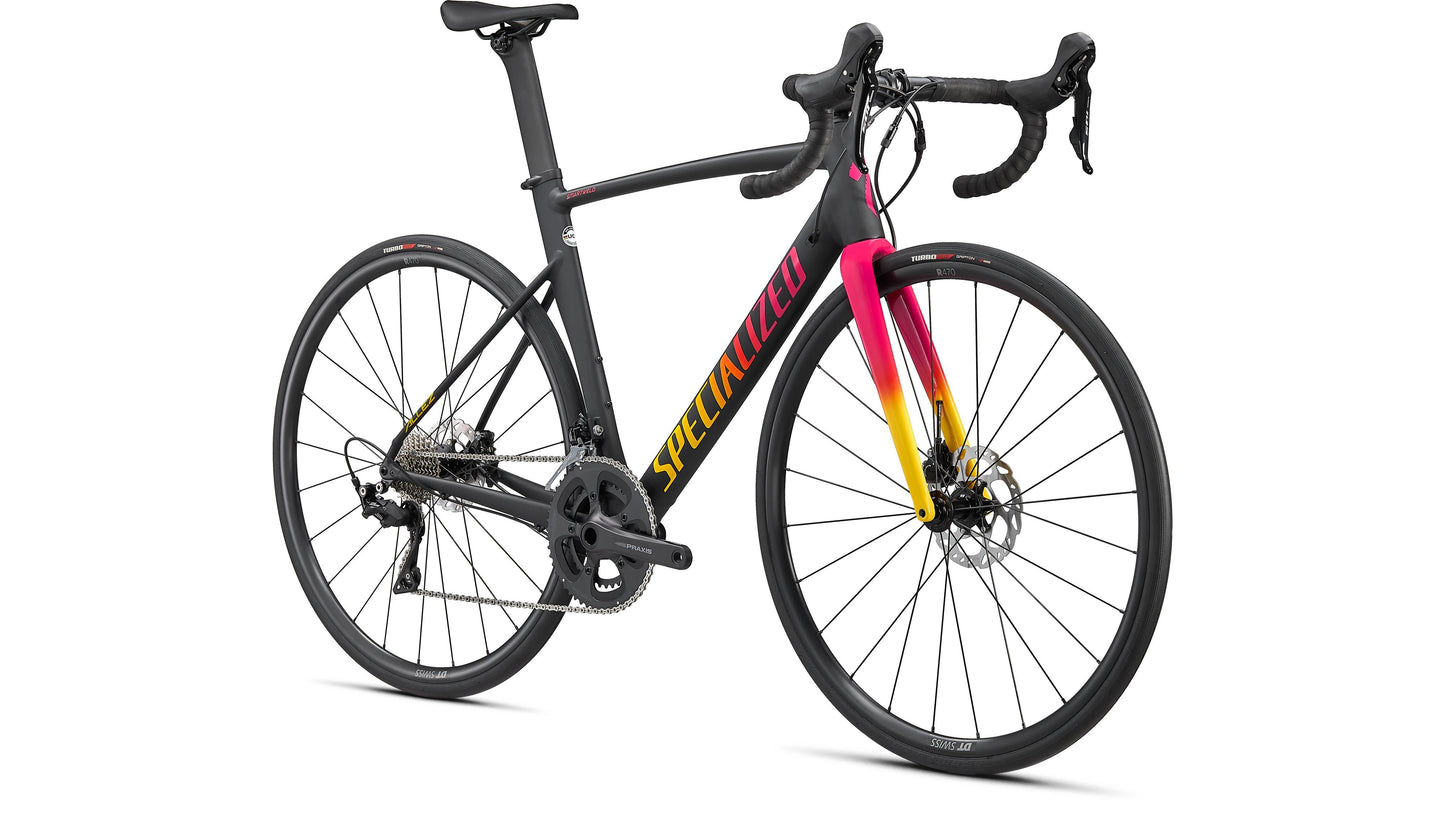

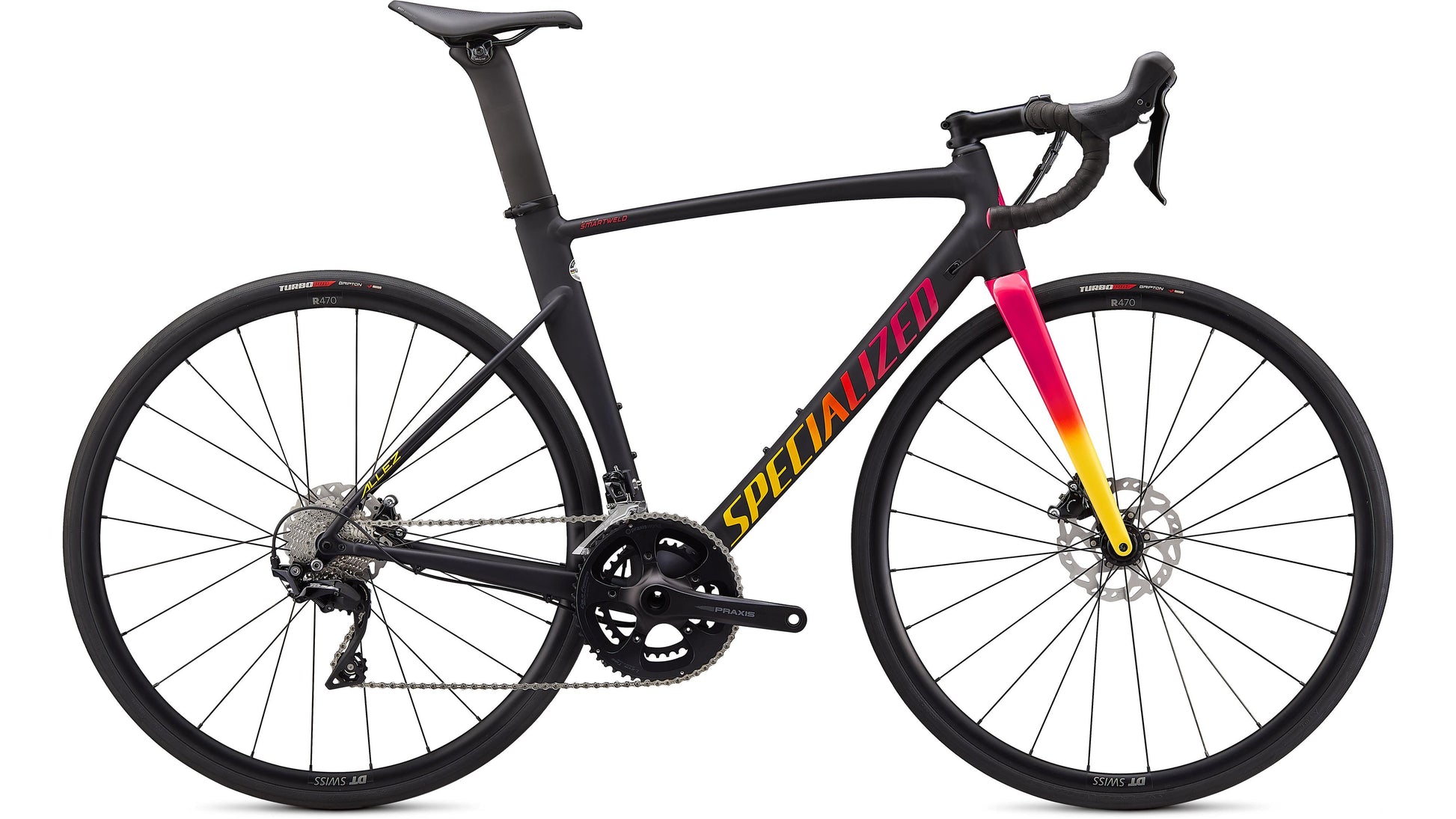

Specialized Allez Sprint Comp Disc Features
Climbs; corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced alloy road bike we've ever made, and one that often out-performs the carbon fiber bikes of other brands, the Allez Sprint is capable as a crit-racing tool or an everyday road steed. But even better, it performs all of the above at a price that's affordable for any racer's budget.
For the build, this Allez meshes performance and value with Shimano 105 shifting and hydraulic disc brakes, DT R470 Disc alloy wheels, and a fan-favorite Body Geometry Power saddle.
At a Glance

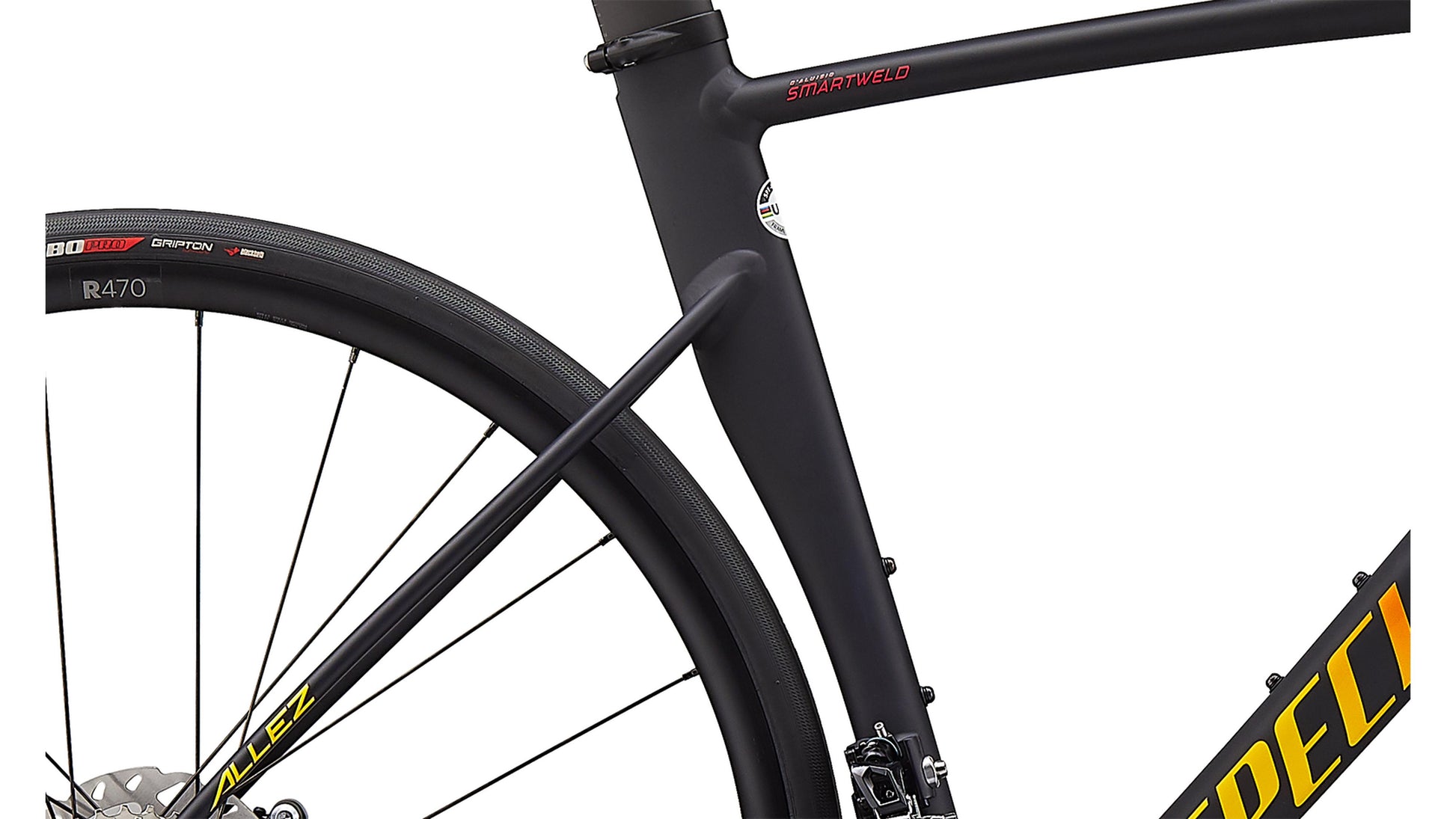

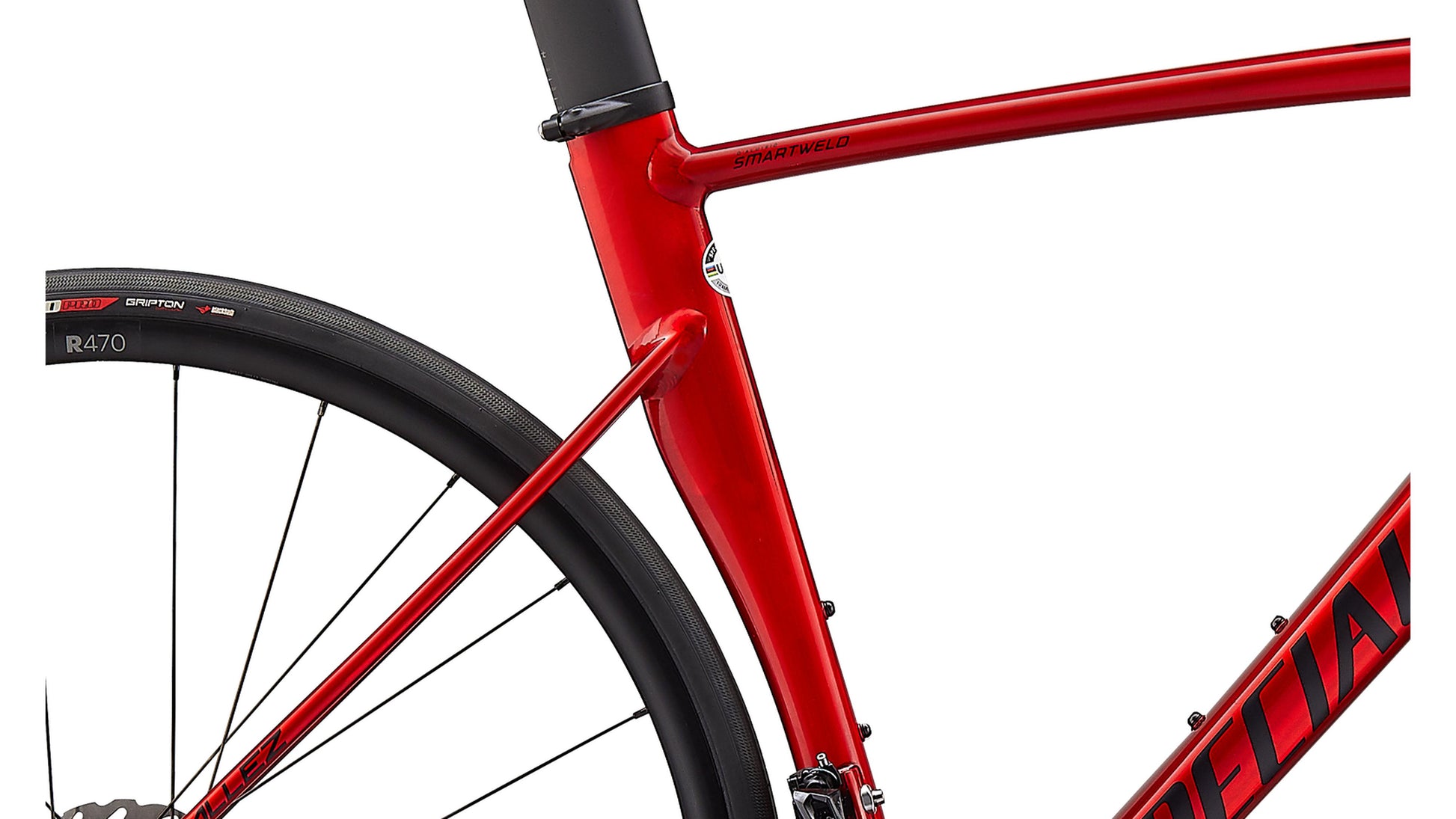

- At the heart of the Allez Sprint is our D'Aluisio Smartweld Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested, let alone made. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.
- To make sure that every single watt you produce gets transferred to the road, we gave it short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also providing tons of built-in compliance.
- Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.

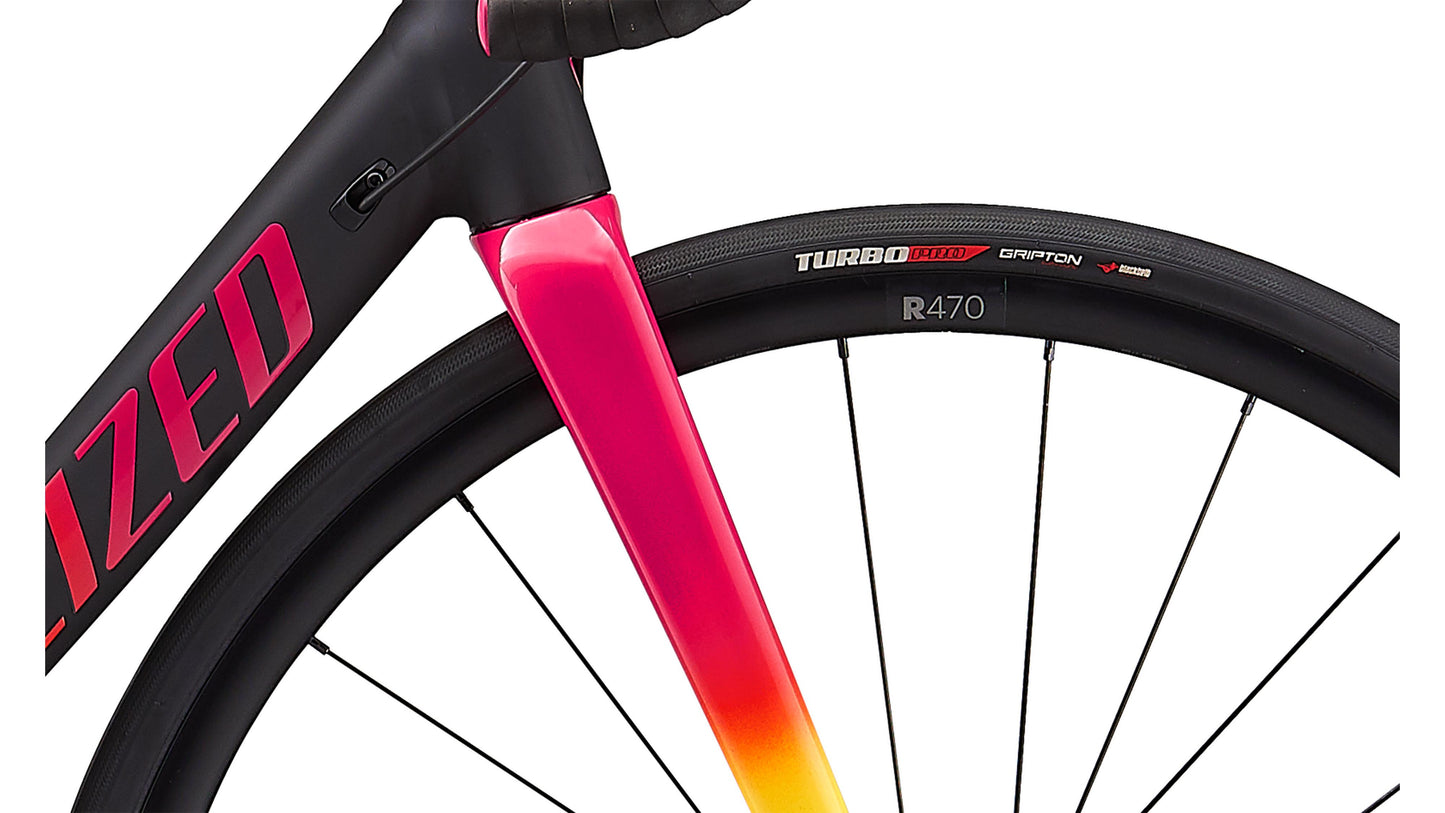

- Our top-tier Tarmac Disc FACT carbon fiber fork provides incredible stiffness and front-end steering response, while also efficiently absorbing road chatter.
Component Specifications
| Frame | Specialized E5 Premium Aluminum Disc frame w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB |
| Seat Binder | Allez Sprint Aero |
| Fork | Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets |
| Shift Levers | Shimano 105 R7020, hydraulic disc |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 R7000 GS, medium cage, 11-speed |
| Cassette | Shimano R7000, 11-speed, 11-28t |
| Chain | KMC X11 Extra Lightweight, 11-speed |

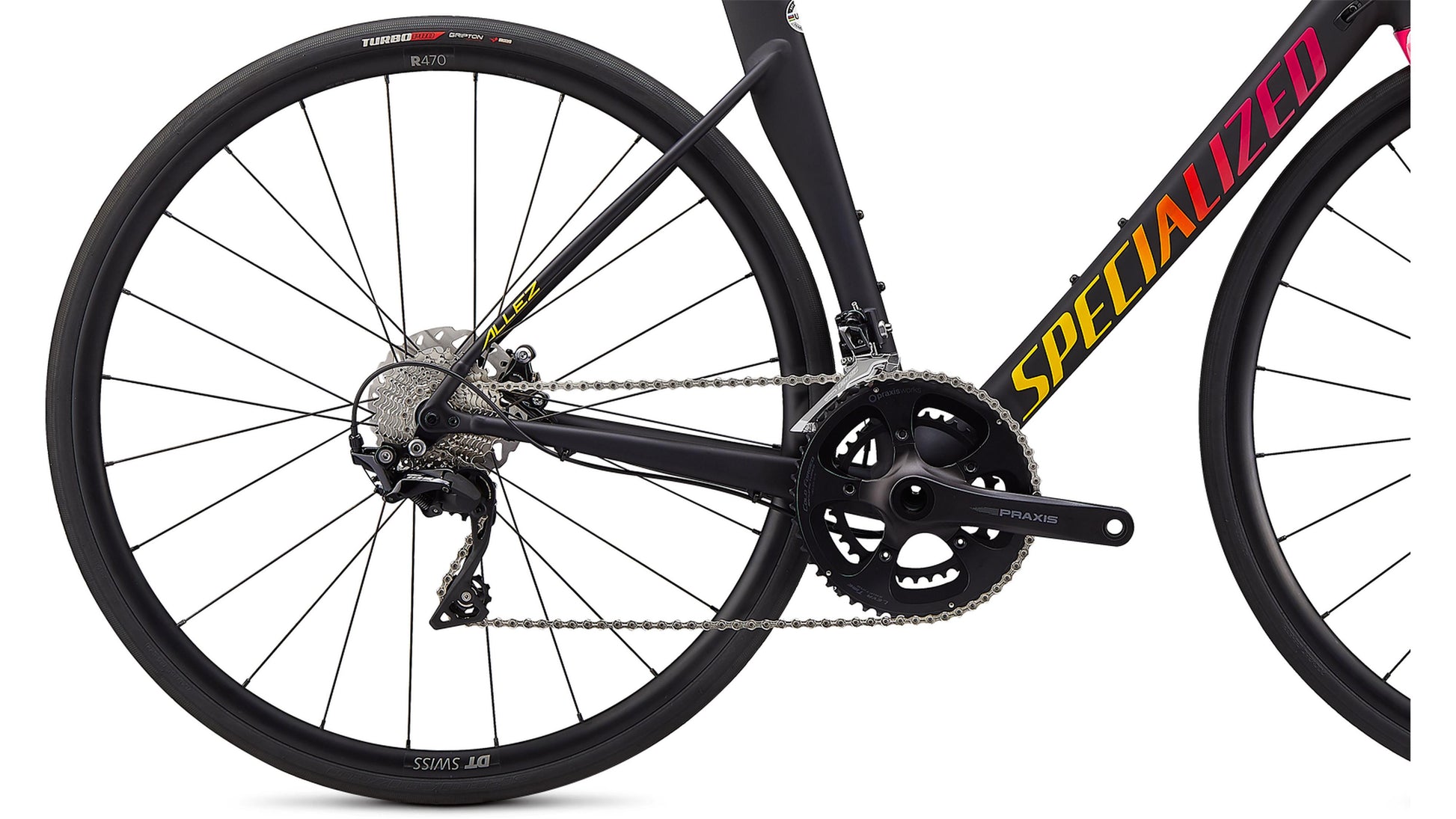

| Crankset | Praxis Zayante, BB30 |
| Chain Rings | 40 Teeth with Chain Retention Technology |
| Bottom Bracket | Praxis 6806 bearings |
| Front Tire | Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm |
| Rear Tire | Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm |
| Inner Tubes | Presta, 40mm valve |

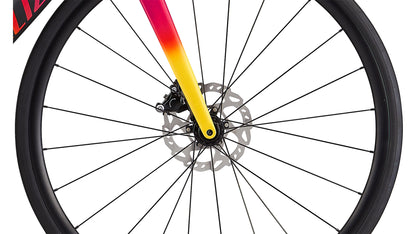

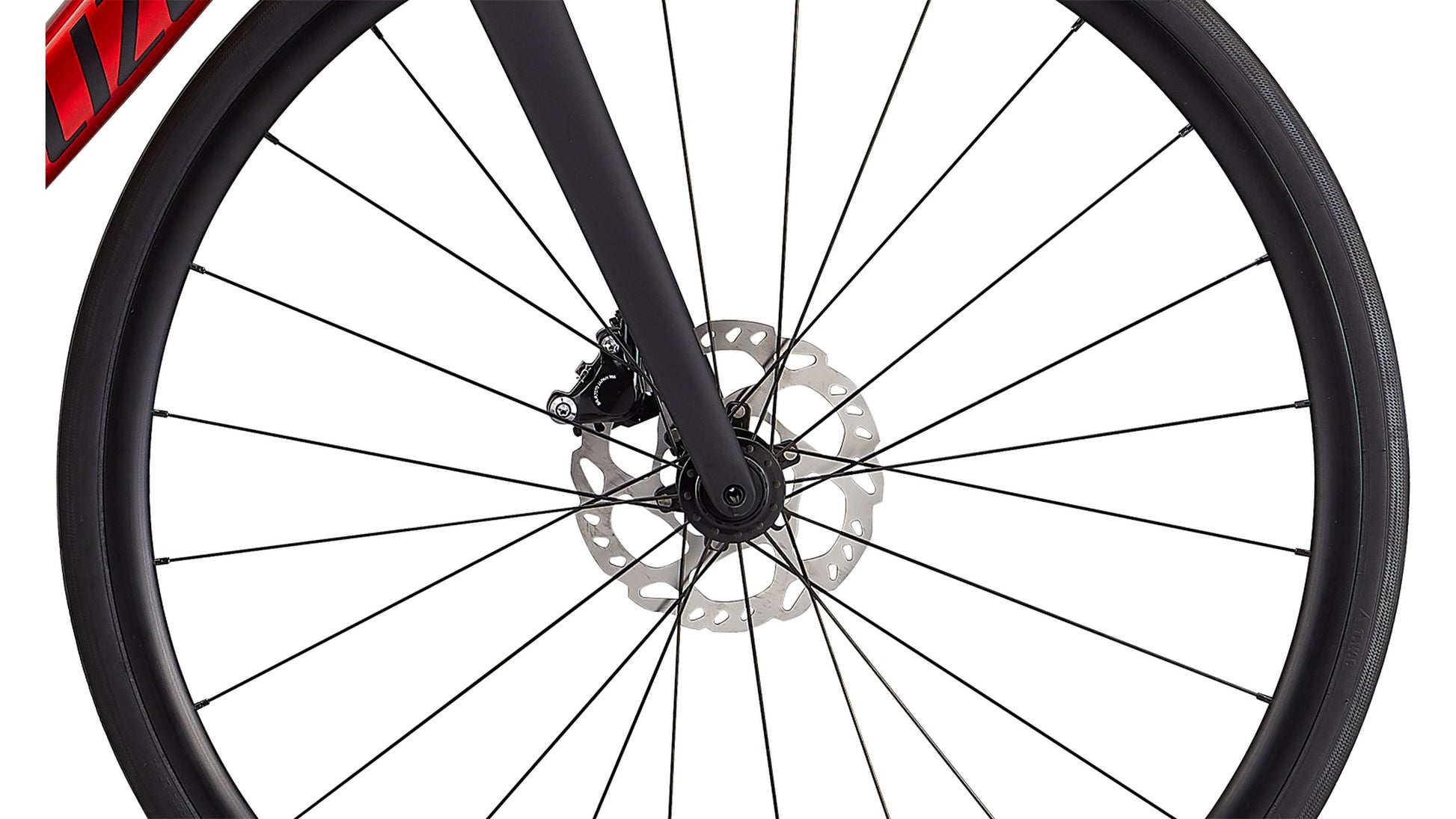

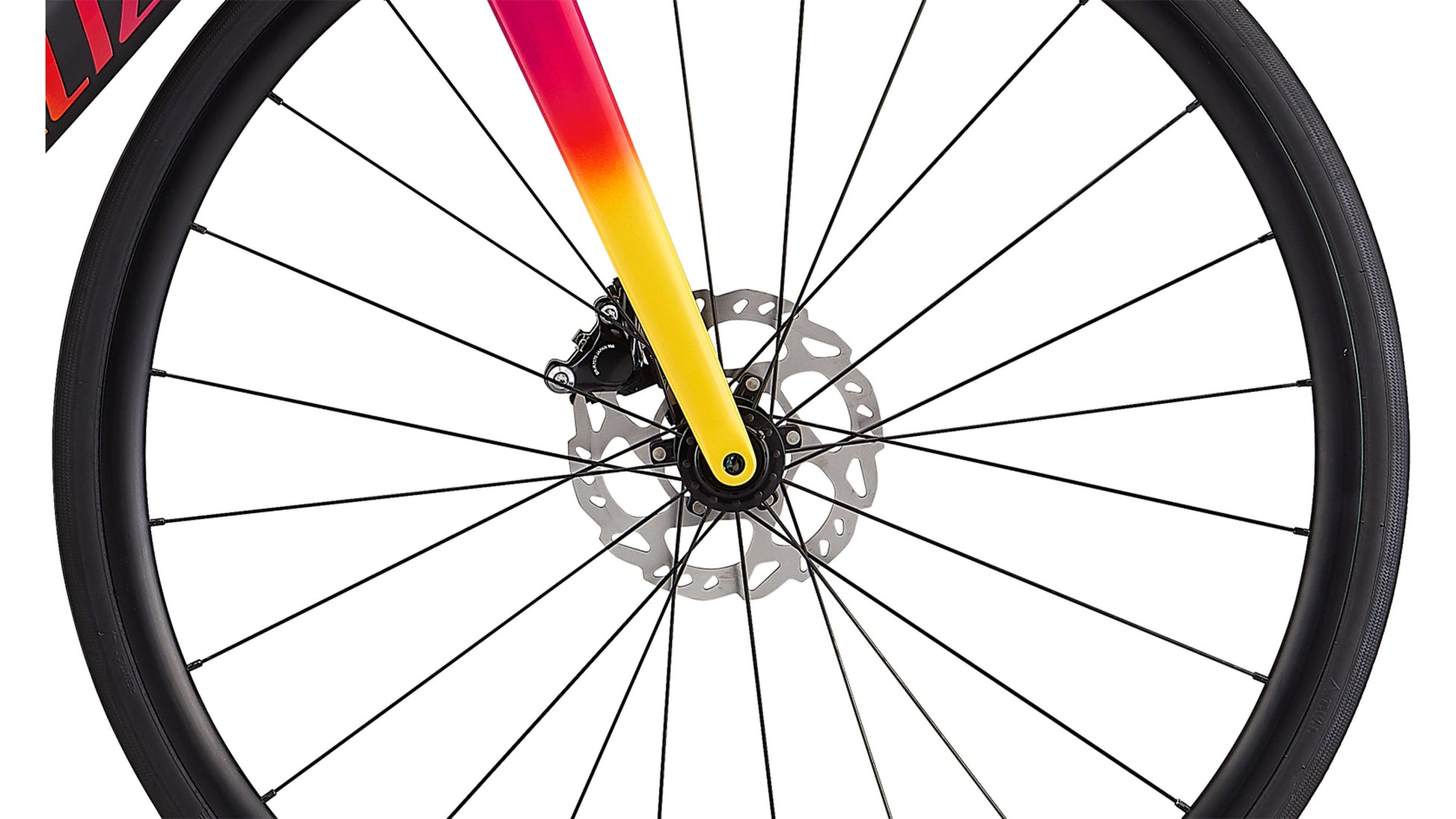

| Front Brake | Shimano 105, Hydraulic disc |
| Rear Brake | Shimano 105, Hydraulic disc |

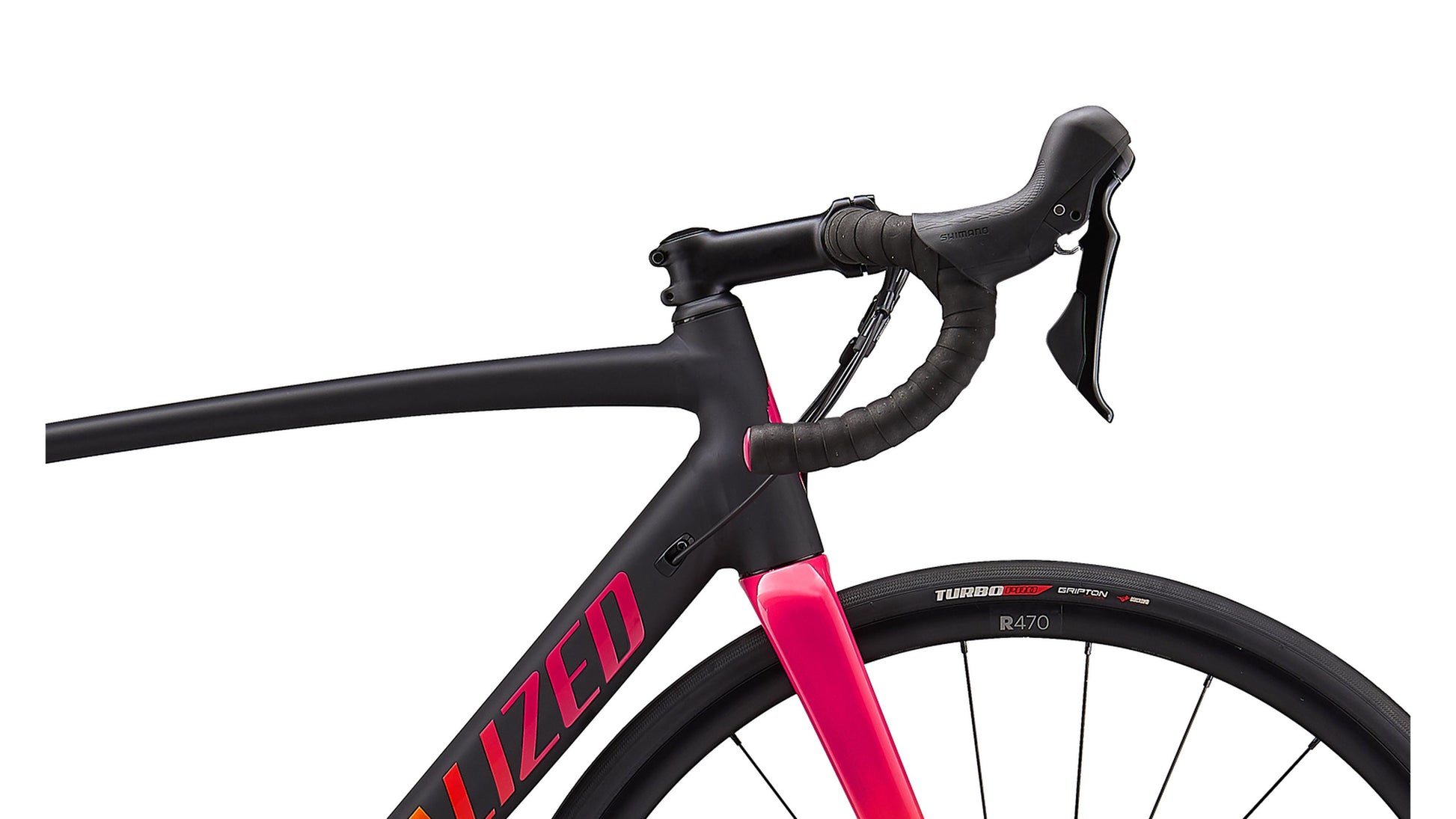

| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |

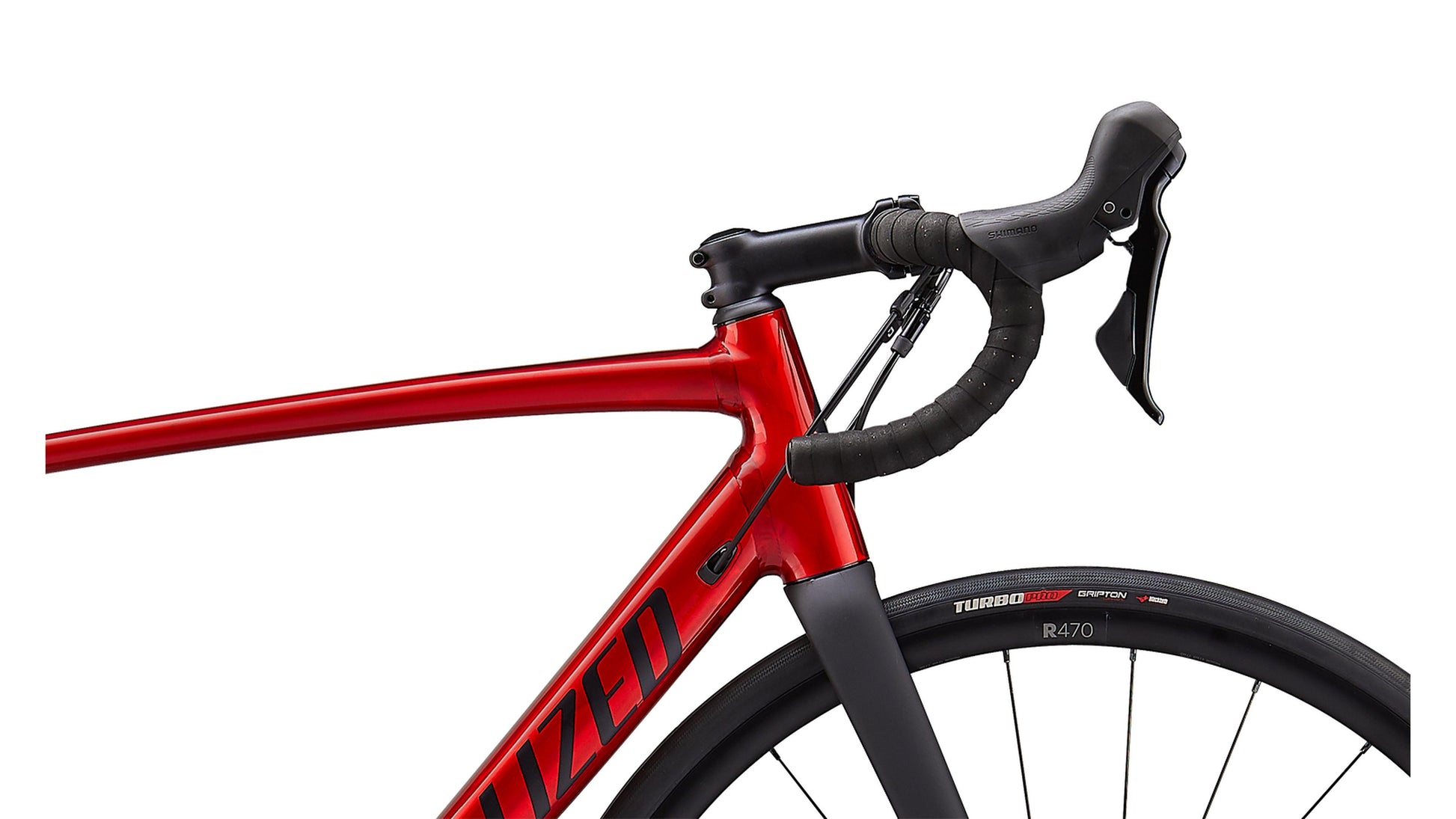

| Handlebars | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
| Saddle | Body Geometry Power Sport, hollow Cr-Mo rails |
| Seatpost | Allez Sprint Seatpost, 20mm setback |
Specialized Allez Sprint Comp Disc
| Bike/Frame Size | 49.0 | 52.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|
| Stack | 507 mm | 519 mm | 538 mm | 559 mm | 588 mm | 609 mm |
| Reach | 375 mm | 380 mm | 385 mm | 395 mm | 400 mm | 405 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 966 mm | 968 mm | 979 mm | 990 mm | 1004 mm | 1010 mm |
| Top Tube Length, Horizontal | 520 mm | 529 mm | 539 mm | 555 mm | 569 mm | 580 mm |
| Bike Standover Height | 730 mm | 744 mm | 764 mm | 780 mm | 807 mm | 832 mm |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Head Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| BB Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Fork Length, Full | 363 mm | 363 mm | 363 mm | 363 mm | 363 mm | 363 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 566 mm | 568 mm | 579 mm | 590 mm | 603 mm | 609 mm |
