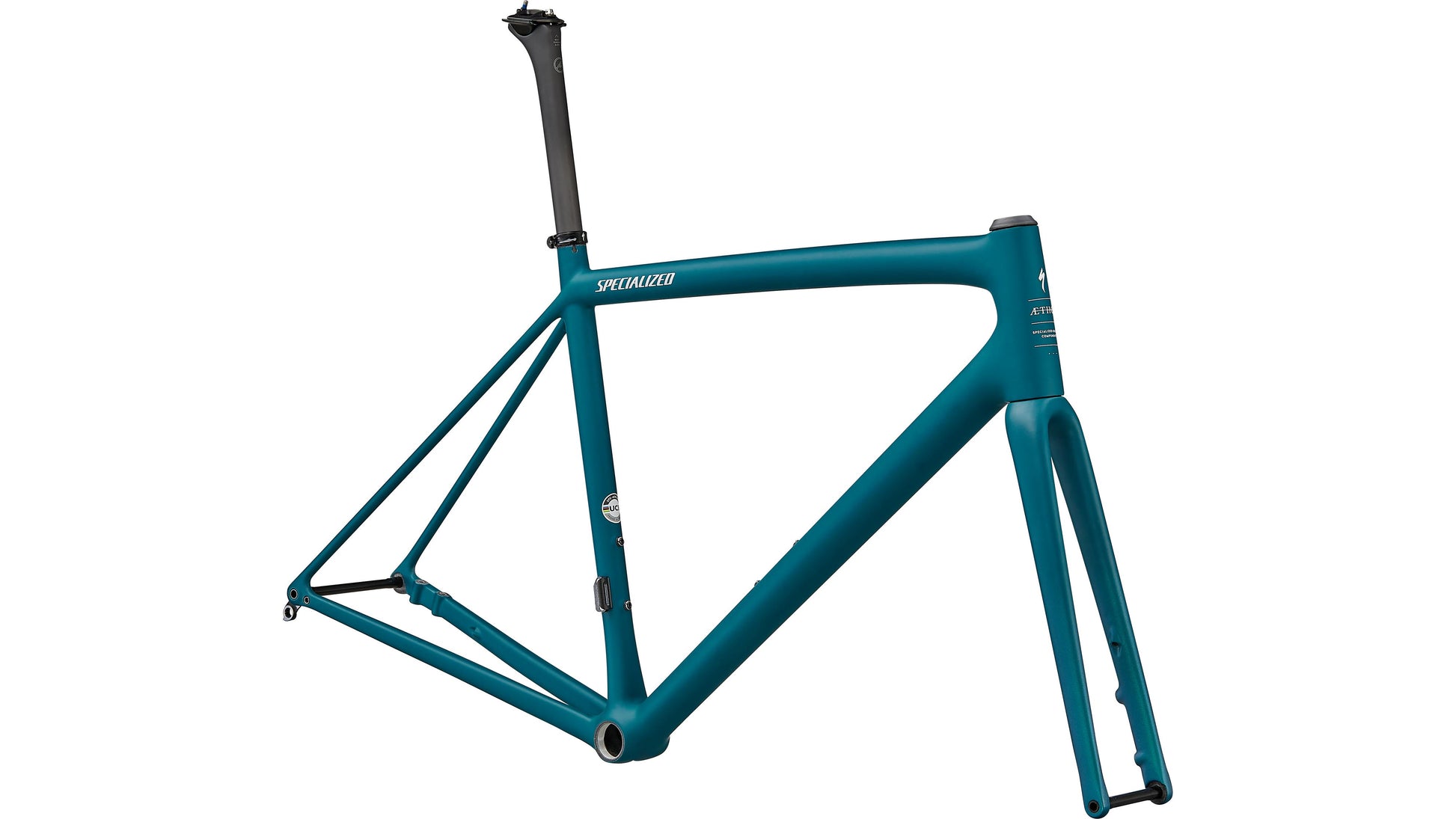

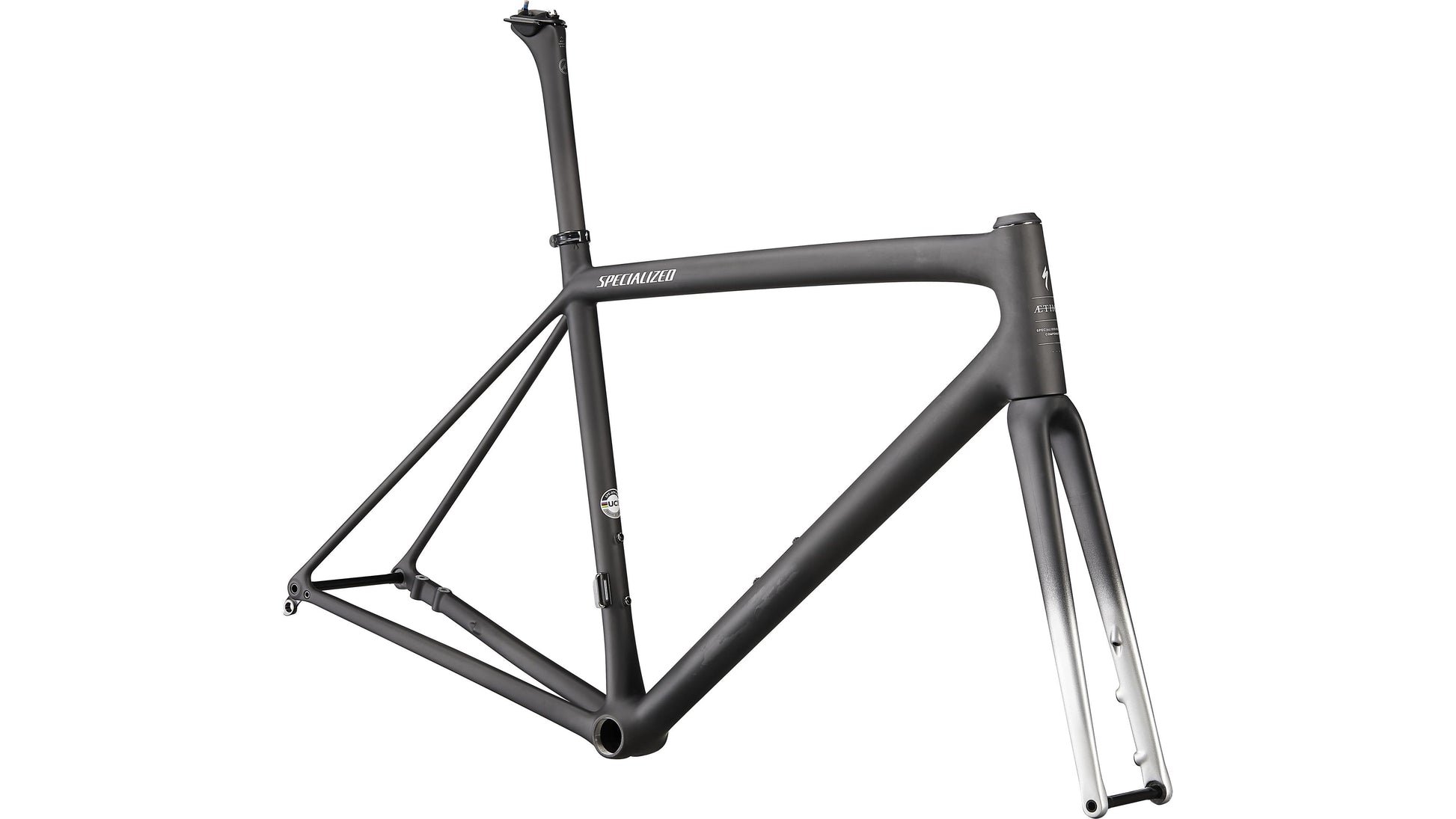

2022 Specialized Aethos Frameset

2022 Specialized Aethos Frameset

77222-7049

$3,300.00
$3,300.00 $3,300.00
Sold out
Color
Size
View full details

    2022 Specialized Aethos Frameset Features

    The Aethos line promises three things—exceptional light weight, perfectly balanced ride characteristics, and undeniable style. Aethos: Billions of calculations in the pursuit of one thing—the perfect ride.

    And with this frame set, you have the perfect canvas to begin creating your dream ride.

    At a Glance

    • The Aethos frame has been designed with the perfect combination of ultimate ride feel, light weight, and style—from accelerating up steep pitches and descending technical descents, to all-day saddle comfort on even the longest coffee rides, the Aethos hits the mark. But how, you ask? By reinventing the traditional road shape found on bikes of the past, we’ve subtly altered these shapes to deliver massive gains in stiffness and balance, all without affecting weight or durability. Pair that with an entirely new layup and process that we’ve perfected over multiple decades and you have the lightest frame out there (585 grams, S-Works, size 56cm). The Aethos is more than just a new bike, it’s the first of a new breed.
    • A featherweight frame is useless without confidence-inspiring ride characteristics, which is why we’ve developed the Aethos to have the perfect balance of front and rear stiffness combined with exceptional ride quality. By studying the flexing and breathing of carbon fiber, we were able to discover groundbreaking findings about how forces flow through frames. Just a few pedal strokes and you’ll realize this sublime ride sets a new standard.
    • Every detail, from the derailleur hangers to the fork expander plug have been designed with style, weight, and durability in mind—everything in pursuit for the perfect ride.

    Product Specifications

    fork

    FACT Carbon, 12x100mm thru-axle, flat-mount disc

    frame

    Aethos FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc

    seatpost

    Roval Alpinist Carbon Seatpost

    seat binder

    Specialized Alloy, 30mm

    category

    Road

    component geometry

    [{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"49","GEO_SIZE_VALUE":"300","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"52","GEO_SIZE_VALUE":"300","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"54","GEO_SIZE_VALUE":"360","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"58","GEO_SIZE_VALUE":"360","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"56","GEO_SIZE_VALUE":"360","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"61","GEO_SIZE_VALUE":"360","GEO_SIZE_DISPLAY_ORDER":"6"}]

    experience

    Performance

    frame geometry

    [{"GEO_SET_NAME":"Aethos","GEO_SET_ID":"12710","MODEL_YEAR":"2022","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Stack","MEASUREMENT_GEO_CODE":"185154","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"514","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"527","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"544","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"565","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"591","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"612","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach","MEASUREMENT_GEO_CODE":"185155","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"375","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"380","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"384","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"395","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"402","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"408","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head Tube Length","MEASUREMENT_GEO_CODE":"185156","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"109","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"137","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"157","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"184","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"204","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head Tube Angle","MEASUREMENT_GEO_CODE":"185157","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"71.75","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"72.5","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"73","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"73.5","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"73.5","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Height","MEASUREMENT_GEO_CODE":"185158","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"266","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"266","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"268","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"268","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"268","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"268","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Drop","MEASUREMENT_GEO_CODE":"185159","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"72","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"72","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"72","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"72","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"63","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"58","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"58","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"55","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"55","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"52","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length, Full","MEASUREMENT_GEO_CODE":"185161","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"369","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"369","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"369","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"369","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"369","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"369","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"47","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"47","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front Center","MEASUREMENT_GEO_CODE":"185163","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"574","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"579","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"591","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"606","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"613","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chainstay Length","MEASUREMENT_GEO_CODE":"185164","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"973","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"975","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"978","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"991","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"1005","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"1012","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top Tube Length, Horizontal","MEASUREMENT_GEO_CODE":"185166","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"508","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"531","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"540","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"562","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"595","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Bike Standover Height","MEASUREMENT_GEO_CODE":"185167","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"705","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"728","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"748","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"769","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"796","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"824","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Tube Length","MEASUREMENT_GEO_CODE":"185168","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"431","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"462","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"481","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"504","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"532","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"567","GEO_DISPLAY_ORDER":"5"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Tube Angle","MEASUREMENT_GEO_CODE":"185169","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"49","GEO_VALUE":"75.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"52","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"54","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"56","GEO_VALUE":"73.5","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"58","GEO_VALUE":"73.5","GEO_DISPLAY_ORDER":"4"},{"FRAME_SIZE_DESC":"61","GEO_VALUE":"73","GEO_DISPLAY_ORDER":"5"}]}]}]

    gender

    Men|Women

    group

    Framesets

    line

    BIKES

    material

    Carbon

    model level

    Base

    model year

    2022

    product family

    Aethos

    shifting

    Mechanical

    suspension

    Rigid

    wheel size

    700C

    base color

    Grey

    color

    Satin Carbon / Flake Silver

    size

    49

    2022 Specialized Aethos Frameset

    Bike/Frame Size 49 52 54 56 58 61
    Stack 514 mm 527 mm 544 mm 565 mm 591 mm 612 mm
    Reach 375 mm 380 mm 384 mm 395 mm 402 mm 408 mm
    Chainstay Length 410 mm 410 mm 410 mm 410 mm 410 mm 410 mm
    Wheelbase 973 mm 975 mm 978 mm 991 mm 1005 mm 1012 mm
    Top Tube Length, Horizontal 508 mm 531 mm 540 mm 562 mm 577 mm 595 mm
    Bike Standover Height 705 mm 728 mm 748 mm 769 mm 796 mm 824 mm
    Seat Tube Length 431 mm 462 mm 481 mm 504 mm 532 mm 567 mm
    Seat Tube Angle 75.5° 74° 74° 73.5° 73.5° 73°
    Head Tube Length 109 mm 120 mm 137 mm 157 mm 184 mm 204 mm
    Head Tube Angle 71.75° 72.5° 73° 73.5° 73.5° 74°
    BB Height 266 mm 266 mm 268 mm 268 mm 268 mm 268 mm
    BB Drop 74 mm 74 mm 72 mm 72 mm 72 mm 72 mm
    Trail 63 mm 58 mm 58 mm 55 mm 55 mm 52 mm
    Fork Length, Full 369 mm 369 mm 369 mm 369 mm 369 mm 369 mm
    Fork Rake/Offset 47 mm 47 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 574 mm 577 mm 579 mm 591 mm 606 mm 613 mm

    Component Geometry

    Component 49 52 54 56 58 61
    Seatpost Length 300 mm 300 mm 360 mm 360 mm 360 mm 360 mm

    Size Guide: 2022 Specialized Aethos Frameset

    Size guide for 2022 Specialized Aethos Frameset
