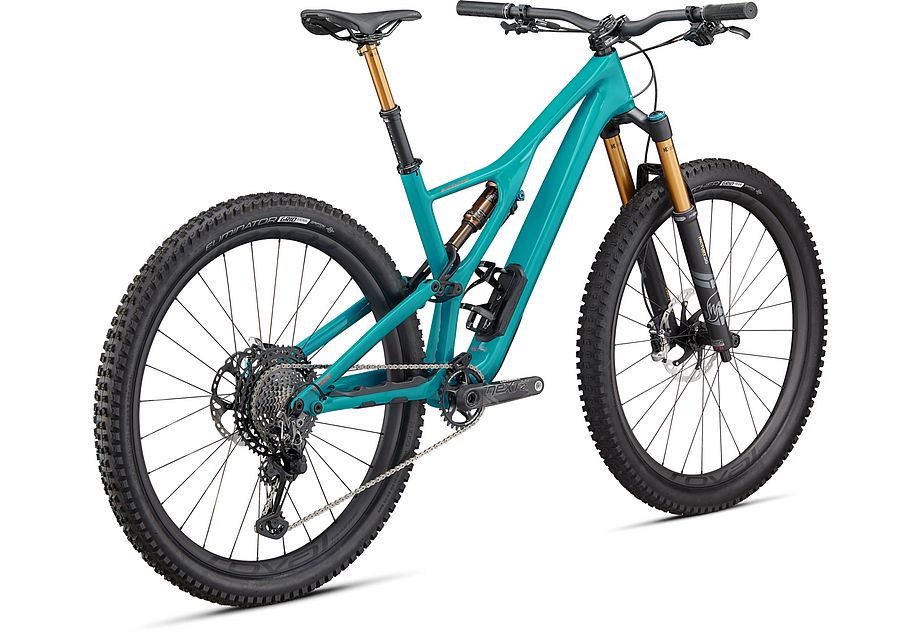

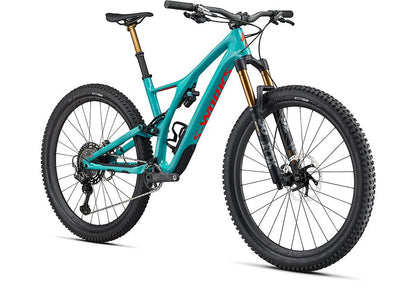

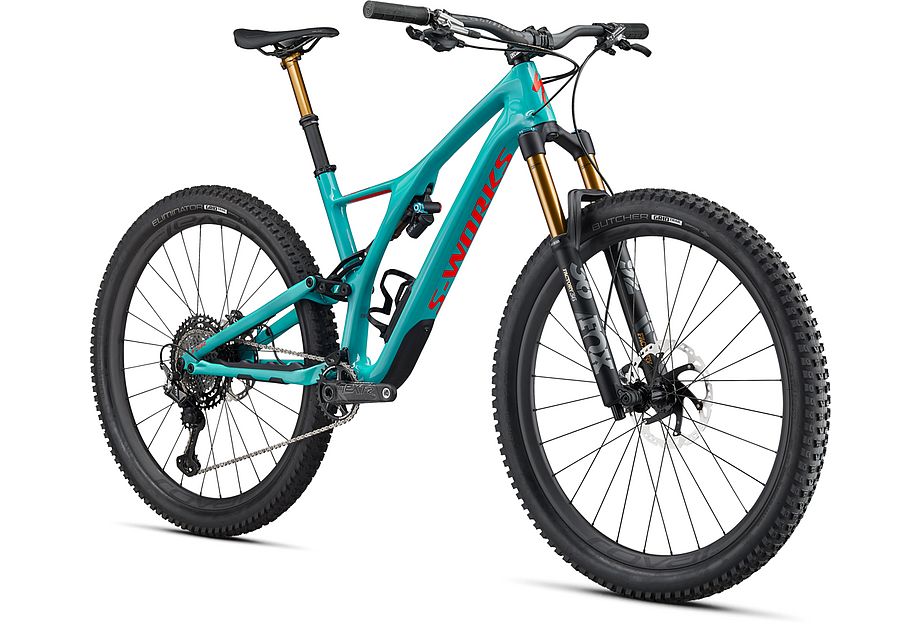

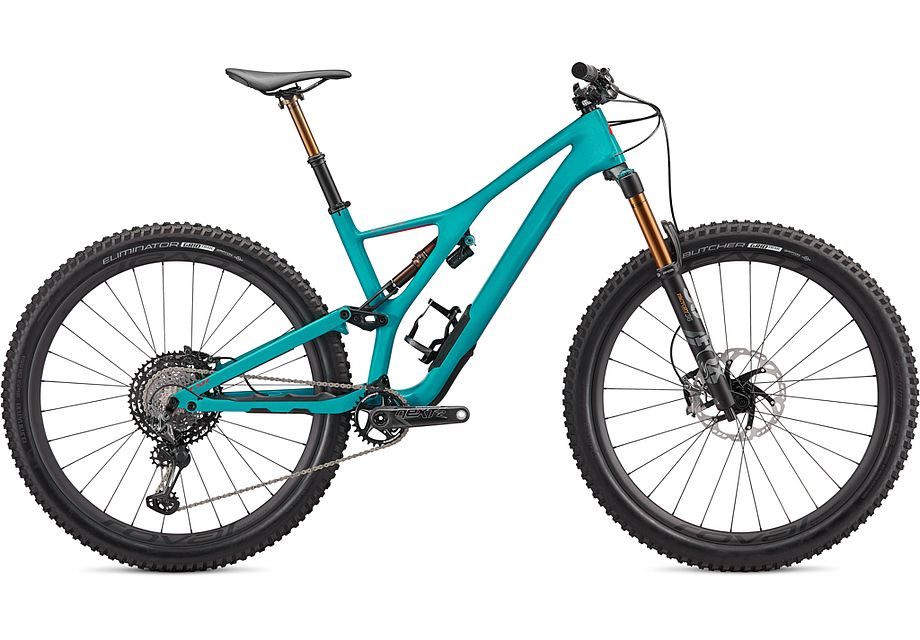

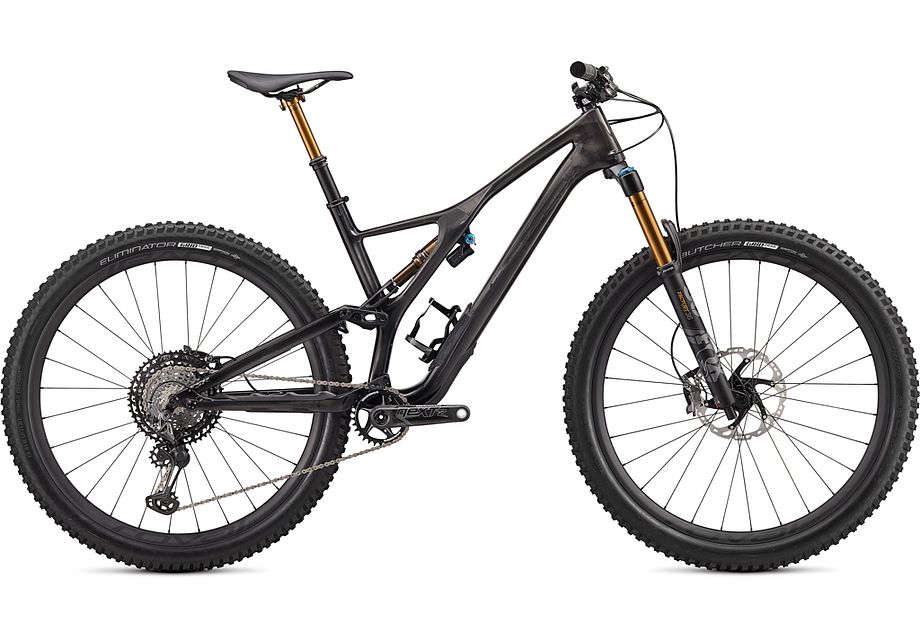

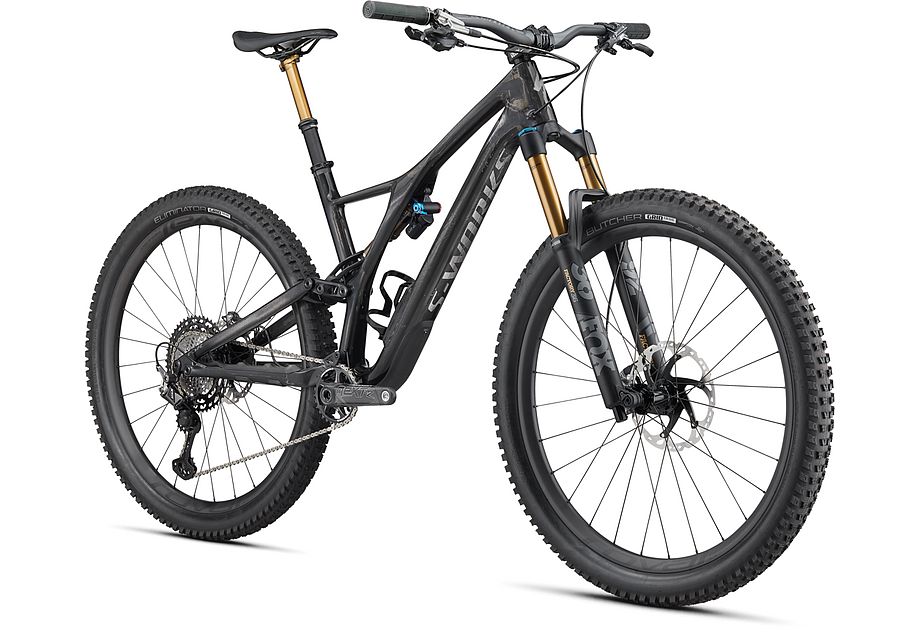

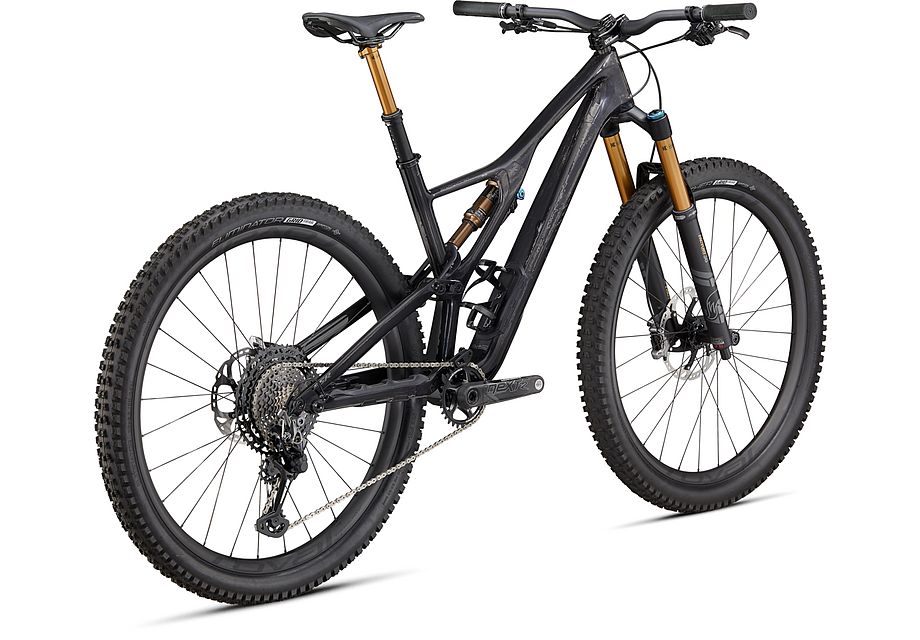

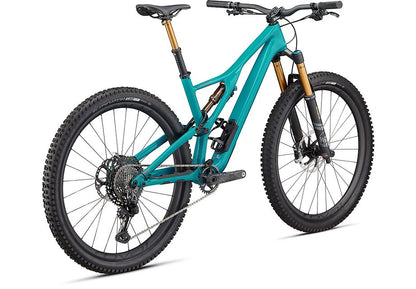

Specialized 2020 Sj S-Works Carbon 29 Gloss Features
It�s earned glowing reviews the world over� Our light-yet-strong carbon frame delivers bump-devouring suspension and effortless control. Equipped with the best suspension, drivetrain and wheels available, the S-Works edition dishes out peerless performance.
THE ULTIMATE TRAIL BIKE
The innovative sidearm design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we�ve increased both stiffness and performance over bumps. End result? Total control.
LIGHTWEIGHT, CAPABLE�AND STUNNING
Our carbon chassis melds 140mm of smooth and deep suspension with smart features, including our integrated SWAT� box downtube storage and painless cable routing. No proprietary bullshit and a threaded bottom bracket also mean that this frame is 100% hassle free.
� One of the lightest�and most capable�trailbikes on the market.
� S-Works delivers 140mm of smooth suspension and unrivaled handling.
� Top-tier suspension courtesy of FOX FLOAT DPX2 Factory rear shock.
Component Specifications
| Frame | FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | FOX FLOAT Factory, 36, GRIP2 damper, 51mm offset, 15x110mm, tapered alloy steerer, Kashima, 150mm of travel |
| Rear Shock | FOX FLOAT DPX2 Factory, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment w/ Open Mode adjustment, 210x50mm |
| Shift Levers | Shimano XTR M9100, 12-speed |
| Rear Derailleur | Shimano XTR M9100, 12-speed, Shadow Plus |
| Cassette | Shimano XTR M9100, 12-speed, 10-51t |
| Chain | Shimano XTR M9100, 12-speed w/ quick link |
| Crankset | Race Face Next R Carbon, 170mm |
| Bottom Bracket | Threaded, 30mm spindle |
| Rims | Roval Traverse SL Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready |
| Front Hub | Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h |
| Rear Hub | Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, Shimano Micro Spline driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Competition Race |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Shimano XTR M9120, 4-piston caliper, hydraulic disc |
| Rear Brake | Shimano XTR M9120, 4-piston caliper, hydraulic disc |
| Stem | Deity Copperhead, 31.8mm |
| Handlebars | Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm |
| Grips | Deity, Knuckleduster, Black |
| Saddle | Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, hollow ti rails |
| Seatpost | FOX Factory Transfer, Kashima, 30.9, Shimano Ispec-EV lever (S: 125mm, M/L: 150mm, XL:175mm) |
Size Guide: Specialized 2020 Sj S-Works Carbon 29 Gloss
