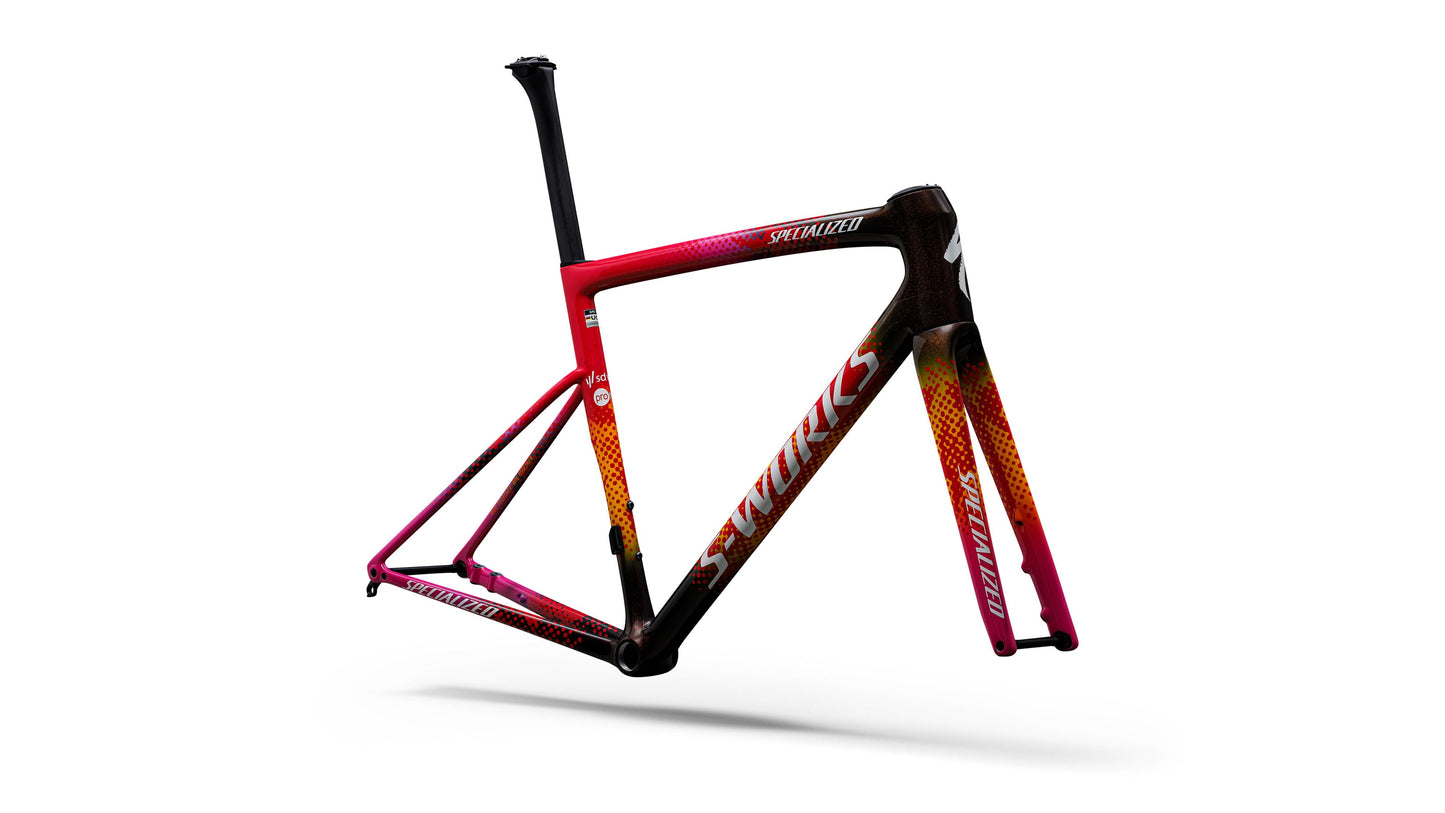

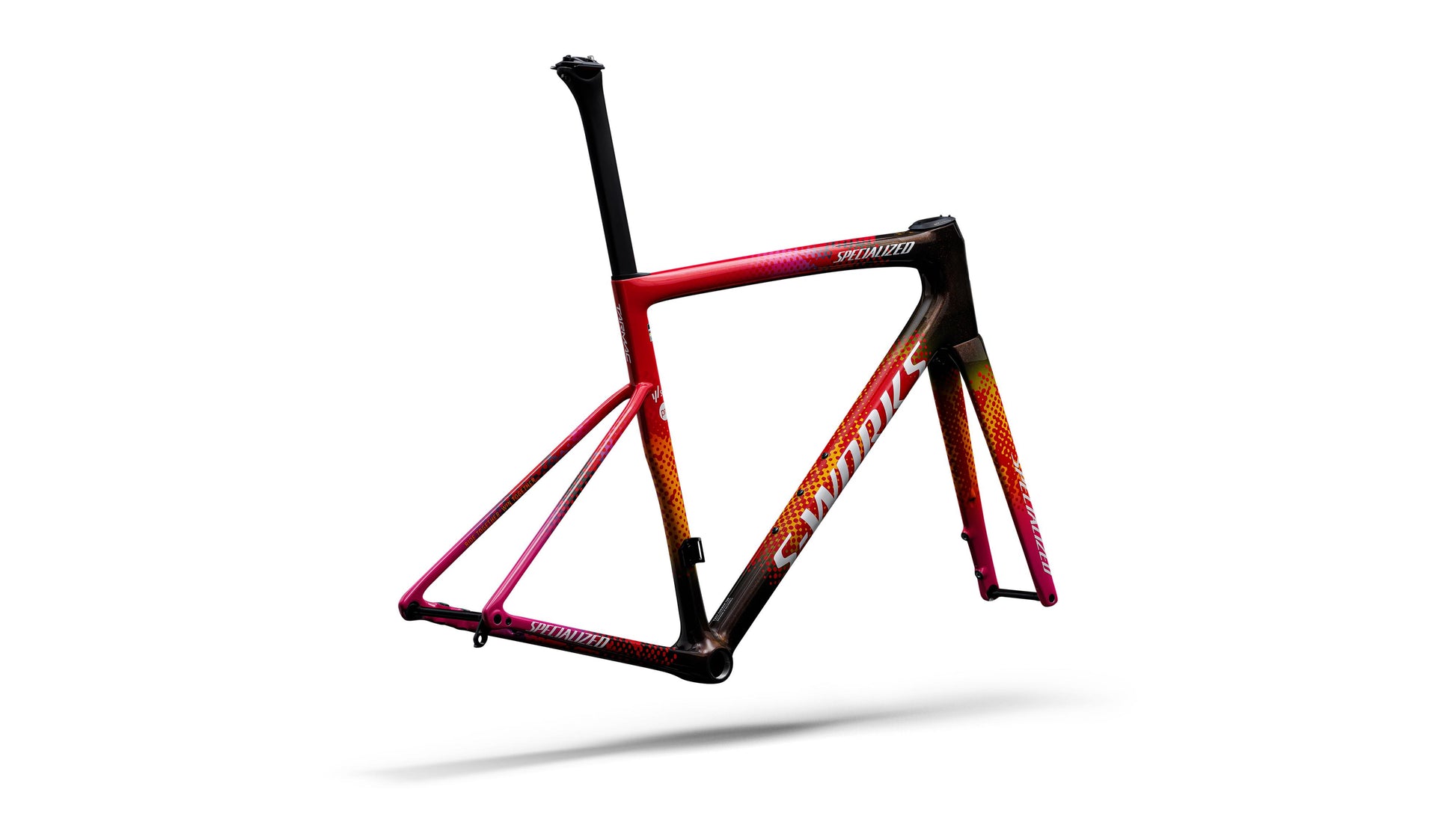

2025 Specialized S-Works Tarmac SL8 Team Frameset: SD Worx - Protime Features
Nothing is faster than the Tarmac SL8 thanks to a combination of aerodynamics, lightweight, and ride quality previously thought impossible. After eight generations and over two decades of development, it’s more than the fastest Tarmac ever—it’s the world’s fastest race bike. Now you can ride the same race day color and graphics as the world’s top women’s team—SD Worx-Protime. Are your legs up for it?
At a Glance
- Frameset - FACT 12r Carbon, Rider-First Engineered™
- SD Worx-Protime - Exclusive ‘The Moment’ Color and Graphics
- Weight - 685grams (56cm)
- Fork - S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
- Bottom Bracket & Brake - 68mm threaded bottom bracket and flat mount disc brakes.
Product Specifications
Product Specifications
Fork |
|
Frame |
|
Seat Binder |
|
Seatpost |
2025 Specialized S-Works Tarmac SL8 Team Frameset: SD Worx - Protime
| Bike/Frame Size | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Frame Stack | 501 mm | 514 mm | 527 mm | 544 mm | 565 mm | 591 mm | 612 mm |
| Frame Reach | 366 mm | 375 mm | 380 mm | 384 mm | 395 mm | 402 mm | 408 mm |
| Fork Rake/Offset | 47 mm | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 572 mm | 574 mm | 577 mm | 579 mm | 592 mm | 606 mm | 613 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 970 mm | 973 mm | 975 mm | 978 mm | 991 mm | 1006 mm | 1013 mm |
| Top Tube Length, Horizontal | 496 mm | 509 mm | 531 mm | 541 mm | 563 mm | 577 mm | 595 mm |
| Bike Standover Height | 723 mm | 735 mm | 746 mm | 768 mm | 786 mm | 808 mm | 834 mm |
| Seat Tube Length | 433 mm | 445 mm | 456 mm | 473 mm | 494 mm | 515 mm | 545 mm |
| Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
| Stack to Stem | 509 mm | 522 mm | 535 mm | 552 mm | 573 mm | 599 mm | 620 mm |
| Reach to Stem | 363 mm | 372 mm | 377 mm | 381 mm | 393 mm | 400 mm | 406 mm |
| Head Tube Length | 99 mm | 109 mm | 120 mm | 137 mm | 157 mm | 184 mm | 204 mm |
| Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| BB Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Trail | 71 mm | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Fork Length, Full | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
Size Guide: 2025 Specialized S-Works Tarmac SL8 Team Frameset: SD Worx - Protime
