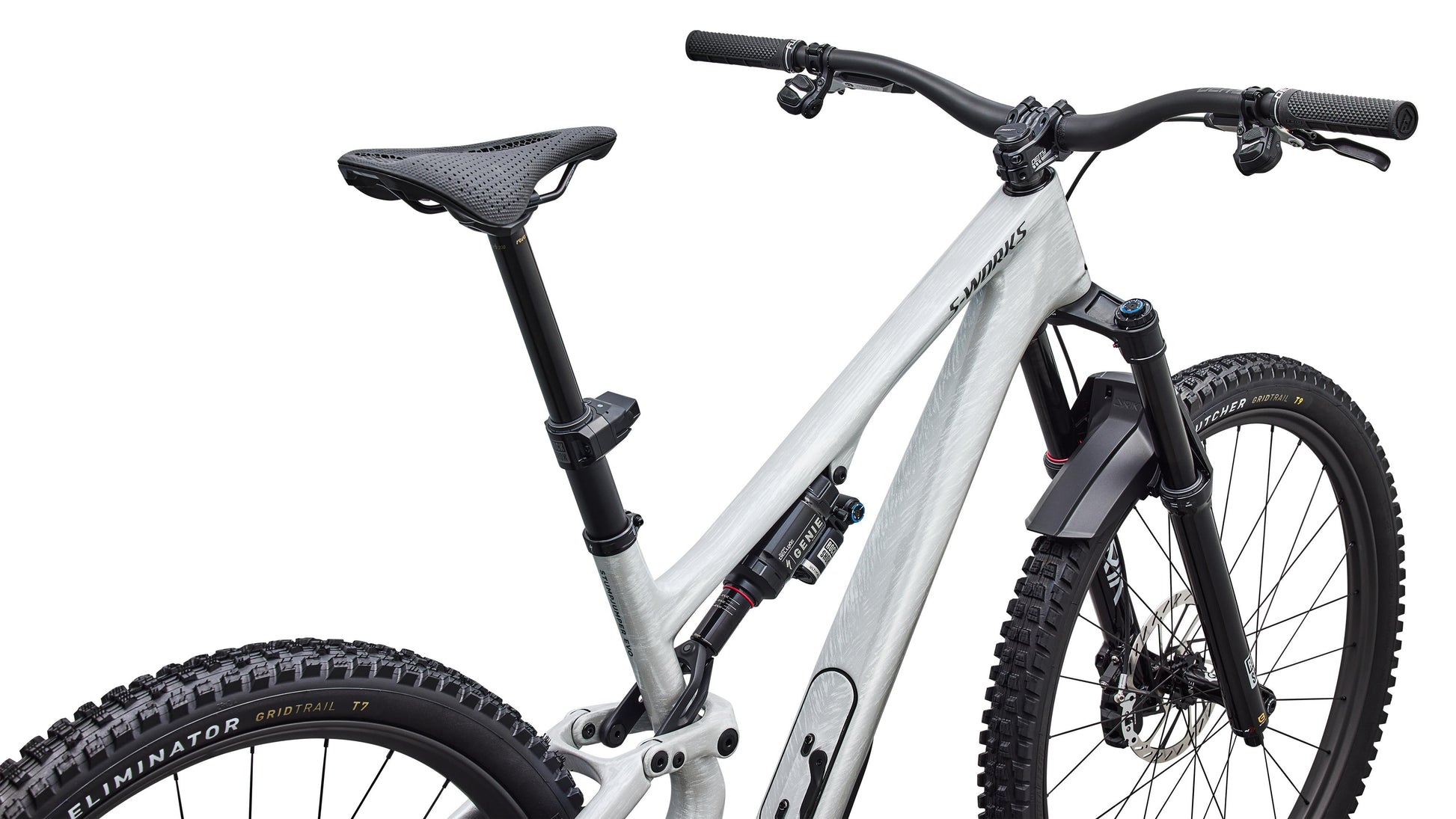

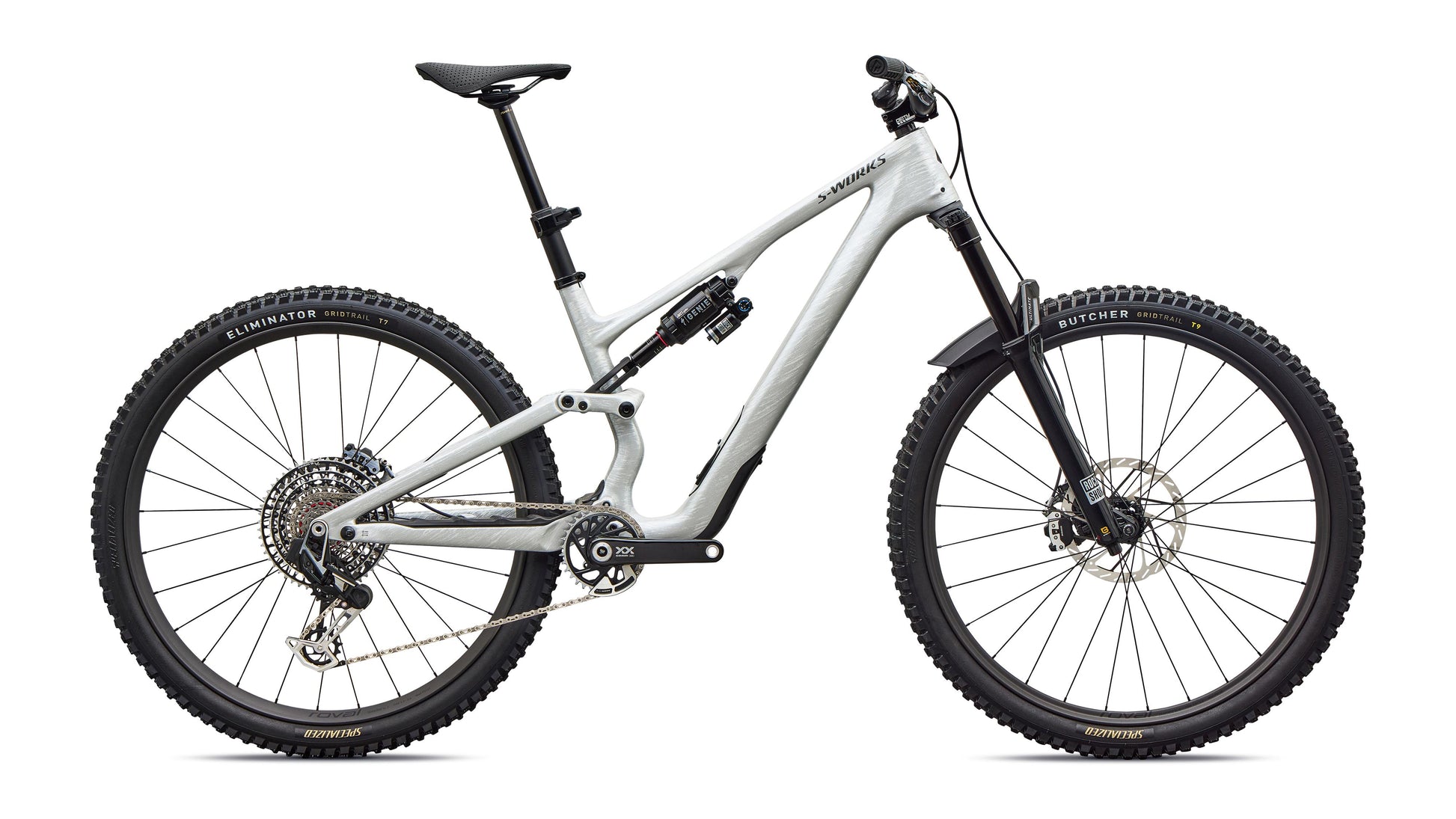

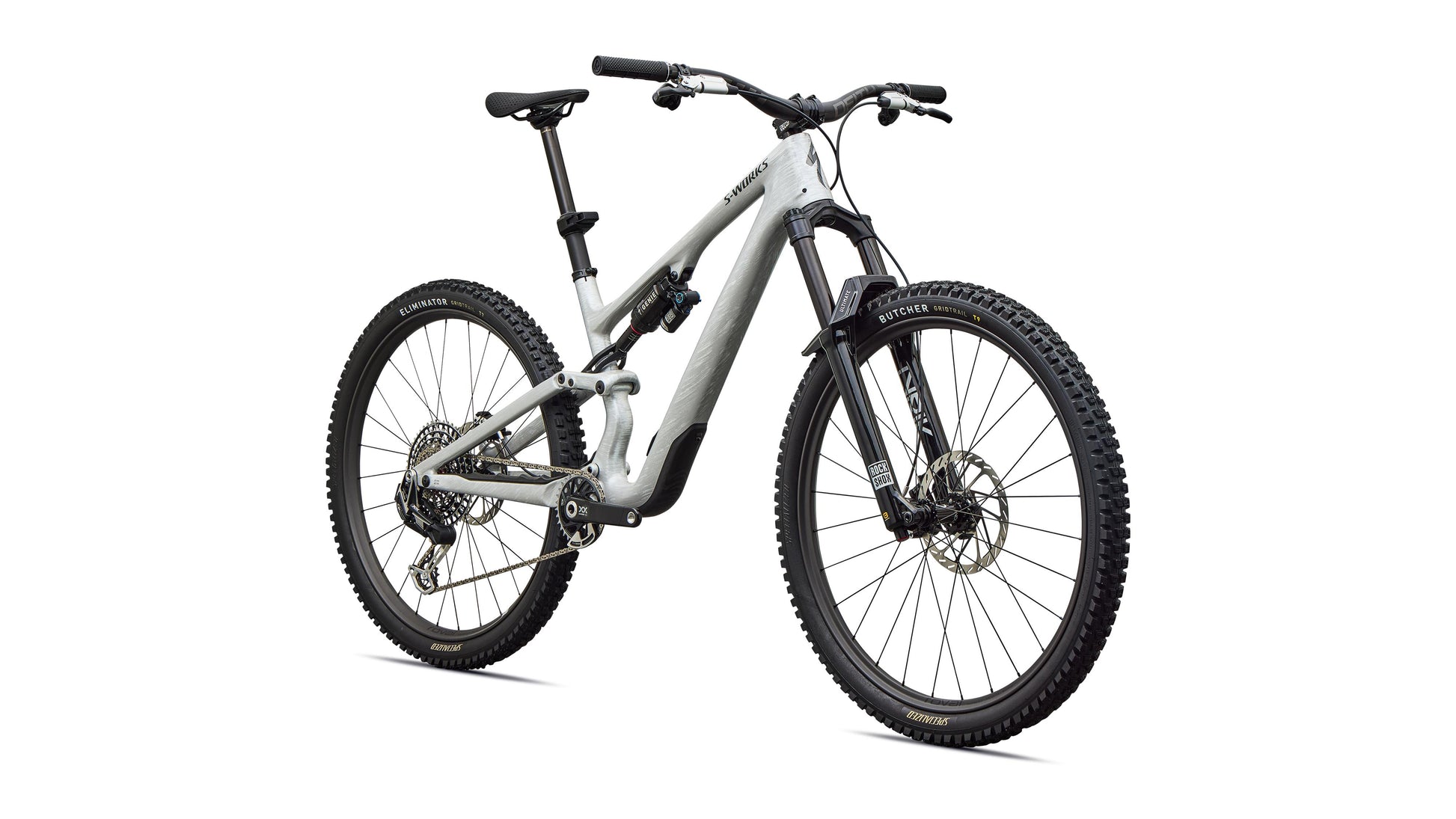

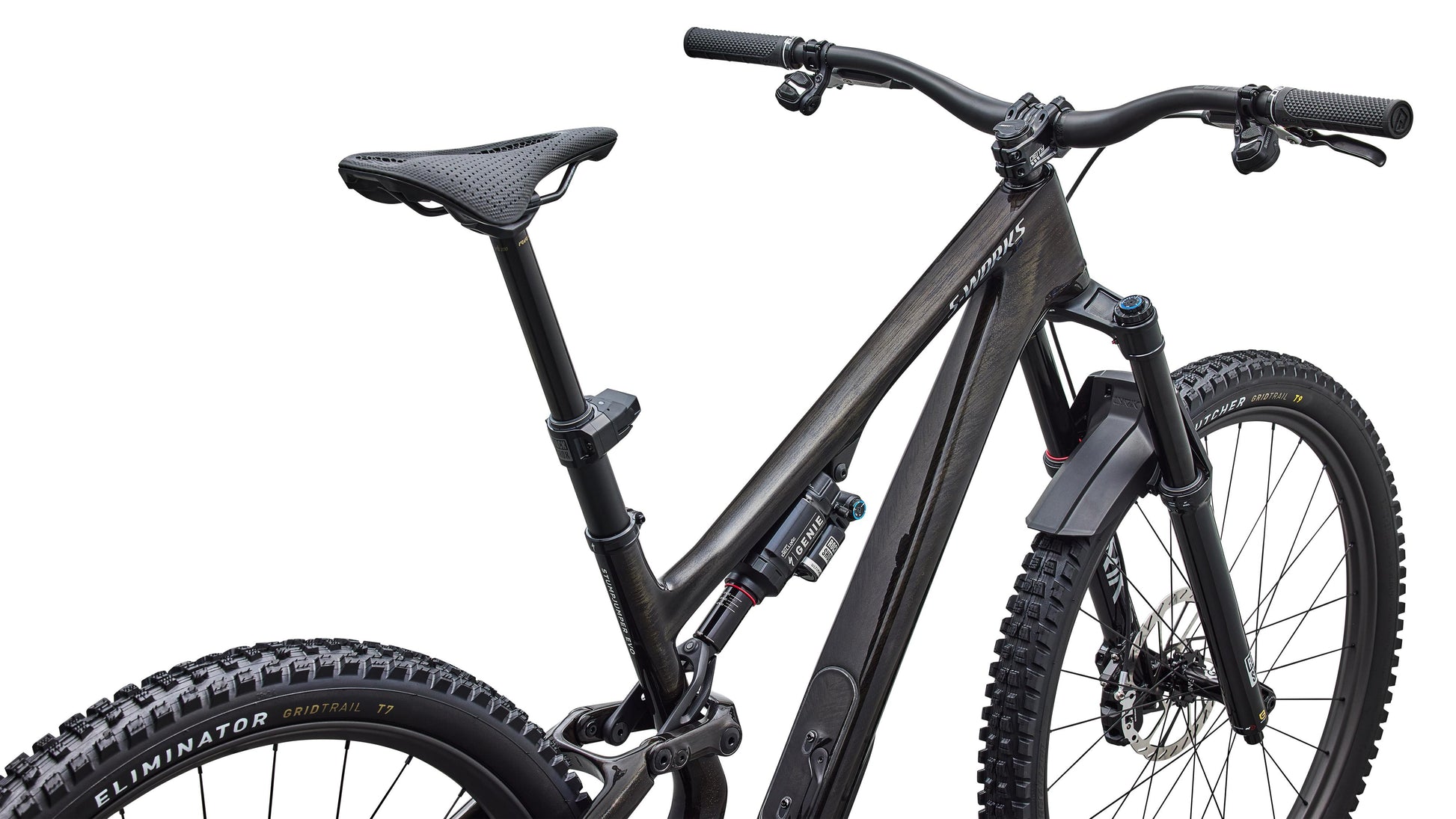

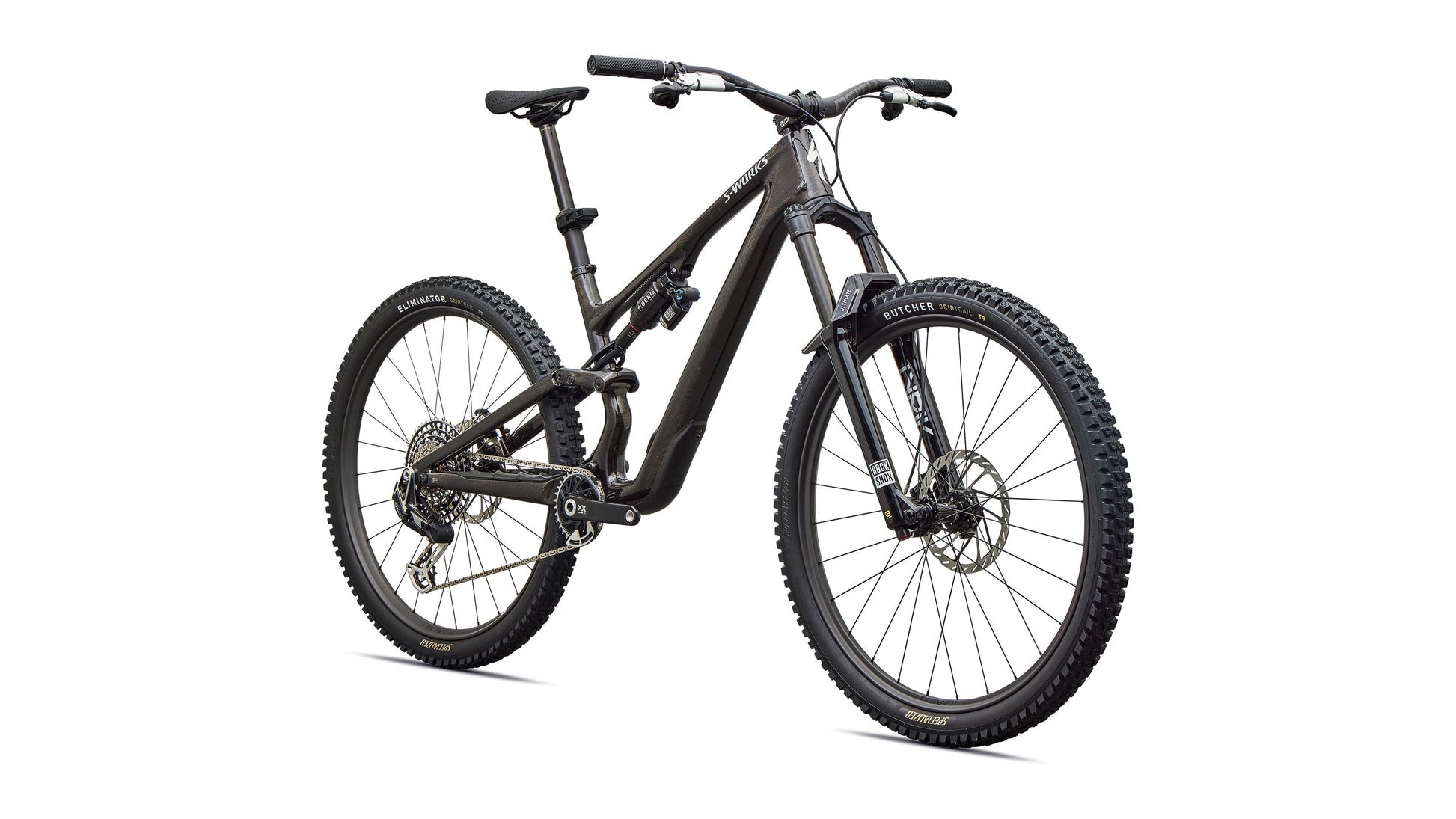

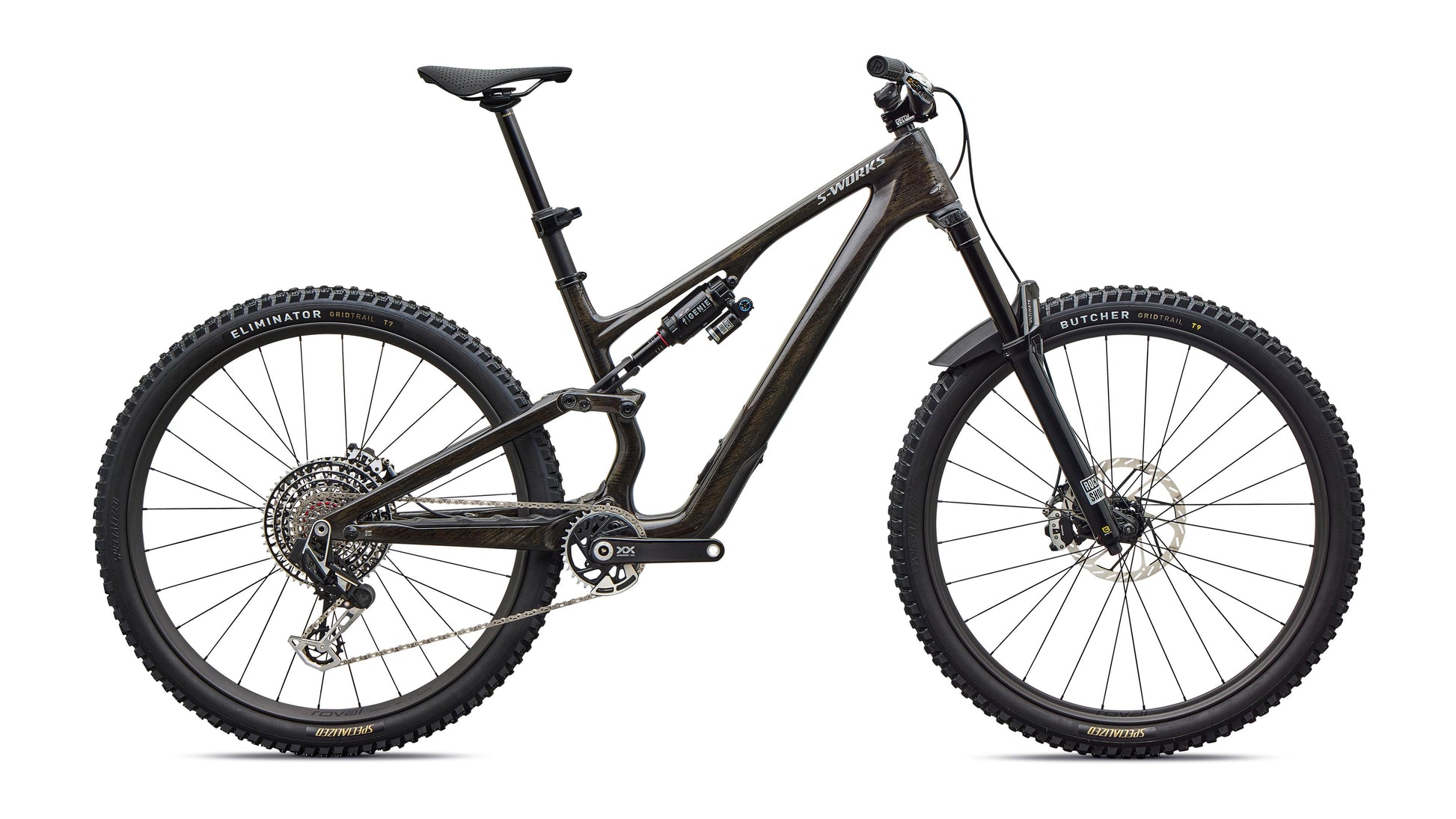

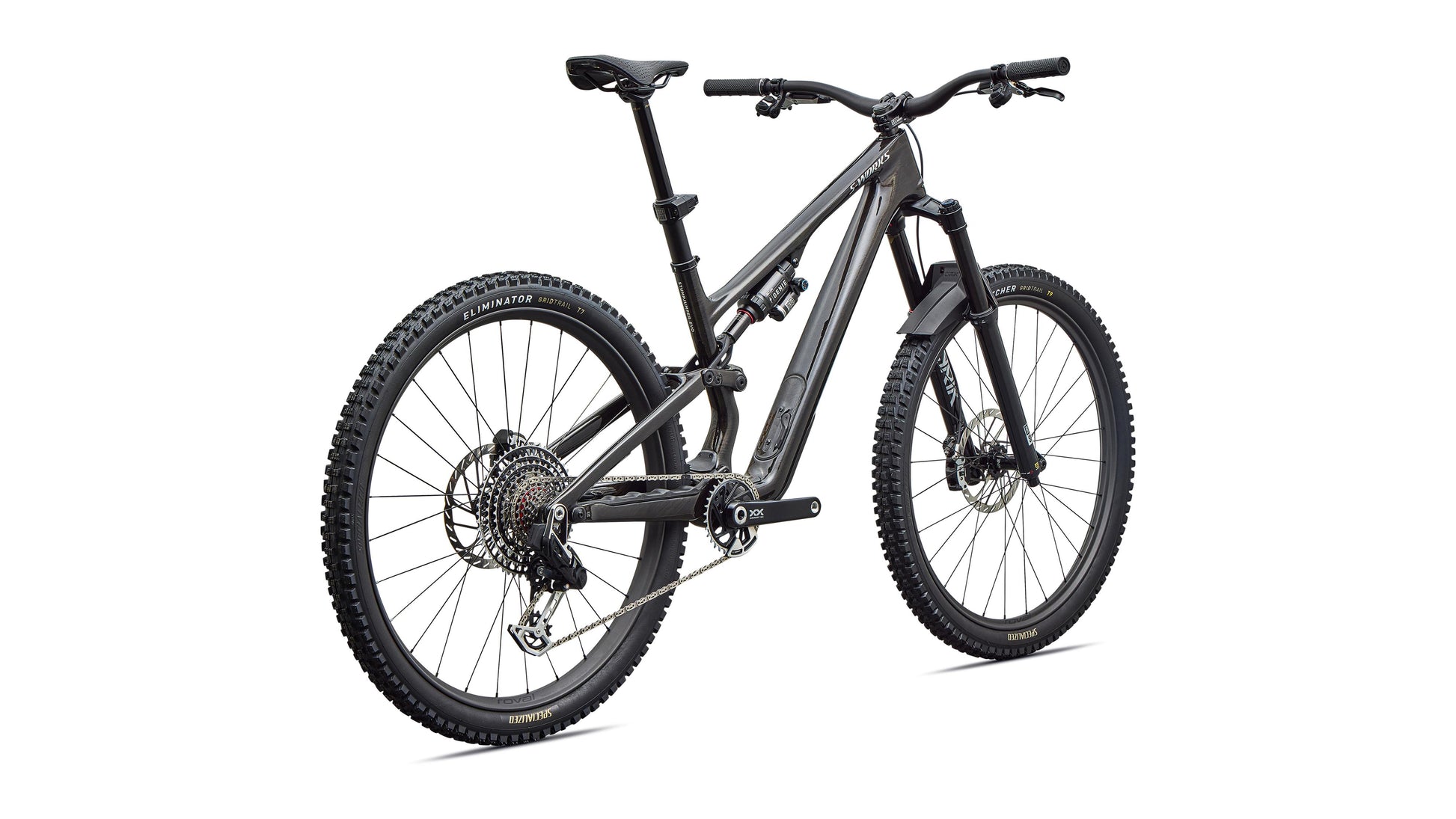

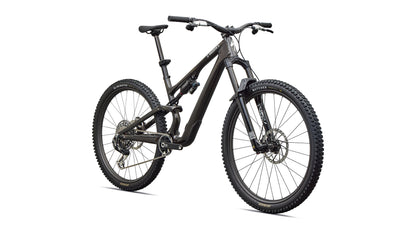

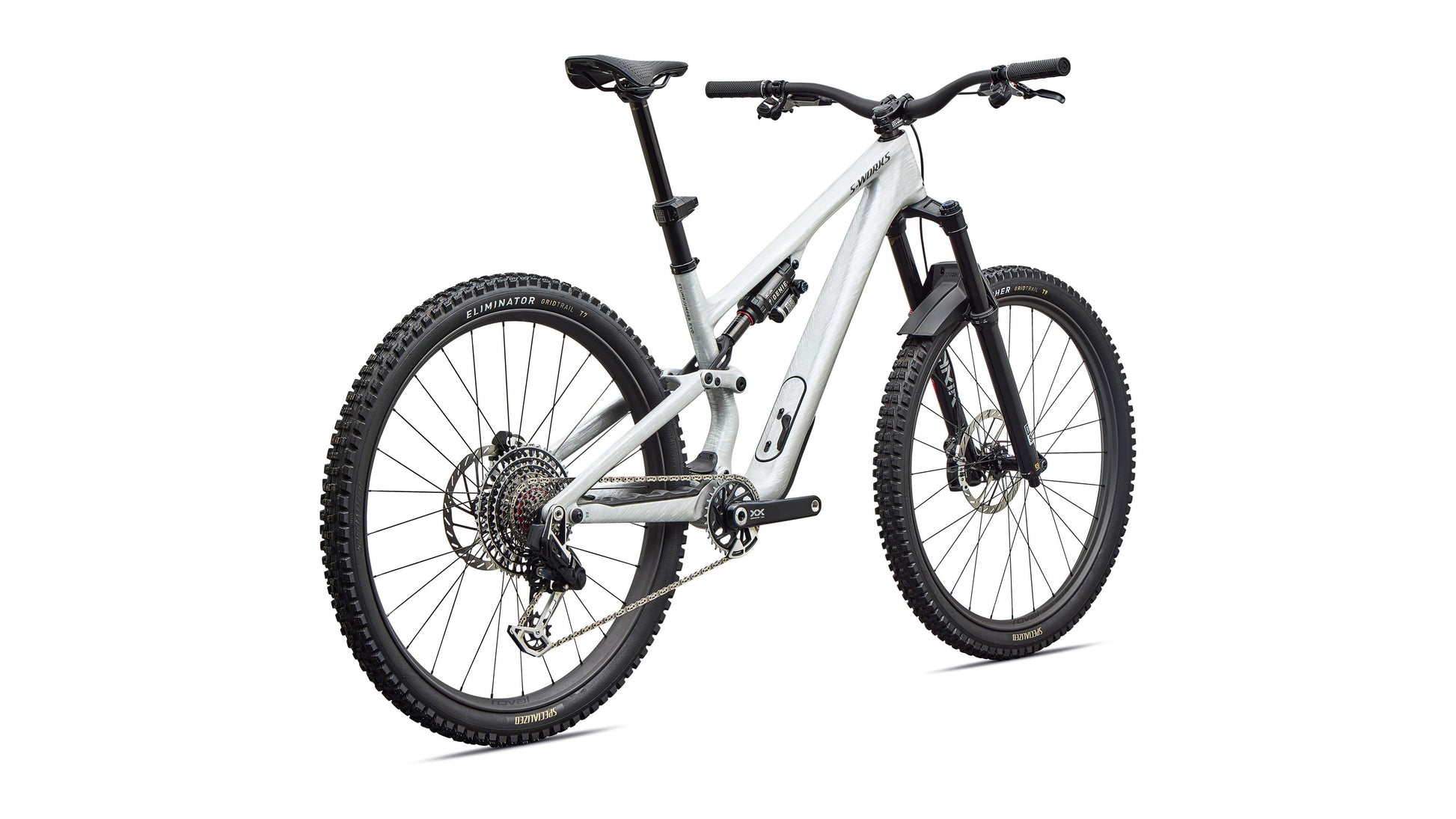

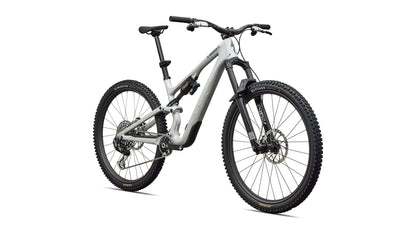

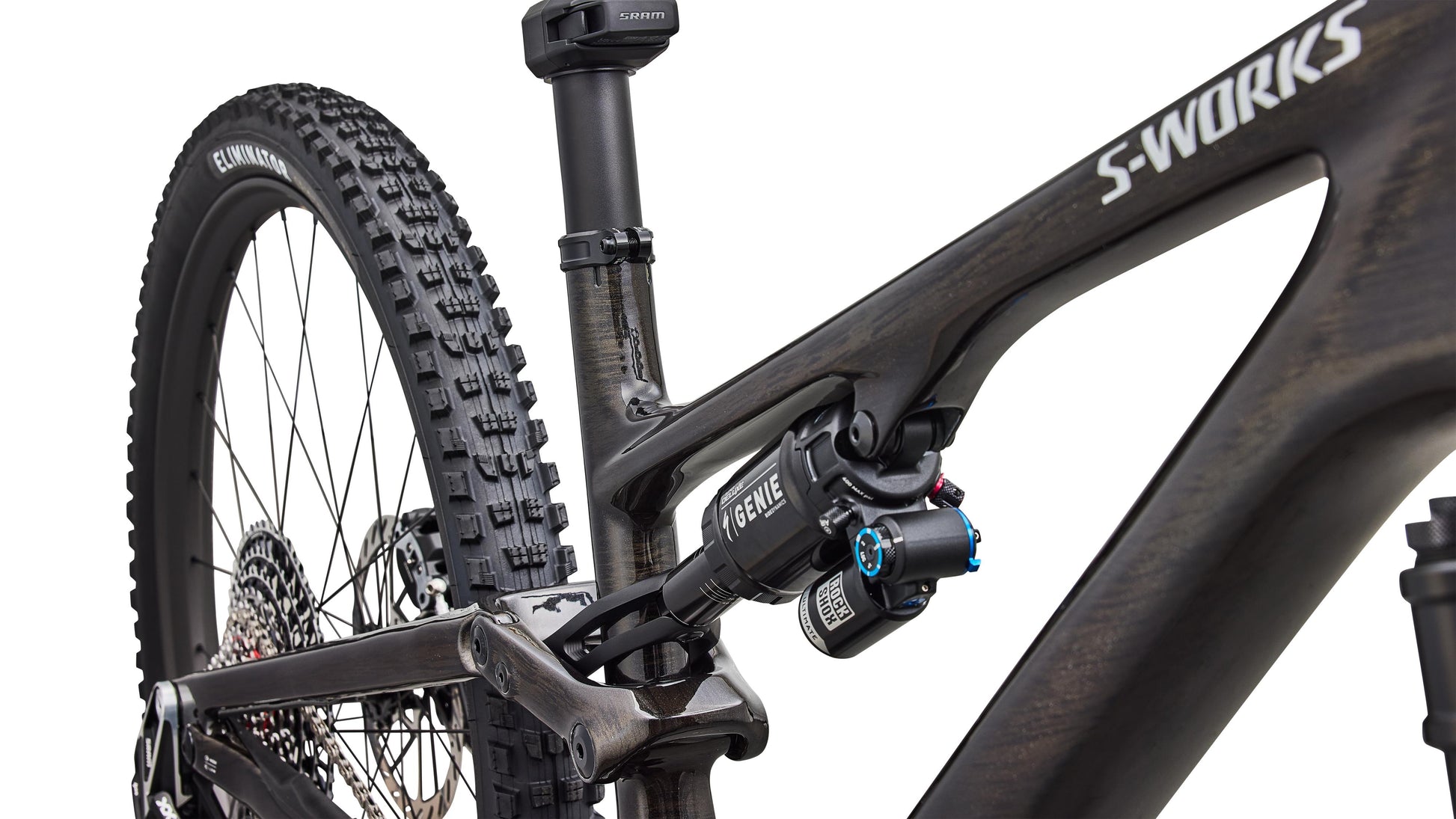

2027 Specialized S-Works Stumpjumper 15 EVO

2027 Specialized S-Works Stumpjumper 15 EVO Features

Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?

Check, check, check.

At a Glance

Use - Trail
Frame - FACT 11m carbon w/ carbon link, SWAT Door integration, adjustable Trail Geometry
Suspension - Front: 160mm RockShox Lyrik Ultimate fork

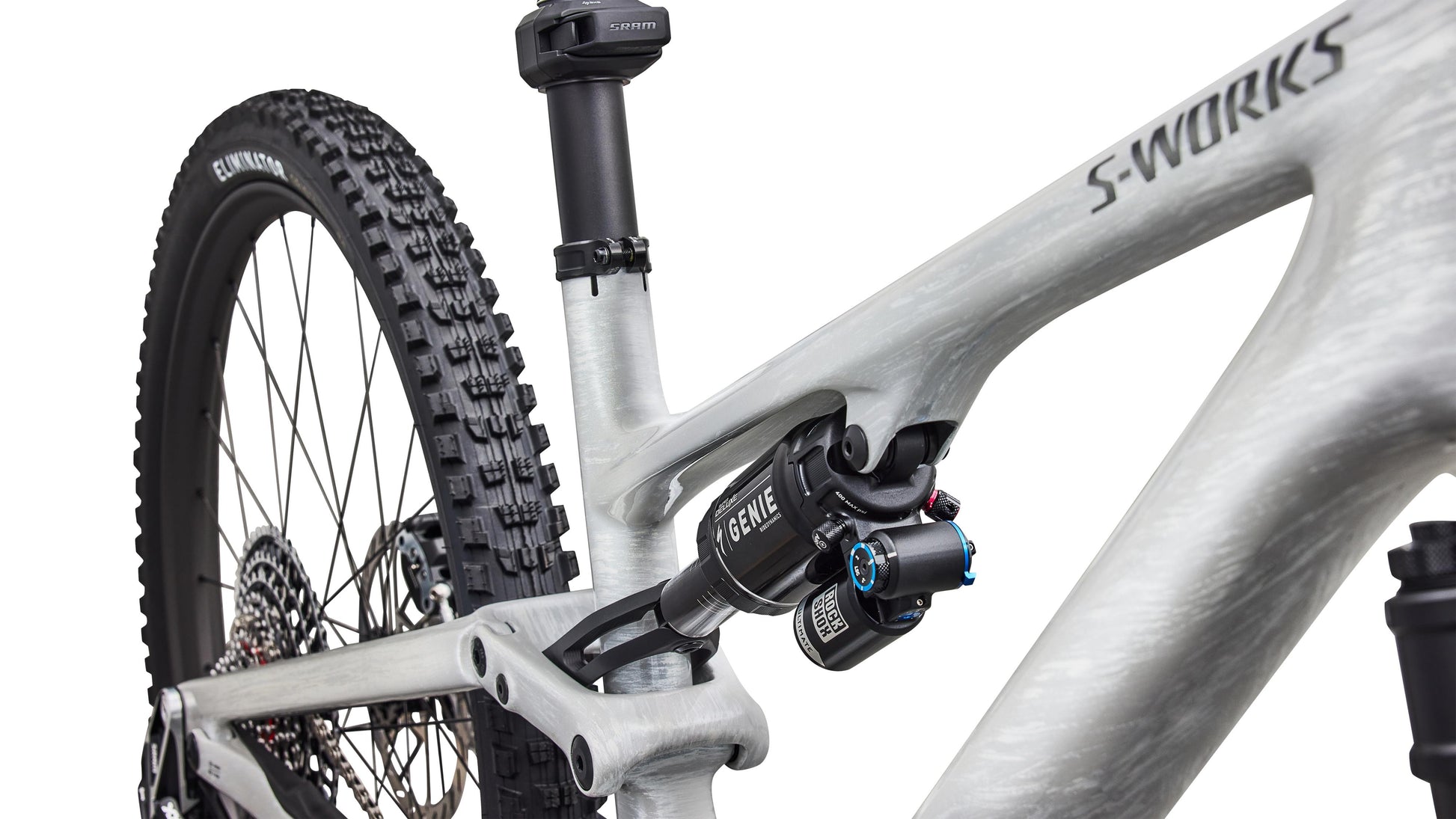

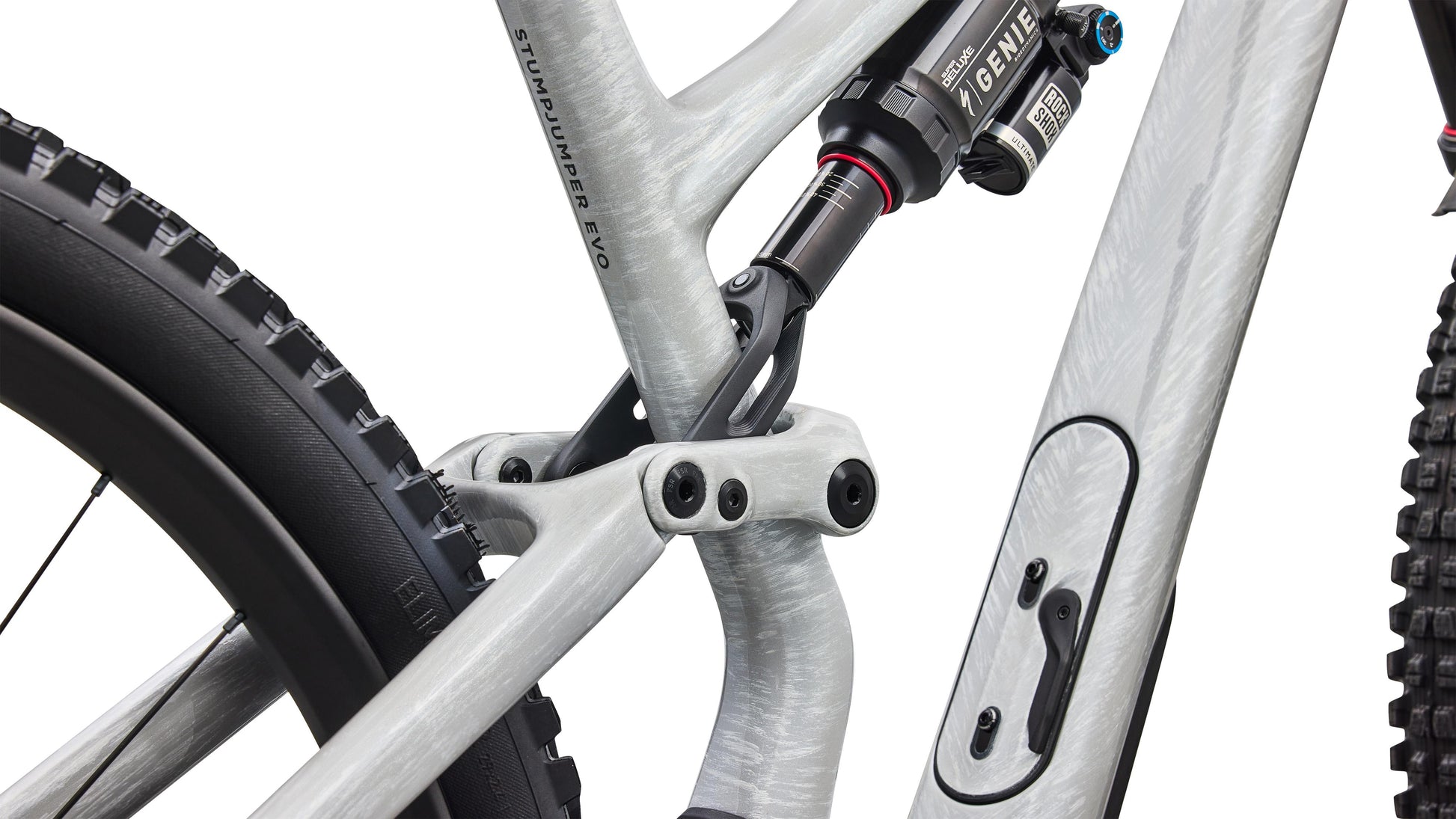

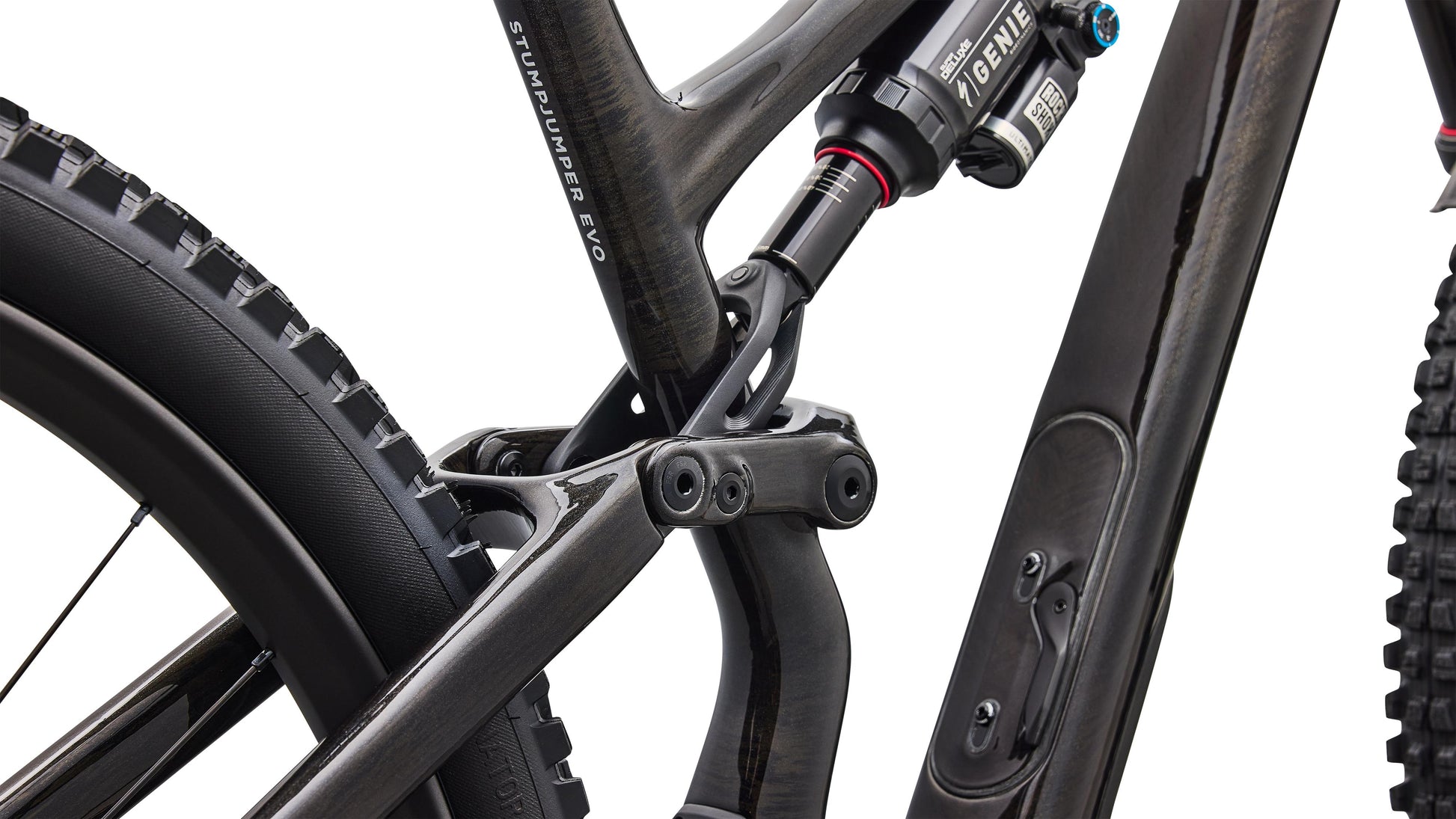

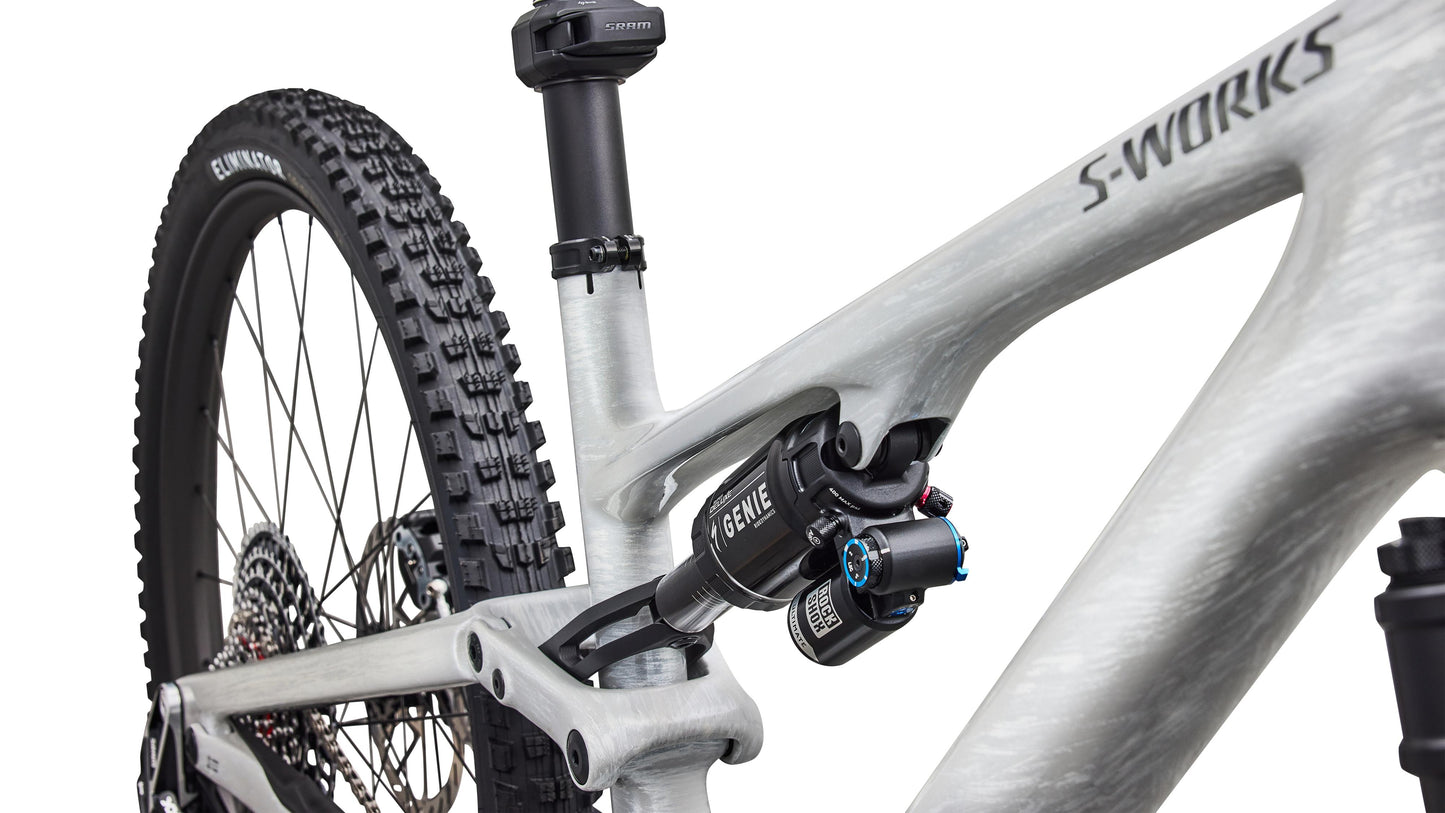

Rear: 145mm RockShox Super Deluxe Ultimate shock w/ GENIE
Drivetrain - SRAM XX SL Eagle AXS Transmission
Wheels - Roval Traverse SL II carbon wheels w/ i9 Hydra 2 hubs
Weight - 14.05 kg (30 lb, 15.6 oz)

Component Specifications

Frameset	frame FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel seat binder Alloy, 38.6mm
Suspension	rear shock All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm fork All New SRAM Rockshox Lyrik Ultimate, 29" 160mm (S2-S6); 150mm (S1), LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Brakes	front brake SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 220mm rotor rear brake SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain	shift levers SRAM AXS Pod Ultimate with Discrete Clamp rear derailleur SRAM XX Eagle Transmission Derailleur cassette SRAM CS-1299, 12 speed, 10-52t chain SRAM XX Eagle Transmission 12-Speed Flattop Chain crankset SRAM XX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline bottom bracket SRAM DUB Threaded Wide
Wheels & Tires	front tire Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4 rear tire Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4" inner tubes Specialized TPU inner tube front wheel Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28h, DT Swiss Revolite Spokes, 6 bolt rear wheel Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 12x148mm, 28h, DT Swiss Revolite Spokes, 6 bolt

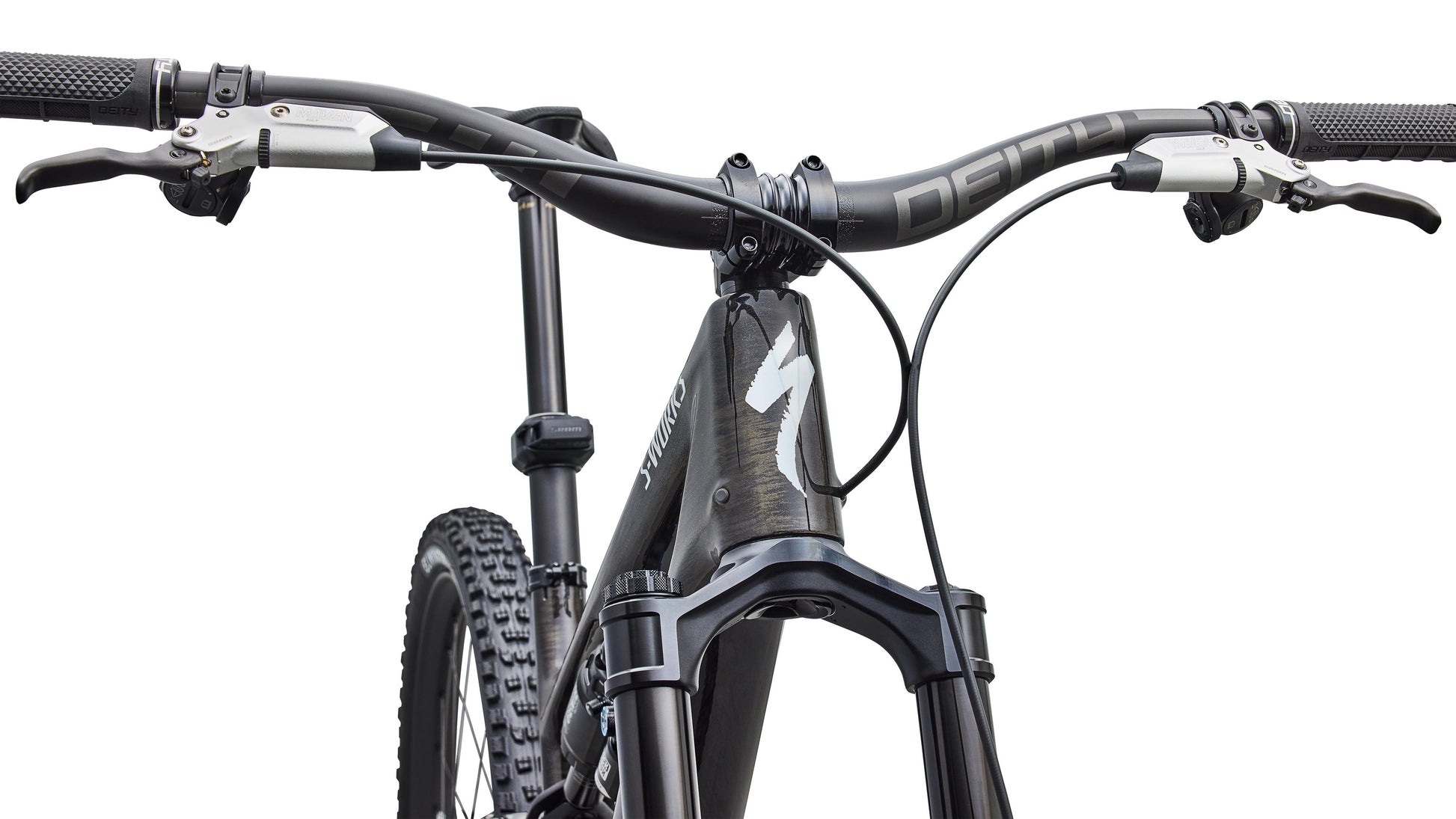

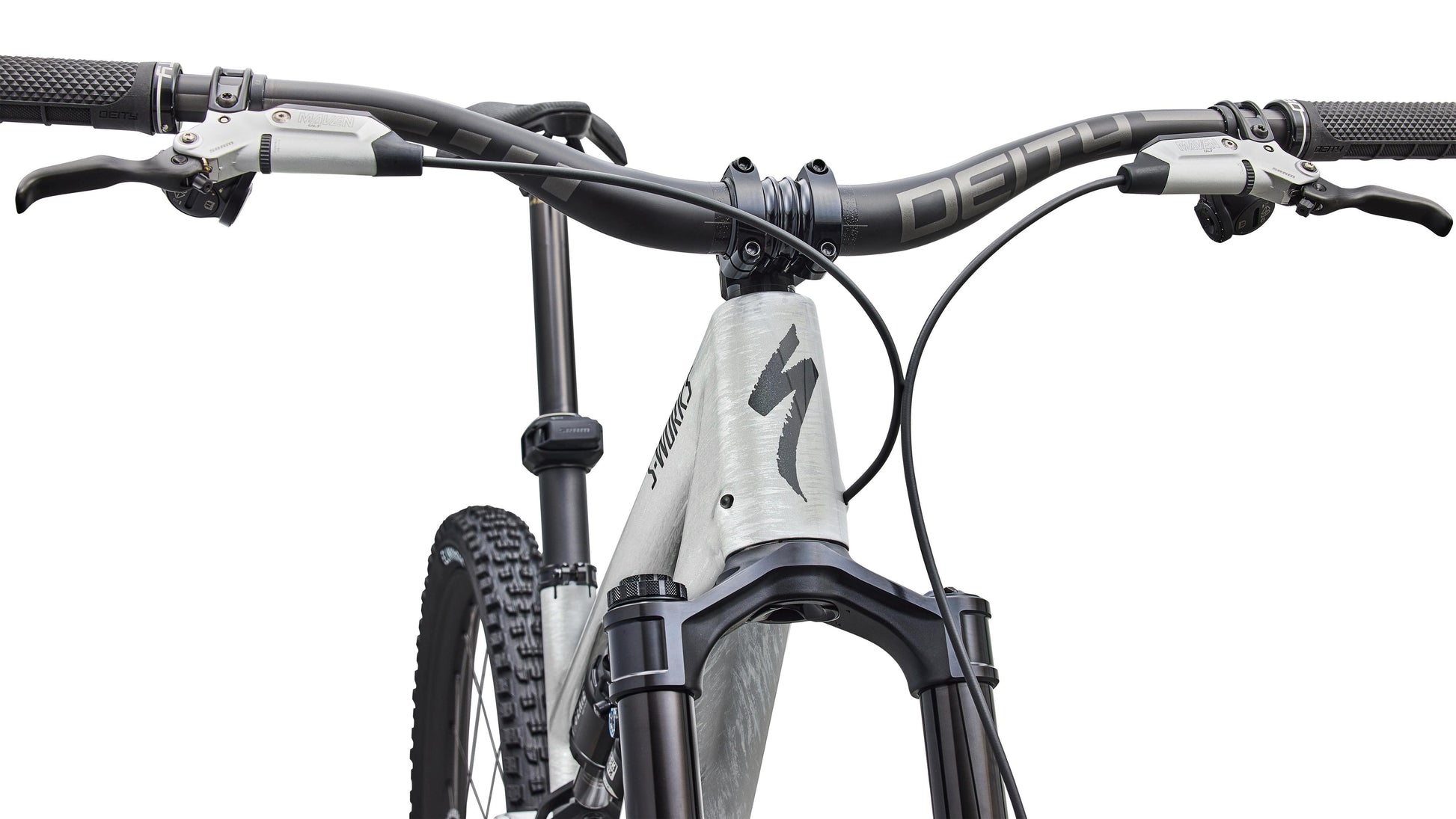

Cockpit	stem Deity, 35mm clamp, 42mm length handlebars Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise grips Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black saddle Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm seatpost RockShox, Reverb AXS, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6:225mm
Accessories	swat SWAT 4.0 internal downtube storage

2027 Specialized S-Works Stumpjumper 15 EVO

Bike/Frame Size	S1	S2	S3	S4	S5	S6
Stack	611 mm	621 mm	630 mm	644 mm	658 mm	671 mm
Reach	400 mm	420 mm	445 mm	470 mm	495 mm	525 mm
Chainstay Length	430 mm	432 mm	435 mm	435 mm	445 mm	445 mm
Wheelbase	1153 mm	1186 mm	1217 mm	1249 mm	1290 mm	1327 mm
Top-tube Length (horizontal)	542 mm	574 mm	596 mm	625 mm	649 mm	678 mm
Bike Standover Height	738 mm	751 mm	745 mm	745 mm	745 mm	751 mm
Seat Tube Length	385 mm	385 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77.7°	76.5°	76.5°	76°	76°	76°
Saddle Height for Effective ST Angle	645 mm	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	245 mm	245 mm	255 mm	255 mm	285 mm	285 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Headtube Length	95 mm	100 mm	110 mm	125 mm	140 mm	155 mm
Headtube Angle	64°	64°	64°	64°	64°	64°
BB Height	337 mm	340 mm	340 mm	340 mm	340 mm	340 mm
BB Drop	38 mm	35 mm	35 mm	35 mm	35 mm	35 mm
Trail	133 mm	134 mm	134 mm	134 mm	134 mm	134 mm
Fork Length (full)	561 mm	573 mm	573 mm	573 mm	573 mm	573 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	724 mm	755 mm	785 mm	816 mm	848 mm	884 mm

Component Geometry

Component	S1	S2	S3	S4	S5	S6
Crank Length	165 mm	165 mm	165 mm	170 mm	170 mm	170 mm
Handlebar Width	810 mm	810 mm	810 mm	810 mm	810 mm	810 mm
Stem Length	42 mm	42 mm	42 mm	42 mm	42 mm	42 mm
Saddle Width	155 mm	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	150 mm	175 mm	200 mm	200 mm	225 mm

Size Guide: 2027 Specialized S-Works Stumpjumper 15 EVO

Size guide for 2027 Specialized S-Works Stumpjumper 15 EVO
