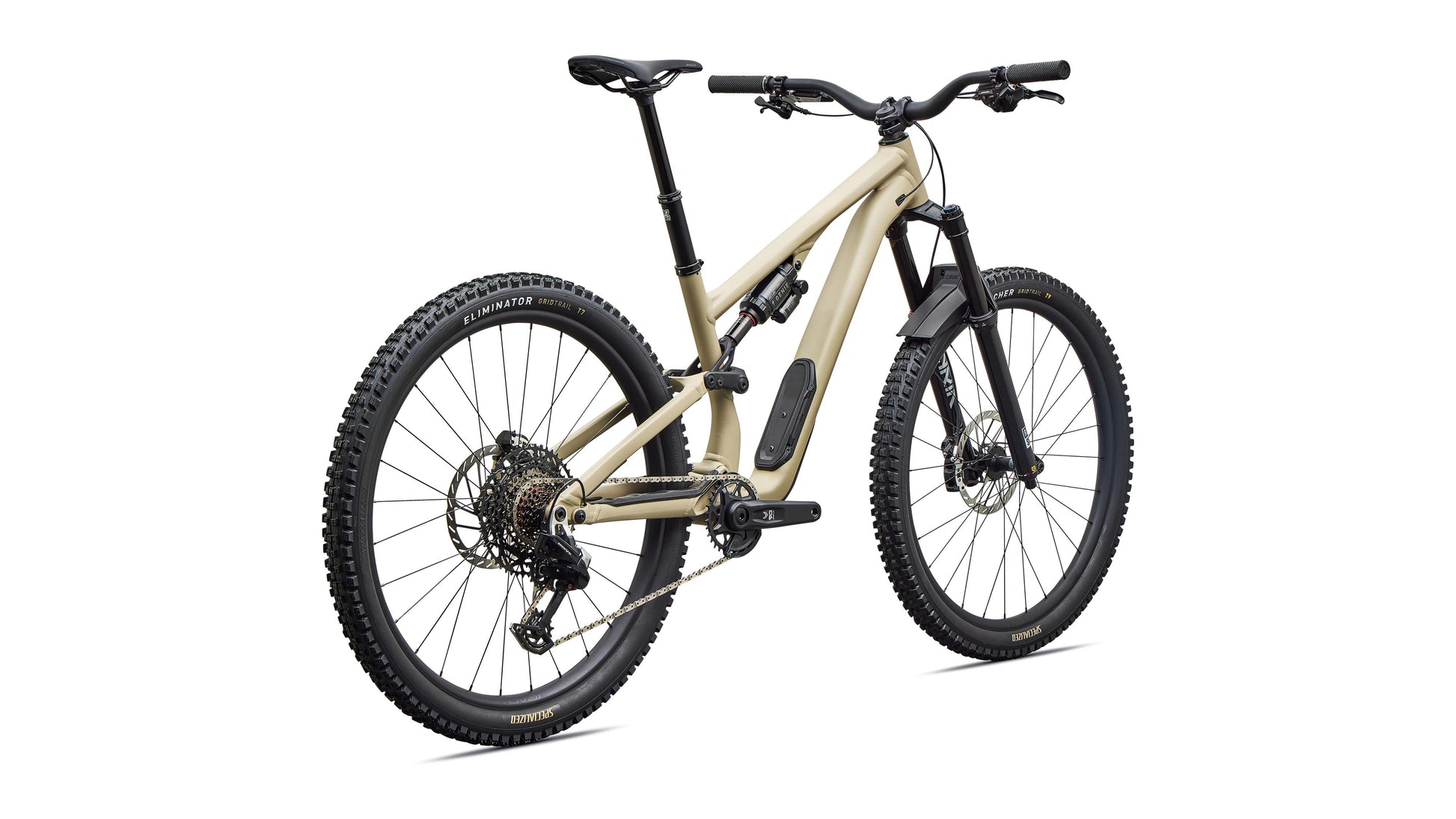

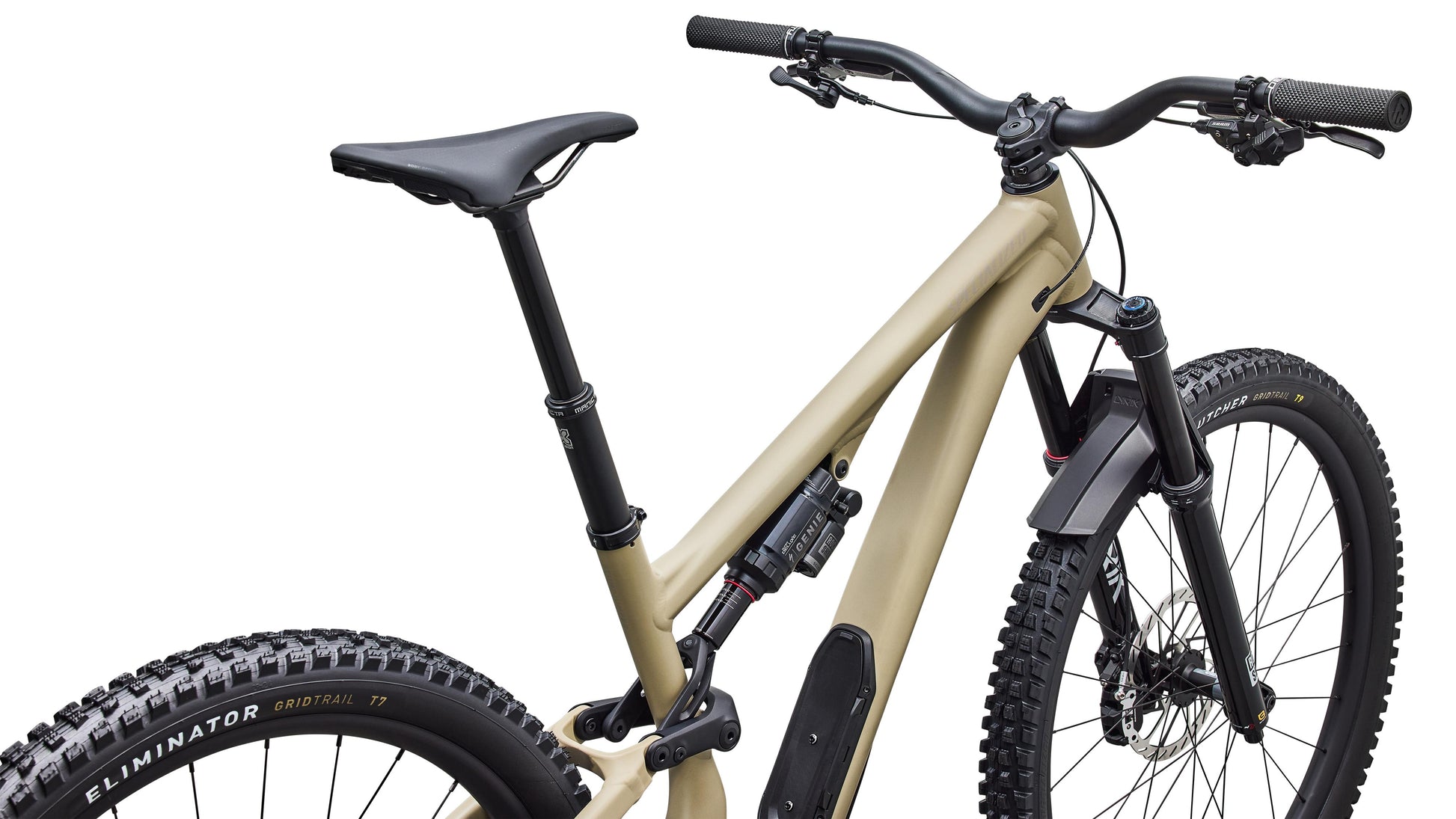

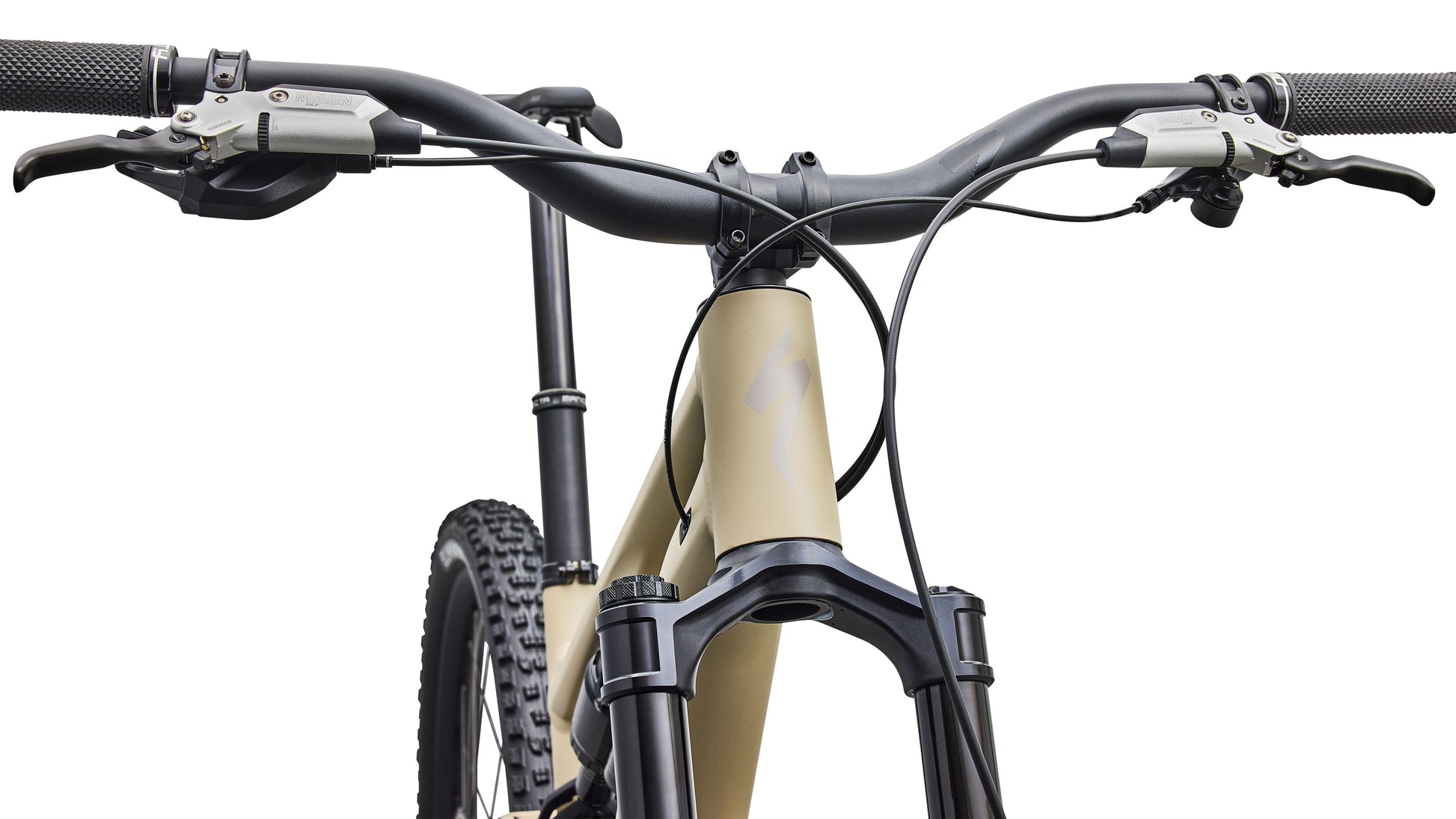

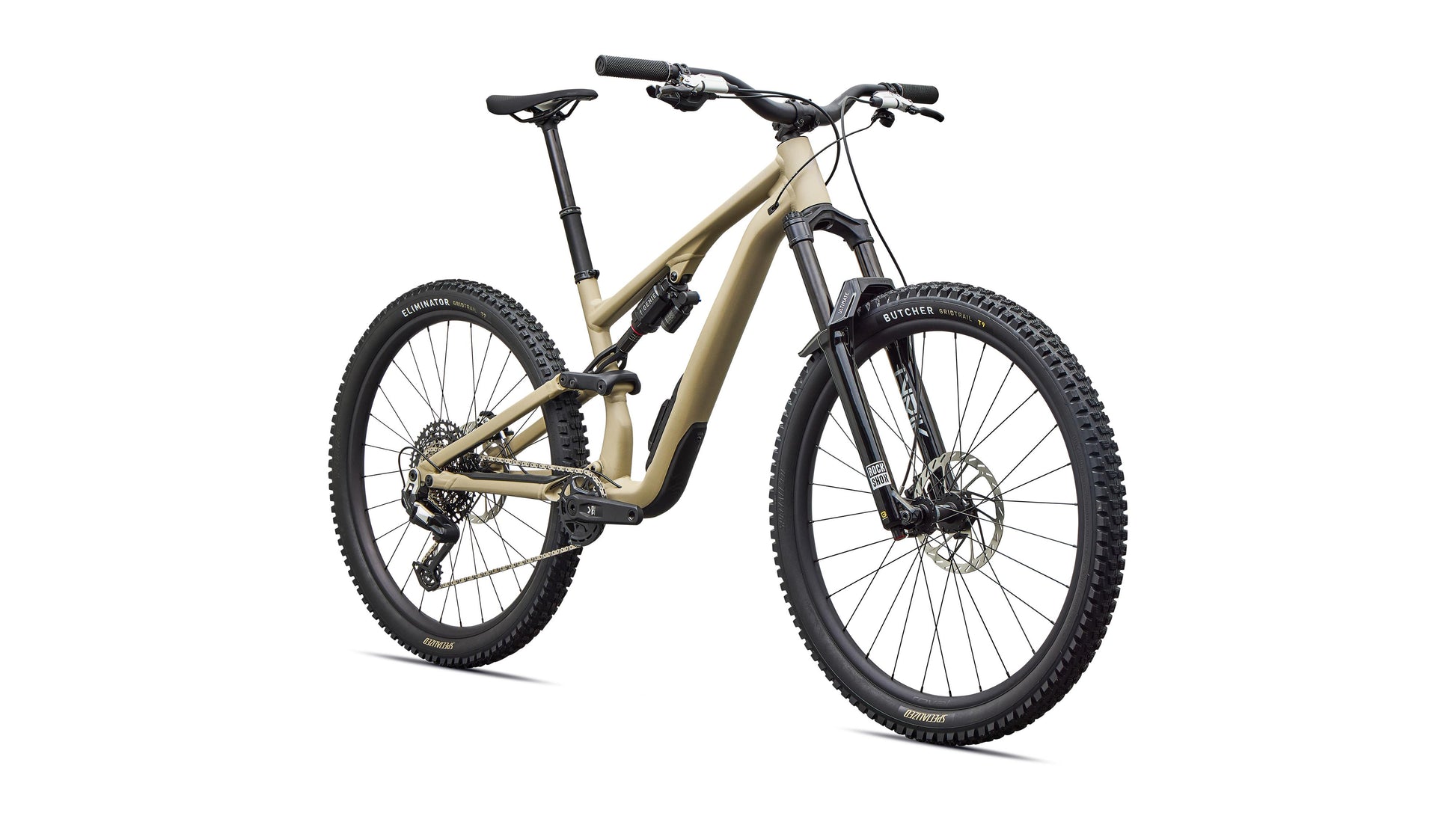

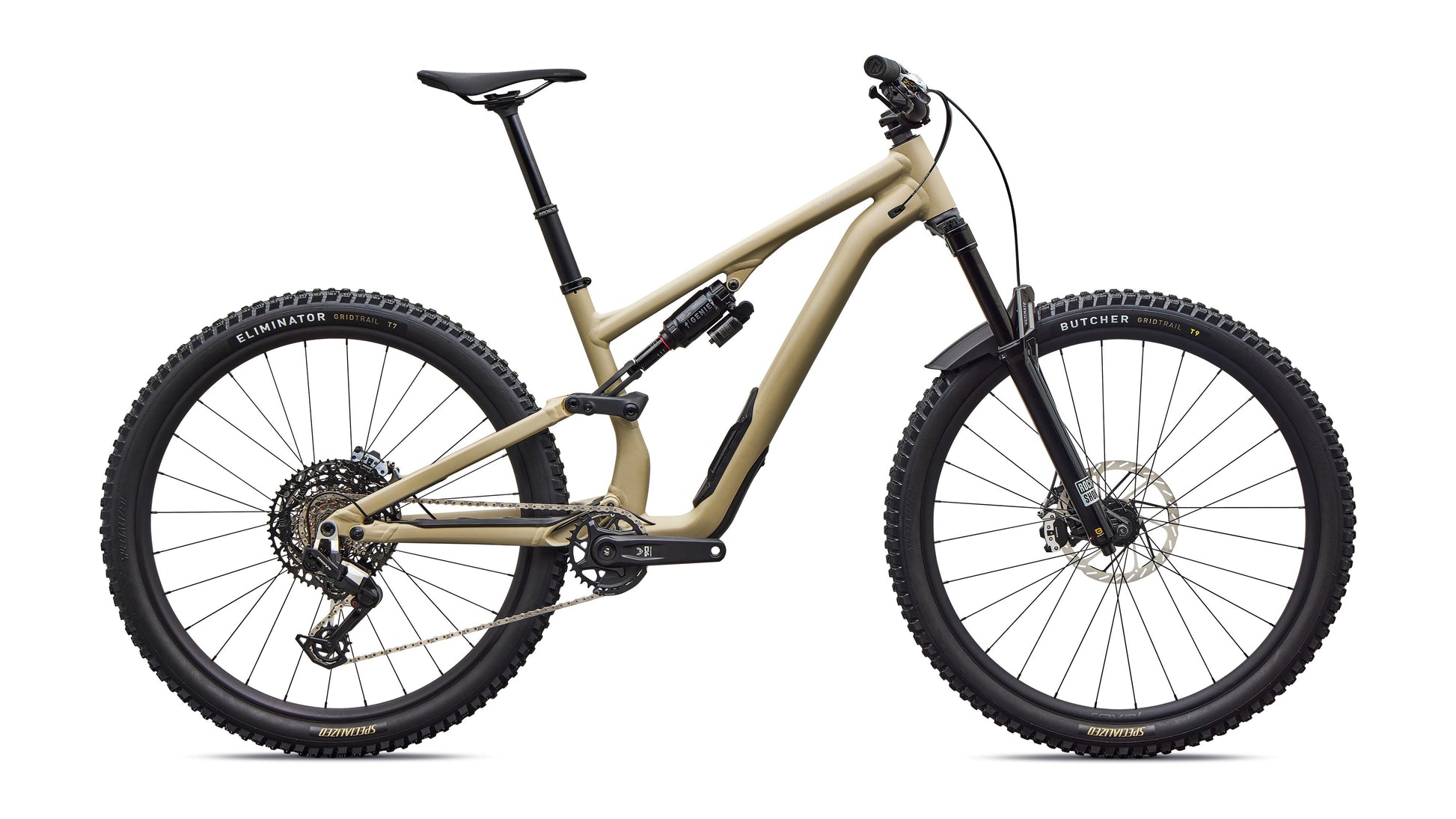

2027 Specialized Stumpjumper 15 EVO Elite Alloy

2027 Specialized Stumpjumper 15 EVO Elite Alloy

93327-4003

$5,499.99
$5,499.99 $5,499.99
New

Color
Size
Width
Low Stock - Only 1 left!
View full details

    2027 Specialized Stumpjumper 15 EVO Elite Alloy Features

    Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?

    Check, check, check.

    At a Glance

    • Use - Trail
    • Frame - M5 Alloy, SWAT Door integration, adjustable Trail Geometry
    • Suspension - Front: 160mm RockShox Lyrik Ultimate fork
      Rear: 145mm RockShox Super Deluxe Select shock w/ GENIE
    • Drivetrain - SRAM Eagle 90 Transmission
    • Wheels - Roval Traverse HD Alloy wheels w/ DT Swiss 370 hubs
    • Weight - 16.79 kg (37 lb, 0.2 oz)

    Component Specifications

    Frameset
    frame
    M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
    seat binder
    Alloy, 38.6mm
    Suspension
    rear shock
    All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
    fork
    All New SRAM Rockshox Lyrik Ultimate, 29" 160mm (S2-S6); 150mm (S1), LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
    Brakes
    front brake
    SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 220mm rotor
    rear brake
    SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor
    Drivetrain
    shift levers
    SRAM 90 trigger, 12-speed, single click
    rear derailleur
    SRAM Eagle 90 T-Type
    cassette
    SRAM 12-speed,10-52t
    chain
    SRAM GX Eagle Transmission 12-Speed Flattop Chain
    crankset
    SRAM Eagle 90, S1-S3: 165mm, S4-S6: 170mm, 55mm chainline, 32T
    bottom bracket
    SRAM DUB Threaded Wide
    Wheels & Tires
    front tire
    Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4
    rear tire
    Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
    inner tubes
    Standard, Presta Valve
    front wheel
    Roval Traverse Rim 29", hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes
    rear wheel
    Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes, S1-S2: 27.5", S3:-S6: 29"
    Cockpit
    stem
    Barkeeper, 35mm bar bore
    handlebars
    Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
    grips
    Deity Supracush, Lock On, 34mm OD, 133mm Length, Black
    saddle
    Bridge Comp, Hollow Cr-mo rails 155/143
    seatpost
    Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
    Accessories
    swat
    SWAT 4.0 internal downtube storage

    2027 Specialized Stumpjumper 15 EVO Elite Alloy

    Bike/Frame Size S1 S2 S3 S4 S5 S6
    Stack 611 mm 621 mm 630 mm 644 mm 658 mm 671 mm
    Reach 400 mm 420 mm 445 mm 470 mm 495 mm 525 mm
    Chainstay Length 430 mm 432 mm 435 mm 435 mm 445 mm 445 mm
    Wheelbase 1153 mm 1186 mm 1217 mm 1249 mm 1290 mm 1327 mm
    Top-tube Length (horizontal) 542 mm 574 mm 596 mm 625 mm 649 mm 678 mm
    Bike Standover Height 738 mm 751 mm 745 mm 745 mm 745 mm 751 mm
    Seat Tube Length 385 mm 385 mm 405 mm 425 mm 445 mm 465 mm
    Seat Tube Angle 77.7° 76.5° 76.5° 76° 76° 76°
    Saddle Height for Effective ST Angle 645 mm 690 mm 735 mm 780 mm 825 mm 870 mm
    Max Seatpost Insertion 245 mm 245 mm 255 mm 255 mm 285 mm 285 mm
    Min Seatpost Insertion 80 mm 80 mm 80 mm 80 mm 80 mm 80 mm
    Headtube Length 95 mm 100 mm 110 mm 125 mm 140 mm 155 mm
    Headtube Angle 64° 64° 64° 64° 64° 64°
    BB Height 337 mm 340 mm 340 mm 340 mm 340 mm 340 mm
    BB Drop 38 mm 35 mm 35 mm 35 mm 35 mm 35 mm
    Trail 133 mm 134 mm 134 mm 134 mm 134 mm 134 mm
    Fork Length (full) 561 mm 573 mm 573 mm 573 mm 573 mm 573 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 724 mm 755 mm 785 mm 816 mm 848 mm 884 mm

    Component Geometry

    Component S2 S3 S4 S5 S6
    Crank Length 165 mm 165 mm 170 mm 170 mm 170 mm
    Handlebar Width 780 mm 800 mm 800 mm 800 mm 800 mm
    Stem Length 35 mm 35 mm 35 mm 35 mm 35 mm
    Saddle Width 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 150 mm 170 mm 200 mm 200 mm 230 mm
