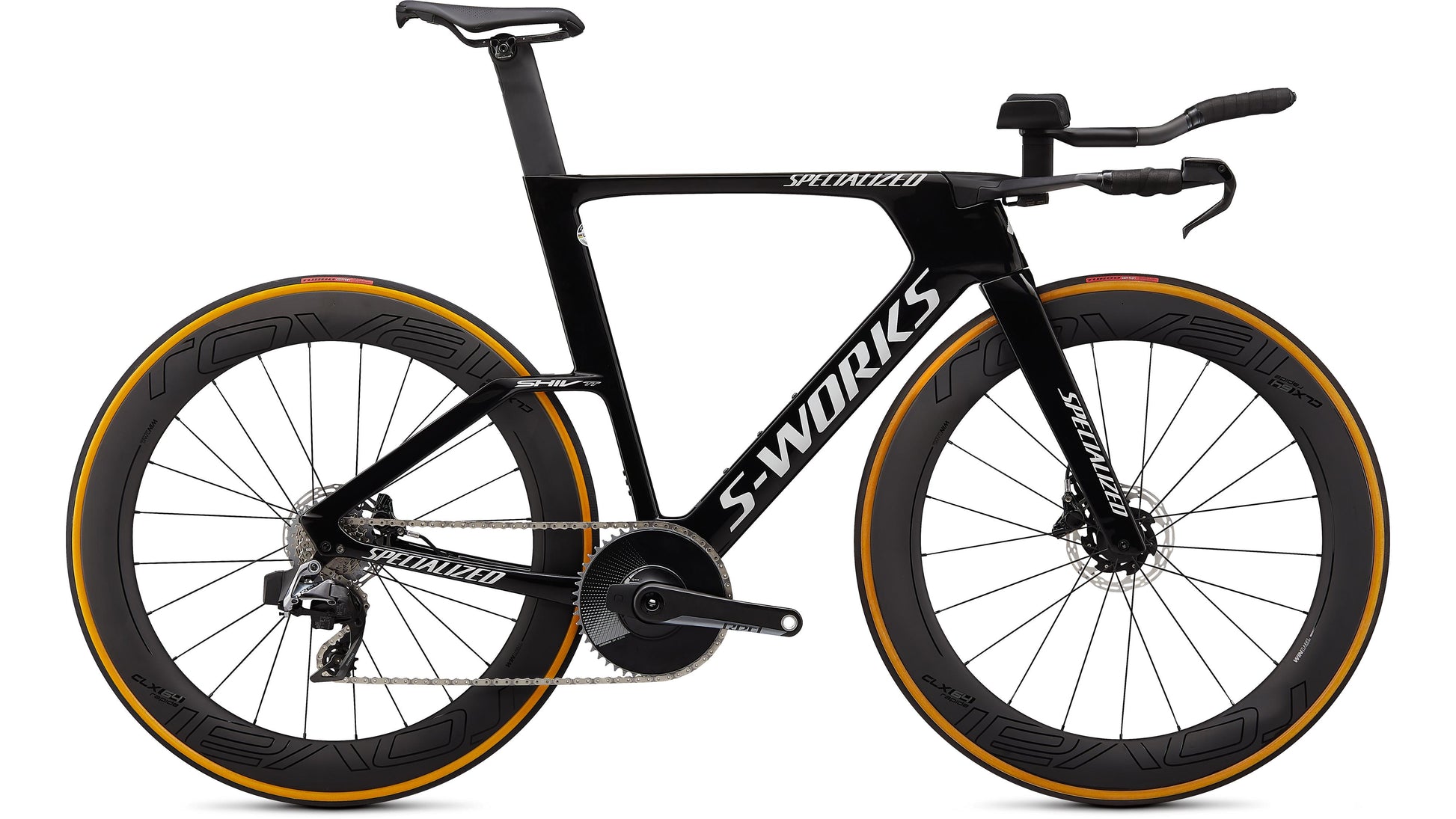

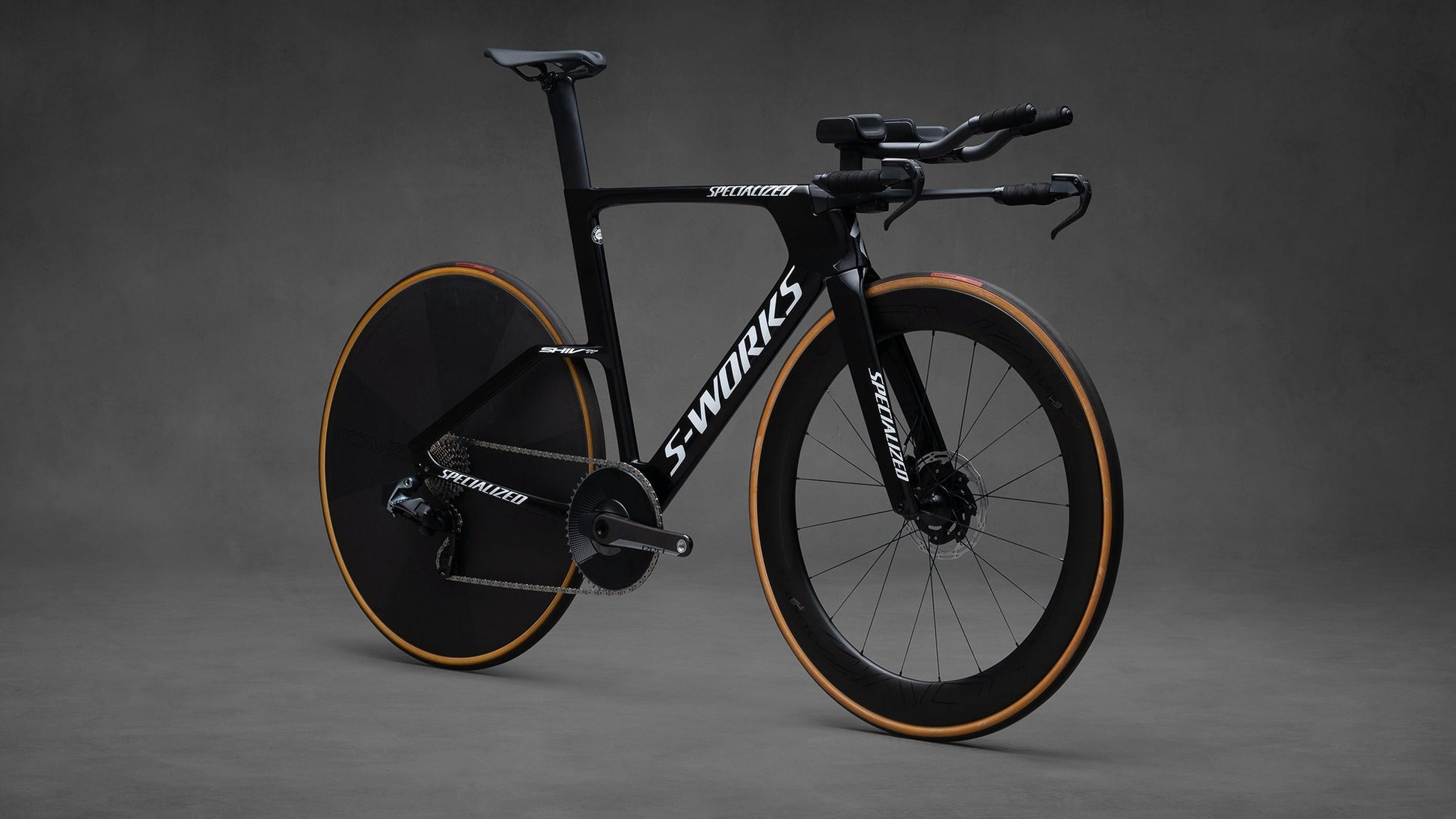

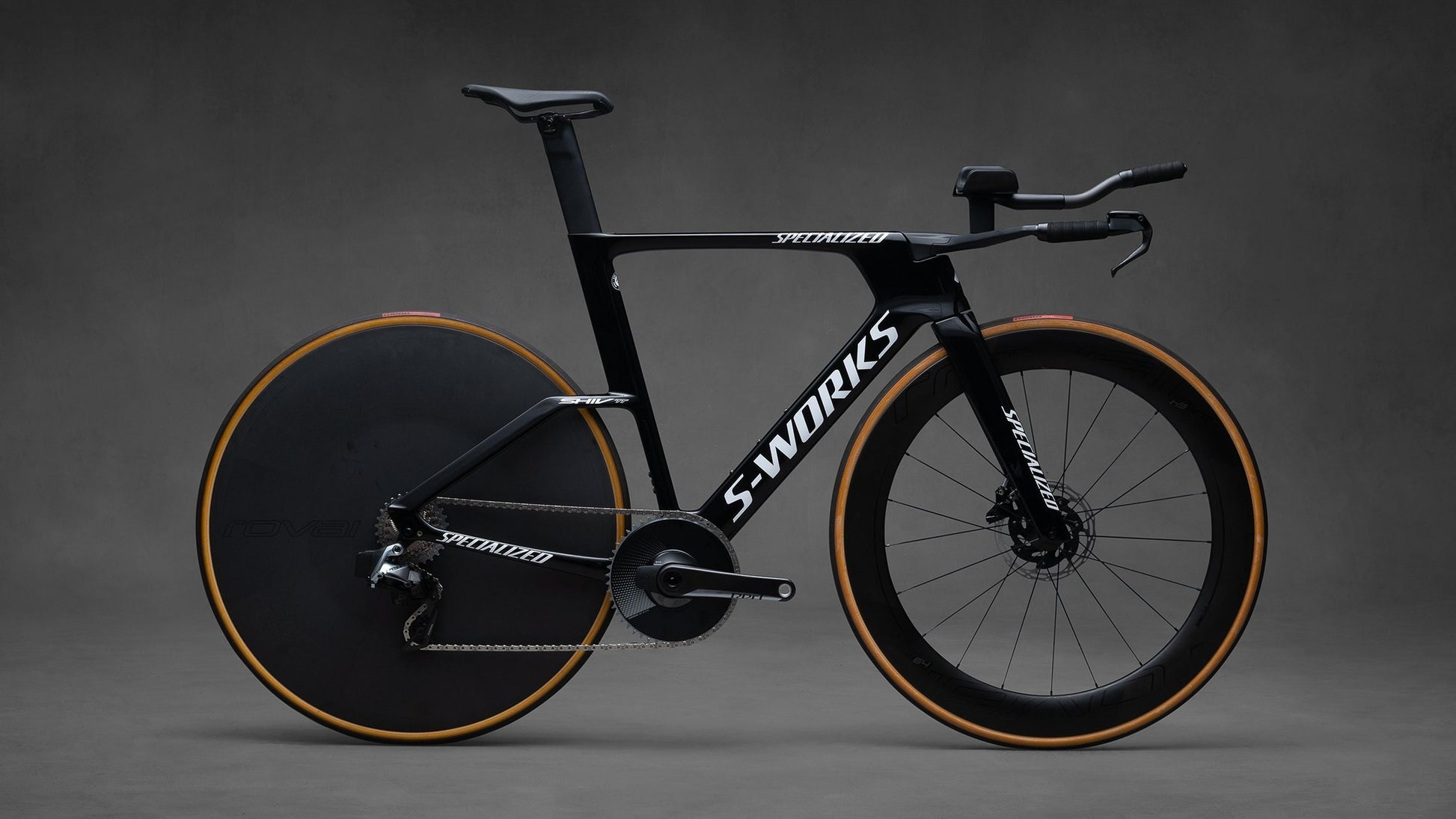

Specialized Shiv Tt S-Works Disc Etap Features
For years, time trial bikes have had very similar attributes—skinny; deep airfoils, sketchy handling, subpar braking, and heavy frames. For the "flat and fast" courses of yesteryear, these qualities may have been acceptable, but with today's technically demanding courses, TT bikes needed a change. The new Shiv TT Disc is light, responsive, and agile, for speed to attack modern time trial courses, drill the steepest climbs, and race with supreme confidence. And with this in mind, we've pushed UCI regulations to their limits adding disc brakes, dropping weight, and dialing in the fit for the new Shiv TT. Is it the most adjustable TT bike out there? Yeah, but don't think it gave anything up to aerodynamics. Here's to another decade of gold medals.
We've paired this wind-cheating steed with SRAM's new RED eTAP AXS 1x drivetrain, maximizing every potential gain you could ask for. And yes, we're giving you both the fastest and lightest disc wheel on the market, as well as the fastest wheels we've ever tested—Roval 321 Disc and CLX 64s.
At a Glance
- As time-trial courses have become more technical and demanding, it's important to capitalize on years of R&D and pro rider feedback to create the fastest time trial bike—for all courses. From technical inner-city prologues, to rolling courses with steep grades, it's not just about making the fastest bike for a straight line. With this in mind we've cut the weight and greatly increased the handling characteristics of the Shiv TT with an all-new silhouette.
- Fit was also one of the biggest design pillars of the new Shiv TT. With years of Retül data, and professional rider data, we've completely re-done the geometry and front-end of the bike. The updated spacers, bridge, and armrests lock in fit, improving stability and confidence, while the one-piece bar and stem simplifies and lightens the weight of the front-end, balancing the overall feel.
- Disc brakes are now a necessity in TTs with variable weather, tight corners, and rough surfaces. Not only do they let you late-brake into corners and shift on the bars, but they also create a more stable chassis in corners and when accelerating. And don't worry, they don't lend themselves to any additional drag.
Component Specifications
| Frame | S-Works FACT 11r carbon, Win Tunnel Engineered, UCI Legal, internal electric only cable routing, BSA Threaded, 12x142mm thru-axle, flat-mount disc |
| Fork | S-Works FACT carbon, UCI Legal, 100x12mm thru-axle, flat-mount disc |
| Shift Levers | SRAM eTap Clics |
| Rear Derailleur | SRAM RED eTAP AXS, 12-speed |
| Cassette | SRAM RED XG-1290, 12-speed, 10-28t |
| Chain | SRAM RED 12-speed |
| Crankset | SRAM RED 1 AXS Power, Aero |
| Bottom Bracket | SRAM DUB BSA 68 |
| Spokes | Roval CLX 64 tubeless valve stem |
| Front Tire | Turbo Cotton, 320 TPI, 700x24mm |
| Rear Tire | Turbo Cotton, 320 TPI, 700x24mm |
| Inner Tubes | Turbo Ultralight, 80mm Presta valve |
| Front Brake | SRAM S-900 Aero, HRD |
| Rear Brake | SRAM S-900 Aero, HRD |
| Handlebars | Specialized Shiv TT Integrated bar/stem aerobar |
| Saddle | Sitero Pro, carbon rails |
| Seatpost | 2019 S-Works Venge aero seatpost, FACT carbon, Di2-compatible |

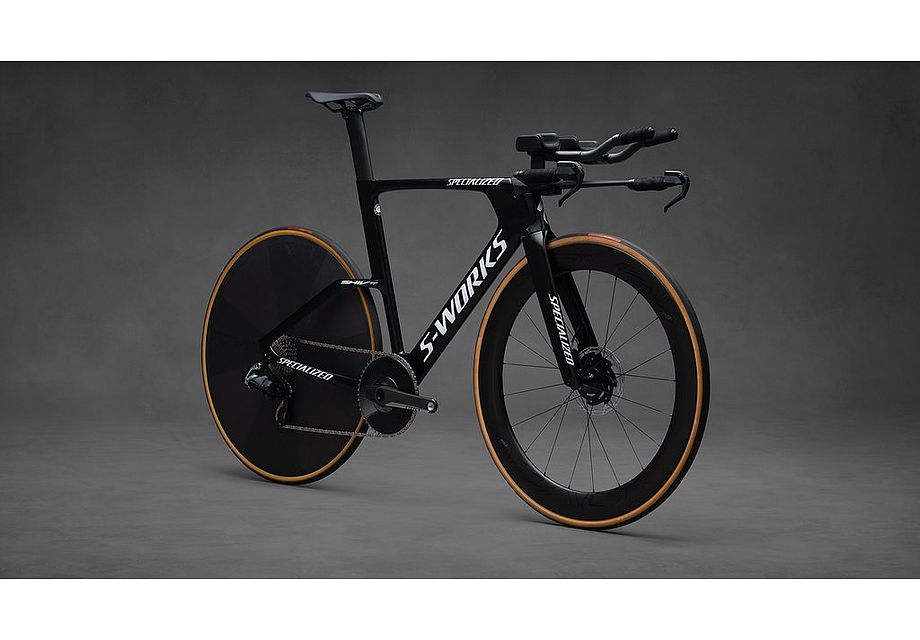

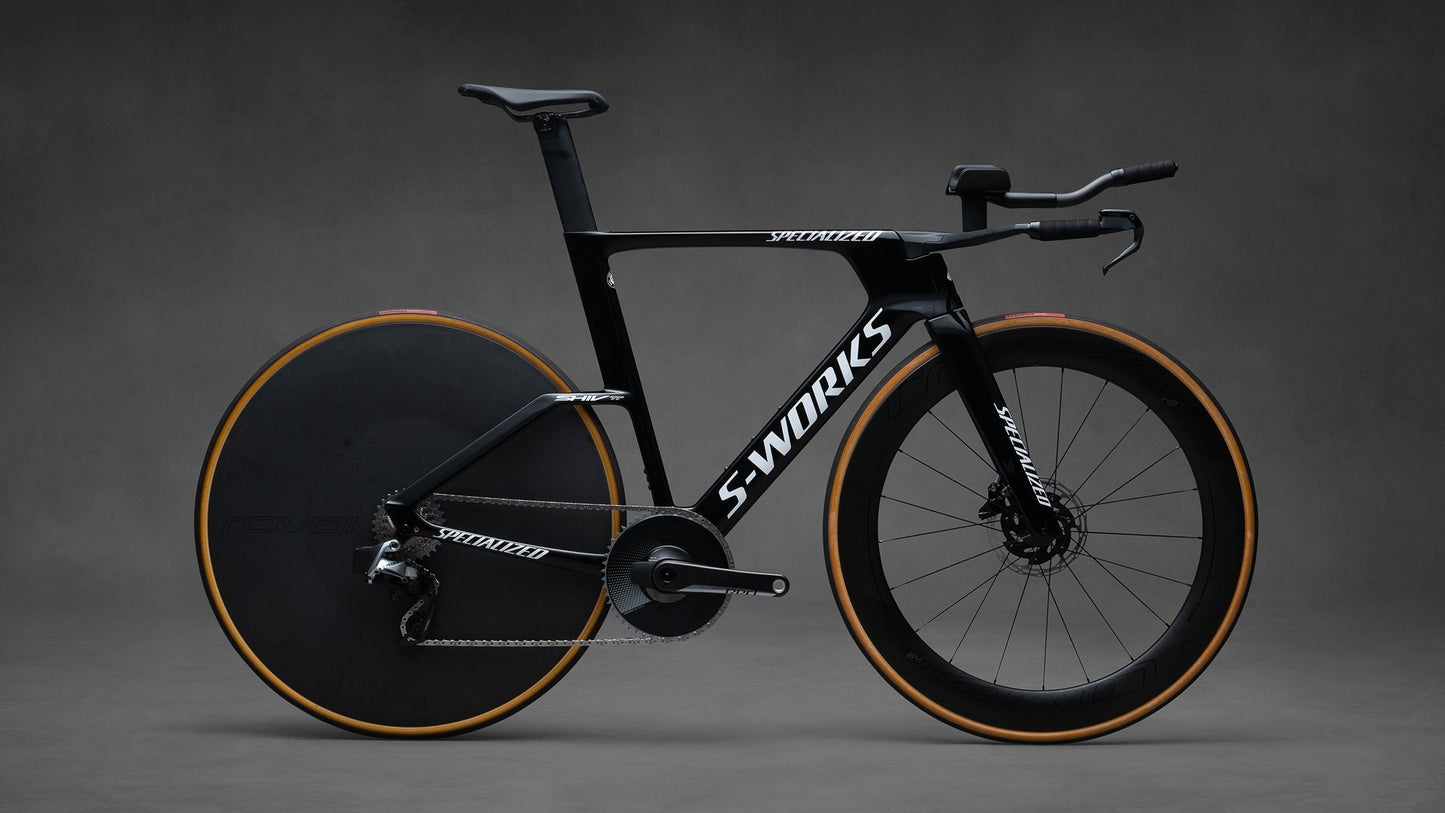

Specialized Shiv Tt S-Works Disc Etap
| Bike/Frame Size | XS | S | M | L |
|---|---|---|---|---|
| Effective Reach to Center of Pad, REARWARD Position | 436 mm | 448 mm | 463 mm | 478 mm |
| Effective Reach to Center of Pad, FORWARD Position | 464 mm | 476 mm | 491 mm | 506 mm |
| Trail | 70 mm | 63 mm | 63 mm | 63 mm |
| Fork Length (full) | 363 mm | 363 mm | 363 mm | 363 mm |
| Fork Rake/Offset | 45 mm | 45 mm | 45 mm | 45 mm |
| Front-Center | 573 mm | 579 mm | 594 mm | 609 mm |
| Chain-Stay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 972 mm | 978 mm | 993 mm | 1008 mm |
| Top-Tube Length (horizontal) | 512 mm | 527 mm | 538 mm | 546 mm |
| Bike Stand-Over Height | 769 mm | 802 mm | 802 mm | 802 mm |
| Seat-Tube Length | 504 mm | 564 mm | 563 mm | 562 mm |
| Seat-Tube Angle | 74.5° | 74.5° | 75° | 75.75° |
| Effective Stack to Pad Holder, LOWEST Position | 535 mm | 545 mm | 545 mm | 545 mm |
| Effective Stack to Pad Holder, HIGHEST Position | 680 mm | 690 mm | 690 mm | 690 mm |
| Stack | 485 mm | 495 mm | 495 mm | 495 mm |
| Reach | 378 mm | 390 mm | 405 mm | 420 mm |
| Head-Tube Length | 90 mm | 95 mm | 95 mm | 95 mm |
| Head-Tube Angle | 71° | 72° | 72° | 72° |
| B-B Height | 269 mm | 270 mm | 270 mm | 270 mm |
| B-B Drop | 70 mm | 72 mm | 72 mm | 72 mm |
