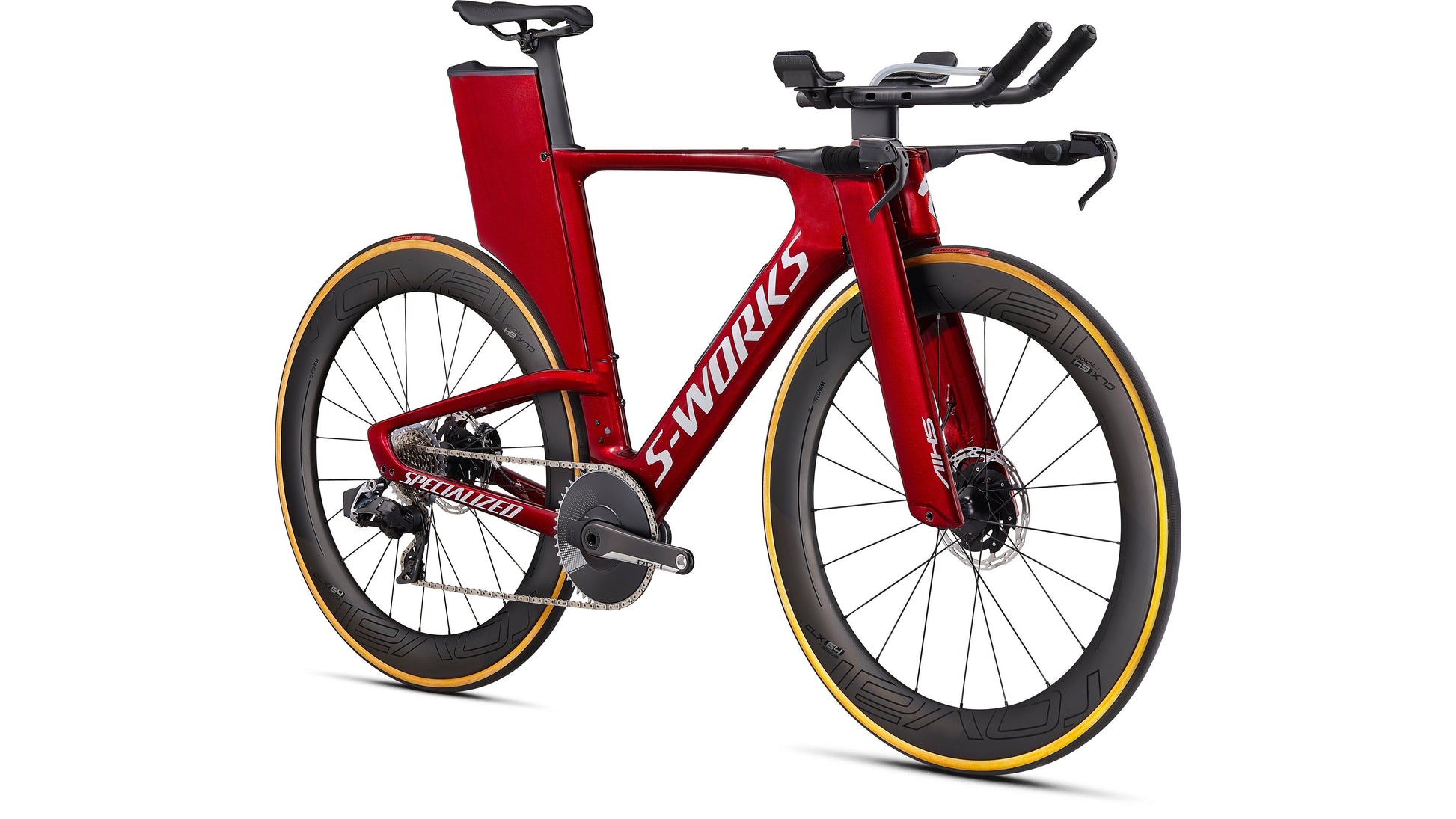

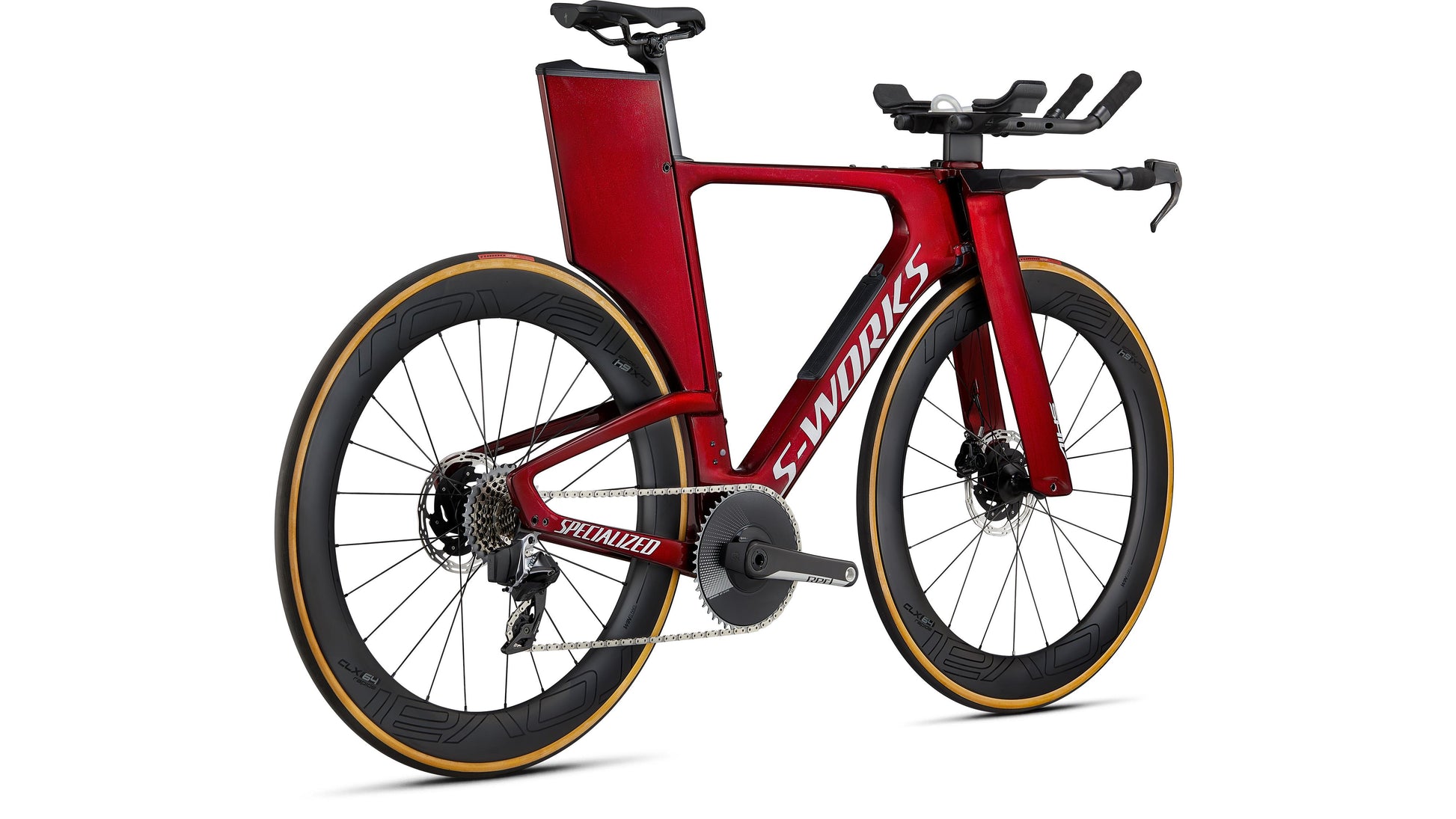

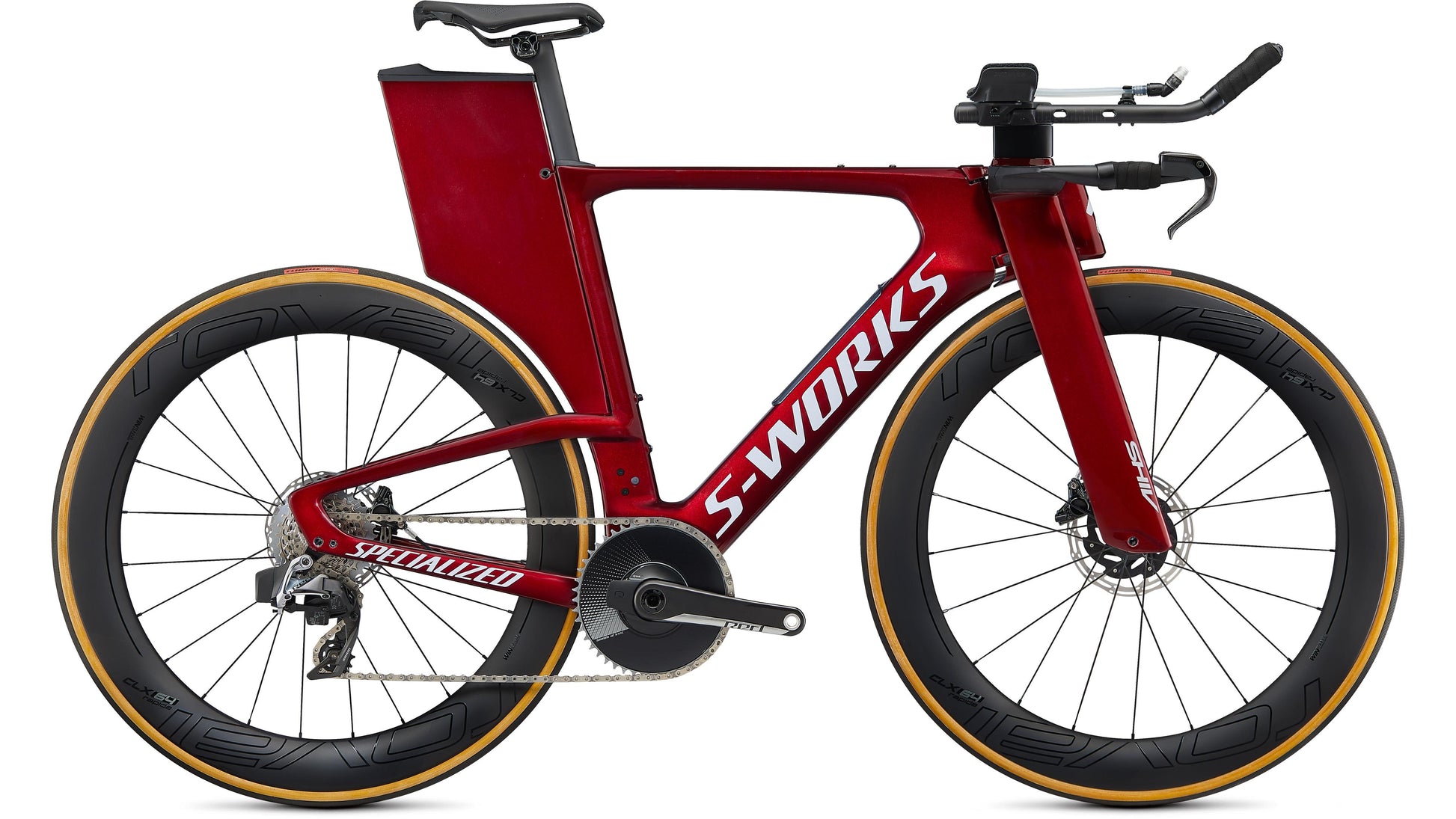

Specialized Shiv S-Works Disc Etap Features
Pro Tip: Use our
Shiv Finder
to determine the proper Shiv size for you.
We've never been ones for dogmatic rules. And with a little defiance of the UCI's rule book, the Shiv sets the new standard for speed—again. It keeps its aero, fuel, and fit focus, but does so in an entirely new and novel way. Yes, it has disc brakes. Yes, it's easy to travel with. And yes, it takes aero to unheard of heights using storage and fit features that also make you faster. There's only one bike that's going to help get you to the top of the podium this season and that's the Shiv Disc.
To ensure that it's "race-ready; right out of the box;" we've spec'd the S-Works Shiv Disc with only the top components. SRAM's RED eTAP AXS 1x, 12-speed groupset with hydraulic disc brakes is in charge of both shifting and braking duties. Our S-Works Power Cranks, meanwhile, provide you with all the power data you'd ever need. And for the rolling stock, the Roval CLX 64 Disc wheels are not only extremely aerodynamic, but they're far lighter than any other wheels in their class.
At a Glance
- The incredibly aerodynamic, crosswind-optimized, and non-UCI-legal FACT carbon frame features all the details you’ve asked for. It’s packable, adjustable, has our Hydration and Nutrition Fuelcell systems, and it makes it easy to find your perfect fit. Compared to the fastest 2011 Shiv setup possible (Fuelcell, slammed bars, clean cable routing, BTA bottle), the Shiv Disc is nearly a minute faster over the Kona course. With a more typical Shiv setup, the Shiv Disc is faster by minutes—plural. So, no matter how much you need to carry, you’re sure to have the fastest setup come race day.
- What was that about storage? Just like with the original Shiv, the Shiv Disc features both Hydration and Nutrition Fuelcell storage options, but we didn't simply reuse them. Instead, we designed them from the ground up. We moved the Hydration Fuelcell from inside the frame to the rear of the bike. Now, it's entirely hidden within the frame (even the hydration hose), which not only allows for more fluid capacity, but it also helps with aerodynamics. The Nutrition Fuelcell utilizes the additional volume created by the "New Shape of Speed" for the down tube, and this creates plenty of room for snacks. How many snacks? 10-12 gels, 4-5 bars, or 5-6 chews fit with ease, and it can also be removed to easily access the Shimano Di2 A-Junction Box or a flat repair kit.
- We also made sure that the Shiv is plenty adjustable for you to dial-in your fit. The frame comes in four different sizes that are based on over 1,000 Retül fits with actual athletes, all to ensure that your ideal fit is achievable. Our Shiv Finder tool makes it easy to determine your size based on your current position, so getting your most powerful aerodynamic position is easily achievable.
- Adjustability was also high on the list for the aerobars, extensions, and arm pads, so the cockpit is adjustable on nearly every access. Need more or less base bar stack? Simply loosen a single bolt on each side and tilt it up or down. The aerobars, themselves, also offer plenty of adjustability—fore; aft, and pad width, all with aggressive and relaxed positions in mind. An added bonus of this adjustability is the ease of travel. All you have to do is fold the base bar down to the fork, unbolt the cockpit, and your Shiv is ready for the bike box. We couldn't make it any easier.
Component Specifications
| Frame | S-Works FACT 11r carbon, FACT IS construction, crosswind-optimized airfoils, OSBB, Integrated Fit System, Integrated Nutrition and Hydration Fuelcell, flat-mount disc brakes |
| Fork | FACT carbon, integrated Fit System, flat-mount disc, 12x100mm thru-axle |
| Shift Levers | SRAM eTap Clics |
| Rear Derailleur | SRAM RED eTAP AXS, 12-speed |
| Cassette | SRAM RED XG-1290, 12-speed, 10-33t |
| Chain | SRAM RED 12-speed |
| Crankset | SRAM RED 1 AXS Power, Aero |
| Bottom Bracket | SRAM DUB for BB30 |
| Spokes | Roval CLX 64 tubeless valve stem |
| Front Tire | Turbo Cotton, 320 TPI, 700x24mm |
| Rear Tire | Turbo Cotton, 320 TPI, 700x24mm |
| Inner Tubes | Turbo Ultralight, 80mm Presta valve |
| Front Brake | SRAM S-900 Aero, HRD |
| Rear Brake | SRAM S-900 Aero, HRD |
| Handlebars | Specialized Shiv Aerobar, carbon, variable stack adjust |
| Saddle | Sitero Pro, carbon rails |
| Seatpost | Shiv Disc Carbon Post, 25 Forward Offset and 0mm Offset |
Specialized Shiv S-Works Disc Etap
| Bike/Frame Size | XS | S | M | L |
|---|---|---|---|---|
| Effective Reach to Center of Pad, REARWARD Position | 308 mm | 321 mm | 341 mm | 361 mm |
| Effective Reach to Center of Pad, FORWARD Position | 525 mm | 541 mm | 556 mm | 576 mm |
| Trail | 68 mm | 57 mm | 62 mm | 62 mm |
| Fork Length, Full | 385 mm | 385 mm | 385 mm | 385 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 45 mm | 45 mm |
| Front Center | 578 mm | 579 mm | 596 mm | 627 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 982 mm | 983 mm | 1001 mm | 1031 mm |
| Top Tube Length, Horizontal | 484 mm | 499 mm | 520 mm | 547 mm |
| Bike Standover Height | 752 mm | 774 mm | 798 mm | 830 mm |
| Seat Tube Length | 490 mm | 522 mm | 547 mm | 580 mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° |
| Effective Stack to Pad Holder, LOWEST Position | 556 mm | 561 mm | 585 mm | 617 mm |
| Effective Stack to Pad Holder, HIGHEST Position | 671 mm | 676 mm | 700 mm | 732 mm |
| Stack | 484 mm | 490 mm | 514 mm | 546 mm |
| Reach | 372 mm | 386 mm | 401 mm | 421 mm |
| Head Tube Length | 70 mm | 70 mm | 94 mm | 127 mm |
| Head Tube Angle | 70.25° | 72° | 72° | 72° |
| BB Height | 265 mm | 265 mm | 265 mm | 265 mm |
| BB Drop | 72 mm | 72 mm | 72 mm | 72 mm |
