SHIMANO

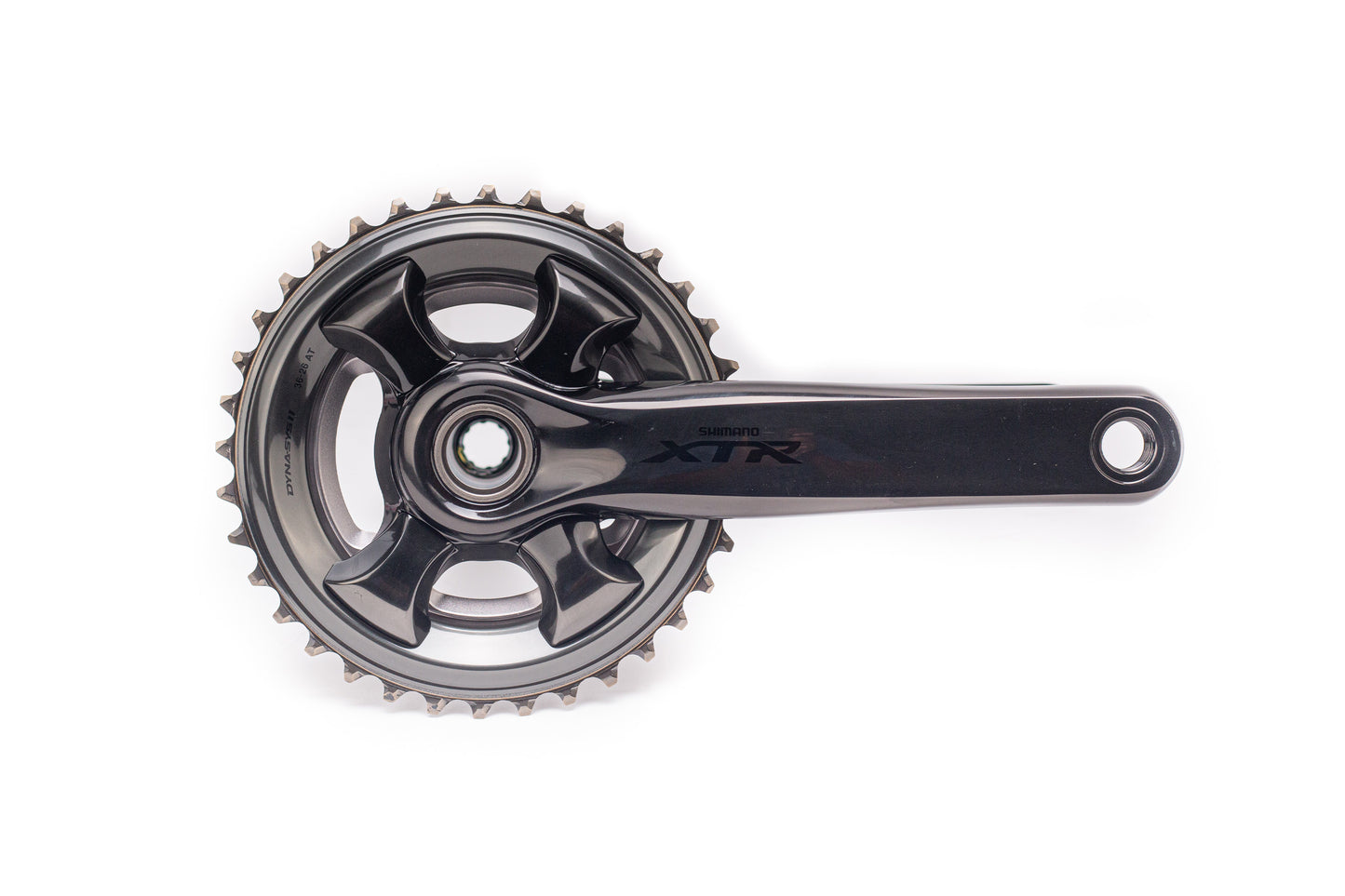

Shimano XTR FC-M9000-2 Crankset 175mm 11-Speed 36/26t Hollowtech II

Shimano XTR FC-M9000-2 Crankset 175mm 11-Speed 36/26t Hollowtech II

IFCM900036-N

$579.99
$579.99 $579.99
Sold out
View full details

    Shimano XTR FC-M9000-2 Crankset 175mm 11-Speed 36/26t Hollowtech II Features

    Specifications:

    Application area: Cross country
    Compatibility: Shimano 2x11-speed
    Chainring attachment: 96/64 mm bolt circle diameter, 4-arm asymmetrical

    Technical specifications:

    Series: XTR M9000
    Material crank arms: aluminum
    Material chainrings: Titanium, aluminum, carbon (CFRP) / aluminum
    Material axle: steel
    Crank arm length: 175 mm
    Chain line: 48.8 mm
    Q factor: 158 mm
    Axle diameter: 24 mm
    Compatible housing width (for BSA bottom brackets): 68mm, 73mm Inner bearing (recommended): SM-BB93 or SM-BB94-41A Pressfit Hollowtech II (bottom bracket not included) Chain (recommended): HG-X11 (e.g. CN-HG901-11)
