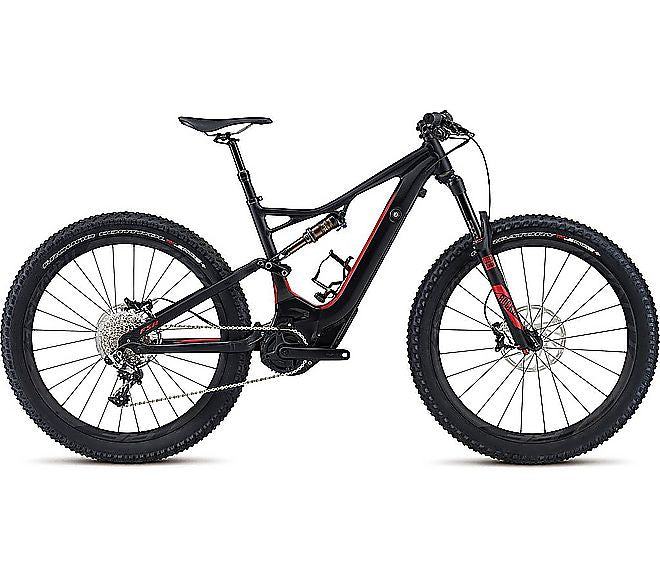

Specialized S-Works Levo Fsr 6fattie Features
The S-Works Turbo Levo FSR 6Fattie is a trail bike with all of the hallmarks that our mountain bikes are known for. This means that you get a roomy top tube for an easy fit, ultra-short chainstays for nimble handling, and a low bottom bracket that makes the bike feel glued to the trail. Then comes the efficient and powerful Turbo technology, integrating a battery and motor into the M5 frame in a new way. The exclusive, custom-tuned motor smoothly and quietly puts out up to 530 watts of additional power to the pedals to make climbing the steepest of trails nearly effortless, and the output is fully adjustable to conserve energy. At the battery, you'll find that it's fully integrated with the down tube and easily removable for quick charging or swaps. It has a lengthy lifespan for hitting long, out of the way trails and, along with the motor, is strategically placed for optimal weight distribution. This version also has a top of the line build kit, with carbon Roval Traverse SL 38 650b wheels, a 140mm RockShox Pike RCT3 fork, SRAM Guide Ultimate brakes, and a SRAM XX1 groupset controlling shift and drivetrain duties. It also features our new 6Fattie wheel system that decreases deflection and dramatically increases traction, floatation, and fun over the trail. Add to this our Mission Control App for full control of the Turbo technology and an integrated Trail Display with all of the ride metrics you need, and you're looking at the future of trail bikes.
- The frame was constructed from our M5 Premium Aluminum, which is equal parts strong, lightweight, and incredibly responsive. The design of the frame itself revolves around our Trail Geometry that includes all of our trail hallmarks, like a low-slung bottom bracket, roomy top tube, and ultra-short chainstays. Cable routing is all internal, including that of the Command Post IR, while the battery and motor is fully integrated in the down tube.
- RockShox Pike RCT3 fork features a 15x110mm Maxle Ultimate thru-axle and 140mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
- SRAM Guide RS Carbon brakes offer the "ultimate" in adjustability and sheer power. They feature a four-piston design and the latest SwingLink™ lever cam, which leads to a svelte overall weight, heat management, and smooth, consistent modulation.
Component Specifications
| Motor | Custom & Exclusive For Specialized, Trail Tuned, 250 W |
| Battery | Custom Levo Battery, 504wh, 40x3.5ah, Ant+/bluetooth® Connectivity, Ip 67 |
| Charger | Custom Charger, 42v4a W/rosenberger Plug |
| Frame | Specialized M5 Premium Aluminum, Trail Geometry, Integrated Down Tube Battery, Enclosed Internal Cable And Command Post Ir Routing, 148mm Spacing, Fully Sealed Cartridge Bearings, 140mm Of Travel |
| Seat Binder | Alloy, 34.9mm |
| Fork | Rockshox Pike Rct3 29/27.5+, Solo Air, Compression And Rebound And Threshold Adjust, Tapered Steerer, 15x110mm Maxle Stealth Thru-axle, 51mm Offset, 140mm Travel |
| Rear Shock | Fox Float Factory, Rx Trail Tune, Autosag, Dps Damper, Kashima Coating, Rebound And 3-position Compression And Open Adjust, 197x47.6mm |
| Shift Levers | Sram Xx1, 11-speed, Trigger |
| Rear Derailleur | Sram Xx1 Type 2.1, 11-speed |
| Cassette | Sram Xx1, 11-speed, 10-42t |
| Chain | Sram Xx1, 11-speed W/powerlink |
| Crankset | Custom Alloy Crankarms |
| Bottom Bracket | Integrated In Motor |
| Rims | Roval Traverse Sl 38 650b, Hookless Carbon, 38mm Inner Width, 24/28h, Tubeless Ready |
| Front Hub | Roval Traverse, Sealed Cartridge Bearings, 15mm Thru-axle, 110mm Spacing, 24h |
| Rear Hub | Roval Traverse Sl, Dt Swiss Star Ratchet, 54t Engagement, Sram Xd Driver Body, 12mm Thru-axle, 148mm Spacing, 28h |
| Spokes | Dt Swiss Revolution |
| Front Tire | Purgatory, Grid Casing, 650bx3.0", 60tpi, Aramid Folding Bead, 2bliss Ready |
| Rear Tire | Purgatory, Grid Casing, 650bx3.0", 60tpi, Aramid Folding Bead, 2bliss Ready |
| Inner Tubes | 650bx2.3"/3.0", 40mm Presta Valve |
| Front Brake | Sram Guide Rs Carbon, Hydraulic Disc, Organic Pads, Carbon Lever, Guide S4 4-piston Caliper, 200mm Rotor |
| Rear Brake | Sram Guide Rs Carbon, Hydraulic Disc, Organic Pads, Carbon Lever, Guide S4 4-piston Caliper, 200mm Rotor |
| Stem | Syntace F109, 6-degree Rise, 31.8mm Clamp |
| Handlebars | Specialized Trail, Fact Carbon, 6-degree Upsweep, 8-degree Backsweep, 27mm Rise, 750mm Width, 31.8mm |
| Grips | Specialized Sip Grip, Light Lock-on, Half-waffle, S/m: Regular Thickness, L/xl: Xl Thickness |
| Saddle | Body Geometry Henge Expert, Hollow Titanium Rails, 143mm |
| Seatpost | Command Post Ircc, 12 Position Micro-height Adjustable, Alien Head Design, Bottom Mount Cable Routing, Remote Srl Lever, 30.9mm, S: 100mm, M/l/xl: 125mm Travel |
Size Guide: Specialized S-Works Levo Fsr 6fattie
