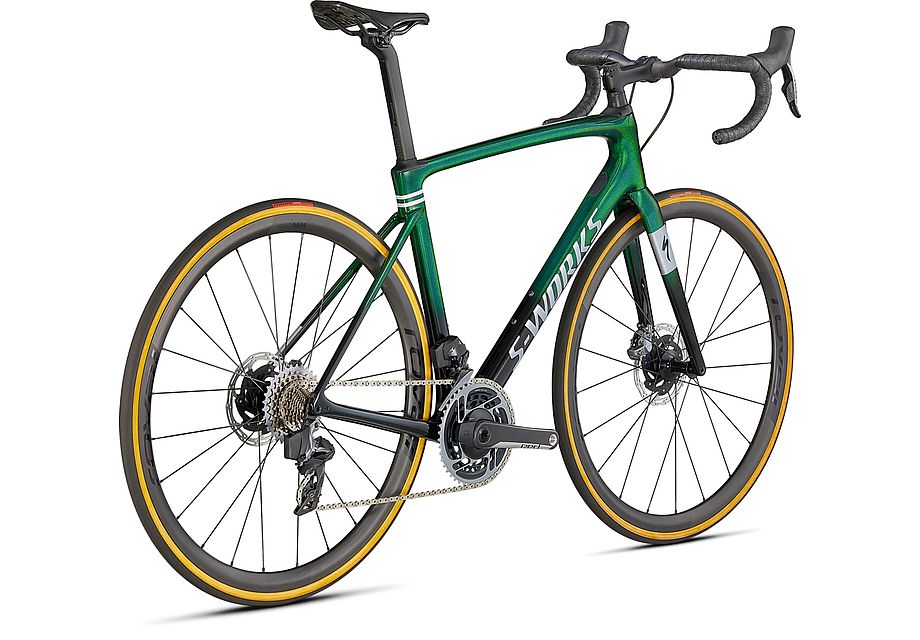

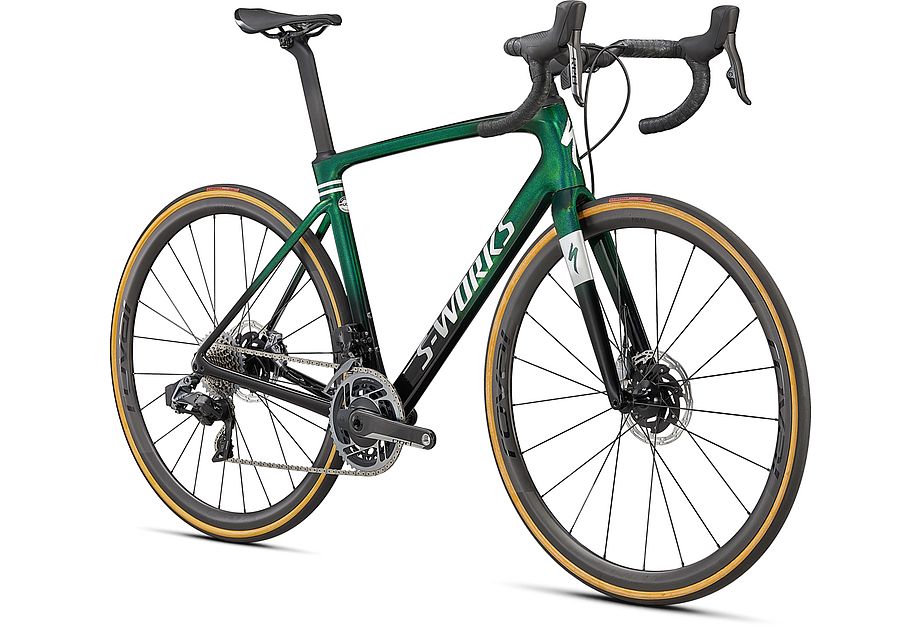

Roubaix S-Works Di2 Sagan Coll Features
Sometimes an act of creation begins with an act of destruction. For the new Sagan Collection, the rainbow has been deconstructed—broken down to its core components to celebrate a rider defined by much more than rainbow stripes. It began with an almost absence of color and continues now with stunning, shimmering colors and graphics that are as beautiful and mercurial as the masterpieces Peter paints on the road. The bike that conquered the Hell of the North, reborn in an electric blue and red polarized chameleon that exudes energy, as if Peter Sagan's Roubaix winning legs are powering it. Think you've seen it all? Think again.
With seven wins at Paris-Roubaix, our Roubaix has proven that Smoother is Faster. Until this moment, however, smooth has admittedly come with some compromises. But not anymore. The all-new S-Works Roubaix now delivers compliance without compromise by introducing a radical new Future Shock 2.0 that gives you more control and damping options, a new Pavé seatpost that creates our most balanced Roubaix to date, aerodynamics that equal the Tarmac, and a Rider-First Engineered™ frame that tips the scales below 900 grams (Size: 56cm, Black). Is it still comfortable? Sure, but don't call it a comfort bike, because performance was behind every engineering decision we made. This is the new Roubaix.
You wanted the best bike money can buy, and this S-Works delivers. We spec'd it with full Shimano Dura-Ace Di2, our World-Tour-level Roval Rapide CLX carbon fiber wheels, the all-new S-Works Pavé seatpost, and S-Works from head-to-toe on everything from the Romin Evo saddle to the 28mm Turbo Cotton tires. It's absolute perfection.
At a Glance
- These exclusive bikes are available for pre-order only at your local Specialized retailer.
- The new frame delivers compliance without compromise via the perfect balance of aerodynamics, light overall weight, compliance, and Rider-First Engineering. With tube shapes that were born in our FreeFoil Shape Library and validated in the Win Tunnel, the new Roubaix is more aero than the Tarmac SL6. Meanwhile, to ensure the weight and ride quality, we turned to a Rider-First Engineered™ design to deliver optimal stiffness and compliance across all sizes, from 44 to 61cm. Of course, the frame also stays below 900 grams (Size 56cm
- Black). And to prep you for your own Hell of the North, we’ve made room for 33mm tires.
- To go along with the new frame, we’ve also developed a totally-new S-Works Pavé seatpost. Not only is it the first compliant seatpost that’s also aerodynamic, it does so without any additional weight or finicky contraptions. Starting with the same D-shape design found on the Tarmac, we took its compliance a step further by building additional flex into the upper and developing a new drop-clamp design in the frame. This provides plenty of compliance, while staying perfectly balanced with the front-end, so you get a smooth, balanced ride no matter how rough the road.
- The Future Shock 2.0 is the result of our pro riders’ demands for the cobbles of Roubaix. It’s smoother, faster, and gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. Add it up, and this latest version will reduce fatigue and increase your speed, no matter the terrain. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.
Product Specifications
Product Specifications
Bottom Bracket |
|
Cassette |
|
Chain |
|
Crankset |
|
Fork |
|
Frame |
|
Front Brake |
|
Front Derailleur |
|
Front Tire |
|
Front Wheel |
|
Handlebars |
|
Inner Tubes |
|
Rear Brake |
|
Rear Derailleur |
|
Rear Tire |
|
Rear Wheel |
|
Saddle |
|
Seat Binder |
|
Seatpost |
|
Shift Levers |
|
Stem |
|
Tape |
Roubaix S-Works Di2 Sagan Coll
| Bike/Frame Size | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 540 mm | 555 mm | 570 mm | 585 mm | 605 mm | 630 mm | 665 mm |
| Reach | 353 mm | 363 mm | 368 mm | 376 mm | 384 mm | 392 mm | 398 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 415 mm | 415 mm | 418 mm | 418 mm |
| Wheelbase | 981 mm | 982 mm | 986 mm | 988 mm | 995 mm | 1014 mm | 1024 mm |
| Top Tube Length, Horizontal | 512 mm | 525 mm | 533 mm | 545 mm | 563 mm | 579 mm | 595 mm |
| Bike Standover Height | 682 mm | 715 mm | 743 mm | 762 mm | 783 mm | 805 mm | 844 mm |
| Seat Tube Length | 365 mm | 410 mm | 446 mm | 465 mm | 485 mm | 505 mm | 547 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Head Tube Length | 90 mm | 100 mm | 112 mm | 125 mm | 143 mm | 170 mm | 205 mm |
| Head Tube Angle | 70° | 71.5° | 72° | 72.75° | 73.5° | 73.5° | 74° |
| BB Height | 265 mm | 265 mm | 265 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| BB Drop | 77.5 mm | 77.5 mm | 77.5 mm | 76 mm | 76 mm | 74.5 mm | 74.5 mm |
| Trail | 71 mm | 62 mm | 59 mm | 61 mm | 55 mm | 55 mm | 52 mm |
| Fork Length, Full | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 580 mm | 581 mm | 586 mm | 585 mm | 592 mm | 607 mm | 618 mm |
