[Pre-Owned] 2022 Specialized Fuse Comp 29 - Size XL Features

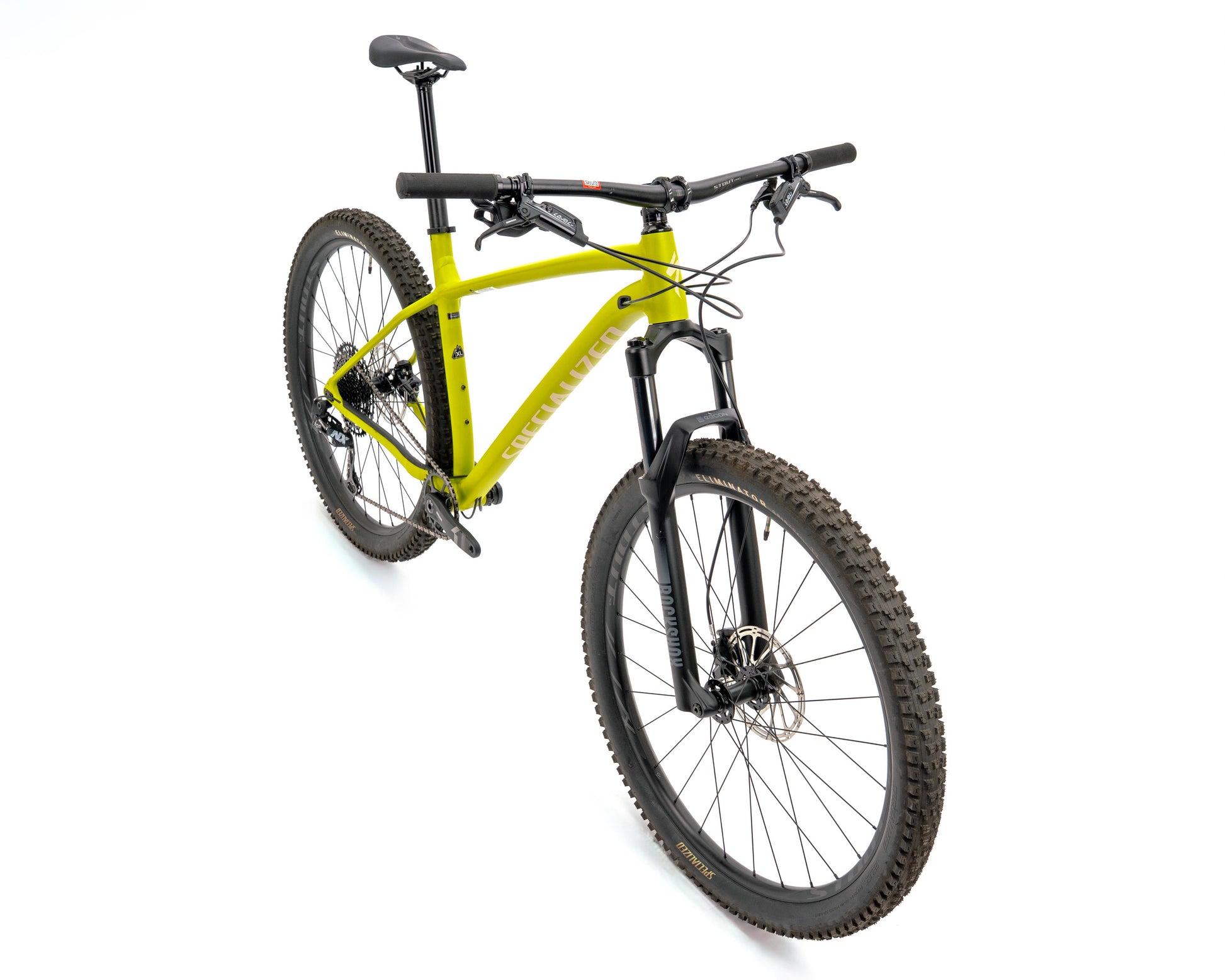

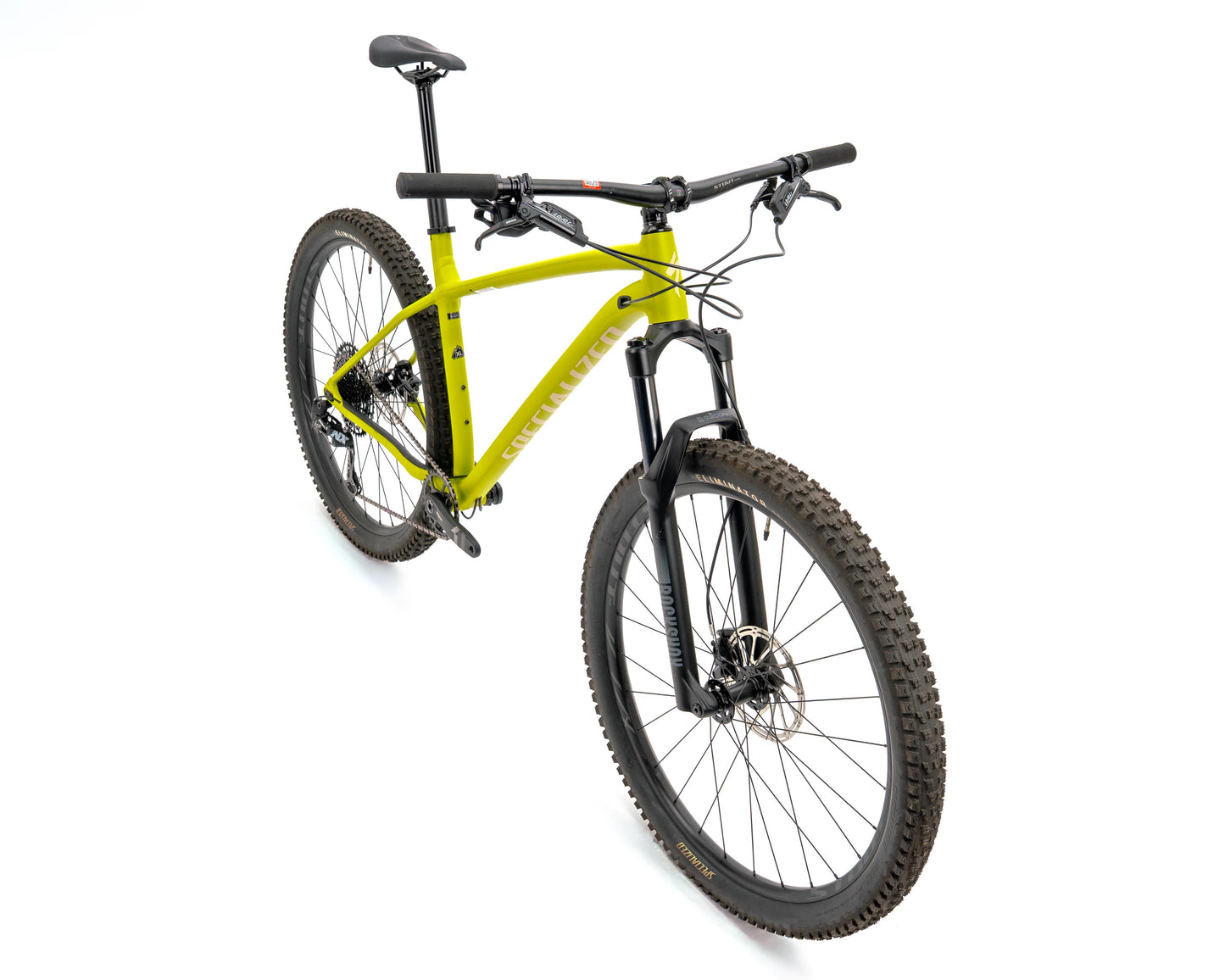

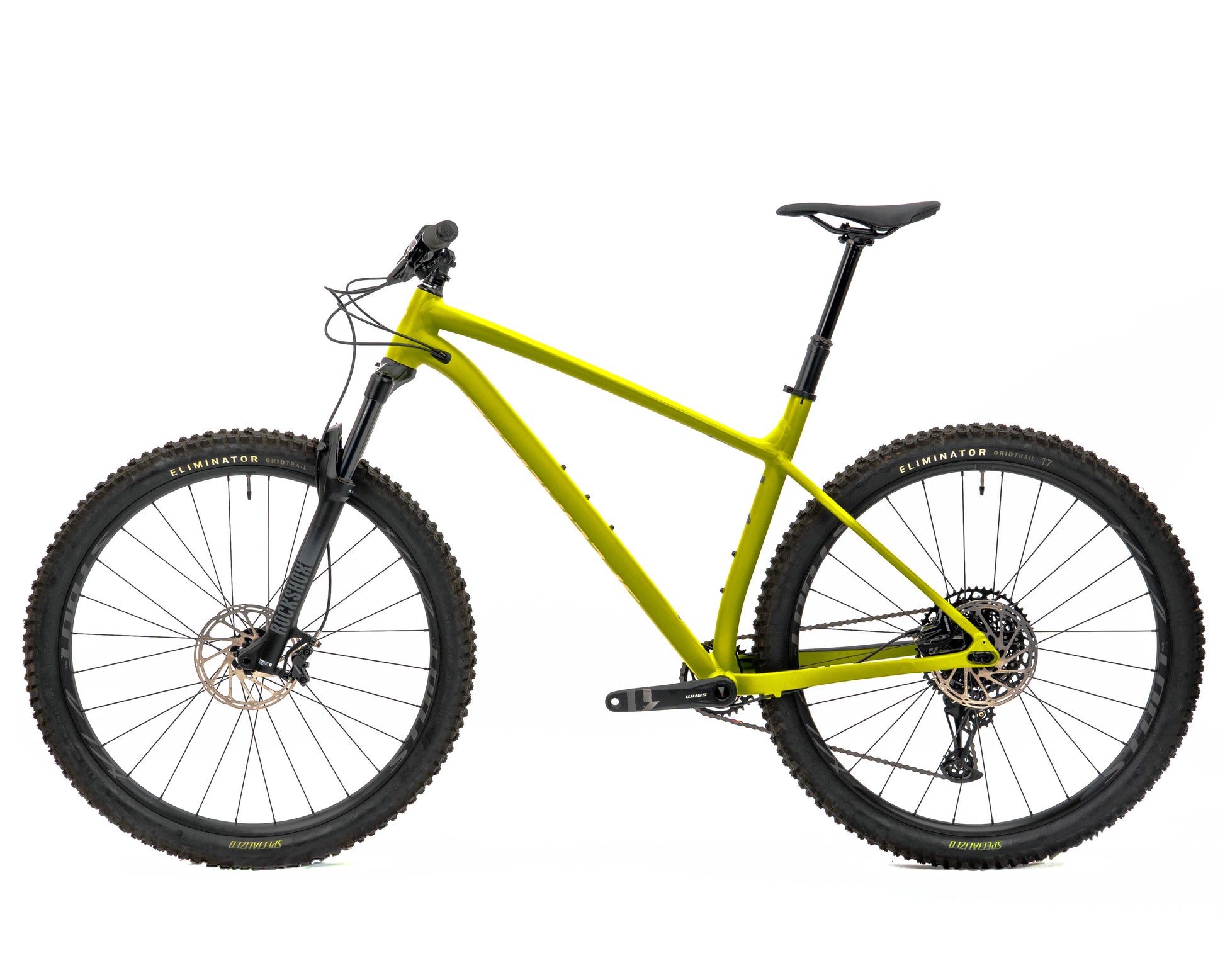

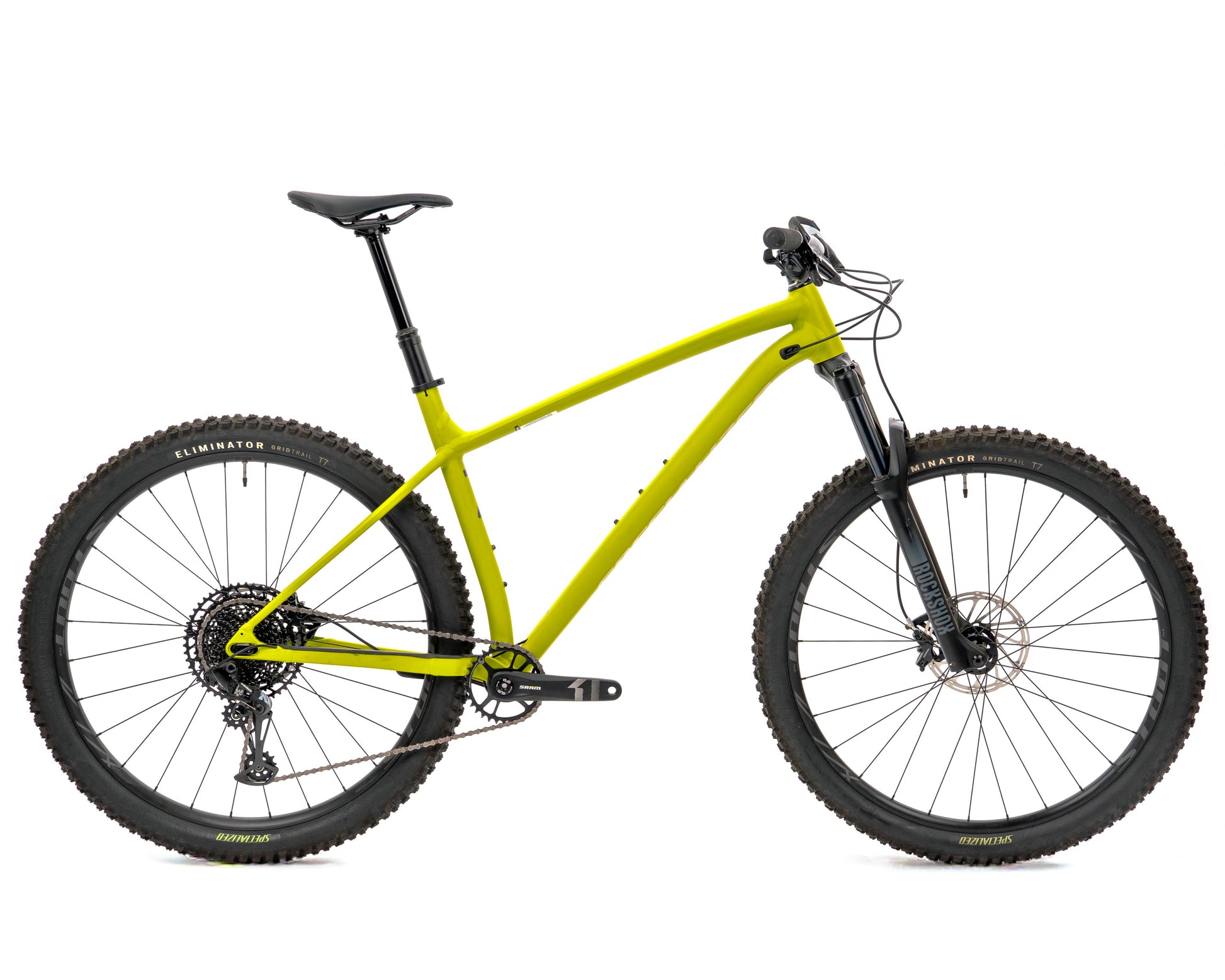

This is a pre-owned 2022 Specialized Fuse Comp 29 - Size XL. Please reference photos and description for condition.Bike is sold as-is, subject to manufacturers’ warranties (to the extent applicable and available).
Disclaimer: This bike was apart of our Demo/Rental Program and may have had multiple riders.
The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging. ROWDY BY DESIGN The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverability. And while this Fuse’s 29x2.6 tires give it a precise, nimble feel, the M4 aluminum frame is also compatible with 27.5+ wheels and tires. PERFECTLY DIALED If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
At a Glance

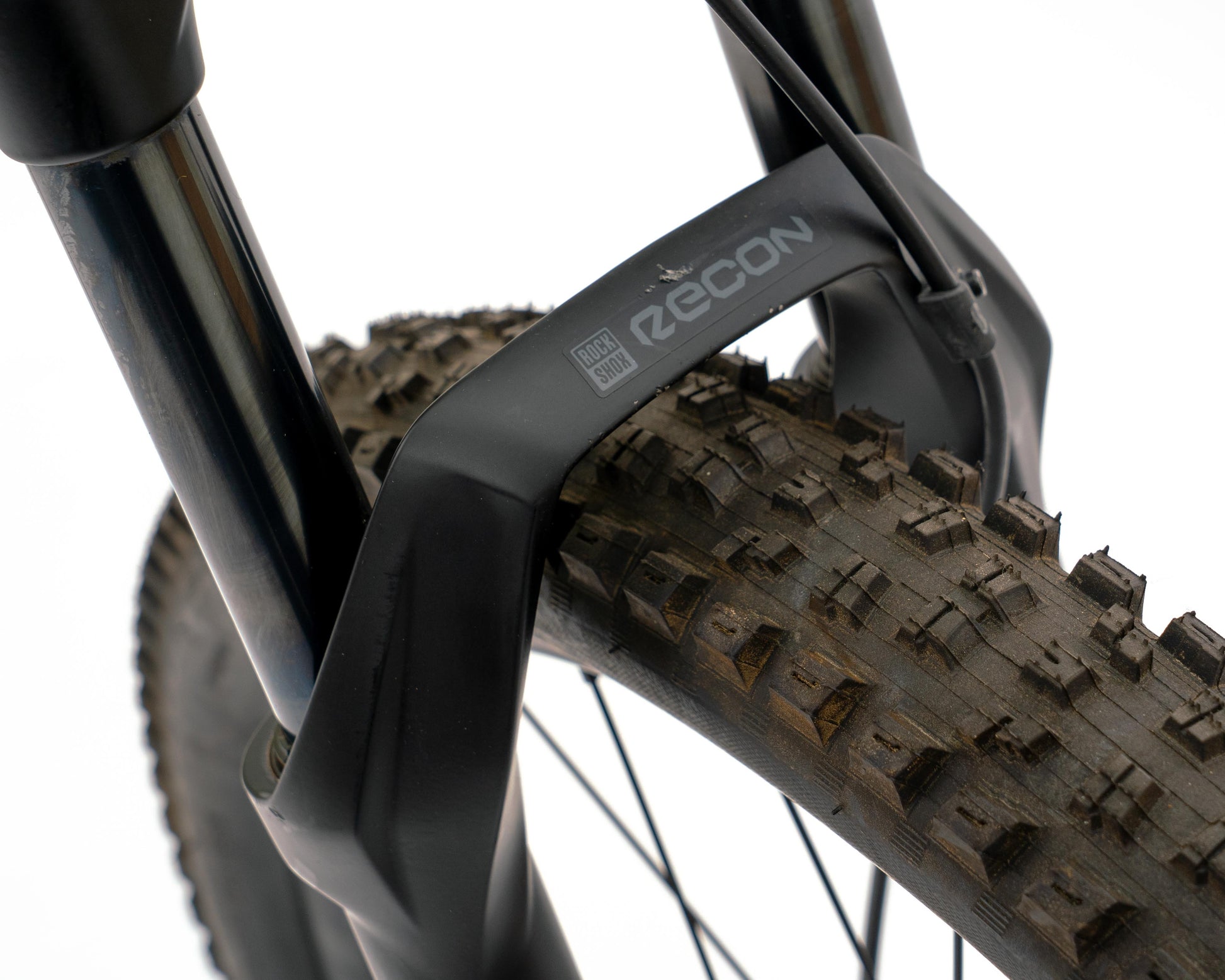

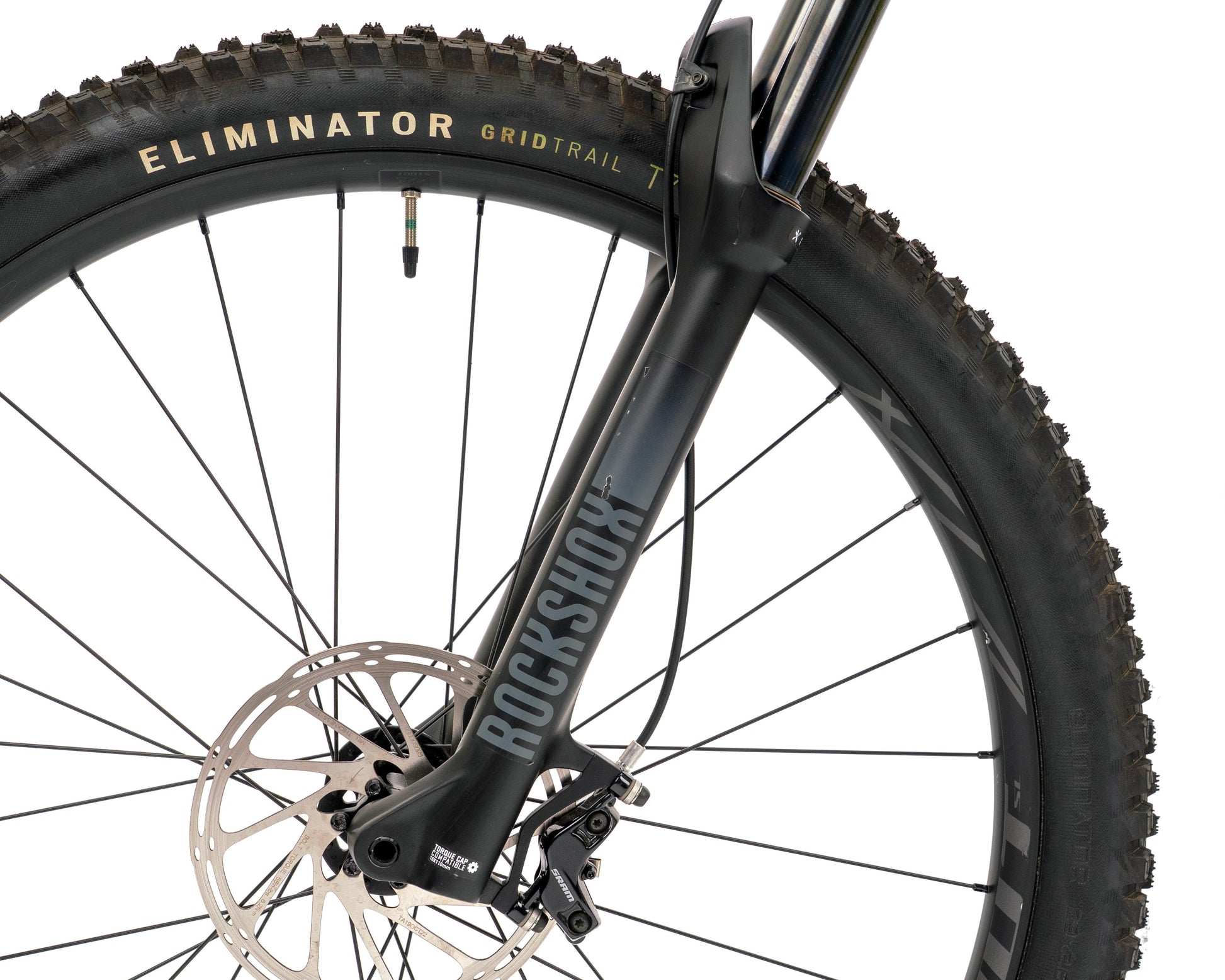

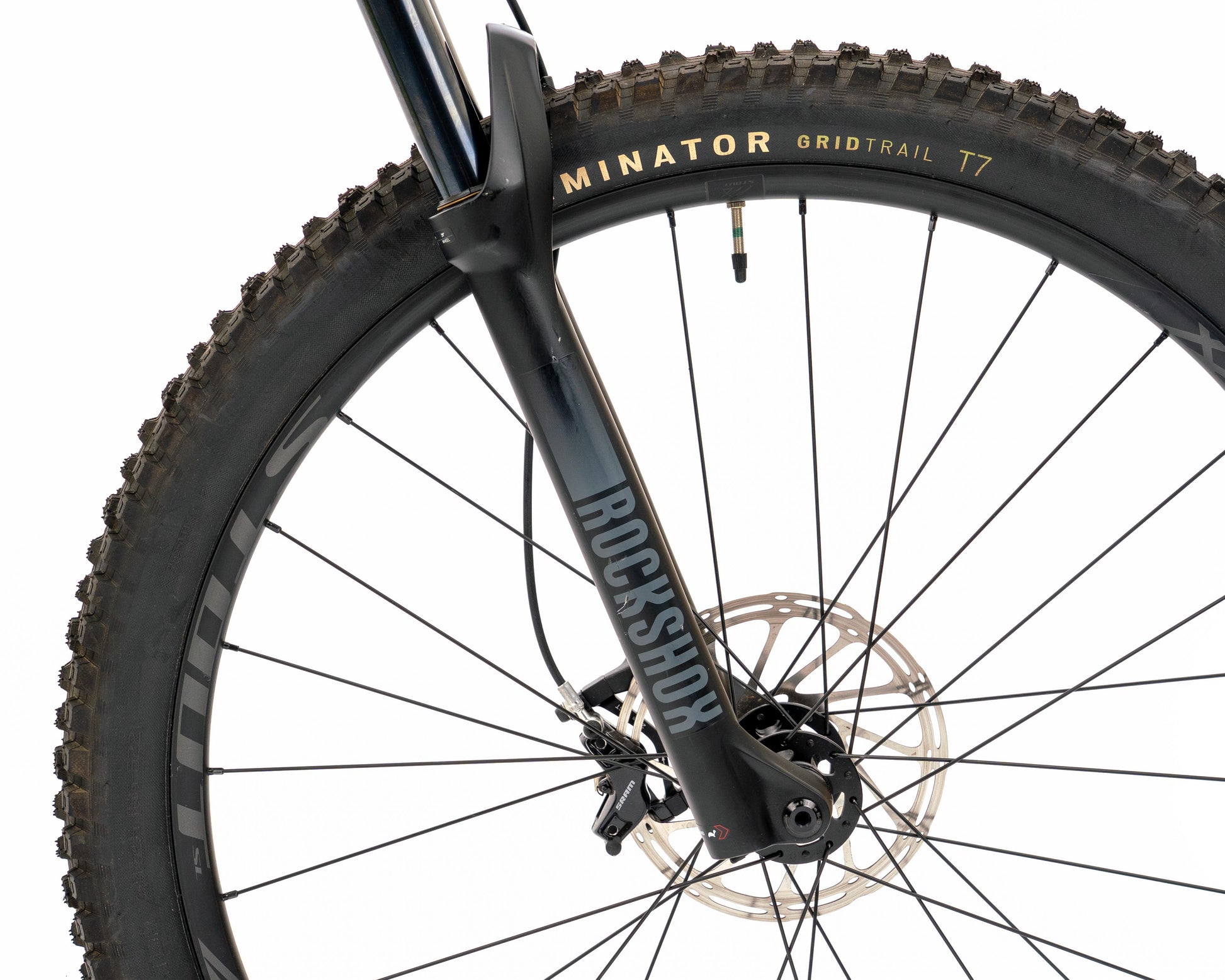

- 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
- Highlights include powerful SRAM Level TRL disc brakes and a TranzX dropper post.

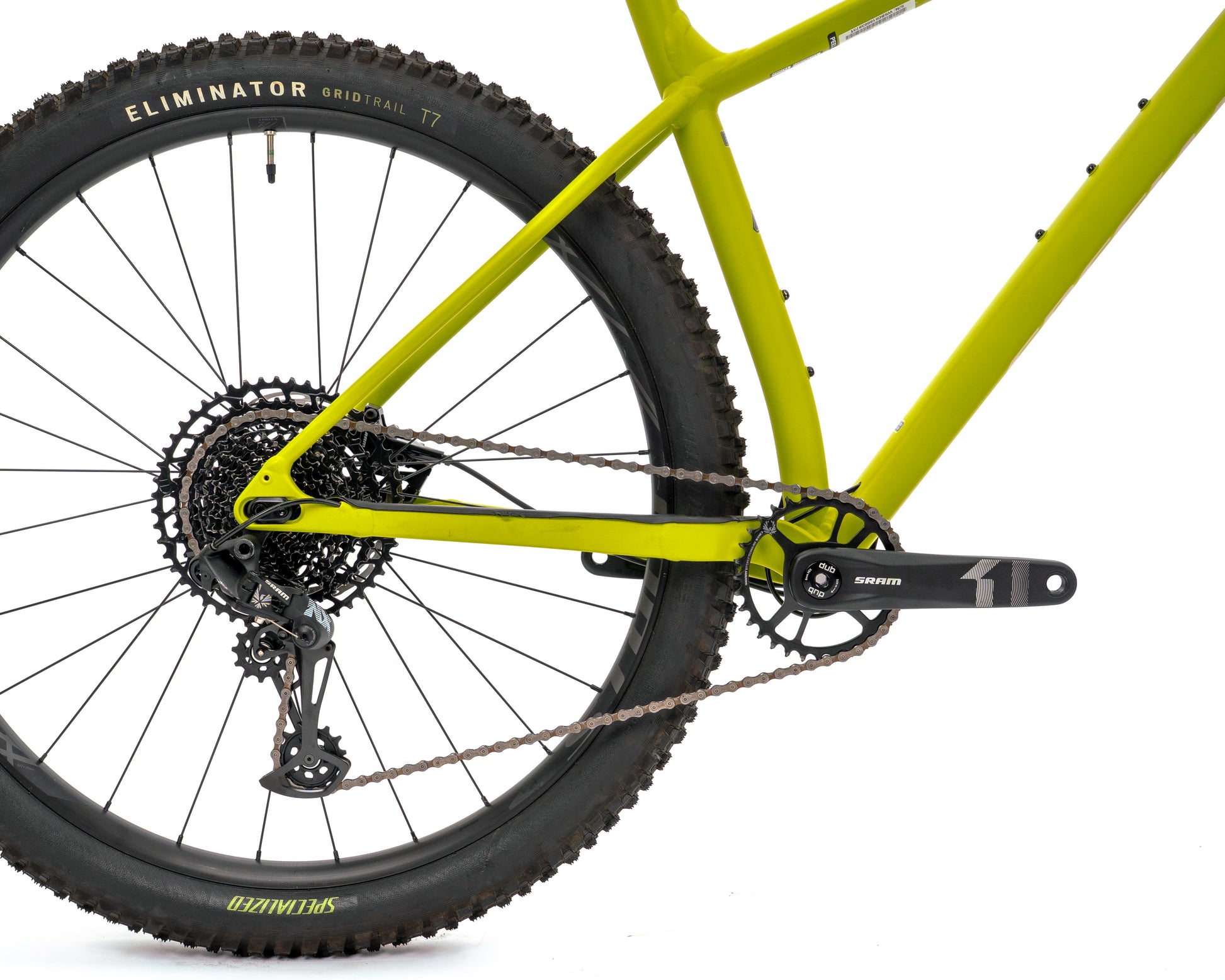

- SRAM NX Eagle drivetrain gives you single-ring simplicity and gearing to spare.
Component Specifications
| Frameset |
frame
seat binder
|
| Suspension |
fork
|
| Brakes |
front brake
rear brake
|
| Drivetrain |
shift levers
rear derailleur
cassette
chain
crankset
chain rings
bottom bracket
|
| Wheels & Tires |
rims
front hub
rear hub
spokes
front tire
rear tire
inner tubes
|
| Cockpit |
stem
handlebars
grips
saddle
seatpost
|
[Pre-Owned] 2022 Specialized Fuse Comp 29 - Size XL
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 625 mm | 625 mm | 625 mm | 639 mm | 652 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Chain-Stay Length - short | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Chain-Stay Length - long | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1122 mm | 1142 mm | 1162 mm | 1188 mm | 1214 mm |
| Top-Tube Length (horizontal) | 579 mm | 599 mm | 619 mm | 643 mm | 667 mm |
| Bike Stand-Over Height | 727 mm | 747 mm | 750 mm | 754 mm | 793 mm |
| Seat-Tube Length | 340 mm | 375 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head-Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| B-B Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| B-B Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm | 113 mm |
| Fork Length (full) | 540 mm | 540 mm | 540 mm | 540 mm | 540 mm |
| Fork Rake/Offset | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Front-Center | 698 mm | 718 mm | 738 mm | 764 mm | 790 mm |
Component Geometry
| Component | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Crank Length | 170 mm | 170 mm | 170 mm | 170 mm | 175 mm |
| Handlebar Width | 750 mm | 750 mm | 780 mm | 780 mm | 780 mm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Saddle Width | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 356 mm | 356 mm | 406 mm | 456 mm | 456 mm |
